AWS A5.4 E410NiMo-16
1kg,2kg,5kg,10kg,20kg
1lb;2lb;4.5lb;11lb;15lb;20lb;33lb;44lb
1.6mm,2.0mm,2.4mm,3.2mm,4.0mm,5.0mm
1/16 ″in;5/64″in;3/32″in;1/8″in;5/32″inch
Acceptable (design the pack with your logo)
15 Days
Product Description

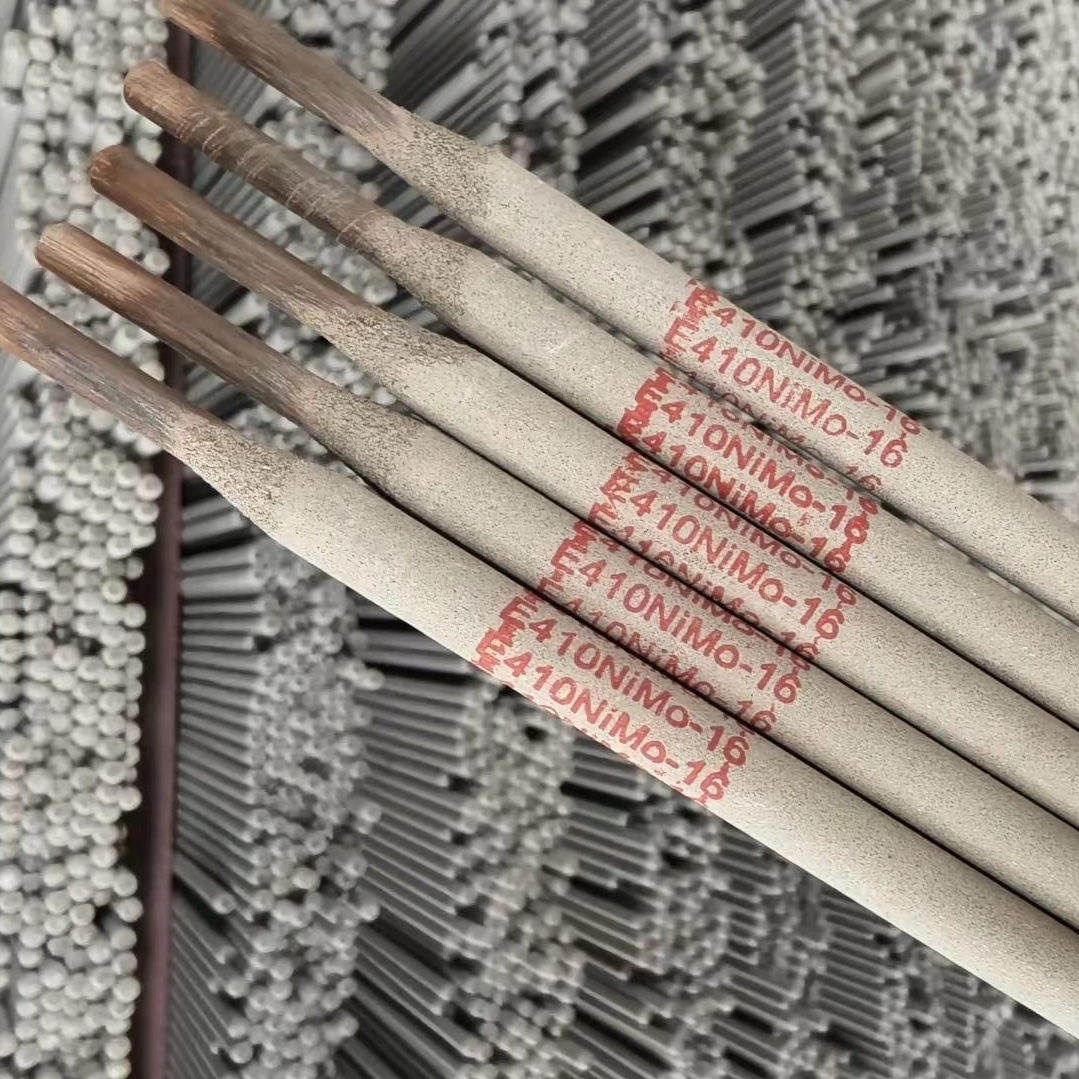

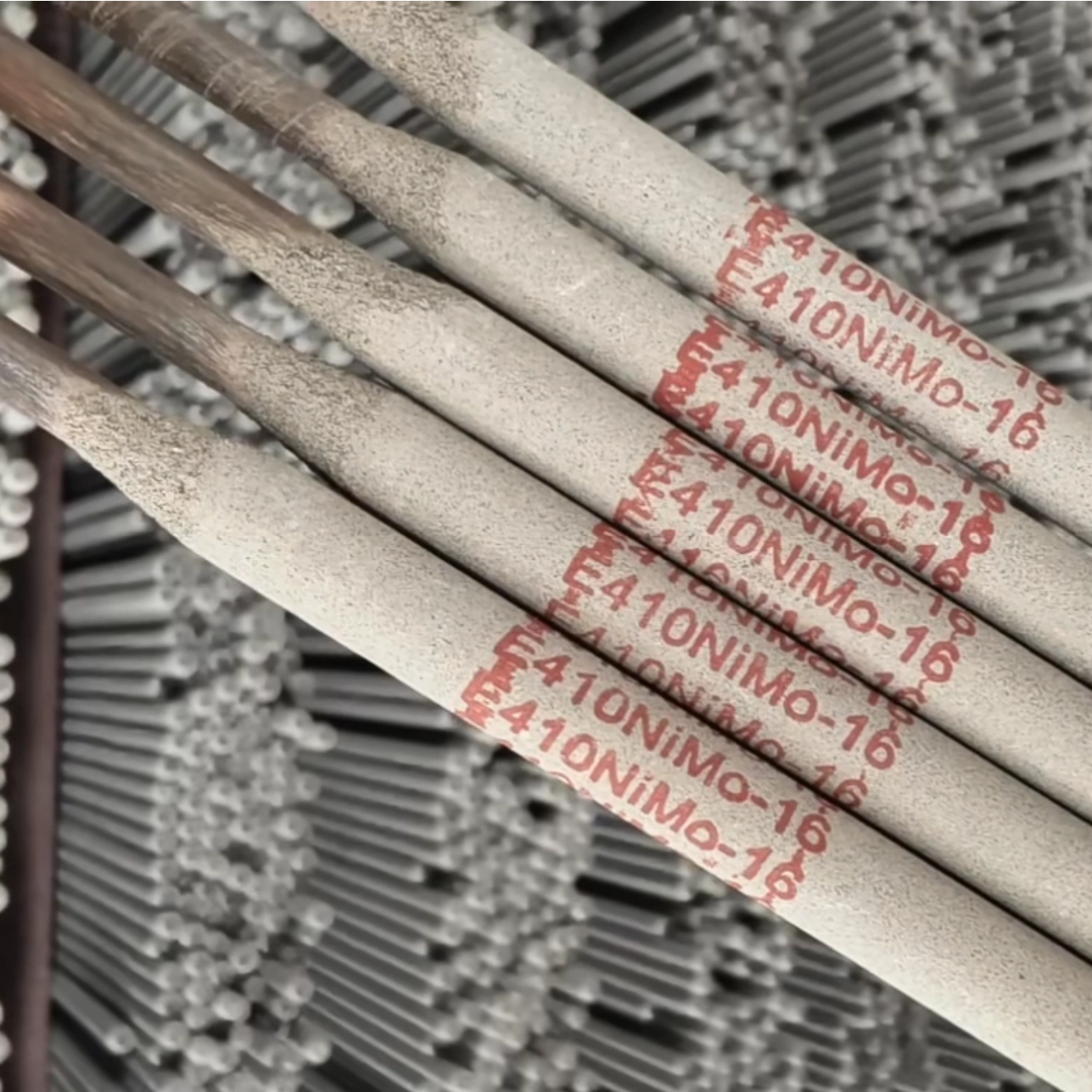

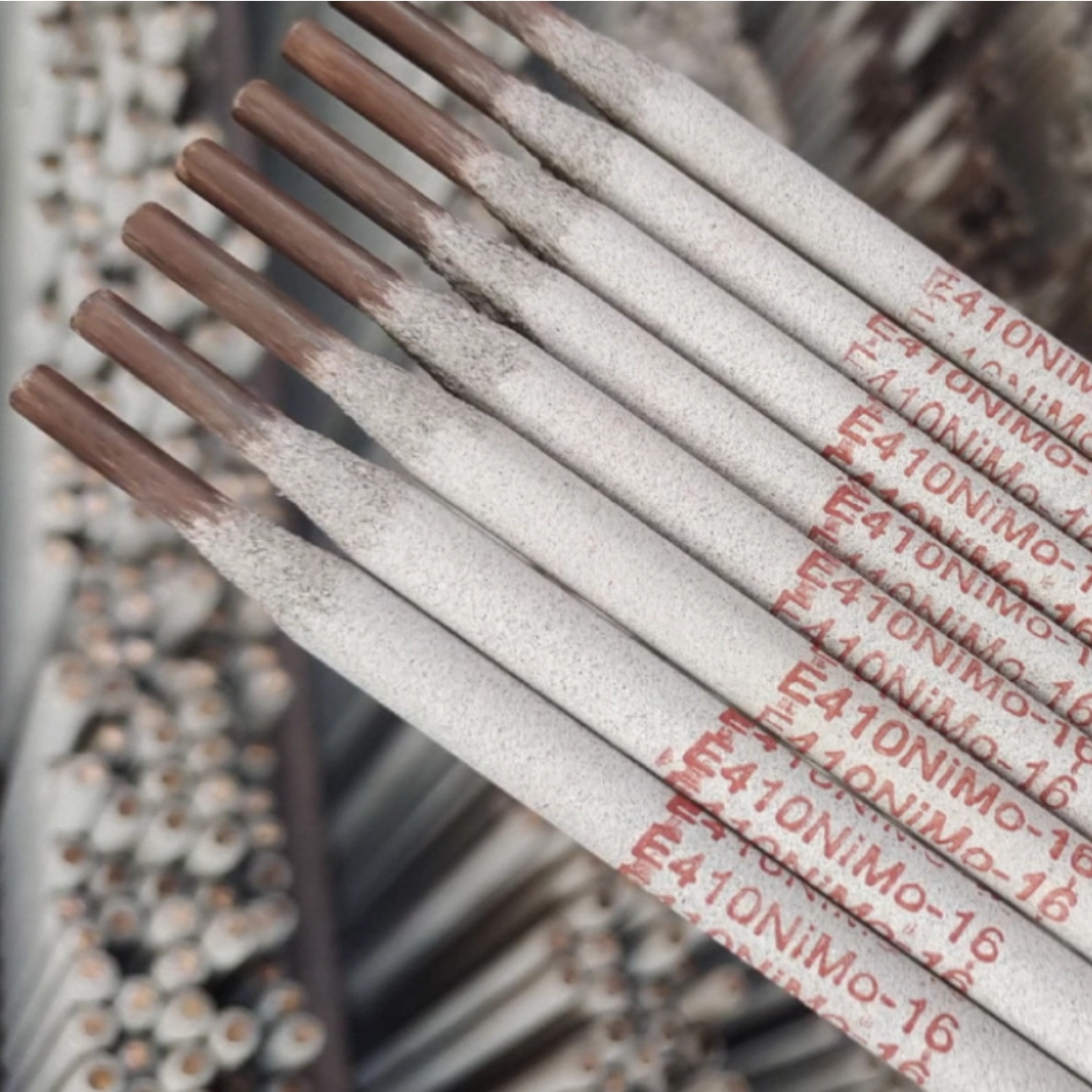

The **E410NiMo-16** welding electrode is specifically classified under **AWS A5.4**, which is the standard for covered stainless steel electrodes used in shielded metal arc welding (SMAW). The "E" explicitly denotes it as an electrode for this process. Its unique characteristic lies in its **410NiMo alloy composition**, a specialized **martensitic stainless steel**, designed for applications demanding high strength and hardness after precise heat treatment procedures. The "-16" indicates its rutile-titania coating, contributing to its weldability.
The "410NiMo" in the **E410NiMo-16** classification refers to its specific chemical makeup:
- **410**: This indicates a base chromium stainless steel, typically around 12% chromium.
- **Ni (Nickel)**: A small, controlled addition (around 4-6%) to enhance the weld metal's toughness, ductility, and overall weldability, especially crucial for martensitic steels.
- **Mo (Molybdenum)**: Included (around 0.4-0.7%) for improved corrosion resistance, particularly against pitting corrosion, and to boost high-temperature strength.
This carefully balanced composition results in a **low carbon martensitic stainless steel** deposit, known for its excellent mechanical properties suitable for demanding industrial applications.
**E410NiMo-16** welding electrodes are primarily employed for critical applications involving **CA6NM castings** and similar **martensitic stainless steels**. Key applications include:
- **Hydroelectric turbine runners and components**: Where exceptional strength, resistance to erosion, and cavitation resistance are paramount.
- **Pump and valve bodies**: Used extensively in the power generation, water treatment, and chemical processing industries.
- **Repair and surfacing of cast martensitic stainless steel components**: Providing a metallurgical match and restoring robust mechanical properties.
These specialized uses underscore its importance in heavy industrial and infrastructure projects.
The "-16" in the **E410NiMo-16** classification signifies a **rutile-titania type flux coating**. This type of coating is renowned for delivering superior welding characteristics, including a very stable and smooth arc, minimal spatter, excellent bead appearance with a finely rippled finish, and easily removable slag. The rutile coating also enables operation with both **AC (Alternating Current)** and **DCEP (Direct Current Electrode Positive)** polarity, offering versatile usability with various welding power sources and facilitating precise weld metal deposition in challenging positions.
Absolutely, **E410NiMo-16** is specifically engineered for **high-strength applications**. The weld metal it deposits forms a **martensitic stainless steel** structure, which, after the required post-weld heat treatment (PWHT) involving tempering, can achieve exceptionally high tensile strength and hardness. This makes it an ideal choice for components subjected to significant mechanical stresses, abrasive wear, and impact loading, such as those found in demanding environments like hydroelectric power plants, where structural integrity and durability are paramount for operational safety and longevity.
**E410NiMo-16** electrodes are designed for versatile use with both **AC (Alternating Current)** and **DCEP (Direct Current Electrode Positive)**. While DCEP is frequently preferred for its ability to provide deeper penetration and a more stable arc, which is often beneficial for the precise control needed when welding high-strength martensitic stainless steels, the option to use AC offers crucial flexibility. AC can be particularly advantageous in situations where **arc blow** (magnetic arc deflection) is a concern, or when an AC power source is the only available option, broadening its utility in diverse welding environments.
Given its **martensitic nature** and inherent susceptibility to **hydrogen cracking** and **cold cracking**, **preheating** is almost always a **mandatory requirement** when welding with **E410NiMo-16** electrodes. The typical preheat temperature range usually falls between **100°C and 250°C (200°F and 480°F)**, with the precise temperature depending on factors like base metal thickness, specific alloy composition, and the degree of joint restraint. Maintaining this preheat, along with strict interpass temperature control, is vital to slow down the cooling rate, prevent the immediate formation of brittle martensite, and significantly reduce the risk of cracking in both the weld metal and the heat-affected zone, ensuring the integrity of the martensitic stainless steel weld.
Yes, **post-weld heat treatment (PWHT)**, specifically **tempering**, is not just necessary but absolutely **critical** for welds made with **E410NiMo-16** electrodes. The as-welded martensitic structure is exceptionally hard and brittle, making it highly prone to cracking and lacking adequate toughness. Tempering, typically performed at temperatures such as 580-620°C (1075-1150°F) for a specified duration, is essential. This process dramatically enhances the weld metal's **toughness** and **ductility** while retaining its high strength, and it also effectively relieves detrimental residual stresses and further minimizes the risk of hydrogen-induced cracking. Without proper PWHT, the weld will not achieve its intended mechanical properties, severely compromising the component's reliability.
**E410NiMo-16** significantly contributes to **cavitation and erosion resistance** due to the robust properties of its tempered martensitic stainless steel weld metal. After undergoing the correct post-weld heat treatment, the resulting microstructure is remarkably hard and strong, enabling it to effectively withstand the intense impacts and localized stress concentrations caused by the collapse of vapor bubbles (cavitation) or the abrasive action of particles (erosion) within turbulent fluid flows. This inherent resilience makes it an exceptional material for repairing or fabricating components in hydraulic machinery, such as pump impellers, hydroelectric turbine runners, and other parts operating in highly aggressive fluid environments.
After being subjected to the appropriate post-weld heat treatment (tempering), **E410NiMo-16** weld metal typically demonstrates outstanding mechanical properties. While specific values may vary slightly depending on the exact tempering cycle employed, general characteristics include:
- **High Tensile Strength**: Often exceeding 950 MPa (140,000 psi)
- **High Yield Strength**: Frequently above 800 MPa (115,000 psi)
- **Good Elongation**: Typically in the range of 10-20%
- **Good Impact Toughness**: A crucial property for applications involving shock loads, such as turbine runners.
These combined properties ensure the weld is incredibly strong, durable, and reliable for demanding structural and wear-resistant applications, highlighting the superiority of tempered martensitic stainless steel.
Proper storage is of paramount importance for **E410NiMo-16** electrodes to preserve their critically low-hydrogen characteristics and prevent severe hydrogen-induced cracking. Electrodes should always be stored in **extremely dry conditions**, ideally in their original hermetically sealed containers. Once opened, these electrodes are highly sensitive to moisture absorption from the atmosphere. Consequently, they must be immediately transferred to a **heated electrode holding oven (quiver)** maintained at a temperature of approximately 100°C to 150°C (212°F to 300°F). If electrodes have been exposed to humid air for an extended duration, a mandatory re-baking procedure at higher temperatures (e.g., 300-350°C for 2 hours), strictly following manufacturer recommendations, is essential to restore the lowest possible hydrogen content in the weld metal, which is absolutely vital for preventing cold cracking in susceptible martensitic stainless steel welds.
While **E410NiMo-16** is exceptionally effective for its intended purpose, its use for welding other stainless steel grades is generally **not recommended or limited to very specific circumstances**. This electrode produces a martensitic weld deposit, which has vastly different metallurgical and mechanical properties (such as high hardness and the mandatory requirement for PWHT) compared to common austenitic (e.g., 304L, 316L) or ferritic stainless steels. Welding austenitic stainless steels with E410NiMo-16 would introduce a hard and brittle martensitic zone into a ductile material, severely compromising its flexibility, impact resistance, and corrosion characteristics. Therefore, it is a highly specialized electrode specifically engineered for welding martensitic stainless steel applications and should not be considered a general-purpose stainless steel filler metal.
The typical range of welding current for **E410NiMo-16** electrodes is influenced by the electrode diameter, welding position, and specific manufacturer guidelines. However, generally accepted approximate current ranges are:
- **2.5 mm (3/32 inch)**: 70 - 100 Amps
- **3.2 mm (1/8 inch)**: 90 - 130 Amps
- **4.0 mm (5/32 inch)**: 120 - 170 Amps
It is always imperative to consult the specific electrode manufacturer's technical data sheet for the most precise and optimal current settings. Proper current selection, along with diligent preheat and interpass temperature control, is fundamental for achieving sound, defect-free welds with the desired mechanical properties in challenging martensitic stainless steel fabrication and repair tasks.
The **low carbon content** in **E410NiMo-16** (typically maintained below 0.06%) is a defining and crucial aspect of its design, particularly for a martensitic stainless steel. This carefully controlled lower carbon level significantly reduces the as-welded hardness of the weld deposit, which in turn helps to substantially mitigate the risk of **cold cracking (hydrogen cracking)**. While the weld metal will still transform to a martensitic structure upon cooling, the reduced carbon content renders this martensite less brittle, thereby markedly improving its toughness and ductility after tempering. This optimized carbon level is absolutely vital for achieving the critical balance of high strength, adequate toughness, and good weldability required for components like hydroelectric turbine parts, ultimately enhancing the overall integrity and longevity of the martensitic stainless steel weldments.
Controlling the **interpass temperature** is an extremely critical aspect when welding with **E410NiMo-16** electrodes. This temperature must be diligently maintained within the specified preheat range (e.g., 100-250°C) throughout the entire welding process. Allowing the interpass temperature to drop below the minimum threshold significantly elevates the risk of **cold cracking**, primarily due to the formation of brittle untempered martensite and increased susceptibility to hydrogen embrittlement. Conversely, permitting the temperature to rise too high can lead to undesirable effects such as excessive grain growth or the precipitation of detrimental carbides, potentially compromising the final mechanical properties. Consistent and precise temperature management between passes is therefore paramount for producing sound, crack-free welds in martensitic stainless steel applications.
Yes, **E410NiMo-16** is exceptionally suitable and frequently utilized for **repairing cracks** in components manufactured from martensitic stainless steels, most notably **CA6NM castings** commonly found in hydroelectric turbine runners. Its precise metallurgical match to these base materials, combined with its capacity to achieve high strength and excellent toughness after proper post-weld heat treatment, makes it an outstanding choice for restoring the structural integrity of worn or damaged parts. The superior crack resistance it offers, particularly when stringent preheat and interpass temperature controls are rigorously followed, positions it as an invaluable tool for maintenance, refurbishment, and life extension of critical industrial components in demanding sectors.
Thorough and precise **joint preparation** is absolutely paramount for successful **E410NiMo-16** welding. The joint surfaces must be meticulously cleaned and entirely free from any contaminants such as grease, oil, rust, mill scale, paint, or moisture. The presence of these impurities can introduce hydrogen and other undesirable elements into the weld, significantly increasing the risk of cracking and porosity. A V-groove or U-groove preparation is typically employed, with groove angles and root openings carefully designed to ensure proper penetration and easy access for the electrode. Crucially, all grinding and cleaning tools should be dedicated to stainless steel to prevent any cross-contamination, which could compromise the final weld's quality and integrity in high-strength martensitic stainless steel applications.
While **E410NiMo-16** is recognized for its excellent toughness at ambient temperatures following proper tempering, its **impact resistance at low temperatures** requires careful consideration. Like many martensitic steels, it exhibits a ductile-to-brittle transition temperature (DBTT). This means that at temperatures below the DBTT, the material's toughness significantly decreases, making it more prone to brittle fracture under impact. Therefore, for applications demanding reliable impact toughness at sub-zero temperatures, meticulous selection of the specific tempering parameters is essential. Additionally, Charpy impact testing at the lowest expected service temperature is often a mandatory requirement to confirm its suitability and ensure the tempered martensitic stainless steel retains adequate impact strength for safe operation in cold environments.
Not performing **post-weld heat treatment (PWHT)** on **E410NiMo-16** welds carries severe and potentially catastrophic implications. The as-welded condition of this martensitic stainless steel is characterized by an extremely **hard, untempered martensite** microstructure, which is inherently **brittle** and highly susceptible to **cold cracking (hydrogen cracking)**, sometimes occurring days after welding. Without tempering, the weld metal will possess critically low ductility and toughness, rendering it highly prone to brittle fracture under operational stresses or impact loads. PWHT is not an optional step but an absolutely fundamental requirement for this electrode to achieve its designed mechanical properties, relieve detrimental residual stresses, and ensure the long-term structural integrity and safe operation of components fabricated from martensitic stainless steel.
The typical deposition efficiency of **E410NiMo-16** electrodes, consistent with other shielded metal arc welding (SMAW) consumables, generally ranges from **60% to 70%**. This efficiency figure indicates that approximately 60% to 70% of the electrode's core wire and flux material is transformed into deposited weld metal, with the remaining percentage accounted for by stub ends, spatter, and slag. While this level of efficiency is lower compared to some automated welding processes, it is considered standard for manual stick welding of specialized martensitic stainless steel. Factors such as the welder's technique, precise current settings, and electrode angle can all influence the actual deposition efficiency achieved during the fabrication or repair of these critical components.
The "E" in **E410NiMo-16** explicitly signifies that it is a **covered electrode** designed for **shielded metal arc welding (SMAW)**, commonly known as "stick welding." This differentiates it from "R" designated filler metals (e.g., ER410NiMo), which are typically bare rods used for Gas Tungsten Arc Welding (GTAW/TIG) or Gas Metal Arc Welding (GMAW/MIG). The presence of the flux coating on an "E" electrode provides shielding, deoxidizers, and alloying elements, making it a self-contained consumable for manual arc welding, highly valued for its versatility in field repairs and demanding applications where precise heat input and controlled deposition are required for martensitic stainless steel.
