ER1070
0.5kg,1kg,2kg,5kg,7kg,9kg
1lb;2lb;4.5lb;11lb;15lb;20lb
0.8mm;0.9mm;1.0mm;1.2mm;1.6mm;2.0mm
0.023;0.030in;0.035in;3/64″;0.045;1/16″;5/64″
1.6mm,2.0mm,2.4mm,3.2mm,4.0mm,5.0mm
1/16 ″in;5/64″in;3/32″in;1/8″in;5/32″inch
D100,D200,D270,D300,S300,S360
Acceptable (design the pack with your logo)
15 Days
Product Description
1）High Purity Aluminum: ER1070 contains a very high percentage of aluminum, typically 99.7% or greater. This high purity distinguishes it from alloyed aluminum wires and contributes significantly to its unique properties.
2）Excellent Electrical and Thermal Conductivity: A direct result of its high purity, ER1070 offers superior electrical and thermal
conductivity. This makes it an ideal choice for welding electrical conductors like busbars, as well as heat exchangers and other applications where efficient energy transfer is critical.
3）Superior Corrosion Resistance: It boasts excellent resistance to corrosion, especially against chemical attack and atmospheric conditions. This feature is highly valued in industries like chemical processing, food handling, and marine environments where exposure to corrosive elements is common.
4）Good Ductility and Formability: Welds created with ER1070 exhibit good ductility and formability. The weld metal is relatively soft, allowing it to be shaped, bent, or drawn after welding without cracking. This is beneficial for components that require post-weld fabrication.
5）Excellent Anodizing Match: One of its notable aesthetic features is its ability to provide a good color match after anodizing. The weld bead typically presents a bright, clean, and consistent appearance post-anodization, which is crucial for applications where visual appeal and uniform finish are important.
6）Good Weldability and Arc Characteristics: ER1070 generally offers good weldability when proper cleaning procedures are followed. It produces a stable arc and results in a beautiful, bright weld bead with minimal spatter, contributing to high-quality weld appearances.
AWS A 5.10 ER1070 aluminium alloy welding wire.pdf
Standard： AWS A5.10 ER1070 | Chemical Composition % | |||||||||||||
Si | Fe | Cu | Mn | Zn | Mg | Ti | AL | Other Each | ||||||
Grade ER1070 | ≤ 0.20 | ≤ 0.25 | ≤ 0.04 | ≤ 0.03 | ≤ 0.04 | ≤ 0.03 | ≤ 0.03 | ≥ 99.70 | ≤ 0.03 | |||||
Type | Spool (MIG) | Tube (TIG) | ||||||||||||
Specification (MM) | 0.8、0.9、1.0、1.2、1.6、2.0 | 1.6、2.0、2.4、3.2、4.0、5.0 | ||||||||||||

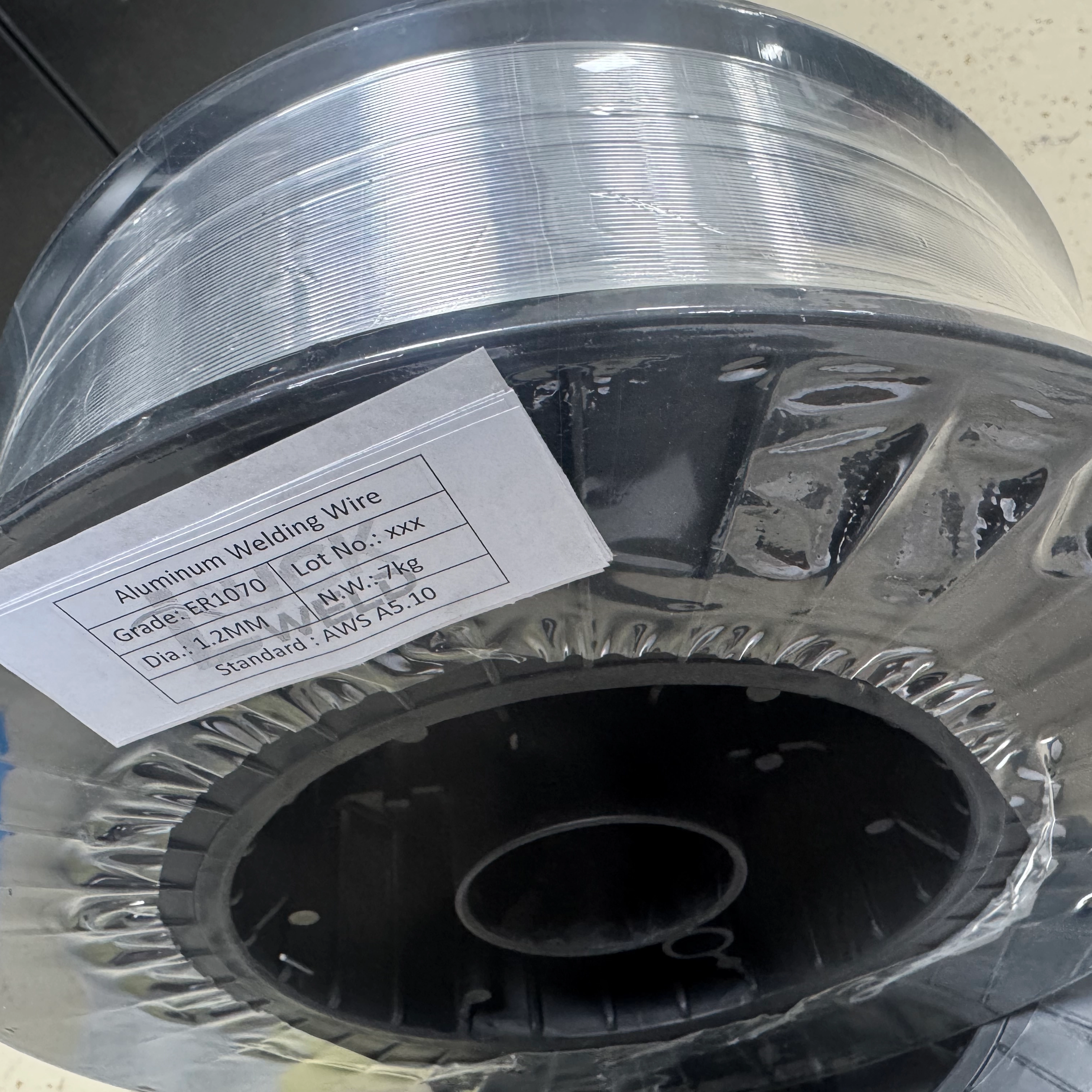

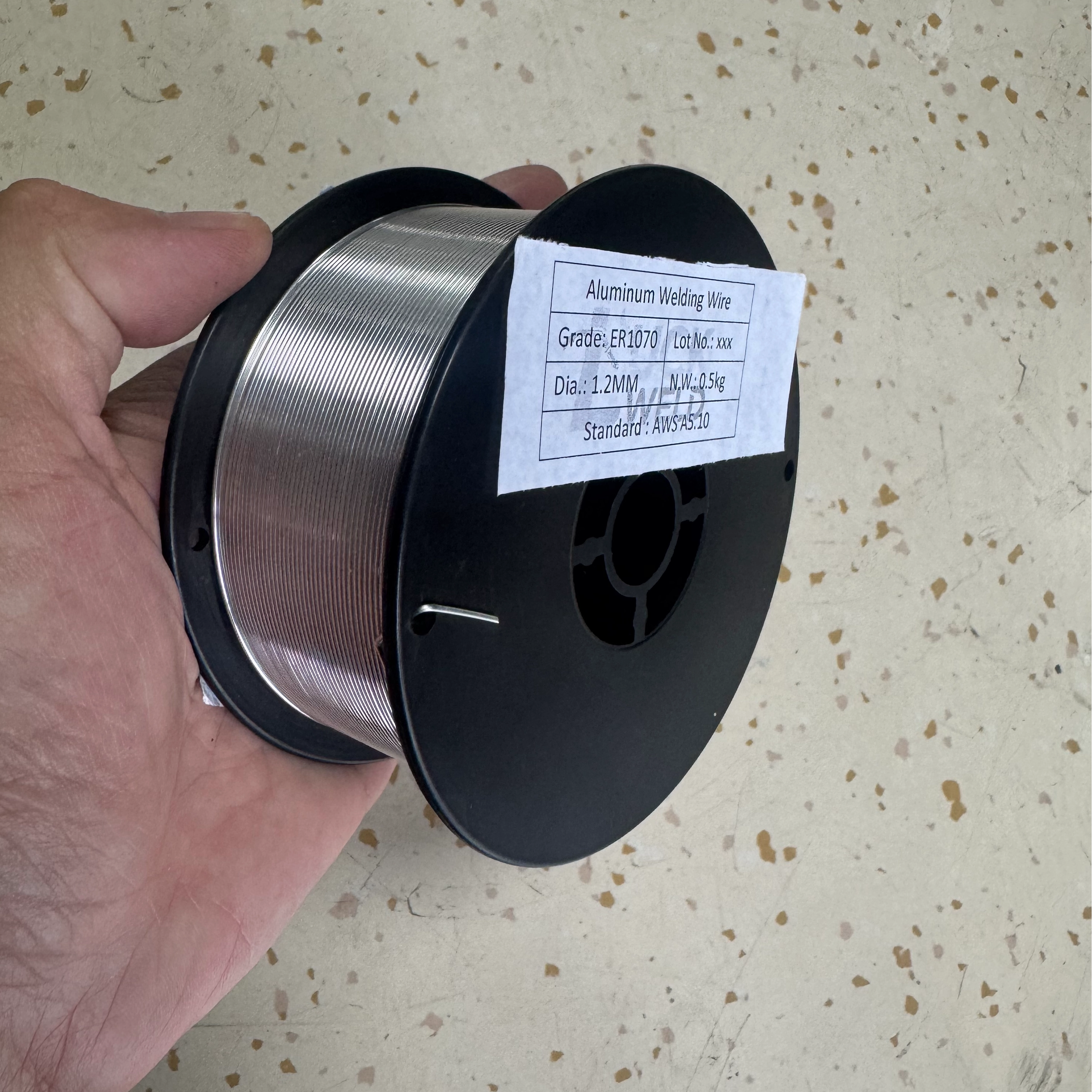

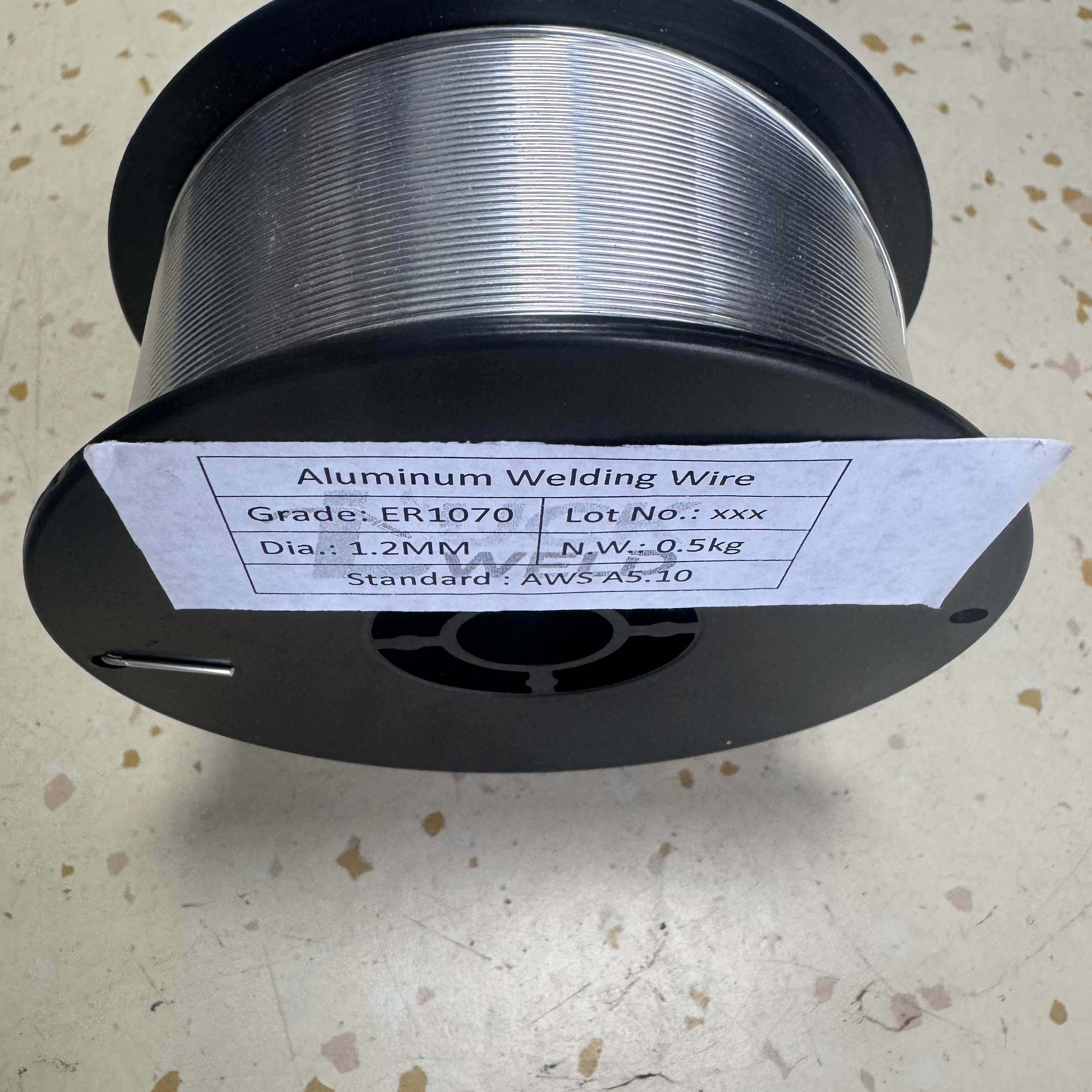

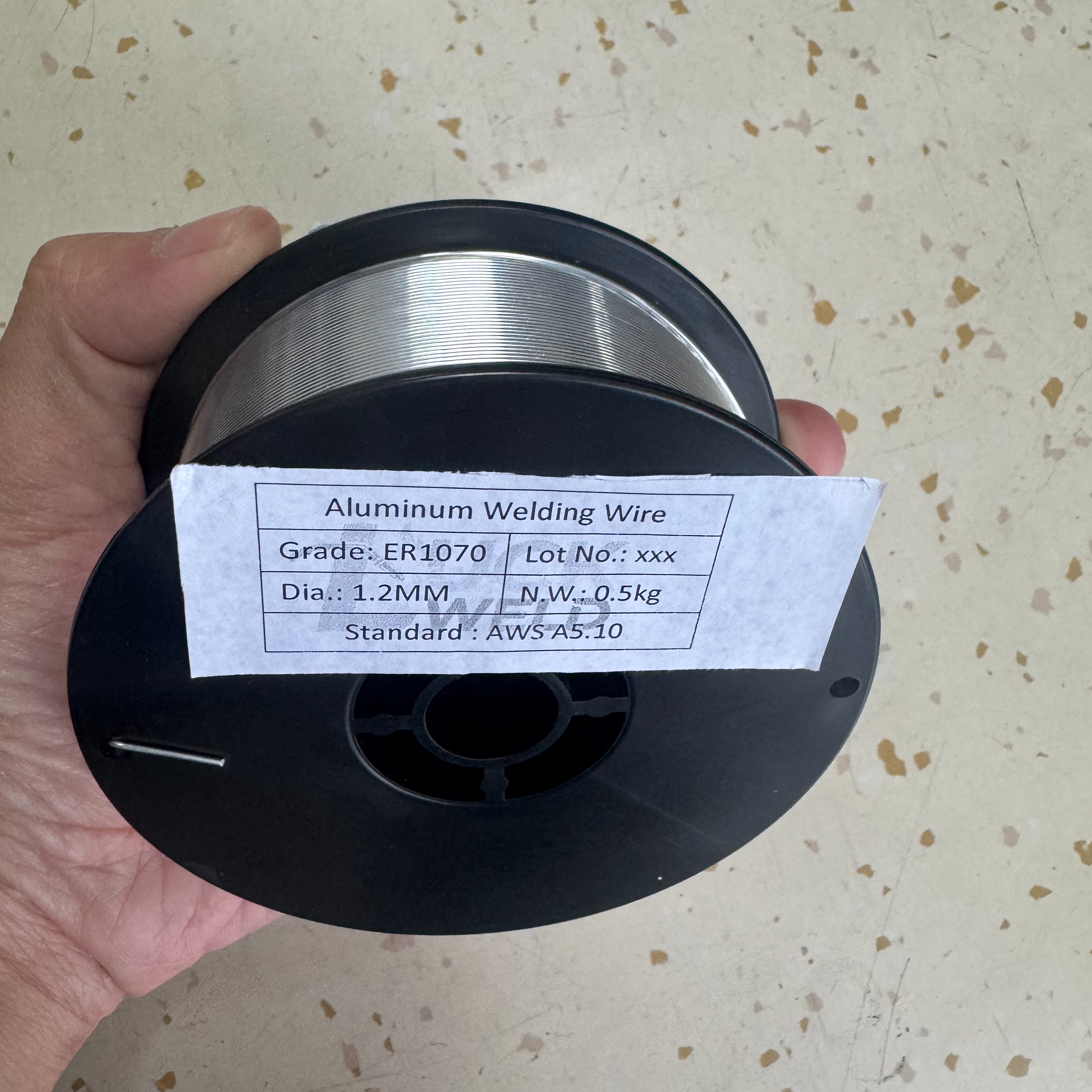

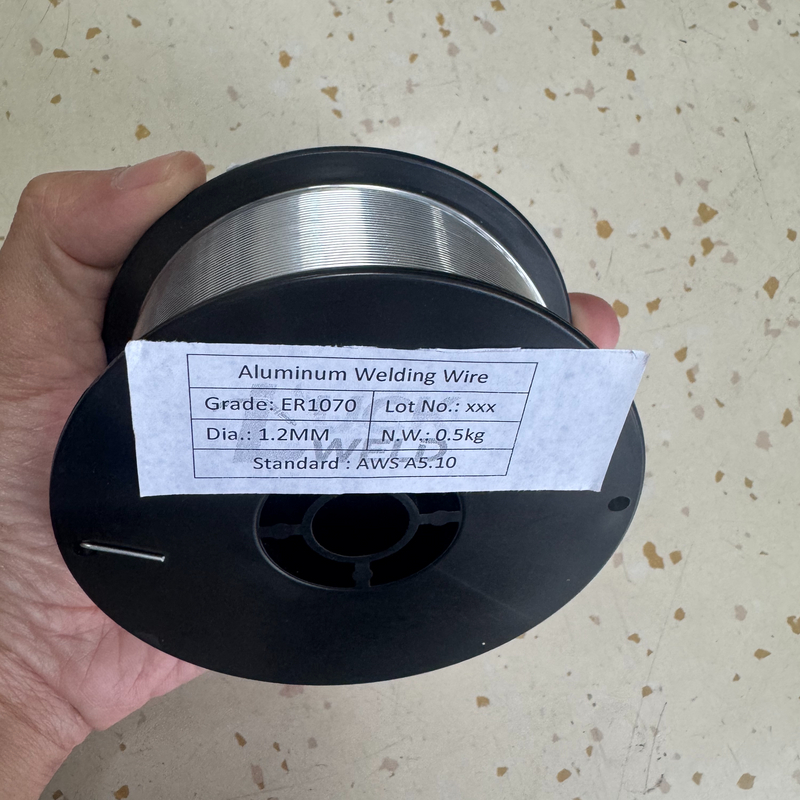

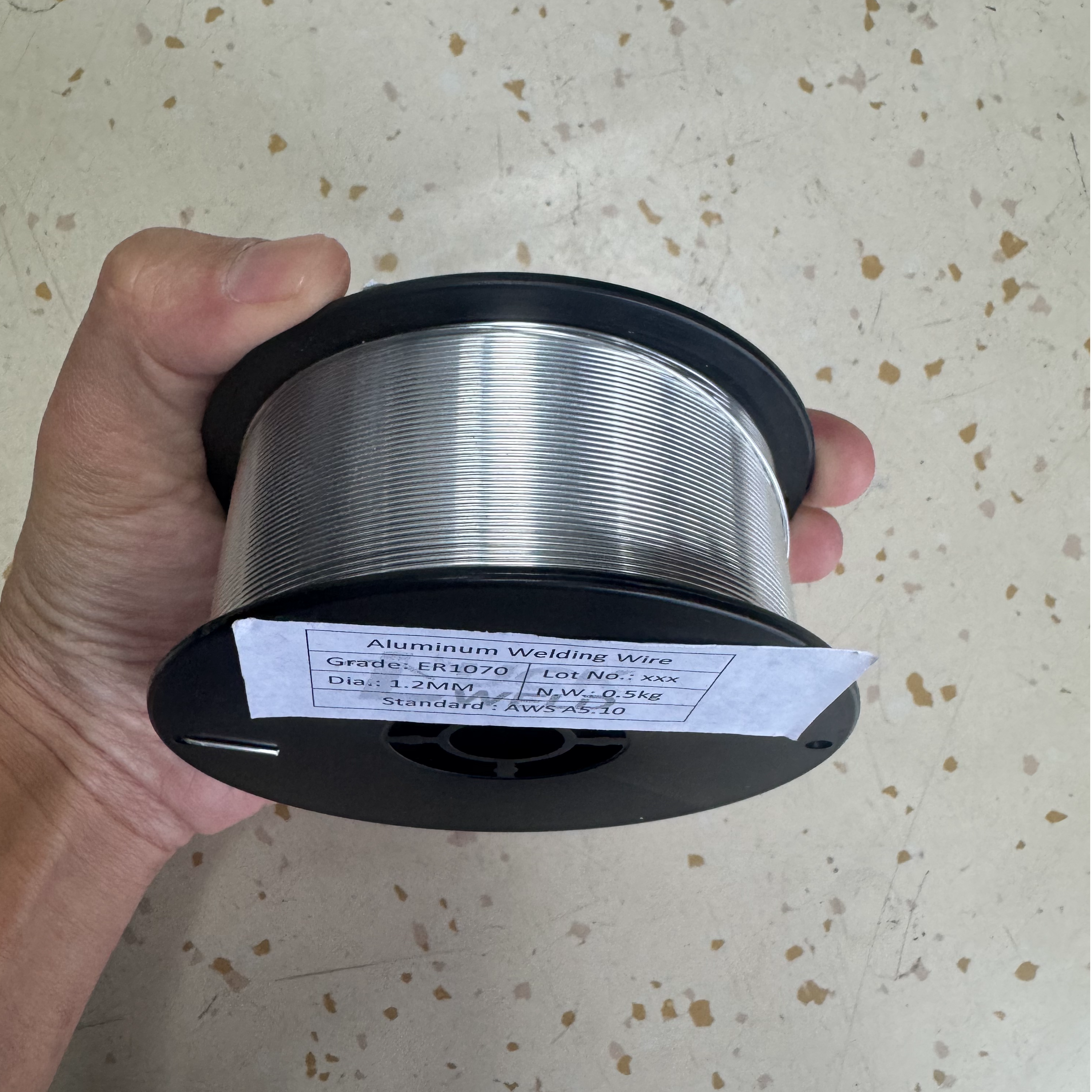

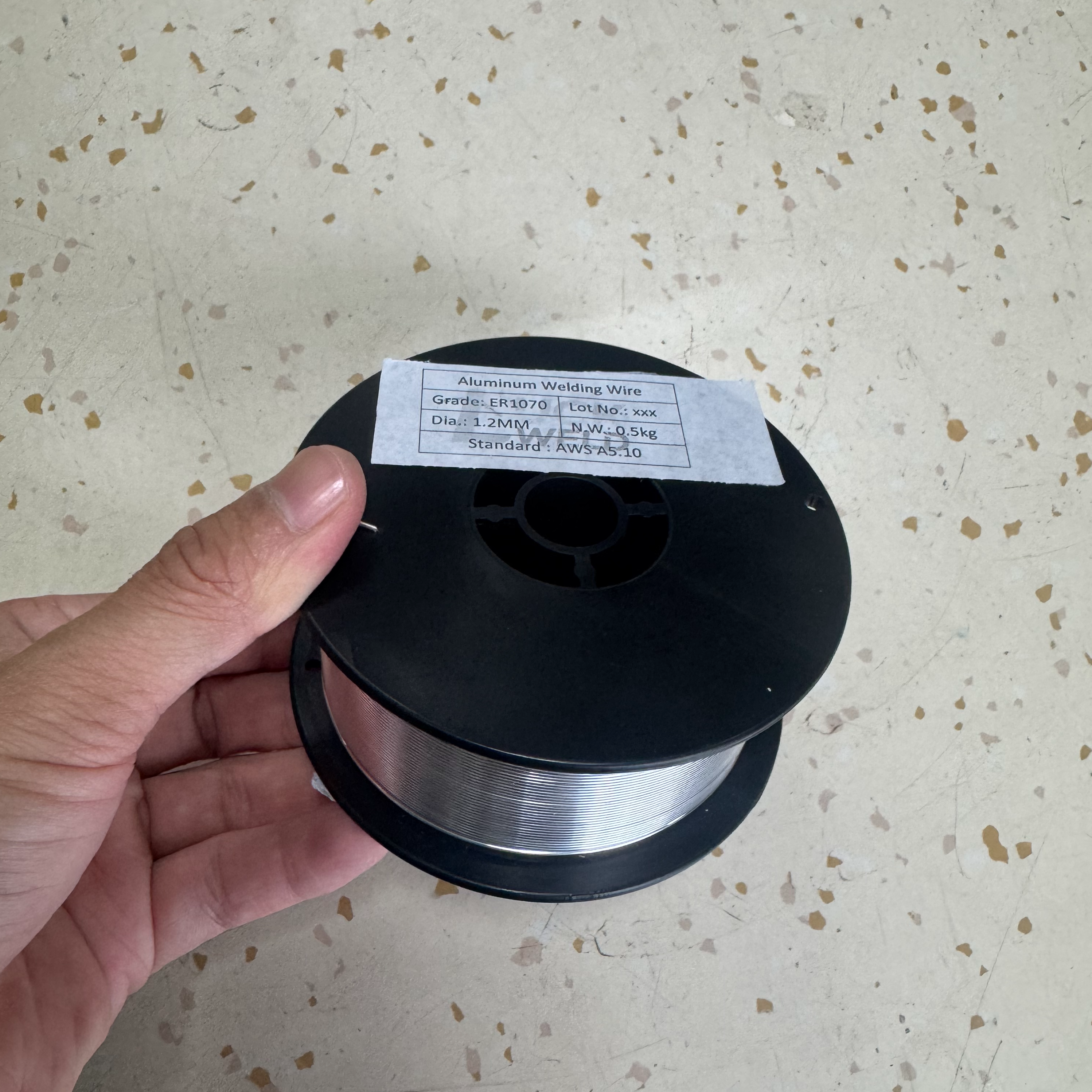

Package | S100/0.5kg S200/2kg S270,S300/6kg-7kg S360/20kg | 5kg/box 10kg/box length :1000MM | ||||||||||||
Mechanical Properties | Fusion Temperature ℃ | Electrical IACS | Heat W/m.k | Tensile Mpa | Yield Mpa | Elongation % | ||||||||
646 – 657 | 62% | 210 –230 | 60 – 80 | 30 – 55 | 25 – 35 | |||||||||
| AWS A 5.10 ER1070 Aluminum Welding Wire Typical Welding Parameters | |||||||||
| Diameter | Process | Volt | Amps | GAS | |||||
| in | mm | ||||||||
| 0.03 | 0.8 | GMAW | 15-24 | 60-175 | Argon (cfh) | ||||
| 0.035 | 0.9 | GMAW | 15-27 | 70-185 | Argon (cfh) | ||||
| 0.039 | 1.0 | GMAW | 22-24 | 120-200 | Argon (cfh) | ||||
| 1/25.4” | |||||||||
| 0.045 | 1.2 | GMAW | 20-29 | 125-260 | Argon (cfh) | ||||
| 3/64” | |||||||||
| 1/16” | 1.6 | GMAW | 24-30 | 170-300 | Argon (cfh) | ||||
| 3/32” | 2.4 | GMAW | 26-31 | 275-400 | Argon (cfh) | ||||
| Diameter | Process | Volt | Amps | GAS | |||||
| in | mm | ||||||||
| 1/16” | 1.6 | GTAW | 15 | 60-80 | Argon (cfh) | ||||
| 3/32” | 2.4 | GTAW | 15 | 125-160 | Argon (cfh) | ||||
| 1/8” | 3.2 | GTAW | 15 | 190-220 | Argon (cfh) | ||||
| 5/32” | 4.0 | GTAW | 15 | 200-300 | Argon (cfh) | ||||
| 3/16” | 4.8 | GTAW | 15-20 | 330-380 | Argon (cfh) | ||||
| Weight | 0.5kg | 1kg | 2kg | 5kg | 7kg | 9kg | |||
| 1 lb | 2 lb | 4 lb | 11 lb | 15 lb | 20lb | ||||
AWS A5.10 ER1070 is a specific classification for an **unalloyed aluminum** filler metal, defined by the American Welding Society (AWS).
It signifies a highly pure aluminum welding wire, typically containing 99.7% or more aluminum, making it ideal for applications requiring **high purity aluminum welds**.
The defining characteristic of ER1070 is its **exceptional purity**, which directly translates to several key features.
It offers **superior electrical conductivity** and **thermal conductivity**, making it invaluable for specific industrial applications.
Furthermore, welds produced with ER1070 exhibit **excellent corrosion resistance** against various chemical agents and atmospheric conditions.
The material also provides **good ductility and formability**, allowing for post-weld processing without compromising structural integrity.
Visually, it ensures an **excellent color match after anodizing**, which is crucial for aesthetic applications.
ER1070 is primarily recommended for welding **1XXX series pure aluminum base alloys** to themselves.
This includes aluminum grades such as 1050, 1060, and 1070, where maintaining the high purity of the base metal is essential.
It is chosen when the weld joint needs to retain the specific properties of pure aluminum, such as its **high electrical or thermal transfer capabilities**.
Due to its unique properties, ER1070 is widely used in sectors demanding **high-purity aluminum fabrication**.
It is a staple in the **electrical industry** for welding busbars, connectors, and other electrical components where conductivity is paramount.
The **chemical processing industry** utilizes it for tanks, pipes, and vessels due to its outstanding corrosion resistance to various chemicals.
Additionally, it finds applications in the **food and beverage industry**, **heat exchanger manufacturing**, and in general fabrication where **anodized aluminum finishes** are required for aesthetic or protective purposes.
Its suitability for creating **highly conductive aluminum joints** makes it a preferred choice for many specialized projects.
Yes, ER1070 provides **excellent corrosion resistance**.
Its high purity makes it particularly resistant to chemical attacks and atmospheric degradation, outperforming many aluminum alloys in certain corrosive environments.
This feature makes it ideal for components exposed to aggressive chemicals or harsh outdoor conditions, ensuring the longevity and integrity of the **welded aluminum structure**.
ER1070 is highly regarded for its **superior performance with anodizing**.
The weld bead typically anodizes to a color that closely matches the surrounding pure aluminum base material, resulting in a **seamless and aesthetically pleasing finish**.
This characteristic is vital for architectural applications, decorative components, and any product where a uniform appearance after surface treatment is critical, ensuring the **anodized aluminum weld** blends perfectly.
The primary advantages of using ER1070 include its ability to create welds with **high electrical and thermal conductivity**, which is unparalleled by many other filler metals.
It delivers **excellent resistance to corrosion** and provides **good ductility** for post-weld forming.
Furthermore, its capacity for **seamless anodization** makes it a preferred choice for visually critical applications.
The **high purity of the weld deposit** is also a significant advantage for specialized industrial requirements, ensuring the integrity and performance of the **aluminum welded assembly**.
