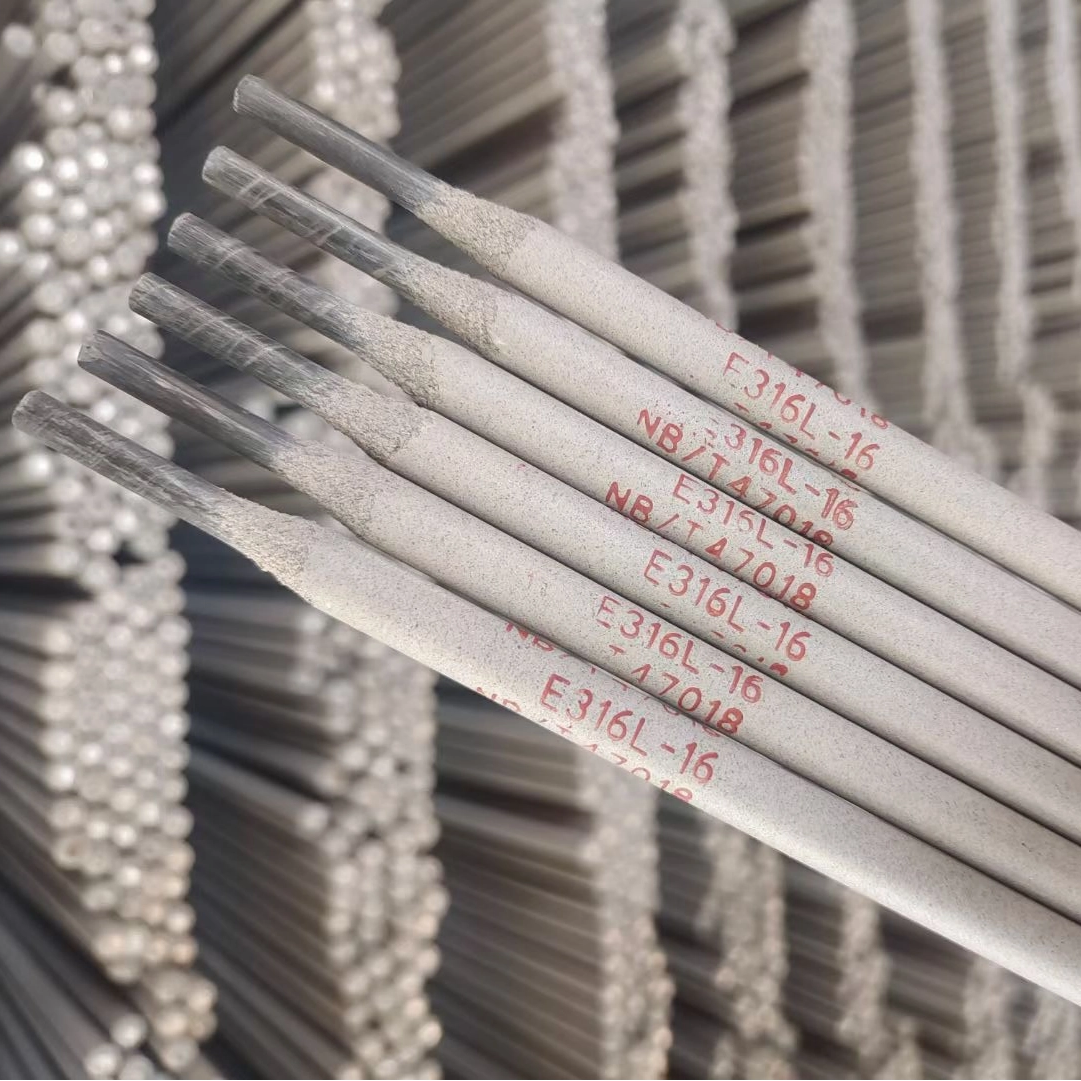

AWS A 5.4 E316L-16 Stainless Steel Welding Electrode

| AWS A 5.4 E316L-16 Stainless Steel Welding Electrode Certificate

| AWS A 5.4 E316L-16 Stainless Steel Welding Electrode Comment & FAQ

What is the AWS A5.4 E316L-16 welding electrode primarily used for?

The **AWS A5.4 E316L-16** welding electrode is primarily used for welding **316L and 316 stainless steels**. It's engineered to provide excellent corrosion resistance, especially against **pitting and crevice corrosion**, in environments where standard 304L stainless steel might not suffice. Common applications include chemical processing equipment, synthetic fiber production, paper and pulp industries, and various components exposed to aggressive corrosive media, ensuring the integrity and longevity of stainless steel fabrications.

What does the "E" in E316L-16 signify?

The "E" in **E316L-16** stands for **electrode**. Specifically, it indicates that this consumable is a covered electrode designed for **Shielded Metal Arc Welding (SMAW)**, often referred to as "stick welding." This means it requires an electrode holder, a welding machine, and suitable personal protective equipment, making it a versatile choice for both shop and field applications for joining stainless steel.

What is the significance of "316L" in the electrode's classification?

The "316L" in the **E316L-16** classification refers to the **low carbon version of 316 stainless steel**. The "L" specifically indicates an extra-low carbon content (typically 0.04% maximum). This low carbon level is crucial for preventing **carbide precipitation** (also known as sensitization) in the weld metal and heat-affected zone (HAZ) during welding or subsequent high-temperature exposure. By preventing carbide formation, the electrode ensures the welded joint maintains its full resistance to **intergranular corrosion**, which is vital for long-term performance in corrosive environments. This makes E316L-16 ideal for highly corrosive service conditions where standard 316 might suffer from weld decay.

What kind of corrosion resistance does E316L-16 offer?

**E316L-16** offers superior corrosion resistance compared to general-purpose stainless steel electrodes. Its key feature is the presence of **molybdenum (Mo)**, which provides significantly enhanced resistance to **pitting corrosion** and **crevice corrosion**, especially in environments containing chlorides, sulfates, and non-oxidizing acids. Furthermore, its low carbon content (the "L" designation) actively combats **intergranular corrosion** or "weld decay," making it a robust choice for applications in aggressive chemical environments where 304L might fail.

Why is molybdenum important in the E316L-16 weld metal?

Molybdenum (Mo) is a critical alloying element in the **E316L-16** weld metal, typically present at 2.0% to 3.0%. Its primary role is to significantly enhance the weld's **resistance to pitting and crevice corrosion**. Molybdenum helps to stabilize the passive film on the stainless steel surface, making it more resistant to localized attacks by aggressive ions, particularly chlorides. This is why E316L-16 is preferred in marine environments, chemical processing, and other applications where saltwater or strong chemicals are present, ensuring the durability of the welded components.

What does the "-16" in E316L-16 tell us about the electrode's coating?

The "-16" in **E316L-16** signifies that it has a **rutile-type (titanium calcium) flux coating**. This coating is known for providing excellent welding characteristics, including a very stable and smooth arc, low spatter levels, good bead appearance with a finely rippled finish, and easily removable slag. The rutile coating also allows for operation with both AC (Alternating Current) and DCEP (Direct Current Electrode Positive) polarity, offering versatility for different welding power sources and applications. This user-friendly coating contributes to high-quality welds in various positions.

Can E316L-16 electrodes be used in all welding positions?

Yes, **E316L-16** electrodes are generally classified for **all-position welding**, which includes flat (1F/1G), horizontal (2F/2G), vertical-up (3F/3G), and overhead (4F/4G) positions. The rutile coating (indicated by "-16") provides good operability and puddle control across these positions, although some manufacturers' specific products or thicker diameters might have limitations for vertical-down welding. This versatility makes it highly useful for complex fabrications and repairs where welding needs to be performed in various orientations, common in chemical tanks and pipelines.

What types of welding current can be used with E316L-16 electrodes?

**E316L-16** electrodes are designed for use with both **AC (Alternating Current)** and **DCEP (Direct Current Electrode Positive)**. DCEP is generally preferred as it provides a more stable arc, better penetration, and smoother bead characteristics, which is often crucial for achieving high-quality stainless steel welds. However, the ability to use AC can be advantageous in situations where arc blow is an issue or when only an AC power source is available, offering flexibility for different welding setups and field conditions.

What is carbide precipitation and why does E316L-16 prevent it?

Carbide precipitation, also known as **sensitization** or **weld decay**, is a metallurgical phenomenon where chromium carbides form at the grain boundaries of stainless steel when exposed to temperatures between 450°C and 850°C (840°F and 1560°F). This depletes chromium from the surrounding areas, making the steel susceptible to **intergranular corrosion**. **E316L-16** prevents this by having an **extra-low carbon ("L") content**. With less carbon available to combine with chromium, carbide formation is minimized, thus preserving the material's corrosion resistance along the grain boundaries and ensuring the long-term integrity of the weld in corrosive environments.

How does E316L-16 differ from E308L-16?

The primary difference between **E316L-16** and **E308L-16** lies in their **chemical composition and corrosion resistance**. **E316L-16** contains **molybdenum (2.0-3.0% Mo)**, which provides significantly enhanced resistance to pitting and crevice corrosion, especially in chloride-rich environments. **E308L-16**, on the other hand, does not contain molybdenum and offers general corrosion resistance for 304L and 304 stainless steels. Both are low-carbon ("L") types to prevent intergranular corrosion and have rutile "-16" coatings for good usability. The choice depends entirely on the required level of corrosion resistance for the application.

What kind of base metals are typically welded with E316L-16?

**E316L-16** electrodes are specifically designed for welding **316L and 316 austenitic stainless steels**. They can also be used for welding other molybdenum-bearing stainless steels with similar compositions. Furthermore, they are sometimes used for welding **dissimilar metals**, particularly when joining 316L/316 stainless steel to carbon or low-alloy steels, where the higher alloy content of the E316L-16 weld metal helps to mitigate dilution effects and maintain corrosion resistance. Always ensure metallurgical compatibility and proper welding procedures for such applications.

What are the typical mechanical properties of E316L-16 weld metal?

The weld metal deposited by **E316L-16** electrodes typically exhibits good mechanical properties. According to AWS A5.4, the minimum requirements are:
   - **Tensile Strength**: 75,000 psi (520 MPa)
   - **Yield Strength**: 45,000 psi (310 MPa)
   - **Elongation**: 30% (minimum)
   These properties indicate good strength, ductility, and toughness, ensuring the weld can withstand operational stresses while maintaining its corrosion resistance in demanding service environments. Actual values can vary slightly depending on specific manufacturer and welding parameters, but they consistently meet or exceed these specified minimums.

Is post-weld heat treatment (PWHT) typically required for E316L-16 welds?

Generally, **post-weld heat treatment (PWHT)** is **not required** for welds made with **E316L-16** electrodes due to their extra-low carbon content. The "L" designation effectively prevents carbide precipitation and thus avoids sensitization in the heat-affected zone and weld metal, even without PWHT. This is a significant advantage as it simplifies fabrication and reduces costs. However, in certain highly specialized applications or for very thick sections where residual stresses are a major concern, stress-relief heat treatments might be considered, but specific material and application codes should always be consulted.

What are the optimal preheating procedures for welding with E316L-16?

For most applications involving **E316L-16** electrodes on stainless steels, **preheating is generally not required**. Austenitic stainless steels have lower thermal conductivity and higher thermal expansion compared to carbon steels, so excessive preheating can sometimes lead to increased distortion or hot cracking risks. However, for very thick sections (e.g., over 1 inch or 25 mm) or highly restrained joints, a mild preheat of around 50-100°C (122-212°F) might be applied to reduce thermal stresses. The focus is usually on maintaining a controlled interpass temperature to prevent overheating, typically below 177°C (350°F), to preserve corrosion resistance and prevent distortion.

How does the low carbon content of E316L-16 affect its mechanical properties?

The low carbon content of **E316L-16** helps to maintain the **ductility and toughness** of the weld metal. While higher carbon generally increases strength, it can also lead to reduced ductility and increased susceptibility to cracking, especially in stainless steels where carbide precipitation is a concern. By keeping carbon low, E316L-16 ensures a ductile austenitic microstructure that can effectively resist cracking and maintain its robust corrosion resistance without compromising essential mechanical properties like tensile and yield strength, crucial for reliable performance in demanding chemical environments.

What is the typical range of welding current for E316L-16 electrodes?

The typical range of welding current for **E316L-16** electrodes varies depending on the electrode diameter, welding position, and specific manufacturer. However, common ranges are:
   - **2.5 mm (3/32 inch)**: 60 - 85 Amps
   - **3.2 mm (1/8 inch)**: 80 - 110 Amps
   - **4.0 mm (5/32 inch)**: 100 - 150 Amps
   It's always recommended to consult the electrode manufacturer's technical data sheet for the most accurate and optimal current settings to ensure proper penetration, bead appearance, and mechanical properties of the weld, especially in critical stainless steel fabrications.

How does E316L-16 contribute to preventing hot cracking in stainless steel welds?

While the "L" designation (low carbon) primarily addresses intergranular corrosion, **E316L-16** also helps in reducing the susceptibility to **hot cracking (solidification cracking)** compared to some other stainless steel grades. The balanced chemical composition, particularly the controlled ferrite content (often 5-10% ferrite in the weld metal), helps to solidify the weld in a way that minimizes the formation of low-melting point constituents at grain boundaries, which are often the culprits for hot cracking. Maintaining proper welding parameters (e.g., avoiding excessive heat input) is also crucial to further prevent this defect in austenitic stainless steel welds.

What are the storage requirements for E316L-16 stainless steel welding electrodes?

Proper storage is essential for **E316L-16** electrodes to maintain their welding performance and prevent weld defects, particularly hydrogen porosity. They should be stored in **dry conditions**, ideally in their original hermetically sealed containers. Once opened, electrodes should be placed in a **heated electrode holding oven (quiver)** at a temperature of approximately 65°C to 150°C (150°F to 300°F) to prevent moisture pickup. If electrodes have been exposed to humid air for extended periods, they may require re-baking at higher temperatures (e.g., 250-350°C for 1-2 hours) as per manufacturer recommendations to restore their low-hydrogen characteristics. This ensures the integrity of the weld and minimizes the risk of defects like porosity in stainless steel fabrication.

Can E316L-16 be used for clad steels?

Yes, **E316L-16** electrodes are commonly used for welding the **stainless steel cladding side of clad steels**. Clad steels consist of a base layer of carbon or low-alloy steel with a thin layer of stainless steel bonded to it. When welding these materials, E316L-16 is used for the stainless steel side of the joint to maintain the corrosion resistance properties of the cladding. Careful attention to welding procedures, including appropriate filler metal for the base layer if necessary, is essential to manage dilution and ensure the overall integrity of the clad steel fabrication, especially in chemical processing equipment where high corrosion resistance is required.

What are typical applications of E316L-16 in the paper and pulp industry?

In the paper and pulp industry, **E316L-16** electrodes are extensively used due to the highly corrosive environments involved, particularly from chlorine compounds used in bleaching processes. Typical applications include welding:
   - **Digesters**: Where wood chips are cooked in chemical solutions.
   - **Bleach plant equipment**: Tanks, pipes, and vessels exposed to corrosive chemicals.
   - **Heat exchangers**: Handling corrosive process fluids.
   - **Piping systems**: Transporting various acidic and alkaline solutions.
   The electrode's superior resistance to pitting, crevice, and intergranular corrosion ensures the reliability and longevity of critical equipment in these demanding pulp and paper mill environments.

How does E316L-16 prevent hydrogen-induced cracking?

While hydrogen-induced cracking is less common in austenitic stainless steels than in high-strength low-alloy steels, it can still occur, especially in highly restrained joints or with contaminated electrodes. **E316L-16** is inherently a **low-hydrogen electrode** due to its "-16" (rutile-type) coating and careful manufacturing. The flux coating produces minimal hydrogen during welding, and proper storage (keeping electrodes dry) ensures this low-hydrogen characteristic is maintained. By minimizing hydrogen in the weld metal, E316L-16 reduces the risk of hydrogen-induced cracking, contributing to sound and reliable welds in critical stainless steel fabrications.

Is E316L-16 suitable for high-temperature applications?

**E316L-16** can be used for applications operating at moderately elevated temperatures (e.g., up to 400°C or 750°F) where its corrosion resistance is beneficial. However, for continuous high-temperature service above approximately 450°C (840°F), other stainless steel grades like 316H or specific high-temperature alloys might be preferred. While the "L" designation helps prevent sensitization from short exposures to high temperatures during welding, prolonged service above 450°C can still lead to some carbide precipitation over time, potentially impacting long-term corrosion resistance. For creep-resistant applications or service above the sensitization range, specialized high-temperature stainless steel electrodes or nickel-based alloys are typically specified.

What are the advantages of using E316L-16 over E309L-16 for specific applications?

The main advantage of using **E316L-16** over **E309L-16** lies in its **molybdenum content**, which provides superior resistance to pitting and crevice corrosion, especially in chloride-rich or acidic environments. **E309L-16** is primarily designed for welding dissimilar metals (e.g., stainless steel to carbon steel) or for welding straight 309 stainless steels, providing a higher alloy content to handle dilution. If the primary concern is excellent corrosion resistance in aggressive media (e.g., marine, chemical processing), **E316L-16** is the preferred choice. If the application is joining different types of steel, E309L-16's higher overall alloy content makes it more suitable for buffering dilution.

What is the role of chromium in E316L-16 weld metal?

Chromium (Cr) is a fundamental alloying element in **E316L-16** weld metal, typically ranging from 17.0% to 20.0%. Its primary role is to provide the basic **stainless steel properties**, including **general corrosion resistance** and **oxidation resistance**. Chromium forms a thin, passive oxide layer on the surface that protects the underlying metal from corrosive attack. In E316L-16, the chromium works in conjunction with nickel to establish an austenitic microstructure, and its balanced content, along with low carbon, helps in maintaining resistance to intergranular corrosion, which is crucial for the performance of stainless steel in its intended service environments.

How does E316L-16 affect the mechanical strength of the weld joint?

**E316L-16** produces a weld joint with mechanical strength that typically meets or exceeds the strength of the base 316L or 316 stainless steel. Its nominal tensile strength is 75,000 psi (520 MPa) minimum and yield strength is 45,000 psi (310 MPa) minimum, as per AWS A5.4. While the "L" (low carbon) designation slightly reduces as-welded strength compared to a non-low carbon equivalent, it ensures the crucial ductility and, more importantly, the long-term corrosion resistance, which is often the primary driver for selecting 316L. The weld joint remains robust and able to withstand design loads in corrosive service conditions.

What are common weld defects to avoid when using E316L-16?

When welding with **E316L-16**, common weld defects to diligently avoid include:
   - **Porosity**: Often caused by insufficient shielding gas, moisture in the electrode coating, or surface contamination.
   - **Slag inclusions**: Due to inadequate cleaning between weld passes, especially important with rutile coatings.
   - **Lack of fusion/penetration**: Caused by incorrect welding parameters (too low current, too fast travel speed) or improper technique.
   - **Hot cracking (solidification cracking)**: While less prone than some other stainless steels, it can occur with excessive heat input, high restraint, or unfavorable weld metal shape.
   - **Undercut**: Excessive current or travel speed, creating a notch effect.
   - **Distortion**: Due to high thermal expansion of stainless steel; managed by proper fixturing and welding sequence.
   Diligent adherence to welding procedures, proper surface preparation, and good welder technique are essential to prevent these defects and ensure high-quality, corrosion-resistant stainless steel welds.

Is E316L-16 suitable for welding 304L stainless steel?

While **E316L-16** can technically be used to weld **304L stainless steel**, it is not the most common or cost-effective choice unless the application specifically requires the enhanced pitting corrosion resistance provided by molybdenum. For general welding of 304L, **E308L-16** is the standard and more appropriate electrode. Using E316L-16 to weld 304L would introduce molybdenum into the weld metal, providing a higher level of corrosion resistance than the base metal, which might be overkill and unnecessarily increase material cost for the application. The choice should always align with the base material's properties and the service environment requirements.

How does ferrite content influence E316L-16 weld metal properties?

The ferrite content in the **E316L-16** weld metal, typically controlled to a range of 5-10% (measured as Ferrite Number, FN), is crucial for several reasons. Firstly, a small amount of ferrite helps to **prevent hot cracking (solidification cracking)** during welding, which is a common issue with fully austenitic stainless steel welds. Secondly, it can contribute to **increased tensile strength**. However, excessive ferrite can reduce ductility and toughness, and prolonged exposure to high temperatures can lead to **sigma phase embrittlement**. Electrode manufacturers carefully balance the composition to achieve an optimal ferrite content, ensuring both crack resistance during welding and long-term performance in service for the **austenitic stainless steel** joint.

What is the average deposition efficiency of E316L-16 electrodes?

The average deposition efficiency of **E316L-16** electrodes, typical for shielded metal arc welding (SMAW) consumables, generally ranges from **60% to 70%**. This means that 60% to 70% of the electrode's weight is deposited as weld metal, with the remainder becoming stub ends, spatter, and slag. While this efficiency is lower than some automated processes like Flux-Cored Arc Welding (FCAW) or Submerged Arc Welding (SAW), it is considered standard for manual stick welding of stainless steel. Factors like welder skill, current settings, and technique can influence the actual deposition efficiency during fabrication of **stainless steel components**.

Are there specific training or certifications required for welding with E316L-16?

Yes, welding with **E316L-16** electrodes for critical applications typically requires **specialized training and certifications**. Welders often need to be certified to specific industry codes and standards (e.g., ASME Section IX, EN standards) for welding stainless steels in various positions. This ensures they have the necessary skills to manage the unique characteristics of stainless steel, such as distortion control, proper heat input, and maintaining interpass temperature, all crucial for achieving corrosion-resistant and structurally sound welds. Qualification tests usually involve visual inspection, radiography, and mechanical testing to confirm the welder's proficiency in producing high-quality stainless steel fabrications.

How does excessive heat input affect E316L-16 weld quality?

Excessive heat input when welding with **E316L-16** can negatively impact weld quality and corrosion resistance. It can lead to:
   - **Increased distortion**: Stainless steels have high thermal expansion, making them prone to warpage with excessive heat.
   - **Larger grain size**: Which can slightly reduce mechanical properties.
   - **Reduced corrosion resistance**: Although "L" grade minimizes it, excessive heat can still increase the potential for some degree of **sensitization** (carbide precipitation) if the cooling rate is too slow.
   - **Hot cracking susceptibility**: Increased heat can sometimes contribute to hot cracking, especially in highly restrained joints.
   Therefore, controlling heat input by optimizing welding parameters (current, travel speed) and maintaining a proper interpass temperature is crucial for ensuring optimal corrosion resistance and mechanical properties in **stainless steel welds**.

Can E316L-16 be used for pressure vessels and piping?

Yes, **E316L-16** electrodes are very commonly used for fabricating and repairing **pressure vessels and piping** in industries like chemical processing, petrochemicals, and pharmaceuticals. This is precisely because of its excellent corrosion resistance, especially to pitting and crevice corrosion, which is vital for handling corrosive fluids under pressure. Compliance with stringent industry codes such as ASME Boiler and Pressure Vessel Code is paramount, and **E316L-16** is a qualified and widely accepted consumable for such critical applications, ensuring the long-term integrity and safety of **stainless steel pressure equipment**.

What is the significance of "passivation" for E316L-16 welds?

**Passivation** is a chemical treatment applied to stainless steel surfaces, including **E316L-16** welds, to remove free iron contaminants and promote the reformation of the protective passive chromium oxide layer. Welding can introduce iron particles (from grinding wheels, carbon steel tools, etc.) or deplete chromium from the surface, compromising corrosion resistance. Passivation removes these contaminants and re-establishes a clean, corrosion-resistant surface, crucial for maintaining the intended performance of the **stainless steel fabrication** in corrosive environments. It is a common post-welding treatment for critical stainless steel components.

How does E316L-16 provide good slag detachability?

The excellent slag detachability of **E316L-16** is primarily attributed to its **rutile-type ("-16") flux coating**. Rutile coatings produce a glassy, easily removable slag that tends to curl up as it cools, often detaching itself. This characteristic is highly valued by welders as it significantly reduces interpass cleaning time, thereby improving productivity, especially in multi-pass welding applications. Easy slag removal also ensures a cleaner weld bead, reducing the risk of slag inclusions in subsequent passes, which is important for maintaining the integrity of **stainless steel welds**.

Can E316L-16 be used for welding duplex stainless steels?

No, **E316L-16** is **not typically suitable for welding duplex stainless steels**. Duplex stainless steels have a mixed microstructure of austenite and ferrite, offering a combination of high strength and corrosion resistance. Welding duplex steels requires specialized electrodes (e.g., E2209 or E2594) that are designed to achieve a balanced ferrite-austenite microstructure in the weld metal and heat-affected zone. Using E316L-16 would not provide the correct metallurgical balance for duplex steels, potentially leading to reduced strength, toughness, and corrosion resistance. Always use specific duplex stainless steel welding consumables for such applications to maintain the integrity of the **duplex stainless steel fabrication**.

What are the typical packaging sizes for E316L-16 electrodes?

**E316L-16** electrodes are typically packaged in various sizes to suit different welding needs. Common packaging includes:
   - **1 kg (2.2 lb) or 2.5 kg (5.5 lb) plastic tubes/cartons**: For smaller jobs or to keep electrodes dry in field quivers.
   - **5 kg (11 lb) or 10 kg (22 lb) cartons/tins**: For larger projects or shop use.
   - **Hermetically sealed packaging**: Many manufacturers offer vacuum-sealed or hermetically sealed cans to ensure the electrodes remain moisture-free until opened, which is crucial for maintaining their low-hydrogen characteristics and preventing weld defects in **stainless steel welding**.

How does E316L-16 compare to GTAW (TIG) fillers for 316L?

**E316L-16** (SMAW) and ER316L (GTAW/TIG filler wire) are both designed for welding 316L stainless steel and offer similar weld metal chemistry and corrosion resistance. The main differences lie in the welding process and usability:
   - **SMAW (E316L-16)**: Offers portability, lower equipment cost, and good for field use, but generally produces more spatter and requires slag removal.
   - **GTAW (ER316L)**: Provides superior weld quality, precise control, very little spatter, and no slag, ideal for root passes and thin materials, but slower and requires shielding gas.
   The choice depends on the application's criticality, material thickness, desired finish, and production efficiency, but both are excellent choices for achieving high-quality **316L stainless steel welds**.

What is the maximum operating temperature for continuous service with E316L-16?

For continuous service where excellent corrosion resistance is maintained and sensitization is a concern, the maximum recommended operating temperature for **E316L-16** weldments is generally **below 450°C (840°F)**. While the "L" grade minimizes carbide precipitation during welding, prolonged exposure above this temperature range can still lead to some degree of sensitization over very long service lives, potentially impacting long-term intergranular corrosion resistance. For higher continuous service temperatures where creep strength is also a factor, other specialized high-temperature stainless steels or nickel alloys would typically be used.

Does E316L-16 offer resistance to stress corrosion cracking?

While **E316L-16** offers improved general corrosion resistance compared to 304L, its resistance to **stress corrosion cracking (SCC)**, particularly in chloride environments, is only moderately better than other austenitic stainless steels. Austenitic stainless steels, including 316L, are inherently susceptible to SCC in specific chloride-containing environments under tensile stress and at elevated temperatures. For applications with severe SCC concerns, especially in high-chloride, high-temperature service, more resistant alloys such as duplex stainless steels or nickel-based alloys are typically specified. However, the low carbon content of E316L-16 helps minimize residual stresses and sensitization, which can be contributing factors to SCC.

How does proper cleaning between passes affect E316L-16 weld quality?

Proper cleaning between passes is absolutely critical when welding with **E316L-16** electrodes. After each weld pass, the slag layer produced by the rutile coating must be thoroughly removed using a chipping hammer and wire brush (preferably stainless steel brushes to avoid carbon steel contamination). Failure to do so can lead to:
   - **Slag inclusions**: Trapped slag within the weld metal, acting as stress concentrators and reducing mechanical properties and corrosion resistance.
   - **Porosity**: Due to trapped gases under the slag.
   - **Arc instability**: Residual slag can interfere with the arc during the next pass.
   Meticulous interpass cleaning ensures a clean, sound weld bead and contributes significantly to the overall quality and integrity of the **stainless steel fabrication**.

What are the considerations for welding thick sections with E316L-16?

Welding thick sections with **E316L-16** electrodes requires careful consideration. While preheating is generally minimal, **interpass temperature control** becomes critical; keeping it below 177°C (350°F) helps manage distortion and minimize sensitization risk. **Multiple passes** will be required, demanding consistent technique and thorough interpass cleaning. Managing **heat input** to avoid excessive build-up is vital to prevent hot cracking and maintain corrosion resistance. Proper joint design (e.g., V-grooves, U-grooves) and sequence welding are also essential to control distortion and residual stresses in heavy **stainless steel fabrications**.

Is E316L-16 suitable for cryogenic applications?

Generally, **E316L-16** is considered suitable for applications down to moderately low temperatures, but typically **not for cryogenic applications** (e.g., below -101°C or -150°F). While austenitic stainless steels generally retain good toughness at low temperatures, for truly cryogenic service (like LNG tanks operating at -162°C or -260°F), specialized higher-nickel austenitic stainless steels (e.g., 9% nickel steel) or specific aluminum alloys are usually preferred. For welding these cryogenic steels, dedicated electrodes like **AWS E7015-C2L** (for 3.5% Ni steels) or **E309LMo-16** (for 9% Ni steels) would be specified to ensure superior notch toughness at extremely low temperatures.

How does E316L-16 compare to GTAW (TIG) for root passes?

While **E316L-16** (SMAW) can be used for root passes, **Gas Tungsten Arc Welding (GTAW or TIG)** with an ER316L filler wire is often preferred for the root pass in critical stainless steel applications. GTAW offers superior control over penetration and bead profile, minimizes spatter, and produces a very clean, high-quality root weld with no slag to remove, which is crucial for fluid flow and corrosion resistance in pipes and vessels. SMAW root passes are quicker and more versatile in field conditions but require higher welder skill to achieve comparable quality and careful cleaning, particularly for the back side of the root, making GTAW the gold standard for high-integrity stainless steel root welds.

What precautions should be taken regarding fume exposure when welding with E316L-16?

When welding with **E316L-16** electrodes, significant precautions should be taken regarding fume exposure. Stainless steel welding fumes contain potentially hazardous metallic oxides, including **chromium (especially hexavalent chromium)** and **nickel compounds**, which are known carcinogens and respiratory irritants.
   - **Ventilation**: Always ensure adequate local exhaust ventilation (LEV) or general ventilation to remove fumes from the welder's breathing zone.
   - **Respiratory Protection**: Wear appropriate respiratory protective equipment (RPE), such as a powered air-purifying respirator (PAPR) or supplied-air respirator, especially in confined spaces.
   - **Positioning**: Work upwind to keep your head out of the plume.
   - **Hygiene**: Wash hands thoroughly after welding.
   Consult the electrode's Safety Data Sheet (SDS) for specific exposure limits and health hazards related to stainless steel welding fumes.

Is E316L-16 susceptible to hot cracking if conditions are not ideal?

While **E316L-16** is generally formulated to minimize hot cracking (solidification cracking) in austenitic stainless steel welds by controlling ferrite content, it can still be susceptible if welding conditions are not ideal. Factors that increase susceptibility include:
   - **Excessive heat input**: Leading to larger weld pools and longer solidification times.
   - **High restraint in the joint**: Preventing the weld metal from accommodating shrinkage stresses.
   - **Improper joint design**: Leading to unfavorable weld bead shapes.
   - **Contamination**: Especially sulfur or phosphorus.
   - **Very low ferrite content**: If the weld metal ends up fully austenitic.
   Maintaining controlled heat input, using proper joint fit-up, and ensuring base metal cleanliness are crucial for preventing hot cracking in **316L stainless steel welds**.

What is the role of nitrogen in E316L-16 weld metal?

Nitrogen is typically present in **E316L-16** weld metal as a minor but important alloying element. It acts as an **austenite former**, helping to stabilize the austenitic microstructure, especially when balancing against ferrite formers like chromium. Nitrogen also contributes to **solid solution strengthening**, which can slightly increase tensile and yield strength. Furthermore, it plays a role in enhancing **pitting corrosion resistance**, similar to molybdenum, though to a lesser extent. While not explicitly part of the "-16" designation, controlled nitrogen content is part of the overall metallurgical design to ensure optimal properties in the **316L stainless steel weld**.

How does E316L-16 handle dilution from base metals?

**E316L-16** is designed to handle dilution from 316L or 316 stainless steel base metals quite effectively, ensuring the final weld metal chemistry retains its desired properties. Its low carbon content helps to manage dilution from the base metal, maintaining the "L" characteristic for intergranular corrosion resistance. When welding dissimilar metals (e.g., 316L to carbon steel), dilution becomes a more critical factor. In such cases, the E316L-16's higher alloy content (compared to E308L-16) helps, but often an electrode with even higher alloy content (like E309L or E309LMo) is used for the first pass to create a "buttering" layer to compensate for significant dilution from the carbon steel side. Proper welding procedures are key to controlling dilution for optimal weld integrity.

What is the typical shelf life of E316L-16 electrodes?

The typical shelf life of **E316L-16** electrodes in their **original, hermetically sealed packaging** is generally **indefinite**, provided they are stored in dry conditions away from extreme temperatures. The sealed packaging protects the flux coating from moisture absorption. Once the package is opened, the electrodes become susceptible to moisture pickup, and their effective shelf life (before requiring re-baking) depends on ambient humidity. For critical applications, it's always recommended to use electrodes from freshly opened sealed containers or to re-bake and store them in heated quivers as per manufacturer's guidelines, especially for **stainless steel welding** where hydrogen control is paramount.

Can E316L-16 be used for repair welding of existing 316L/316 components?

Yes, **E316L-16** is an excellent choice for **repair welding** of existing 316L and 316 stainless steel components. Its low carbon content ensures that the repair weld will not introduce sensitization to the surrounding material, preserving its corrosion resistance. The molybdenum content ensures the repaired area maintains the necessary pitting and crevice corrosion resistance. Proper surface preparation, removal of the defect, and adherence to recommended welding procedures (including interpass temperature control) are crucial for successful repairs to ensure the long-term integrity and performance of the repaired **stainless steel components** in their service environment.

How does the E316L-16 electrode contribute to reduced post-weld cleaning?

The **E316L-16** electrode, with its rutile-type ("-16") coating, contributes to reduced post-weld cleaning in several ways. The slag it produces is typically **self-peeling or easily removable**, often detaching with minimal effort (e.g., light chipping and brushing). This contrasts with other electrode types that might leave stubborn, adhering slag. Easy slag removal means less time spent on grinding or chipping, which not only saves labor but also reduces the risk of mechanical damage to the stainless steel surface or accidental carbon steel contamination. This efficiency in post-weld cleaning is a significant benefit in **stainless steel fabrication**.

What are the considerations for welding in confined spaces with E316L-16?

Welding in confined spaces with **E316L-16** electrodes, especially for stainless steel, requires strict adherence to safety protocols.
   - **Fume Control**: Excellent local exhaust ventilation is paramount, as stainless steel fumes (containing hexavalent chromium and nickel) are highly hazardous in enclosed areas. Respiratory protection (PAPR or supplied air) is usually mandatory.
   - **Arc Visibility**: Good lighting is essential for precise arc control.
   - **Welder Access**: Ensure the welder has comfortable access to maintain proper arc length and manipulation.
   - **Fire Watch**: A fire watch is often required.
   - **Emergency Procedures**: Clear emergency plans must be in place.
   The unique challenges of confined spaces magnify the importance of safety and environmental control when conducting **stainless steel welding** operations.

How does E316L-16 perform with varying joint designs?

**E316L-16**, with its stable arc and good puddle control characteristics (thanks to the "-16" rutile coating), performs well across a variety of **joint designs** commonly used in stainless steel fabrication. These include:
   - **Fillet welds**: For lap joints, T-joints, and corner joints.
   - **Groove welds**: For butt joints (V-groove, U-groove, J-groove) in various thicknesses.
   The electrode's versatility allows for good penetration and fusion in different joint geometries, ensuring sound and corrosion-resistant welds for diverse **stainless steel applications**. Welders must adjust their technique (e.g., travel speed, weave pattern) to suit the specific joint design and position for optimal results.

What is the typical microstructure of E316L-16 weld metal?

The typical microstructure of **E316L-16** weld metal is primarily **austenitic**, with a controlled amount of **ferrite** (usually 5-10% Ferrite Number, FN) dispersed within the austenite matrix. The austenitic phase provides the excellent corrosion resistance and ductility characteristic of 316L stainless steel. The small percentage of delta ferrite is intentionally engineered into the weld metal to significantly improve its **resistance to hot cracking (solidification cracking)** during welding, which is a common issue with fully austenitic welds. This duplex (austenite-ferrite) microstructure ensures both weldability and desired mechanical and corrosion properties for the **stainless steel fabrication**.

Does E316L-16 meet specific industry codes and standards?

Yes, **E316L-16** electrodes are manufactured to meet stringent industry codes and standards, most notably **AWS A5.4**. They are also typically qualified to various international standards and specific project specifications, such as those by ASME (American Society of Mechanical Engineers) for pressure vessels and piping, or TEMA (Tubular Exchanger Manufacturers Association) for heat exchangers. Meeting these codes ensures that the electrode's composition, mechanical properties, and performance are consistent and reliable for critical applications, providing confidence in the integrity of **stainless steel weldments** in demanding industries.

How does E316L-16 contribute to overall project cost-effectiveness?

While **E316L-16** electrodes may have a higher unit cost than carbon steel electrodes, they contribute to overall project cost-effectiveness by ensuring the **longevity and reliability** of stainless steel fabrications in corrosive environments. By preventing premature corrosion failures (pitting, crevice, intergranular), they minimize costly repairs, unscheduled downtime, and the associated loss of production. The ease of use of the "-16" coating also contributes to welder productivity and reduces post-weld cleaning time. The higher upfront material investment is typically offset by significant long-term savings in maintenance and replacement costs, making it a cost-effective solution for durable **stainless steel construction**.

What is the maximum interpass temperature for E316L-16 welds?

For **E316L-16** welds, the maximum interpass temperature is crucial to control distortion and prevent any potential, albeit minimized, risk of sensitization. It is generally recommended to keep the interpass temperature below **177°C (350°F)**, or even lower for highly restrained joints. Exceeding this temperature can lead to excessive heat accumulation, which increases distortion and, despite the "L" grade, could potentially affect the very long-term corrosion resistance if multiple passes lead to prolonged exposure in the sensitization temperature range. Maintaining a controlled interpass temperature ensures optimal mechanical properties and corrosion resistance in multi-pass **stainless steel welds**.

Can E316L-16 be used for welding sanitary or food-grade stainless steel?

Yes, **E316L-16** is commonly used for welding **sanitary or food-grade stainless steel**, particularly for components that require enhanced corrosion resistance, such as those handling acidic or chloride-containing food products. The low carbon content is crucial to prevent sensitization, ensuring that the weld areas maintain the same corrosion resistance as the base metal, which is vital for preventing bacterial growth and maintaining product purity. The smooth bead appearance of "-16" electrodes also aids in achieving a cleanable surface. Post-weld passivation is often performed on these welds to ensure optimal hygiene and corrosion performance for **food processing equipment**.

How does the surface finish of the base metal affect welding with E316L-16?

The surface finish of the base metal significantly affects welding with **E316L-16**. A clean, smooth, and contaminant-free surface is crucial. Any oxides, grease, oils, paint, or other impurities on the base metal can lead to weld defects such as **porosity, inclusions, or lack of fusion**. Furthermore, contaminants can affect the weld metal chemistry, potentially compromising its corrosion resistance. Grinding marks can also act as stress risers. Proper surface preparation, including grinding (with dedicated stainless steel abrasives to avoid carbon steel contamination) and degreasing, is essential to achieve high-quality, defect-free **stainless steel welds** with optimal corrosion properties.

What is the typical electrode efficiency and deposition rate of E316L-16?

The typical electrode efficiency of **E316L-16** (the percentage of electrode weight deposited as weld metal) is in the range of **60% to 70%**. The deposition rate, which is the amount of weld metal deposited per hour, varies significantly with electrode diameter and welding current. For example, a 3.2 mm (1/8 inch) E316L-16 electrode might have a deposition rate of approximately 0.9 to 1.3 kg/hr (2.0 to 2.8 lb/hr). These figures are important for estimating material consumption and planning production schedules for **stainless steel fabrication projects**, offering a balance between weld quality and productivity for SMAW processes.

Can E316L-16 be used for applications in saltwater or marine environments?

Yes, **E316L-16** is highly suitable and widely used for applications in **saltwater and marine environments**. The presence of **molybdenum** (2.0-3.0% Mo) is precisely what gives it superior resistance to **pitting and crevice corrosion** caused by chlorides found in seawater. This makes it an excellent choice for marine architectural components, boat fittings, offshore platforms (above the splash zone), and other equipment exposed to saltwater, where general 304L stainless steel would be prone to rapid localized corrosion. Its low carbon content further ensures that the weld itself maintains this enhanced corrosion resistance, crucial for durable **marine stainless steel components**.

What standards cover the testing and qualification of E316L-16 electrodes?

The testing and qualification of **E316L-16** electrodes are primarily covered by the **American Welding Society (AWS) A5.4 / A5.4M specification**. This standard outlines the chemical composition requirements of the weld metal, mechanical property tests (tensile strength, yield strength, elongation), and specific operational characteristics. Manufacturers must adhere to these standards to classify their electrodes as E316L-16. Furthermore, for specific applications, the weld procedures using these electrodes must also be qualified to other codes, such as **ASME Section IX** for pressure vessels and piping, or various international standards, ensuring the highest level of quality and safety for **stainless steel welding**.

What are the benefits of using an "L" grade electrode like E316L-16 for maintenance welding?

Using an "L" grade electrode like **E316L-16** for maintenance welding of stainless steel components offers significant benefits. It minimizes the risk of **sensitization (carbide precipitation)**, which can occur during multi-pass welding or if the repaired component is later exposed to temperatures in the sensitization range. This means the repaired area will retain its full corrosion resistance, preventing premature failure due to intergranular attack. The excellent usability of the "-16" rutile coating also aids in achieving high-quality repairs in various field conditions, making it an ideal choice for ensuring the continued integrity of **existing stainless steel equipment**.

How does E316L-16 help control distortion in stainless steel welding?

While stainless steels inherently have a higher coefficient of thermal expansion and lower thermal conductivity (leading to more distortion than carbon steel), **E316L-16** helps control distortion through several indirect factors and best practices:
   - **Controlled heat input**: Welders using E316L-16 should follow recommended parameters to avoid excessive heat, which is the primary cause of distortion.
   - **Balanced microstructure**: The controlled ferrite content helps accommodate some shrinkage stresses.
   - **Good usability ("-16" coating)**: A stable arc and easy puddle control allow welders to deposit precise, consistent beads, which helps in minimizing overall heat input and maintaining a balanced welding sequence.
   - **Absence of PWHT**: Not requiring a post-weld heat treatment further reduces the risk of additional distortion.
   Ultimately, proper fixturing, clamping, and welding sequences remain paramount for effective **distortion control in stainless steel fabrication**.

Is E316L-16 suitable for use in high-purity applications?

Yes, **E316L-16** is often specified for use in **high-purity applications**, particularly in the pharmaceutical, biotechnology, and some food processing industries. Its low carbon content prevents sensitization, ensuring a clean and corrosion-resistant weld that does not introduce impurities. The molybdenum content provides additional corrosion resistance against cleaning solutions and process fluids. For the highest purity requirements, a GTAW (TIG) root pass with ER316L filler wire is often preferred due to its extremely clean weld and minimal spatter, but E316L-16 electrodes are frequently used for fill and cap passes where arc welding is deemed acceptable, ensuring the integrity of **high-purity stainless steel systems**.

What are the limitations of E316L-16 in very harsh corrosive environments?

While **E316L-16** offers excellent corrosion resistance, it does have limitations in **very harsh or extremely aggressive corrosive environments**. For instance, in highly concentrated hot acids, very high chloride concentrations at elevated temperatures, or in environments with extreme reducing conditions, **E316L-16** might not be sufficient. In such cases, specialized high-alloy stainless steels (e.g., super austenitic, super duplex), nickel-based alloys (e.g., Hastelloy, Inconel), or titanium might be required. The specific environmental conditions and anticipated service life dictate whether E316L-16 provides adequate corrosion protection or if a more robust alloy and corresponding welding consumable are necessary for the **corrosive application**.

How does the "L" grade benefit the usability of the electrode?

While the primary benefit of the "L" grade in **E316L-16** is metallurgical (preventing sensitization), it can indirectly benefit usability. Lower carbon content generally leads to a slightly less fluid weld puddle and lower as-welded hardness. This can make the electrode somewhat more forgiving to weld, potentially reducing the risk of hot cracking in some scenarios, and generally producing a more ductile weld bead that is less prone to cracking. The overall ease of use, however, is more directly attributed to the "-16" rutile coating, but the "L" contributes to the robust nature of the weld itself, making it more tolerant to minor procedural variations for **stainless steel welding**.

Can E316L-16 be used for dissimilar welding applications?

Yes, **E316L-16** can be used for certain **dissimilar welding applications**, particularly when joining 316L or 316 stainless steel to carbon steel or low-alloy steels. Its higher alloy content, especially the molybdenum, helps to dilute with the carbon steel while maintaining sufficient corrosion resistance and strength in the weld deposit. However, for highly critical dissimilar joints or when joining to higher-strength carbon steels, **E309L-16** or **E309LMo-16** (if molybdenum is needed) are often preferred. These electrodes have even higher alloy content to better tolerate dilution and prevent cracking. Always consider the specific base metals, service environment, and potential for dilution before selecting E316L-16 for dissimilar metal joints.

What is the impact of arc length on E316L-16 weld quality?

Arc length has a significant impact on **E316L-16** weld quality. A **short and consistent arc length** is generally recommended.
   - **Too long an arc**: Can lead to increased spatter, reduced penetration, erratic arc behavior, porosity (due to inadequate shielding), and potential nitrogen pick-up from the atmosphere, which can affect corrosion resistance.
   - **Too short an arc**: Can cause the electrode to stick, leading to lack of fusion or inadequate penetration.
   Maintaining an optimal, short arc length (typically equal to or slightly less than the electrode core wire diameter) ensures stable arc performance, good shielding, proper fusion, and optimal mechanical and corrosion properties for **stainless steel welding**.

How does the "L" in 316L-16 impact the necessity of PWHT for stress relief?

While the "L" in **E316L-16** primarily addresses intergranular corrosion by preventing sensitization, it also indirectly affects the necessity of PWHT for **stress relief**. Lower carbon content in austenitic stainless steels generally results in lower as-welded hardness and a more ductile weld metal. This inherent ductility allows the weldment to accommodate residual stresses more readily through plastic deformation at room temperature, making a dedicated stress-relief PWHT less critical compared to high-strength, hardenable carbon or low-alloy steels. Thus, for typical 316L applications, stress-relief PWHT is rarely performed, further streamlining the **stainless steel fabrication process**.

What are the considerations for welding E316L-16 in overhead positions?

Welding **E316L-16** in overhead (4F) positions requires specific considerations and welder skill:
   - **Slightly lower current**: To prevent the molten puddle from sagging due to gravity.
   - **Shorter arc length**: For better puddle control.
   - **Precise manipulation**: A tight weave or small, overlapping stringer beads are preferred to control the puddle and achieve good fusion.
   - **Electrode angle**: Keep the electrode angled slightly opposite the direction of travel.
   - **Good visibility**: Crucial for monitoring the puddle.
   The rutile coating of the "-16" electrode generally offers good operability in the overhead position, but consistent technique is paramount for achieving sound and defect-free **overhead stainless steel welds**.

How does E316L-16 perform in terms of mechanical properties at low temperatures?

While **E316L-16** is not specifically designed for cryogenic service, its austenitic microstructure means it generally retains good **toughness and ductility at low temperatures** (e.g., down to -40°C or -50°C), without suffering from the ductile-to-brittle transition seen in ferritic steels. However, for true cryogenic applications (e.g., LNG), specific higher-nickel stainless steels or specialized low-temperature alloys and their corresponding welding consumables (e.g., E7015-C2L) are preferred due to their superior guaranteed impact toughness at extremely low temperatures. E316L-16 is primarily chosen for its corrosion resistance rather than extreme low-temperature mechanical properties, but it performs adequately for many sub-zero non-cryogenic uses.

What is the significance of the "A5.4" in the AWS classification?

"A5.4" refers to the **AWS (American Welding Society) specification** that governs the classification, requirements, and testing of **covered electrodes for shielded metal arc welding of stainless steels**. This standard ensures that electrodes labeled as **E316L-16** (or any other stainless steel electrode classification) meet specific chemical composition limits, mechanical property requirements, and usability characteristics. Adherence to AWS A5.4 provides consistency and reliability in the quality and performance of stainless steel welding consumables across different manufacturers, giving users confidence in their choice for critical **stainless steel fabrications**.

Can E316L-16 be used for welding exhaust systems on vehicles?

Yes, **E316L-16** can be used for welding **exhaust systems on vehicles**, particularly for performance or aftermarket applications where enhanced corrosion resistance is desired, or for specific industrial exhaust systems. While 304L (welded with E308L-16) is more common for automotive exhausts due to cost, 316L offers superior resistance to corrosion from condensation and road salts, especially for longer-lasting systems in harsh environments. The molybdenum content provides additional protection against pitting from corrosive exhaust gases. However, for very high-temperature exhaust sections, specialized high-temperature alloys might be considered, but **E316L-16** offers a robust solution for many general vehicle exhaust applications.

What is the typical yield strength of weld metal from E316L-16?

The typical **yield strength** of weld metal deposited by **E316L-16** electrodes is a minimum of **45,000 psi (310 MPa)**, as specified by AWS A5.4. Actual measured values can often be higher, depending on the specific product and welding parameters. This yield strength, combined with the electrode's tensile strength and excellent ductility, ensures that the weld joint can adequately withstand the intended service loads without permanent deformation. This is a crucial mechanical property that contributes to the structural integrity and reliability of **316L stainless steel fabrications** in their corrosive service environments.

How does the "L" grade benefit ductility in E316L-16 welds?

The "L" (low carbon) grade in **E316L-16** directly benefits the **ductility** of the weld metal. By minimizing carbon content, it reduces the formation of brittle chromium carbides during welding and subsequent thermal cycles. A microstructure free from extensive carbide networks at grain boundaries is inherently more ductile and less prone to cracking. This high ductility ensures that the weld metal can accommodate stresses and minor deformations without fracturing, which is vital for the long-term performance and reliability of **stainless steel components** in service, particularly when subjected to thermal cycling or mechanical loads.

Can E316L-16 be used for welding components in pharmaceutical industries?

Absolutely, **E316L-16** is widely used for welding components in the **pharmaceutical industry**. This sector demands extremely high levels of cleanliness and corrosion resistance to prevent product contamination and ensure sterility. The **low carbon content** of E316L-16 prevents sensitization, maintaining full corrosion resistance against process fluids and cleaning agents. The **molybdenum content** provides additional protection against pitting and crevice corrosion from various chemicals. Components like reaction vessels, storage tanks, piping systems, and heat exchangers are routinely welded with E316L-16 to meet the stringent regulatory and hygienic requirements of **pharmaceutical manufacturing equipment**.

What is the importance of controlled interpass temperature for E316L-16?

Controlled interpass temperature is important for **E316L-16** welds, even though it's an "L" grade. Maintaining the interpass temperature below a specified maximum (typically 177°C / 350°F) helps to:
   - **Control distortion**: Excessive heat buildup can lead to increased warpage in stainless steel due to its high thermal expansion.
   - **Minimize thermal stresses**: Keeping the temperature controlled helps manage residual stresses.
   - **Reduce potential for hot cracking**: Prevents excessive heat accumulation that could contribute to solidification cracking.
   While the "L" grade largely mitigates sensitization risk, consistent interpass temperature control ensures optimal mechanical properties and dimensional stability throughout the multi-pass **stainless steel weldment**.

How does E316L-16 handle localized corrosion?

**E316L-16** excels at handling **localized corrosion**, particularly **pitting corrosion** and **crevice corrosion**. This superior performance is directly attributable to its **molybdenum (Mo) content**. Molybdenum enhances the stability of the passive oxide film on the stainless steel surface, making it more resistant to breakdown in aggressive environments, especially those containing chlorides. This means that even if the general surface remains protected, localized areas like pits or crevices are significantly less likely to initiate and propagate corrosion, which is a common failure mode for standard stainless steels in chloride-containing media. This makes E316L-16 a reliable choice for long-term service in various **corrosive applications**.

Is E316L-16 suitable for welding equipment in the textile industry?

Yes, **E316L-16** is often specified for welding equipment in the **textile industry**, particularly where aggressive dyeing, bleaching, or finishing chemicals are used. These processes can involve hot, corrosive solutions that demand high levels of corrosion resistance. The molybdenum content of **E316L-16** provides excellent protection against pitting and crevice corrosion from various chemicals and chlorides. Its low carbon content ensures that the welded joints maintain their corrosion resistance, preventing sensitization that could lead to premature equipment failure in demanding **textile processing environments**.

What is the importance of proper cleaning of the electrode tip before welding?

Proper cleaning of the electrode tip before welding, especially with **E316L-16** electrodes, is important for ensuring a smooth start and consistent arc. If the tip has been contaminated by previous strikes, slag, or moisture, it can lead to erratic arc starts, spatter, or even porosity. A clean, sharp electrode tip facilitates easier arc initiation and helps maintain a stable arc throughout the weld, contributing to a high-quality, defect-free weld bead. This small but crucial step is part of good welding practice that ensures optimal performance from the **stainless steel electrode**.

How does E316L-16 ensure ductility in the weld metal?

**E316L-16** ensures high ductility in the weld metal primarily through its **austenitic microstructure** and **low carbon content**. The "L" grade minimizes carbide formation, which can otherwise make the material brittle. Austenitic stainless steels inherently possess excellent ductility, allowing the weld metal to deform plastically without fracturing. While a small amount of ferrite is introduced to prevent hot cracking, the overall balance ensures the weld remains highly ductile, which is crucial for accommodating stresses during service and preventing brittle fracture in **stainless steel structures**.

Can E316L-16 be used for structural applications in corrosive atmospheres?

Yes, **E316L-16** is commonly used for **structural applications in corrosive atmospheres**, especially where the environment contains chlorides or other aggressive chemicals. Examples include structural components in chemical plants, offshore structures (above the waterline), and architectural elements exposed to marine or polluted urban environments. While its primary strength is corrosion resistance, its mechanical properties (tensile and yield strength) are sufficient for many structural applications. When designing, engineers must consider both mechanical loads and the specific corrosive challenges to ensure the long-term integrity of the **stainless steel structure**.

What role does manganese play in E316L-16 weld metal?

Manganese (Mn) is a common alloying element in **E316L-16** weld metal, typically ranging from 0.5% to 2.5%. It plays several important roles:
   - **Deoxidizer**: It helps to remove oxygen from the molten weld pool, preventing porosity and ensuring a sound, clean weld metal.
   - **Sulfur Control**: Manganese combines with sulfur to form manganese sulfides, which are less harmful than iron sulfides and help prevent hot cracking.
   - **Austenite Former**: It contributes to stabilizing the austenitic microstructure.
   - **Strength and Toughness**: It contributes to the overall strength and toughness of the weld deposit.
   These roles ensure that the weld metal is not only corrosion-resistant but also structurally sound for **stainless steel fabrication**.

How does the cleanliness of the base metal affect corrosion resistance of the weld?

The cleanliness of the base metal significantly affects the **corrosion resistance of the weld** made with **E316L-16**. Contaminants like grease, oil, rust, scale, or carbon steel particles can:
   - **Introduce impurities**: Altering the weld metal chemistry and reducing corrosion resistance.
   - **Cause defects**: Leading to porosity or inclusions that act as initiation points for localized corrosion.
   - **Lead to sensitization**: Even with "L" grade, severe contamination can compromise corrosion resistance.
   - **Impede passivation**: Free iron particles embedded on the surface can rust, initiating pitting.
   Thorough cleaning, often involving grinding with dedicated stainless steel tools and degreasing, is paramount to ensure the weld achieves its full intended corrosion resistance in any **stainless steel application**.

What is the difference in arc characteristics between AC and DCEP with E316L-16?

When welding with **E316L-16**, there are distinct differences in arc characteristics between AC and DCEP (Direct Current Electrode Positive):
   - **DCEP**: Generally provides a **smoother, more stable arc** with better penetration and a cleaner bead. It is the preferred choice for most critical stainless steel welding due to its consistent performance and ability to achieve sound fusion.
   - **AC**: Can be used with "-16" electrodes and is advantageous in situations with **arc blow** (magnetic deflection of the arc), which can occur when welding large sections or near magnetic fields. AC arc tends to be slightly less stable than DCEP but offers flexibility.
   Welders often choose DCEP for superior control and weld quality, reserving AC for specific challenging situations in **stainless steel fabrication**.

How does E316L-16 perform under thermal cycling?

**E316L-16** weldments generally perform well under **thermal cycling** due to the inherent properties of austenitic stainless steel. Its high ductility allows it to accommodate stresses from repeated expansion and contraction without fracturing. The low carbon content helps prevent sensitization from short-term excursions into the carbide precipitation range during thermal cycles. While stainless steels have a higher thermal expansion coefficient, which increases thermal stresses, the ductility of the weld metal helps to manage these stresses effectively, contributing to the long-term integrity of **stainless steel components** exposed to fluctuating temperatures.

Can E316L-16 be used for welding chemical storage tanks?

Yes, **E316L-16** is a primary choice for welding **chemical storage tanks** where the stored chemicals are corrosive, particularly those containing chlorides or non-oxidizing acids. Its exceptional resistance to pitting, crevice corrosion, and intergranular corrosion makes it highly suitable for containing aggressive media without degradation over time. The "L" grade ensures the integrity of the weld zones against sensitization, which is critical for preventing leaks and maintaining safety in **chemical processing industries**. Proper tank design, material selection, and welding procedures are all crucial for reliable chemical storage.

What is the role of silicon in E316L-16 weld metal?

Silicon (Si) is typically present in **E316L-16** weld metal, generally ranging from 0.3% to 0.9%. It primarily acts as a **deoxidizer**, helping to remove oxygen from the molten weld pool during welding. This deoxidizing action prevents the formation of porosity and ensures a cleaner, sounder weld metal. Silicon also contributes to the fluidity of the weld puddle, influencing bead shape and wetability. While its role in corrosion resistance is minor compared to chromium and molybdenum, its contribution to overall weld soundness is crucial for producing high-quality **stainless steel fabrications**.

Is E316L-16 suitable for use in the marine industry for boat components?

Yes, **E316L-16** is an excellent choice and widely used in the **marine industry for boat components** and other saltwater applications. Its primary advantage in this environment is the **molybdenum content**, which provides significantly enhanced resistance to **pitting and crevice corrosion** from chloride ions present in seawater. This makes it ideal for railings, fittings, tanks, and other structural elements that are exposed to marine atmospheres and occasional saltwater immersion, ensuring longevity and preventing unsightly rust spots on **marine-grade stainless steel components**.

How do you minimize spatter when welding with E316L-16?

To minimize spatter when welding with **E316L-16** electrodes, consider these practices:
   - **Correct Current Setting**: Use the recommended amperage range; too high current increases spatter.
   - **Optimal Arc Length**: Maintain a short and consistent arc length. Too long an arc causes more spatter.
   - **Electrode Angle**: Use the correct push or drag angle, typically a slight drag angle (5-15 degrees).
   - **Cleanliness**: Ensure the base metal and electrode are clean and dry; moisture and contaminants increase spatter.
   - **DCEP Polarity**: DCEP generally produces less spatter than AC for "-16" electrodes.
   - **Proper Travel Speed**: Maintain a consistent travel speed that avoids overheating the puddle.
   These techniques, combined with the inherent smooth arc characteristics of the "-16" rutile coating, help produce clean **stainless steel welds** with minimal spatter.

What is the role of controlled ferrite content in preventing intergranular corrosion?

While the **low carbon content ("L" grade)** is the primary mechanism for preventing **intergranular corrosion** in **E316L-16**, a controlled amount of ferrite (typically 5-10% FN) also plays an indirect role. The presence of ferrite helps to "trap" and homogenize any residual carbon that might be available for carbide formation, effectively reducing the amount of carbon that can segregate to grain boundaries. More importantly, it primarily prevents hot cracking. By achieving a balanced ferrite-austenite microstructure, the weld metal remains resistant to both solidification cracking during welding and intergranular corrosion in service, crucial for the long-term integrity of **stainless steel weldments**.

Can E316L-16 be used for applications requiring vacuum tightness?

Yes, with proper welding procedures and quality control, **E316L-16** can be used for applications requiring **vacuum tightness**. The key is to produce welds that are completely free of porosity, cracks, and other internal defects that could act as leak paths. The low-hydrogen characteristics of E316L-16 (when properly stored and used) and its ability to produce sound, defect-free weld metal (especially with a DCEP and correct technique) make it a suitable choice. For the most demanding vacuum applications, processes like GTAW (TIG) are often preferred for their inherently cleaner welds, but SMAW with E316L-16 can achieve the necessary quality with diligent effort for **vacuum-tight stainless steel fabrications**.

How does E316L-16 compare to other stainless steel electrode types in terms of cost?

**E316L-16** electrodes are generally **more expensive** than E308L-16 electrodes due to the addition of molybdenum, which is a relatively costly alloying element. However, they are typically less expensive than specialized high-alloy stainless steel electrodes (e.g., those for super duplex or nickel-based alloys). While the upfront material cost might be higher, the enhanced corrosion resistance of E316L-16 often translates into **lower overall project costs** by extending the service life of components and reducing maintenance or replacement expenses in challenging corrosive environments, making it a cost-effective choice for its intended **stainless steel applications**.

What is the importance of proper joint preparation for E316L-16 welding?

Proper joint preparation is extremely important for achieving high-quality **E316L-16** welds. It involves:
   - **Cleanliness**: Removing all grease, oil, paint, rust, and scale. Using dedicated stainless steel wire brushes and grinding wheels to avoid contamination from carbon steel.
   - **Fit-up**: Ensuring accurate fit-up (root opening, alignment) to facilitate proper penetration and fusion.
   - **Beveling**: Preparing appropriate bevel angles (e.g., V-groove, U-groove) to allow for complete penetration and access for the electrode.
   - **Back purging (for root pass)**: For critical applications, back purging with inert gas is crucial to prevent oxidation of the root.
   Meticulous joint preparation sets the foundation for a defect-free, corrosion-resistant **stainless steel weld**.

Can E316L-16 be used for welding components in water treatment plants?

Yes, **E316L-16** is frequently used for welding components in **water treatment plants**, particularly in sections dealing with chlorinated water, brackish water, or other corrosive chemicals. While 304L is common for general water contact, the molybdenum content in 316L (and thus the E316L-16 weld metal) provides superior resistance to pitting and crevice corrosion, which can be a significant issue with stagnant or chloride-rich water. This makes it an ideal choice for tanks, piping, filters, and other equipment handling aggressive water streams, ensuring the durability and integrity of **water treatment infrastructure**.

What is the role of nitrogen control in E316L-16 electrodes?

Nitrogen is typically controlled to specific levels in **E316L-16** electrodes. While not directly listed in the AWS "316L" classification beyond overall composition, nitrogen plays a role as an **austenite former** and can contribute to **pitting corrosion resistance**, similar to molybdenum. However, excessive nitrogen can increase the likelihood of porosity and hot cracking. Therefore, manufacturers carefully balance nitrogen content to optimize the weld metal's microstructure, ensuring good weldability while contributing to the desired corrosion resistance properties for **stainless steel applications**.

What certifications should a welder have to use E316L-16 in critical applications?

For critical applications using **E316L-16** electrodes, a welder typically needs to be certified to **ASME Section IX** (for pressure vessels and piping) or other applicable industry codes (e.g., API, DNV, Lloyd's Register). These certifications involve a **Welder Performance Qualification (WPQ)** test, where the welder produces test coupons using the specific electrode, base metal, and welding position required by the job. The coupons are then subjected to rigorous non-destructive testing (e.g., radiography, ultrasonic testing) and destructive mechanical tests (e.g., bend tests, tensile tests) to ensure the welder's ability to produce sound, code-compliant **stainless steel welds**.

How does E316L-16 perform under different atmospheric conditions (e.g., humid, dry)?

The performance of **E316L-16** in terms of weld quality is significantly impacted by atmospheric conditions, particularly **humidity**. High humidity can lead to moisture absorption in the electrode's flux coating, even for low-hydrogen electrodes. This absorbed moisture can introduce hydrogen into the weld metal, increasing the risk of **porosity** and, in rare cases for stainless steel, even hydrogen-induced cracking. Therefore, for optimal performance, E316L-16 electrodes should always be stored in dry conditions, and those exposed to humidity should be re-baked as per manufacturer guidelines before use. While dry conditions are always preferred, proper electrode management mitigates the risks associated with varying humidity for **stainless steel welding**.

What is the typical impact of residual stresses in E316L-16 welds?

Residual stresses are inherent in any weld, including those made with **E316L-16**, due to the localized heating and cooling during welding. In stainless steel, which has a higher coefficient of thermal expansion and lower thermal conductivity, residual stresses can be more pronounced, leading to **distortion**. While the ductility of 316L weld metal helps it accommodate these stresses, very high residual stresses can contribute to **stress corrosion cracking (SCC)** in susceptible environments, or potentially influence fatigue life. For most E316L-16 applications, PWHT for stress relief is not common, relying on the material's ductility to manage stresses, though specific project codes may dictate otherwise for particularly thick or critical **stainless steel components**.

Can E316L-16 be used for welding components in food processing machinery?

Yes, **E316L-16** is highly suitable and widely used for welding components in **food processing machinery**. Its **low carbon content** ensures that the weld areas are not prone to sensitization, thus preventing intergranular corrosion which could lead to contamination or reduced hygiene. The **molybdenum addition** provides superior resistance to pitting and crevice corrosion from various food products, cleaning agents, and sanitizers, including those containing chlorides. This makes E316L-16 an ideal choice for tanks, hoppers, conveyors, and other parts that come into contact with food, ensuring the long-term integrity and hygienic performance of **food-grade stainless steel equipment**.

What is the meaning of "Austenitic" in relation to 316L stainless steel?

"Austenitic" refers to the **crystal structure** of 316L stainless steel and its weld metal. Austenitic stainless steels, like 316L, have a face-centered cubic (FCC) crystal structure, which is non-magnetic and characterized by excellent ductility, toughness, and good corrosion resistance across a wide range of temperatures, including low temperatures. The alloying elements (chromium, nickel, molybdenum) in **E316L-16** are carefully balanced to promote and stabilize this austenitic phase in the deposited weld metal, with a controlled amount of delta ferrite, ensuring the desired mechanical and corrosion properties for **stainless steel fabrication**.

What are the recommended safety practices for handling E316L-16 electrodes?

Recommended safety practices for handling **E316L-16** electrodes include:
   - **Gloves**: Always wear dry, insulated welding gloves.
   - **Storage**: Store electrodes in dry, sealed containers or heated ovens to prevent moisture absorption.
   - **Ventilation**: Ensure adequate ventilation to minimize inhalation of welding fumes.
   - **Eye Protection**: Use appropriate eye and face protection (welding helmet with proper shade).
   - **General Shop Safety**: Follow all general welding safety rules regarding electrical hazards, fire prevention, and working with hot materials.
   Consult the electrode's Safety Data Sheet (SDS) for specific handling instructions and hazard information related to the chemicals in the flux coating and potential welding fumes for **stainless steel welding**.

How does E316L-16 facilitate good radiographic quality welds?

**E316L-16** facilitates good radiographic quality welds due to its inherent characteristics when properly applied. The **rutile-type ("-16") coating** contributes to a stable arc and smooth weld bead, making it easier for welders to produce consistent, uniform welds. The low-hydrogen nature, when electrodes are kept dry, minimizes hydrogen-induced porosity. The controlled ferrite content helps prevent hot cracking. All these factors combined reduce the likelihood of internal defects such as porosity, slag inclusions, or lack of fusion, which are detectable by radiography. Achieving good radiographic quality is crucial for critical **stainless steel pressure containment components**.

Can E316L-16 be used for welding components in the pharmaceutical industry?

Yes, **E316L-16** is highly suitable and frequently used for welding components in the **pharmaceutical industry**. This industry demands extremely high standards of cleanliness, corrosion resistance, and surface finish to prevent contamination and ensure product purity. The low carbon content of E316L-16 prevents sensitization, meaning the weld area retains its full corrosion resistance to aggressive cleaning solutions and process media. The molybdenum content provides extra protection against pitting and crevice corrosion. Components like bioreactors, storage vessels, and piping are routinely fabricated with E316L-16, ensuring the integrity and hygienic performance of **pharmaceutical manufacturing equipment**.

What is the impact of nickel content on E316L-16 properties?

Nickel (Ni), typically 11.0% to 14.0% in **E316L-16** weld metal, plays a critical role in stabilizing the **austenitic microstructure**. It is a powerful austenite former, ensuring the weld metal remains predominantly austenitic, which provides excellent ductility, toughness, and non-magnetic properties. Nickel also contributes to general corrosion resistance and is essential for the overall balance with chromium and molybdenum to achieve the desired properties of 316L stainless steel. Without sufficient nickel, the weld metal could form undesirable brittle phases, compromising its performance in **corrosive stainless steel applications**.

How does E316L-16 ensure resistance to intergranular attack in nitric acid?

**E316L-16** offers improved resistance to **intergranular attack in nitric acid** environments primarily due to its **low carbon content ("L" grade)**. While 316L is generally suitable for nitric acid, high carbon versions of stainless steel can be susceptible to intergranular attack if they become sensitized. By preventing carbide precipitation, the "L" grade ensures that the chromium remains in solid solution at the grain boundaries, maintaining the protective passive layer that resists corrosion by nitric acid. However, for highly concentrated or fuming nitric acid, even more specialized stainless steels or nickel alloys might be required, but E316L-16 is a strong performer in many **nitric acid applications**.

Is back purging necessary when welding with E316L-16 electrodes?

**Back purging** (purging the back side of the weld joint with an inert gas like argon) is **highly recommended and often mandatory** when welding the root pass of **E316L-16** in critical applications such as pipes, pressure vessels, or thin-walled components. The purpose of back purging is to prevent oxidation of the molten weld pool and the root bead on the backside. Oxidation can lead to a rough, sugared, or discolored back bead, which significantly reduces corrosion resistance, can create sites for pitting, and compromise the overall integrity of the weld. For maximum corrosion resistance and quality, especially in chemical or food-grade applications, back purging is crucial for **stainless steel welding**.

What are the considerations for multi-pass welding with E316L-16?

Multi-pass welding with **E316L-16** electrodes requires careful attention to several factors. **Interpass temperature control** is crucial; keeping it below the specified maximum (e.g., 177°C / 350°F) helps control distortion and prevents overheating. **Thorough interpass cleaning** (slag removal with stainless steel brushes) after each pass is essential to prevent slag inclusions and porosity in subsequent layers. Managing **heat input** per pass is also important to maintain the desired microstructure and corrosion resistance. Proper sequencing of passes helps to balance stresses and minimize distortion, ensuring a high-quality and durable **multi-pass stainless steel weldment**.
