AWS A 5.14 ERNiCrFe-2
1kg,2kg,5kg,10kg,20kg
1lb;2lb;4.5lb;11lb;15lb;20lb;33lb;44lb
0.6mm;0.8mm;0.9mm;1.0mm;1.2mm;1.6;2.0mm
0.023;0.030in;0.035in;3/64″;0.045;1/16″;5/64″
1.6mm,2.0mm,2.4mm,3.2mm,4.0mm,5.0mm
1/16 ″in;5/64″in;3/32″in;1/8″in;5/32″inch
D100,D200,D270,D300,BS300,K300
Acceptable (design the pack with your logo)
15 Days
Product Description
AWS A5.14 is the American Welding Society's specification for **nickel and nickel-alloy bare welding electrodes and rods**. This standard covers various forms, including TIG (GTAW) wires, MIG (GMAW) wires, and some coated electrodes, defining their chemical composition, mechanical properties, and usability for welding nickel-based alloys and often dissimilar metals. It ensures quality and consistency for **nickel alloy filler metals**.
Nickel alloys possess unique properties such as excellent corrosion resistance, high-temperature strength, and cryogenic toughness. These characteristics necessitate specialized filler metals that can maintain these properties in the weld deposit, often differing significantly from carbon or stainless steels. They are designed for demanding environments where standard steels would fail, making them critical for **high-performance welding**.

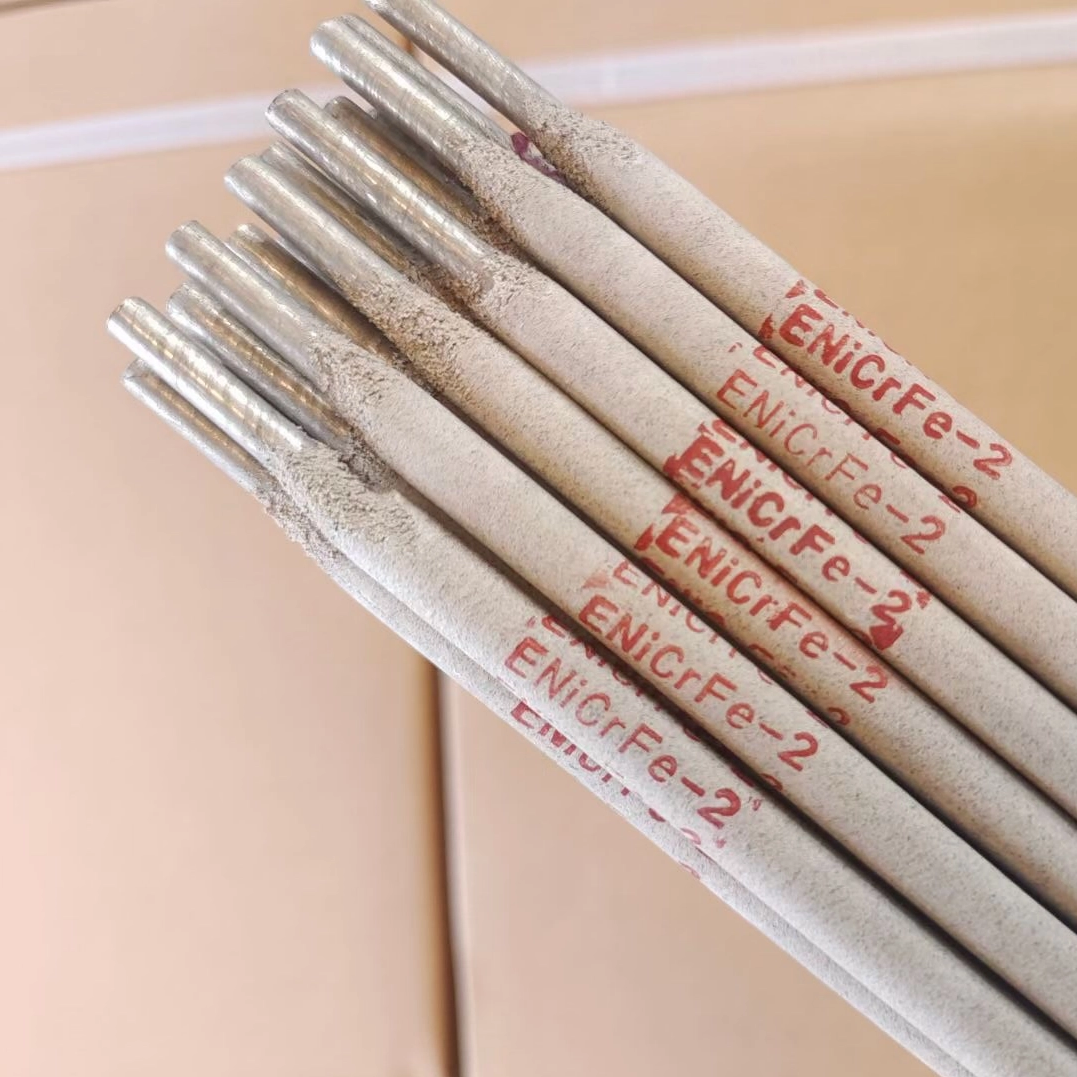

AWS A5.14 ENiCrFe-2 is a covered electrode primarily used for shielded metal arc welding (SMAW) of **nickel-chromium-iron alloys**, such as Inconel 600. It's also an excellent choice for joining dissimilar metals, like nickel alloys to carbon or stainless steels, and for cladding applications. This electrode offers high strength and good oxidation resistance across a wide temperature range.
ERNi-1 TIG wire is composed of essentially pure nickel. It's used for welding commercially pure nickel (such as Nickel 200/201), overlaying steel, and for some dissimilar metal welding where high nickel content is desired. It offers excellent corrosion resistance, particularly to alkalis, and good electrical conductivity. This **pure nickel filler metal** is vital in specific chemical processing industries.
ERNiFeCr-1 TIG wire is a nickel-iron-chromium alloy. It is specifically designed for welding nickel-iron-chromium alloys like Incoloy 800, 800H, and 800HT. It provides good high-temperature strength and oxidation resistance, making it suitable for furnace components, heat exchangers, and other applications exposed to elevated temperatures. It's often referred to as an **Incoloy 800 filler wire**.
ENiFe-CI is a covered electrode (SMAW) primarily used for **welding cast iron**, specifically ductile iron and malleable iron, and for joining cast iron to steel. Its nickel-iron core provides a strong, ductile weld deposit that minimizes heat-affected zone cracking in challenging cast iron repairs. It's known for excellent machinability of the weld. This is a common **cast iron repair electrode**.
Yes, ENiFe-CI is also available as a MIG wire. The **ENiFe-CI MIG wire** offers higher deposition rates and increased efficiency for welding cast iron compared to stick electrodes, making it suitable for production applications or larger repairs. It provides similar metallurgical benefits to the stick electrode for joining cast iron to steel or repairing various types of cast iron.
ERNiCrMo-3 TIG wire (often associated with Inconel 625) is a highly versatile nickel-chromium-molybdenum alloy. It provides excellent strength from cryogenic temperatures to over 1800°F (982°C), and exceptional resistance to a wide range of corrosive media, including pitting, crevice corrosion, and stress-corrosion cracking. It's ideal for nuclear, chemical processing, and marine applications. It's a key **corrosion-resistant alloy filler metal**.
ERNiCrMo-4 TIG wire (often associated with Hastelloy C-276) is a nickel-chromium-molybdenum-tungsten alloy, offering even superior corrosion resistance, particularly in highly oxidizing and reducing environments. It's often chosen for more aggressive chemical processing applications where ERNiCrMo-3 might not suffice. It provides enhanced resistance to general and localized corrosion. This is a top-tier **Hastelloy C-276 filler wire**.
ERNiCrMo-10 TIG wire is a highly specialized nickel-chromium-molybdenum alloy with a higher chromium content than ERNiCrMo-3 or -4, and additions of tungsten and copper. It provides excellent resistance to hot concentrated sulfuric acid and other aggressive environments. It's often used for specific applications in the chemical processing and pollution control industries. It's critical for welding **alloy C-2000**.
ERNiCr-3 TIG wire (often referred to as Inconel 82 or 182) is a nickel-chromium alloy with niobium. It's widely used for welding nickel-chromium-iron alloys like Inconel 600, 601, and 800. It also excels in dissimilar welding between nickel alloys, stainless steels, and carbon steels, offering good strength and resistance to oxidation and heat. It's a very common **dissimilar metal welding filler**.
ERNiCu-7 TIG wire (often associated with Monel 400) is a nickel-copper alloy. It's specifically designed for welding nickel-copper alloys and for joining them to steels. It provides excellent corrosion resistance in marine and chemical environments, particularly against seawater and non-oxidizing acids. It is often used for marine components, pumps, and valves. This is the prime **Monel filler metal**.
ERNiCrCoMo-1 TIG wire is a high-performance nickel-chromium-cobalt-molybdenum alloy. It's used for welding alloys like Haynes 282 or 263, and for joining superalloys. It offers exceptional high-temperature strength, creep resistance, and oxidation resistance, making it suitable for aerospace, gas turbine, and power generation components exposed to extreme heat. It's a critical **superalloy welding wire**.
Yes, ERNiCr-3 is widely available as a MIG wire. The **ERNiCr-3 MIG wire** offers increased productivity and higher deposition rates compared to its TIG counterpart. It maintains the excellent all-around strength, high-temperature performance, and dissimilar metal joining capabilities, making it popular for production welding of nickel alloys and critical dissimilar joints.
Absolutely. The **ERNiCrMo-3 MIG wire** is a popular choice for high-volume fabrication requiring the superior corrosion resistance and strength of the Inconel 625-type alloy. It provides high deposition rates and consistent performance in demanding chemical, marine, and aerospace applications, benefiting from the efficiency of the GMAW process.
ENiCrFe-2 is designed for welding nickel-chromium-iron alloys such as **Inconel 600**, Incoloy 800, and Incoloy 800HT. It's also widely used for dissimilar welding applications involving these alloys and various grades of stainless steel or carbon steel, providing a robust, high-integrity joint.
The main advantages include superior corrosion resistance in aggressive environments (acids, alkalis, seawater), high strength at elevated and cryogenic temperatures, excellent creep and fatigue resistance, and good toughness. These properties make them indispensable in industries where reliability under extreme conditions is paramount. They enable **high-performance welds**.
Yes, most nickel alloy consumables, especially low-hydrogen and bare wires, require careful handling and storage. They should be kept in dry, sealed containers to prevent moisture pickup, which can lead to porosity and other weld defects. Proper storage ensures the integrity of the **nickel alloy filler metal**.
Common applications for ERNi-1 include welding pure nickel components in the chemical and food processing industries, battery manufacturing, and for cladding steel where a pure nickel surface is desired for corrosion resistance. It's ideal for environments with strong caustics. It's often the choice for **caustic service applications**.
The balanced iron-chromium-nickel composition of ERNiFeCr-1 provides excellent resistance to oxidation and carburization at high temperatures, which is crucial for applications like industrial furnace components and heat treatment equipment. The iron content helps manage thermal expansion. This specific **nickel-iron-chromium alloy** offers unique thermal stability.
Welding cast iron can be challenging due to its brittleness, high carbon content, and susceptibility to cracking in the heat-affected zone (HAZ). ENiFe-CI addresses these challenges by providing a ductile, low-shrinkage weld metal, minimizing cracking and allowing for post-weld machining. Careful preheating and controlled cooling are often still needed for **cast iron welding repair**.
The primary difference lies in their specific corrosion resistance profiles and base metal compatibility. ERNiCrMo-3 is widely used for Inconel 625 and offers broad corrosion resistance. ERNiCrMo-4, with its tungsten content, is tailored for Hastelloy C-276 and provides superior resistance in extremely aggressive oxidizing and reducing acids. The choice depends on the specific **corrosive environment**.
You'd choose ERNiCr-3 when using TIG or MIG welding processes, as it's a bare wire. ENiCrFe-2 is a coated electrode for stick welding. While both are used for similar nickel-chromium-iron alloys and dissimilar joints, the selection comes down to the preferred welding process. **ERNiCr-3 for TIG/MIG** offers better control and higher deposition rates in many scenarios, while **ENiCrFe-2 for SMAW** offers portability and simpler equipment.
ERNiCu-7 (Monel) offers exceptional resistance to seawater, brackish water, and high-velocity flowing water, including cavitation erosion. Its nickel-copper composition resists various acids and alkalis, which are common in marine chemical processes. This outstanding **marine corrosion resistance** makes it ideal for offshore platforms, ship components, and desalination plants.
ERNiCrCoMo-1 is used for welding advanced nickel-based superalloys like Haynes 282, 263, and sometimes Nimonic alloys. These alloys are designed for extreme high-temperature service in aerospace engines and power generation turbines. It is the go-to for **high-temperature superalloy joining**.
AWS A5.14 primarily covers filler metals for **Gas Tungsten Arc Welding (GTAW or TIG)**, **Gas Metal Arc Welding (GMAW or MIG)**, and also specifies some **Shielded Metal Arc Welding (SMAW)** electrodes. It focuses on the bare wire and rod forms for these processes, with some specific coated electrodes also included.
Chromium is a critical alloying element that provides **oxidation resistance** at high temperatures and improves resistance to various forms of corrosion, especially in oxidizing acids. Higher chromium content generally leads to better corrosion and heat resistance in many nickel alloys.
Molybdenum significantly enhances the **corrosion resistance** of nickel alloys, particularly against pitting and crevice corrosion in chloride-containing environments. It also contributes to solid-solution strengthening, improving high-temperature strength and creep resistance.
ERNiCrMo-10 offers a unique blend of high chromium and molybdenum, along with copper, providing superior resistance to concentrated sulfuric acid, hydrochloric acid, and other aggressive reducing and oxidizing media. It often outperforms ERNiCrMo-3 or -4 in specific highly corrosive applications. It's designed for the most aggressive **chemical processing environments**.
Preheating is generally not required for most nickel alloys unless welding very thick sections, highly restrained joints, or joining to dissimilar steels that might benefit from preheat. In such cases, moderate preheat (e.g., 200-300°F or 90-150°C) may be applied. Excessive preheat should be avoided as it can promote hot cracking. Always check the specific **nickel alloy welding procedure**.
Challenges include differences in thermal expansion coefficients, dilution effects, and potential for intermetallic phase formation, which can lead to cracking or reduced mechanical properties. Nickel-based filler metals like ENiCrFe-2 and ERNiCr-3 are specifically designed to accommodate these differences, providing ductile, crack-resistant joints. They are excellent for managing **dissimilar metal thermal stresses**.
The suffixes like "-3", "-4", "-10", etc., in ERNiCrMo-X or ERNiCr-X classifications are part of the AWS system to denote specific compositional variations within a family of alloys. They refer to distinct compositions that provide tailored properties for different applications or base metals. Each suffix corresponds to a unique **filler metal composition**.
While primarily for Incoloy 800 series, ERNiFeCr-1 can sometimes be used for joining certain stainless steels to nickel alloys, especially where a high iron content in the weld metal is acceptable or desired for compatibility with the stainless steel side. However, other nickel alloys like ERNiCr-3 are more commonly chosen for general **stainless steel to nickel alloy joining**.
For TIG welding (GTAW) with nickel alloy wires, **100% pure argon** is the most common shielding gas. For some specific applications or to improve arc characteristics and penetration, small additions of helium (e.g., argon-helium mixtures) can be used. Carbon dioxide (CO2) or oxygen should generally be avoided. Proper **shielding gas selection** is crucial for preventing weld contamination.
For MIG welding (GMAW) of nickel alloys, **pure argon** is commonly used for spray transfer. For better arc stability and wetting, especially with higher current or pulsed modes, argon-helium mixtures are often preferred. Small additions of hydrogen might be used for some alloys to enhance cleaning. Avoid reactive gases like CO2 or oxygen that can cause oxidation. The right **MIG shielding gas for nickel** ensures quality.
Yes, many nickel alloy welds, particularly those made with TIG or MIG processes using high-quality filler metals like ERNiCrMo-3 or ERNiCr-3, are designed to be **radiographic quality**. This means they should be free from internal defects like porosity or inclusions detectable by X-ray or gamma ray inspection, critical for pressure vessels and aerospace components.
ERNiCrMo-4 (Hastelloy C-276 type) has an optimized balance of chromium, molybdenum, and tungsten which provides exceptional resistance to both oxidizing and reducing environments, including strong acids like sulfuric, hydrochloric, and phosphoric acids. This broad resistance makes it highly versatile in aggressive chemical processes. It is a robust **corrosion-resistant filler metal**.
Hot cracking in nickel alloy welds can be influenced by several factors: excessive heat input, high restraint, impurities (like sulfur or phosphorus) in the base metal or filler, and unfavorable solidification patterns. Proper filler metal selection (e.g., using those designed for crack resistance), controlled heat input, and good joint design help mitigate **hot cracking in nickel welds**.
Common joint preparations include V-grooves, U-grooves, and butt joints, similar to stainless steel. For thicker sections, U-grooves are often preferred to minimize dilution and filler metal volume. Proper cleaning of the joint and surrounding area is paramount to remove oxides and contaminants. Thorough **joint preparation for nickel alloys** is essential.
While ERNiCu-7 is primarily for nickel-copper alloys, it can sometimes be used for joining Monel to stainless steel. However, it's not a general-purpose stainless steel filler. Other nickel-based fillers like ERNiCr-3 are typically more suitable for general **dissimilar joining to stainless steel** due to better compatibility.
Niobium (Nb) or columbium (Cb) additions to nickel alloys, as seen in ERNiCr-3, act as a carbide stabilizer. It ties up carbon, preventing the formation of chromium carbides, which helps to maintain corrosion resistance in the heat-affected zone and improve high-temperature strength. It's important for **carbide precipitation control**.
Iron dilution occurs when welding nickel alloys to steels, where some iron from the steel base metal mixes into the nickel weld puddle. Excessive dilution can compromise the corrosion resistance or mechanical properties of the nickel weld. Selecting filler metals like ENiCrFe-2 or ERNiCr-3 helps manage this through their inherent iron content or tolerance. Managing **dilution in dissimilar welds** is key.
For TIG welding of nickel alloys, **Direct Current Electrode Negative (DCEN)**, also known as straight polarity, is almost universally used. DCEN concentrates the heat on the workpiece, providing deeper penetration and a more stable arc for welding these materials. AC is generally not used for these alloys.
Its exceptional high-temperature strength, excellent creep rupture properties, and superb oxidation resistance at very elevated temperatures (above 1800°F) make ERNiCrCoMo-1 perfect for the demanding conditions inside **gas turbine engines**, including turbine blades and vanes.
"Buttering" (or "cladding") is a technique where a layer of nickel alloy filler metal is deposited onto the surface of a steel component before joining it to another nickel alloy or steel. This creates a transition layer that reduces dilution effects and can improve crack resistance in dissimilar joints. It's a common **dissimilar welding preparation method**.
Post-weld heat treatment (PWHT) is generally not required for most nickel alloy welds, and sometimes can even be detrimental. However, stress relief annealing might be applied in specific cases of high restraint or for certain applications where residual stress reduction is critical. Surface cleaning to remove slag is always necessary. Consult specific **nickel alloy post-weld procedures**.
While specific melting ranges vary slightly by manufacturer and composition, ERNiCrMo-3 typically has a solidus/liquidus range around 2375-2460°F (1300-1350°C), while ERNiCrMo-4 has a slightly lower range, e.g., 2300-2470°F (1260-1355°C). These subtle differences contribute to their distinct hot cracking resistance and fluidity characteristics. These are relevant **filler metal melting points**.
No, ERNi-1 is pure nickel. For welding Monel (nickel-copper alloys), **ERNiCu-7** is the correct filler metal. Using ERNi-1 would not provide the proper metallurgical match or corrosion resistance for Monel alloys.
Common sizes for nickel alloy TIG wires typically range from 1/16 inch (1.6 mm) up to 1/8 inch (3.2 mm), with 3/32 inch (2.4 mm) and 1/8 inch being very popular. Smaller diameters might be used for thin materials, while larger ones are for thicker sections. Selecting the right **TIG wire diameter** is crucial for heat input and puddle control.
The "Fe" signifies a substantial iron content in the alloy. In ENiCrFe-2, it's an intentional component of the nickel-chromium-iron alloy family. In ERNiFeCr-1, it highlights the significant iron content (around 30-46%) that distinguishes it from other nickel alloys and makes it suitable for iron-rich base metals like Incoloy 800. This determines the **alloy's base composition**.
A good nickel alloy TIG weld should be bright, clean, well-formed with consistent bead width and ripple, and free from porosity, cracks, or undercut. The color should indicate proper shielding, avoiding dark or sugared appearances that suggest oxidation. A well-executed **nickel TIG weld** reflects meticulous technique.
While ERNiCr-3 can join stainless steels, it's generally not the first choice for welding stainless steel to itself (e.g., 304 to 304). Specific stainless steel filler metals like ER308L or ER309L are preferred for such applications to match the base metal properties. ERNiCr-3 is exceptional for **dissimilar metal welds involving stainless steel**.
Manganese in ENiFe-CI helps to deoxidize the weld pool and improve the fluidity of the molten metal. It also contributes to the strength and ductility of the weld deposit, which is crucial for accommodating the stresses during cast iron welding and preventing cracking. It enhances **weldability for cast iron**.
Oxygen is highly detrimental to nickel alloy welding. It causes severe oxidation, leading to porosity, brittle welds, and reduced corrosion resistance. Strict attention to shielding gas purity, proper joint cleaning, and adequate gas coverage are essential to prevent oxygen contamination. It's a key factor in **weld integrity**.
Yes, many nickel alloy MIG wires (e.g., ERNiCr-3 Mig Wire, ERNiCrMo-3 Mig Wire) perform exceptionally well with **pulsed MIG welding**. Pulsing provides better arc control, reduced heat input, and improved wetting, which can be beneficial for out-of-position welding and minimizing distortion on nickel alloys. It offers superior **GMAW control**.
Welding thick sections of nickel alloys presents challenges such as managing heat input to prevent hot cracking, ensuring full penetration, controlling distortion, and maintaining interpass temperatures. Multi-pass welding with proper cleaning between passes is crucial. It often requires specific **nickel alloy welding procedures**.
Creep resistance is the ability of a material to resist deformation under prolonged stress at high temperatures. Nickel alloys and their welds (especially with filler metals like ERNiCrCoMo-1, ERNiCrMo-3) are known for excellent creep resistance, making them ideal for high-temperature components in power generation and aerospace. It's a critical **high-temperature mechanical property**.
No, ERNiCrMo-3 is a nickel-based alloy and is not suitable for welding titanium. Titanium welding requires specialized titanium filler metals and extremely strict shielding to prevent contamination, as titanium is highly reactive. Never use **nickel filler metal for titanium**.
Dilution is the mixing of the base metal with the filler metal during welding. In overlay or cladding applications, controlling dilution is crucial to ensure the deposited layer achieves the desired chemical composition and properties (e.g., corrosion resistance) of the nickel alloy. Proper parameters and multi-pass techniques minimize **weld overlay dilution**.
Yes, dedicated cleaning tools are essential. Use stainless steel wire brushes or grinders that have *never* been used on carbon steel or other alloys, to prevent contamination. Cleanliness is paramount for nickel alloy welding to prevent defects. Maintaining **dedicated stainless steel tools** for nickel is vital.
The PREN is a theoretical measure of a stainless steel or nickel alloy's resistance to pitting corrosion in chloride-containing environments. It's calculated based on the percentages of chromium, molybdenum, and nitrogen. Higher PREN values indicate better pitting resistance, which is a key attribute of alloys like ERNiCrMo-4. It helps assess **corrosion performance**.
While ERNiCr-3 can join nickel alloys to structural steel, it's generally not used for welding structural steel to itself. Carbon steel electrodes (like E7018) are far more cost-effective and appropriate for welding standard structural steels. ERNiCr-3 is reserved for its specific **dissimilar metal joining capabilities** or for welding nickel alloys.
Under AWS A5.14, ERNiCrMo-3 is available primarily as **bare rods for TIG (GTAW)** and **bare wires for MIG (GMAW)**. There are also specific coated electrodes (e.g., ENiCrMo-3) available under AWS A5.11, which covers covered electrodes for nickel and nickel alloys.
TIG (GTAW) wires offer superior arc control, precision, and produce very clean, high-quality welds, ideal for critical applications and thin materials. MIG (GMAW) wires offer higher deposition rates, faster welding speeds, and greater productivity, making them suitable for thicker materials and production environments. The choice depends on desired **weld quality vs. productivity**.
Hot ductility refers to a material's ability to deform without cracking at elevated temperatures during solidification. Nickel alloys can have "hot short" temperature ranges where they are prone to cracking. Selecting filler metals designed for crack resistance (e.g., with appropriate silicon or manganese) and controlling heat input helps manage **hot short cracking**.
For TIG welding, a constant current (CC) power source with high-frequency arc starting is essential. For MIG welding, a constant voltage (CV) power source with good wire feed control is needed, often with pulsed arc capabilities for better results. The chosen **welding power source** must be stable and capable of delivering the required current for nickel alloys.
Yes, ENiCrFe-2 is commonly used for surfacing or cladding steel components where a nickel-chromium-iron surface is required for corrosion or oxidation resistance, or for joining dissimilar materials by buttering. It creates a robust overlay. It is a suitable **cladding electrode**.
Common joint designs for cast iron with ENiFe-CI include U-grooves or V-grooves (often with a wide groove angle), prepared by grinding or chipping. This helps to remove contaminated material and allows for good access for the electrode, especially when minimizing heat input in small passes. Proper **cast iron joint preparation** is critical.
Tungsten, an alloying element in ERNiCrMo-4 (Hastelloy C-276), further enhances the alloy's solid-solution strengthening, contributing to its high strength. More importantly, it significantly improves resistance to uniform and localized corrosion in various aggressive chemical environments. It boosts the **corrosion performance of Hastelloy C-276**.
Yes, many nickel alloy filler metals, especially ERNiCrMo-3, ERNiCr-3, and ERNiFeCr-1, retain excellent toughness and strength at cryogenic temperatures, making them ideal for applications like LNG tanks, cryogenic storage vessels, and low-temperature piping systems. They are excellent **cryogenic service welding materials**.
Pitting and crevice corrosion resistance refers to an alloy's ability to resist highly localized forms of corrosion, especially in chloride-containing environments. Molybdenum and chromium are key elements that enhance this resistance in nickel alloys like ERNiCrMo-3 and ERNiCrMo-4, crucial for marine and chemical processing applications. This property determines **localized corrosion resistance**.
The fluidity varies depending on the alloy and welding process. Pure nickel (ERNi-1) can be quite fluid. Alloys with higher molybdenum or silicon (like ERNiCrMo-4 or some cast iron fillers) might also exhibit good fluidity. Manipulating this fluidity is key to achieving a good bead. This affects **weld puddle control**.
Yes, ERNiCr-3 (Inconel 82/182 type) is an excellent choice for repair welding of Inconel 600 due to its similar composition, good strength, and crack resistance. It provides a reliable and compatible repair weld. It's the standard **repair filler for Inconel 600**.
Maintaining a short, consistent arc length is critical for nickel alloy TIG welding. A long arc can lead to increased oxygen contamination, porosity, and reduced shielding gas effectiveness, resulting in a sugared or oxidized weld. Proper **TIG arc length** ensures optimal shielding and penetration.
Yes, as a coated electrode, ENiCrFe-2 can absorb moisture. It should be stored in a heated oven (e.g., 250-300°F or 120-150°C) and, if exposed to moisture, typically requires re-baking at higher temperatures (e.g., 600-750°F or 315-400°C) for a specified duration before use to prevent hydrogen-induced defects. Always follow the manufacturer's **electrode drying instructions**.
Nickel alloy welds generally respond well to grinding and finishing. However, care must be taken to avoid excessive heat buildup during grinding, which could lead to sensitization in some alloys. Use dedicated grinding wheels to prevent contamination from other metals. Proper **weld finishing techniques** maintain corrosion resistance.
Cobalt (Co) in ERNiCrCoMo-1 significantly improves the **high-temperature strength and creep resistance** of the weld metal. It contributes to solid-solution strengthening and can also enhance the stability of carbides at elevated temperatures, making it vital for extreme hot section applications in aerospace.
A good nickel alloy MIG weld should exhibit a consistent, uniform bead, good fusion with the base metal, and minimal spatter. With pulsed MIG, the bead can be smooth and regular, similar to a good TIG weld. Proper shielding ensures a bright, clean appearance. It should reflect the **efficiency and quality of MIG welding**.
No, ERNiCu-7 is for nickel-copper alloys. For welding pure nickel (Nickel 200), **ERNi-1** is the correct filler metal. Using ERNiCu-7 on pure nickel would introduce copper, altering the base metal's properties and corrosion resistance. Always match the **filler metal to the base metal composition**.
Not maintaining proper interpass temperature can lead to several issues: if too hot, it can increase the risk of hot cracking or excessive grain growth; if too cold, it can lead to incomplete fusion or cold cracking, especially in highly restrained joints. Controlled **interpass temperature** is critical for multi-pass welds.
Silicon acts as a deoxidizer in the weld pool, helping to remove oxygen and prevent porosity. In some cases, it can also improve the fluidity of the molten metal, contributing to better wetting and bead shape. However, excessive silicon can lead to hot cracking in certain alloys. It's an important **deoxidizer for welding**.
Many AWS A5.14 classifications are directly compatible with specific industrial trade names. For example, ERNiCr-3 is often referred to as **Inconel 82/182**, ERNiCrMo-3 is for **Inconel 625**, ERNiCrMo-4 is for **Hastelloy C-276**, and ERNiCu-7 is for **Monel 400**. These classifications ensure material interchangeability regardless of brand.
Confined space welding with nickel alloys requires meticulous attention to ventilation due to potential fume exposure. The bright arc of TIG welding also demands proper eye protection. Careful manipulation and pre-planning for access and fume extraction are essential for **confined space welding safety**.
Yes, pulse TIG welding can be highly beneficial for nickel alloys, particularly for thin materials or out-of-position welds. Pulsing helps to control heat input, minimize distortion, and refine the grain structure, leading to improved mechanical properties and a better bead appearance. It offers enhanced **TIG welding control**.
ENiFe-CI (SMAW) is specifically for welding cast iron or cast iron to steel, focusing on machinability and crack resistance for brittle cast iron. ENiCrFe-2 (SMAW) is for welding nickel-chromium-iron alloys (like Inconel 600) and dissimilar joints involving stainless or carbon steels, emphasizing high-temperature strength and corrosion resistance. They serve entirely different base metals. They are distinct **nickel-based covered electrodes** for different applications.
Sensitization (also called carbide precipitation) is a phenomenon where chromium carbides form at grain boundaries in the heat-affected zone, depleting chromium and making the area susceptible to intergranular corrosion. Low-carbon versions of alloys, or stabilization with elements like niobium (as in ERNiCr-3) or titanium, help prevent this in nickel alloys and stainless steels. Proper **welding heat input control** also helps.
Common diameters for nickel alloy MIG wires typically include 0.035 inches (0.9 mm), 0.045 inches (1.14 mm), and 1/16 inch (1.6 mm). The choice depends on the material thickness, desired deposition rate, and the welding power source capabilities. Selecting the right **MIG wire size** is crucial for stable feeding and proper current density.
Cleanliness is paramount in nickel alloy welding. Any contaminants (grease, oil, oxides, paint, chalk, moisture) can lead to severe weld defects such as porosity, cracking, and loss of corrosion resistance. Thorough pre-weld cleaning by mechanical and chemical means is non-negotiable. **Weld cleanliness** is often the most critical factor for nickel alloys.
Yes, ERNiCrMo-3 is an excellent choice for joining stainless steel to carbon steel, particularly when superior strength, corrosion resistance, and crack resistance are required in the dissimilar joint. It's often preferred over stainless steel fillers (like ER309L) for demanding applications. It's a robust **dissimilar metal joining solution**.
For high-temperature exhaust systems (e.g., in aerospace or performance vehicles), nickel alloys like Inconel 625 (welded with ERNiCrMo-3) or Inconel 600 (welded with ERNiCrFe-2 / ERNiCr-3) are chosen for their oxidation resistance and high-temperature strength. Crack resistance during thermal cycling is a key concern, making these alloys and fillers ideal for **high-temperature exhaust fabrication**.
The high iron content (up to 46%) in ERNiFeCr-1 makes it particularly suitable for welding alloys rich in iron like the 800 series (Incoloy 800, 800H, 800HT). This high iron content helps in achieving good metallurgical compatibility with the base metal, minimizing issues like hot cracking. It's key for **iron-rich nickel alloy welding**.
Similar to other advanced alloys, welding nickel alloys can produce fumes containing nickel, chromium, and molybdenum, which can be hazardous. Excellent ventilation, local exhaust ventilation (LEV), or respiratory protection (PAPR or supplied air) is crucial. Always consult the **Material Safety Data Sheet (MSDS)** for specific fume hazards.
Yes, many nickel alloy filler metals, especially ERNiCrMo-3, ERNiCr-3, and ENiCrFe-2, are extensively used for pressure vessel fabrication, particularly those designed for corrosive service or high-temperature/cryogenic applications. Their robust mechanical properties and corrosion resistance meet stringent code requirements for **pressure vessel integrity**.
Thorough post-weld cleaning to remove all slag, discoloration, and heat tint is essential. Residual slag can act as a crevice for corrosion, and heat tint indicates surface oxidation that can compromise corrosion resistance. Mechanical cleaning and pickling are common. Proper **post-weld cleanup** is critical for maintaining corrosion performance.
Hot workability refers to an alloy's ability to be plastically deformed at high temperatures without fracturing. Alloys with poor hot workability can be more prone to hot cracking during welding. Filler metal selection and careful heat input control are used to manage the **hot cracking susceptibility** of the alloy.
Welds made with ENiCrFe-2 can maintain good strength and oxidation resistance up to approximately 1500°F (815°C) in continuous service. Its properties allow it to perform well in high-temperature applications within this range. It's a capable **high-temperature electrode**.
While ERNiCrMo-10 offers exceptional corrosion resistance, it's a highly specialized and expensive filler metal. It's typically reserved for specific, extremely aggressive chemical environments where other alloys (like ERNiCrMo-3 or -4) would fail. For general chemical plant repairs, ERNiCrMo-3 or -4 might be more common and cost-effective choices unless the environment dictates otherwise. It's a choice for **extreme chemical resistance**.
By providing superior resistance to corrosion, high-temperature degradation, and various forms of cracking, nickel alloy consumables enable welded components to withstand harsh operating conditions for significantly longer periods than those made with conventional materials. This leads to reduced downtime and lower maintenance costs, ensuring a **longer asset lifecycle**.
Beyond chemical processing, ERNi-1 finds use in applications requiring high electrical conductivity, such as battery components, electronic parts, and certain types of heat exchangers where pure nickel's properties are beneficial. It's critical for precise **electrical and thermal applications**.
Choosing the right consumable depends on several factors: the **specific nickel alloy base metal** you're welding, the **service environment** (temperature, corrosive media, stress), the **welding process** (TIG, MIG, SMAW) you're using, and the **required mechanical properties** (strength, toughness, creep resistance). Always consult the base metal manufacturer's recommendations and the filler metal data sheets for optimal selection. For dissimilar metals, consider the properties of both materials and the intended service, often leading to choices like **ERNiCr-3** or **ENiCrFe-2**.
