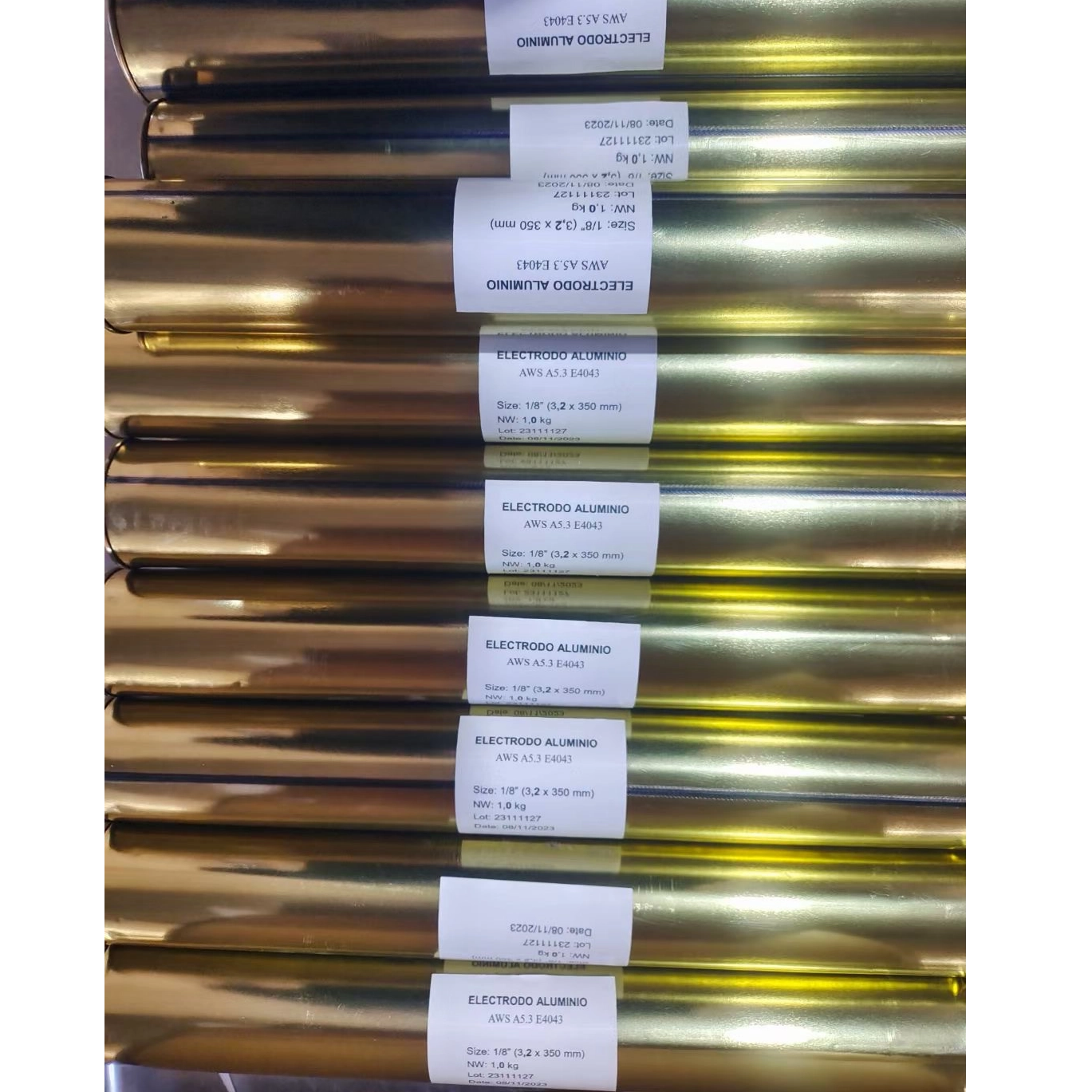

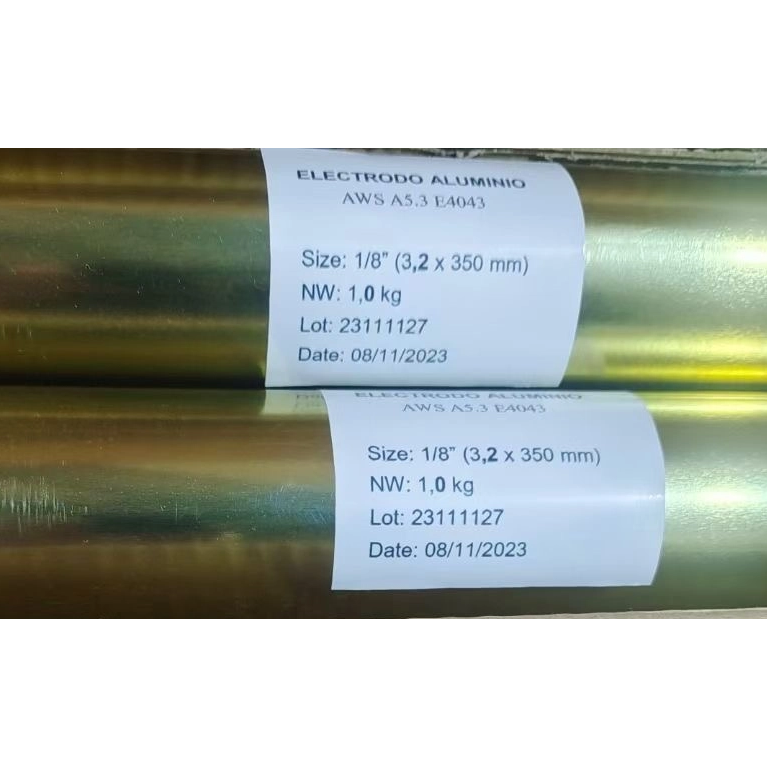

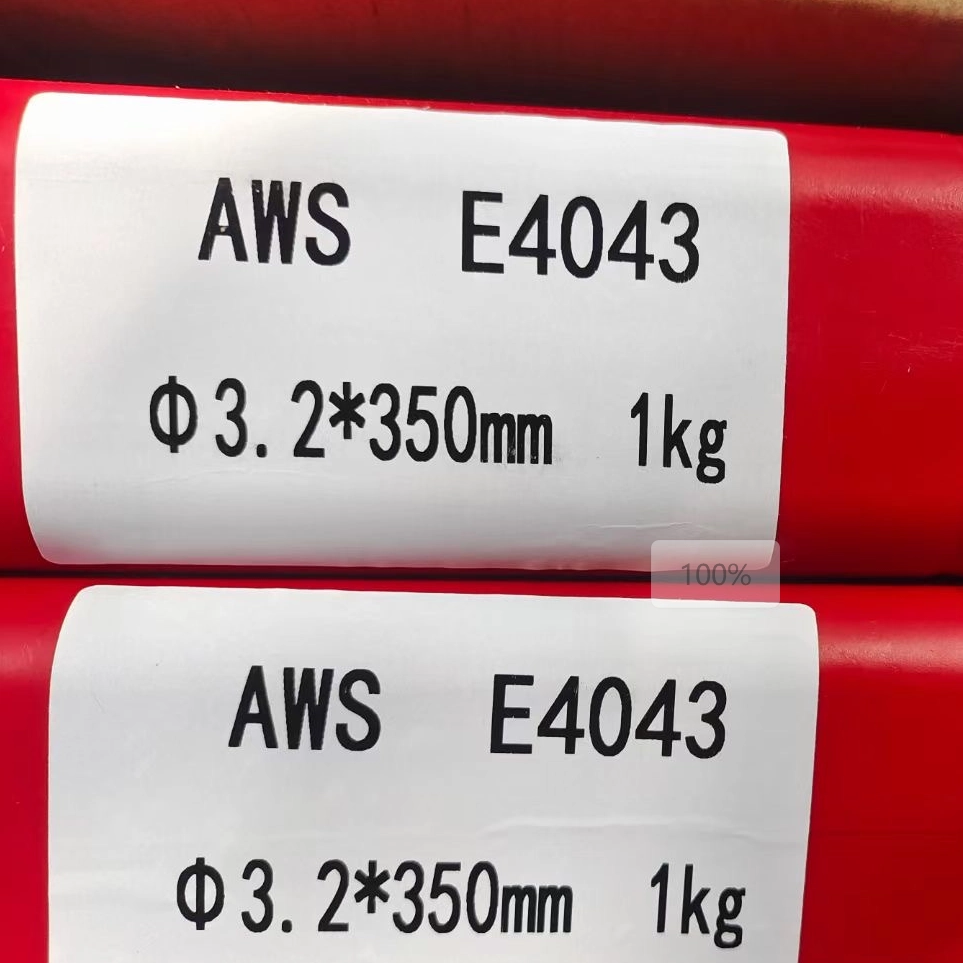

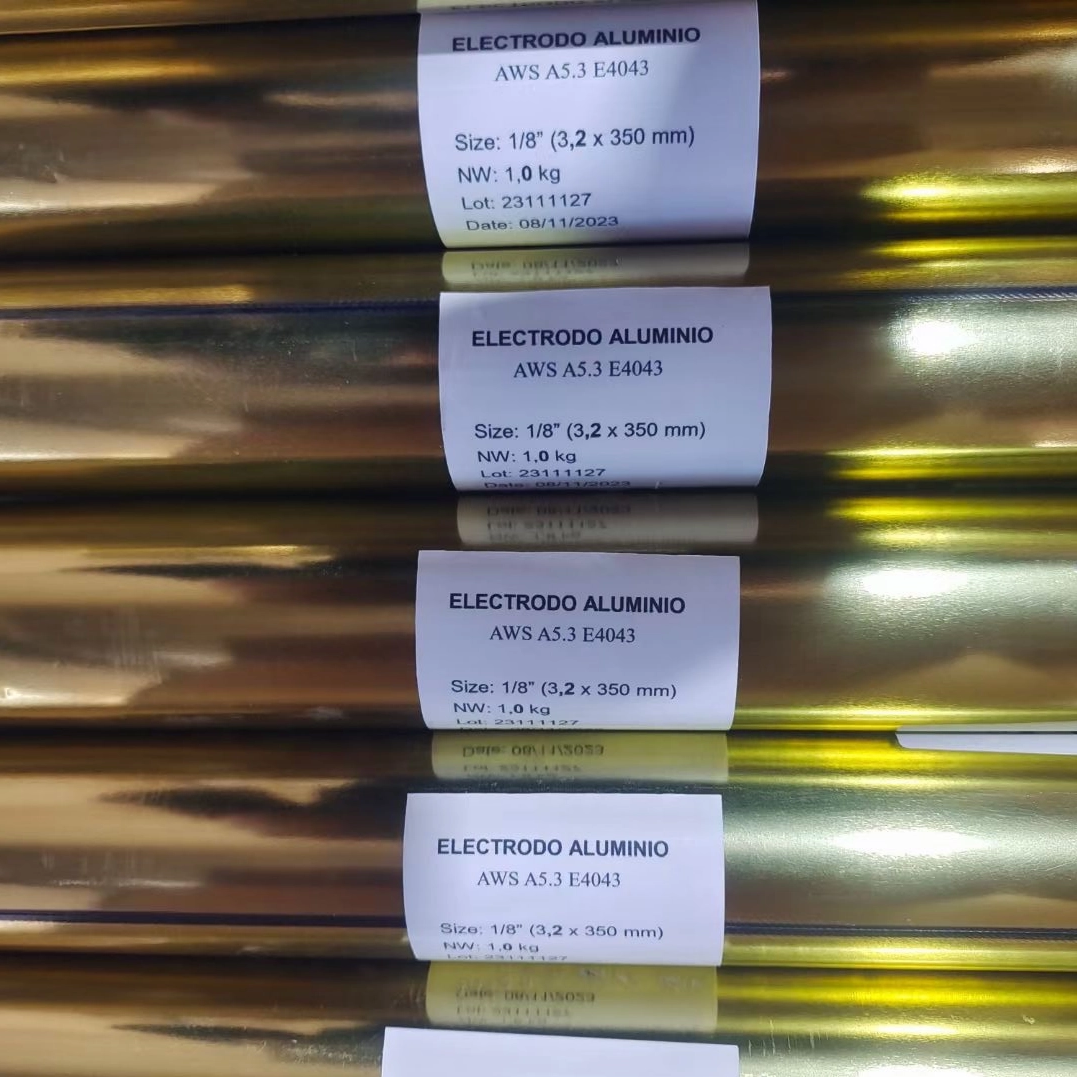

AWS A 5.3 E4043
1kg,2kg,5kg,10kg,20kg
1lb;2lb;4.5lb;11lb;15lb;20lb;33lb;44lb
1.6mm,2.0mm,2.4mm,3.2mm,4.0mm,5.0mm
1/16 ″in;5/64″in;3/32″in;1/8″in;5/32″inch
Acceptable (design the pack with your logo)
15 Days
Product Description
AWS A5.3 is the American Welding Society's specification for **aluminum and aluminum-alloy electrodes for shielded metal arc welding (SMAW)**, also known as stick welding aluminum. It defines the chemical composition, mechanical properties, and usability characteristics for these specialized electrodes, ensuring consistent quality and performance.
Aluminum has unique properties like high thermal conductivity, a low melting point, and the formation of a tenacious oxide layer. These characteristics require specialized electrodes with different flux chemistries and core wire compositions compared to carbon steel electrodes. You can't use a **carbon steel welding electrode** for aluminum.
AWS E1100 is an unalloyed (pure) aluminum electrode. It's used for welding 1100 series aluminum, which is commercially pure aluminum. It offers excellent corrosion resistance and ductility but has lower strength compared to alloyed aluminum welds. It's ideal for applications where base metal purity and corrosion resistance are paramount, such as **aluminum electrical bus bars** or certain chemical processing equipment.
AWS E3003 is an aluminum-manganese alloy electrode. It's designed for welding 3003 and 1060 series aluminum alloys. It provides good corrosion resistance and moderate strength. This electrode is often chosen for general fabrication involving non-heat-treatable alloys and has good ductility. It's a common choice for **general purpose aluminum fabrication**.

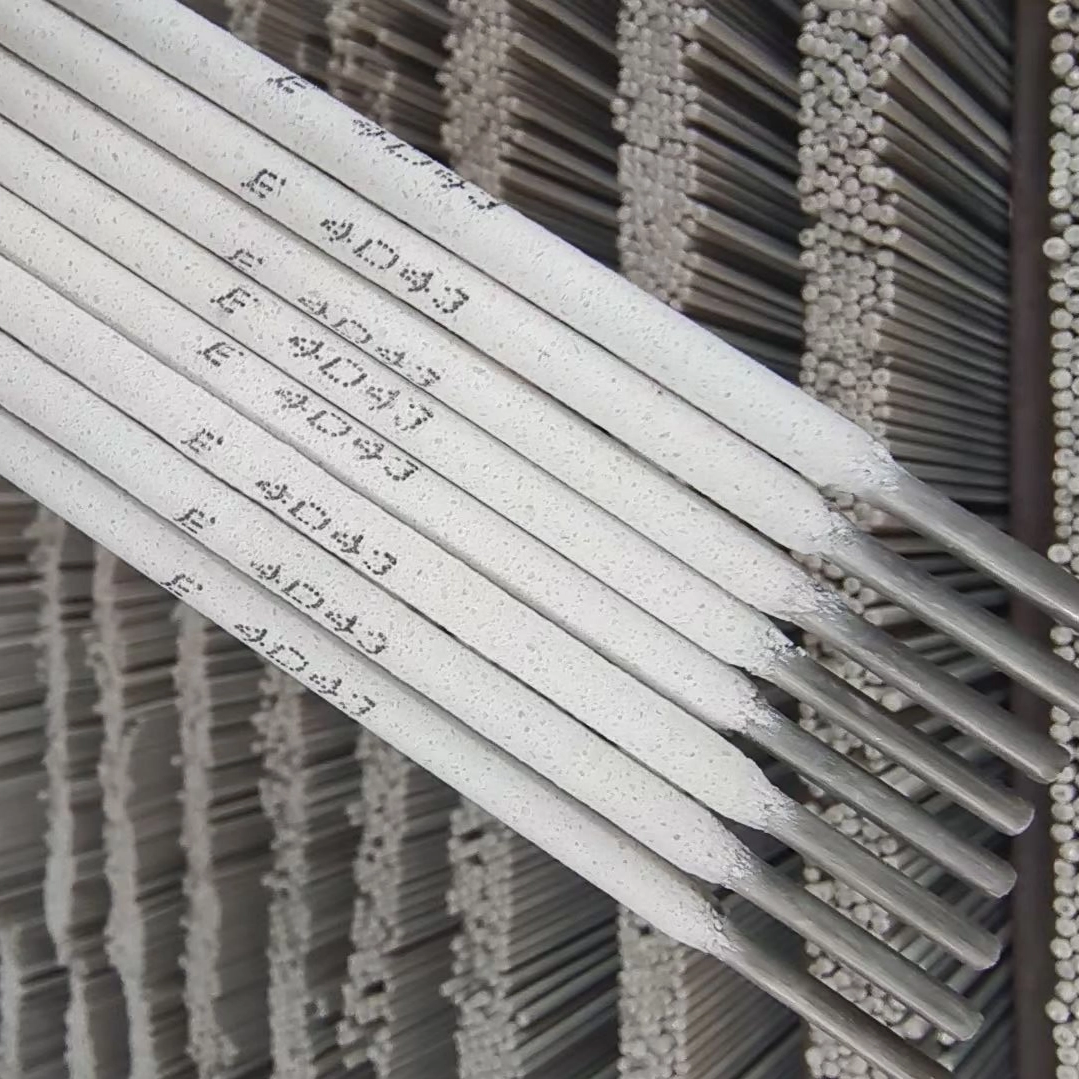

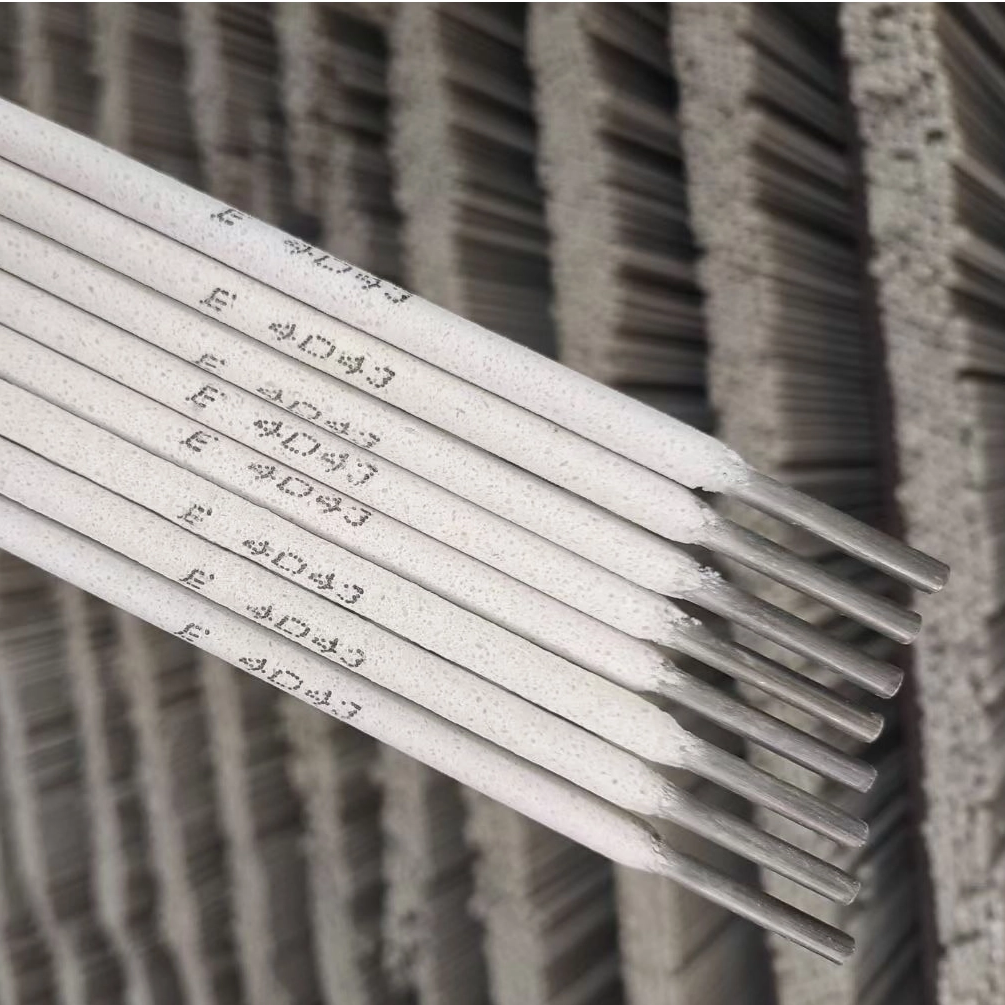

AWS E4043 is a **silicon-alloyed aluminum electrode** containing approximately 5% silicon. It's the most common and versatile aluminum electrode. It's primarily used for welding heat-treatable alloys like 6061, 6063, and cast alloys like 356, as well as for joining dissimilar aluminum alloys containing silicon. It produces bright, clean welds with low porosity.
AWS E4047 is also a silicon-alloyed aluminum electrode, but it has a higher silicon content (around 10-13%) than E4043. This higher silicon content gives it a lower melting point and narrower melting range, which can improve fluidity and reduce hot cracking, especially in certain casting alloys. It also offers a brighter, smoother bead. It's sometimes preferred for **aluminum brazing applications** due to its lower melting point.
Aluminum stick welding electrodes typically require **Direct Current Electrode Positive (DCEP)**, also known as reverse polarity. DCEP helps to break up the tenacious aluminum oxide layer, ensuring proper fusion and preventing defects. Using AC or DCEN will generally lead to poor results.
Yes, preheating is often crucial for successful aluminum stick welding, especially on thicker sections or certain alloys. Preheating helps to reduce the high thermal conductivity of aluminum, preventing excessive chill, reducing distortion, and improving weld quality. The specific **aluminum preheat temperature** depends on the alloy and thickness.
Aluminum electrodes generally produce a stable arc, but it can be more sensitive to arc length variations than carbon steel. They tend to create less spatter and fuming than steel electrodes, but managing the travel speed to avoid burn-through is critical due to aluminum's lower melting point. A tight and consistent **arc length for aluminum** is key.
Common applications for E1100 include welding pure aluminum sheets, foil, and components where very high electrical conductivity, excellent corrosion resistance, and ductility are desired. It's typically used in the **electrical industry** and for certain non-structural components.
While E4043 is very versatile, it's not ideal for all aluminum alloys. It's excellent for 6XXX series and cast alloys. However, it's generally not recommended for 5XXX series alloys (especially those with over 3% magnesium) in applications that will be exposed to elevated temperatures, as it can lead to brittle welds. Always check the **aluminum alloy compatibility chart**.
Aluminum welding electrodes produce a relatively heavy, brittle slag that can be challenging to remove if it cools too quickly or is not properly managed. It's typically white or light gray. Thorough **aluminum slag removal** is essential to prevent corrosion and ensure clean subsequent passes.
Aluminum naturally forms a thin, tough, and high-melting-point oxide layer on its surface. This oxide layer must be removed or disrupted during welding to achieve proper fusion. DCEP polarity helps with this "cleaning action," and proper surface preparation is also vital. The **aluminum oxide layer** is a major challenge in welding.
Yes, aluminum electrodes are highly sensitive to moisture. They should be stored in hermetically sealed containers, ideally in a dry environment or a heated oven, similar to low-hydrogen steel electrodes. Moisture absorption can lead to severe porosity and arc instability. Proper **aluminum electrode storage** prevents weld defects.
E4043's advantages include its excellent weldability, good fluidity, low sensitivity to cracking (especially hot cracking), and its ability to produce bright, relatively porosity-free welds. Its versatility with a wide range of aluminum alloys makes it a popular choice. It's a very forgiving **aluminum general purpose welding rod**.
E3003 offers moderate strength suitable for general fabrication, but it's not typically recommended for high-stress structural applications where higher strength aluminum alloys (like 6XXX series) are used. Its strength properties align with the 3003 base material itself. For **structural aluminum welding**, higher strength filler metals or processes might be needed.
Common challenges include controlling the molten puddle due to aluminum's fluidity, managing burn-through on thin sections, dealing with porosity from moisture or oxide, and achieving good penetration while avoiding lack of fusion. High thermal conductivity also makes it challenging to maintain the weld pool. Mastering **aluminum welding techniques** requires practice.
The higher silicon content in E4047 results in a lower melting point and a narrower freezing range compared to E4043. This improves fluidity, reduces solidification shrinkage, and makes it more resistant to hot cracking, especially when welding certain cast aluminum alloys. It leads to a brighter, smoother bead and can enhance **aluminum filler metal flow**.
Welds made with E4043 typically have a tensile strength around 27,000 psi (186 MPa), but this can vary depending on the base metal and heat treatment. The "40" in E4043 indicates a nominal aluminum-silicon alloy, not tensile strength in the same way as carbon steel electrodes. The **E4043 weld strength** is generally lower than the base metal's ultimate tensile strength in heat-treatable alloys.
Overhead aluminum stick welding is extremely challenging due to the fluidity of molten aluminum. While theoretically possible, it's rarely recommended or practical. If overhead welding is unavoidable, very small diameter electrodes and precise technique are required. Most **aluminum welding positions** are flat or horizontal.
The "1100" in AWS E1100 refers to the pure aluminum series alloy that forms the core wire of the electrode. This indicates that it's designed to be chemically very similar to 1100 series base aluminum, preserving the base metal's properties. It represents the **unalloyed aluminum filler metal**.
Yes, E4043 and E4047 are excellent choices for repairing aluminum castings, especially those containing silicon (e.g., A356, 319). Their silicon content helps to minimize hot cracking, which is a common issue with casting alloys. Choosing the right **aluminum casting repair electrode** is crucial.
Thorough surface preparation is critical. This involves mechanically cleaning the surface with a stainless steel brush (never one used for steel) or abrasive disc, followed by chemical cleaning with a solvent to remove oils and grease. The oxide layer must be removed just prior to welding. Proper **aluminum cleaning for welding** ensures sound joints.
Porosity in aluminum welds is often caused by moisture on the electrode or base metal, or by hydrogen gas trapped in the rapidly solidifying weld pool. Hydrogen is highly soluble in molten aluminum but not in solid aluminum, leading to gas bubbles as it cools. Proper electrode storage and cleaning are vital for **preventing aluminum weld porosity**.
E4043 can be used for some 5XXX series alloys (e.g., 5052), especially those with lower magnesium content and for non-critical applications. However, for 5XXX alloys with higher magnesium content (e.g., 5083, 5356) and for applications exposed to elevated temperatures, specific 5XXX series filler metals like 5356 or 5183 are often preferred to prevent brittle magnesium silicide formation in the weld. Choosing the right **aluminum magnesium alloy filler metal** is important.
Aluminum stick welding generally results in lower weld quality, more spatter, and is much harder to control than TIG or MIG welding. It's also limited in the thickness of material it can weld and the types of alloys. TIG and MIG offer superior control, cleaner welds, and greater versatility. Stick welding **aluminum limitations** are significant.
The "3003" in AWS E3003 refers to the specific aluminum-manganese alloy that makes up the core wire of the electrode. This indicates its compatibility and intended use for welding 3003 and similar non-heat-treatable aluminum alloys. It's designed to match the **3XXX series aluminum base metal**.
Aluminum stick welding is generally not ideal for very thin aluminum sheets due to the high heat input and the material's low melting point, making burn-through a significant risk. TIG welding is far more suited for **thin aluminum sheet welding** due to its precise heat control.
Hot cracking (or solidification cracking) occurs during the solidification of the weld metal due to shrinkage stresses. Aluminum alloys, especially those with certain compositions, are susceptible. E4043 and E4047, with their silicon content, are designed to mitigate hot cracking by forming a lower-melting eutectic that fills the grain boundaries. This is crucial for **aluminum crack prevention**.
No, E1100 is not suitable for structural components where strength is a primary concern. Its purpose is to maintain the purity and corrosion resistance of the 1100 series aluminum base metal. For **aluminum structural applications**, alloys like 6061 or 7075, welded with appropriate filler metals like E4043 or E5356 (if applicable by process), are needed.
Amperage ranges for aluminum stick electrodes are typically higher than for similarly sized carbon steel electrodes due to aluminum's high thermal conductivity. For example, a 1/8" E4043 might run from 90-130 amps or higher. Always consult the manufacturer's recommendations for specific **aluminum welding parameters**.
Travel speed is extremely important. Aluminum's low melting point and high thermal conductivity mean that too slow a travel speed will cause burn-through, while too fast can lead to lack of fusion or insufficient penetration. A consistent, relatively fast travel speed is often required. Proper **aluminum welding travel speed** is crucial for bead quality.
The main limitations include restricted position capabilities (mostly flat/horizontal), lower quality welds with more spatter and porosity, difficulty with thin materials, and limited alloy compatibility compared to GTAW (TIG) or GMAW (MIG). It's generally considered less versatile and harder to master for aluminum. It's often chosen for field repairs where TIG/MIG isn't feasible, given **SMAW aluminum limitations**.
For marine applications, the specific aluminum alloy (often 5XXX series like 5083, 5086) and the need for excellent corrosion resistance are paramount. While E4043 can be used for some repairs, for full marine fabrication, filler metals like 5356 or 5183 are typically preferred when using MIG or TIG. Stick electrodes may be used for **marine aluminum repair** where other processes aren't practical.
The flux in aluminum electrodes serves multiple critical roles: it contains active cleaning agents to remove the aluminum oxide layer, provides a protective gas shield for the molten metal, and contains deoxidizers to prevent porosity. It also helps to stabilize the arc and control the puddle. The **aluminum electrode flux** is highly specialized.
Yes, E4043 can be used for multi-pass welds on thicker aluminum sections. However, proper interpass cleaning (removing all slag) and maintaining appropriate interpass temperatures are crucial to prevent inclusions and ensure good fusion between passes. **Multi-pass aluminum welding** with stick requires diligent technique.
Standard welding PPE (helmet, gloves, flame-resistant clothing) is essential. Due to aluminum's bright arc and potential for UV reflection, darker shades on your welding helmet may be necessary. Always wear long sleeves and pants to protect against UV radiation, similar to other **arc welding safety practices**.
The "cleaning action" of DCEP (Direct Current Electrode Positive) refers to the phenomenon where positive ions from the workpiece bombard the negative electrode, effectively blasting away the thin, refractory aluminum oxide layer on the surface. This exposes the clean base metal, allowing for proper fusion and preventing inclusions. This **reverse polarity cleaning** is crucial for aluminum.
Post-weld heat treatment depends on the base alloy. For heat-treatable alloys (like 6XXX series) welded with E4043 or E4047, post-weld heat treatment can restore some of the base metal's strength and mechanical properties. However, for non-heat-treatable alloys, it's generally not applied. Consult specific **aluminum heat treatment procedures**.
AWS E4043 (stick electrode) and ER4043 (MIG wire) have the same chemical composition, meaning they deposit similar weld metal. However, the welding processes are vastly different. MIG welding with ER4043 offers higher deposition rates, better arc control, less spatter, and is much more efficient for aluminum. Stick welding with E4043 is usually reserved for situations where MIG/TIG isn't available or practical. **E4043 stick vs MIG** often comes down to portability and setup.
Maintaining a slight push or drag angle is important. A slight push angle (forehand welding) is generally preferred for aluminum stick welding as it helps to drive the puddle and promote proper fusion. Too much drag angle can lead to poor penetration and porosity. Consistent **aluminum welding travel angle** contributes to bead quality.
Yes, E4043 can be used for repairing aluminum boat hulls, particularly those made from 6XXX series alloys or certain castings. However, proper cleaning, preheating, and thorough slag removal are essential. For critical, load-bearing sections or salt-water exposure, MIG/TIG with appropriate filler metals might be preferred for long-term durability. It's an option for **aluminum boat repair**.
The higher silicon content in E4047 creates a slightly different solidification pattern and can result in a brighter, shinier weld bead appearance compared to E4043. This is primarily an aesthetic difference. The **E4047 aesthetic finish** is often preferred for visible welds.
Arc striking with aluminum electrodes can be tricky due to the soft core wire. It's best to use a scratch-start technique rather than a tapping motion, which can stick the electrode. Ensure your electrode is clean and sharp. A quick, decisive scratch motion often works best. Mastering **aluminum arc striking** takes practice.
AWS E4047, due to its higher silicon content and lower melting point, is sometimes used for aluminum brazing-like applications, particularly in repair work where a filler metal with good flow is needed. While not a true brazing alloy, its characteristics lend themselves to certain repair scenarios. It can function as an **aluminum brazing rod** in specific contexts.
When stored correctly in hermetically sealed containers in dry conditions, aluminum electrodes can have a long shelf life, often several years. However, once opened, they are highly susceptible to moisture absorption, and their usability can degrade quickly. Always follow manufacturer guidelines for **electrode shelf life and storage**.
Welding aluminum can produce significant amounts of fine aluminum oxide fumes, which can be a respiratory irritant. Ensure excellent ventilation or use appropriate respiratory protection. The bright arc also produces strong UV radiation, requiring full skin coverage. Always prioritize **aluminum welding fume safety**.
While E3003 contains manganese and is technically an alloy, it can be used to weld 1100 series aluminum, but E1100 would be the preferred choice to maintain the purity and corrosion resistance of the base metal. Using E3003 might slightly alter the properties of the pure aluminum weld. For pure aluminum, **E1100 compatibility** is ideal.
A good aluminum stick weld bead should be relatively uniform, with good fusion to the base metal, minimal undercut, and a consistent ripple pattern. While not as smooth as TIG or MIG, it should be free from excessive porosity and large surface irregularities. The slag should be manageable and consistent. A successful **aluminum weld bead** indicates proper technique.
Vertical up or vertical down welding with aluminum stick electrodes is exceptionally difficult due to aluminum's fluidity and fast freezing characteristics compared to steel. While technically possible with extreme skill and small diameter electrodes, it's generally not recommended for practical or critical applications. Most **aluminum stick welding** is performed in flat or horizontal positions.
