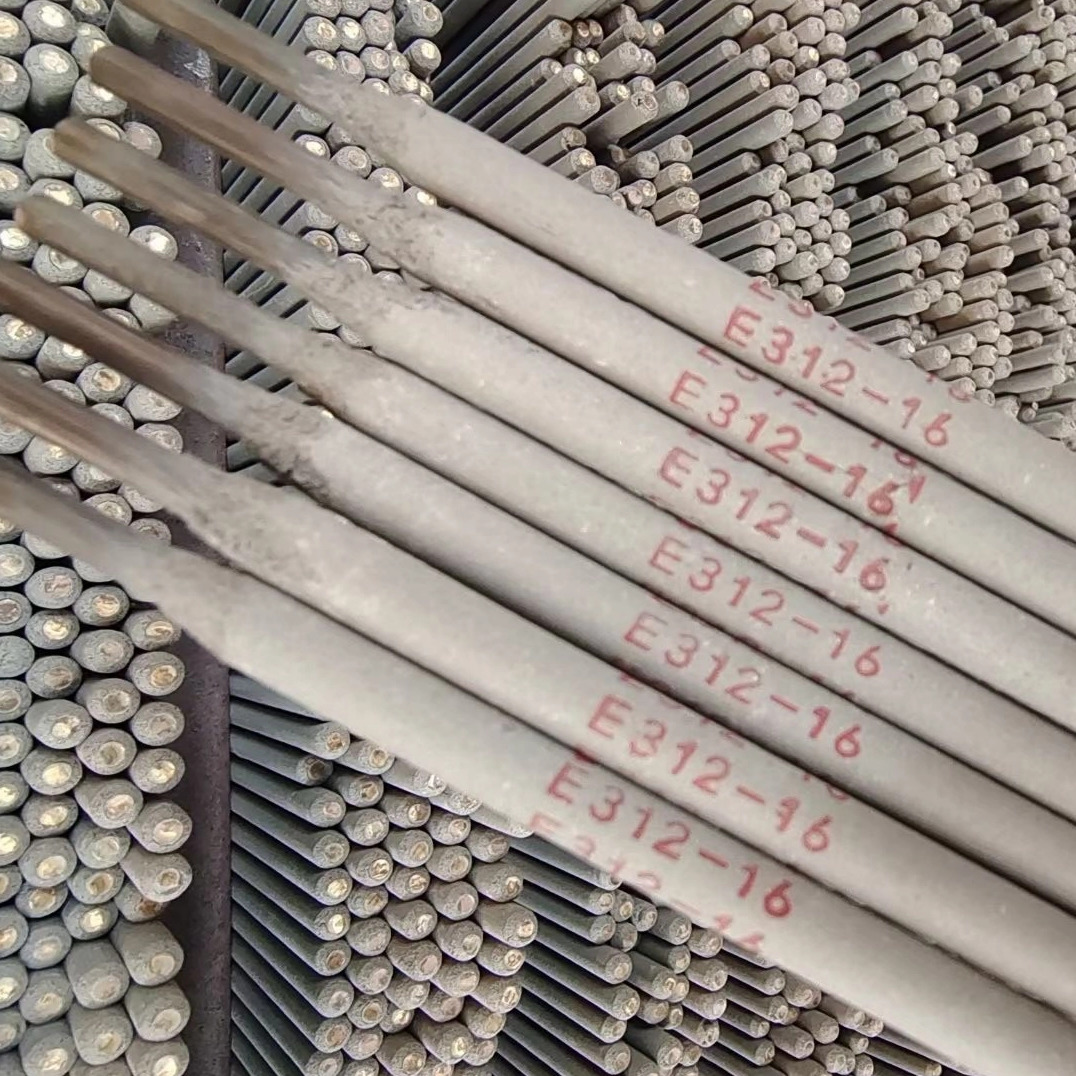

AWS A 5.4 E312-16
1kg,2kg,5kg,10kg,20kg
1lb;2lb;4.5lb;11lb;15lb;20lb;33lb;44lb
1.6mm,2.0mm,2.4mm,3.2mm,4.0mm,5.0mm
1/16 ″in;5/64″in;3/32″in;1/8″in;5/32″inch
Acceptable (design the pack with your logo)
15 Days
Product Description

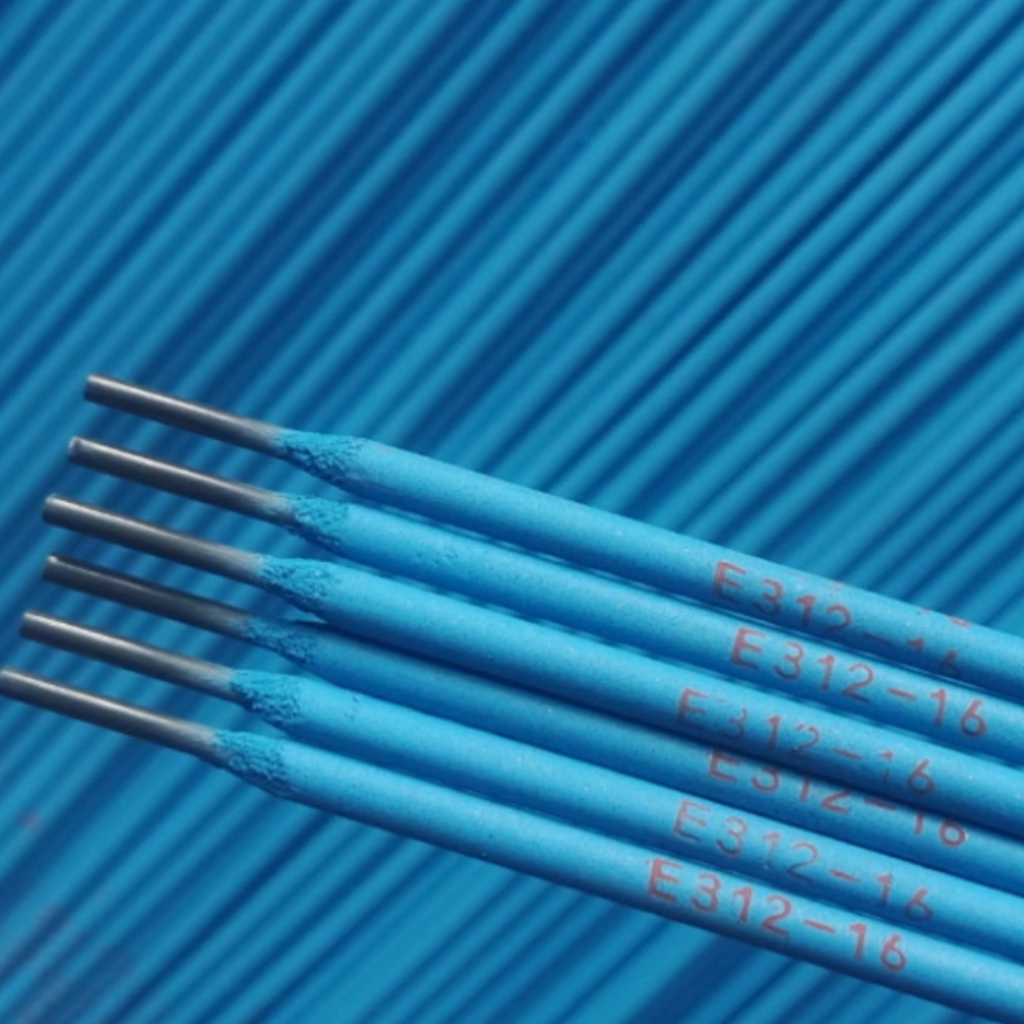

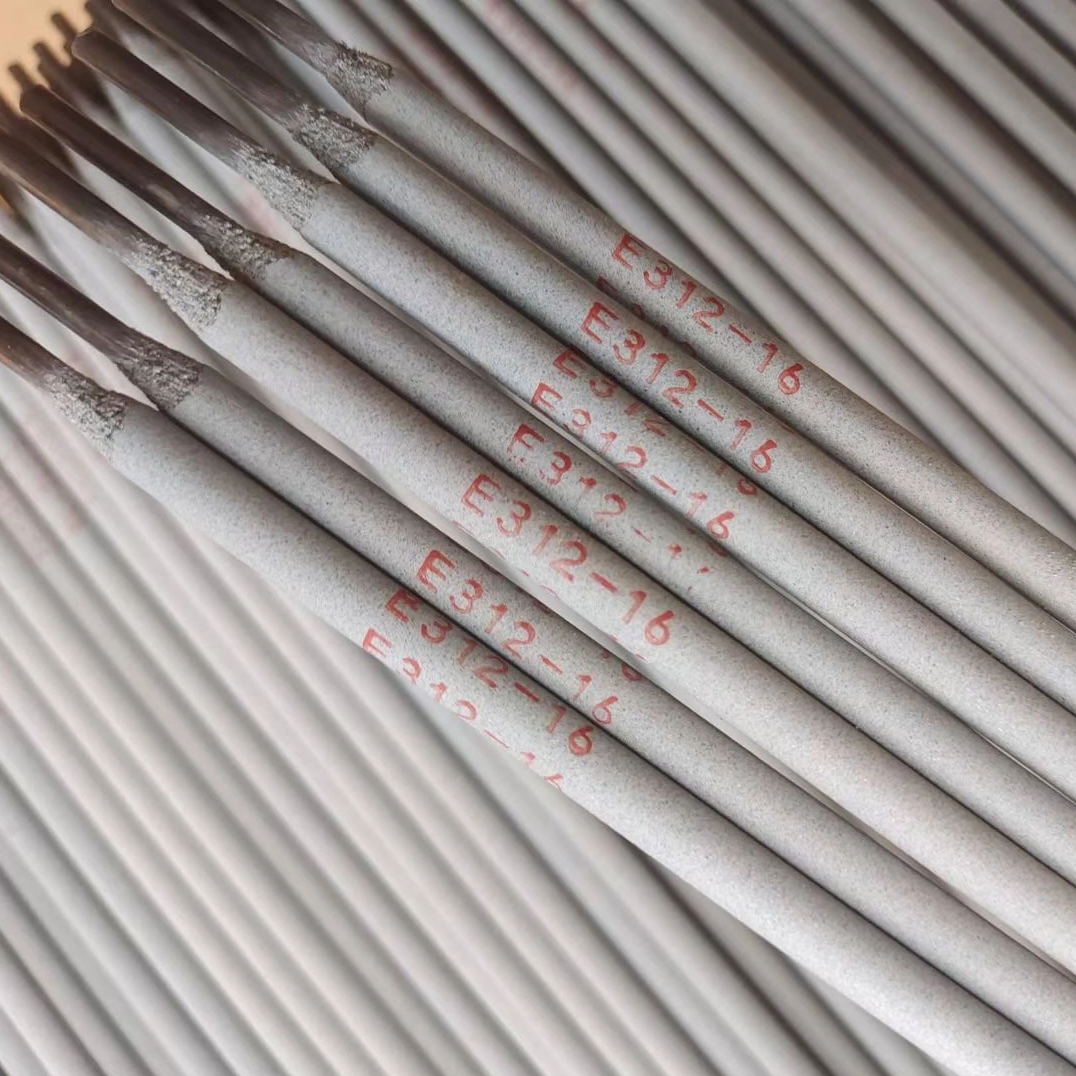

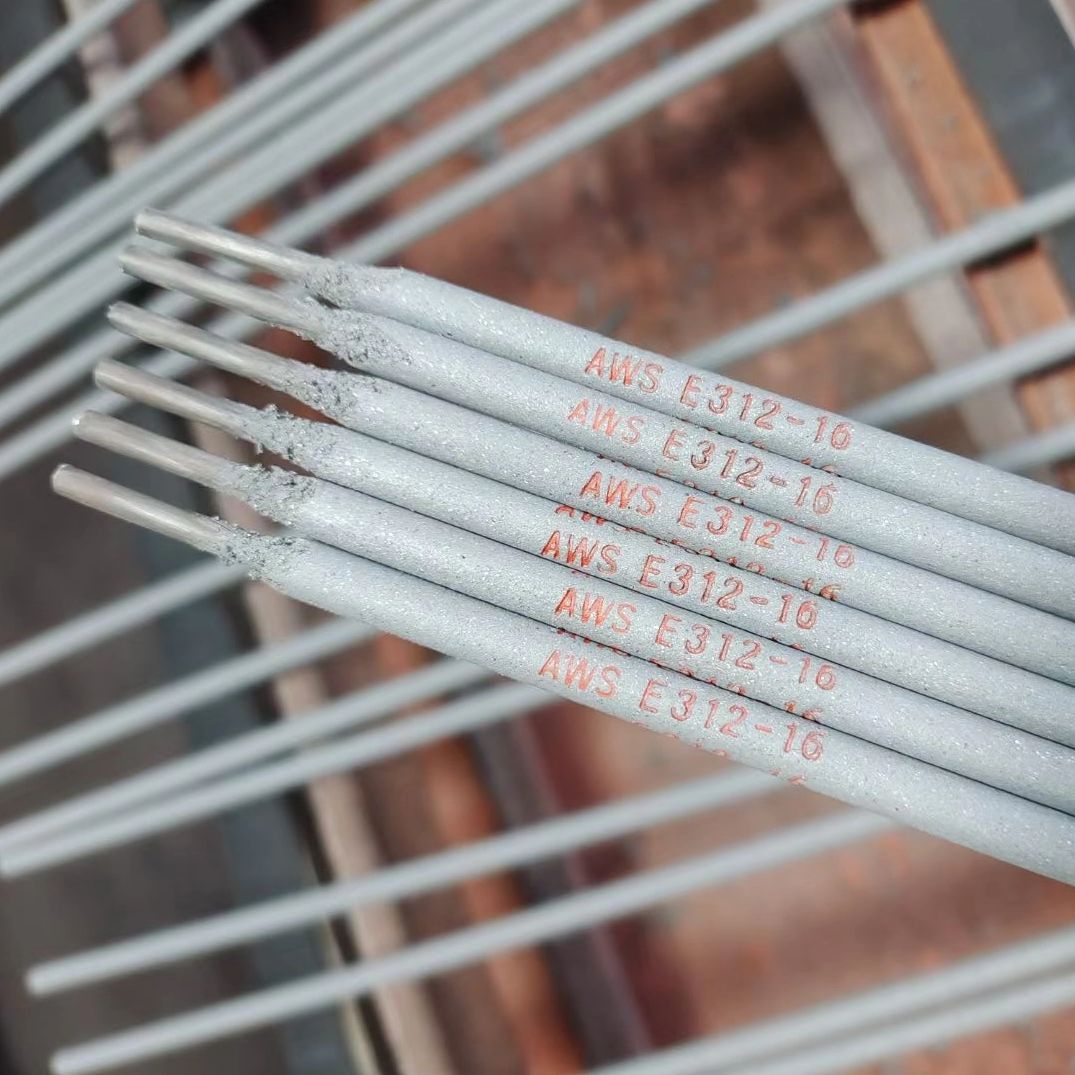

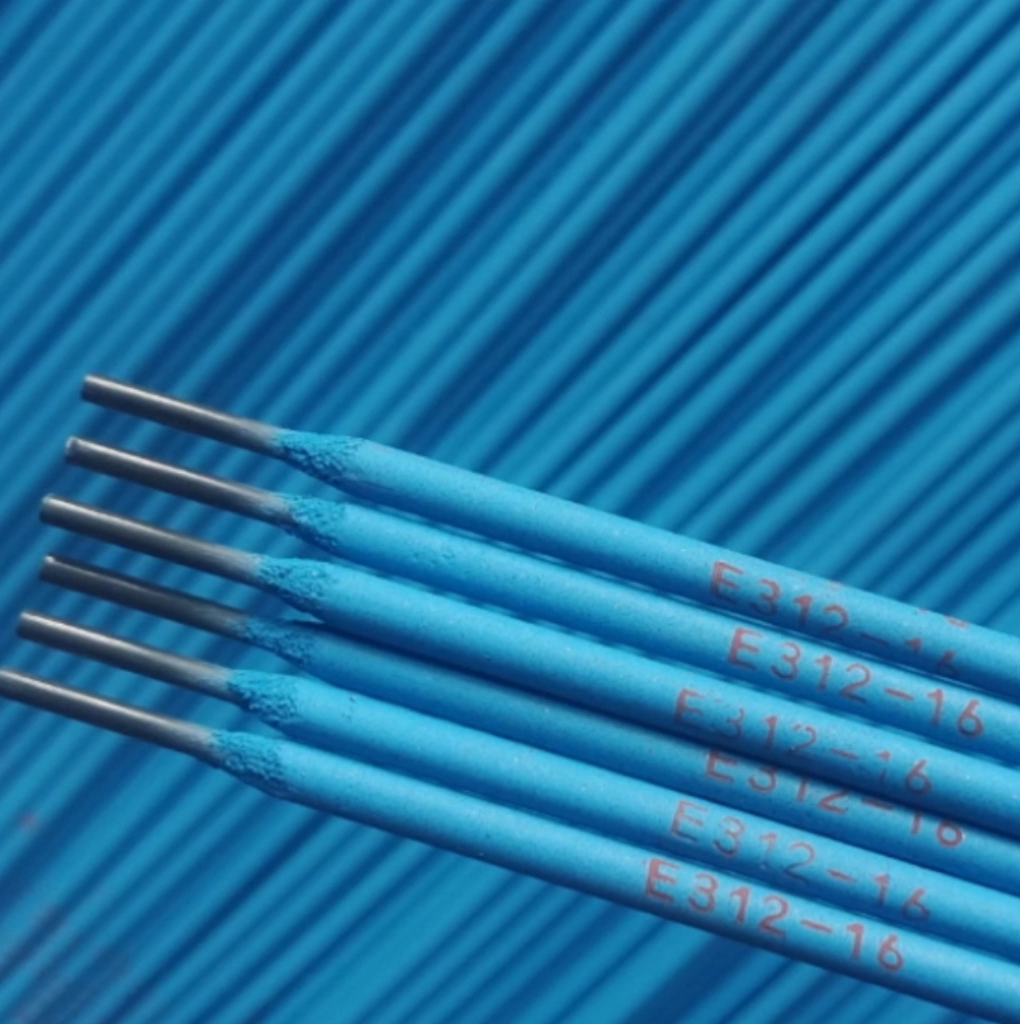

The **AWS A5.4 E312-16** welding electrode is best known for producing a **duplex (austenite-ferrite) microstructure** in its weld metal, characterized by a high ferrite content (typically 20-40% or even higher). This unique composition provides exceptional resistance to **cracking**, particularly in applications involving dissimilar metal welding, highly restrained joints, or materials prone to hot cracking. It's often referred to as a "crack-arresting" or "trouble-shooting" electrode due to its robust metallurgical properties in challenging welding scenarios.
The "312" in the **E312-16** classification refers to its unique **high-chromium, high-nickel alloy composition**, specifically designed to produce a duplex microstructure in the weld deposit. Unlike 308L or 316L, which aim for a controlled low ferrite content, E312 has a significantly higher balance of chromium (around 29%) and nickel (around 9%), leading to a substantial amount of ferrite in the weld. This composition is key to its outstanding resistance to cracking, making it an excellent choice for difficult-to-weld steels.
**E312-16** offers exceptional resistance to various forms of **cracking**, especially **hot cracking (solidification cracking)** and **stress corrosion cracking (SCC)**. Its high ferrite content acts as a "sponge" for impurities that could cause hot cracks and effectively accommodates solidification shrinkage stresses. The duplex microstructure also provides superior resistance to stress corrosion cracking, particularly in chloride-containing environments, making it a highly reliable choice for demanding applications where weld integrity is paramount.
The "-16" in the **E312-16** classification denotes a **rutile-titania type flux coating**. This coating is engineered to provide excellent welding characteristics, including a very stable and smooth arc, minimal spatter, a bright and finely rippled bead appearance, and easily removable slag. The rutile coating also allows for operation with both **AC (Alternating Current)** and **DCEP (Direct Current Electrode Positive)** polarity, offering versatile usability across different welding power sources and field conditions for a wide range of welding repair and fabrication tasks.
Yes, **E312-16** electrodes are highly favored and very commonly used for **welding dissimilar metals**. This is arguably its most significant application. It's ideal for joining stainless steels to carbon steels, low-alloy steels, or even certain medium-carbon steels. The high alloy content and controlled ferrite in the weld metal effectively accommodate the metallurgical differences and dilution from various base metals, making it an excellent choice for robust and crack-resistant connections in mixed material assemblies.
**E312-16** electrodes are designed for use with both **AC (Alternating Current)** and **DCEP (Direct Current Electrode Positive)**. While DCEP is often preferred for stainless steel welding due to its stable arc and deeper penetration, the ability to use AC can be advantageous in situations where **arc blow** (magnetic deflection of the arc) is a concern, or when an AC power source is the only option available. This dual capability provides valuable flexibility for complex welding scenarios.
The typical microstructure of **E312-16** weld metal is **duplex**, consisting of a significant proportion of **ferrite** within an **austenite** matrix. Unlike conventional austenitic stainless steel welds that aim for low ferrite (e.g., 5-10%), E312 weld metal can have a ferrite content typically ranging from 20% to 40% (or even higher, up to 60%) as measured by Ferrite Number (FN). This high ferrite content is key to its exceptional resistance to hot cracking and improved stress corrosion cracking resistance, making it uniquely suited for challenging welding applications.
The weld metal deposited by **E312-16** electrodes exhibits high strength and good ductility. While specific values can vary by manufacturer, typical mechanical properties often exceed those of common austenitic stainless steels. It typically boasts a **high tensile strength** (often above 100,000 psi or 690 MPa) and a **good yield strength**, combined with adequate elongation. These properties ensure a robust and durable weld, capable of withstanding significant stress and deformation, especially valuable in repairing high-strength steels or fabricating complex structures.
Yes, **E312-16** is often considered a "trouble-shooting" or "repair" electrode due to its remarkable ability to weld difficult-to-weld materials and withstand conditions that lead to cracking with other electrodes. Its high alloy content and duplex microstructure effectively tolerate impurities, variations in base metal chemistry, and high restraint, which are common causes of weld defects. This makes it an invaluable tool for maintenance and repair of a wide range of steels, including unknown grades, providing a reliable solution where other electrodes might fail.
**E312-16** prevents **hot cracking (solidification cracking)** primarily through its **high ferrite content** in the weld metal. Ferrite has a higher solubility for impurities like sulfur and phosphorus, which are often culprits for hot cracking. By absorbing these impurities, ferrite prevents them from forming low-melting point films at grain boundaries, which typically lead to cracks during solidification. Additionally, the ferrite-austenite solidification mode helps accommodate shrinkage stresses, further reducing the susceptibility to cracking, making it ideal for highly restrained joints.
Proper storage is essential for **E312-16** electrodes to maintain their optimal welding performance and prevent weld defects. They should be stored in **dry conditions**, ideally in their original hermetically sealed containers. Once opened, electrodes are susceptible to moisture absorption, which can lead to porosity or hydrogen-related issues in the weld. Therefore, they should be immediately placed in a **heated electrode holding oven (quiver)** at approximately 65°C to 150°C (150°F to 300°F). If heavily exposed to humidity, re-baking at higher temperatures (e.g., 250-350°C for 1-2 hours) as per manufacturer guidelines may be necessary to restore their low-hydrogen characteristics.
Yes, **E312-16** is often the go-to electrode for welding **unknown steel grades** or when there's uncertainty about the base metal composition. Its highly alloyed nature and crack-resistant duplex microstructure provide a wide margin of safety against common weldability problems. While identifying the base metal is always preferred, in repair scenarios or when materials are undocumented, E312-16 offers a robust and forgiving solution, helping to create sound and durable welds even under challenging circumstances, making it a popular choice for maintenance workshops.
The typical range of welding current for **E312-16** electrodes varies depending on the electrode diameter and welding position. Generally, these electrodes operate within standard SMAW current ranges:
- **2.5 mm (3/32 inch)**: 60 - 85 Amps
- **3.2 mm (1/8 inch)**: 80 - 110 Amps
- **4.0 mm (5/32 inch)**: 100 - 150 Amps
It's always recommended to consult the electrode manufacturer's technical data sheet for the most accurate and optimal current settings to ensure proper penetration, bead appearance, and mechanical properties, especially when working with difficult-to-weld materials.
While **E312-16** weld metal itself typically does not require PWHT for metallurgical reasons (due to its crack resistance and duplex nature), if the base metals being joined require PWHT for stress relief or tempering, the weld metal's response to such treatment must be considered. Some prolonged PWHT cycles at very high temperatures could potentially cause a slight decrease in the impact toughness of the duplex weld metal due to sigma phase formation, though it's generally more resistant than fully austenitic welds. It's crucial to consult with the manufacturer and relevant codes if PWHT is mandated for the overall assembly, especially in applications like pressure vessels or critical structural components.
Both **E312-16** and **E309L-16** are excellent for dissimilar welding, but they have different strengths. **E309L-16** (with ~22-25% Cr, ~12-14% Ni) is a good all-around choice for joining stainless to carbon steel where moderate dilution occurs and general corrosion resistance is needed. **E312-16** (with ~29% Cr, ~9% Ni, and high ferrite) is specifically designed for even more challenging dissimilar combinations, or when welding highly crack-sensitive materials, very thick sections, or when superior resistance to hot cracking and stress corrosion cracking is paramount. It offers a higher safety margin against weld defects in extreme conditions, often at a higher cost.
The primary role of the **high ferrite content** (typically 20-40% FN) in **E312-16** weld metal is to provide exceptional **resistance to hot cracking (solidification cracking)**. Ferrite has a body-centered cubic (BCC) crystal structure, which is more forgiving to solidification stresses than a purely austenitic structure. It also has a higher solubility for detrimental impurities like sulfur and phosphorus, preventing them from forming low-melting point films at grain boundaries that initiate cracks. This unique characteristic makes E312 a superior choice for robust welds in highly restrained joints or difficult-to-weld materials.
While **E312-16** offers good strength at elevated temperatures, its suitability for prolonged **high-temperature applications** should be carefully evaluated. The high ferrite content, while beneficial for crack resistance, can lead to **sigma phase embrittlement** if exposed to temperatures between approximately 400°C and 850°C (750°F and 1560°F) for extended periods. This embrittlement can cause a significant loss of ductility and toughness. Therefore, for continuous high-temperature service, specialized stainless steels or nickel-based alloys designed for such conditions are usually preferred, but E312 can be used for intermittent high-temperature exposure or where its crack resistance is paramount.
If **E312-16** electrodes have been exposed to atmospheric moisture, **re-baking** is recommended to restore their low-hydrogen characteristics and ensure optimal weld quality. Typical re-baking procedures involve:
- **Temperature**: Heating electrodes to a temperature range of 250°C to 350°C (482°F to 662°F).
- **Duration**: Holding at this temperature for 1 to 2 hours.
- **Cooling**: Allowing them to cool in a heated oven or transferring directly to a holding oven set at 65°C to 150°C (150°F to 300°F) until use.
Always consult the specific electrode manufacturer's recommendations, as procedures can vary slightly. Proper re-baking is crucial for preventing weld defects like porosity and ensuring sound, crack-resistant welds.
**E312-16** performs exceptionally well under **high restraint conditions**, making it an ideal choice for welding thick sections, repairing cracks, or joining components where shrinkage stresses are significant. Its high ferrite content and unique duplex microstructure are inherently more tolerant to these stresses compared to purely austenitic weld metals. This superior crack resistance under restraint is a key characteristic that sets E312-16 apart and makes it a valuable electrode for challenging structural and repair welding applications where avoiding weld defects is paramount.
Yes, **E312-16** is highly suitable and frequently used for **repairing cracks** in worn or damaged components, particularly when the base metal's exact composition is unknown, or if previous repairs have failed due to cracking. Its high tolerance for impurities and its inherent crack resistance make it a very forgiving electrode for such repair work. It can effectively bridge different material types and withstand high restraint, providing a robust and reliable repair that can often extend the service life of valuable equipment, making it a go-to choice for maintenance and overhaul operations.
Multi-pass welding with **E312-16** electrodes requires careful attention to several factors:
- **Interpass Temperature Control**: Maintain it within recommended ranges (often below 177°C or 350°F) to control distortion and prevent excessive heat build-up. While E312 is resistant to hot cracking, excessive heat can still lead to distortion.
- **Thorough Interpass Cleaning**: Complete slag removal between passes is essential to prevent slag inclusions, ensuring a sound, defect-free weld.
- **Heat Input Management**: Control heat input per pass to maintain the desired ferrite content and microstructure.
- **Root Pass and Subsequent Layers**: For dissimilar welding, ensure proper penetration on the first pass and build up subsequent layers evenly.
These practices contribute to the structural integrity and reliability of complex multi-pass welds, especially in critical repair or fabrication scenarios.
