LEADING FLUX CORED WELDING WIRE MANUFACTURER SINCE 1999

1. Professional Flux Cored Welding Wire Experience
2. Wide Options For Your Unique Flux Cored Welding Wire
3. Original Manufacturer with Competitive Price

Request a Quick Quote

SERVICE WE CAR OFFER line

SOURCING FLUX CORED WELDING WIRE FROM GIANT WELD

FOR FLUX CORED WELDING WIRE MANUFACTURERS & SUPPLIERS

Our in-house modern production plant allows us to offer great quality options to appeal to your target customers. Our streamlined manufacturing processes are here to provide you with the best flux cored welding wire in the market.

FOR FLUX CORED WELDING WIRE WHOLESALERS

Being one of the most equipped flux cored welding wire manufacturing companies, we offer the best quality products at a significantly low cost. This allows us to work with you to ensure that you get to also extend great prices to your customers.

FOR FLUX CORED WELDING WIRE BRAND OWNERS

We have worked with different businesses taking their ideas from conception to fulfilling their desired flux cored welding wire solutions. Help you better define what you want and realize your brand’s product solutions.

Boost Your Business Now

WHAT WE OFFER line

FLUX CORED WELDING WIRE PRODUCTS

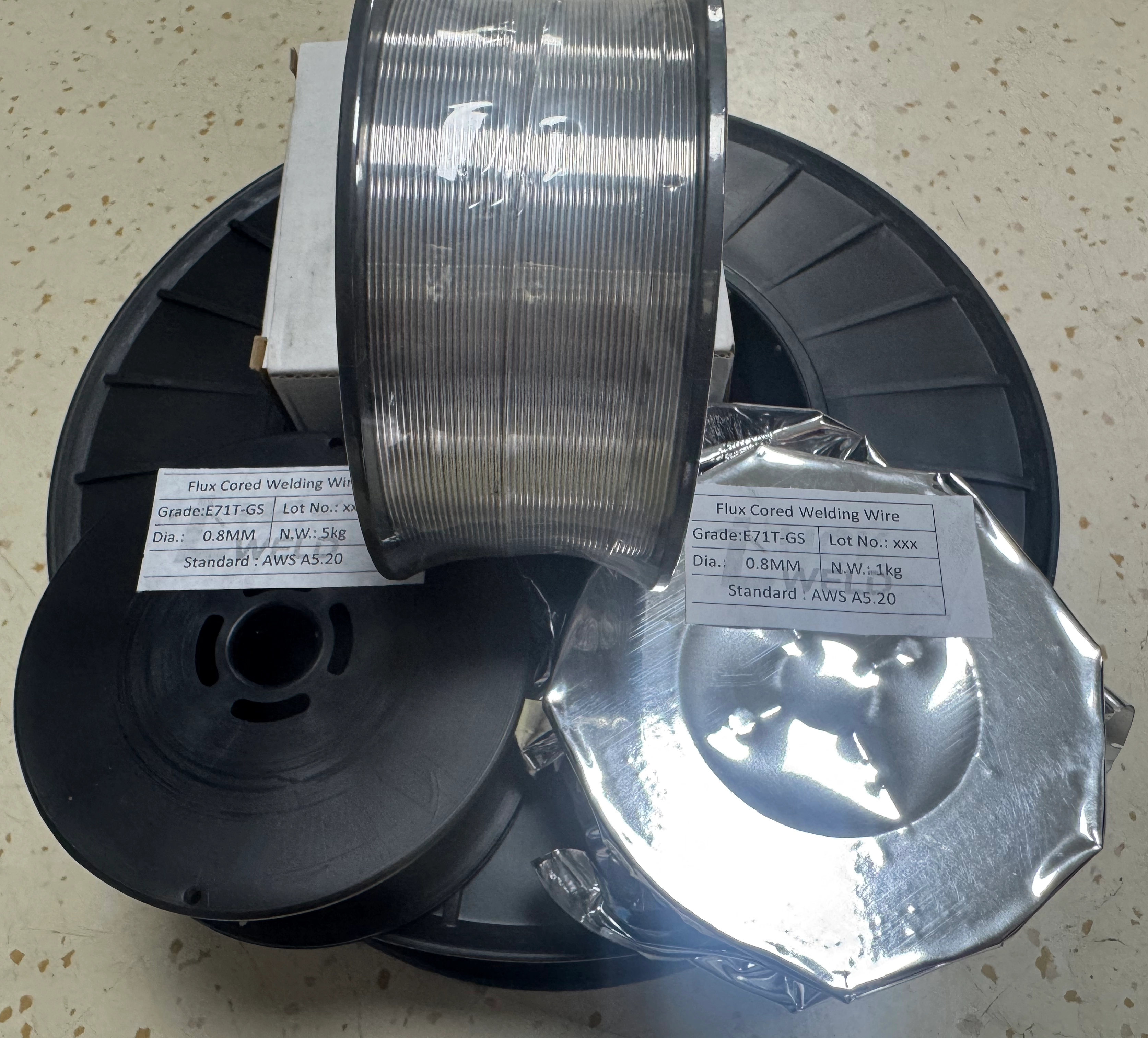

AWS A 5.20 Gasless E71T-GS Flux Cored Welding Wire

1. AWS A5.20 E71T-GS is designed primarily for single-pass applications.
2. "GS" stands for "General Single Pass,not a primary requirement.
3. Meaning it produces its own protective shielding from the flux ingredients.
4. E71T-GS is commonly used welding thin-gauge mild and galvanized steels.
5. Particularly popular for use with small, 110-volt portable welding machines.
6. Ease of use and ability to perform well in outdoor or drafty conditions.

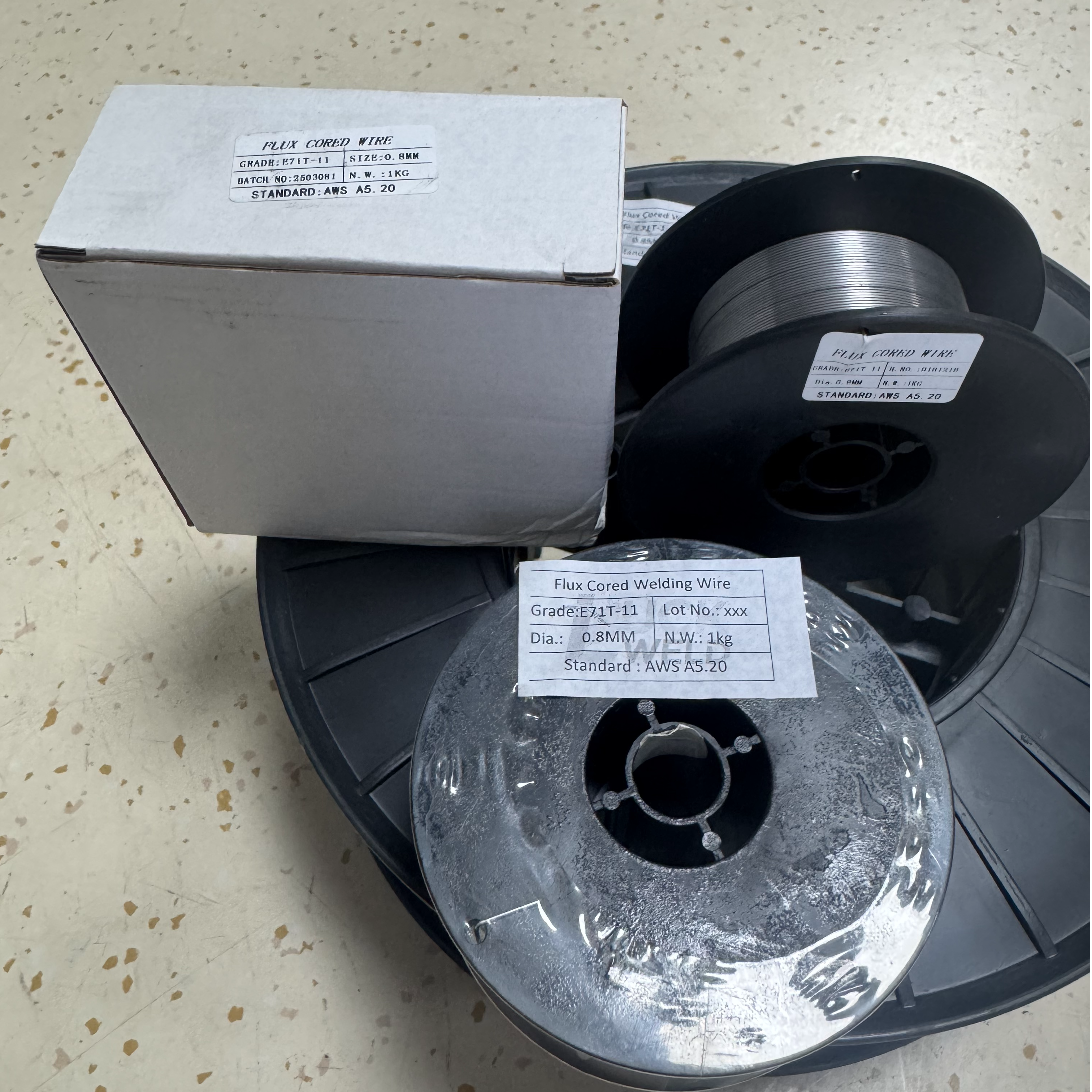

AWS A 5.20 Gasless E71T-11 Flux Cored Welding Wire

1. AWS A5.20 E71T-11 is self-shielded, flux-cored welding wire.
2. The "Gasless" means it does not require an external shielding gas.
3. It is primarily used for welding carbon and certain low-alloy steels.
4. E71T-11 typically operates on DC Electrode Negative (DCEN) polarity.
5. It's a popular choice for outdoor welding, maintenance, repair.

AWS A 5.20 E71T-1C & E71T-1M Flux Cored Welding Wire

1. AWS A5.20 E71T-1C & E71T-1M is a type of flux-cored welding wire.
2. Signifies minimum tensile strength 70,000psi (or71ksi).
3. Can be used for welding in all positions ( overhead...).
4. The "T" denotes that it is a tubular wire, specifically a flux-cored one.
5. The final "1" indicates its usability characteristics,(DCEP) polarity.
6. This wire is for welding mild steel and 490 MPa (or 71,000 psi) class steels.
7. E71T-1C Requires a CO2 gas shield,E71T-1M can use an ar/CO2 mixed gas.

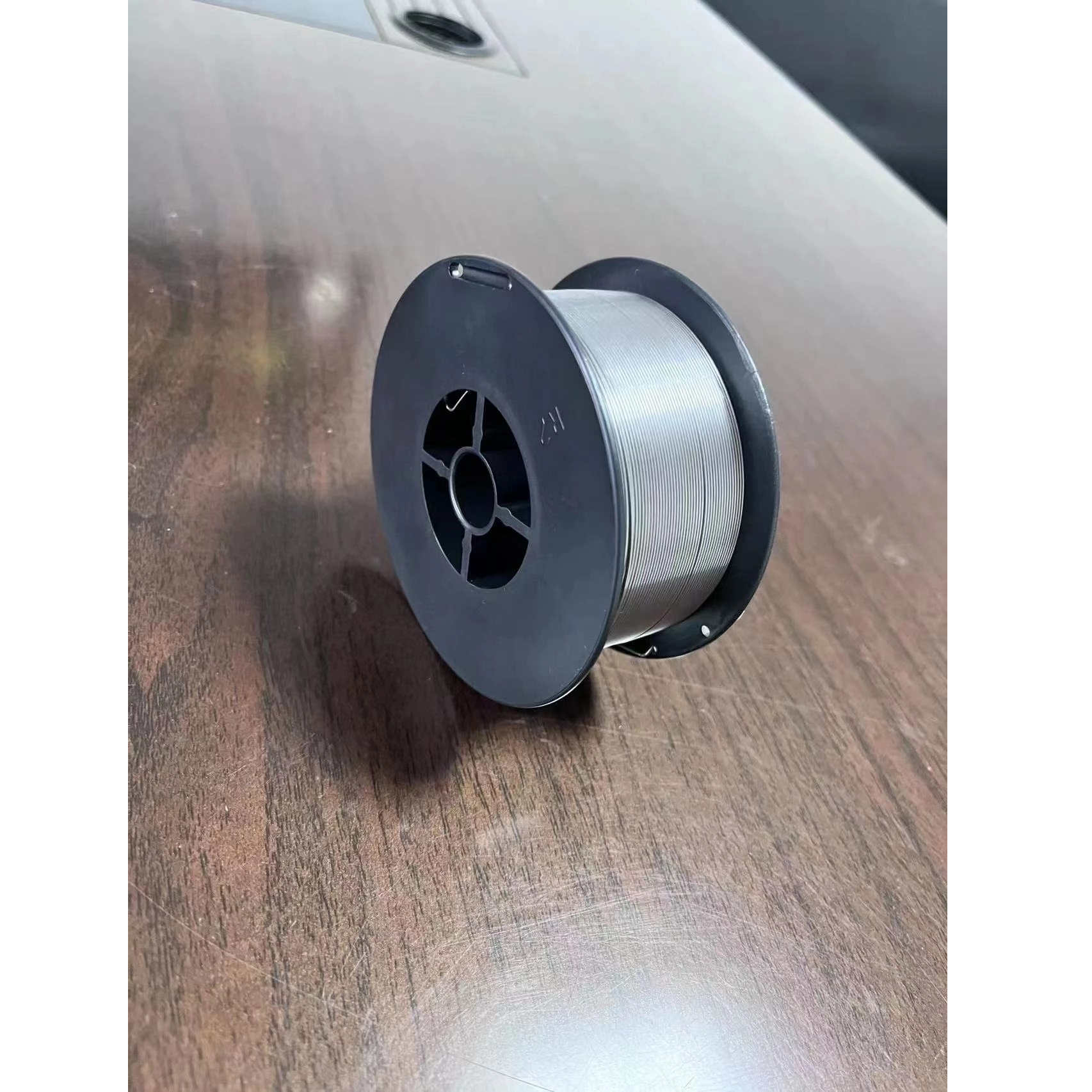

AWS A 5.20 Gasless E71T-8 Flux Cored Welding Wire

1. AWS A5.20 E71T-8 is a self-shielded, flux-cored welding wire.
2. "Gasless" designation means it does not require an external shielding gas.
3. It is primarily used for welding carbon and certain low-alloy steels..
4. E71T-8 is known for excellent low-temperature toughness(like AWS D1.8).
5. This wire typically operates on straight polarity (DCEN) and offers good arc.

AWS A 5.20 E71T-1 Flux Cored Welding Wire

1. AWS A5.20 E71T-1 is a classification of flux-cored welding wire.
2. "E"indicates electrode,"7" - minimum tensile strength 70,000psi (or71ksi).
3. "1" after the "7" means can be used for welding in all positions.
4. The "T" denotes that it is a tubular wire, specifically a flux-cored one.
5. The final "1" indicates its usability characteristics,(DCEP) polarity.
6. This wire is for welding mild steel and 490 MPa (or 71,000 psi) class steels.
7. Requires a CO2 gas shield, (E71T-1M) can use an argon/CO2 mixed gas.

Get The Latest Price

FLUX CORED WELDING WIRE SPECIFICATION line

DETAILS OF FLUX CORED WELDING WIRE

Type		Chemical Composition
ANSA520	GBT8110	C	Mn	Si	P	S	Ni	Cr	Mo	V	Cu
E71T-1 E71T-1C E71T-1M		≤0.12	≤1.75	≤0.90	≤0.03	≤0.03	≤0.50	≤0.20	≤0.30	≤0.08	≤0.35
E71T-G E71T-GS		≤0.12
	E500T-1 E5O0T-1M E501T-1 E501T-1M	≤0.18
	E500T-G E501T-G	≤0.18
E71T-11		≤0.30		≤0.60
E71T-11	E500T-1 E501T-11	...
E71T-11	E500T-1 E501T-11	...
Note: symbols The third number X after E, indicates the welding position,where "0" means Flat and transversewelding,"1" means all position,and the letter C indicates is c02 or of a self-protective type;Mindicates that the protective gas is 75~80% ar and rest CO2;Aluminum composition requirementis limited to self-shielded flux-cored wire (E71T-G/E71T-GS/E71T-11---AIS 1.80).

Type		Mechanical Properties
AWS A5.20	GBT10045/2001	Tensile Strength Mpa	Yield Strength Mpa	Elongation A ( % )	Impact Value KV2 (J)-30℃
E71T-1 E71T-1C E71T-1M	E500T-1 E500T-1M E501T-1 E501T-1M E500T-G E501T-G	490～670	≥ 390	≥22	≥27
E71T-GS		≥490	...		....
E71T-11	ES00T-11 ES01T-11	490～670	≥390	≥20	....

Consult Your GIANT WELD Expert

CHARACTERISTICS line

WHAT IS FLUX CORED WELDING WIRE?

1）Classification System: The AWS A5.20 standard uses a specific code to classify flux-cored electrodes. For example, a classification like E71T-1 breaks down into several parts that describe the electrode's characteristics, including its tensile strength, welding position, and flux composition.

2）The "E" Prefix: The classification begins with the letter "E," which is a standard AWS designation for an electrode. This indicates that the product is a consumable filler metal intended for use in an arc welding process.

3）Tensile Strength: The first two digits, such as "71" in E71T-1, denote the minimum tensile strength of the deposited weld metal in thousands of pounds per square inch (ksi). "71" corresponds to a tensile strength of 70,000 psi (490 MPa).

4）Welding Position: The letter "T" in the classification, as in E71T-1, signifies that the wire is a tubular, flux-cored electrode. The number immediately following the "T" (e.g., the "1" in E71T-1) indicates the welding position for which the electrode is suitable. A "1" generally means the wire is capable of all-position welding.

5）Shielding Gas and Usability: The final letter or number in the classification provides crucial information about the wire's usability, flux type, and whether it requires an external shielding gas. For example, a -1 designation indicates a titanium oxide flux and that it requires an external shielding gas, typically 100% CO2 or a mixed gas like Argon/CO2. Other designations, such as a -GS, indicate a self-shielded wire that does not require an external gas.

6）Common Examples: A very common flux-cored wire is E71T-1C/M. The "C" and "M" suffixes indicate the type of shielding gas used: "C" for 100% CO2 and "M" for a mixed gas like 75% Argon/25% CO2. This wire is widely used for single- or multi-pass welding of mild and low-alloy steels in a variety of industries, including construction, shipbuilding, and pressure vessel fabrication.The AWS A5.20 specification is the American Welding Society's standard for classifying carbon steel electrodes for flux-cored arc welding (FCAW). This welding process uses a continuously fed tubular electrode with a flux core. The classification system provides detailed information about the wire's usability, mechanical properties, and the type of shielding it requires.

Start A Project With Us

FLUX CORED WELDING WIRE CATALOGUE line

FLUX CORED WELDING WIRE DOWNLOAD

Name	Size	Update	Thumbnail	Download
Welding Wire Catalogue-giant weld.pdf	5.54MB	2025-08-17		Download

INDUSTRIES WE SERVED line

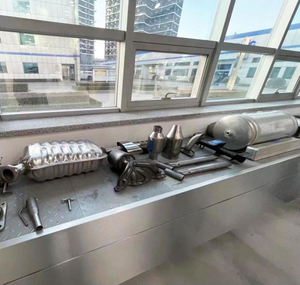

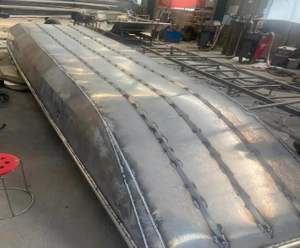

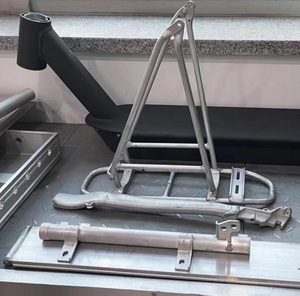

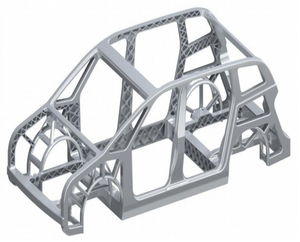

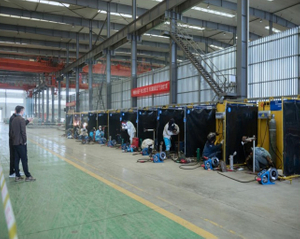

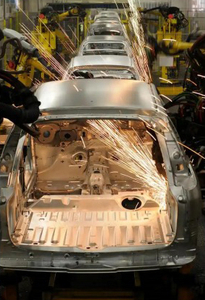

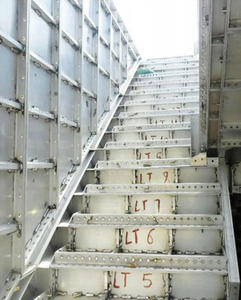

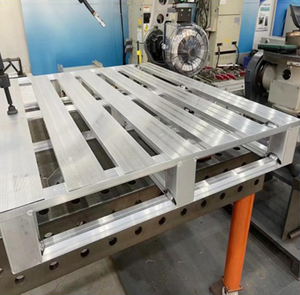

FLUX CORED WELDING WIRE APPLICATION

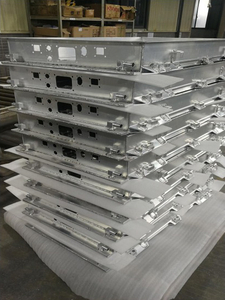

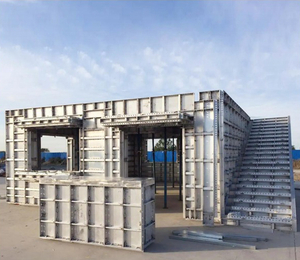

The flux cored wire of structural parts of carbon steel and low alloy structural steel with tensile strength ≥ 490 MPA is the most widely used in the welding of important structures such as shipbuilding.

Send Us Your Inquiry Toady

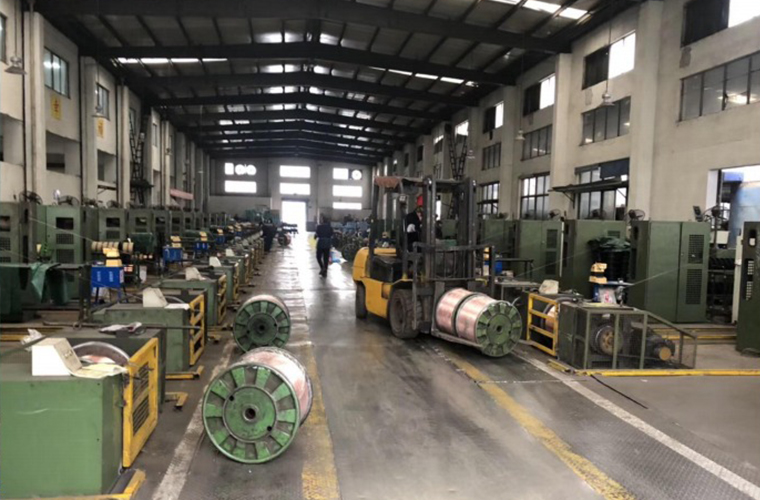

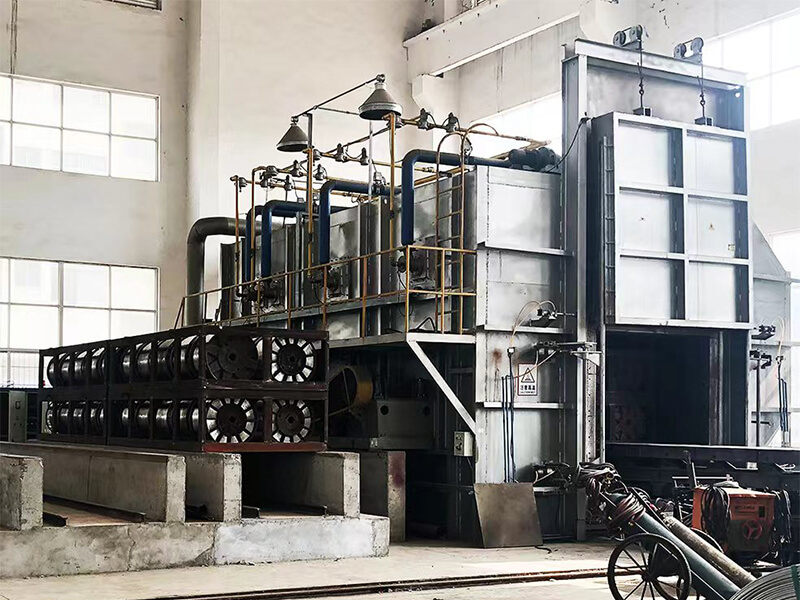

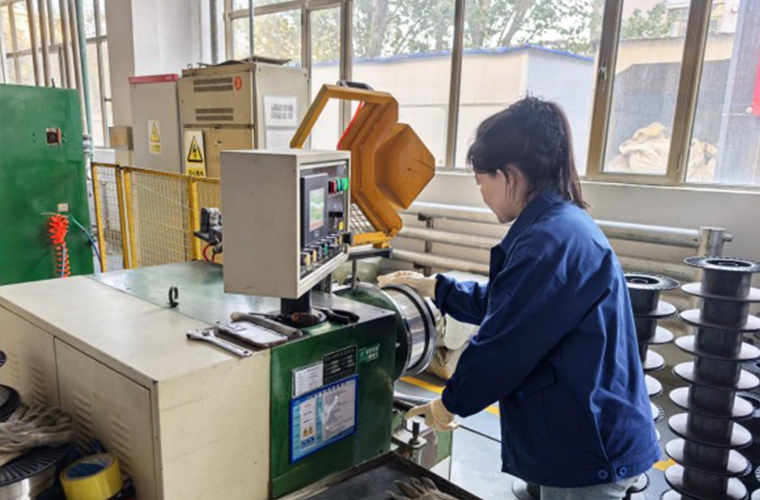

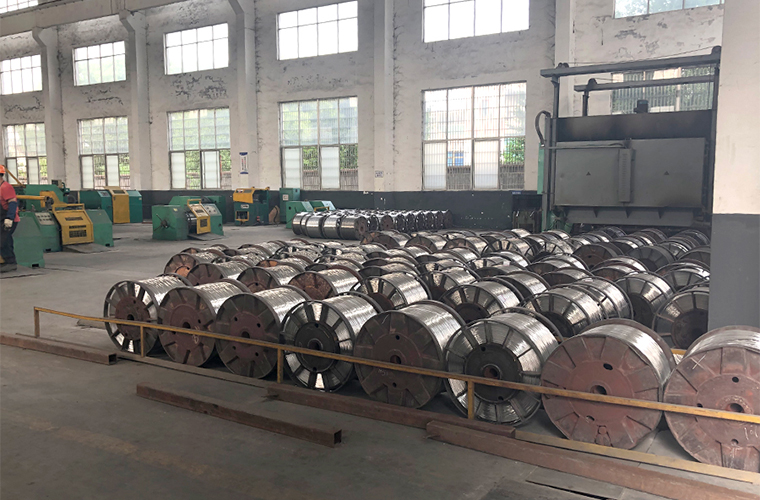

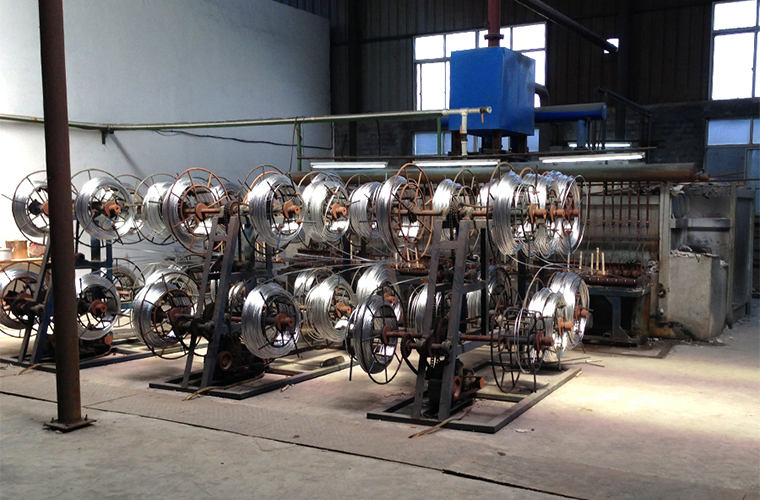

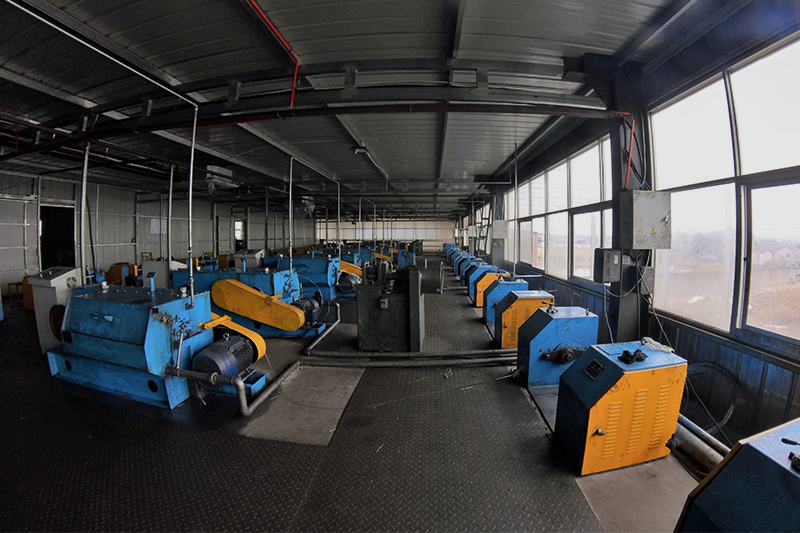

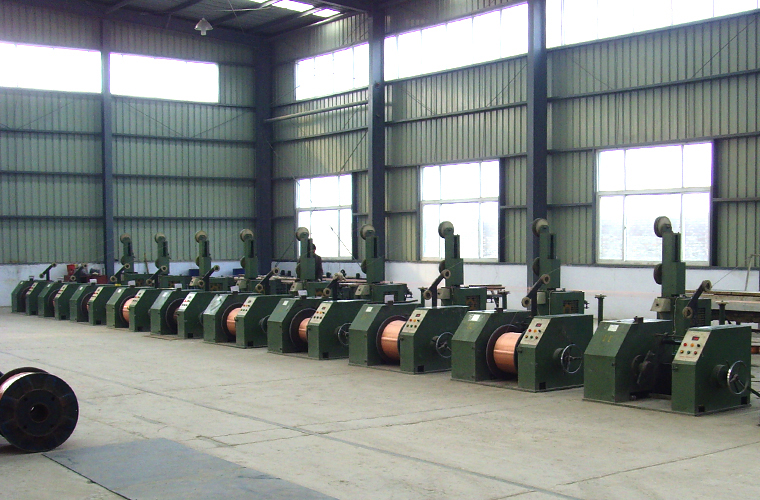

FLUX CORED WELDING WIRE WORKSHOP SHOW

Discover More

CERTIFIED FACTORY line

FLUX CORED WELDING WIRE CERTIFICATION

HOW TO CHOOSE line

CHOOSE YOUR FLUX CORED WELDING WIRE

FLUX CORED WELDING WIRE SIZE

mm: 0.8mm / 0.9mm / 1.0mm / 1.2mm/ 1.6mm
inch: 0.030 / 0.035 / 0.040 / 0.045/ 0.063/ 0.079 / 3/16

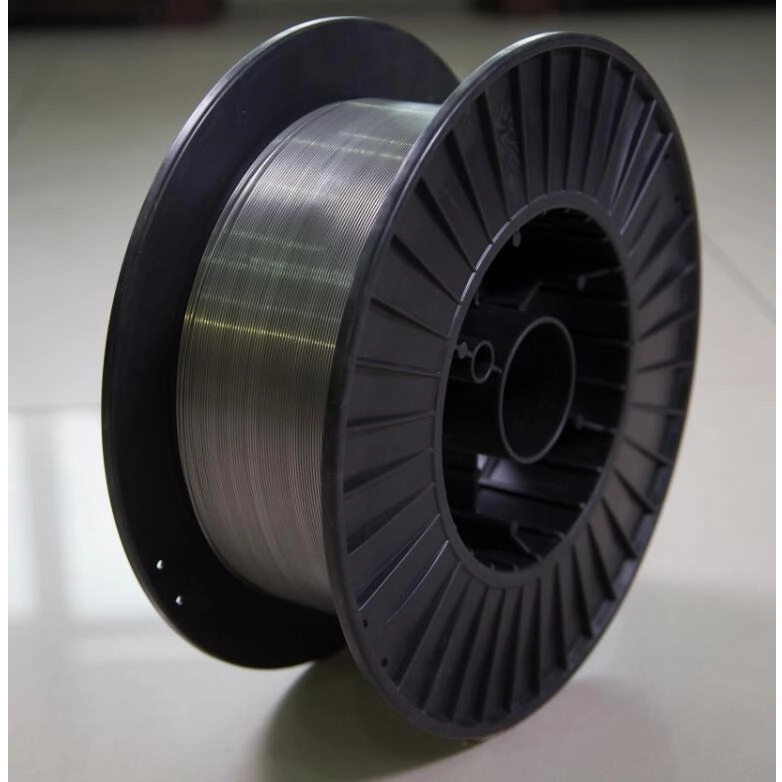

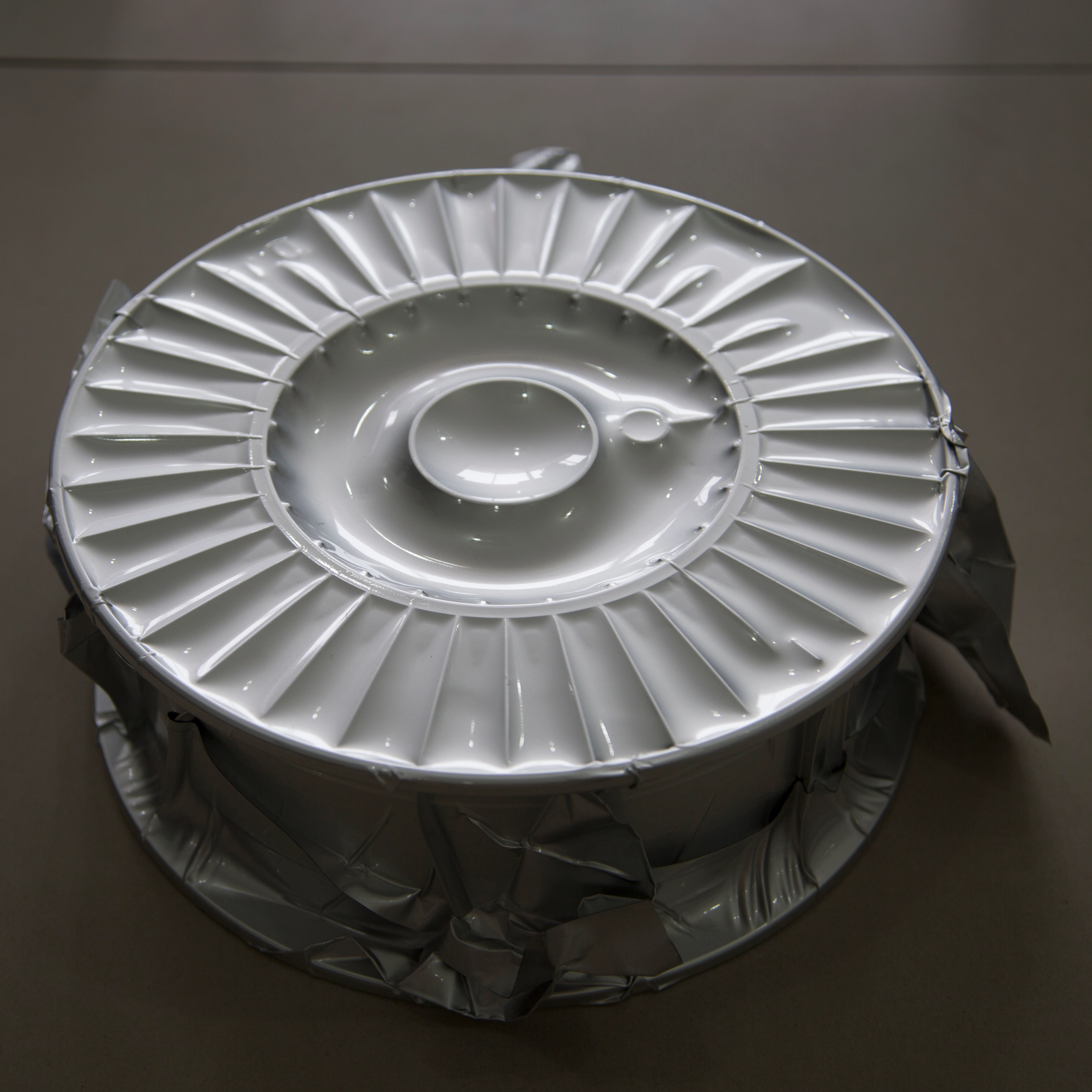

FLUX WELDING WIRE SPOOL WEIGHT(PACKAGE)

0.5kg / 2kg / 7kg

STAINLESS STEEL FLUX CORE WIRE SIZE

1.2mm/ 1.6mm/ 2.0mm

WIRE TUBE WEIGHT(PACKAGE)

2kg / 5kg / 10kg / 1LB / 2LB / 4.5LB / 15.5LB / 20LB

Start An Order With Us

WORK WITH US line

FLUX CORED WELDING WIRE COOPERATION PROCESS

STEP 1

Send your inquiry

STEP 2

Quote price

STEP 3

Sample Approval

STEP 4

Negotiate price and lead time

STEP 5

Sign the contract

STEP 6

Payment and production

STEP 7

Inspection

STEP 8

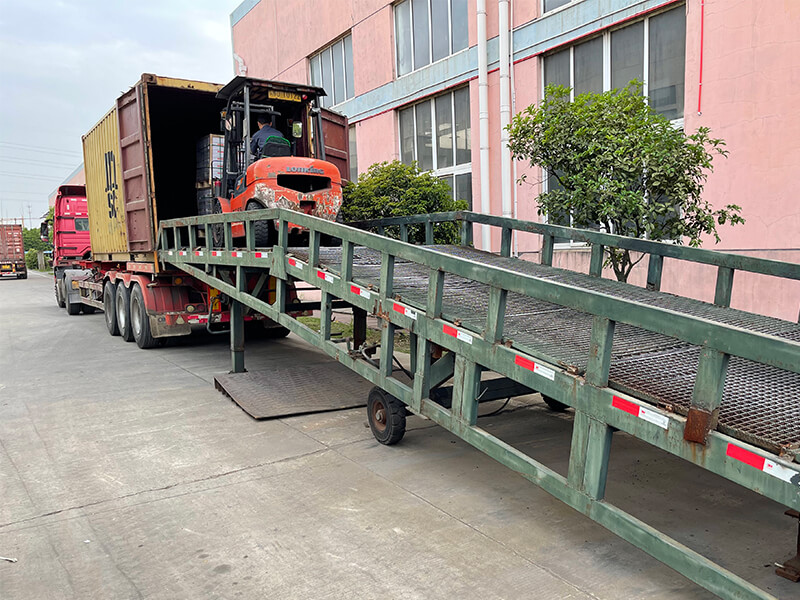

Shipment

FLUX CORED WELDING WIRE FAQ

Q What is AWS A5.20 Flux Cored Welding Wire?

The **AWS A5.20** specification is the industry standard for classifying **carbon steel electrodes** used in **flux-cored arc welding (FCAW)**.
Unlike solid wires, these electrodes are tubular and contain a core of flux, which provides shielding gas and deoxidizers.
This standard ensures that all **flux-cored welding wires** meet specific quality and performance criteria, allowing welders to select the right consumable for their projects with confidence.
Understanding this classification system is crucial for achieving strong, reliable welds in various applications.
Q How is an AWS A5.20 wire classified?

The classification system uses a specific alphanumeric code to provide detailed information about the wire's characteristics.
A typical classification, like **E71T-1**, can be broken down to understand its properties, including the wire's tensile strength, welding position, and flux type.
This standardized approach makes it easy to identify the ideal **welding wire** for different base metals and welding environments.

What do the different parts of the classification code mean?

The "E" at the beginning stands for **electrode**, a standard designation for all AWS welding consumables.
The first two digits, such as "71" in **E71T-1**, indicate the minimum tensile strength of the deposited weld metal, in this case, 70,000 psi.
The letter "T" signifies that it is a **tubular, flux-cored electrode**.
The number or letter that follows, for example, the "1" in **E71T-1**, specifies the usability of the wire, including the required shielding gas and the welding position it can be used in.
Finally, an optional suffix may denote the type of shielding gas used, such as "C" for 100% CO2 or "M" for a mixed gas like Argon/CO2.
Q What are the main types of flux-cored welding wires?

Flux-cored wires are primarily categorized by their shielding method: self-shielded or gas-shielded.

What is self-shielded flux-cored wire?

Also known as **FCAW-S**, this type of wire is designed for use without an external shielding gas.
The flux core contains all the necessary ingredients to protect the weld pool from the atmosphere.
These wires, such as **E71T-11** and **E71T-8**, are ideal for outdoor welding and fieldwork where using a gas cylinder is impractical.
They produce a high-quality weld even in windy conditions, making them a popular choice for construction and general-purpose fabrication.

What is gas-shielded flux-cored wire?

Also known as **FCAW-G**, these wires are designed to be used with an external shielding gas, typically CO2 or a C25 mix.
The flux in the core provides additional deoxidizers and slag formers, which enhances the weld's mechanical properties and appearance.
Wires like **E71T-1** and **E71T-5** are known for their high deposition rates and excellent weld quality, making them suitable for heavy fabrication, shipbuilding, and pressure vessel manufacturing.
Q What are the advantages of using flux-cored welding wire?

Flux-cored welding offers several significant benefits over other welding processes.
Its high deposition rates allow for faster welding, which can lead to increased productivity.
The process is also more forgiving on dirty or rusted surfaces, as the flux can handle impurities effectively.
Furthermore, the self-shielded variants are highly portable and perform exceptionally well in outdoor conditions, which is a major advantage for construction and field repairs.
These benefits make **FCAW** a versatile and widely used process in modern fabrication.

FACTORY FAQ

Q Why choose our product?

We are a professional manufacturer, and we can provide the best product, competitive price, and excellent service.
Q How can I get a sample?

Generally small samples can be sent free of charge and customers just need to bear a little shipping charge.
Q What about the delivery time?

Normally bulk orders need 7-30 days after receiving the advance payment. Samples will be prepared within 1-3 days.
Q What the quality of the products?

Customer's feedback says quality is good.
Q How to ensure the quality?

There is highly-educated professional quality control personnel.

Quality is our culture and life.
Q The price that you offer me, Could be more discount?

It will depend on order quantity.
Q Do you have MOQ?

Yes, we have MOQ for mass production, but it depends on the model, please contact us for details.
Q What certificate do you have?

We have CE, ISO9001.
Q What are your payment terms?

AT/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal.
Q Mode of transportation?

By sea, by air, by courier, by train.
