AWS A 5.10 ER5556 Aluminum Welding Wire

| AWS A 5.10 ER5556 Aluminum Welding Wire Description

1）Product Overview: AWS A5.10 ER5556 is a premium aluminum welding wire, precisely engineered to meet the stringent standards of the American Welding Society (AWS) A5.10 specification for bare aluminum and aluminum-alloy welding electrodes and rods. It's a key solution for high-performance aluminum fabrication.

2）Chemical Composition Highlights: The distinctive properties of ER5556 are largely attributed to its optimized chemical makeup, featuring a significant magnesium content (typically 4.7-5.5%) combined with manganese (0.50-1.0%). These critical alloying elements provide superior weld strength and enhanced resistance to degradation.

3）Exceptional Mechanical Performance: This filler metal stands out for delivering the highest as-welded strengths, particularly in fillet welds, making it significantly stronger than many other aluminum filler metals. It is valued for its robust tensile properties and good ductility, essential for demanding structural aluminum welding.

4）Superior Resistance Characteristics: ER5556 offers remarkable resistance to both general corrosion and cracking, particularly beneficial in challenging environmental conditions. Its composition ensures durable welds that withstand harsh exposures, contributing to the longevity of aluminum structures.

5）Targeted Base Material Compatibility: Primarily designed for joining high-strength aluminum alloys such as 5083, 5154, 5254, 5454, and 5456, ER5556 ensures optimal fusion and strength. It also demonstrates effective performance when welding certain 6XXX series alloys, broadening its aluminum welding applications.

6）Usage Considerations and Temperature Sensitivity: While excelling in strength and resistance, it's crucial to note that ER5556 is generally not recommended for continuous service at elevated temperatures above 150∘F (65∘C). This limitation is due to the potential for stress corrosion cracking in high-magnesium welds under sustained heat, a critical factor for aluminum weld integrity in specific operational environments.

| AWS A 5.10 ER5556 Aluminum Welding Wire Down Load

AWS A 5.10 ER5556 aluminium alloy welding wire.pdf

| AWS A 5.10 ER5556 Aluminum Welding Wire Data Sheet

Standard： AWS A5.10 ER5556	Chemical Composition %
	Si	Fe	Cu	Mn	Zn	Mg	Cr	Ti	AL	Other Each	Other Total
Grade ER5556	≤ 0.25	≤ 0.40	≤ 0.10	0.50 – 1.0	≤ 0.25	4.7 – 5.5	0.05 – 0.2	0.05 – 0.2	Rest	≤ 0.05	≤ 0.15

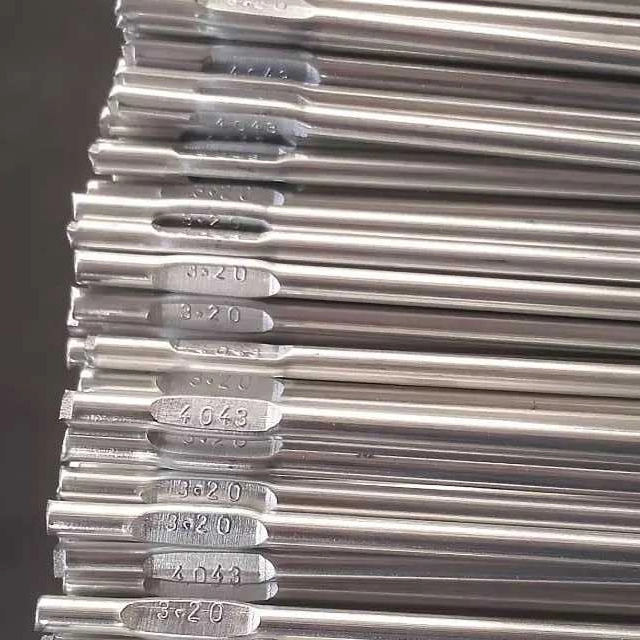

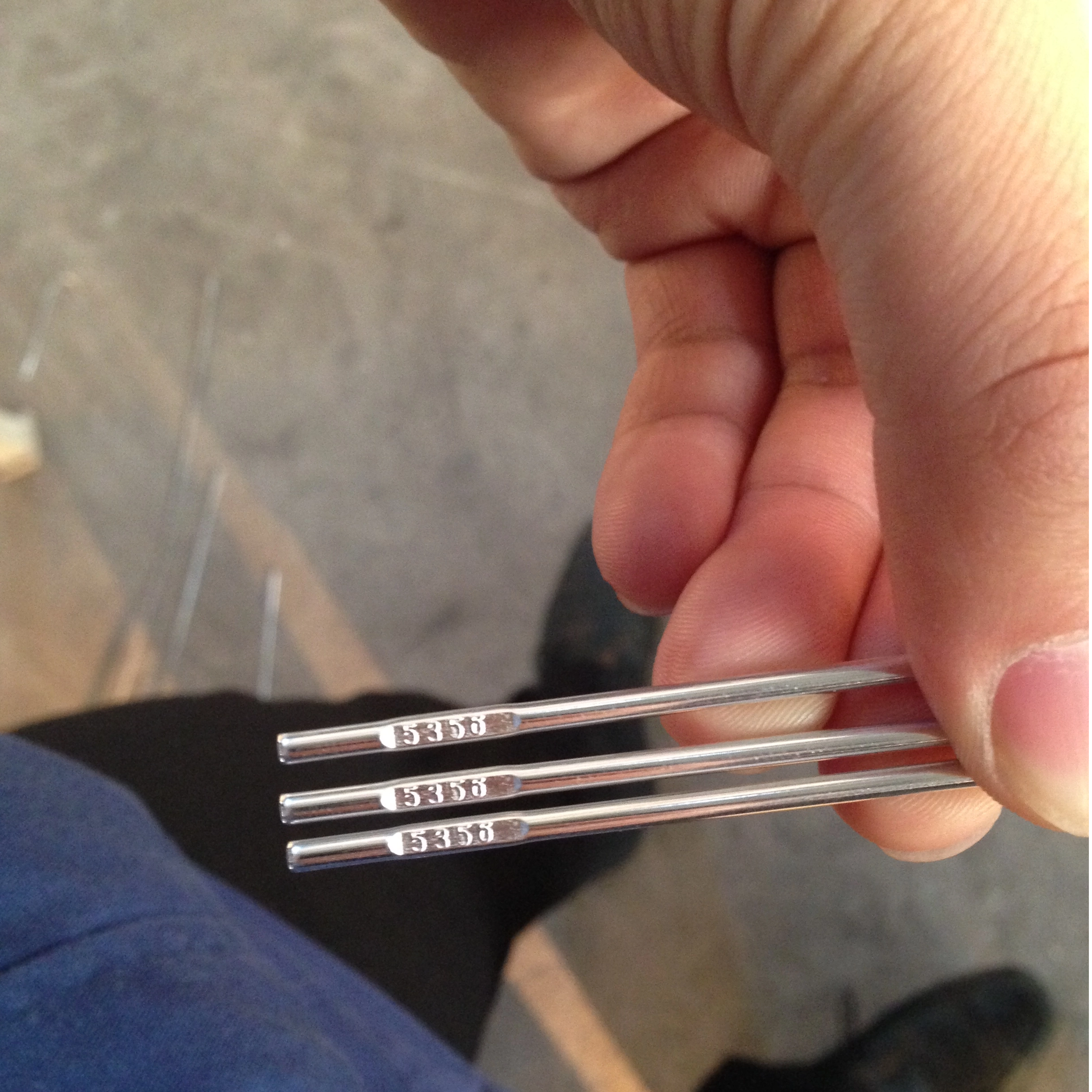

Type	Spool  (MIG)			Tube  (TIG)
Specification (MM)	0.8、0.9、1.0、1.2、1.6、2.0			1.6、2.0、2.4、3.2、4.0、5.0

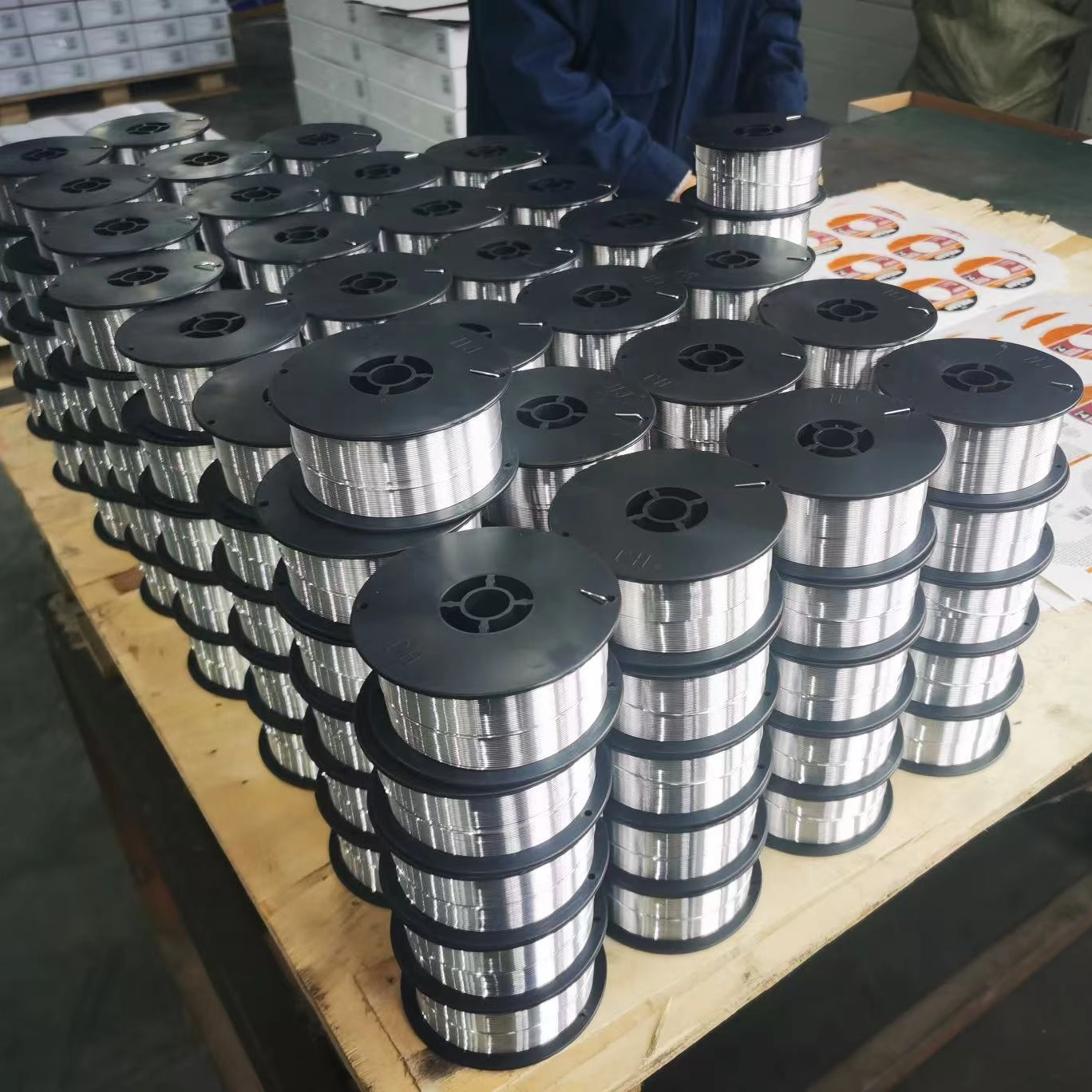

Package	S100/0.5kg          S200/2kg S270,S300/6kg-7kg    S360/20kg			5kg/box    10kg/box    length :1000MM
Mechanical Properties	Fusion Temperature ℃	Electrical IACS	Heat W/m.k	Tensile Mpa	Yield Mpa	Elongation %
	572 – 633	29%	2.65	280 – 310	130 – 165	15 – 25

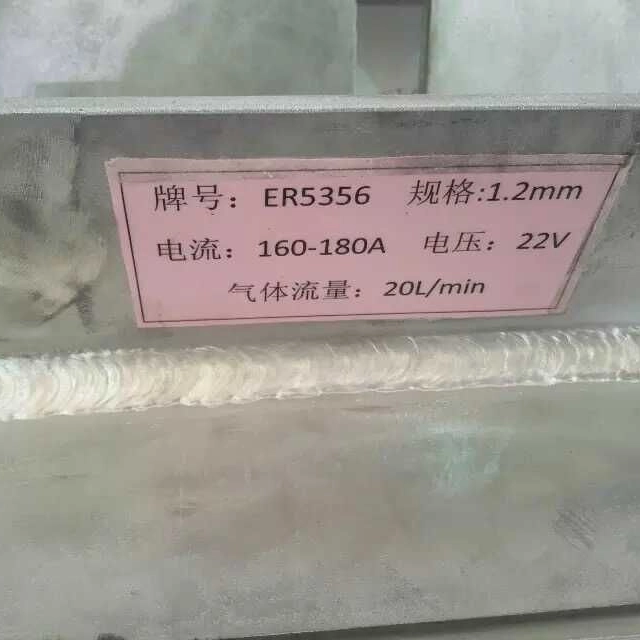

AWS A 5.10 ER5556 Aluminum Welding Wire Typical Welding Parameters
Diameter		Process		Volt		Amps		GAS
in	mm
0.03	0.8	GMAW		15-24		60-175		Argon (cfh)
0.035	0.9	GMAW		15-27		70-185		Argon (cfh)
0.039	1.0	GMAW		22-24		120-200		Argon (cfh)
1/25.4”
0.045	1.2	GMAW		20-29		125-260		Argon (cfh)
3/64”
1/16”	1.6	GMAW		24-30		170-300		Argon (cfh)
3/32”	2.4	GMAW		26-31		275-400		Argon (cfh)
Diameter		Process		Volt		Amps		GAS
in	mm
1/16”	1.6	GTAW		15		60-80		Argon (cfh)
3/32”	2.4	GTAW		15		125-160		Argon (cfh)
1/8”	3.2	GTAW		15		190-220		Argon (cfh)
5/32”	4.0	GTAW		15		200-300		Argon (cfh)
3/16”	4.8	GTAW		15-20		330-380		Argon (cfh)
Weight	0.5kg	1kg	2kg		5kg	7kg	9kg
	1 lb	2 lb	4 lb		11 lb	15 lb	20lb

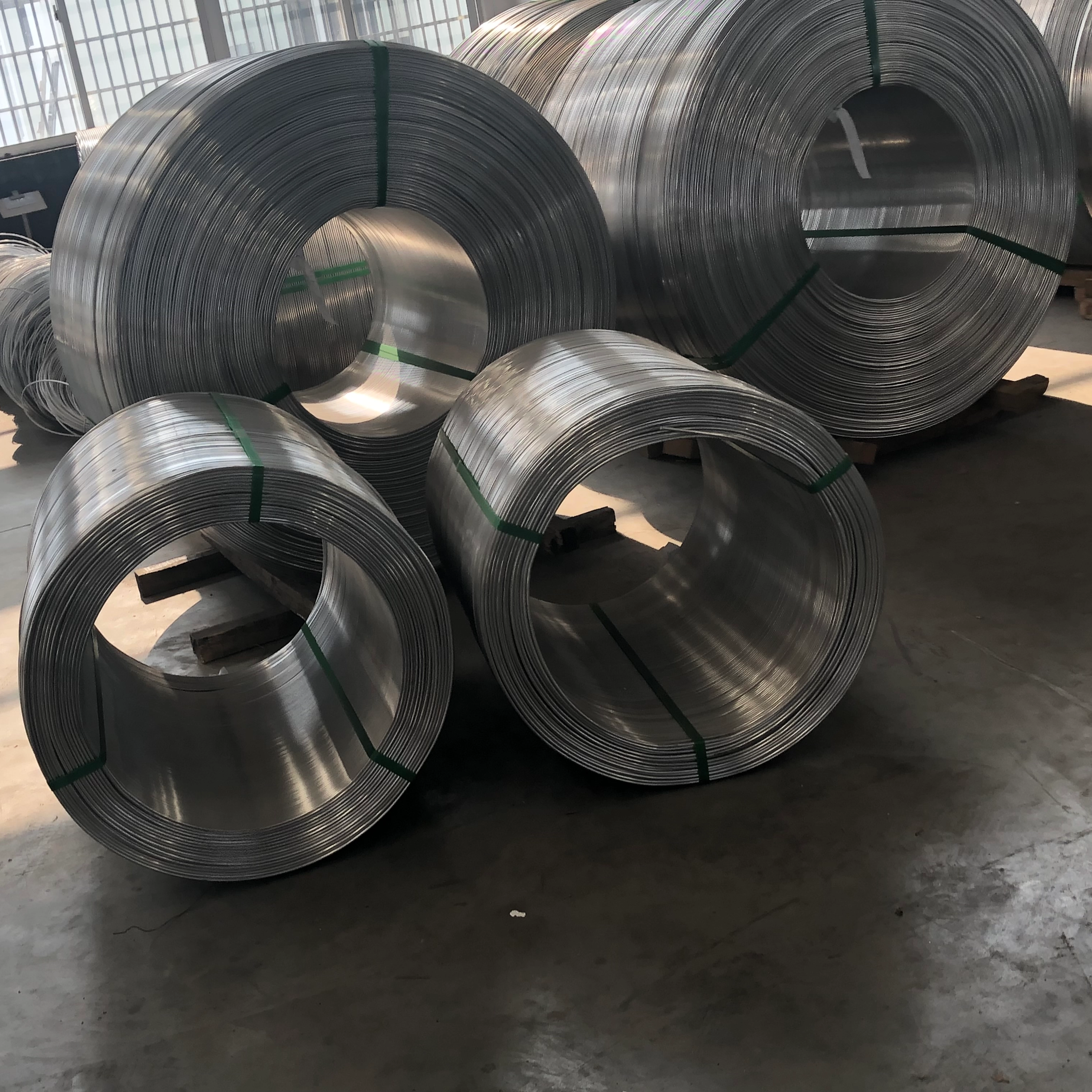

| AWS A 5.10 ER5556 Aluminum Welding Wire Workshop Show

| AWS A 5.10 ER5556 Aluminum Welding Wire Production Video

| AWS A 5.10 ER5556 Aluminum Welding Wire Application

| AWS A 5.10 ER5556 Aluminum Welding Wire Certificate

| AWS A 5.10 ER5556 Aluminum Welding Wire Comment & FAQ

1. What defines AWS A5.10 ER5556 in the context of aluminum welding?

AWS A5.10 ER5556 refers to a specific classification of bare aluminum and aluminum-alloy welding electrodes and rods, as defined by the American Welding Society's A5.10 standard.
It signifies a filler metal designed for processes like MIG (GMAW) and TIG (GTAW) welding, renowned for its **high-strength aluminum alloy** composition and suitability for critical applications.

2. What is the significance of the "5556" designation in the wire name?

The "5556" designates the specific alloy composition, indicating its primary alloying elements and their proportions.
In this case, it highlights a higher magnesium content, crucial for the wire's superior strength and **corrosion resistance in aluminum welds**, distinguishing it from other aluminum filler metals.

3. How does ER5556 contribute to the integrity of welded aluminum structures?

ER5556 plays a pivotal role in ensuring the integrity of welded aluminum structures by providing excellent mechanical properties, including high tensile and yield strength.
This makes it ideal for components subjected to significant stress and fatigue, vital for durable **aluminum structural welding** in demanding environments.

4. What are the ideal applications for ER5556 in heavy industries?

ER5556 is extensively utilized in heavy industries for applications requiring robust and reliable aluminum welds.
This includes the construction of **marine vessels**, railcars, heavy-duty truck trailers, and specialized pressure vessels where high strength and resistance to harsh conditions are paramount for operational safety and longevity.

5. Can ER5556 be used for welding dissimilar aluminum alloys?

While ER5556 is primarily recommended for 5XXX series alloys, it can be used to join certain dissimilar aluminum alloys, particularly when one of the base metals is a 5XXX series alloy and high strength is required.
However, careful consideration of the specific base metal combinations and potential metallurgical interactions is essential for successful **dissimilar aluminum welding**.

6. What are the best practices for storing ER5556 welding wire to maintain its quality?

Proper storage of ER5556 welding wire is crucial for preserving its quality and preventing contamination.
It should be kept in its original, sealed packaging in a cool, dry environment, away from moisture and airborne contaminants.
This helps prevent surface oxidation and ensures consistent **welding wire performance**.

7. How does arc stability influence the quality of welds made with ER5556?

Excellent arc stability is vital for achieving high-quality welds with ER5556, especially during MIG welding.
A stable arc ensures consistent melt-off rates, good bead appearance, and proper penetration, minimizing defects and contributing to robust **aluminum weld quality**.

8. What precautions should be taken regarding heat input when welding with ER5556?

Controlling heat input is critical when welding with ER5556 to prevent issues like hot cracking and excessive distortion.
While pre-heating may sometimes be necessary for thicker sections, excessive heat can compromise the weld's mechanical properties and increase susceptibility to **stress corrosion cracking** in aluminum welds.

9. What kind of post-weld treatments are typically applied to ER5556 welds?

Post-weld treatments for ER5556 welds often include cleaning to remove any residue or spatter, and in some cases, mechanical finishing.
For applications requiring aesthetic appeal, anodizing is a common post-treatment, where ER5556 typically provides a good color match, enhancing the **anodized aluminum finish**.

10. How does ER5556 contribute to lightweight design in transportation industries?

ER5556's ability to produce high-strength welds in lightweight aluminum alloys makes it indispensable for reducing the overall weight of vehicles in the transportation sector.
This contributes to improved fuel efficiency and reduced emissions in sectors like **automotive, rail, and aerospace**, driving innovation in **lightweight material solutions**.

11. Are there specific techniques for minimizing porosity when using ER5556?

Minimizing porosity when welding with ER5556 involves several techniques, including thorough base metal cleaning, ensuring proper shielding gas coverage, and using appropriate welding parameters.
Maintaining a consistent arc length and travel speed also helps in producing dense, porosity-free welds, crucial for **aluminum weld integrity**.

12. What role does manganese play in the performance characteristics of ER5556?

Manganese in ER5556 significantly enhances its strength, ductility, and resistance to intergranular corrosion.
It also acts as a grain refiner, contributing to a finer microstructure in the weld metal, which improves overall mechanical properties and performance in diverse environments for **aluminum alloys**.

13. How does the ER5556 wire feedability impact welding operations?

The feedability of ER5556 wire is crucial for efficient welding operations, especially in automated or semi-automated processes.
Its relative softness compared to steel wires necessitates specialized equipment, such as push-pull systems, to ensure smooth and consistent feeding, optimizing **MIG welding setup for aluminum**.

14. What are the considerations for welding thick aluminum sections with ER5556?

Welding thick aluminum sections with ER5556 requires careful attention to pre-heating, multi-pass techniques, and adequate heat input.
Proper joint preparation and interpass temperature control are vital to ensure full penetration and prevent defects in robust **thick aluminum welding** applications.

15. How does ER5556 perform in low-temperature environments, such as cryogenic tanks?

ER5556 performs exceptionally well in low-temperature environments, making it a preferred choice for cryogenic applications.
It maintains its excellent strength and ductility even at sub-zero temperatures, ensuring the structural integrity of **cryogenic storage vessels** and transfer lines.

16. Can ER5556 be used for automated welding processes?

Yes, ER5556 is highly compatible with automated welding processes, including robotic welding.
Its consistent diameter and superior feedability with appropriate equipment make it suitable for high-volume, precision applications in **automated aluminum welding systems**.

17. What are the typical packaging options available for ER5556 welding wire?

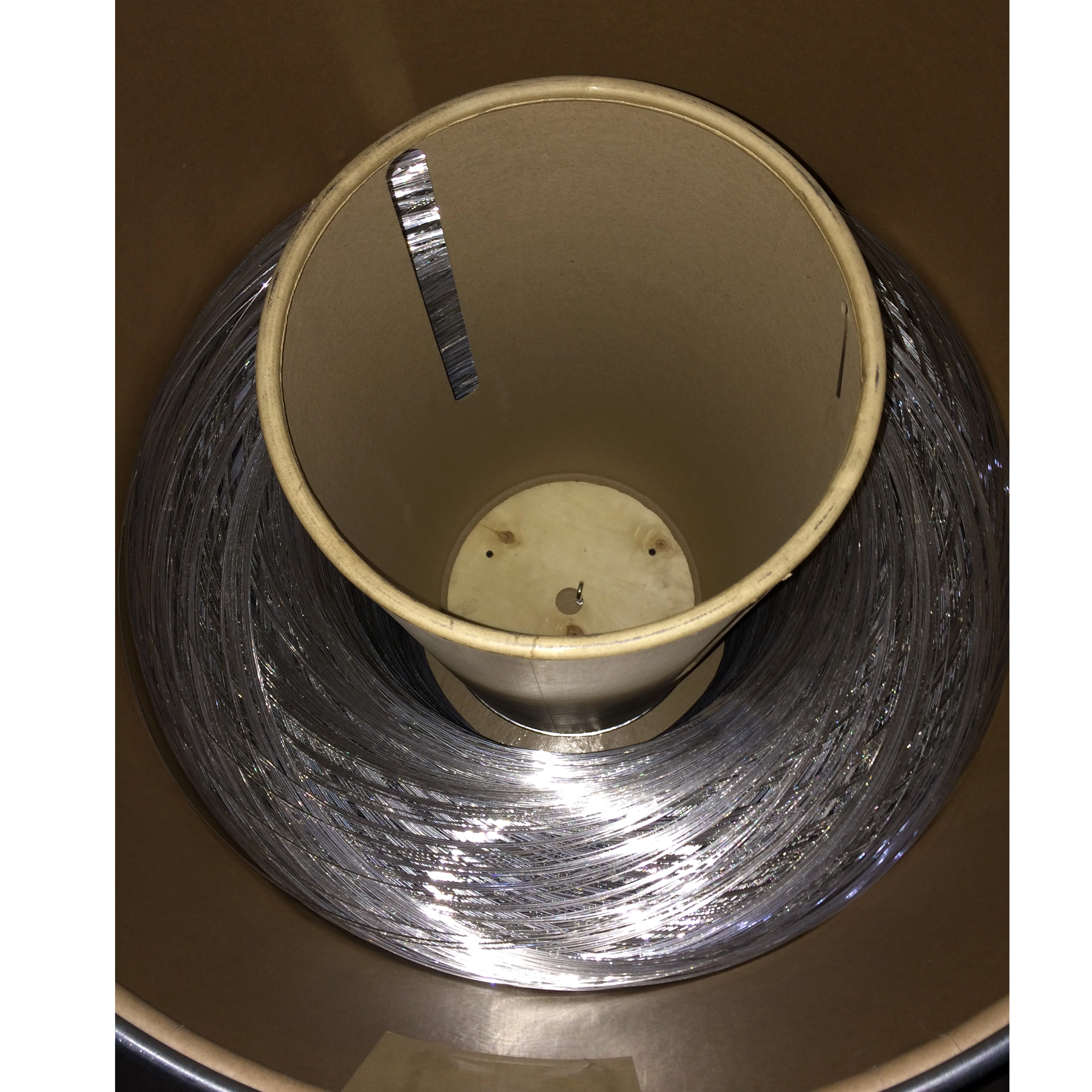

ER5556 welding wire is typically available on various spool sizes, ranging from small spools for hobbyists to larger spools and drums for industrial use.
Common packaging options include 1 lb, 16 lb, and 30 lb spools, ensuring versatility for different **welding project scales**.

18. How does the quality of the raw materials impact the final ER5556 wire performance?

The quality of the raw aluminum and alloying elements used in manufacturing ER5556 directly impacts the final wire's performance.
High-purity raw materials ensure consistent chemical composition, minimize impurities, and lead to superior weld properties and reliability, critical for **premium welding consumables**.

19. What are common troubleshooting tips for poor fusion when using ER5556?

Poor fusion with ER5556 can often be resolved by optimizing welding parameters, such as increasing heat input, adjusting travel speed, and ensuring proper joint preparation.
Checking for adequate shielding gas coverage and using appropriate wire feed speed can also improve fusion and penetration in **aluminum welding techniques**.

20. Where can one access comprehensive technical support for ER5556 applications?

Comprehensive technical support for ER5556 applications can be obtained from leading welding consumable manufacturers, authorized distributors, and welding industry associations.
They often provide detailed product data sheets, application guides, and expert advice to ensure successful **aluminum welding operations**.
