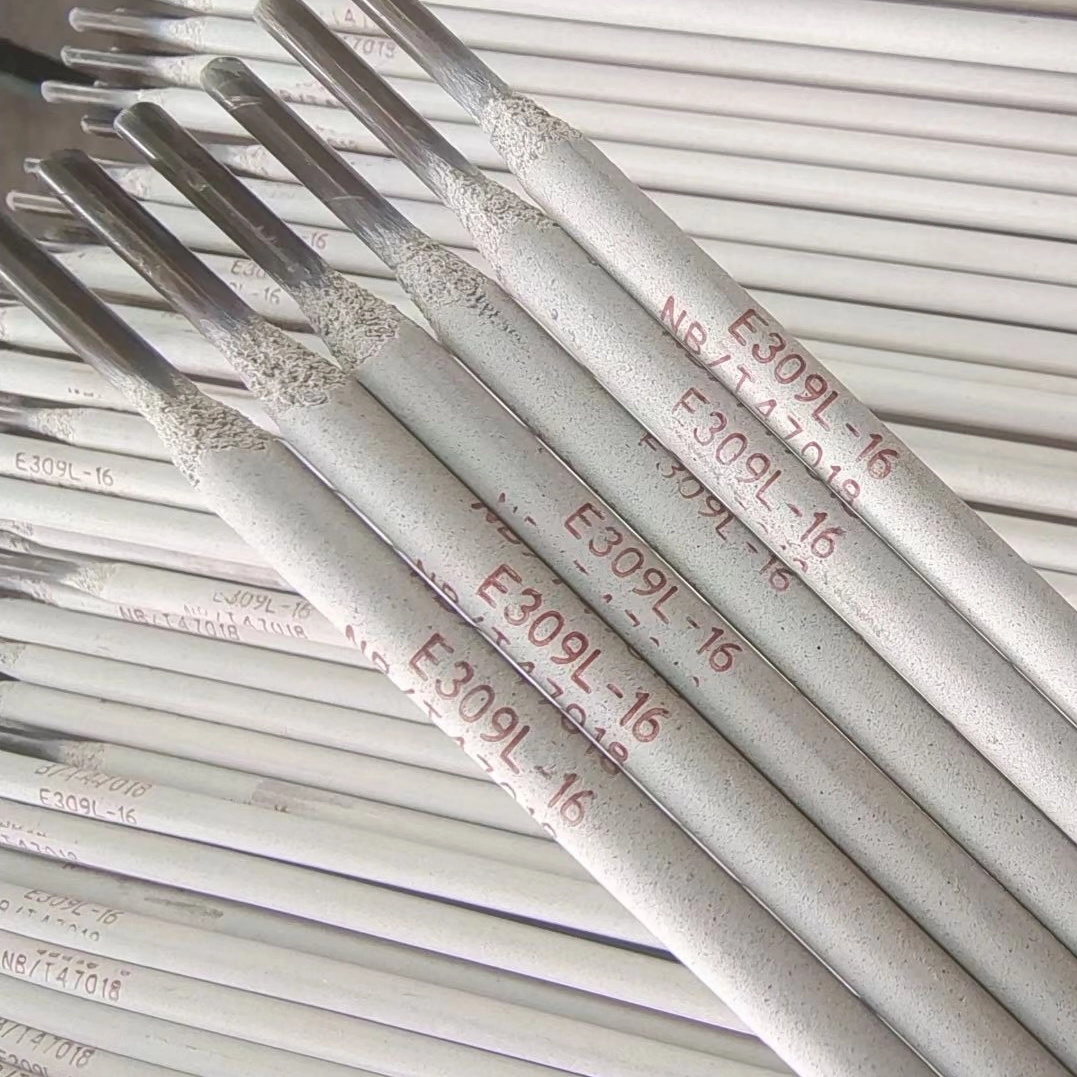

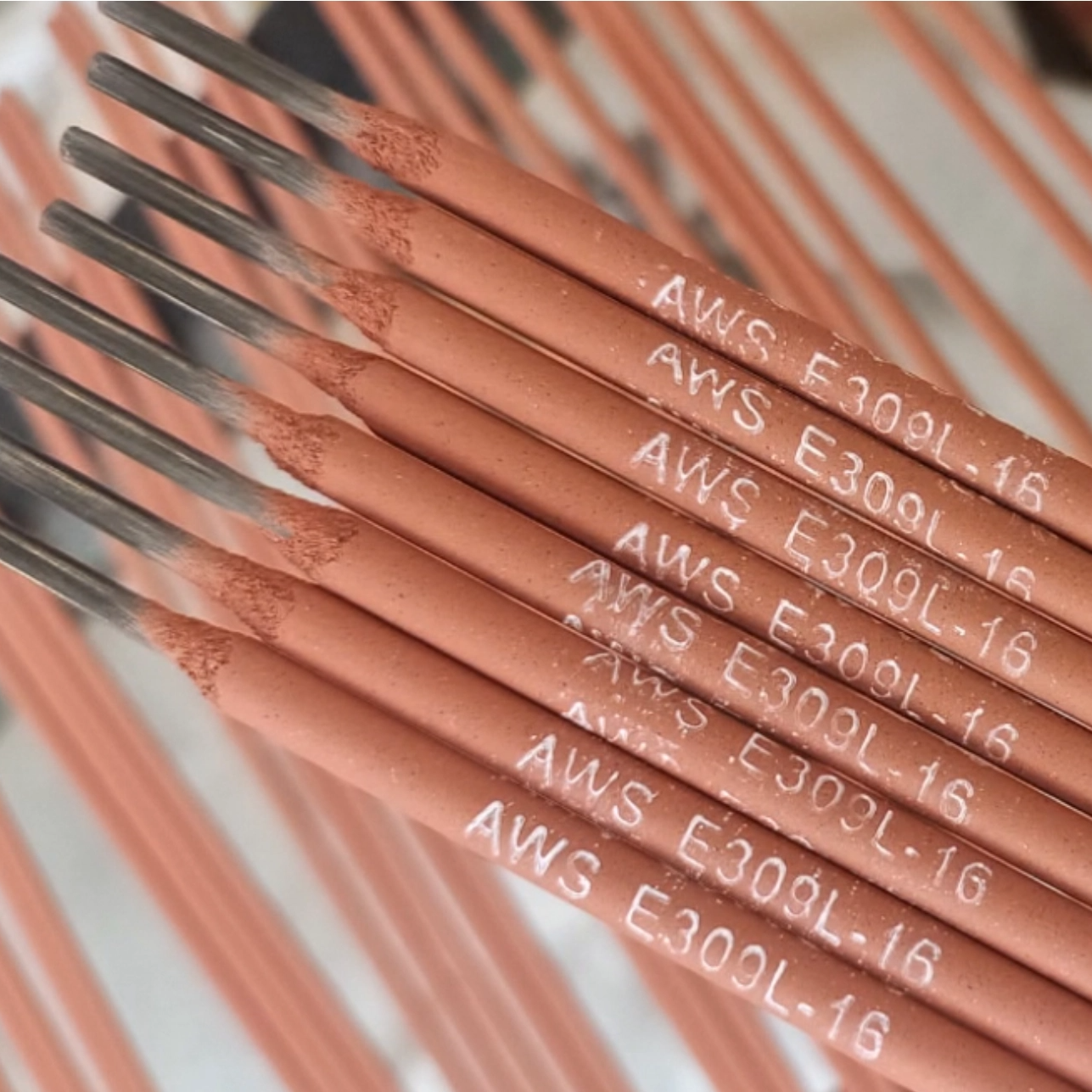

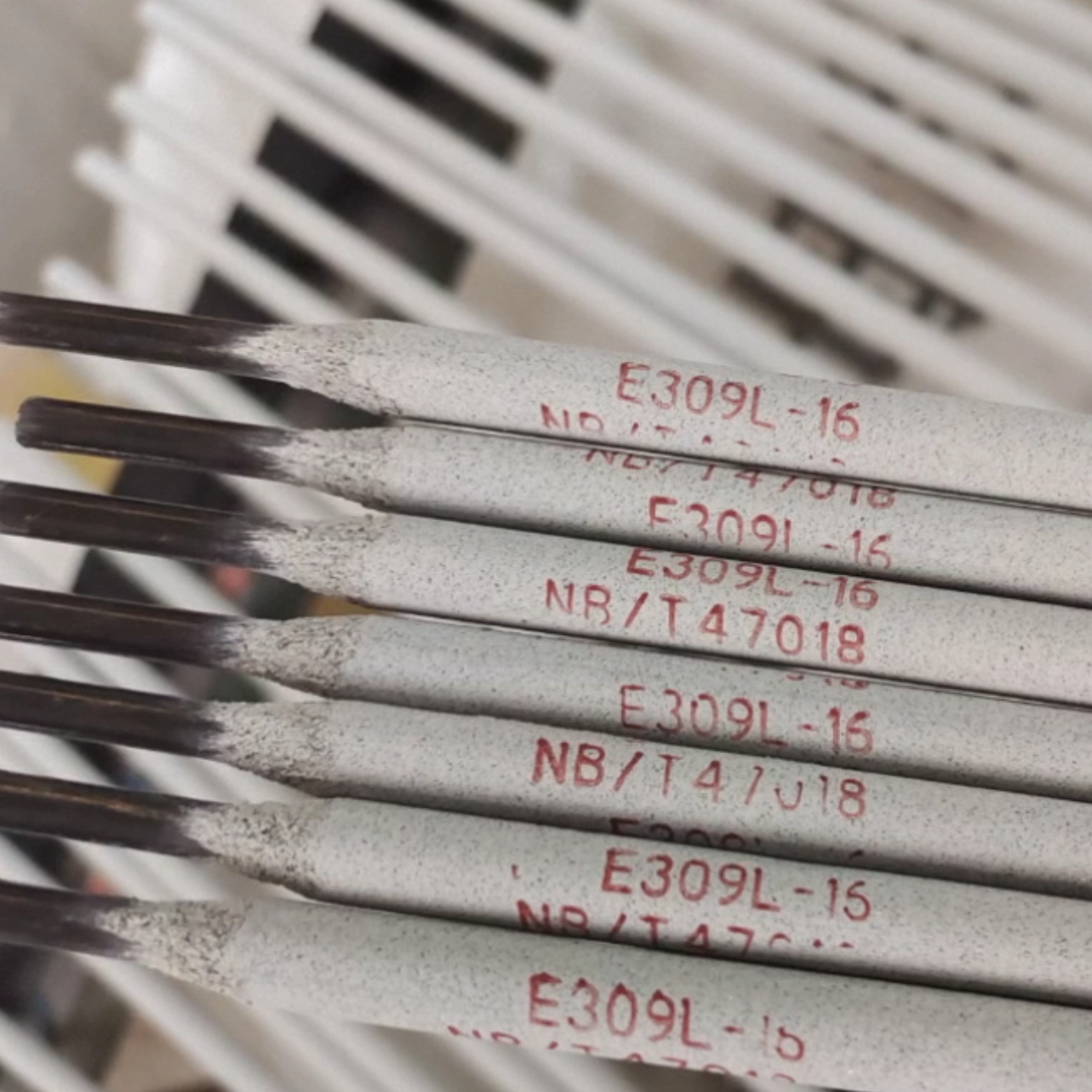

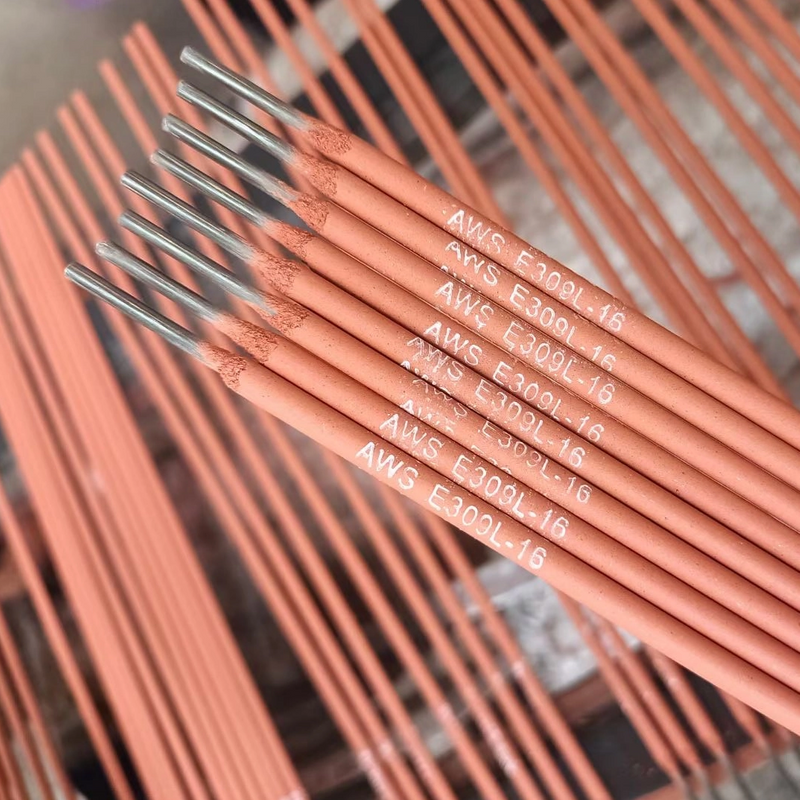

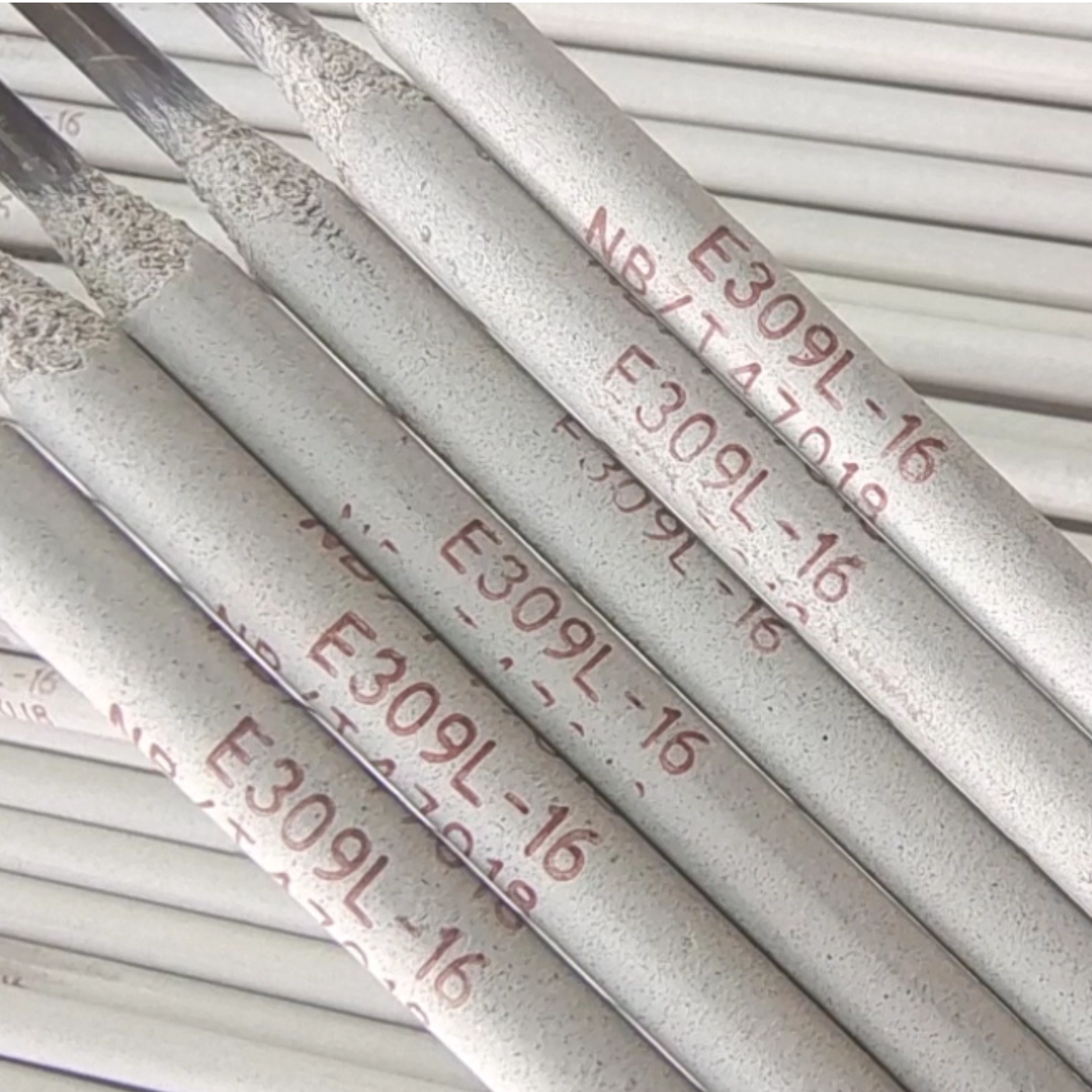

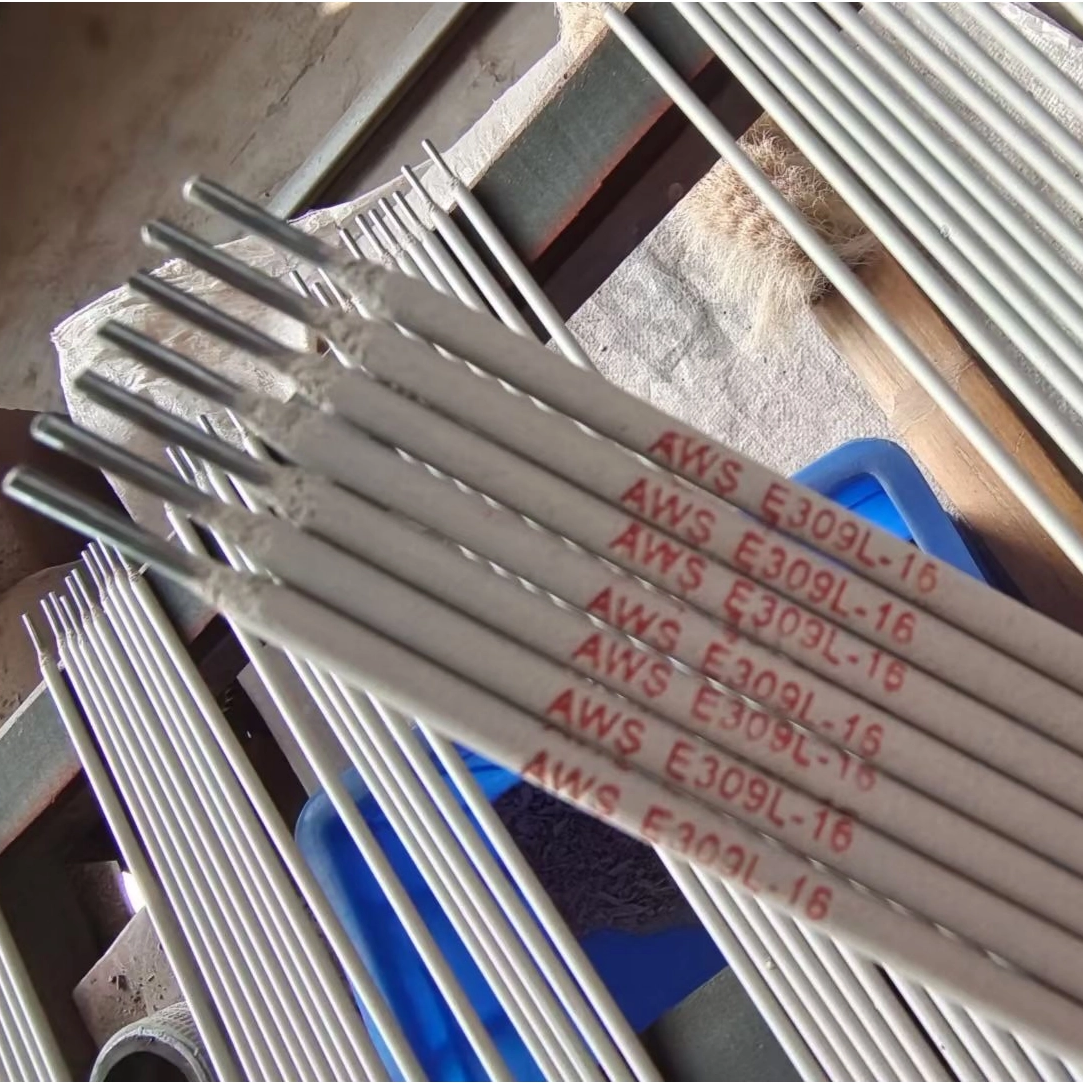

AWS A 5.4 E309L-16
1kg,2kg,5kg,10kg,20kg
1lb;2lb;4.5lb;11lb;15lb;20lb;33lb;44lb
1.6mm,2.0mm,2.4mm,3.2mm,4.0mm,5.0mm
1/16 ″in;5/64″in;3/32″in;1/8″in;5/32″inch
Acceptable (design the pack with your logo)
15 Days
Product Description
The **AWS A5.4 E309L-16** welding electrode is primarily designed for **welding dissimilar metals**, specifically for joining **stainless steel to carbon steel or low-alloy steels**. It is also excellent for **stainless steel weld overlays** or "buttering" on carbon steel surfaces, providing a corrosion-resistant layer. Its higher alloy content helps accommodate dilution from the base metals, preventing cracking and ensuring metallurgical integrity in various industrial applications.
The "L" in the **E309L-16** classification stands for **low carbon**. This means the deposited weld metal has a maximum carbon content of 0.04%. This low carbon level is crucial for preventing **carbide precipitation** (also known as sensitization or weld decay) in the weld metal and heat-affected zone (HAZ) during welding. By minimizing carbide formation, the electrode ensures the welded joint maintains its full resistance to **intergranular corrosion**, which is especially important when welding dissimilar metals or in corrosive service environments.
**E309L-16** primarily offers excellent **general corrosion resistance** and, critically, enhanced resistance to **intergranular corrosion** due to its low carbon content. While it doesn't contain molybdenum for pitting resistance like E316L-16, its high chromium and nickel content makes it highly effective in a wide range of corrosive media. This ensures durability in applications where stainless steel is joined to less corrosion-resistant materials, maintaining the integrity of the welded assembly.
The "-16" in the **E309L-16** classification denotes a **rutile-titania type flux coating**. This coating is renowned for providing excellent welding characteristics, including a very stable and smooth arc, minimal spatter, a bright and finely rippled bead appearance, and easily removable slag. The rutile coating also allows for operation with both **AC (Alternating Current)** and **DCEP (Direct Current Electrode Positive)** polarity, offering broad versatility for different welding power sources and field conditions.
Yes, **E309L-16** electrodes are generally classified for **all-position welding**. This includes flat (1F/1G), horizontal (2F/2G), vertical-up (3F/3G), and overhead (4F/4G) positions. The stable arc and good puddle control provided by the "-16" rutile coating make it a versatile choice for fabricating various structures, from complex piping systems to large tanks, where welding may be required in multiple orientations, ensuring high-quality stainless steel fabrication.
**E309L-16** electrodes are designed for use with both **AC (Alternating Current)** and **DCEP (Direct Current Electrode Positive)**. While DCEP is often preferred for stainless steel welding due to its stable arc and deeper penetration, the ability to use AC can be advantageous in situations where **arc blow** (magnetic deflection of the arc) is a concern, or when only an AC power source is available. This dual capability offers valuable flexibility for welding different types of steel in various settings.
**E309L-16** is specifically engineered to effectively handle dilution from carbon steel or low-alloy steel base metals when welding dissimilar joints. Its higher alloy content (more chromium and nickel than 308L) ensures that even with significant dilution, the final weld metal retains sufficient stainless steel characteristics to prevent cracking and maintain adequate corrosion resistance. This makes it a robust choice for creating reliable transitions between different metal types, which is critical in various industrial systems like power generation or pressure vessel manufacturing.
The weld metal deposited by **E309L-16** electrodes typically exhibits good mechanical properties, often exceeding the minimum requirements set by AWS A5.4. These minimums generally include:
- **Tensile Strength**: 75,000 psi (520 MPa)
- **Yield Strength**: 45,000 psi (310 MPa)
- **Elongation**: 30% (minimum)
These properties ensure that the weld joint possesses good strength, ductility, and toughness, making it capable of withstanding operational stresses in various applications, particularly in structurally demanding stainless steel components.
Generally, **post-weld heat treatment (PWHT)** is **not required** for welds made with **E309L-16** electrodes. The "L" (low carbon) designation is specifically intended to prevent **carbide precipitation** and thus avoid the need for PWHT to restore corrosion resistance. While PWHT might be specified for stress relief in very thick sections of the carbon steel side of a dissimilar joint, it is usually not for metallurgical reasons related to the stainless steel weld itself. This simplifies the fabrication process and reduces overall production costs for stainless steel and clad steel applications.
The primary difference between **E309L-16** and **E308L-16** lies in their **alloy content and intended application**. **E309L-16** has a significantly higher chromium (approx. 22-25%) and nickel (approx. 12-14%) content. This higher alloy content makes it ideal for welding **dissimilar metals** (like stainless steel to carbon steel) or for stainless steel overlays, as it can tolerate dilution without compromising its properties. **E308L-16**, with lower alloy content (approx. 18% Cr, 8% Ni), is typically used for welding **similar 304L-type stainless steels**. Both are low carbon ("L") and have rutile ("-16") coatings, offering similar excellent usability characteristics.
Proper storage is paramount for **E309L-16** electrodes to maintain their welding performance and prevent defects, especially hydrogen-induced issues. They should be stored in **dry conditions**, ideally in their original hermetically sealed containers. Once opened, electrodes should be placed in a **heated electrode holding oven (quiver)** at a temperature of approximately 65°C to 150°C (150°F to 300°F) to prevent moisture pickup. If electrodes have been exposed to humid air for extended periods, they may require re-baking at higher temperatures (e.g., 250-350°C for 1-2 hours) as per manufacturer recommendations to restore their low-hydrogen characteristics, ensuring sound and reliable dissimilar metal welds.
Yes, **E309L-16** is exceptionally well-suited for **weld overlays** or "buttering" on carbon steel or low-alloy steel components. This process involves depositing a layer of stainless steel weld metal onto the surface of a carbon steel part to provide a **corrosion-resistant and sometimes wear-resistant surface**. The high alloy content of E309L-16 ensures that even with dilution from the carbon steel substrate, the overlay maintains a sufficient stainless steel composition to perform its intended protective function. This is common in pressure vessels, heat exchangers, and other equipment requiring corrosion resistance on specific surfaces.
The typical range of welding current for **E309L-16** electrodes varies depending on the electrode diameter, welding position, and specific manufacturer. However, common ranges are comparable to other stainless steel SMAW electrodes:
- **2.5 mm (3/32 inch)**: 60 - 85 Amps
- **3.2 mm (1/8 inch)**: 80 - 110 Amps
- **4.0 mm (5/32 inch)**: 100 - 150 Amps
It's always recommended to consult the electrode manufacturer's technical data sheet for the most accurate and optimal current settings to ensure proper penetration, bead appearance, and mechanical properties of the dissimilar metal weld.
**E309L-16** is specifically formulated to prevent **hot cracking (solidification cracking)**, which is a significant concern in dissimilar metal welds. It achieves this by providing a higher overall alloy content (more chromium and nickel) and by ensuring the weld metal solidifies with a controlled amount of **delta ferrite** (typically 5-10% Ferrite Number, FN). This ferrite helps to accommodate solidification stresses and "soak up" impurities, thereby significantly reducing the susceptibility to hot cracking that might otherwise occur due to the mixing of different metallurgical characteristics between stainless steel and carbon steel.
Chromium (Cr), typically 22-25%, is crucial for providing **general corrosion and oxidation resistance** by forming a protective passive layer on the surface. Nickel (Ni), typically 12-14%, is a powerful **austenite former**; it stabilizes the austenitic microstructure, which gives the weld metal its ductility, toughness, and non-magnetic properties. In **E309L-16**, the higher levels of both chromium and nickel are vital for handling the dilution from carbon steel when welding dissimilar metals, ensuring the integrity and corrosion resistance of the weld joint despite the mixing of base metal chemistries.
While **E309L-16** has a low carbon content ("L" grade) which is beneficial, it's generally **not the primary choice for direct contact surfaces in highly critical high-purity applications** (e.g., pharmaceutical or some food processing) where the base material is 304L or 316L stainless steel. For such applications, **E308L-16** or **E316L-16** (if molybdenum is needed) would be preferred to directly match the base material's composition and corrosion resistance. E309L-16's main strength is dissimilar welding or buttering. If used for overlays in high-purity systems, subsequent passes would likely use E308L-16 or E316L-16, and thorough cleaning and passivation would be mandatory to meet stringent hygiene requirements.
If **E309L-16** electrodes have been exposed to atmospheric moisture, **re-baking** is recommended to restore their low-hydrogen characteristics and ensure optimal weld quality. Typical re-baking procedures involve:
- **Temperature**: Heating electrodes to a temperature range of 250°C to 350°C (482°F to 662°F).
- **Duration**: Holding at this temperature for 1 to 2 hours.
- **Cooling**: Allowing them to cool in a heated oven or transferring directly to a holding oven set at 65°C to 150°C (150°F to 300°F) until use.
Always consult the specific electrode manufacturer's recommendations, as procedures can vary slightly. Proper re-baking is crucial for preventing weld defects like porosity and ensuring sound dissimilar metal welds.
The surface finish of the base metal is critically important for welding with **E309L-16**, especially when joining dissimilar metals. Any contaminants like grease, oil, rust, scale, or paint must be completely removed. Crucially, when welding stainless steel to carbon steel, care must be taken to prevent **cross-contamination**; use separate, dedicated stainless steel wire brushes and grinding wheels on the stainless steel side to avoid embedding carbon steel particles, which can compromise corrosion resistance. A clean and properly prepared joint promotes good fusion, prevents defects like porosity and inclusions, and ensures the optimal performance of the dissimilar weld.
**E309L-16** can be used for applications exposed to moderately elevated temperatures (e.g., up to approximately 400°C or 750°F) where its excellent general corrosion resistance and strength are maintained. While its "L" grade minimizes sensitization during welding, for continuous service at significantly higher temperatures (e.g., above 450°C or 840°F), where creep strength or long-term embrittlement (like sigma phase formation) are concerns, other specialized high-temperature stainless steels or nickel-based alloys might be more appropriate. E309L-16 is designed for preventing sensitization in standard and dissimilar welding applications, ensuring good performance across a wide range of operating temperatures.
The typical deposition efficiency of **E309L-16** electrodes, which falls within the range common for shielded metal arc welding (SMAW) consumables, generally varies from **60% to 70%**. This means that roughly 60% to 70% of the electrode's weight is deposited as weld metal, with the remainder consisting of stub ends, spatter, and slag. While this efficiency is lower compared to some automated welding processes, it is considered standard for manual stick welding of stainless steel. Factors such as welder technique, current settings, and electrode angle can influence the actual deposition efficiency during fabrication.
Multi-pass welding with **E309L-16** electrodes, particularly for weld overlays or thick dissimilar joints, requires several key considerations:
- **Interpass Temperature Control**: Maintaining the interpass temperature below a specified maximum (e.g., 177°C or 350°F) is crucial to control distortion and prevent excessive heat build-up.
- **Thorough Interpass Cleaning**: Complete slag removal (using stainless steel tools) between each pass is essential to prevent slag inclusions and ensure sound fusion.
- **Heat Input Management**: Controlling the heat input per pass helps maintain the desired microstructure and mechanical properties.
- **Dilution Control**: For overlays, the first layer experiences the most dilution; subsequent layers help build up the desired alloy content.
These practices ensure high-quality and defect-free multi-pass welds for complex stainless steel or dissimilar metal fabrications.
