Stainless Steel Welding: Wire Vs. Stick Vs. Self-Shielded Wire

What is Stainless Steel MIG Wire (GMAW)?

Stainless steel MIG wire is a solid wire electrode used in **Gas Metal Arc Welding (GMAW)**. It requires an external shielding gas, typically an Argon-rich mixture (e.g., Argon with 1-2% CO2 or Argon with Helium), to protect the weld puddle from atmospheric contamination. The wire is continuously fed through a welding gun.

What are the key advantages of using Stainless Steel MIG Wire?

- **High Productivity:** Offers continuous welding, leading to higher deposition rates and faster travel speeds compared to stick welding.
   - **Minimal Cleanup:** Produces very little to no slag, significantly reducing post-weld cleaning time.
   - **Excellent Weld Appearance:** Generally results in a smooth, aesthetically pleasing weld bead with minimal spatter.
   - **Easier to Learn:** Often considered easier for beginners to pick up than stick or TIG welding.
   - **Good for Thin Materials:** Provides good control for welding thinner gauges of stainless steel without burn-through.

What are the disadvantages of Stainless Steel MIG Wire?

- **Requires Shielding Gas:** Needs a constant supply of external shielding gas, which adds to the cost and complexity.
   - **Limited Portability:** The need for gas cylinders makes the setup less portable and less suitable for field work without proper provisions.
   - **Sensitive to Drafts:** Wind and drafts can blow away the shielding gas, leading to porosity and weld defects.
   - **Equipment Cost:** Requires a MIG welding machine with a wire feeder and gas cylinder, which can be a higher initial investment.

What is a Stainless Steel Stick Electrode (SMAW)?

A stainless steel stick electrode, also known as a coated electrode or welding rod, is used in **Shielded Metal Arc Welding (SMAW)**. The electrode consists of a core wire and a flux coating that provides its own shielding gas and slag when it burns. This process does not require an external gas cylinder.

What are the key advantages of using Stainless Steel Stick Electrodes?

- **Excellent Portability:** Highly portable, requiring only the welder and electrodes, making it ideal for fieldwork, outdoor welding, and remote locations.
   - **No External Gas Needed:** The flux coating generates its own shielding, eliminating the need for gas cylinders and making it impervious to wind.
   - **Versatile for Dirty/Rusty Surfaces:** More tolerant of rust, paint, and contaminants on the base metal compared to MIG welding.
   - **Good for Thicker Materials:** Provides deeper penetration, suitable for welding thicker sections of stainless steel.
   - **Lower Equipment Cost:** Initial equipment cost for a stick welder is typically lower than a MIG setup.

What are the disadvantages of Stainless Steel Stick Electrodes?

- **Lower Productivity:** Electrodes are consumed, requiring frequent stops to change rods, which reduces deposition rates and overall speed.
   - **Requires Slag Removal:** Produces a significant amount of slag that must be chipped off after each pass, increasing cleanup time.
   - **Increased Spatter:** Tends to produce more spatter than MIG welding.
   - **More Challenging to Learn:** Requires more skill and practice to achieve consistent, quality welds, especially in out-of-position welding.
   - **Weld Appearance:** Generally produces a rougher bead appearance compared to MIG.

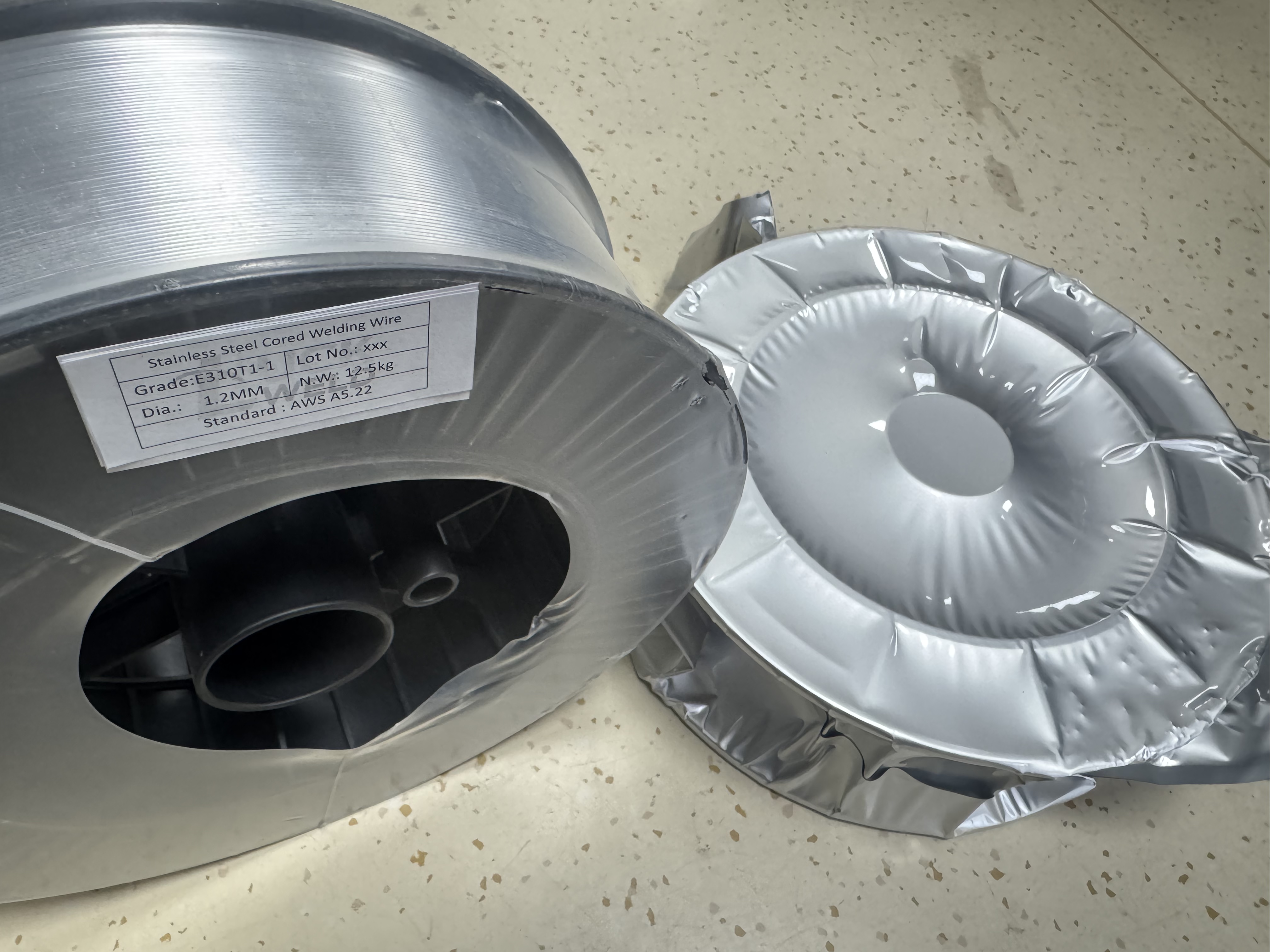

What is Stainless Steel Self-Shielded Flux-Cored Wire (FCAW-S)?

Stainless steel self-shielded flux-cored wire is a tubular electrode containing fluxing agents that produce the necessary shielding gas and slag during welding. It does **not** require an external shielding gas, similar to stick electrodes, but is fed continuously like MIG wire.

What are the key advantages of using Stainless Steel Self-Shielded Flux-Cored Wire?

- **No External Gas Needed:** Eliminates the need for gas cylinders, offering excellent portability and making it suitable for outdoor and windy conditions.
   - **High Deposition Rates:** Provides higher deposition rates and faster welding speeds than stick electrodes due to continuous wire feed.
   - **Deep Penetration:** Delivers good penetration, making it effective for thicker stainless steel sections.
   - **Good for Contaminated Surfaces:** More tolerant of mill scale, rust, and dirt on the base metal than solid MIG wire.
   - **All-Position Capability:** Many self-shielded wires are designed for all-position welding, offering versatility.

What are the disadvantages of Stainless Steel Self-Shielded Flux-Cored Wire?

- **Requires Slag Removal:** Produces a slag that needs to be chipped off, similar to stick welding, increasing cleanup.
   - **Increased Fumes:** Can generate more welding fumes compared to MIG welding, necessitating good ventilation.
   - **More Spatter:** Tends to produce more spatter than traditional MIG welding with gas.
   - **Weld Appearance:** While better than some stick welds, the bead appearance may not be as smooth or aesthetically pleasing as gas-shielded MIG.
   - **Wire Cost:** Self-shielded flux-cored wire can sometimes be more expensive per pound than solid MIG wire.

When should I choose each type of stainless steel consumable?

- Choose **Stainless Steel MIG Wire (GMAW)** for:        - Applications demanding high productivity and speed.
       - Projects where weld aesthetics and minimal cleanup are paramount.
       - Shop environments with controlled airflow where gas supply is readily available.
       - Welding thinner gauges of stainless steel.
       - Automated or robotic welding.
       - Examples: Food processing equipment, architectural stainless steel, automotive components.    - Choose **Stainless Steel Stick Electrodes (SMAW)** for:        - Field welding, outdoor jobs, or remote locations where portability is essential.
       - Welding in windy conditions where shielding gas would be lost.
       - Repairs or fabrication on dirty, rusty, or slightly contaminated stainless steel.
       - Welding thicker sections that require deep penetration.
       - When initial equipment cost is a major consideration.
       - Examples: Structural steel, heavy equipment repair, pipe welding in challenging environments.    - Choose **Stainless Steel Self-Shielded Flux-Cored Wire (FCAW-S)** for:        - Applications requiring high deposition rates and portability, combining benefits of MIG and stick.
       - Outdoor or windy conditions where gas shielding is impractical.
       - Welding thicker materials while maintaining continuous feed.
       - Situations where some cleanup is acceptable but higher productivity than stick is desired.
       - Examples: Heavy fabrication, ship building, construction, general repair in the field.

Each stainless steel welding consumable has its unique strengths and weaknesses. Understanding these differences will enable you to select the most appropriate option for your specific stainless steel welding project, optimizing for factors such as weld quality, cost, speed, and environmental conditions. Always consult the manufacturer's recommendations and perform test welds to fine-tune your parameters.
