Views: 0 Author: Site Editor Publish Time: 2025-12-07 Origin: Site
Selecting the correct **aluminium welding wire** is pivotal for achieving robust and aesthetically pleasing welds. This in-depth FAQ guide explores the unique properties, typical applications, packaging specifics, and crucial selection considerations for common **aluminium filler metals**. We'll also offer comparative insights to help you distinguish between these essential alloys for optimal welding performance.
ER1070 aluminium welding wire stands out due to its exceptional purity, containing a minimum of 99.7% pure aluminium. This makes it the go-to choice when paramount **electrical conductivity** and superior **corrosion resistance** are non-negotiable.
Its core applications include the fabrication of highly conductive components like **electrical bus bars**, specialized **chemical processing equipment**, and various electrical connectors. It's also ideal for joining other commercially pure aluminium grades such as 1060, 1070, and 1350, frequently found in decorative architectural elements or certain types of heat exchange systems. Welders often appreciate its excellent fluidity, which results in a bright, clean, and very ductile weld bead.
Generally, **ER1070 welding wire** is supplied on **plastic spools** for MIG welding, available in common diameters like 0.8mm, 1.0mm, and 1.2mm, with spool weights usually ranging from 0.5kg to 15kg. For TIG welding, it's provided as **cut lengths** or straight rods, typically 500mm or 1000mm long, often securely bundled in cardboard tubes or sturdy cartons. All packaging is meticulously designed to be **moisture-resistant**, frequently employing hermetically sealed bags or protective wraps to prevent surface oxidation and contamination, factors critical for maintaining consistent arc stability and avoiding common **weld defects**.
When selecting **ER1070 filler metal**, prioritize projects that specifically demand its exceptional **electrical and thermal conductivity**, or where maximum **corrosion resistance** is a vital performance metric. Ensure precise compatibility with the base metal; it performs optimally when welding **pure aluminium alloys** (1XXX series) to prevent detrimental issues like **hot cracking** or degraded mechanical properties. Given its inherent softness, careful attention to wire feeding techniques during MIG welding is crucial to prevent kinking or tangling, ensuring smooth operation. Always store ER1070 in a dry, meticulously controlled environment to preserve its surface quality and prevent contamination, which directly impacts **weld quality** and joint integrity.
ER1100 aluminium alloy welding wire, a commercially pure aluminium with a minimum of 99% aluminium, is widely recognized for its excellent **ductility**, high **corrosion resistance**, and beneficial **electrical and thermal conductivity**. This versatile **filler material** is a popular choice for a diverse array of general-purpose and decorative applications.
Typical uses include **architectural components**, intricate **decorative trim**, extensive **sheet metal work**, and parts for both the **food processing** and **chemical industries**. It's highly effective for welding base metals such as 1100, 3003, and other non-heat-treatable aluminium alloys. Its soft and highly ductile weld deposit makes it ideally suited for applications requiring significant **post-weld forming** or deep drawing, consistently offering smooth puddle characteristics and minimal discoloration in the **weld zone**.
For **MIG welding**, **ER1100 wire** is commonly supplied on **standard spools** in various diameters, including 0.8mm to 1.6mm, with typical spool weights around 2kg, 6.5kg, or 10kg. **TIG welding rods** are provided as precisely cut lengths (e.g., 914mm or 36 inches) and in various diameters from 1.6mm to 4.8mm, usually packaged in 2kg or 5kg bundles within sturdy cardboard boxes. The packaging consistently incorporates robust protective measures, such as plastic wrapping and desiccant packets, to effectively shield the **aluminium wire** from atmospheric moisture and contaminants, ensuring clean feeding and optimal arc performance in diverse **welding environments** and reducing **weld porosity** risks.
When choosing **ER1100 filler material**, focus on its primary benefits: exceptional **ductility** and **corrosion resistance**, which make it perfect for pure aluminium applications and certain 3XXX series alloys. It's crucial to understand that **ER1100** provides relatively **low strength** in the weld deposit compared to alloyed aluminium wires, rendering it unsuitable for load-bearing or high-stress structural components. Meticulous **pre-weld cleaning** of both the base material and the filler wire is absolutely paramount to prevent **porosity** and ensure a sound, defect-free weld, especially given its inherent susceptibility to hydrogen porosity. Always ensure the chosen **filler metal** precisely matches the purity requirements of your specific project for optimal **weld integrity** and consistent results.
ER4043 aluminium alloy welding wire is arguably the most popular and broadly versatile **aluminium filler metal** available, primarily due to its 5% silicon content. This silicon addition significantly enhances **fluidity**, substantially reduces **hot cracking susceptibility**, and consistently produces bright, aesthetically pleasing welds with excellent flow characteristics.
Its broad spectrum of applications includes general **aluminium fabrication**, diverse **automotive components** (e.g., frames, engine blocks, vehicle chassis), **bicycle frames**, and various **heat exchangers** and refrigeration units. It excels at welding both heat-treatable alloys like 6061, 6063, and 6082, as well as non-heat-treatable alloys such as 3003 and 5052. Furthermore, **ER4043** is extensively employed for the **repair welding of aluminium castings** (e.g., A356.0, 319.0) due to its superior wetting action and remarkable ability to effectively fill gaps and bridge irregularities, making it a go-to for **cast aluminium repair**.
ER4043 welding wire is comprehensively packaged for both MIG and TIG welding processes to meet diverse industry demands. For **MIG welding**, it is predominantly found on standard **plastic spools** in a wide range of popular diameters (0.8mm to 2.4mm) and various practical weights (0.5kg, 2kg, 6.5kg, 7kg, 16kg, 20kg). **TIG welding rods** are typically supplied as straight lengths, usually 914mm (36 inches) or 1000mm (1 meter), conveniently bundled in 2kg, 5kg, or 10kg cardboard cartons. All packaging is engineered with robust moisture barriers and frequently includes vacuum-sealed bags or desiccant to prevent contamination and ensure optimal wire feeding characteristics, crucial for minimizing downtime in fabrication shops and producing high-quality **aluminium welds**.
When selecting **ER4043 filler wire**, its exceptional **fluidity** and reduced **hot cracking sensitivity** are major advantages, making it an ideal choice for a vast array of **aluminium joining tasks**, especially with 6XXX series alloys and for effective cast repair. However, it's crucial to acknowledge that the silicon content can cause the weld deposit to appear a **dark gray color after anodizing**, which might be an undesirable aesthetic outcome for certain visible applications requiring a pristine finish. For demanding marine environments or applications requiring higher tensile strength and better ductility in the weld, a 5XXX series filler like ER5356 or ER5183 might be more suitable. Always confirm the absolute compatibility of **ER4043** with your specific **base material** and the desired post-weld properties, including its relatively lower shear strength compared to magnesium-containing alloys, to ensure optimal **weld performance**.
While both are common **aluminium welding wires**, **ER4043**'s 5% silicon content provides significantly better **fluidity** and reduced **hot cracking susceptibility** compared to the pure aluminium **ER1100**. This makes ER4043 more versatile for general fabrication and cast repairs. However, **ER1100** excels where maximum **ductility**, **electrical conductivity**, and a pure aluminium weld deposit are required, as it contains no silicon to affect these properties or post-anodizing color. ER1100 welds will typically be softer and less strong than ER4043 welds.
ER4047 aluminium alloy welding wire distinguishes itself with a significantly higher silicon content (typically 11-13%) compared to ER4043. This elevated silicon concentration substantially lowers the melting point and dramatically improves both **fluidity** and **wetting action**, rendering it an outstanding choice for **aluminium brazing** and specialized welding applications that demand superior fill characteristics and minimal shrinkage.
Its primary applications include the precision fabrication and repair of **automotive components** (e.g., radiator tubes, heat exchangers, AC condensers), critical parts for **HVAC/refrigeration equipment**, and specialized **aerospace structures** where crack-free joints and high thermal conductivity are paramount. It is particularly effective for welding **thin gauge materials** and complex, intricate joints, as well as for the effective repair of **die-cast aluminium** components due to its exceptional flow properties and remarkable ability to reduce solidification shrinkage, thereby minimizing **porosity** and ensuring sound **weld integrity** in challenging applications.
ER4047 welding wire is commonly packaged on **precision wound spools** for MIG welding, available in various diameters from 0.8mm to 2.4mm, with typical spool weights ranging from 0.5kg to 20kg. For **TIG welding**, it's supplied as straight rods in standard lengths (e.g., 914mm or 36 inches), conveniently bundled in 2kg, 5kg, or 10kg packages. Given its specialized and critical applications, the packaging often incorporates advanced features such as **vacuum sealing** or inert gas purging to provide superior protection against moisture absorption and environmental contaminants. This meticulous packaging ensures extended shelf life and consistent performance of this vital **aluminium filler alloy** during demanding **welding operations**.
For **ER4047**, its outstanding **fluidity** and lower melting point make it ideally suited for **aluminium brazing** applications and for welding very thin sections where exceptional wetting, reduced distortion, and minimal **hot cracking** are absolutely critical. Be aware that the very high silicon content will inevitably result in a **darker gray weld color after anodizing**, which is an important aesthetic consideration for any visible components. While it offers good strength, its ductility is typically lower than ER4043 due to the elevated silicon content, which might impact any post-weld forming operations. Careful **joint preparation** and precise **welding parameters** are essential to fully harness its superior flow characteristics and achieve the desired results for this specialized **aluminium filler material**.
The primary distinction lies in their silicon content: **ER4047** contains a higher percentage of silicon (11-13%) compared to **ER4043** (around 5%). This higher silicon in ER4047 leads to a lower melting point, significantly improved **fluidity**, and better **wetting action**, making it superior for brazing, welding thin materials, and filling complex gaps. However, **ER4043** offers better ductility and is more widely used for general-purpose fabrication and **cast aluminium repair** where less extreme fluidity is needed. Both will turn dark after anodizing due to their silicon content, but ER4047 will typically be darker.
ER5183 aluminium alloy welding wire is a premium, high-magnesium alloy, typically containing around 4.5% to 5.5% magnesium. This specific composition delivers an exceptional combination of **high tensile strength**, superior **shear strength**, and excellent **ductility**, establishing it as a robust choice for demanding structural applications, particularly in harsh and corrosive environments.
Its primary applications include critical components in **marine environments** (e.g., shipbuilding, offshore drilling platforms), the fabrication of **cryogenic tanks**, **pressure vessels**, and large-scale **storage tanks**. It offers outstanding resistance to **saltwater corrosion** and maintains excellent mechanical properties in extreme **cryogenic temperatures**. **ER5183** is the preferred **filler metal** for welding high-strength 5XXX series base metals like 5083, 5086, and 5456, where maintaining robust strength and structural integrity under significant stress or in highly corrosive conditions is paramount for the overall **weld metal performance**.

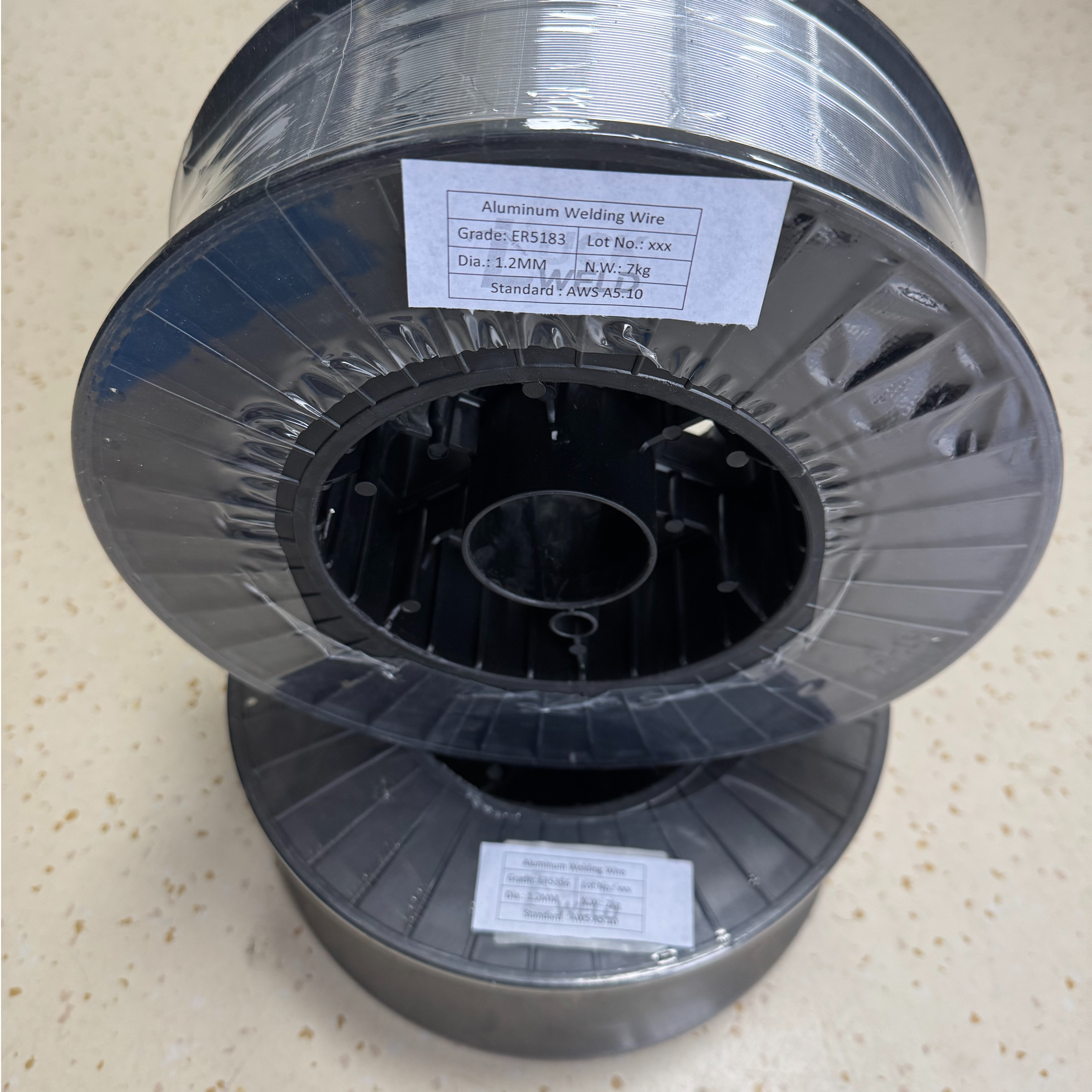

ER5183 welding wire is typically available on **precision wound spools** for MIG welding, ranging from 1kg to 20kg weights, and in various popular diameters (e.g., 1.0mm, 1.2mm, 1.6mm). For **TIG welding**, it is provided as straight rods, usually in 914mm (36 inches) lengths, conveniently bundled in 5kg or 10kg packages. The packaging for ER5183 is inherently robust and frequently incorporates advanced features such as **hermetically sealed bags** or **vacuum-packed options** to provide maximum protection against moisture ingress and surface contaminants. This rigorous packaging ensures the pristine integrity of the **aluminium alloy**, guaranteeing consistent arc performance and exceptionally high-quality weld deposits critical for structural applications.
When selecting **ER5183 filler metal**, prioritize its exceptional **high strength**, excellent **corrosion resistance** (especially in severe marine environments), and good low-temperature performance for **cryogenic applications**. It's crucial to use it with compatible 5XXX series base metals to achieve optimal mechanical properties and effectively prevent **hot cracking**. Be aware that higher magnesium content can sometimes lead to **"sooting"** or the formation of black residue during welding if parameters are not precisely optimized. Proper **shielding gas selection** (typically 100% argon or argon/helium blends for thicker sections) and meticulous pre-weld cleaning are essential to minimize **porosity** and ensure the maximum strength and integrity of the **welded joint** for long-term reliability.
The key difference lies in their primary alloying elements and resulting mechanical properties. **ER5183** is a magnesium-rich alloy, offering significantly higher **tensile and shear strength**, superior **ductility**, and excellent **corrosion resistance**, particularly in marine and cryogenic environments. It's ideal for structural applications and high-strength 5XXX series base metals. Conversely, **ER4043** is silicon-based, prized for its excellent **fluidity** and reduced **hot cracking**, making it more suitable for general fabrication, cast repair, and welding 6XXX series alloys. Unlike ER5183, ER4043 will discolour significantly after anodizing, whereas ER5183 offers a good color match with 5XXX series alloys.
ER5356 aluminium alloy welding wire is a highly versatile and widely adopted magnesium-containing alloy, typically featuring around 5% magnesium. This composition achieves an excellent balance of **strength**, **ductility**, and good **corrosion resistance**, making it exceptionally suitable for a broad array of general fabrication tasks across various industries.
Common applications include the fabrication of **bicycle frames**, numerous **automotive components**, **furniture**, and general **structural fabrication**. It's a popular and reliable choice for welding common aluminium alloys such as 5050, 5052, 5086, 5154, 5454, and importantly, the widely used heat-treatable 6061 and 6063 alloys. A significant aesthetic and functional advantage of **ER5356** is its good **color match after anodizing**, making it highly preferable for visible components where a consistent and appealing finish is desired, unlike silicon-containing alloys like ER4043.
ER5356 welding wire is one of the most readily available **aluminium filler metals** on the market, offered in various packaging formats to cater to diverse welding requirements. For **MIG welding**, it comes on **standard spools** in a wide range of popular diameters (0.8mm to 2.4mm) and numerous practical weights (0.5kg, 2kg, 6.5kg, 7kg, 16kg, 20kg). For **TIG welding**, it's supplied as straight rods in standard lengths (e.g., 914mm or 36 inches), typically bundled securely in 2kg, 5kg, or 10kg cartons. The packaging consistently emphasizes robust moisture protection through hermetically sealed bags or protective films to ensure clean wire feeding, minimize arc instability, and effectively prevent **porosity** in the final **weld bead**.
When choosing **ER5356 filler wire**, its inherent **versatility** and favorable **strength-to-weight ratio** make it an excellent choice for a wide range of general applications, especially those involving 6XXX series alloys and common 5XXX series alloys where the base metal will not be subjected to continuous elevated temperatures. Its superior **post-anodizing color match** is a key aesthetic advantage over silicon-containing fillers. While it offers good general corrosion resistance, for severe saltwater exposure or high-strength marine applications, **ER5183** or **ER5556** might be more appropriate due to their enhanced properties. Always ensure thorough cleaning of the base material to avoid **weld porosity** and maintain consistent wire feedability, which is crucial for optimal **aluminium welding performance** and joint integrity.
Choose **ER5356** for general fabrication, especially with 6XXX series alloys, and when an excellent **anodizing color match** is required. It offers good strength and corrosion resistance for most atmospheric conditions. Opt for **ER5183** when higher strength, superior **saltwater corrosion resistance**, or applications involving cryogenic temperatures are critical, particularly for welding 5083, 5086, or 5456 alloys that will see more demanding structural loads or harsh marine environments. ER5183 is generally considered the stronger and more robust choice for high-performance applications.
ER5556 aluminium alloy welding wire is a highly specialized, high-magnesium alloy, containing a slightly higher magnesium content than ER5183 (typically 5.0% to 5.5% magnesium, often with beneficial additions of manganese and chromium). This elevated and precise composition is specifically engineered to provide even greater **tensile strength** and significantly enhanced resistance to **stress corrosion cracking (SCC)**, particularly in applications exposed to sustained elevated temperatures.
It is meticulously designed for welding **high-strength 5XXX series aluminium alloys** that consistently operate under conditions of prolonged elevated temperatures (e.g., above 65°C or 150°F), such as critical components in **railway cars**, large-scale **storage tanks** for various liquids or gases, and other heavy-duty **structural components** where maintaining robust strength and unwavering integrity at higher service temperatures is absolutely paramount. Its superior and robust mechanical properties make it ideally suited for the most demanding industrial applications, requiring maximum **weld integrity** and long-term durability in challenging environments.
ER5556 welding wire is typically packaged on **precision layer wound spools** for MIG welding, in common diameters from 1.0mm to 2.4mm, with spool weights usually ranging from 6.5kg to 20kg. For **TIG welding**, it is supplied as straight rods in standard lengths (e.g., 914mm or 36 inches), often conveniently bundled in 5kg or 10kg packages. Given its critical and high-performance applications, the packaging for **ER5556** consistently features enhanced protection, such as **vacuum-sealed bags** with integrated desiccant or specially designed containers, to stringently prevent any moisture ingress or surface oxidation. This meticulous packaging ensures the wire remains in optimal condition for consistent feeding and superior weld quality, which is vital for high-performance **aluminium fabrication** and the integrity of critical structures.
When selecting **ER5556 filler metal**, its primary advantage lies in its superior **strength** and significantly enhanced **resistance to stress corrosion cracking** at elevated temperatures, making it the top choice for highly demanding structural applications and those operating continuously above moderate temperatures. This effectively makes it a crucial upgrade from ER5183 for certain high-temperature scenarios. However, like other high-magnesium alloys, precise welding techniques and optimized parameters are absolutely essential to minimize **"sooting"** and ensure a clean, defect-free weld. Always meticulously verify that the base material genuinely requires the advanced mechanical properties offered by **ER5556**, as over-specifying the filler can lead to unnecessary material costs without providing proportional benefits in less demanding applications. Proper **joint fit-up** and pristine cleanliness are also paramount for achieving full **weld strength** and overall structural integrity.
Both **ER5556** and **ER5183** are excellent choices for high-strength 5XXX series aluminium alloys, offering strong welds and good corrosion resistance. However, **ER5556** is specifically engineered with slightly higher magnesium (and sometimes other minor elements) to provide **superior strength** and, critically, enhanced **resistance to stress corrosion cracking (SCC)** at **elevated operating temperatures** (above 65°C / 150°F). If your application involves sustained elevated temperatures or requires the absolute highest strength and SCC resistance in a 5XXX series weld, **ER5556** is the preferred choice over ER5183. For most standard high-strength 5XXX series applications without high-temperature exposure, ER5183 is typically sufficient and a more common choice.
The main difference between **4XXX series (silicon-based)** and **5XXX series (magnesium-based) aluminium welding wires** lies in their primary alloying elements and resulting properties. 4XXX series wires like ER4043 and ER4047 are characterized by excellent **fluidity**, reduced **hot cracking susceptibility**, and lower melting points due to their silicon content, making them ideal for casting repairs and general fabrication, especially with 6XXX base metals. However, they typically turn dark gray after anodizing. 5XXX series wires like ER5183, ER5356, and ER5556 are known for higher **strength**, better **ductility**, and superior **corrosion resistance**, particularly in marine environments. They offer a good color match after anodizing and are preferred for structural applications and welding 5XXX series base metals. Choosing between them depends on the base material, required mechanical properties, and post-weld finishing needs.
**Pre-weld cleaning** is critically important for **all aluminium welding wires** and base materials due to the rapid formation of a tenacious **aluminium oxide layer** on the surface. This oxide layer has a much higher melting point (around 2072°C or 3762°F) than pure aluminium (660°C or 1220°F). If not removed, it can lead to several severe **weld defects**.
These defects include **porosity** (due to trapped moisture in the oxide), **lack of fusion**, **incomplete penetration**, and a generally poor-quality, inconsistent weld bead. Proper cleaning, typically involving mechanical brushing (stainless steel brush dedicated to aluminium) followed by a solvent wipe (like acetone), ensures a clean surface, allowing for consistent arc stability, good puddle control, and ultimately a sound, strong, and defect-free **aluminium weld**.
**Shielding gas** plays a crucial role in **aluminium welding** with wires like ER1070, ER4043, or ER5356, as it protects the molten weld pool from atmospheric contamination. Aluminium is highly reactive with oxygen, nitrogen, and hydrogen when molten, which can lead to severe **weld defects** like **porosity** and embrittlement.
For most **aluminium MIG and TIG welding**, 100% pure **argon shielding gas** is the standard choice. Argon provides excellent arc stability and good cleaning action. For thicker sections or applications requiring higher heat input and deeper penetration, **argon-helium mixtures** (e.g., 75% argon / 25% helium, or 50% argon / 50% helium) are often used. Helium raises the arc voltage and provides more heat, beneficial for denser, more consistent **weld metal**. The correct shielding gas ensures a clean, strong, and corrosion-resistant **aluminium weld**.
Yes, most of these **aluminium welding wires** (ER1070, ER1100, ER4043, ER4047, ER5183, ER5356, ER5556) are available in forms suitable for both **MIG (Gas Metal Arc Welding)** and **TIG (Gas Tungsten Arc Welding)** processes. The key difference is their physical form and packaging.
For **MIG welding**, they are supplied as spooled wire, designed for automated or semi-automated feeding through a welding gun. For **TIG welding**, they are provided as straight cut rods, which are manually fed into the weld puddle. The chemical composition (the "ER" designation) remains the same for a given alloy across both processes, ensuring consistent metallurgical properties in the resulting **aluminium weld**.
**Porosity** is a common **weld defect** in **aluminium welding**, primarily caused by trapped hydrogen gas within the solidifying weld metal. This hydrogen usually originates from moisture or hydrocarbons on the surface of the **base material**, the **filler wire**, or even in the shielding gas.
While the **welding wire** itself doesn't cause porosity if properly stored, selecting the right alloy can influence susceptibility. Wires like **ER4043** and **ER4047** with silicon are less prone to hot cracking but still susceptible to hydrogen porosity. Magnesium-containing wires like **ER5183**, **ER5356**, and **ER5556** can be more prone to "sooting" (magnesium oxide formation), which can trap contaminants if not managed. The best prevention for porosity, regardless of the wire, involves rigorous **pre-weld cleaning**, proper wire storage, correct shielding gas purity, and optimized welding parameters to ensure a sound **aluminium weld**.
Yes, **wire feedability** is a significant concern with **aluminium welding wires**, particularly for MIG welding, more so than with steel wires. Aluminium is softer and less rigid than steel, making it prone to **kinking**, **birdnesting**, or **shaving** within the wire feeder or gun liner.
To address this, most **aluminium welding wires** are manufactured with a smoother surface finish and wound with precision layering on spools to ensure consistent feeding. When using these wires (e.g., ER5356, ER4043), it's crucial to use appropriate equipment: U-groove drive rolls, a plastic or nylon gun liner, and typically a shorter gun cable. These measures help minimize friction and resistance, ensuring smooth and reliable wire feeding for optimal **aluminium MIG welding** performance.
**Anodizing** significantly affects the appearance of welds made with different **aluminium welding wires**, particularly differentiating silicon-containing alloys from magnesium-containing ones. **ER4043** and **ER4047**, due to their silicon content, will typically turn a **dark gray or black color** after anodizing, creating a noticeable contrast with the surrounding base metal.
In contrast, **ER5183**, **ER5356**, and **ER5556** (magnesium-based alloys) offer a much better **color match after anodizing** with common 5XXX and 6XXX series base metals. Pure aluminium wires like **ER1070** and **ER1100** will generally match the anodized color of pure aluminium base metals. This aesthetic consideration is crucial for products where visual appearance is important, such as architectural components or consumer goods, influencing the choice of **filler metal**.
While **ER1070** (pure aluminium) can theoretically fuse with **3003 aluminium** (an alloy with manganese), it's generally **not the ideal filler metal** for this combination. **ER1100** is a much more common and recommended choice for welding 3003.
The reason is that 3003 relies on its manganese content for strength and workability. While ER1070 would provide a very ductile weld, it might not fully match the corrosion resistance or mechanical properties of the 3003 alloy. For optimal results when welding 3003, **ER1100** is preferred as it shares a similar purity level and offers better compatibility, reducing the risk of solidification cracking and ensuring more consistent **weld quality** for **aluminium fabrication**.
Generally, welds made with **ER5183 aluminium welding wire** typically exhibit **higher tensile strength** compared to those made with **ER5356**. Both are magnesium-rich alloys, but ER5183 usually has a slightly higher magnesium content (4.5-5.5% vs. around 5% for ER5356) and often includes additional strengthening elements like manganese and chromium in precise amounts.
This compositional difference leads to ER5183 producing weld deposits with superior mechanical properties, including higher ultimate tensile strength and yield strength, especially when matched with high-strength 5XXX series base metals like 5083. Therefore, for applications requiring the maximum possible strength from the weld, **ER5183** is the preferred **filler metal** over ER5356 for **structural aluminium welding**.
Yes, **ER4043 aluminium welding wire** is widely considered a **suitable filler metal** for welding **5052 aluminium**. Despite 5052 being a 5XXX series (magnesium-based) alloy, ER4043 (silicon-based) is a common and acceptable choice due to its excellent **fluidity** and reduced **hot cracking sensitivity**.
The resulting weld will have good strength, although it might not achieve the full strength of the 5052 base metal if welded with a 5XXX series filler like ER5356. A key consideration is that the ER4043 weld will likely turn a **darker color after anodizing** compared to the 5052 base material, which is a significant aesthetic factor. For applications where a consistent anodized finish is required, ER5356 might be preferred, but for general fabrication, ER4043 performs well with 5052 **aluminium alloys**.
Best practices for storing **aluminium welding wire** are crucial to prevent contamination and maintain **weld quality**. Firstly, always keep wires in their **original, sealed packaging** until ready for use. Many come in vacuum-sealed bags or with desiccants.
Secondly, store them in a **dry, climate-controlled environment** to prevent moisture absorption and oxidation. High humidity is particularly detrimental to **aluminium filler metals**. Avoid extreme temperature fluctuations. Thirdly, once opened, if a spool won't be used immediately, consider resealing it in an airtight container or a plastic bag with desiccant. Lastly, protect the wire from dust, dirt, and oil, as these contaminants can lead to significant **weld defects** like porosity. Proper storage ensures consistent wire feeding and superior **aluminium weld quality**.
While **ER5556 aluminium welding wire** is indeed a specialized alloy designed for demanding, high-strength applications at elevated temperatures, it *can* technically be used for general **aluminium fabrication**. However, it's often **over-specified** for such purposes.
Using **ER5556** where **ER5356** or even **ER5183** would suffice can lead to unnecessary material costs. Its enhanced properties, particularly its **stress corrosion cracking resistance** at higher temperatures, are only fully utilized in specific critical applications like railway cars or large storage tanks. For typical fabrication of 6XXX or common 5XXX series alloys not exposed to sustained high temperatures or extreme conditions, ER5356 is usually a more economical and appropriate choice, offering excellent balance of strength and ductility for **general aluminium welding**.
**'Sooting'** refers to the formation of a black, powdery residue on and around the weld bead during **aluminium welding**, particularly when using **magnesium-containing aluminium wires** like **ER5183**, **ER5356**, and **ER5556**. This residue is primarily **magnesium oxide (MgO)**, which forms when magnesium vaporizes from the molten pool and reacts with residual oxygen in the atmosphere or shielding gas.
While a small amount of dark residue is normal, excessive sooting can indicate issues with **shielding gas coverage**, inadequate gas flow, a contaminated workpiece, or improper welding parameters (e.g., too high heat input). Although not always detrimental to mechanical properties, heavy sooting requires more post-weld cleaning and can indicate potential for **porosity** if contaminants are being drawn into the weld. Proper shielding gas purity and ample flow are key to minimizing sooting in **magnesium-rich aluminium welds**.
The high silicon content (11-13%) in **ER4047 aluminium welding wire** significantly enhances its **fluidity** and reduces its melting point, which is excellent for brazing and filling thin gaps. However, this high silicon percentage generally results in **lower ductility** and **lower tensile strength** compared to alloys like ER4043 or the 5XXX series wires.
While ER4047 produces a crack-resistant weld, the silicon forms a brittle intermetallic phase within the weld microstructure. This makes the weld less able to withstand significant plastic deformation before fracturing. Therefore, **ER4047** is typically chosen for its excellent flow and crack resistance rather than for its high strength, particularly when compared to structural **aluminium filler metals** such.
Yes, many **aluminium welding wires** are specifically designed or commonly used for welding **dissimilar aluminium alloys**, although careful selection is crucial. For instance, **ER4043** is a very popular choice for joining various aluminium alloys, including 6XXX series (like 6061) to 5XXX series (like 5052), or even to certain cast alloys. Its fluidity helps bridge the metallurgical differences.
However, when welding dissimilar alloys, the resulting weld properties (strength, corrosion resistance, anodizing response) will be a compromise influenced by both parent metals and the chosen **filler metal**. For example, welding 6061 to 5083 with ER5356 might be acceptable, but using ER4043 would lead to a lower strength weld due to dilution. Consulting a **welding metallurgy chart** is highly recommended for optimal **dissimilar aluminium alloy welding** to ensure the integrity and longevity of the joint.
**Aluminium MIG welding wires** are available in a range of common diameters to suit various material thicknesses and welding machine capabilities. The most frequently used diameters for these alloys (ER1070, ER1100, ER4043, ER4047, ER5183, ER5356, ER5556) typically include:
- **0.8mm (0.030 inches):** Ideal for thinner gauge materials and lower amperage applications.
- **1.0mm (0.035 inches):** A very popular general-purpose diameter, suitable for a wide range of common thicknesses.
- **1.2mm (0.045 inches):** Used for thicker materials and higher deposition rates.
- **1.6mm (0.062 inches):** For very heavy sections and high production welding. The choice of diameter impacts wire feed speed, amperage settings, and the overall heat input into the **aluminium weld**.
The **shielding gas flow rate** is critical for achieving quality **aluminium welds** with these filler wires. Too low a flow rate can lead to inadequate protection of the molten pool, resulting in **porosity** and **oxidation** of the weld metal due to atmospheric contamination.
Conversely, too high a flow rate can create turbulence, drawing ambient air into the weld zone, which also causes porosity and instability in the arc. The ideal flow rate typically ranges from **15 to 25 liters per minute (30 to 50 cubic feet per hour)** for MIG welding. For TIG welding, it can be slightly lower. Adjustments may be needed based on joint geometry, welding position, and environmental factors like drafts, all of which directly affect the integrity and appearance of the **aluminium weld**.
Yes, specific storage tips for **ER5356 aluminium welding wire** are crucial to maximize its shelf life and ensure optimal performance. Like all aluminium filler metals, **ER5356** is susceptible to moisture and oxidation, which can lead to **porosity** and feedability issues.
Always store the wire in its **original, sealed packaging**, ideally a hermetically sealed bag or vacuum-packed spool. Keep it in a **dry, climate-controlled environment** away from direct sunlight, extreme temperatures, and high humidity. Avoid storing it near chemicals, oils, or other contaminants. If a spool is opened but not fully consumed, consider resealing it in an airtight container with a desiccant packet to absorb any moisture. Proper storage preserves the wire's surface quality and ensures consistent, high-quality **aluminium welds**.
No, **ER1070 aluminium welding wire** is generally **not recommended for structural applications**. While it offers excellent electrical conductivity and corrosion resistance, its very high purity (99.7% aluminium) means it has inherent **low strength**.
Structural applications typically require **aluminium alloys** with higher mechanical properties, often achieved through alloying elements like magnesium (as in 5XXX series wires like ER5183 or ER5556) or silicon (as in 6XXX series base metals welded with 4XXX series wires). Using ER1070 in structural components would result in a weld joint that is significantly weaker than the surrounding structural material, potentially leading to premature failure under load. It's best reserved for its intended applications where strength is less critical than conductivity or corrosion resistance.
Post-weld treatments for welds made with **ER4043 aluminium welding wire** often involve cleaning and sometimes anodizing. Due to its silicon content, ER4043 welds tend to form a silicon-rich surface layer that can appear darker than the base metal. Cleaning typically involves **wire brushing** or light grinding to remove surface oxides and any welding residue.
If the welded part is to be **anodized**, it's important to note that **ER4043 welds will turn a dark gray to black color** after the anodizing process, creating a noticeable contrast. This is a characteristic of silicon-containing fillers and should be considered during design. For non-cosmetic applications, no further specific treatment beyond cleaning may be necessary, but for critical parts, **post-weld inspection** (e.g., visual, NDT) is always recommended to ensure **weld integrity**.
ER4047 aluminium welding wire is uniquely suited for **aluminium brazing** due to its significantly high silicon content (11-13%). This high silicon percentage dramatically lowers its melting point to around 577-582°C (1070-1080°F), which is below the melting point of common aluminium base metals like 3003 or 6061.
During brazing, the ER4047 filler metal melts and flows into the joint by capillary action, while the base metals remain solid. This excellent **fluidity** and wetting capability allows it to fill intricate gaps and form a strong metallurgical bond without melting the parent material. This process minimizes distortion and is ideal for thin-walled sections or complex assemblies, making ER4047 a superior **brazing alloy** compared to other **aluminium filler metals** primarily used for fusion welding.
Yes, **ER5356 aluminium welding wire** is an **excellent and widely recommended filler metal** for welding **6061-T6 aluminium alloy**. 6061 is a heat-treatable alloy, and while welding it with ER5356 (a non-heat-treatable 5XXX series filler) means the weld zone itself won't respond to subsequent heat treatment, ER5356 provides several advantages.
It offers good strength for most general-purpose applications, superior **ductility**, and excellent **corrosion resistance**. Crucially, it provides a very good **color match after anodizing** with 6061, which is a significant aesthetic benefit. While **ER4043** is also used for 6061, **ER5356** is often preferred when the best possible color match or slightly higher ductility in the weld is desired. The resulting **aluminium weld** will typically be very sound and suitable for a wide range of uses.
The impact of **moisture on aluminium welding wires** is profoundly negative and is a leading cause of **weld defects**, particularly **porosity**. Aluminium has a strong affinity for hydrogen, which is released from moisture when exposed to the high temperatures of the welding arc.
This hydrogen becomes entrapped in the rapidly solidifying weld pool, forming gas bubbles (porosity) within the **weld metal**. Even seemingly insignificant surface moisture on the **filler wire** or base metal can introduce enough hydrogen to cause significant problems. Porosity weakens the weld, reduces its fatigue life, and compromises its corrosion resistance. Therefore, diligent moisture control through proper storage and pre-weld cleaning is paramount for all **aluminium welding wires** (ER1070, ER4043, ER5183, etc.) to achieve high-quality, defect-free **aluminium welds**.
Yes, **aluminium welding wires** designed for TIG welding are typically supplied as straight rods in standard lengths to facilitate manual feeding into the weld puddle. The most common lengths are:
- **914 mm (36 inches):** This is the prevalent standard length in North America.
- **1000 mm (1 meter):** This is the common standard length in metric regions, including many parts of Europe and Asia. These consistent lengths allow for ergonomic handling by the welder and efficient use of the **filler material**. While less common, shorter specialty lengths may exist for automated TIG processes. The diameter, of course, varies depending on the material thickness being welded, ranging from 1.6mm to 4.8mm or larger for heavy-duty **aluminium welding** applications.
Good ventilation is **extremely important** when welding **aluminium with these wires**, primarily due to the **welding fumes** generated. While aluminium itself is not considered highly toxic, the fumes from welding various **aluminium alloys** can contain fine particles of aluminium oxide, magnesium oxide (from 5XXX series wires), and other alloying elements.
Inhaling these fumes can lead to respiratory irritation, "metal fume fever" (flu-like symptoms), and long-term lung issues. Additionally, UV radiation from the arc is intense. Therefore, proper ventilation, localized exhaust systems (fume extraction), and personal protective equipment (PPE), including a respirator and appropriate welding helmet, are essential safety measures to protect the welder's health and ensure a safe **welding environment** for **aluminium fabrication**.
Compared to silicon-containing wires like ER4043 or ER4047, **ER1100 aluminium welding wire** has **lower fluidity** due to its high purity and absence of silicon. While it provides a ductile weld, it's generally **not ideal for filling large gaps** or bridging wide root openings.
Its puddle tends to be thicker and less "wetting" than silicon alloys, requiring more precise joint fit-up. For applications demanding excellent gap-filling capabilities or brazing, **ER4047** would be a far superior choice due to its high silicon content. ER1100 performs best when welding pure aluminium base metals with good fit-up, where its high purity and ductility are prioritized over filler metal flow characteristics in **aluminium welding**.
Manganese (Mn) is a common alloying element in both **ER5556** and **ER5183 aluminium welding wires**, and it plays several crucial roles. Primarily, manganese contributes to **increased strength** in the weld metal by forming fine dispersions within the aluminium matrix.
It also helps to **refine the grain structure** of the weld, which further enhances both strength and ductility. Furthermore, manganese is beneficial for improving **corrosion resistance**, particularly in certain environments. In **ER5556**, manganese works synergistically with the higher magnesium content and other elements to enhance overall mechanical properties and bolster resistance to **stress corrosion cracking**, making it a more robust **filler alloy** for demanding structural **aluminium welding** applications.
The **shelf life of unopened aluminium welding wire spools** can vary depending on the specific alloy, manufacturer, and packaging, but typically it ranges from **3 to 5 years** if stored correctly.
High-quality packaging, often involving vacuum-sealed bags or hermetically sealed containers with desiccant, is designed to protect the wire from moisture and atmospheric contamination for an extended period. Once the packaging is compromised or opened, the shelf life significantly decreases due to exposure to humidity and oxygen, which can lead to surface oxidation and compromise **weld quality**. Always check the manufacturer's recommendations for specific storage guidelines to ensure optimal performance of your **aluminium filler metal**.
Yes, **ER4043 aluminium welding wire** is exceptionally versatile and can be effectively used on a wide range of **aluminium alloys** beyond just 6061. While it's a primary choice for 6061, its good **fluidity** and **crack resistance** make it suitable for many other common alloys.
It's frequently used with 6063 (another architectural alloy), 3003 (a common non-heat-treatable alloy), and even 5052 (a medium-strength 5XXX series alloy). It's also a go-to for welding many **cast aluminium alloys**, such as 356.0, 319.0, and 443.0, due to its excellent wetting properties that help fill casting porosity and defects. The key consideration is that while it will create a sound weld, the mechanical properties and anodizing response of the joint will be a blend influenced by both parent materials and the silicon content of the **ER4043 filler metal**.
General **safety precautions** when welding with **aluminium wires** are crucial and largely align with standard welding safety, but with some specific considerations. Always wear appropriate **Personal Protective Equipment (PPE)**, including a welding helmet with suitable shade, flame-retardant clothing, gloves, and safety glasses.
Ensure **adequate ventilation** to extract welding fumes, which can contain fine particulates of aluminium, magnesium, or silicon oxides that can cause respiratory irritation or "metal fume fever." Be aware of the intense **UV radiation** from aluminium arcs, which is often more intense than steel arcs, necessitating full body coverage. Also, ensure the workpiece is properly grounded, and be mindful of fire hazards, especially with thin aluminium sheets that can burn through quickly. Proper setup and awareness are key to safe **aluminium welding** practices.
The choice of **aluminium welding wire** can significantly affect **post-weld machining** characteristics due to differences in hardness and microstructure of the weld metal. **Silicon-containing wires** like **ER4043** and **ER4047** produce weld deposits that are generally harder and more brittle than pure aluminium or magnesium-containing welds.
This increased hardness is due to the formation of hard silicon phases within the weld, which can lead to increased tool wear during machining. In contrast, welds made with **ER1070**, **ER1100**, and **ER5356** tend to be softer and more ductile, making them generally easier to machine. **ER5183** and **ER5556** also produce relatively strong but still ductile welds that are machinable. Considerations for **machining aluminium welds** include using sharp tools, appropriate cutting speeds, and ample coolant to prevent material build-up and ensure a smooth finish.
The "ER" designation in **aluminium welding wire** names (e.g., **ER1070, ER4043, ER5183**) stands for **"Electrode or Rod"**. This indicates that the material is suitable for use as either an electrode (continuously fed wire, as in MIG welding) or a welding rod (manually fed cut lengths, as in TIG welding).
This classification is standardized by organizations like the American Welding Society (AWS) in their A5.10 specification for aluminium and aluminium alloy welding electrodes and rods. The "ER" prefix assures the user that the material's chemical composition and properties meet specific standards for use as a **filler metal** in these common **aluminium welding processes**. It provides a reliable indicator of the alloy's intended application and metallurgical characteristics.
While the listed **aluminium welding wires** cover a wide range of common **aluminium alloys**, there are certain specialized or very high-strength aluminium alloys that are generally considered **non-weldable** or extremely difficult to weld with conventional fusion processes and these fillers.
These often include high-strength 2XXX series (Al-Cu) and 7XXX series (Al-Zn-Mg-Cu) alloys, particularly those containing significant copper or zinc. These alloys are highly prone to **hot cracking** during solidification of the weld metal due to the formation of low-melting point constituents at grain boundaries. For these alloys, alternative joining methods like **friction stir welding**, **riveting**, or **mechanical fastening** are typically used. Attempting to weld them with standard ER-series wires would likely result in severe cracking and unacceptable **weld integrity**.
The **wire diameter** for **aluminium MIG welding** is primarily determined by several factors: the **thickness of the base material** being welded, the desired **heat input**, and the capabilities of your welding machine.
For thinner materials (e.g., 1.5mm - 3mm), smaller diameter wires like **0.8mm (0.030 inches)** or **1.0mm (0.035 inches)** are preferred as they provide lower heat input and better control. For thicker sections (e.g., 6mm+), larger diameters like **1.2mm (0.045 inches)** or **1.6mm (0.062 inches)** allow for higher amperage, increased deposition rates, and deeper penetration. Matching the wire diameter to the application ensures optimal arc stability, puddle control, and efficient production of quality **aluminium welds**.
Yes, **ER1070 aluminium welding wire**, due to its very high purity (99.7% aluminium), can typically be **polished to an excellent mirror finish** after welding. The absence of significant alloying elements, particularly silicon, means the weld metal behaves very much like pure aluminium.
Silicon-containing alloys like ER4043 or ER4047 contain hard silicon particles in the microstructure, which can make achieving a perfectly smooth, bright mirror finish challenging and can lead to pitting or discoloration during polishing. In contrast, the homogenous and soft nature of ER1070 weld metal allows for a high degree of aesthetic finishing, making it suitable for decorative **aluminium fabrication** where visual appeal is paramount. Proper post-weld cleaning and careful mechanical polishing techniques are still essential.
While **ER1100 aluminium welding wire** offers excellent **corrosion resistance**, particularly against general atmospheric corrosion, it is **not commonly used in the marine industry** for saltwater environments. For marine applications, especially those exposed to continuous saltwater immersion or spray, the much higher corrosion resistance and strength of **magnesium-containing aluminium alloys** are required.
**ER5183** and **ER5356** are the standard choices for marine applications due to their superior resistance to saltwater corrosion and stress corrosion cracking. ER1100's primary benefit is its high purity and ductility for non-structural, general-purpose applications where exposure to harsh marine conditions is not a factor. So, for a **marine aluminium weld**, look to the 5XXX series.
The **"hot cracking" susceptibility** differs significantly between **ER4043** and **ER5183 aluminium welding wires** due to their differing chemical compositions and solidification characteristics. **ER4043**, with its 5% silicon content, is specifically designed to have **very low hot cracking susceptibility**. Silicon acts as a fluidity enhancer and helps to fill the intergranular spaces during solidification, minimizing residual stresses that cause cracking.
Conversely, **ER5183**, being a high-magnesium alloy, has a **higher susceptibility to hot cracking** when used outside its recommended parameters or with incompatible base metals. This is due to its solidification range and potential for forming low-melting point phases at grain boundaries. Therefore, precise joint preparation, proper heat input control, and ensuring compatibility with 5XXX series base metals are crucial when using ER5183 to prevent **solidification cracking** in **aluminium welds**.
Yes, **ER4047 aluminium welding wire** is an **excellent choice for repairing motorcycle engine casings**, which are often made from **die-cast aluminium alloys** (typically silicon-rich alloys like A356, A360, A380). Its high silicon content (11-13%) makes it specifically well-suited for this application.
The high fluidity of ER4047 allows it to penetrate intricate cracks and fill casting porosity effectively, producing a dense, crack-resistant weld deposit. Its lower melting point compared to the base metal also helps to minimize distortion in complex castings. While some machinability considerations exist due to the silicon, the primary benefit of achieving a sound, leak-free repair in these silicon-rich **aluminium castings** makes **ER4047** a preferred **filler metal** for such specialized repair work, especially for preventing **hot cracking** in the weld.
The best way to clean **aluminium welding wire** before use, particularly for TIG rods, is to **wipe it down with a clean, lint-free cloth saturated with an appropriate solvent**, such as acetone or methyl ethyl ketone (MEK). This removes any surface oils, grease, or dirt that may have accumulated during handling or storage.
For MIG spools, cleaning the wire is generally impractical. The key is to **ensure the wire has been properly stored** in its sealed packaging to prevent contamination. If a MIG spool looks visibly dirty or oxidized, it's often best to discard the outer layers or the entire spool to avoid **weld defects** like porosity. Always use a dedicated stainless steel wire brush for cleaning aluminium base metals, never one used for steel, to prevent cross-contamination that can also lead to issues in the **aluminium weld**.
Yes, **ER5356 aluminium welding wire** *can* be used for welding **5083 aluminium**, but it's important to understand the implications. While ER5356 is a 5XXX series alloy and offers good strength and corrosion resistance, **ER5183** is generally the **preferred filler metal for 5083**.
The reason is that 5083 is a high-strength, high-magnesium alloy, and welding it with ER5183 (which has a slightly higher and more optimized magnesium content) ensures that the weld metal achieves mechanical properties closer to those of the 5083 base metal, particularly its strength and resistance to **stress corrosion cracking**. Using ER5356 might result in a slightly lower strength weld compared to an ER5183 weld on 5083. So, while possible, it's often a compromise for critical applications where maximum strength is paramount in the **aluminium weld**.
**Packaging types** for **aluminium welding wires** are designed with robust features to protect them from environmental contamination, which is crucial for **weld quality**. Most wires come in **hermetically sealed bags** or **vacuum-packed spools**, often with a foil liner, to create an airtight barrier against moisture and oxygen.
Some also include **desiccant packets** inside the packaging to absorb any residual moisture. The spools themselves are typically made of plastic, which is non-hygroscopic and won't rust. Straight TIG rods are bundled in sturdy cardboard or plastic tubes. This multi-layered protection prevents the formation of **aluminium oxide** on the wire surface and minimizes hydrogen pickup from humidity, both of which are leading causes of **porosity** and feedability issues in **aluminium welding**. Proper packaging is the first line of defense for maintaining **filler metal integrity**.
The signs of **oxidized aluminium welding wire** are typically visual and can manifest in several ways. The most common sign is a dull, grayish, or chalky appearance on the wire surface, contrasting with the bright, shiny look of fresh wire. This coloration indicates the formation of an **aluminium oxide layer**.
Other signs might include a powdery residue that comes off when you handle the wire. In severe cases, there might be visible corrosion or pitting. Using oxidized wire can lead to significant **weld defects** such as excessive **porosity**, poor arc stability, erratic wire feeding, and reduced mechanical properties in the final weld. Therefore, any signs of oxidation should prompt the user to replace the wire to ensure **high-quality aluminium welding** results.
While both **ER5556** and **ER5183** are high-magnesium alloys and can be susceptible to **hot cracking** if proper procedures aren't followed, **ER5556** generally has a **slightly higher risk of hot cracking** compared to ER5183 due to its increased alloying content, particularly higher magnesium and often other minor elements like chromium and manganese.
These elements can create a wider solidification range and potentially form more low-melting point constituents at grain boundaries, increasing susceptibility. However, the enhanced **stress corrosion cracking resistance** at elevated temperatures is a key benefit that often outweighs this slight increase in hot cracking risk for its specific applications. For optimal results, meticulous control of heat input, proper joint design, and minimizing restraint are crucial when using either **filler metal** for demanding **aluminium welding**.
The ideal **welding position for aluminium** with these wires (ER1070, ER4043, ER5183, etc.) is generally **flat (1F, 1G)** and **horizontal (2F, 2G)**. Aluminium has high thermal conductivity and a relatively low melting point, meaning the molten puddle can become very fluid.
This fluidity makes overhead (4F, 4G) and vertical-up (3F, 3G) positions more challenging, as gravity can cause the molten metal to sag or fall out of the joint, leading to poor bead shape and lack of fusion. While experienced welders can perform out-of-position welds on aluminium, it often requires lower heat input, faster travel speeds, and meticulous puddle control. For best results and higher deposition rates, orienting the workpiece to allow for flat or horizontal welding is highly recommended for efficient and high-quality **aluminium fabrication**.
For **TIG welding (GTAW)** with **aluminium wires**, **Alternating Current (AC)** is almost exclusively used. AC provides a unique "cleaning action" due to the alternating polarity, where the electrode negative (EN) cycle provides penetration, and the electrode positive (EP) cycle effectively breaks up the tenacious **aluminium oxide layer** on the surface, preventing its inclusion in the weld.
For **MIG welding (GMAW)** with **aluminium wires**, **Direct Current Electrode Positive (DCEP)** is the standard. DCEP provides the necessary heat to the workpiece for good penetration and a stable arc, which is essential for consistent wire feeding. Direct Current Electrode Negative (DCEN) is generally not used for aluminium MIG as it would concentrate too much heat on the electrode, causing it to melt back. The correct current type is fundamental for successful **aluminium welding** processes.
While **ER1070 aluminium welding wire** is pure aluminium and could theoretically fuse, it's **not the optimal choice for repairing damaged aluminium radiators**. Radiators are typically made from alloys like 3003 or 6061 and often involve very thin sections and intricate fins.
For radiator repair, **ER4047** is generally considered superior. Its high silicon content (11-13%) provides exceptional **fluidity** and a lower melting point, allowing it to wet and flow into very fine cracks and thin sections more effectively, akin to a brazing action, minimizing distortion. Using ER1070 would likely result in less satisfactory penetration and flow into the tight joints of a radiator, making **ER4047** a more reliable **filler metal** for such delicate and heat-sensitive **aluminium repairs**.
**Dilution** is the degree to which the **base metal** melts and mixes with the **filler metal** during welding, and it has a significant impact on the final chemical composition and properties of the **weld metal** in **aluminium alloys**.
High dilution means a larger percentage of the weld bead is made up of the base material. This is crucial when welding dissimilar alloys or using a filler metal whose properties are significantly different from the base metal. For example, welding 6061 (a heat-treatable alloy) with **ER4043** (a non-heat-treatable filler) means the weld zone will take on properties influenced by both, and typically won't fully heat treat. Understanding dilution helps predict the mechanical properties, corrosion resistance, and post-weld response (like anodizing color) of the **aluminium weld joint**, guiding the selection of the appropriate **filler alloy** and welding parameters.
Yes, **preheating** is often recommended, and sometimes necessary, when welding **thicker aluminium sections** with **ER4043 aluminium welding wire**, as it is with most aluminium alloys. Aluminium has very high **thermal conductivity**, meaning heat dissipates rapidly away from the weld zone.
Preheating helps to reduce the temperature differential between the weld area and the rest of the plate, preventing **cold cracking** (or hydrogen-induced cracking), reducing distortion, and facilitating better penetration and fusion. The specific preheat temperature depends on the alloy thickness, joint configuration, and environmental conditions, but typically ranges from 100°C to 200°C (212°F to 392°F). Proper preheating helps ensure a sound, defect-free **aluminium weld** with **ER4043**.
Typical **spool sizes for MIG aluminium welding wires** like **ER5356** vary to accommodate different usage volumes and machine types. Common spool weights are:
- **0.5 kg (1 lb):** Small spools, often for hobbyists or very infrequent use.
- **2 kg (4.5 lb):** A common size for smaller fabrication shops or portable welders.
- **6.5 kg (14.5 lb) or 7 kg (15 lb):** Very popular sizes for medium-volume fabrication.
- **16 kg (35 lb) or 20 kg (44 lb):** Larger spools for high-volume industrial applications, offering fewer changeovers. These spools are typically precision-wound to ensure smooth wire feeding and minimize downtime during **aluminium MIG welding** operations.
Generally, **ER4047 aluminium welding wire** is **not the primary choice for structural repairs in boats** made from typical marine-grade aluminium alloys (like 5083, 5086, 5456). While ER4047 offers good fluidity, its high silicon content results in lower ductility and tensile strength compared to magnesium-containing fillers.
For structural marine repairs, **ER5183** or **ER5356** are overwhelmingly preferred. These 5XXX series fillers provide superior strength, excellent **corrosion resistance** (especially against saltwater), and better ductility, which are critical for the demanding loads and corrosive environment of marine vessels. ER4047 is more suited for intricate, thin-gauge repairs or brazing, not for load-bearing **structural aluminium welds** in marine applications.
**ER5183 aluminium welding wire** is highly resistant to **saltwater corrosion** primarily due to its significant **magnesium content** (4.5-5.5%). Magnesium, when alloyed with aluminium in this range, forms solid solution strengthening and contributes to the formation of a stable, protective oxide layer on the surface.
This oxide layer acts as a barrier, preventing further corrosive attack by chlorides found in saltwater. Furthermore, ER5183's microstructure is designed to minimize the formation of intermetallic phases that could otherwise act as cathodic sites for galvanic corrosion. Its overall metallurgical stability in chloride-rich environments makes it the industry standard for robust and long-lasting **marine aluminium welds** and offshore structures, providing superior **corrosion resistance** compared to silicon-based fillers.
While **ER5356 aluminium welding wire** can technically fuse with pure aluminium (1XXX series alloys like 1070 or 1100), it's generally **not the ideal or recommended filler metal**.
Using ER5356 (which contains about 5% magnesium) to weld pure aluminium will result in a **strength mismatch**, as the weld metal will be significantly stronger and harder than the surrounding pure aluminium base material. This can create a rigid zone that might experience stress concentrations. More importantly, it can also increase the susceptibility to **hot cracking** in the weld zone due to the formation of low-melting point eutectics with the base metal. For welding pure aluminium, **ER1100** or **ER1070** are the appropriate choices, as they provide a metallurgical match and maintain the desired properties of the pure **aluminium base material**.
Welding very thin **aluminium sheets** (e.g., less than 1.5mm or 0.060 inches) with these wires presents unique challenges due to aluminium's high thermal conductivity and low melting point, making it prone to **burn-through** and distortion.
For thin sheets, several considerations are vital: 1. **Filler Wire Choice:** **ER4047** is often preferred due to its high fluidity and lower melting point, allowing for quicker wetting and less heat input. **ER1100** can also be used for pure aluminium thin sheets due to its ductility. 2. **Welding Process:** **TIG welding** generally offers more precise heat control for thin materials than MIG. Pulsed MIG can also be effective. 3. **Low Amperage & Fast Travel Speed:** Use the lowest possible amperage and the fastest consistent travel speed to minimize heat input. 4. **Backing Bar:** A copper or aluminium backing bar can help dissipate heat and support the molten puddle. 5. **Joint Design:** Lap joints or flanged butt joints can be easier to weld than standard butt joints. Careful technique is paramount to avoid defects in **thin aluminium welds**.
The presence of **chromium (Cr)**, typically in small amounts, in **ER5556 aluminium welding wire** (and sometimes in ER5183) plays an important role in enhancing its performance. Chromium helps to **control the grain structure** of the weld metal, promoting a finer and more uniform grain size.
This **grain refinement** contributes to improved overall strength and **toughness** of the weld. Crucially, chromium also helps to improve **stress corrosion cracking (SCC) resistance**, particularly in high-magnesium alloys and in certain environments where SCC is a concern. It can also help suppress recrystallization at elevated temperatures, maintaining properties better. Therefore, chromium is a beneficial additive that enhances the robustness and reliability of **ER5556** for demanding **structural aluminium welding** applications.
**Excessive heat input** when welding **aluminium** with any of these wires has several detrimental impacts. Firstly, due to aluminium's high **thermal conductivity**, excessive heat can lead to **burn-through**, especially on thinner materials, or cause significant **distortion** and warping of the workpiece.
Secondly, it can promote the formation of **large grain structures** in the heat-affected zone (HAZ) and weld metal, which can reduce mechanical properties like strength and ductility. Thirdly, excessive heat can exacerbate issues like **porosity** by allowing more hydrogen absorption or promoting the vaporization of alloying elements (like magnesium, leading to more "sooting"). Lastly, it can cause **sensitization** in certain alloys, reducing corrosion resistance. Controlling heat input is critical for producing sound, high-quality **aluminium welds**.
No, **ER1070 aluminium welding wire** is **not typically used to bond directly to other dissimilar metals like copper** through conventional fusion welding processes. Aluminium and copper have vastly different melting points, thermal expansion coefficients, and metallurgical properties, making direct fusion welding extremely challenging and prone to brittle intermetallic compound formation.
While some specialized techniques like **friction stir welding** or **explosion welding** can join these dissimilar metals, standard MIG or TIG welding with an aluminium filler like ER1070 will not create a robust metallurgical bond between aluminium and copper. For joining aluminium to copper, other methods such as **brazing with specialized filler alloys** (not aluminium-based), **mechanical fastening**, or **soldering** are generally employed. ER1070 is strictly for **aluminium-to-aluminium welding**.
**Lack of fusion** in **aluminium welding** occurs when the molten filler metal fails to properly coalesce with the base metal, or when adjacent weld passes don't fuse together, leading to unfused areas within the weld joint. Several factors can cause this defect.
Common causes include: 1. **Insufficient heat input:** Not enough heat to melt the edges of the base metal. 2. **Improper travel speed:** Moving too fast, preventing proper wetting and fusion. 3. **Incorrect joint preparation:** Not cleaning off the tenacious **aluminium oxide layer** or improper beveling. 4. **Poor wire placement:** Filler metal not being directed into the root or groove correctly. 5. **Contamination:** Oxide or other contaminants preventing proper wetting. Addressing these issues through proper machine settings, meticulous cleaning (critical for **aluminium alloys**), and skilled technique is essential to prevent lack of fusion and ensure a strong **weld integrity**.
A **dedicated stainless steel brush** is absolutely crucial for **aluminium preparation** before welding. This is because using a brush that has previously touched steel (carbon steel or even other stainless steels) will transfer tiny ferrous particles onto the aluminium surface.
These microscopic iron particles, when introduced into the molten **aluminium weld pool**, will act as contaminants. They can lead to severe **weld defects** such as **porosity**, reduced corrosion resistance, and embrittlement of the weld metal. The use of a dedicated brush ensures that only the tenacious **aluminium oxide layer** is mechanically removed, leaving a clean, uncontaminated surface ready for optimal fusion with the **aluminium welding wire** and preventing issues in the final **aluminium weld**.
The **purity of shielding gas** is paramount for achieving high-quality **aluminium welds** with these wires. Even small amounts of impurities, particularly **moisture, oxygen, or nitrogen**, can have severe detrimental effects.
Moisture introduces hydrogen into the arc, leading to pervasive **porosity** (pinholes) in the weld. Oxygen causes excessive oxidation of the weld pool and filler metal, resulting in a dirty, sooty weld with poor appearance and reduced mechanical properties. Nitrogen can cause embrittlement and porosity. Therefore, using **high-purity argon (99.998% or higher)** is standard for **aluminium welding**. Any contamination in the shielding gas system (leaking hoses, dirty regulators) can compromise **weld quality**, making pure shielding gas a non-negotiable factor for sound **aluminium fabrication**.
Many welders find **ER4043 aluminium welding wire** generally **easier to weld** than 5XXX series wires like ER5183 or ER5356, especially for less experienced operators. This is primarily due to ER4043's 5% silicon content, which provides superior **fluidity** and a wider freezing range.
This fluidity results in a more forgiving puddle that wets out easily, making it easier to control, bridge gaps, and avoid **hot cracking**. Magnesium-containing 5XXX series wires tend to have a "thicker," less fluid puddle and can be more prone to "sooting" (magnesium oxide formation) if parameters are not precisely set. While 5XXX wires offer higher strength and better corrosion resistance for specific applications, **ER4043** often provides a more forgiving and user-friendly welding experience for a broader range of **aluminium welding projects**.
Generally, **ER5183 aluminium welding wire is not the preferred or recommended filler metal for welding most cast aluminium parts**. Castings are predominantly made from silicon-rich alloys (e.g., A356, A380, 443.0), which are metallurgically very different from the high-magnesium 5XXX series alloys that ER5183 is designed for.
Attempting to weld silicon-rich castings with a magnesium-rich filler like ER5183 can lead to the formation of undesirable brittle intermetallic compounds at the fusion line due to the immiscibility of silicon and magnesium in the molten state. This greatly increases the risk of **hot cracking** and results in a brittle, weak weld. For **cast aluminium repair**, **ER4043** or, even better, **ER4047** (due to its higher silicon content for improved fluidity and crack resistance) are the standard and most effective **filler metals**.
The key indicators for choosing between **ER5356** and **ER4043 aluminium welding wires** revolve around desired mechanical properties, post-weld aesthetics, and base metal compatibility.
Choose **ER5356** if: * You are welding 6XXX series alloys (e.g., 6061) or 5XXX series alloys (e.g., 5052, 5086). * You need higher **tensile strength** and better **ductility** in the weld than ER4043 typically provides. * The welded part will be **anodized**, and a good **color match** with the base material is desired. * The application requires good general **corrosion resistance**.
Choose **ER4043** if: * You are welding **cast aluminium alloys** or general fabrication. * You prioritize excellent **fluidity** and significantly reduced **hot cracking susceptibility**. * Anodizing color match is not a concern, as the weld will turn dark gray. * You need a more forgiving wire for less-than-perfect joint fit-up. Both are common for 6061, but the nuances are critical for optimal **aluminium fabrication**.
While often overlooked, **storage temperature** can affect **aluminium welding wire quality**, though humidity is usually a more significant factor. Extreme temperature fluctuations, especially cycles between very cold and warm/humid conditions, can contribute to moisture condensation on the wire surface when it warms up.
This condensation then leads to oxidation and potential hydrogen pickup, resulting in **porosity** in the weld. Ideally, **aluminium welding wires** (like ER1070, ER5183) should be stored in a **climate-controlled environment** at a stable, moderate temperature, typically between 15°C to 25°C (60°F to 75°F). Avoiding unheated sheds or outdoor storage is crucial for maintaining the integrity of the **filler metal** and ensuring consistent **weld quality**.
**Arc length** significantly impacts the quality of **aluminium welds** with these wires. For both MIG and TIG welding of aluminium, a **short arc length** is generally preferred.
A **short arc** provides a more concentrated and stable arc, leading to better penetration, improved fusion, and reduced risk of **porosity**. A longer arc, conversely, diffuses the heat, reduces penetration, and makes the arc less stable. It also increases the exposure of the molten puddle to atmospheric contaminants, greatly increasing the chances of **porosity** and **oxidation**. Maintaining a consistent, short arc length is a fundamental technique for achieving high-quality, defect-free **aluminium welds** with any of these **filler metals**.
A **push-pull gun system** is often highly recommended for **MIG aluminium welding** due to the inherent softness and poor column strength of **aluminium welding wires** (e.g., ER5356, ER4043). In a standard MIG system, the wire is "pushed" through a long conduit by the drive rolls in the feeder.
With soft aluminium, this can lead to **birdnesting** (wire bunching up) at the drive rolls, or kinking and shaving within the liner, causing inconsistent feeding and frustrating downtime. A **push-pull system** incorporates a set of drive rolls in the welding gun itself, which "pulls" the wire, while the main feeder "pushes" it. This synchronized action provides much more consistent and reliable wire feeding over longer distances, significantly improving the efficiency and quality of **aluminium MIG welding**, especially with smaller diameter wires.
Yes, **ER1100 aluminium welding wire** is an **excellent choice for decorative aluminium art**. Its high purity (99% aluminium) contributes to several desirable qualities for artistic applications.
Firstly, it produces a **bright, clean weld bead** that can be easily polished to a high luster, often matching the appearance of the pure aluminium base metal. Secondly, its inherent **ductility** allows for significant post-weld forming, bending, or hammering without cracking, which is often required in artistic metalwork. Thirdly, it offers good **corrosion resistance** for general atmospheric exposure, ensuring the longevity of the art piece. While it lacks strength for structural roles, its aesthetic and workability characteristics make **ER1100** a favored **filler metal** for sculptors and artists working with **aluminium fabrication**.
When **TIG welding with ER4043 rods**, several considerations ensure optimal results. Firstly, **meticulous pre-weld cleaning** of both the base metal and the filler rod is paramount to remove the tenacious **aluminium oxide layer** and any contaminants that can cause **porosity**.
Secondly, use **Alternating Current (AC)** with a high-frequency start and a balanced or slightly more electrode negative waveform for the cleaning action. Thirdly, maintain a **short arc length** to concentrate heat and minimize atmospheric contamination. Fourthly, ensure adequate **argon shielding gas flow** to protect the weld puddle. Lastly, manage heat input carefully to prevent excessive puddle fluidity which can lead to sagging, especially on thinner materials. Proper technique with **ER4043 TIG rods** is key to achieving sound, crack-resistant **aluminium welds**.
While **ER4047 aluminium welding wire** can technically fuse with magnesium-containing alloys like **5052**, it's generally **not the ideal or recommended filler metal for repair** of such alloys. The high silicon content in ER4047 can react unfavorably with the magnesium in the 5052, potentially forming brittle intermetallic compounds at the fusion line.
This can lead to reduced ductility, increased **hot cracking susceptibility**, and compromised corrosion resistance in the weld zone. For welding or repairing 5052, **ER5356** is overwhelmingly preferred. ER5356 (being a 5XXX series filler) provides a much better metallurgical match, superior mechanical properties (strength and ductility), and an excellent **color match after anodizing**. So, for reliable and durable repairs of 5052 **aluminium alloys**, opt for **ER5356 filler metal** over ER4047.
**TIG aluminium welding rods** for alloys like ER1070, ER4043, ER5183, etc., are commonly packaged in specific unit sizes to facilitate manual feeding. The most typical packaging units are:
- **2 kg (4.5 lb) bundles:** Common for smaller workshops, hobbyists, or specialized jobs.
- **5 kg (11 lb) bundles:** A very popular size for regular use in medium-sized fabrication shops.
- **10 kg (22 lb) bundles:** Used for higher volume production or larger projects. These bundles typically consist of straight rods, usually 914mm (36 inches) or 1000mm (1 meter) in length, packed in sturdy cardboard tubes or boxes that provide protection from physical damage and some environmental factors. However, for long-term storage, additional airtight containers might be beneficial to prevent oxidation of the **aluminium filler metal**.
Yes, **ER5183 aluminium welding wire** is specifically designed to withstand **high-stress dynamic loads**, making it an excellent choice for such applications. Its high magnesium content (4.5-5.5%) contributes to its superior **tensile strength**, **shear strength**, and inherent **ductility**.
These properties allow welds made with ER5183 to absorb energy and resist fatigue cracking under cyclic loading conditions, which are typical of dynamic applications. This is why it's extensively used in industries like shipbuilding, offshore structures, and pressure vessels, where components are subjected to significant operational stresses and vibrations. When matched with high-strength 5XXX series base metals (e.g., 5083), **ER5183** provides a robust **weld metal** that maintains its integrity under demanding dynamic loads, ensuring the long-term reliability of the **aluminium structure**.
Yes, in general, **ER5356 aluminium welding wire** is considered **more susceptible to hot cracking** than **ER4043**. This difference stems from their primary alloying elements and how they solidify.
**ER4043**, with its 5% silicon content, benefits from silicon's ability to reduce the solidification temperature range and provide fluidity, which minimizes the formation of low-melting point films at grain boundaries that are responsible for hot cracking. **ER5356**, being a magnesium-rich alloy, has a wider solidification temperature range and can be more prone to forming these brittle, low-melting phases, particularly if the weld pool is contaminated, or if there is significant restraint on the joint. Therefore, precise heat input control and proper joint preparation are particularly important to minimize cracking risk when using **ER5356** for **aluminium welding**.
An **"LSI Keyword" (Latent Semantic Indexing Keyword)** in the context of Google SEO for **aluminium welding wire** refers to terms or phrases that are semantically related or conceptually similar to the main topic, rather than just direct synonyms. They help search engines understand the broader context and relevance of the content.
For example, if the main keyword is "ER4043 welding wire," LSI keywords might include "aluminium fabrication," "cast aluminium repair," "silicon filler metal," "hot cracking susceptibility," "anodizing discoloration," or "6061 aluminium welding." These terms aren't necessarily exact matches but frequently appear alongside the main topic in high-quality content. Integrating LSI keywords naturally helps Google understand the depth and breadth of your content, improving its ranking for a wider range of related search queries, thereby enhancing **Google SEO** for **aluminium welding** information.
The choice of **aluminium welding wire** can indirectly affect **distortion** in **aluminium welding**, though primary factors like heat input and joint design are more influential. Wires that require higher heat input or produce a less fluid puddle can contribute to more localized thermal expansion and contraction, leading to greater distortion.
For instance, wires that require slower travel speeds or higher amperages to achieve proper fusion might induce more heat into the workpiece. Similarly, a wire with very low fluidity (like pure aluminium wires on certain joints) might necessitate more passes or concentrated heat. While **ER4047**'s high fluidity can help minimize heat input by allowing faster travel speeds and better wetting, the overall distortion is more dependent on controlling the welding process parameters (amperage, voltage, travel speed), proper fixturing, and joint design for optimal **aluminium fabrication** and minimizing warping.
Yes, **ER5556 aluminium welding wire** can be used for welding **automotive chassis components**, especially those made from high-strength 5XXX series alloys or demanding parts that experience significant stress and potentially elevated temperatures. Its superior **tensile strength** and excellent **stress corrosion cracking resistance** make it suitable for critical structural elements.
However, for many standard automotive aluminium applications, **ER5356** is more commonly employed due to its excellent balance of strength, ductility, and good post-anodizing color match, often at a slightly lower cost. The choice depends heavily on the specific aluminium alloy of the chassis, the design loads, and any requirements for sustained high-temperature performance. For specialized, high-performance automotive parts (e.g., race car frames, heavy-duty truck bodies), **ER5556** would be a strong contender for achieving maximum **weld integrity** and durability in **aluminium structures**.
For **TIG welding aluminium** with these wires, specific **TIG torch electrode types** are crucial due to the use of **Alternating Current (AC)**. The most common and recommended electrode types are:
1. **Pure Tungsten (Green band):** This was traditionally used but has largely been replaced. It forms a clean, balled end, which is stable for AC, but has a low current carrying capacity and tends to ball excessively at higher amperages. 2. **Zirconiated Tungsten (Brown band):** A good alternative to pure tungsten, offering better arc stability and higher current capacity while still providing a balled tip. 3. **Lanthanated Tungsten (Black or Gold band):** Increasingly popular, especially 1.5% (gold) or 2% (blue) Lanthanated. These are non-radioactive, offer excellent arc starting, good stability, and maintain a sharpened tip even on AC (though a slight ball can form), providing better penetration control. 4. **Ceriated Tungsten (Gray band):** Similar to Lanthanated, non-radioactive, good for low amperage. The correct electrode selection is vital for optimal **arc stability**, **weld penetration**, and overall **weld quality** in **aluminium TIG welding**.
No, **ER1070 aluminium welding wire** is **not suitable for building lightweight aircraft structures**. Aircraft structures demand extremely high **strength-to-weight ratios**, fatigue resistance, and specific mechanical properties that pure aluminium like ER1070 simply cannot provide.
Aircraft aluminium alloys are typically high-strength heat-treatable alloys (e.g., 2XXX, 7XXX series) or high-strength 5XXX series (e.g., 5083). While some very limited repair might involve pure aluminium in non-critical areas, the primary structural integrity is achieved using specialized high-strength materials and joining methods. Conventional welding of these high-strength aircraft alloys often involves friction stir welding or relies on stronger **aluminium filler metals** like ER5183 or ER5556 for specific applications, or even riveting, as many aerospace alloys are deemed "non-weldable" with traditional fusion welding. ER1070's **low strength** makes it entirely inappropriate for load-bearing aircraft components.
If you weld **6061 aluminium** with **ER1100 filler** (pure aluminium), the resulting weld will be **significantly weaker** than the 6061 base material. 6061 is a heat-treatable alloy known for its good strength, but the ER1100 weld metal itself will not benefit from heat treatment and will remain in its as-welded, low-strength condition.
This creates a strength mismatch, where the weld zone becomes the "weakest link" in the fabricated component. While fusion will occur, the joint's mechanical properties will be severely compromised. You'll achieve excellent ductility and corrosion resistance in the weld, but the strength required for most 6061 applications will not be met. For 6061, **ER5356** or **ER4043** are the standard and recommended **aluminium welding wires** to maintain sufficient joint strength.
For **MIG welding aluminium** with these wires, the **"push" technique** (torch pushed away from the weld puddle) is generally preferred over the "pull" technique (torch pulled towards the puddle), especially for thinner materials and less experienced welders.
The **push technique** directs the shielding gas more effectively over the weld puddle, providing superior gas coverage and leading to a cleaner weld with less **porosity** and oxidation. It also results in a flatter, wider bead with good wetting action. The "pull" technique tends to produce a narrower, ropier bead and can increase the risk of contamination as the trailing arc exposes the molten metal. While both techniques are possible, optimizing gas coverage with the push technique is crucial for achieving high-quality, defect-free **aluminium welds**.
**Arc blow** is a less common but still possible issue in **aluminium welding** compared to steel, but it can occur and negatively impact **weld quality**. Arc blow is the deflection of the welding arc from its intended path, usually caused by magnetic forces interacting with the arc.
While aluminium is non-magnetic, strong magnetic fields from nearby equipment or residual magnetism in steel workbenches can still influence the arc. In aluminium welding, arc blow can lead to inconsistent bead width, lack of fusion, **porosity** (due to erratic shielding gas coverage), and increased spatter. Proper grounding of the workpiece, using AC for TIG welding (which inherently compensates for magnetic fields), or using multiple ground clamps can help mitigate arc blow issues, ensuring a stable arc and high-quality **aluminium welds**.
**ER4043 aluminium welding wire** is often referred to as the "most forgiving" **aluminium filler metal** primarily due to its 5% silicon content. This silicon significantly enhances its **fluidity** and creates a wider freezing range for the weld puddle.
This means the molten metal stays fluid for a longer time before solidifying, allowing for better wetting, easier puddle manipulation, and greater tolerance for variations in joint fit-up or travel speed. It also provides excellent resistance to **hot cracking**, which is a common frustration in **aluminium welding**. These characteristics make ER4043 relatively easier to learn and master for new welders, and a reliable choice for general **aluminium fabrication** where precise control over every variable might not be consistently achievable.
No, **ER5183 aluminium welding wire** is **not recommended for welding pure aluminium** (1XXX series alloys like 1070 or 1100). The primary reason is the significant difference in chemical composition and mechanical properties.
ER5183 contains approximately 4.5-5.5% magnesium, making it a high-strength alloy. Welding it to pure aluminium will result in a severe **strength mismatch**, where the weld metal is considerably stronger and less ductile than the soft base material. More critically, it significantly increases the risk of **hot cracking** in the weld area due to the formation of brittle intermetallic phases when magnesium from the filler reacts with pure aluminium during solidification. For pure aluminium, **ER1070** or **ER1100** are the correct **filler metals** to maintain metallurgical compatibility and achieve a sound **aluminium weld**.
The type of **aluminium welding wire** can influence **spatter levels**, though welding parameters and equipment setup are often more significant factors. Generally, **magnesium-containing wires** like **ER5183**, **ER5356**, and **ER5556** can sometimes produce slightly more spatter than silicon-containing wires like **ER4043** and **ER4047**.
This can be due to the vaporization of magnesium, which forms magnesium oxide particles that can eject from the weld puddle. However, excessive spatter with any **aluminium filler metal** is usually a sign of incorrect welding parameters (e.g., wrong voltage or wire feed speed), inadequate shielding gas coverage, or a dirty workpiece/wire. Optimizing your machine settings, ensuring clean surfaces, and maintaining proper arc length are the best ways to minimize spatter and achieve clean **aluminium welds**.
The **maximum recommended thickness for single-pass aluminium welding** with these wires largely depends on the welding process (MIG vs. TIG), the specific wire diameter, the amperage capabilities of the machine, and the joint design. Generally, for conventional single-pass MIG or TIG welding, thicknesses typically range up to **6mm (1/4 inch)** comfortably.
Beyond this, especially for structural applications, **multi-pass welding** is usually preferred or required to ensure full penetration, adequate fill, and better control over heat input. While very high-amperage processes might allow for thicker single-pass welds, they increase the risk of distortion and other defects. For heavy-duty applications, larger diameter wires (e.g., 1.6mm) and higher amperage settings facilitate single-pass welds on thicker materials, but careful consideration of desired **weld integrity** and mechanical properties is crucial for **aluminium fabrication**.
A **dedicated TIG torch for aluminium welding** is often recommended primarily to prevent **contamination**. If a TIG torch has been used for welding steel, even microscopic steel particles or residue can remain in the collet, collet body, gas lens, or torch body.
When this torch is then used for **aluminium welding**, these steel particles can easily transfer to the tungsten electrode or directly into the **aluminium weld puddle**, causing severe **weld defects** like **porosity**, brittleness, and reduced corrosion resistance. Aluminium is extremely sensitive to contamination. Having a separate, dedicated TIG torch ensures that the entire gas delivery path and electrode holding components are pristine and free from ferrous contamination, promoting clean and high-quality **aluminium TIG welds** with any **aluminium filler metal**.
Yes, **ER1070 aluminium welding wire** can be used for welding very **thin foil-like aluminium**, particularly when using the TIG welding process. Its high purity and relatively low melting point (compared to higher strength alloys) can be advantageous.
However, welding extremely thin aluminium is inherently challenging due to its high thermal conductivity and propensity for **burn-through**. Precision control of amperage, very fast travel speed, and often the use of a pulsed TIG setting are crucial. **ER4047**, with its even lower melting point and superior fluidity, is often considered a stronger contender for extremely thin sections due to its ability to wet and flow more easily. Nevertheless, for applications where the purity of the weld is paramount for foil-like pure aluminium, **ER1070** remains a viable **filler metal** option, but requires exceptional skill and machine control for **aluminium welding**.
**Welding speed** has a critical impact on the quality of **aluminium welds** with these wires. Generally, **faster travel speeds** are preferred for aluminium compared to steel, due to aluminium's high **thermal conductivity**.
Too slow a travel speed will lead to excessive heat input, increasing the risk of **burn-through**, significant **distortion**, large grain structures, and potentially more **porosity** (as the puddle stays molten longer, allowing more time for hydrogen to enter). Conversely, too fast a travel speed can result in lack of fusion, insufficient penetration, and poor bead shape. Finding the optimal balance for each material thickness and joint configuration ensures proper fusion, minimizes heat-related defects, and produces a sound, visually appealing **aluminium weld** with the chosen **filler metal**.
The type of current in **TIG aluminium welding** (specifically AC versus DC) fundamentally affects the **bead profile**. When using **Alternating Current (AC)**, which is standard for aluminium, the alternating polarity provides a "cleaning action" that breaks up the surface oxide layer. This results in a relatively **wide, clean, and flat to slightly crowned weld bead** with good penetration.
If **Direct Current Electrode Negative (DCEN)** were used (which is generally avoided for aluminium due to poor oxide cleaning), it would result in a very narrow, deeply penetrating bead but would quickly become contaminated by the oxide. **Direct Current Electrode Positive (DCEP)**, if attempted, would cause the tungsten to overheat and erode rapidly, leading to a very wide, shallow, and dirty bead with no penetration. Therefore, **AC** is specifically tailored to produce the desired clean and controlled **bead profile** in **aluminium TIG welding**.
Welding **ER4043 aluminium welding wire** in **overhead positions** (4F, 4G) presents significant challenges due to aluminium's high fluidity when molten and the force of gravity. The molten puddle tends to sag or drip, making it difficult to control and leading to poor bead shape, lack of fusion, and potential for excessive penetration or burn-through.
To successfully weld ER4043 overhead: 1. **Reduce Heat Input:** Use lower amperage and faster travel speeds. 2. **Pulsed Welding:** Pulsed MIG or TIG can help solidify the puddle faster between pulses. 3. **Weld in Sections:** Use short, controlled weld segments. 4. **Tight Joint Fit-up:** Minimize gaps to prevent fall-through. 5. **Skilled Welder:** Requires significant experience and precise puddle control. While possible, it's generally avoided where practical due to the difficulty and higher risk of defects in **aluminium overhead welds**.
Yes, **ER5356 aluminium welding wire** can be used for welding intricate **aluminium artwork with fine details**, especially when TIG welding. Its good **fluidity** and favorable **color match after anodizing** make it a suitable choice for aesthetic applications.
While not as fluid as ER4047 (which is excellent for brazing very fine details), ER5356 offers a good balance of strength and ductility. Its properties allow for precision control of the weld puddle with skilled TIG welding, enabling the creation of small, clean, and strong joints. The ability to achieve a good anodized finish without the dark discoloration seen with silicon-based wires is a significant advantage for decorative **aluminium fabrication** where visual appearance is paramount. Careful heat management is key to prevent distortion on fine features.
A **"peel test"** is a destructive method often used to evaluate the quality of a **spot weld** or **lap joint weld** in thin sheet **aluminium fabrication**. While not comprehensive for all weld types, it provides a quick visual assessment of fusion and penetration.
In a peel test, the two welded pieces of material are manually peeled apart at the weld joint. A good weld will show significant tearing of the base metal around the weld nugget, indicating that the weld itself was stronger than the parent material. If the weld breaks cleanly along the weld line or shows minimal base metal tearing, it indicates **lack of fusion**, insufficient penetration, or a brittle weld, signaling a poor quality **aluminium weld**. This simple test gives immediate feedback on the effectiveness of the chosen **filler metal** and welding parameters.
The role of **silicon** in **ER4043** (5% Si) and **ER4047** (11-13% Si) **aluminium welding wires** is fundamental to their properties and applications. Silicon primarily:
1. **Improves Fluidity:** It significantly lowers the melting point of the filler metal and increases the fluidity of the molten weld puddle, allowing for excellent wetting and flow. 2. **Reduces Hot Cracking:** Silicon helps to fill the spaces between solidifying dendrites during crystallization, minimizing the formation of brittle, low-melting point films at grain boundaries that cause hot cracking. 3. **Enhances Wetting:** Allows the filler metal to spread easily over the base material. 4. **Lower Melting Point:** Especially prominent in ER4047, which is crucial for brazing applications. The trade-off is that silicon in the weld metal results in a **dark gray color after anodizing**. These characteristics make silicon a versatile and highly beneficial alloying element for specific **aluminium welding** applications.
Yes, **ER5556 aluminium welding wire** is an **excellent and often preferred filler metal for pressure vessel fabrication**, particularly when the vessels are made from high-strength 5XXX series alloys like 5083, 5086, or 5456, and are intended for service at potentially elevated temperatures or under significant pressure cycling.
Its superior **tensile strength**, enhanced **stress corrosion cracking (SCC) resistance**, and good ductility make it highly suitable for applications where **weld integrity** and long-term reliability under stress are paramount. Pressure vessels are critical components where safety and structural soundness are non-negotiable. Therefore, using a high-performance **aluminium filler metal** like ER5556, which can maintain its properties in challenging conditions, is a key engineering decision for robust **aluminium pressure vessel welding**.
**Common joint preparation methods for aluminium welding** are crucial for achieving sound, defect-free welds with any of these wires. Given the tenacious **aluminium oxide layer** and susceptibility to contaminants, meticulous preparation is key:
1. **Cleaning:** This is paramount. Mechanically remove the oxide layer using a dedicated stainless steel brush or grinder (clean wheel only for aluminium), then degrease with a clean cloth and solvent (e.g., acetone) immediately before welding. 2. **Edge Preparation:** For thicker materials, **beveling** or creating a V-groove, U-groove, or J-groove allows for full penetration. For thinner materials, square butt joints or lap joints are common. 3. **Fit-up:** Ensure tight and consistent fit-up to minimize gaps, which can be challenging to bridge and increase distortion. 4. **Backing:** For full penetration welds, a copper or aluminium backing bar can support the molten puddle and dissipate heat. Proper joint preparation directly impacts **weld quality**, reduces defects, and improves the efficiency of **aluminium fabrication**.
Yes, there can be a **fire hazard specific to aluminium welding**, especially with thin materials. While aluminium itself doesn't typically "burn" like steel in a conventional sense, welding thin aluminium can quickly lead to **burn-through** and, if near flammable materials, ignition.
More significantly, the arc can easily ignite oil, grease, or other contaminants on the workpiece or in the immediate environment. Fine **aluminium dust** (from grinding or cutting) can also be highly combustible and explosive if suspended in air. Therefore, ensuring a clean work area, removing all flammable materials, and having fire extinguishing equipment readily available are crucial **safety precautions** for any **aluminium welding operation**. Using proper ventilation also helps dissipate fumes that might pose a minor fire risk.
Yes, **ER1100 aluminium welding wire** is a **suitable choice for electrical enclosures**, particularly those made from pure aluminium or 3003 alloys. Its excellent **electrical conductivity** and high **corrosion resistance** are key advantages for this application.
Electrical enclosures need to effectively house and protect electrical components, often requiring good grounding and shielding properties. The high purity of ER1100 ensures minimal electrical resistance in the welded joints. Furthermore, its general corrosion resistance helps protect the enclosure in various atmospheric conditions. While not for high-strength structural enclosures, for typical protection, dust resistance, and basic environmental shielding, **ER1100** provides reliable and conductive **aluminium welds**.
The **travel angle** of the welding torch significantly affects **aluminium welding** with these wires. For both MIG and TIG, a slight **push angle** (torch angled away from the direction of travel) is generally recommended.
This push angle (typically 10-15 degrees from vertical) helps to direct the shielding gas more effectively over the molten weld pool, providing superior protection from atmospheric contamination, which is critical for preventing **porosity** and oxidation in **aluminium welds**. It also helps to preheat the material slightly ahead of the arc, promoting better fusion and a flatter, wider bead profile. Using a drag angle can disrupt gas coverage and lead to more defects. Optimal travel angle is a fundamental parameter for achieving high-quality **aluminium fabrication**.
**Voltage** plays a critical role in **MIG welding with aluminium wires**, influencing arc stability, bead profile, and penetration. For a given wire feed speed (which dictates amperage), voltage controls the arc length.
Too low a voltage results in a short, stiff arc, often leading to **stubbing** into the puddle, poor fusion, and a narrow, ropy bead. Too high a voltage creates a long, wandering, and unstable arc, leading to excessive spatter, poor penetration, and a wide, flat, often porous bead due to poor shielding gas coverage. The goal is to find the "sweet spot" where the arc is stable, smooth, and consistent, typically resulting in a crackling bacon sound. Precise voltage adjustment is crucial for optimal performance of **aluminium MIG welding** and achieving sound **aluminium welds**.
Yes, **ER4043 aluminium welding wire** is a **very common and suitable choice for the repair of many boat propellers**, which are frequently made from cast aluminium alloys like 356 or A356. Its 5% silicon content provides excellent **fluidity** and significantly reduces **hot cracking susceptibility**, which are key benefits when repairing complex castings.
The silicon allows the filler metal to flow well into damaged areas and build up material effectively. While the weld will be darker after anodizing (if applicable) and might not match the strength of a 5XXX series alloy, for a cast propeller repair, the ease of welding, crack resistance, and good fill characteristics of **ER4043** often make it the preferred **filler metal**. However, for propellers made from high-strength marine alloys, a 5XXX series filler might be used if structural integrity is paramount and casting characteristics allow.
The impact of **surface contaminants** on **aluminium weld quality** is severe and often leads to significant defects. Aluminium surfaces are highly reactive, and impurities like oils, grease, paint, dirt, moisture, and even old oxide layers can cause major problems.
When these contaminants are exposed to the welding arc, they break down. Hydrocarbons and moisture release hydrogen, leading to pervasive **porosity**. Other contaminants can lead to **lack of fusion**, **slag inclusions**, reduced mechanical properties, and increased susceptibility to corrosion. Meticulous **pre-weld cleaning** using mechanical means (dedicated brush) and chemical solvents is non-negotiable for **aluminium welding** with any **filler wire** to ensure a clean, strong, and defect-free **aluminium weld**.
Yes, smaller spool sizes for **ER5183 aluminium welding wire** are generally available to accommodate portable welders or for users who don't require large volumes. While 6.5kg or 16kg spools are common for industrial use, you can often find **ER5183** on **1kg (2.2 lb)** or **2kg (4.5 lb) spools**.
These smaller spools are ideal for mobile welding units, field repairs, or hobbyists who need the strength and corrosion resistance of ER5183 but have limited storage space or lower consumption rates. Always ensure the wire is properly packaged (sealed) even for smaller spools to protect against moisture and maintain its optimal condition for consistent feeding and high-quality **aluminium MIG welding**.
**Magnesium** is the primary alloying element in **ER5356 aluminium welding wire** (around 5%), and it significantly affects its welding characteristics. Compared to silicon-based wires, magnesium:
1. **Increases Strength:** Provides higher tensile and shear strength in the weld deposit. 2. **Improves Ductility:** Contributes to a more ductile weld, better able to withstand bending and forming. 3. **Good Anodizing Match:** Results in a weld that better matches the color of 5XXX and 6XXX series base metals after anodizing. 4. **"Thicker" Puddle:** The molten puddle tends to be less fluid than silicon-based wires, requiring a slightly different technique and potentially higher heat input for optimal wetting. 5. **Potential for Sooting:** Can vaporize and form magnesium oxide (soot) if shielding gas is insufficient or parameters are off. Overall, magnesium makes **ER5356** a robust and versatile **filler metal** for general **aluminium fabrication** and structural applications.
**Wire cast and helix** refer to the physical characteristics of the spooled **aluminium welding wire**, and they are crucial for smooth and consistent wire feeding, particularly in MIG welding.
**Cast** describes the diameter of the circle the wire would form if cut from the spool and laid on a flat surface. An ideal cast ensures the wire straightens out consistently as it exits the gun liner, reducing friction. **Helix** refers to the degree to which the wire winds around itself in a coil. A proper helix ensures the wire doesn't spiral excessively, which can cause erratic feeding or bind within the liner. Manufacturers precision-wind these **aluminium filler metals** to optimize both cast and helix, minimizing feeding issues like birdnesting and kinking, which are more prevalent with soft aluminium wire compared to steel, ensuring reliable **aluminium MIG welding** operations.
While there aren't rigid "specific voltage settings" unique to each **aluminium welding wire type** (ER1070, ER4043, ER5183, etc.), there are general ranges that work best, and fine-tuning is always required. Voltage settings are primarily influenced by: 1. **Wire Diameter:** Larger diameters generally require higher voltage. 2. **Wire Feed Speed (Amperage):** Voltage must be matched to wire feed speed to maintain a stable arc. 3. **Base Metal Thickness:** Thicker materials may require slightly higher voltage for penetration. 4. **Shielding Gas:** Argon-helium mixes sometimes require slightly different voltage. 5. **Joint Configuration & Welding Position:** These can influence optimal settings. However, general trends exist: silicon-containing wires (4XXX series) might allow a slightly wider voltage range due to their fluidity, while magnesium-containing wires (5XXX series) may require more precise voltage control to minimize sooting. Always start with manufacturer recommendations for your specific wire diameter and fine-tune based on the desired arc sound and **weld bead** appearance for optimal **aluminium MIG welding**.
While **ER5556 aluminium welding wire** offers high strength, it is **generally not the ideal or recommended filler metal for the repair of very thick cast aluminium engine blocks**. Engine blocks are typically made from silicon-rich cast aluminium alloys (like A356, A380, A319).
Using a high-magnesium alloy like ER5556 on these silicon-rich castings can lead to the formation of brittle intermetallic phases at the fusion line, significantly increasing the risk of **hot cracking** and creating a weak, unreliable weld. For such applications, **ER4043** or, more effectively, **ER4047** (due to its higher silicon and superior fluidity for castings) are the standard choices. These silicon-based fillers provide better metallurgical compatibility and greater crack resistance when welding silicon-containing **cast aluminium alloys**, ensuring a sound and durable repair for engine components.
**Signs of insufficient shielding gas coverage** during **aluminium welding** are critical indicators of impending **weld defects** and include:
1. **Excessive Porosity:** The most common sign, appearing as small holes or wormholes on the weld surface or within the weld bead. 2. **Heavy Sooting/Black Residue:** Particularly with magnesium-containing wires (ER5XXX), due to unshielded magnesium reacting with oxygen. 3. **Oxidation/Discoloration:** The weld bead and surrounding HAZ appear dull, crusty, or excessively dark/discolored, indicating atmospheric contamination. 4. **Unstable Arc:** The arc may wander, be erratic, or "pop" frequently due to atmospheric interference. 5. **Increased Spatter:** Poor gas coverage can contribute to more spatter. Addressing these signs quickly by checking gas flow rate, hose integrity, and torch position is crucial for producing high-quality, defect-free **aluminium welds** with any **aluminium filler metal**.
While theoretically possible to fuse, **ER1070 aluminium welding wire** is **not practical or recommended for repairing aluminium beverage cans**. Beverage cans are made from extremely thin (often 0.1-0.2mm) heat-treated alloys (e.g., 3004, 5182) and rely on their very thin gauge and precise material properties.
Welding such thin material requires immense skill, extremely low heat input, and specialized equipment, making it unfeasible for common repair. Even if a weld could be made, it would likely cause significant distortion, burn-through, and would not restore the structural integrity or food-safe properties of the can. Furthermore, the alloys are different, and the pure ER1070 would be a metallurgical mismatch. Can repair is generally not a viable process, and cans are designed for single-use and recycling. So, for **aluminium beverage cans**, consider recycling, not welding.
The exceptionally high **thermal conductivity of aluminium** profoundly affects **welding heat management** and is a primary challenge in **aluminium welding**. Unlike steel, which retains heat, aluminium rapidly dissipates heat away from the weld zone.
This means: 1. **Higher Amperage Needed:** More amperage is required to achieve sufficient melting and penetration compared to steel of similar thickness. 2. **Faster Travel Speeds:** To prevent excessive heat buildup in one spot and subsequent burn-through or distortion, faster travel speeds are often employed. 3. **Preheating:** For thicker sections, **preheating** is frequently necessary to reduce the heat sink effect and ensure proper fusion and reduce cracking risk. 4. **Heat Affected Zone (HAZ):** The HAZ can be wider due to rapid heat dissipation, potentially affecting properties of heat-treatable alloys. Effective heat management, often by adjusting parameters for the chosen **aluminium welding wire**, is critical for producing sound, defect-free **aluminium welds**.
No, **ER1100 aluminium welding wire** is **not a good choice for repairing cast aluminium manifolds**. Manifolds are typically made from **silicon-rich cast aluminium alloys** (e.g., A356, A380, A319).
ER1100 is a pure aluminium filler metal with virtually no silicon. Welding a silicon-rich casting with ER1100 creates a severe metallurgical mismatch. This combination is highly prone to **hot cracking** in the weld and heat-affected zone due to the formation of brittle, low-melting point constituents during solidification. For effective and crack-resistant repair of **cast aluminium manifolds**, **ER4043** (5% silicon) or, even better, **ER4047** (11-13% silicon, superior fluidity) are the recommended and standard **filler metals**.
The implications of using **ER4043 aluminium welding wire for marine environments** are generally **not favorable** for applications directly exposed to saltwater. While ER4043 has good general corrosion resistance in atmospheric conditions, its silicon content can be a disadvantage in chloride-rich (saltwater) environments.
In sustained saltwater exposure, the silicon-rich phases in the weld metal can become preferential sites for **galvanic corrosion** or pitting. For marine applications, especially shipbuilding, boat hulls, or offshore structures, **magnesium-containing aluminium welding wires** like **ER5183** or **ER5356** are overwhelmingly preferred. These 5XXX series alloys offer superior resistance to **saltwater corrosion** and **stress corrosion cracking**, providing much greater long-term durability and **weld integrity** in harsh marine conditions compared to **ER4043 filler metal**.
**Argon-helium mix shielding gas** significantly benefits welding with **ER5183 aluminium welding wire**, especially for thicker sections or high-deposition welding. While 100% argon is sufficient for thinner materials, adding helium offers several advantages:
1. **Increased Heat Input:** Helium increases the arc voltage and provides a hotter, more concentrated arc, which helps to overcome aluminium's high thermal conductivity and achieve deeper penetration, particularly crucial for thicker 5083 base metals. 2. **Improved Weld Profile:** A hotter arc can result in a wider, flatter bead with better wetting. 3. **Reduced Porosity:** The increased heat can help to expel more hydrogen from the weld pool before solidification. 4. **Higher Travel Speeds:** The hotter arc allows for faster welding speeds, increasing productivity. However, helium is more expensive and requires higher flow rates. Mixtures like **75% Argon / 25% Helium** or **50% Argon / 50% Helium** are common choices for optimizing **aluminium MIG welding** performance with high-strength **ER5183 filler metal**.
The correct way to trim **ER5356 wire** from the spool before starting welding is crucial for smooth wire feeding and preventing initial weld defects. Before inserting the wire into the feeder, always:
1. **Cut Off Any Bent or Kinked Sections:** The first few feet of wire on a new spool might have slight kinks or bends from handling. Cut these off cleanly. 2. **Trim a Straight Section:** Cut the wire perpendicular to its length, ensuring a clean, straight end. Do not use blunt cutters that can flatten or deform the wire end. Sharp wire cutters are essential. 3. **Ensure No Burrs:** Check for any burrs on the cut end, as these can snag in the drive rolls or gun liner, leading to feeding issues. 4. **Keep the Wire Clean:** Avoid touching the cut end with oily hands. A clean, straight, and burr-free wire end ensures optimal feeding into the liner and through the contact tip, minimizing downtime and improving the consistency of **aluminium MIG welding** with **ER5356 filler metal**.
The **chromium (Cr) content** in **ER5556 aluminium welding wire** (typically 0.05-0.20%) specifically improves **stress corrosion cracking (SCC) resistance** by influencing the precipitation behavior of intermetallic phases, particularly in high-magnesium alloys. SCC is a form of corrosion that occurs under combined tensile stress and a corrosive environment, often along grain boundaries.
Chromium, along with manganese, helps to suppress the formation of continuous beta-phase (Mg2Al3) precipitates at grain boundaries. These precipitates are anodic (more active) relative to the surrounding matrix and can create preferential paths for corrosive attack under stress. By modifying the morphology and distribution of these precipitates, chromium helps to make the grain boundaries less susceptible to SCC. This microstructural control is vital for the long-term integrity of **ER5556 welds** in demanding environments, enhancing the overall **durability of aluminium structures**.
No, it is **not always necessary to preheat aluminium before welding** with these wires, but it is often highly recommended or critical depending on several factors. **Preheating** is generally required for:
1. **Thicker sections:** To compensate for aluminium's high thermal conductivity and prevent rapid cooling that can lead to **cold cracking** or lack of fusion. 2. **Highly restrained joints:** To reduce residual stresses that could cause cracking. 3. **Complex geometries:** To minimize distortion. 4. **Repair welds on castings:** To prevent thermal shock. For thinner materials (e.g., less than 3-4mm or 1/8 inch) and less complex joints, preheating might not be necessary. However, it can always improve **weld quality** and reduce defects. Always consult a **welding procedure specification (WPS)** or manufacturer guidelines for specific recommendations for your base material and chosen **aluminium welding wire** (e.g., ER4043, ER5183).
Welding **ER1070 (pure aluminium)** to **ER5356 (Al-5%Mg alloy)** presents significant metallurgical challenges, and it's generally **not recommended** for critical applications. The primary challenges include:
1. **Hot Cracking Susceptibility:** This is the most severe issue. The mixture of pure aluminium and a ~5% magnesium alloy in the weld pool falls into a range that is highly susceptible to **solidification cracking** (hot cracking) due to the formation of brittle, low-melting point intermetallic compounds during cooling. 2. **Strength Mismatch:** The resulting weld will have properties significantly different from either base metal, likely being weaker than the ER5356 side and potentially prone to stress concentrations at the interface. 3. **Corrosion Susceptibility:** The mixed microstructure can create galvanic cells, potentially increasing corrosion susceptibility. For such dissimilar combinations, mechanical fastening or brazing with specialized fillers might be considered, but fusion welding with these alloys is generally avoided due to compromised **weld integrity**.
While **ER1100 (pure aluminium)** can technically fuse with **6061 aluminium**, it is **not a suitable or recommended filler metal** for welding 6061. The main reason is the significant **strength mismatch**.
6061 is a heat-treatable alloy known for its good strength and structural applications. Using ER1100, which is very soft and has low strength, will result in a weld joint that is substantially weaker than the 6061 base material. The weld area will not respond to post-weld heat treatment in the same way the base material would. For welding 6061, the appropriate **aluminium welding wires** are typically **ER5356** (preferred for strength, ductility, and anodizing match) or **ER4043** (preferred for crack resistance and fluidity). Using ER1100 would severely compromise the structural integrity of the **6061 aluminium weld**.
For **aluminium MIG welding**, the type of **wire feeder** is crucial due to the softness and poor column strength of aluminium wires. The most common and effective types are:
1. **Spool Gun:** This is arguably the best option for **aluminium MIG welding**. The entire spool of wire is mounted directly onto the welding gun, minimizing the distance the wire has to be pushed, thus eliminating wire feeding problems like birdnesting and kinking. 2. **Push-Pull System:** As discussed previously, this system uses synchronized drive rolls in both the feeder and the gun, actively pulling the wire through the liner. It allows for longer gun cables than spool guns. 3. **Dedicated Aluminium Feeders (Short Gun Cable):** Some standard wire feeders can be adapted for aluminium by using U-groove drive rolls, a non-metallic (e.g., nylon, Teflon) liner, and a very short gun cable (typically 3 meters or 10 feet max) to reduce friction and kinking. Proper feeder selection is paramount for consistent wire delivery and high-quality **aluminium MIG welds**.
In terms of **ductility**, **ER4043 aluminium welding wire** generally exhibits **higher ductility** than **ER4047**. Both are silicon-containing alloys, but ER4047 has a significantly higher silicon content (11-13% vs. 5% for ER4043).
The higher percentage of silicon in ER4047 leads to the formation of a greater volume of hard, brittle silicon phases within the weld microstructure. While this enhances fluidity and crack resistance, it compromises the weld's ability to deform plastically without fracturing. Therefore, if the application requires the weld to undergo significant bending, forming, or post-weld deformation, **ER4043** would typically be the preferred **filler metal** over ER4047 due to its superior ductility in the **aluminium weld**.
The **shelf life of opened spools of aluminium welding wire** is significantly shorter and much more variable than unopened spools, making proper storage even more critical. Once exposed to air, the wire immediately begins to oxidize and absorb moisture.
Typically, an opened spool's usable life could range from **a few days to a few weeks**, depending heavily on the environmental conditions (humidity being the biggest factor) and the diligence of storage. If not immediately used, opened spools should be resealed in airtight bags (preferably vacuum-sealed) with desiccant packets and stored in a dry, controlled environment. Any visible oxidation, dullness, or rough texture indicates the wire's quality is compromised, and it should be discarded to avoid **weld defects** like **porosity** and ensure **high-quality aluminium welding**.
While **ER5183 aluminium welding wire** provides high strength, it is **not typically the preferred or most common filler metal for welding bicycle frames**. Bicycle frames are usually made from 6061 or sometimes 7005 series aluminium alloys, and welders generally seek a balance of strength, ductility, and good aesthetics.
For 6061 bicycle frames, **ER5356** is overwhelmingly the standard choice. ER5356 offers an excellent balance of strength, superior **ductility** (important for impact absorption), and critically, a much better **color match after anodizing** (common for bike frames) compared to silicon-containing alloys. While ER5183 would provide a strong weld, its properties might be over-specified for many bicycle applications, and it can be slightly less forgiving to weld than ER5356. So, for **bicycle frame welding**, **ER5356** remains the top **aluminium filler metal**.
The **weld metal produced by ER5356 aluminium welding wire** exhibits several key properties that make it highly desirable for a broad range of applications. Primarily, it offers **good tensile strength** and **shear strength**, making it suitable for many structural and semi-structural components.
It also boasts **excellent ductility**, meaning the weld can withstand significant bending and forming without cracking. A major advantage is its **very good corrosion resistance** in general atmospheric conditions and, importantly, a superior **color match after anodizing** with common 5XXX and 6XXX series base metals. While it is not heat-treatable for strength, the combination of these properties makes **ER5356** a versatile and reliable **aluminium filler metal** for applications where a strong, ductile, and aesthetically pleasing **aluminium weld** is required.
**ER5556 aluminium welding wire** can perform very well in **cryogenic applications**, similar to **ER5183**, but its primary advantage over ER5183 is its enhanced resistance to **stress corrosion cracking (SCC)** at **elevated temperatures**. For cryogenic service, both alloys are excellent due to their inherent ductility and strength retention at very low temperatures.
5XXX series aluminium alloys generally perform exceptionally well in cryogenic environments because their mechanical properties, particularly toughness and ductility, tend to improve as temperature decreases, unlike many steels. While ER5183 is widely recognized and used for cryogenic tanks, **ER5556** would offer a similar, if not slightly superior, performance in terms of strength, and provides an added layer of SCC resistance if the cryogenic vessel also experiences intermittent warm-up cycles or elevated temperature exposure during its lifespan. Both are robust choices for **cryogenic aluminium welding**.
No, you should **NEVER use a regular steel wire brush for aluminium cleaning**, even if you think you clean it really well. This is one of the most common and critical mistakes in **aluminium welding preparation**.
Microscopic steel particles from the brush become embedded in the soft aluminium surface. When these ferrous contaminants are exposed to the welding arc, they will melt and mix into the **aluminium weld pool**. This leads to severe **weld defects** such as: 1. **Porosity:** As steel oxidizes more readily, it can introduce trapped gases. 2. **Embrittlement:** Forming brittle iron-aluminium intermetallic compounds. 3. **Reduced Corrosion Resistance:** Creating galvanic cells that accelerate corrosion. Always use a **dedicated stainless steel wire brush** that has *never* touched steel, or use other approved mechanical cleaning methods to ensure a pristine surface for **aluminium welding** with any **filler metal**.
The advantages of using a **constant voltage (CV) power source** for **MIG aluminium welding** are significant and make it the standard choice for this process. In a CV system, the power source maintains a relatively constant voltage regardless of minor changes in arc length or wire feed speed.
This characteristic is ideal for MIG welding because it provides: 1. **Self-Regulating Arc:** If the arc length shortens (e.g., wire stubs), the voltage drops slightly, causing the current to increase, which burns off the wire faster, automatically restoring the arc length. Conversely, if the arc lengthens, voltage increases, current drops, and wire feed catches up. 2. **Stable Arc:** Results in a very stable and smooth arc, crucial for consistent bead appearance and penetration. 3. **Easier Parameter Setting:** Simplifies setting welding parameters, as voltage primarily controls arc length, and wire feed speed controls amperage. This stability is particularly beneficial for the sometimes erratic nature of feeding soft **aluminium welding wires**, ensuring consistent **weld quality** and minimizing **weld defects**.
No, **ER1070 aluminium welding wire** is **not recommended as a general-purpose aluminium repair wire**. While it will fuse with pure aluminium, its very high purity and resulting **low strength** limit its utility for general repairs, which often involve alloyed aluminium.
Most common aluminium alloys used for general fabrication or repairs (e.g., 6061, 5052, cast aluminium) require a stronger or metallurgically more compatible filler metal. Using ER1070 on these alloys would create a **strength mismatch** and potentially increase **hot cracking susceptibility** or compromise corrosion resistance. For general aluminium repair, **ER4043** (for casting repair and general-purpose) or **ER5356** (for 6XXX/5XXX series) are far more versatile and appropriate **aluminium filler metals**, providing robust and reliable repairs.
Common problems associated with **old or improperly stored ER1100 aluminium welding wire** primarily stem from **oxidation** and **moisture absorption**. These issues can lead to several significant **weld defects**.
1. **Porosity:** This is the most prevalent issue, caused by hydrogen (from moisture) being trapped in the solidifying weld. 2. **Erratic Arc/Poor Arc Stability:** Surface oxidation increases electrical resistance and can lead to an unstable, sputtering arc. 3. **Poor Wire Feeding:** Oxidation or corrosion can make the wire rough, increasing friction in the liner and leading to inconsistent feeding, birdnesting, or shaving. 4. **Reduced Weld Quality:** The resulting weld may have reduced mechanical properties and poor appearance. Always inspect **ER1100** for dullness, discoloration, or roughness before use, and ensure it's stored in a dry, sealed environment to maintain its quality for optimal **aluminium welding**.
The **joint configuration** significantly impacts welding with **ER4043 aluminium welding wire**. Its excellent **fluidity** and **hot cracking resistance** make it adaptable to various joint designs, but optimal results depend on matching the configuration to the material thickness and desired penetration.
For **thin materials**, a simple square butt joint or lap joint might suffice. For **thicker sections**, **V-groove** or **U-groove** preparations are necessary to ensure full penetration and adequate weld volume. ER4043's good wetting characteristics allow it to fill these grooves effectively. Proper joint fit-up, ensuring gaps are not excessive, is also critical, as even with ER4043's fluidity, very large gaps can lead to burn-through or excessive heat input. The chosen joint configuration directly influences the number of passes, heat input, and overall **weld integrity** in **aluminium fabrication**.
No, **ER4047 aluminium welding wire** (or any **aluminium welding wire**) **cannot be used to weld stainless steel to aluminium** through conventional fusion welding processes. Joining dissimilar metals like stainless steel and aluminium is extremely challenging and typically results in brittle, weak joints.
This is because aluminium and iron (the primary component of stainless steel) form numerous brittle **intermetallic compounds** when mixed in the molten state. These compounds are very hard and prone to cracking, rendering the weld virtually useless. Specialized joining methods like **friction stir welding**, **explosive bonding**, or mechanical fastening are required for such dissimilar metal combinations. Standard arc welding processes with aluminium fillers are strictly for **aluminium-to-aluminium** or specific aluminium alloy combinations only.
For **aluminium welding wires** (e.g., ER5356, ER4043) in MIG welding, specific **wire feeder drive roll types** are crucial to prevent feeding problems due to aluminium's softness. The most common and recommended drive roll type is **U-groove drive rolls**.
**U-groove rolls** (or sometimes V-groove with knurled surface for soft wires) have a curved groove that cradles the soft aluminium wire, providing more surface contact and less deformation compared to the standard V-groove rolls used for steel. This prevents the wire from flattening or deforming, which can lead to erratic feeding, shaving, or birdnesting. Using the correct size U-groove rolls (matching the wire diameter) and setting appropriate tension are vital for smooth, consistent wire delivery and high-quality **aluminium MIG welding**.
The optimal **shielding gas flow rate for TIG welding with these aluminium rods** (e.g., ER1070, ER5183) is generally lower than for MIG welding due to the concentrated protection of the TIG torch. Typically, a flow rate between **6 to 12 liters per minute (12 to 25 cubic feet per hour)** is recommended.
This range provides sufficient coverage to prevent atmospheric contamination and oxidation of the tungsten electrode and molten puddle, without creating excessive turbulence that could draw in ambient air. Factors influencing the precise flow rate include the size of the gas lens, joint geometry, and presence of drafts. Insufficient flow leads to porosity and dirty welds, while excessive flow wastes gas and can also cause issues. Proper flow ensures a stable arc and pristine **aluminium TIG welds**.
No, **ER5183 aluminium welding wire** is **not the recommended or preferred filler metal for the repair of cast aluminium wheels**. Cast wheels are almost universally made from silicon-rich casting alloys (e.g., A356.0, A380.0, 413.0, 443.0).
As discussed previously, welding silicon-rich castings with a magnesium-rich filler like ER5183 creates a metallurgical incompatibility that can lead to severe **hot cracking** and the formation of brittle intermetallic compounds at the fusion line. For robust and reliable repair of cast aluminium wheels, **ER4043** or, more specifically, **ER4047** (due to its even higher silicon content and superior fluidity for castings) are the appropriate **aluminium filler metals**. These wires ensure better metallurgical compatibility and greater resistance to solidification cracking for these silicon-based **aluminium castings**.
The type of **backing bar** significantly affects **aluminium welding** with these wires, particularly for full penetration welds or welding thin materials. A backing bar provides support for the molten weld pool, preventing burn-through and allowing for controlled penetration.
Common backing bar materials for aluminium are **copper** or **aluminium itself**. Copper is preferred due to its very high **thermal conductivity**, which quickly dissipates heat away from the weld, helping to control the puddle, reduce distortion, and prevent burn-through, especially on thin sheets. Aluminium backing bars are also used but are less effective at heat dissipation than copper. Grooved backing bars can create a consistent root bead profile. Proper backing bar usage improves **weld quality**, enhances penetration control, and minimizes defects in **aluminium fabrication**.
Common defects when welding with **ER5356 aluminium welding wire** primarily include **porosity** and sometimes **"sooting"** (magnesium oxide residue) if parameters are not optimized. 1. **Porosity:** Caused by hydrogen trapped in the weld. Avoid by meticulous **pre-weld cleaning** (base metal and wire), ensuring dry, properly stored wire, and using pure shielding gas at adequate flow rates. 2. **Sooting/Black Residue:** Formation of magnesium oxide on the weld surface. Minimize by ensuring ample and proper **shielding gas coverage**, avoiding excessive heat input, and optimizing travel speed. A slight push angle for MIG welding can help. 3. **Hot Cracking:** While less prone than some other alloys, it can occur with poor joint fit-up or high restraint. Ensure good fit-up and consider tack welding. 4. **Lack of Fusion:** Usually due to insufficient heat input or improper technique. Proper parameter setting, diligent cleaning, and good technique are key to achieving high-quality **ER5356 aluminium welds** and minimizing these **weld defects**.
The presence of **manganese (Mn)**, typically found in **ER5556** and **ER5183 aluminium welding wires**, is a significant benefit. Manganese primarily serves to:
1. **Increase Strength:** It contributes to solid solution strengthening of the weld metal. 2. **Grain Refinement:** Manganese promotes the formation of a finer and more uniform grain structure during solidification, which enhances both strength and **toughness** of the weld. 3. **Corrosion Resistance:** It can improve the overall corrosion resistance, particularly against certain forms of localized corrosion. 4. **Mitigate Iron Impurities:** Manganese can combine with any minor iron impurities to form less harmful intermetallic compounds, rather than allowing iron to form brittle phases that could degrade weld quality. These contributions make manganese a crucial alloying element for ensuring the robust mechanical properties and integrity of these high-strength **aluminium filler metals** for structural **aluminium welding**.
The importance of a **clean contact tip** in **aluminium MIG welding** cannot be overstated. A clean contact tip is essential for consistent wire feeding and maintaining a stable arc. Aluminium wire, being soft, can easily shave off minute particles inside the contact tip.
Over time, these shavings, along with any spatter or oxide buildup, can partially block the tip, leading to: 1. **Erratic Wire Feeding:** Inconsistent wire speed, resulting in arc instability and poor penetration. 2. **Arc Wandering:** The arc can jump around as the wire struggles to make consistent contact. 3. **Birdnesting:** If the wire sticks or encounters too much resistance in the tip, it can bunch up at the drive rolls. 4. **Burnback:** The wire melting back and fusing to the tip. Regular inspection and cleaning or replacement of the contact tip are crucial maintenance steps for achieving high-quality, consistent **aluminium MIG welds** with any **aluminium welding wire**.
Yes, **ER1070 aluminium welding wire** can be reliably used for welding **aluminium piping in chemical plants**, especially where the piping is made from **pure aluminium** (e.g., 1060, 1070, 1100 series) or where exceptional **corrosion resistance** to specific chemicals is required, and strength is secondary.
Its high purity ensures excellent resistance to corrosion from many chemical agents that might attack alloyed aluminium. However, if the piping is for structural support, under high pressure, or made from stronger aluminium alloys (like 6061 or 5083), then **ER1070** would be unsuitable due to its low strength. For alloyed aluminium piping, **ER4043** or **ER5356** would be more appropriate, depending on the base metal and service conditions. The selection hinges on the specific chemical environment and mechanical demands of the **aluminium piping system**.
The **"wetting" action** of **ER1100 aluminium welding wire** is **significantly less fluid and "wetting"** than that of **ER4043**. ER1100, being pure aluminium with no silicon, produces a thicker, more viscous weld puddle. It doesn't spread as easily or flow into tight joints as readily.
In contrast, **ER4043**'s 5% silicon content dramatically improves its fluidity and wetting characteristics. This means ER4043 spreads out more, flows into corners and gaps better, and "wets" the base metal more effectively. This difference is why ER4043 is preferred for **cast aluminium repair** and general fabrication where good fluidity is needed, while ER1100 is chosen for its purity and ductility on pure aluminium base metals where precise puddle control and good fit-up are typically maintained for the **aluminium weld**.
**Pulsed MIG welding** offers significant advantages for **aluminium welding** with these wires compared to conventional MIG, particularly in achieving higher quality welds and broader applications.
Key advantages include: 1. **Better Puddle Control:** The pulsed current allows for better control of the molten puddle, especially in out-of-position welding (vertical, overhead) and on thinner materials, reducing burn-through and distortion. 2. **Reduced Heat Input:** Each pulse provides high peak current for good penetration, while the lower background current allows the puddle to cool slightly, minimizing overall heat input and reducing HAZ size. 3. **Lower Spatter:** Pulsing helps to achieve a smooth, spray transfer mode at lower average currents, significantly reducing spatter. 4. **Improved Penetration:** Consistent penetration profile across various thicknesses. 5. **Aesthetic Bead Appearance:** Often results in a ripple-free, visually appealing weld bead. These benefits make pulsed MIG an excellent choice for demanding **aluminium fabrication** and improved **weld quality** with **aluminium filler metals**.
Yes, **ER4047 aluminium welding wire** is **highly suitable for brazing large aluminium sheets together**, especially when the application requires strong, leak-proof joints with minimal distortion. Its high silicon content (11-13%) is key to its effectiveness as a brazing filler metal.
The low melting point and exceptional **fluidity** of ER4047 allow it to flow readily into long seams by capillary action, creating a consistent and strong metallurgical bond without melting the parent aluminium sheets. This is particularly beneficial for large panels where minimizing distortion from high heat input is crucial. While mechanical fastening or fusion welding might also be options, **ER4047 brazing** offers a distinct advantage in achieving broad, clean, and tight joints in extensive sheet **aluminium fabrication**.
The **choice of contact tip material** is important in **aluminium MIG welding** to prevent wire feeding issues and maintain arc stability. While copper is the standard for steel, **hardened copper alloys** or **specialty aluminium-specific contact tips** are often recommended for aluminium wires.
Aluminium wire is softer and can wear out standard copper tips quickly, leading to an enlarged bore and inconsistent electrical contact. This results in erratic arc, poor wire feeding, and potential for burnback. Hardened tips resist wear better. Additionally, ensure the contact tip bore size is precisely matched to the wire diameter to minimize play and maximize electrical transfer. A clean, correctly sized, and durable contact tip is fundamental for smooth wire feeding and consistent **aluminium MIG welding** performance with any **aluminium filler metal**.
TIG welding **ER5183 aluminium welding wire** can present a few common challenges, primarily related to its magnesium content. These include:
1. **"Sooting":** The formation of black magnesium oxide residue on and around the weld bead, especially with insufficient shielding gas or improper parameters. Requires good gas coverage and cleaning. 2. **Puddle Control:** The molten puddle can be slightly less fluid than silicon-based alloys, requiring a confident, consistent technique. 3. **Hot Cracking:** While less prone than some other alloys, it can still occur if heat input is excessive, joint restraint is high, or filler/base metal mismatch exists. Careful heat management is key. 4. **Cleanliness:** Absolute cleanliness of both base metal and filler rod is paramount to prevent porosity. Despite these, with proper technique and optimized parameters, **ER5183 TIG welds** are highly strong and corrosion-resistant, making it a valuable **aluminium filler metal** for demanding applications.
No, **ER5356** and **ER4043** are **not always interchangeable** for all 6061 applications, despite both being common choices for welding 6061 aluminium. The choice depends on specific application requirements.
Choose **ER5356** if: * You need higher **strength** and **ductility** in the weld. * The part will be **anodized**, and a good **color match** is critical. * You prefer better fatigue resistance in the weld. Choose **ER4043** if: * You need superior **fluidity** and **hot cracking resistance** (e.g., for intricate joints or bridging gaps). * The part will *not* be anodized, or the dark weld color is acceptable. * You prioritize ease of welding for a more forgiving process. While both create sound welds on 6061, their differing properties mean they are not truly direct substitutes in every **aluminium fabrication** scenario.
The **impact of post-weld heat treatment** on welds made with these **aluminium wires** varies significantly depending on the alloy type. 1. **Non-Heat-Treatable Alloys (ER1XXX, ER5XXX series):** Welds made with **ER1070, ER1100, ER5183, ER5356, ER5556** are generally not heat-treatable for increased strength. Any heat treatment applied to the base metal will not significantly affect the strength of the weld metal itself. They achieve strength primarily through solid solution strengthening and work hardening. 2. **Silicon-Containing Alloys (ER4XXX series):** Welds made with **ER4043** and **ER4047** are also generally considered non-heat-treatable for strength. While the base metal might be heat-treatable (e.g., 6061), the weld metal's composition (with silicon) means it won't respond to precipitation hardening in the same way, often remaining softer than the parent material after heat treatment. Post-weld heat treatment on **aluminium welds** is typically for stress relief or to restore properties of the **heat-affected zone (HAZ)** of the base material, not primarily for hardening the weld metal itself. Understanding this is crucial for predicting the final mechanical properties of the **aluminium structure**.
When welding **aluminium** (or any metal) near **electronic equipment**, several critical precautions must be taken to prevent damage from electromagnetic interference (EMI) and stray currents.
1. **Distance:** Maintain a safe distance between the welding arc/equipment and sensitive electronics. 2. **Grounding:** Ensure all welding grounds are secure and placed as close to the weld area as possible to minimize stray current paths. Never use the building structure or electronic equipment as a ground. 3. **Shielding:** Use welding blankets or non-conductive barriers to shield electronics from sparks, spatter, and UV radiation. 4. **Power Isolation:** Disconnect electronic equipment from power sources if possible, or use surge protectors. 5. **Inverter Welders:** Modern inverter-based welders can produce more "electrical noise" (EMI) than older transformer-based machines, requiring extra caution. Failure to take these precautions can lead to malfunctions, data loss, or permanent damage to sensitive electronic devices, compromising both the welding operation and the surrounding equipment in **aluminium fabrication** environments.
The **approximate density of welds made with these aluminium wires** will be very close to the density of pure aluminium or the specific **aluminium alloy** they are designed to weld. The density of aluminium and its common alloys is significantly lower than steel, typically around **2.7 g/cm³ (0.0975 lb/in³)**.
Minor variations exist between alloys: * **ER1070 & ER1100 (pure aluminium):** Very close to 2.7 g/cm³. * **ER4043 & ER4047 (silicon-based):** Silicon is lighter than aluminium, so the density might be slightly lower, but negligibly so for most applications. * **ER5183, ER5356, ER5556 (magnesium-based):** Magnesium is even lighter than aluminium, so these alloys might have slightly lower densities, contributing to the lightweight nature of 5XXX series alloys. However, for practical purposes, assuming a density of 2.7 g/cm³ is generally acceptable for estimating the weight of **aluminium welds** and fabricated parts.
Yes, **ER1100 aluminium welding wire** can be used for filling holes in decorative aluminium panels, particularly if the panels are made from pure aluminium (1XXX series) or 3003 alloy. Its key advantages for this application are its **high purity** and resulting **ductility**.
The ER1100 weld metal will provide a good color match with pure aluminium after finishing and can be easily polished or formed to blend seamlessly with the panel. While it is less fluid than silicon-based fillers like ER4043, for filling holes with good fit-up, its properties are suitable. The main consideration is ensuring excellent **pre-weld cleaning** to prevent porosity, as any trapped hydrogen would mar the aesthetic finish of the decorative **aluminium panel weld**.
The impact of using **dirty gloves when welding aluminium** is significant and can lead to severe **weld defects**. Welding gloves, if they've been used for handling steel, oily components, or dirty surfaces, will transfer contaminants directly to the clean **aluminium base metal** or **filler wire**.
These contaminants, such as oil, grease, dirt, or even microscopic ferrous particles, will then be introduced into the molten **aluminium weld puddle**. This can cause a range of problems, including: 1. **Porosity:** Due to hydrogen from moisture/hydrocarbons. 2. **Lack of Fusion:** Contaminants preventing proper wetting. 3. **Reduced Corrosion Resistance:** Especially from ferrous inclusions. 4. **Poor Weld Appearance:** Dirty, discolored, or inconsistent beads. Always ensure gloves are clean and dedicated for **aluminium welding** to prevent contamination and ensure high-quality **aluminium welds**.
**Wire stick-out** (the length of electrode extending beyond the contact tip) significantly affects **MIG welding with aluminium wires**, more so than with steel. An optimal stick-out is crucial for consistent arc stability and penetration.
1. **Too Short Stick-Out:** Can lead to an unstable, sputtering arc, "stubbing" into the puddle, and potentially burnback into the contact tip. It also concentrates heat too much. 2. **Too Long Stick-Out:** Reduces current density, leading to a colder weld, lack of penetration, and potential for more spatter. It also makes the soft aluminium wire more prone to bending or kinking. For aluminium MIG, a relatively **short and consistent stick-out** (typically 1/2 to 3/4 inch or 12-19mm) is generally preferred to maintain arc stability, ensure good shielding gas coverage, and provide proper current transfer for a strong, defect-free **aluminium weld**.
While **ER4043 aluminium welding wire** can fuse with **5083 aluminium**, it is **not the recommended or preferred filler metal for repair of boat hulls made from 5083**. This is a critical distinction for marine applications.
5083 is a high-strength, marine-grade alloy specifically chosen for its superior **saltwater corrosion resistance** and mechanical properties. Using ER4043 (silicon-based) on 5083 can lead to: 1. **Reduced Strength:** The weld will likely be weaker than if a 5XXX series filler were used. 2. **Compromised Corrosion Resistance:** The silicon-rich weld deposit can be more susceptible to corrosion in saltwater environments compared to the high-magnesium 5083 base metal. 3. **Poor Anodizing Match:** If the hull is anodized, the repair will be visibly dark. For robust and durable repairs on 5083 boat hulls, **ER5183** is the industry standard and preferred **aluminium filler metal**, ensuring the integrity and longevity of the **marine aluminium structure**.
The **optimal travel speed for welding ER4047 on thin sections** is generally **fast**. ER4047's high silicon content gives it exceptional **fluidity** and a lower melting point, which means it flows very readily and solidifies quickly. This characteristic allows for rapid travel speeds.
A fast travel speed helps to minimize overall heat input into the thin material, significantly reducing the risk of **burn-through** and **distortion**. It also helps to prevent excessive puddle buildup. However, the speed must be consistent and not so fast that it causes lack of fusion or insufficient penetration. Finding that "sweet spot" ensures that the superior flow properties of **ER4047** are fully utilized to create clean, low-distortion, and aesthetically pleasing **aluminium welds** on thin gauges.
Both **ER5183** and **ER5356 aluminium welding wires** offer very good **general corrosion resistance**, particularly in atmospheric conditions. They are both magnesium-containing alloys, which contribute significantly to their protective oxide layer.
However, **ER5183** generally offers **superior corrosion resistance** in more aggressive environments, specifically **saltwater immersion** and resistance to **stress corrosion cracking (SCC)**, especially when matched with highly corrosion-resistant 5XXX series base metals like 5083. While ER5356 is robust for many applications, for critical marine or highly corrosive environments where maximum resistance is paramount, **ER5183** is typically the preferred **aluminium filler metal**, providing enhanced long-term durability for **aluminium structures** in challenging conditions.
The advantages of using **ER5556 over ER5183 for railway cars** primarily stem from ER5556's enhanced properties tailored for demanding applications that experience high stress and elevated temperatures. While ER5183 is also strong, **ER5556** offers:
1. **Higher Strength:** Often providing slightly higher tensile and yield strength in the weld. 2. **Superior SCC Resistance at Elevated Temps:** Crucially, ER5556 provides enhanced resistance to **stress corrosion cracking** when exposed to sustained temperatures above 65°C (150°F), which can occur in railway cars due to engine heat or environmental factors. 3. **Improved Toughness:** The alloying additions in ER5556 (e.g., higher Mn, Cr) can further improve the toughness of the weld metal. These factors contribute to greater reliability and extended service life for highly stressed components in railway car bogies, frames, or cargo containers, making **ER5556** a premium **aluminium filler metal** for such heavy-duty **aluminium fabrication**.
While you can use a standard MIG welder, you'll generally need **specialized equipment and setup modifications** to successfully weld **aluminium** with these wires. You cannot just swap out steel wire for aluminium wire.
Key requirements include: 1. **Spool Gun or Push-Pull System:** Highly recommended or essential to prevent feeding problems with soft aluminium wire (as discussed in Q.72). 2. **U-Groove Drive Rolls:** To cradle the soft wire without deforming it (as discussed in Q.135). 3. **Non-Metallic Liner:** A Teflon or nylon liner in the gun cable to reduce friction and kinking. 4. **100% Argon Shielding Gas:** Critical for protecting the weld (as discussed in Q.10). 5. **Dedicated Aluminium Contact Tips:** Sized correctly and made of appropriate material (as discussed in Q.141, 146). Without these modifications, you'll likely face persistent wire feeding issues and poor **weld quality** when attempting **aluminium MIG welding**.
The **types of joint designs generally preferred for aluminium welding** are similar to those for steel but with considerations for aluminium's properties (high thermal conductivity, oxide layer, fluidity). Common designs include:
1. **Butt Joint:** For aligning two pieces in the same plane. Square butt for thin materials, V-groove (single or double) for thicker sections requiring full penetration. 2. **Lap Joint:** Overlapping two pieces. Easy to fit up and can hide unsightly welds. Often used for thin sheet applications. 3. **T-Joint (Fillet Weld):** Joining two pieces perpendicular to each other. 4. **Corner Joint (Fillet or Bevel):** Joining at a right angle. 5. **Flange Joint:** For very thin materials, creating a small flange can provide a shelf for the weld puddle and reduce burn-through. Proper preparation of these joints, including cleaning and sometimes preheating, is crucial for achieving full penetration and sound **aluminium welds** with the chosen **aluminium filler metal**.
Yes, **ER1070 aluminium welding wire** is an **excellent choice for electrical grounding components** due to its very high purity (99.7% aluminium) which ensures exceptional **electrical conductivity**. This property is paramount for grounding applications where minimal resistance is required to safely dissipate electrical current.
The pure aluminium weld deposit also provides excellent **corrosion resistance** in many atmospheric conditions, ensuring the longevity of the electrical connection. For fabricating bus bars, grounding straps, or other highly conductive parts, **ER1070** provides reliable, low-resistance **aluminium welds**, making it a preferred **filler metal** for electrical engineering and utility applications.
Yes, **ER1100 aluminium welding wire** produces a weld that can be **formed or bent extensively after welding**. This is one of its primary advantages, owing to its very high purity (99% aluminium) and resulting inherent **ductility**.
Unlike alloyed aluminium welds (especially silicon-containing ones), welds made with ER1100 are relatively soft and highly malleable. This makes it an ideal **filler metal** for applications where post-weld fabrication, such as deep drawing, spinning, or severe bending, is required without the risk of the weld cracking. While it provides low strength, its exceptional formability makes it a preferred choice for artistic work, architectural details, and certain non-structural components in **aluminium fabrication**.
**Too little wire feed speed** in **MIG aluminium welding** will result in several detrimental effects on the weld quality and performance. Since wire feed speed directly correlates to amperage in MIG welding, reducing it means you're welding with too low a current for the chosen voltage.
This typically leads to: 1. **Lack of Fusion/Penetration:** Not enough heat to melt the base metal edges or properly penetrate. 2. **Ropy, Convex Bead:** A narrow, high bead that sits on top of the material rather than fusing into it. 3. **Unstable Arc:** The arc may become erratic, sputtering, and difficult to maintain. 4. **Increased Spatter:** Poor arc characteristics often lead to more spatter. 5. **Poor Weld Strength:** Due to inadequate fusion. Optimal wire feed speed is crucial for achieving a stable arc, good penetration, and a sound **aluminium MIG weld** with any **aluminium welding wire**.
Yes, there are **specific cleaning agents to avoid before aluminium welding** because they can introduce contaminants that lead to severe **weld defects**. Crucially, avoid:
1. **Chlorinated Solvents:** (e.g., trichloroethylene, perchloroethylene, carbon tetrachloride). These can break down in the heat of the arc to form highly toxic phosgene gas, which is extremely dangerous. They can also leave residues that cause porosity. 2. **Household Cleaners/Detergents:** Many contain soaps, oils, or other residues that will introduce hydrogen and other contaminants into the weld. 3. **Wire Brushes used for Steel:** As discussed, this causes ferrous contamination. Always use **dedicated solvents** like acetone, methyl ethyl ketone (MEK), or specialized aluminium cleaners. Ensure they evaporate completely before welding. Proper cleaning with appropriate agents is paramount for achieving a high-quality, defect-free **aluminium weld** with any **aluminium filler metal**.
**Arc wander** (also known as arc instability) significantly impacts **aluminium weld consistency**, leading to various defects and a visually poor weld bead. Arc wander is when the welding arc deviates unpredictably from its intended path.
In aluminium welding, common causes include: 1. **Contaminated Wire/Tip:** Oxide or dirt on the wire, or a dirty/worn contact tip, causes erratic electrical contact. 2. **Inconsistent Wire Feed Speed:** Leads to constant changes in arc length and voltage. 3. **Poor Shielding Gas Coverage:** Air currents disrupting the arc. 4. **Arc Blow:** Though less common in aluminium, strong magnetic fields can deflect the arc. Arc wander results in inconsistent penetration, uneven bead width, increased **porosity**, and higher spatter. Maintaining a stable arc is fundamental for producing uniform, high-quality **aluminium welds** with consistent **weld integrity**.
Yes, **ER4047 aluminium welding wire** is **very commonly used for automotive intercoolers** and other heat exchange components. Intercoolers, like radiators, consist of many thin-walled tubes and fins made from aluminium alloys, often 3XXX or 6XXX series.
ER4047's high silicon content (11-13%) is perfectly suited for this application due to its: 1. **Exceptional Fluidity:** Allows it to flow readily into the intricate, tight joints and small gaps of intercooler cores, forming strong, leak-proof bonds via capillary action, often resembling a brazing process. 2. **Lower Melting Point:** Minimizes distortion and burn-through on thin materials. 3. **Crack Resistance:** Helps prevent solidification cracking in complex structures. These properties make **ER4047** an ideal **filler metal** for efficiently and reliably fabricating high-performance **aluminium intercoolers** where intricate, high-quality joints are paramount.
**Surface preparation for aluminium welding** is equally critical for both TIG and MIG, but there can be slight differences in emphasis. For **TIG welding**, given its more precise and controlled arc, **absolute meticulous cleanliness** is paramount.
Any surface oxide or contamination is very noticeable and can immediately lead to tungsten contamination or **porosity**. For **MIG welding**, while cleaning is still vital, the higher deposition rates and more vigorous arc can sometimes tolerate *slightly* less-than-perfect surface conditions compared to TIG, but this is not an excuse for poor preparation. In both cases, the steps remain the same: mechanical removal of the **aluminium oxide layer** (dedicated stainless steel brush) followed by solvent degreasing (acetone) immediately before welding. Proper surface preparation is the foundation for sound **aluminium welds** regardless of the process.
The **general current ranges** for these **aluminium welding wires** depend heavily on the wire diameter and the specific welding process (MIG vs. TIG). For **MIG welding** (using DCEP), approximate ranges for common diameters are: * **0.8mm (0.030"):** 60 - 150 Amps * **1.0mm (0.035"):** 80 - 200 Amps * **1.2mm (0.045"):** 150 - 250 Amps * **1.6mm (0.062"):** 200 - 350 Amps (or more for heavy sections) For **TIG welding** (using AC), the amperage is typically determined by the material thickness, joint type, and tungsten size. For example, 1.6mm (1/16") aluminium might use 80-150 Amps, while 6mm (1/4") could require 200-300+ Amps. Always refer to **welding procedure specifications (WPS)** or manufacturer recommendations for precise settings for your chosen **aluminium filler metal** and application to ensure optimal **weld quality**.
Yes, **ER5183 aluminium welding wire** can be **easily polished to a bright finish** after welding. Unlike silicon-containing alloys (ER4043, ER4047) which turn dark gray, the magnesium in ER5183 forms an oxide that is much more amenable to polishing and will maintain a similar bright appearance to the parent 5XXX series alloys.
This makes it a preferred **filler metal** for applications where aesthetic appearance is important, such as marine structures, architectural components, or decorative elements where a uniform polished look is desired. While it won't be as bright as pure aluminium (ER1070), it offers a very good match for the polished finish of common 5XXX series base metals after the **aluminium weld** is completed and cleaned.
**Excessive amperage** in **aluminium welding** (regardless of wire type) has several negative impacts due to aluminium's high thermal conductivity and low melting point.
It leads to: 1. **Burn-through:** Especially on thinner materials, causing holes in the workpiece. 2. **Excessive Penetration:** A very wide and deep weld pool that can be difficult to control. 3. **Increased Distortion:** More heat input means more expansion and contraction, leading to warping. 4. **Large Grain Structure:** Reduces mechanical properties like strength and ductility. 5. **Increased Porosity:** A very hot puddle stays molten longer, allowing more time for hydrogen absorption. 6. **Excessive Spatter:** Uncontrolled arc can throw off molten metal. Optimizing amperage for the specific **aluminium alloy**, thickness, and joint configuration is crucial for preventing these **weld defects** and achieving a sound, high-quality **aluminium weld**.
For **MIG aluminium welding**, **short-circuit transfer mode is generally NOT recommended** and is rarely used, especially with the common **aluminium welding wires** like ER4043 or ER5356. This is primarily due to aluminium's properties.
Short-circuit transfer involves the wire repeatedly shorting to the puddle, then melting back. This process is: 1. **Too Cold:** Doesn't provide enough consistent heat to adequately melt the base metal and overcome aluminium's high thermal conductivity, leading to **lack of fusion** and poor penetration. 2. **Prone to Porosity:** The stop-start action can trap more gases. 3. **Causes Excessive Spatter:** Leads to a very messy weld. For aluminium, **spray transfer** or **pulsed spray transfer** are the preferred modes. These provide consistent, hot arcs that produce smooth, well-fused **aluminium welds** with minimal spatter. Avoid short-circuit transfer for quality **aluminium MIG welding**.
The main differences between **ER1070** and **ER1100 aluminium welding wires** are subtle but important, primarily revolving around their purity levels. **ER1070** is defined as having a minimum of **99.7% pure aluminium**, while **ER1100** has a minimum of **99.0% pure aluminium**.
This means ER1070 is a slightly purer grade. For most practical applications involving pure aluminium base metals (like 1060, 1100, 1350), both wires will perform very similarly, offering excellent **electrical conductivity**, **corrosion resistance**, and **ductility**. However, for extremely critical electrical applications or ultra-high purity requirements where even minor alloying elements are detrimental, **ER1070** might be specified for its marginally higher purity. For general pure aluminium welding, ER1100 is often a more common and readily available **filler metal** choice.
Yes, **ER4043 aluminium welding wire** can be used for welding **automotive exhaust systems** if they are made from aluminium. Many aftermarket performance exhaust systems are made from 6061 or similar heat-treatable aluminium alloys.
ER4043 is a good choice for this due to its excellent **fluidity** and resistance to **hot cracking**, which helps create sound welds on thin-walled tubing and intricate bends. While it provides good strength, one consideration is that exhaust systems experience heat cycles. While ER4043 welds are stable, for extreme high-temperature environments, specialized high-temperature stainless steels are often preferred. However, for many performance aluminium exhaust applications, **ER4043** provides reliable and durable **aluminium welds**.
The impact of **incorrect shielding gas nozzle size** is significant for **aluminium welding** and can lead to severe **weld defects**. The nozzle's primary purpose is to deliver a smooth, laminar flow of shielding gas to protect the molten weld pool.
1. **Too Small Nozzle:** Inadequate coverage for the weld area, allowing atmospheric contamination (oxygen, nitrogen, moisture) to enter, leading to **porosity**, oxidation, and poor weld quality. 2. **Too Large Nozzle:** Can lead to turbulent gas flow, which pulls ambient air into the shield, again causing contamination and porosity. Also wastes gas. The nozzle size should be selected based on the amperage, joint type, and desired coverage area. A properly sized nozzle is crucial for achieving consistent, effective shielding gas coverage and producing high-quality, defect-free **aluminium welds** with any **aluminium filler metal**.
Yes, **ER4047 aluminium welding wire** is an **excellent and often preferred filler metal for filling casting defects on large aluminium engine blocks**. Engine blocks are typically made from silicon-rich cast aluminium alloys (e.g., A356, A380, A319), for which ER4047 is metallurgically well-suited.
Its very high silicon content (11-13%) provides exceptional **fluidity** and a low melting point, allowing it to flow deep into intricate casting pores and cracks, effectively filling them without excessive heat input to the surrounding material. It also offers superior resistance to **hot cracking**, which is crucial when repairing complex and often internally stressed castings. This makes **ER4047** a highly effective choice for restoring the integrity and surface quality of **aluminium engine block castings**, ensuring durable **aluminium repairs**.
**ER5183** and **ER4047 aluminium welding wires** are at opposite ends of the spectrum in terms of **fluidity**. **ER4047**, with its 11-13% silicon, boasts **exceptionally high fluidity**. Its weld puddle is very "wet" and flows extremely easily, making it ideal for brazing and filling intricate gaps.
Conversely, **ER5183**, being a magnesium-rich alloy (4.5-5.5% Mg) with no silicon, has **significantly lower fluidity**. Its weld puddle tends to be thicker and more viscous. While it provides high strength and corrosion resistance, it doesn't flow as readily as ER4047 and requires more direct manipulation by the welder. This difference in fluidity is a primary factor in choosing between these two **aluminium filler metals** based on the joint type and desired puddle characteristics in **aluminium welding**.
ER5356 aluminium welding wire is considered a good **general-purpose aluminium welding wire** due to its balanced combination of desirable properties and broad compatibility.
1. **Versatile Base Metal Compatibility:** It's suitable for welding both 6XXX series heat-treatable alloys (like 6061) and various 5XXX series non-heat-treatable alloys (like 5052, 5086), covering a large portion of common **aluminium fabrication**. 2. **Good Strength and Ductility:** Provides a strong yet ductile weld deposit suitable for many structural and semi-structural applications. 3. **Excellent Anodizing Match:** Crucially, it provides a good **color match after anodizing**, which is important for aesthetic applications. 4. **Good Corrosion Resistance:** Offers reliable performance in general atmospheric conditions. This combination of properties makes **ER5356** a highly versatile and frequently chosen **aluminium filler metal** for workshops and industrial settings needing one wire for multiple applications, especially when silicon discoloration is an issue.
**Wire package size** directly relates to **welding shop efficiency** by impacting downtime for spool changes. Larger package sizes (e.g., 16kg or 20kg spools for MIG welding) mean fewer wire changes.
In a high-volume production environment, frequent interruptions to change smaller spools (e.g., 2kg or 6.5kg) can accumulate into significant lost productivity and labor costs. Larger spools offer extended run times, reducing non-welding activities. Conversely, for small shops, portable welders, or specialized projects, smaller spool sizes might be more practical for storage and initial cost. The optimal package size balances material handling, storage capacity, and the specific production volume of the **aluminium fabrication** operation to maximize overall efficiency and minimize downtime for **aluminium welding**.
In **TIG aluminium welding**, **insufficient electrode stick-out** (the length of the tungsten electrode extending beyond the gas cup) can have several negative impacts on **weld quality** and arc performance.
1. **Poor Shielding Gas Coverage:** A very short stick-out means the gas cup might block the flow of shielding gas around the arc and weld puddle, leading to atmospheric contamination, **porosity**, and oxidation. 2. **Limited Visibility:** It becomes harder for the welder to see the arc and puddle clearly, hindering control. 3. **Tungsten Contamination:** The tungsten might accidentally dip into the molten puddle more easily, contaminating the weld. 4. **Arc Constriction:** Can make the arc too constricted, leading to a narrower, less stable puddle. A general guideline for AC TIG welding aluminium is to have the tungsten stick out 1 to 1.5 times the diameter of the tungsten, adjusted for joint access. Proper stick-out ensures optimal gas coverage and precise control for high-quality **aluminium TIG welds**.
While **ER5556 aluminium welding wire** *can* be used to weld **6061 aluminium**, it's generally **over-specified for general-purpose applications** and not the most common choice. **ER5356** is typically the preferred filler for 6061.
ER5556 offers enhanced strength and superior **stress corrosion cracking resistance** at elevated temperatures, properties that are usually not critical for most general 6061 fabrication tasks. Using ER5556 might lead to higher material costs without providing a proportional benefit in performance for standard applications. For routine 6061 welding, **ER5356** offers an excellent balance of strength, ductility, and good post-anodizing color match, making it a more economical and appropriate **aluminium filler metal** for general **aluminium fabrication**.
The **importance of grounding technique in aluminium welding** is paramount for ensuring **weld quality**, arc stability, and welder safety. Proper grounding ensures a complete and efficient electrical circuit for the welding current. 1. **Clean Connection:** The ground clamp must be connected to a clean, bare metal surface on the workpiece, free of paint, oil, or oxide. A poor connection increases resistance and can cause arc instability, overheating, and inconsistent welds. 2. **Close Proximity:** Placing the ground clamp as close to the weld area as practical minimizes current path resistance, reduces the risk of **arc blow** (though less common with aluminium), and prevents stray currents from damaging other equipment. 3. **Dedicated Ground:** Never use structural components of buildings or other equipment as part of the welding circuit. Effective grounding ensures consistent current flow to the arc, leading to a stable and predictable **aluminium weld** with any **aluminium welding wire**.
When comparing **ER1070** and **ER4043** regarding **post-weld anodizing**, there's a significant visual difference. **ER1070**, being highly pure aluminium, will generally **anodize to a very similar color as pure aluminium base metals**, maintaining a bright and consistent finish.
Conversely, **ER4043**, due to its 5% silicon content, will react differently during the anodizing process. The silicon phases in the weld metal do not anodize like aluminium and will appear as a distinct **dark gray to black color** in contrast to the surrounding anodized base metal. This stark difference makes ER4043 unsuitable for applications where a uniform, aesthetically consistent anodized finish is required across the entire **aluminium fabricated** part. For such cases, a magnesium-containing filler (e.g., ER5356) or pure aluminium filler is preferred.
Yes, **ER1100 aluminium welding wire** is **moderately prone to hot cracking**, particularly if not used with compatible pure aluminium base metals or if excessive restraint is applied to the joint. While it is pure aluminium, its solidification characteristics can still lead to cracking if the weld pool solidifies under significant tensile stress.
The susceptibility increases when welding thicker sections or in highly restrained joints where the material cannot easily contract during cooling. For this reason, meticulous joint preparation, proper fit-up, and sometimes preheating for thicker materials are important to minimize cracking. Compared to silicon-rich alloys like ER4043, which are specifically designed to be crack-resistant, **ER1100** does require more careful consideration to prevent **solidification cracking** in the **aluminium weld**.
**Welding aluminium in windy outdoor conditions** presents significant challenges due to the critical need for effective **shielding gas coverage**. Even a light breeze can disrupt the gas shield around the arc and molten weld pool.
This disruption allows ambient air (containing oxygen, nitrogen, and moisture) to contaminate the weld, leading to severe **porosity**, oxidation, black sooting (especially with 5XXX series wires), and an unstable arc. Such defects severely compromise **weld quality** and mechanical properties. To mitigate these challenges: 1. **Use Wind Screens:** Erect physical barriers to block direct wind. 2. **Increase Gas Flow:** Slightly increase shielding gas flow rate (with caution to avoid turbulence). 3. **Larger Nozzle/Gas Lens:** Use a larger gas cup or a gas lens to provide a broader, more stable gas envelope. 4. **Shorter Arc Length:** Keep the arc tight to minimize exposure. Controlling environmental factors is crucial for successful **outdoor aluminium welding** with any **aluminium filler metal**.
The **current waveform** (e.g., square wave, sine wave, advanced square wave) significantly affects **AC TIG welding** performance, especially for **aluminium**. Older machines used a basic sine wave, while modern inverters offer more advanced waveforms.
1. **Sine Wave:** Provides a balanced cleaning and penetration, but has slower transitions between positive and negative cycles, leading to a wider, less focused arc and less efficient oxide cleaning. 2. **Square Wave (Conventional):** Offers sharper transitions, leading to a more stable, focused arc, better cleaning action, and improved penetration. 3. **Advanced Square Wave (Balanced/Unbalanced):** Modern inverters allow precise control over the duration of the electrode positive (cleaning) and electrode negative (penetration) cycles. A more electrode negative bias gives deeper penetration and less cleaning action, while more electrode positive gives stronger cleaning but less penetration. Controlling the waveform is key to optimizing arc characteristics, heat input, oxide cleaning, and ultimately, **weld quality** for **aluminium TIG welding** with these **filler metals**.
Using **ER4047 aluminium welding wire** (high silicon) with **ER5183 base metal** (high magnesium) is **generally not recommended** and can lead to very poor **weld quality** and joint integrity. This combination is metallurgically incompatible.
The high silicon from the ER4047 filler will react with the high magnesium from the ER5183 base metal in the molten weld pool. This can lead to the formation of brittle **intermetallic compounds** (like Mg2Si) within the weld microstructure. These brittle phases significantly increase the risk of **hot cracking** (solidification cracking) and result in a weld that has very poor ductility, low strength, and compromised corrosion resistance. For welding ER5183 base metal, its compatible **filler metal** is typically **ER5183** itself, or possibly **ER5556** for specific enhanced properties, ensuring a robust and reliable **aluminium weld**.
**Material thickness** significantly influences the choice between **MIG (GMAW)** and **TIG (GTAW)** for **aluminium welding**.
1. **Thin Materials (e.g., < 3mm or 1/8 inch):** **TIG welding** is often preferred due to its superior control over heat input and precise puddle manipulation, minimizing burn-through and distortion. Pulsed MIG can also be effective. 2. **Medium to Thick Materials (e.g., 3mm - 12mm or 1/8 - 1/2 inch):** **MIG welding** (especially pulsed MIG) becomes very efficient for these thicknesses due to higher deposition rates and faster travel speeds. TIG is still viable but slower. 3. **Very Thick Materials (e.g., > 12mm or 1/2 inch):** **MIG welding** with larger diameter wires and higher amperages (often with argon-helium mixes) is usually the most productive choice due to its higher deposition rates. Multi-pass welding is common. The choice between processes also depends on the required **weld quality**, desired aesthetics, and welder skill, but thickness is a primary factor in determining the most efficient and effective **aluminium welding process** for a given **aluminium filler metal**.
**Common joint preparation techniques for TIG welding aluminium with rods** emphasize meticulous cleanliness and precise fit-up to ensure optimal weld quality. 1. **Mechanical Cleaning:** Essential. Use a dedicated stainless steel wire brush to physically remove the tenacious **aluminium oxide layer** from the weld edges and adjacent surfaces (at least 1 inch on either side). 2. **Degreasing:** Immediately after brushing, wipe the joint thoroughly with a clean, lint-free cloth saturated with a solvent like acetone to remove any oils, grease, or contaminants. Let it fully evaporate. 3. **Edge Preparation:** For thicknesses over 3mm (1/8 inch), **beveling** (V-groove or J-groove) is necessary for full penetration. For thinner materials, a square butt joint or lap joint is common. 4. **Fit-up:** Maintain tight, consistent fit-up to minimize gaps, which can cause burn-through or excessive heat input. 5. **Backing:** For full penetration, use a copper or aluminium backing bar to support the puddle and draw heat away. These steps are crucial for preventing **porosity** and achieving sound **aluminium TIG welds** with any **aluminium welding rod**.
Yes, **ER5356 aluminium welding wire** is **commonly and widely used for welding marine structural components**, particularly for smaller boats, pleasure crafts, and non-critical structural elements in larger vessels. It provides an excellent balance of properties suitable for the marine environment.
It offers good **tensile strength** and **ductility**, making it capable of handling structural loads. Importantly, it has good **corrosion resistance** in general atmospheric and mild saltwater conditions, providing reliable long-term performance. While **ER5183** is considered superior for highly critical marine structures (e.g., high-speed ferries, offshore platforms) due to its enhanced **stress corrosion cracking resistance** and higher strength on 5083 base metals, **ER5356** remains a very popular and effective **aluminium filler metal** for a vast array of marine **aluminium fabrication** applications where its properties are sufficient.
The role of **silicon in improving hot cracking resistance in ER4043 aluminium welding wire** is a critical metallurgical phenomenon. When aluminium alloys solidify, they pass through a "pasty" range where some liquid remains between the solidifying dendrites.
If tensile stresses develop during this pasty stage, **hot cracking** (also known as solidification cracking) can occur. Silicon, at about 5% concentration in ER4043, effectively **narrows the solidification temperature range** of the weld metal. More importantly, it forms a low-melting point eutectic that is the *last* to solidify and preferentially fills these intergranular liquid films, essentially "feeding" the solidification shrinkage and preventing the formation of tensile tears. This makes **ER4043** much less susceptible to hot cracking compared to pure aluminium or some other alloy combinations, contributing significantly to its versatility as an **aluminium filler metal**.
**Improper preheating of aluminium** can lead to several types of **weld defects**, particularly when welding thicker sections or highly restrained joints. These include:
1. **Cold Cracking (Hydrogen-Induced Cracking):** If the cooling rate is too rapid without sufficient preheat, hydrogen (from moisture) can become entrapped in the solidifying weld and HAZ, leading to embrittlement and cracking. 2. **Lack of Fusion/Incomplete Penetration:** Insufficient preheat can cause the base metal to act as a significant heat sink, preventing proper melting of joint edges and leading to poor fusion. 3. **Excessive Distortion/Warping:** Uneven or localized preheating can create significant temperature differentials, exacerbating thermal stresses and leading to increased distortion. 4. **Poor Bead Profile:** The weld puddle might be sluggish and difficult to control without proper preheat, resulting in an inconsistent bead. Correct **preheating** for the specific **aluminium alloy** and thickness is crucial for achieving sound, defect-free **aluminium welds** and preventing these issues with any **aluminium welding wire**.
Yes, **ER5556 aluminium welding wire** can be a suitable **filler metal for repair of aircraft ground support equipment**, especially if the equipment is made from high-strength 5XXX series aluminium alloys or requires robust structural integrity.
Ground support equipment often undergoes significant stress, impact, and wear, and may be exposed to varying temperatures. **ER5556**'s superior **tensile strength** and enhanced **stress corrosion cracking resistance** at elevated temperatures make it a good choice for critical repairs where the component needs to maintain its strength and durability. However, it's crucial to confirm the base metal alloy of the specific equipment. For general purpose repairs on 6061 or similar, **ER5356** might be more common and economical, but for high-stress or high-temperature components, **ER5556** provides a more robust **aluminium weld**.
**Excessive stick-out** of the tungsten electrode in **TIG aluminium welding** can have several negative impacts on **weld quality** and control. If the tungsten extends too far beyond the gas cup:
1. **Poor Shielding Gas Coverage:** The gas shield becomes less effective, allowing ambient air to contaminate the weld puddle and tungsten, leading to **porosity**, oxidation, and a dirty weld. 2. **Arc Instability:** A very long stick-out can make the arc less stable and more prone to wandering. 3. **Tungsten Contamination:** The exposed tungsten is more susceptible to contamination from spatter or atmospheric elements, potentially degrading the weld. 4. **Reduced Penetration/Control:** The arc becomes less focused and harder to direct, impacting penetration depth and bead profile. Maintaining an optimal stick-out (typically 1 to 1.5 times the tungsten diameter, or adjusted for joint access) is vital for achieving a stable arc, effective gas coverage, and high-quality **aluminium TIG welds**.
A **pulsed power source** is highly beneficial for welding **ER5183 aluminium welding wire** (especially with MIG) because it helps to mitigate some of the challenges associated with high-magnesium alloys and provides enhanced control over the welding process.
1. **Better Puddle Control:** The pulsing action allows the weld puddle to cool slightly between high-current pulses, making it easier to control, especially in out-of-position welds or on complex geometries. This reduces sagging and burn-through. 2. **Reduced Heat Input:** Lower average amperage minimizes overall heat input, which is crucial for preventing excessive distortion and maintaining the mechanical properties of the **heat-affected zone (HAZ)** in high-strength alloys like 5083. 3. **Minimized Sooting:** By providing more consistent arc characteristics and better control, pulsing can help reduce the formation of magnesium oxide (soot). 4. **Improved Penetration and Fusion:** Consistent, well-controlled pulses ensure adequate penetration and good fusion without overheating. These benefits lead to higher quality, more consistent **ER5183 aluminium welds**.
The **cooling rate** significantly affects **cracking in aluminium welds**, playing a critical role in both **hot cracking (solidification cracking)** and sometimes **cold cracking** (though less common in aluminium than steel).
1. **Hot Cracking:** If the weld cools too slowly, or if the solidification range of the alloy creates a prolonged "pasty" stage, it increases the risk of hot cracking under restraint. Conversely, very rapid cooling can also exacerbate hot cracking by not allowing time for liquid films to fill shrinkage voids. An optimal cooling rate is needed. 2. **Cold Cracking:** Extremely rapid cooling (e.g., inadequate preheat on thick sections, or insufficient heat input) can lead to residual stresses and potentially trap hydrogen, contributing to a form of hydrogen-induced cracking, especially in certain susceptible alloys. Controlling the cooling rate through proper heat input, interpass temperature (for multi-pass welds), and sometimes post-weld heating (stress relief) is crucial for preventing defects and achieving sound **aluminium welds** with any **aluminium filler metal**.
**Welding aluminium components for aerospace** demands extremely rigorous standards and highly specialized considerations, often favoring friction stir welding over arc welding for primary structures. When arc welding is used, considerations for these wires include:
1. **Filler Metal Selection:** Often, high-strength 5XXX series alloys like **ER5183** or **ER5556** are chosen for their strength, fatigue resistance, and corrosion properties. However, many aerospace alloys (e.g., 2XXX, 7XXX) are often considered "non-weldable" with conventional arc welding due to **hot cracking**. 2. **Impeccable Cleanliness:** Absolutely critical to prevent **porosity** and inclusions. Aerospace standards are extremely strict. 3. **Precise Parameter Control:** Automated or robotic welding is often preferred for consistency and repeatability. 4. **Extensive NDT (Non-Destructive Testing):** All welds typically undergo radiographic, ultrasonic, or penetrant testing to ensure internal **weld integrity**. 5. **Post-Weld Heat Treatment:** If applicable to the base metal, specific post-weld heat treatments are precisely controlled to optimize properties in the HAZ. The focus is always on achieving zero-defect welds due to the critical nature of aerospace applications, driving the choice of specialized **aluminium welding processes** and **filler metals**.
A **dry welding environment** is absolutely crucial for **aluminium welding** due to aluminium's extremely high affinity for hydrogen, which is readily introduced from moisture. Any moisture present (from humid air, damp surfaces, or even dirty gloves) will dissociate in the welding arc, releasing hydrogen.
This hydrogen then becomes entrapped in the rapidly solidifying **aluminium weld pool**, leading to pervasive **porosity** (small holes in the weld). Porosity severely compromises the mechanical strength, fatigue life, and corrosion resistance of the weld. Therefore, maintaining a low-humidity environment, proper storage of **aluminium welding wires** in sealed packaging, and meticulous pre-weld cleaning to remove all moisture are non-negotiable practices for producing sound, defect-free **aluminium welds**.
Yes, **ER4043 aluminium welding wire** is often a suitable and popular choice for the **repair of vintage aluminium motorcycle frames**. Many older frames were fabricated from alloys like 6061, 3003, or even simpler cast aluminium components.
ER4043's excellent **fluidity** and strong resistance to **hot cracking** make it very forgiving for general repair work, especially where the exact base metal alloy might be unknown or inconsistent. It provides a good balance of strength for these applications. While **ER5356** might offer a better color match if the frame is to be polished or anodized, for general structural repair where a strong, crack-resistant weld is the priority, **ER4043** is a reliable and versatile **aluminium filler metal** for restoring the integrity of **vintage aluminium frames**.
The **advantages of using larger diameter aluminium welding wires** (e.g., 1.2mm, 1.6mm) primarily revolve around **increased productivity** and **penetration**, making them suitable for thicker materials and high-volume fabrication.
1. **Higher Deposition Rates:** Larger wires can carry more current, allowing for faster wire feed speeds and thus depositing more weld metal per unit of time. 2. **Deeper Penetration:** The increased current and heat input lead to deeper penetration, ideal for welding thicker aluminium sections in fewer passes. 3. **Reduced Arc Blow:** Less susceptible to arc wander. 4. **Better Feedability (for longer runs):** Can sometimes be less prone to kinking than very small diameters over long runs, though proper equipment is still critical. These advantages make larger diameter wires more efficient for heavy-duty **aluminium fabrication**, but they require more heat input and greater control from the welder compared to smaller diameters, influencing the choice of **aluminium welding wire** for specific applications.
Choosing the **best aluminium welding wire for your specific project** requires considering several key factors in a systematic way. 1. **Base Metal Alloy:** This is the most critical factor. Identify the exact **aluminium alloy** of your workpiece (e.g., 6061, 5052, 5083, cast 356.0). Filler metals are designed for compatibility. 2. **Desired Mechanical Properties:** What strength, ductility, and toughness do you need in the weld? High strength (ER5183, ER5556), general purpose (ER5356, ER4043), or high ductility/purity (ER1070, ER1100)? 3. **Service Environment:** Will the part be exposed to saltwater, elevated temperatures, or chemicals? (e.g., ER5183/ER5556 for marine/cryogenic, ER1070 for chemical purity). 4. **Post-Weld Finishing:** Will the part be anodized? If so, prioritize **ER5356** (good color match) or ER1XXX series. Avoid 4XXX series (dark after anodizing). 5. **Welding Process:** MIG or TIG? (influences wire form, e.g., spools vs. rods). 6. **Joint Design & Thickness:** Influences wire diameter, and fluidity needs (e.g., ER4047 for thin or intricate joints/brazing). 7. **Hot Cracking Susceptibility:** If the base metal is prone, choose a crack-resistant filler like **ER4043** or **ER4047**. By carefully evaluating these points, you can select the optimal **aluminium filler metal** to ensure the success and integrity of your **aluminium welding** project.
