Views: 0 Author: Site Editor Publish Time: 2025-07-30 Origin: Site
"ER" stands for Electrode Rod, indicating a bare wire suitable for Gas Metal Arc Welding (GMAW or MIG) or Gas Tungsten Arc Welding (GTAW or TIG). This designation is standard across various metal types and is crucial for identifying **stainless steel filler metals**.
ER308 is the most common **stainless steel welding wire** for general-purpose welding of **304 and 304L stainless steels**. It provides a weld deposit with a balanced ferrite content, offering good corrosion resistance and strength. It's widely used in food processing, chemical, and architectural applications. It's the standard for **austenitic stainless steel fabrication**.
ER308L contains a **lower carbon content** (L stands for Low Carbon) than ER308. This reduced carbon minimizes the precipitation of chromium carbides during welding, which helps prevent **intergranular corrosion** in the heat-affected zone (HAZ) of the weld. It's primarily used for welding 304L stainless steel and when post-weld annealing is not feasible. It's crucial for **corrosion-resistant stainless steel welds**.
ER316 (and its low carbon variant ER316L) contains **molybdenum (Mo)**, which significantly enhances its **resistance to pitting and crevice corrosion**, especially in chloride-containing environments (like saltwater or certain chemical solutions). It's the preferred choice for welding 316 and 316L stainless steels, commonly found in marine, pharmaceutical, and chemical processing industries. It’s ideal for **high-corrosion environments**.
ER309 is primarily used for **joining dissimilar metals**, specifically welding **stainless steel to carbon steel or low-alloy steels**. Its high chromium and nickel content allows it to tolerate dilution from the dissimilar base metals while still providing a relatively robust, corrosion-resistant stainless steel weld. It's a versatile choice for **transition joints**.
Similar to the 308/308L distinction, ER309L has a **lower carbon content** than ER309. This low carbon helps to prevent chromium carbide precipitation, making it ideal for joining dissimilar metals where **intergranular corrosion resistance** is critical, or where post-weld heat treatment is not possible. It's a safer choice for corrosion-sensitive **dissimilar metal welding**.
ER310 is a **high-chromium, high-nickel austenitic stainless steel wire** designed for applications requiring excellent **high-temperature strength and oxidation resistance**. It's often used for welding 310 stainless steel, and also for joining dissimilar metals where service temperatures are elevated, such as in furnace parts, heat exchangers, and annealing boxes. It's specifically for **high-heat stainless steel applications**.
ER312 is a unique **duplex-type filler metal** known for its **high strength and crack resistance**, particularly when welding hard-to-weld steels or dissimilar combinations that are prone to hot cracking. It produces a weld deposit with a high ferrite content (up to 40%), which minimizes solidification cracking. It's excellent for **repairing unknown stainless steels** or difficult-to-weld alloys.
ER321 is a **titanium-stabilized stainless steel wire** used for welding 321 stainless steel. The titanium in the filler metal (and base metal) ties up carbon, preventing the formation of chromium carbides and thus **intergranular corrosion**, especially in applications exposed to high temperatures (above 800°F or 427°C) for extended periods. It's ideal for **stabilized stainless steel welding** in high-temp service.
Both ER321 and ER347 are **stabilized stainless steel wires** designed to prevent intergranular corrosion. ER321 uses **titanium** for stabilization, while ER347 uses **niobium (columbium)**. ER347 is generally preferred for heavier sections or when post-weld annealing is involved, as niobium offers more effective stabilization than titanium, especially at higher temperatures. Both are for **high-temperature corrosion resistance**.
ER410 and ER430 are **ferritic or martensitic stainless steel welding wires**.
**ER410:** A **martensitic** wire used for welding 410 stainless steel and similar alloys. It requires preheat and post-weld heat treatment (PWHT) to achieve ductility and toughness. Common in turbine components and valve repair.
**ER430:** A **ferritic** wire used for welding 430 stainless steel. It offers good corrosion resistance in mild environments but has limited ductility in the as-welded condition and is prone to grain growth in the HAZ. Used in architectural trim or automotive exhaust systems.
These are distinctly different from the austenitic 300 series wires, used for **400 series stainless steel applications**.
ER2209 is a **duplex stainless steel welding wire** designed for welding 2205 duplex stainless steel. It's called "duplex" because its microstructure contains a balanced mix of **austenite and ferrite phases**, typically around 50/50. This unique structure provides an excellent combination of **high strength, superior resistance to stress corrosion cracking, and good pitting corrosion resistance**, making it ideal for aggressive environments. It's a high-performance **specialty stainless steel wire**.
The "LSi" suffix indicates **low carbon content** (L) and **higher silicon content** (Si) compared to their non-Si counterparts (e.g., ER308L vs. ER308LSi). The higher silicon content improves the **wetting action and fluidity of the weld puddle**, leading to a smoother bead, better tie-in, and reduced spatter, especially beneficial for automated or high-speed welding processes. It's preferred for **improved weldability and aesthetics**.
ER307 is an **austenitic stainless steel wire** with a higher manganese content. It produces a work-hardening weld deposit that is resistant to cracking and offers good strength and toughness. It's often used for **welding hard-to-weld steels**, such as armor plate or Hadfield manganese steels, and for joining dissimilar metals where ductility and crack resistance are paramount, rather than maximum corrosion resistance. It's a robust **crack-resistant filler metal**.
ER307Si is a variant of ER307 with **higher silicon content**. Similar to the "LSi" wires, this increased silicon improves the **weld puddle fluidity and wetting characteristics**, leading to a smoother, flatter bead and easier welding, especially in applications where the base metal might be less clean. It retains the work-hardening and crack-resistant properties of ER307. It's an enhanced **weldability version of ER307**.
Key factors include the **base metal composition** (matching the alloy), required **corrosion resistance** (e.g., pitting, intergranular), desired **mechanical properties** (strength, toughness), service temperature, welding process (MIG/TIG), and the cleanliness of the base material. Understanding these helps ensure optimal **stainless steel weld integrity**.
Controlling carbon content is crucial because high carbon can lead to **sensitization** (chromium carbide precipitation) in the heat-affected zone (HAZ) or weld metal. This consumes chromium near grain boundaries, making the steel susceptible to **intergranular corrosion**. Using "L" (low carbon) variants or stabilized wires (321, 347) mitigates this risk, ensuring **corrosion resistance**.
For stainless steel MIG welding, the most common shielding gas is **90% Argon / 8% CO2 / 2% O2 (Tri-Mix)**, or variants with slightly different oxygen/CO2 levels. Sometimes **98% Argon / 2% CO2** is used. For specific applications like very thin material or when maximizing corrosion resistance, **100% Argon** or Argon/Helium mixtures may be employed, particularly for TIG. The chosen **shielding gas** affects arc stability, bead appearance, and corrosion properties.
Yes, all of these "ER" classified stainless steel wires are suitable for **TIG (GTAW) welding** as well. For TIG, the wire is typically cut into straight lengths. The choice of wire depends on the base metal and application, similar to MIG, but TIG offers more precise heat control and produces highly aesthetic welds. They are versatile **TIG filler materials**.
A controlled amount of **delta ferrite** (typically 3-10% for most common austenitics like 308L) in the weld metal is crucial. It helps to **prevent solidification cracking (hot cracking)** and improves the weld's resistance to solidification-related defects. Too much or too little ferrite can be detrimental, impacting both crack resistance and corrosion resistance. It's a critical aspect of **stainless steel weld metallurgy**.
**Sensitization** is the formation of chromium carbides at grain boundaries when austenitic stainless steel is exposed to temperatures between 800-1500°F (427-816°C). These carbides deplete chromium in adjacent areas, making the material susceptible to intergranular corrosion. "L" (Low Carbon) variants prevent this by having insufficient carbon to form carbides, thus maintaining **corrosion resistance in the HAZ**.
The higher silicon content primarily improves **wetting characteristics and fluidity** of the weld puddle. This leads to:
**Smoother, flatter bead profile.**
**Better tie-in at the toes.**
**Reduced spatter.**
**Improved arc stability.**
These benefits enhance weldability, especially in pulsed MIG or automated processes, for **superior weld appearance and ease of use**.
Preheating is generally **not required for austenitic (300 series) stainless steels** due to their low carbon content and good ductility. However, it is **essential for martensitic (400 series like ER410)** stainless steels to prevent cracking. For very thick sections of any stainless steel or in very cold environments, a mild preheat might be considered. Always consult the material specifications for **stainless steel preheat guidelines**.
Yes, **ER308L is the most common and appropriate choice for welding ER304 stainless steel**. ER304 has a slightly higher carbon content than 304L, but using ER308L (low carbon filler) minimizes the risk of sensitization in the weld metal itself, providing good overall corrosion resistance. This is a standard practice for **304 stainless steel welding**.
Manganese in stainless steel welding wires, particularly in ER307, acts as a **deoxidizer** and helps improve the **toughness and strength** of the weld metal. In ER307, the higher manganese content contributes to its unique work-hardening properties and makes it highly resistant to hot cracking, especially in difficult-to-weld base metals. It's an important **alloying element for weld quality**.
Common diameters for stainless steel welding wires typically range from 0.023" (0.6mm) for very thin materials to 0.045" (1.14mm) and 1/16" (1.6mm) for thicker sections and higher deposition rates. The choice depends on the material thickness, welding position, and desired heat input. Matching the **wire diameter to the application** is key.
ER309LSi offers the same low carbon advantage as ER309L (for intergranular corrosion resistance in dissimilar metal welds) but adds **higher silicon for improved weldability**. This means a more fluid puddle, better wetting, reduced spatter, and a smoother bead, making it easier to achieve quality welds, especially in challenging positions or with automation. It’s an **optimized wire for ease of welding**.
Yes, **ER316L can be used to weld 304 stainless steel**. This is called "overmatching" the filler metal. The weld will have superior corrosion resistance (due to molybdenum) compared to the 304 base metal, which is generally harmless. However, it's typically more expensive, so it's only done if the weld itself requires the enhanced corrosion resistance, or if it's the only wire readily available. It leads to **over-alloyed welds**.
ER308LSi typically produces a **very smooth, bright, and flat to slightly convex weld bead** with excellent wetting at the toes. The higher silicon content helps to deoxidize the puddle and create a fluid, controllable weld pool, resulting in a clean and aesthetically pleasing appearance with minimal spatter. It’s a popular choice for **cosmetic stainless steel welds**.
These "LSi" variants are excellent for applications requiring **high-quality finish, reduced spatter, and good weldability**, especially in automated processes or where post-weld cleaning is minimized. Common uses include food processing equipment, pharmaceutical tanks, architectural applications, and general fabrication of 304L/316L where appearance is key. They are premium **stainless steel MIG wires**.
**ER410 (martensitic)** forms a hard and brittle martensite structure in the as-welded condition, requiring **preheat and post-weld heat treatment (PWHT)** to restore ductility and toughness. **ER430 (ferritic)** is prone to significant grain growth in the heat-affected zone and weld metal, leading to **poor ductility and toughness** in the as-welded condition, making it unsuitable for applications requiring impact or formability. They have **limited as-welded ductility**.
Shielding gas purity is extremely important for stainless steel welding to prevent **oxidation and nitrogen pickup** in the weld metal. Oxygen can lead to porosity and degrade corrosion resistance, while nitrogen can affect mechanical properties. High-purity argon and specific argon/CO2/O2 mixes are used to maintain a clean, protected weld pool. It's critical for **preventing weld contamination**.
Yes, **ER307 is specifically designed and widely used for welding armor plate and other high-strength, hardenable steels**. Its high manganese content and austenitic microstructure give the weld metal a high work-hardening rate and excellent crack resistance, which is crucial for these demanding applications. It's a specialized **armor plate welding wire**.
Pulsed MIG welding offers significant advantages for stainless steel wires: **better arc control**, **reduced heat input** (minimizing distortion and sensitization), **improved penetration control**, and the ability to weld out-of-position with spray transfer characteristics. It enhances bead appearance and reduces spatter, making it ideal for **high-quality stainless steel fabrication**.
ER2209's balanced **austenite-ferrite microstructure** provides a synergistic effect: the **ferrite phase** contributes to high strength and resistance to stress corrosion cracking, while the **austenite phase** provides ductility and good corrosion resistance (especially pitting resistance). This combination offers superior performance over conventional austenitic or ferritic stainless steels. It’s a marvel of **metallurgical engineering for harsh environments**.
Excessive heat input when welding stainless steels can lead to several problems: **sensitization** (intergranular corrosion risk), **distortion**, **carbide precipitation**, **reduced corrosion resistance**, and **loss of mechanical properties** (e.g., toughness). Maintaining controlled heat input is vital for preserving the properties of the stainless steel. It’s a critical **parameter for stainless steel welding**.
Yes, **ER309L is an excellent choice for cladding or surfacing carbon steel with a stainless steel layer**. Its high alloy content (Cr, Ni) tolerates significant dilution from the carbon steel base metal while still providing a corrosion-resistant stainless steel layer on the surface. The low carbon content helps prevent sensitization in the clad layer. It's widely used for **corrosion-resistant overlays**.

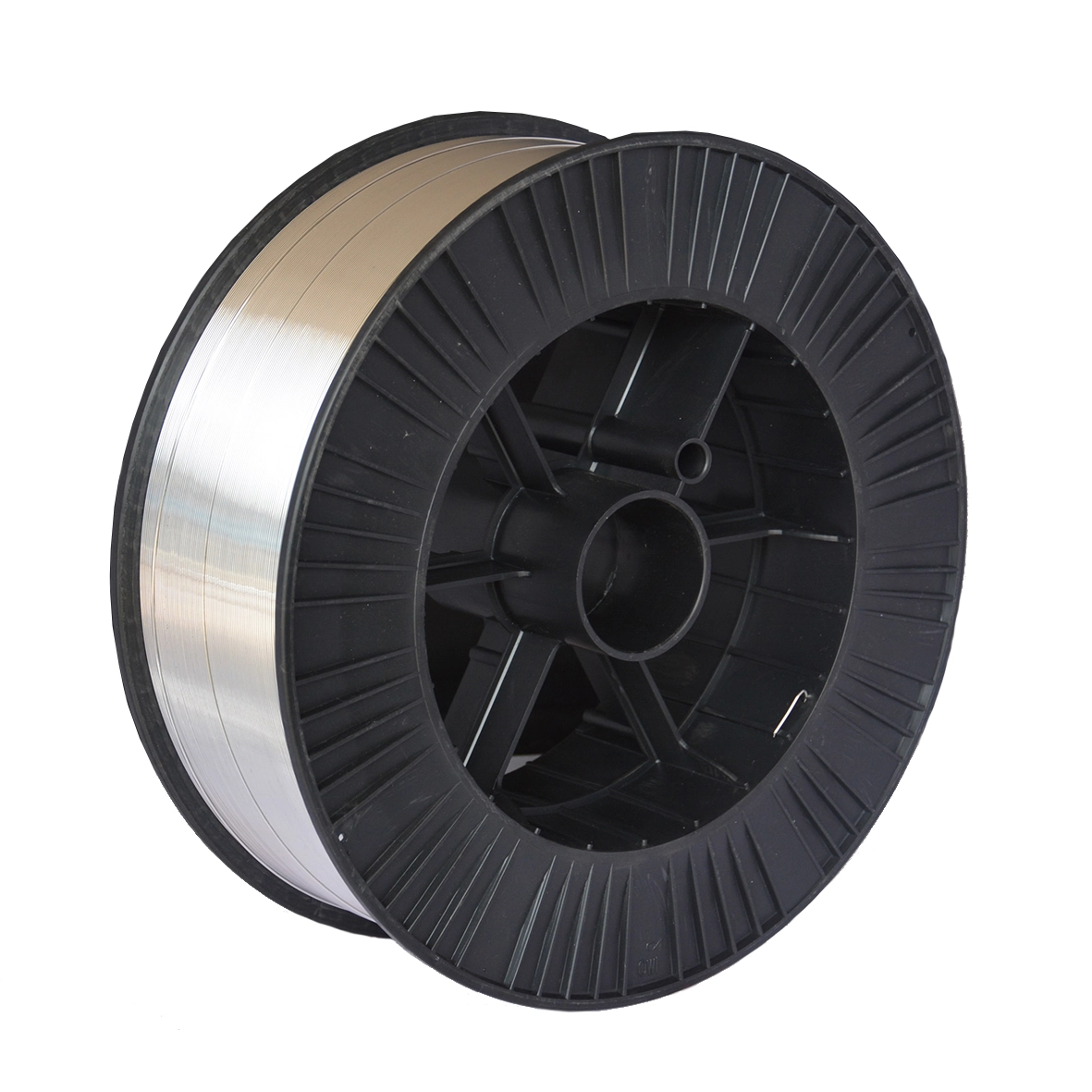

Common packaging sizes for stainless steel welding wire spools are similar to mild steel: 2 lb (for small hobbyists), 10-12 lb, 33 lb, and 44 lb spools. Larger spools or drums are also available for high-volume industrial and robotic applications. Selecting the appropriate **spool size** depends on the volume of welding and machine compatibility.
While often welded with ER308L, ER304 as a filler metal is generally used when the **specific chemistry of 304 is required** and post-weld annealing is an option to mitigate sensitization, or when the application is not prone to intergranular corrosion. It's less common as a general-purpose filler metal compared to ER308L due to the latter's low-carbon advantage. It's used when matching **base metal composition** is paramount.
ER310's high chromium (approx. 25%) provides **excellent oxidation resistance** at elevated temperatures by forming a stable, protective oxide layer. Its high nickel (approx. 20%) content provides **strength and stability at high temperatures**, preventing sigma phase embrittlement. This combination allows it to resist scaling and maintain mechanical properties in furnace environments. It's formulated for **extreme heat conditions**.
For TIG welding stainless steel, **100% Argon (Ar)** is the most widely preferred shielding gas. It provides a stable arc, good cleaning action, and a bright, clean weld bead. For improved penetration on thicker sections or to increase welding speed, small additions of **Helium (He)** can be used (e.g., Ar/He mixtures). It's the standard for **precision stainless TIG welding**.
While ER312 offers excellent crack resistance due to its high ferrite content, this high ferrite can result in **reduced ductility** and potential for **sigma phase embrittlement** if exposed to elevated temperatures (e.g., 800-1500°F) for extended periods. Therefore, it's often a repair or problem-solving wire, not typically used for highly ductile applications or long-term high-temperature service. Consider its **ductility trade-offs**.
The choice between ER321 (titanium stabilized) and ER347 (niobium stabilized) depends on application and preference. ER347 is generally preferred for **heavier sections** or when post-weld heat treatment is expected, as niobium provides more robust stabilization against carbide precipitation. ER321 is suitable for most 321 applications where stabilization is needed for operating temperatures up to around 800°F (427°C). Both prevent **intergranular attack**.
ER410 is typically used for welding **410 stainless steel** in applications such as **turbine blades, valve seats, pump parts, and general machinery components** where corrosion resistance is needed but not as critical as with austenitics, and where hardness and wear resistance are important. Post-weld heat treatment is almost always required. It's for **martensitic stainless steel fabrication**.
ER2209 is primarily designed for welding 2205 duplex stainless steel. While it can theoretically join other stainless steels, it's generally **not recommended** due to potential imbalances in microstructure or property mismatches. Using ER2209 for welding austenitic stainless steels, for example, would result in an over-alloyed weld that might not have optimal properties for the application. Match the **duplex filler to duplex base metal**.
**Hot cracking (solidification cracking)** occurs during the solidification of the weld metal due to excessive stresses and the presence of low-melting point constituents at grain boundaries. It's mitigated by:
Maintaining a small amount of **ferrite** in austenitic welds (e.g., 3-10%).
Using specific filler metals like **ER312 or ER307** for crack-prone situations.
Controlling **heat input and joint restraint**.
It's a critical aspect of **stainless steel weld integrity**.
Arc length significantly affects voltage, penetration, and bead width. For stainless steel MIG, maintaining a consistent, **short arc length** is generally preferred. Too long an arc can lead to increased nitrogen pickup (affecting corrosion resistance), higher spatter, and poor bead appearance. A shorter arc provides better shielding and a more focused heat input. It's crucial for **stainless steel arc stability and quality**.
Yes, **ER308LSi is excellent for all-position welding** when used with pulsed MIG or fine-wire short-circuit transfer. The increased silicon content improves puddle fluidity and control, making it easier to manage the molten pool in vertical up, overhead, and horizontal positions. It's a versatile choice for **all-position stainless steel MIG**.
The "L" signifies **Low Carbon content**. This is crucial for reducing the risk of **sensitization** (chromium carbide precipitation) in the weld metal and heat-affected zone. Sensitization compromises corrosion resistance, especially intergranular corrosion, making "L" variants essential when post-weld annealing is not feasible or where corrosion in corrosive environments is a concern. It ensures **optimized corrosion performance**.
Stainless steel welds can experience various forms of corrosion:
**Intergranular corrosion:** Due to sensitization (carbide precipitation).
**Pitting corrosion:** Localized attack in chloride environments.
**Crevice corrosion:** In confined spaces with stagnant solutions.
**Stress corrosion cracking (SCC):** In specific environments under tensile stress.
**Weld decay:** Another term for intergranular corrosion adjacent to the weld.
Selecting the correct filler metal helps mitigate these **stainless steel corrosion issues**.
Using 100% CO2 for stainless steel MIG welding is **generally not recommended**. It leads to a very **unstable arc, excessive spatter, significant carbon pickup** in the weld metal (which negates the "L" advantage and promotes sensitization), and **reduced corrosion resistance**. Always use argon-based mixes for optimal results with stainless steel. It compromises **stainless steel weld integrity**.
**No, ER430 is generally not suitable for applications requiring high toughness**. Due to its ferritic microstructure, it's prone to significant grain growth in the heat-affected zone (HAZ) and weld metal, leading to poor ductility and low toughness in the as-welded condition. It's best used in non-critical applications where ductility and toughness are not primary concerns. It has **inherently low toughness**.
ER307 has a specific chemistry, including higher manganese, that results in a weld deposit which **strengthens significantly when subjected to cold work or deformation**. This work-hardening characteristic makes it resistant to wear and deformation under stress, distinguishing it from other austenitic fillers. It's ideal for **impact and abrasion resistance**.
ER309L contains significantly higher levels of chromium and nickel than the 300-series stainless steels it is designed to join (e.g., 304, 316). This "over-alloying" accounts for the **dilution** that occurs when mixing with carbon steel. The excess alloy content ensures that even after dilution, the weld metal retains sufficient chromium and nickel to be austenitic and corrosion-resistant. It's designed for **dilution tolerance**.
The "Si" denotes **higher silicon content**. Silicon acts as a powerful **deoxidizer**, cleaning the weld pool. More importantly for MIG welding, it significantly improves **weld puddle fluidity, wetting, and overall arc stability**, leading to a smoother bead appearance, better control, and reduced spatter. It optimizes **stainless steel MIG performance**.
Before welding stainless steel, proper cleaning is essential. Common methods include:
**Mechanical cleaning:** Wire brushing (with a stainless steel brush dedicated only for stainless), grinding, or sanding to remove oxides, grease, and contaminants.
**Chemical cleaning:** Using solvents (e.g., acetone, alcohol) to remove oils and greases.
**Pickling:** For heavy oxide layers, though usually done post-weld.
Thorough cleaning prevents porosity and ensures **optimal weld quality**.
Controlling **interpass temperature** is crucial for stainless steels. If the interpass temperature is too high, it increases the total heat input, exacerbating issues like sensitization (for "L" grades), distortion, and loss of mechanical properties. Keeping interpass temperatures within recommended limits (often below 350°F or 175°C) minimizes these risks for **stainless steel weld integrity**.
Using ER308L to weld 316 stainless steel is generally **not recommended** for applications requiring the full corrosion resistance of 316. While it can physically join the metals, the ER308L weld metal lacks the molybdenum found in 316, meaning the weld will have **lower resistance to pitting and crevice corrosion** than the 316 base metal. It forms a potential **weak point in corrosive environments**.
ER321 and ER347 are often used in **exhaust systems, particularly for automotive or aerospace applications**, due to their **stabilization against sensitization**. Exhaust systems experience elevated temperatures where unstabilized stainless steels (like 304) could sensitize and corrode. The titanium or niobium in these wires prevents this, ensuring long-term **corrosion resistance at high temperatures**.
Stainless steel welding wires must be stored in a **dry, climate-controlled environment**, ideally in their original sealed packaging, to prevent moisture absorption and surface contamination. Moisture can lead to hydrogen porosity and weld defects, while contamination can introduce impurities into the weld. Proper **wire storage** is vital for quality.
Magnetic arc blow, the deflection of the welding arc, can occur in stainless steel welding, particularly when welding heavy sections or near strong magnetic fields. It leads to **poor penetration, increased spatter, and porosity**. While the wire type doesn't cause it, proper grounding, back-stepping, or demagnetization of the workpiece can mitigate this issue. It impacts **arc stability and weld consistency**.
ER2209 (duplex) offers significantly **superior resistance to stress corrosion cracking (SCC)** compared to conventional austenitic stainless steels like 304 or 316. Austenitic stainless steels are susceptible to SCC in chloride-containing environments under tensile stress, whereas the balanced ferrite-austenite microstructure of duplex (ER2209) provides high immunity to this destructive form of corrosion. It's a key advantage for **chloride SCC environments**.
Yes, **ER316LSi can be used for joining 304 to 316 stainless steels**. The resulting weld will have the enhanced pitting resistance of 316L (due to molybdenum) and the improved weldability of the "Si" variant. This provides a robust weld, especially when the joint is exposed to environments where 316's corrosion resistance is beneficial. It creates a **robust dissimilar stainless steel joint**.
Common defects in stainless steel welding include: **porosity** (due to inadequate shielding, contamination), **undercut**, **lack of fusion**, **hot cracking**, **weld discoloration** (oxidation due to poor shielding), and **sensitization** (intergranular corrosion risk due to improper heat control or filler choice). Avoiding these ensures **high-quality stainless steel welds**.
**Shielding gas** (e.g., Argon/CO2/O2 for MIG, 100% Argon for TIG) protects the front side of the weld pool and arc from atmospheric contamination. **Purge gas** (typically 100% Argon or Nitrogen, often with a small amount of hydrogen for purging) is used on the **back side of the weld** (root side) to prevent oxidation of the molten metal and ensure a clean, corrosion-resistant root bead. Both are critical for **stainless steel weld quality**.
ER410 (and its welded base metal) transforms into **hard and brittle martensite** upon cooling. **Post-weld heat treatment (PWHT)**, typically a tempering process, is required to soften the martensitic structure, improve ductility, and restore toughness. Without PWHT, the weld can be highly susceptible to cracking. It's essential for **martensitic stainless steel usability**.
The **Ferrite Number (FN)** is a standardized method to quantify the amount of ferrite in an austenitic stainless steel weld deposit. It's crucial because a specific range of ferrite (e.g., 3-10 FN for 308L) is needed to prevent hot cracking and optimize properties. Too high FN can lead to embrittlement (sigma phase), too low can lead to cracking. It's a key **weld quality control parameter**.
Yes, **ER307 can be used for surfacing applications**, particularly where a work-hardening, crack-resistant overlay is desired. It's often applied as a buffer layer or for wear-resistant overlays on carbon or low-alloy steels, especially in situations involving impact or metal-to-metal wear. It provides a tough **wear-resistant overlay**.
ER308LSi will generally have **superior arc characteristics** compared to standard ER308L. The higher silicon content leads to a **smoother, more stable arc**, better wetting, and less spatter. This translates to an easier-to-control puddle and a more consistent weld bead, making it more welder-friendly and suitable for automation. It optimizes **stainless steel MIG arc performance**.
ER316LSi is widely used in applications requiring the enhanced corrosion resistance of 316L (especially against pitting) combined with excellent weldability and bead appearance. This includes **marine environments, chemical processing, pharmaceutical equipment, food and beverage processing, and architectural exposed welds**. It's a premium **corrosion-resistant and aesthetic filler**.
Cleanliness is paramount for stainless steel welding. Any contaminants (grease, oil, paint, dirt, even fingerprints) can lead to **porosity, cracking, reduced corrosion resistance, and discoloration** of the weld. Thorough pre-weld cleaning is more critical for stainless steel than for mild steel. It's fundamental for **sound stainless steel welds**.
While ER309 *can* be used to weld stainless steel to itself (e.g., 304 to 304), it's generally **over-alloyed** for such applications. ER308L would be the more appropriate and cost-effective choice for welding 304 to 304. Using ER309 for same-material joints might introduce too much alloy, potentially altering properties or wasting material. It's generally for **dissimilar metal applications**.
While ER310 is designed for high-temperature service, its high chromium and nickel content makes it susceptible to **sigma phase embrittlement** if held within the critical temperature range (around 1000-1600°F or 540-870°C) for extended periods. Compared to lower alloy austenitics, it has a higher propensity for sigma phase formation due to its composition. This is a critical factor for **long-term high-temperature exposure**.
A good TIG weld using these stainless steel wires (with proper shielding gas and technique) should appear **bright, shiny, and silvery-white** with minimal to no discoloration (sugaring/oxidation) on either side of the bead. The bead should be smooth, consistent, and have well-defined ripples, reflecting excellent control and purity. It signifies **pristine stainless TIG welds**.
ER2209 (duplex) offers **superior corrosion resistance** to ER316L, particularly in terms of **pitting, crevice corrosion, and stress corrosion cracking**, especially in chloride-rich environments. While ER316L is good, the duplex structure of ER2209 provides a step-up in performance for highly aggressive corrosive applications. It's a significant upgrade for **extreme corrosive conditions**.
Welding very thin gauge stainless steel requires precise heat control to prevent burn-through and excessive distortion. Use **smaller wire diameters** (e.g., 0.023", 0.030"), **pulsed MIG** or TIG, and a short arc length with a consistent travel speed. Argon/Helium mixes can also improve fluidity on thin sections. Heat management is critical for **thin stainless steel fabrication**.
ER308L can be used to weld 304H stainless steel, but it's important to note that 304H is designed for **high-temperature strength** and has a slightly higher carbon content than 304L to achieve this. While ER308L minimizes sensitization in the weld, the overall high-temperature creep strength of the weldment might be limited by the lower carbon filler. For specific high-temperature design, **matching the base metal's high-temp properties** is important.
ER430 wire is used for welding **430 stainless steel** in applications where **corrosion resistance is important but ductility and toughness are not primary concerns**. This often includes architectural trim, automotive exhaust components (non-critical sections), appliance parts, and some decorative applications. It’s for **non-critical ferritic stainless steel welds**.
Contamination on the surface of stainless steel welding wire (e.g., rust, oil, dirt, fingerprints) can lead to **porosity, arc instability, and reduced corrosion resistance** in the weld metal. Even minor surface impurities can significantly degrade weld quality. Always handle wire with clean gloves and keep spools protected. It affects **wire feeding and weld purity**.
The tri-mix (e.g., 90% Ar, 8% CO2, 2% O2) is popular because:
**Argon:** Provides excellent arc stability and good penetration.
**CO2:** Adds penetration, improves wetting, and helps manage bead shape.
**Oxygen:** Stabilizes the arc, enhances wetting, and provides a cleaner, brighter bead appearance by scavenging impurities.
This combination optimizes **arc performance and weld aesthetics** for stainless steel MIG.
**Passivation** is a post-weld chemical treatment (typically with nitric acid or citric acid) that removes free iron and other contaminants from the stainless steel surface and welds. This helps to re-establish the chromium-rich passive layer, which is essential for stainless steel's corrosion resistance. It's a critical step for **maximizing corrosion performance**.
Yes, **ER307Si can be used for joining dissimilar carbon steel to stainless steel**, particularly when high ductility, work-hardening characteristics, or crack resistance are desired. While ER309LSi is the more common choice for general dissimilar joints due to its higher Cr/Ni for dilution, ER307Si's unique properties make it a viable option for specific demanding applications. It offers a **crack-resistant dissimilar joint**.
Stainless steel welding wires offer **superior corrosion resistance**, **higher strength at elevated temperatures**, and specific properties like **oxidation resistance, pitting resistance, or crack resistance** that mild steel wires cannot provide. They are essential when the base metal is stainless steel or when the weld needs to withstand corrosive or high-temperature environments. They enable **performance-driven welding solutions**.
The "LSi" variants (e.g., ER308LSi, ER316LSi) are particularly beneficial for **automated stainless steel welding** due to their improved arc stability, reduced spatter, and superior puddle fluidity. These characteristics lead to more consistent, high-quality welds with less post-weld cleaning, significantly improving the efficiency and reliability of robotic or automated systems. They are optimized for **high-efficiency automated processes**.
Molybdenum (Mo) is a key alloying element in ER316 and ER2209. It significantly enhances **resistance to pitting and crevice corrosion**, especially in chloride-containing environments. In duplex (ER2209), it also contributes to increased strength. Its presence is vital for applications demanding **superior corrosion performance** in aggressive chemical or marine settings.
Using Argon/Helium (Ar/He) mixtures for TIG welding stainless steel provides a **"hotter" arc** with increased heat input and deeper penetration. This is beneficial for welding **thicker sections of stainless steel** or for increasing welding speed. However, helium is more expensive, and high helium content can make the arc less stable. It's used for **enhanced TIG penetration and speed**.
"Sugaring" is severe oxidation on the back side of a stainless steel weld, appearing as a dark, sugary, or burnt texture. It's caused by **inadequate or complete lack of back purging** with an inert gas (like argon) during welding. This allows oxygen to react with the hot metal, severely compromising corrosion resistance. It's a sign of **insufficient back shielding**.
While ER312 *can* be used to join austenitic stainless steels (e.g., 304 to 304), it's typically **not the primary choice** unless there's a specific concern about cracking, or if it's an "unknown" stainless. Its very high ferrite content makes it excellent for crack resistance but might compromise ductility and overall corrosion resistance (if sigma phase forms) compared to a standard ER308L. It's a **problem-solving filler for difficult joints**.
Welding stainless steel pipes often requires:
**Back purging:** To prevent sugaring on the root pass.
**Controlled heat input:** To minimize distortion and sensitization.
**Precise joint fit-up.**
**All-position capability** from the wire.
**Specific code compliance** for pressure applications.
These are critical for **high-integrity stainless steel pipe welds**.
The silicon content in ER307Si primarily affects its weldability (fluidity, wetting, arc stability) and deoxidation, not its inherent work-hardening properties. The work-hardening characteristic of ER307 and ER307Si is primarily derived from their manganese content and specific austenite stability, which allows for martensite formation upon cold work. Silicon enhances **welding performance for ER307**.
Post-weld cleaning for stainless steel welds involves removing heat tint (discoloration), spatter, and any embedded contaminants. This is typically done through **mechanical brushing (stainless steel brush only), grinding, pickling (acid etching), or electropolishing**. The goal is to restore the passive layer and maximize the weld's **corrosion resistance and aesthetic appeal**.
While some stainless steel wires are formulated for Submerged Arc Welding (SAW), these "ER" classified bare wires (as listed) are primarily designed for **MIG (GMAW) and TIG (GTAW)** processes. SAW uses a granular flux that completely covers the arc. Specific SAW stainless steel wires exist (often with different classifications like EQxxx). These are for **gas-shielded processes**.
Improper grounding can lead to several issues in stainless steel welding: **arc instability**, **poor penetration**, **increased spatter**, and **arc blow**. It can also create multiple ground paths, potentially damaging equipment or causing safety hazards. Ensure a clean, secure ground clamp on the workpiece, away from the weld area. It affects **overall weld quality and safety**.
ER308L can be used for some **cryogenic applications**, particularly down to around -320°F (-196°C) (liquid nitrogen temperatures), as its austenitic structure generally retains good toughness at low temperatures. However, for extremely stringent cryogenic applications, specialized low-carbon, nitrogen-controlled, or specific nickel-alloyed stainless steels and corresponding fillers might be chosen for guaranteed impact toughness. It has **decent cryogenic performance**.
Both ER321 and ER347 prevent sensitization by incorporating **stabilizing elements** into their chemical composition. ER321 uses **titanium**, and ER347 uses **niobium (columbium)**. These elements have a stronger affinity for carbon than chromium, so they preferentially form stable carbides, preventing chromium from being depleted at the grain boundaries when the steel is exposed to sensitizing temperatures. This maintains **corrosion resistance in high-temperature service**.
**Heat tint** is the discoloration (various shades of blue, brown, or black) that appears on the surface of stainless steel welds due to oxidation at high temperatures. While it might seem cosmetic, severe heat tint indicates significant chromium oxide formation, which depletes chromium from the underlying surface, **reducing corrosion resistance**. It typically needs to be removed for critical applications. It's a visual indicator of **oxidation and compromised corrosion resistance**.
To qualify stainless steel welds, various tests are performed, including:
**Visual inspection:** For surface defects.
**Liquid Penetrant Testing (PT) or Magnetic Particle Testing (MT):** For surface discontinuities.
**Radiographic Testing (RT) or Ultrasonic Testing (UT):** For internal defects.
**Mechanical tests:** Tensile tests (strength), bend tests (ductility), Charpy V-notch impact tests (toughness).
**Corrosion tests:** For specific applications (e.g., intergranular corrosion tests).
These ensure the weld meets **specified quality and performance standards**.
ER309LSi offers advantages over ER308LSi primarily when **joining dissimilar metals (stainless to carbon steel)** or when welding **stainless steel to stainless steel where one alloy is slightly higher alloyed** than 304/304L. Its higher chromium and nickel content provides greater dilution tolerance and a more robust weld for such transitions, while the "Si" factor improves weldability. It's the go-to for **robust dissimilar metal joins**.
The common challenges when welding ER400 series (martensitic/ferritic) compared to ER300 series (austenitic) include:
**Brittleness and cracking:** Martensitics (ER410) require preheat/PWHT. Ferritics (ER430) are prone to grain growth and poor ductility.
**Limited ductility:** Ferritics can be very brittle.
**Heat input control:** More critical to avoid grain growth in ferritics.
**Different corrosion mechanisms:** Less universal corrosion resistance.
They require more specialized approaches for **successful welding and property retention**.
Detailed specifications, including chemical composition limits, mechanical properties, typical applications, and recommended welding parameters, can be found in the **AWS A5.9 standard (Specification for Bare Stainless Steel Welding Electrodes and Rods)**. Additionally, reputable welding consumable manufacturers provide comprehensive Technical Data Sheets (TDS) for each of their products, which are invaluable resources for welders, engineers, and quality control personnel. Always consult these **official welding standards** for precise and up-to-date information.
Delta ferrite is a small amount of a ferritic phase in an otherwise austenitic stainless steel weld metal. It's critically important for **preventing hot cracking (solidification cracking)** during welding. Too little ferrite can lead to cracking, while too much can lead to embrittlement, especially after prolonged exposure to high temperatures (sigma phase formation). Optimizing **ferrite content** is key for weld integrity.
ER304 generally has a **higher carbon content** than ER308L, which is its primary distinction. While ER304 is the nominal match for 304 base metal, ER308L is typically preferred as a filler metal for 304 due to its low carbon content. This low carbon in ER308L minimizes the risk of **sensitization** and subsequent intergranular corrosion in the weld metal, particularly important when post-weld annealing isn't practical. It simplifies **corrosion management in the HAZ**.
Choose **ER307** when joining dissimilar metals where **crack resistance, ductility, and work-hardening characteristics** are paramount, such as welding armor plate or hardenable steels. Choose **ER309** (or ER309L) when the primary goal is to **join stainless steel to carbon/low-alloy steel** and provide a robust, corrosion-resistant stainless weld that tolerates significant dilution. ER307 excels in toughness, while ER309 excels in **alloy-rich transition joints**.
The main challenges with welding martensitic stainless steels like ER410 include:
**High hardenability:** Forms brittle martensite upon cooling, making it prone to cracking.
**Requirement for preheat:** To slow cooling and reduce cracking risk.
**Mandatory post-weld heat treatment (PWHT):** To temper the martensite and restore ductility/toughness.
**Hydrogen cracking susceptibility.**
These factors make it a more complex process than welding austenitics, requiring careful **thermal management**.
The higher silicon content in "LSi" wires does not inherently impact their shelf life or storage requirements compared to non-Si counterparts. All stainless steel welding wires, regardless of silicon content, must be stored in a **dry, climate-controlled environment** to prevent moisture absorption and surface contamination. Moisture is the primary enemy, potentially causing porosity and hydrogen cracking. Proper **storage practices are universal**.
Nickel is a primary **austenite former** in stainless steel welding wires, ensuring the weld metal has a predominantly austenitic microstructure. This contributes to **ductility, toughness, and good corrosion resistance**. In higher-alloy wires like ER310, higher nickel also provides enhanced **high-temperature strength and stability**. It's crucial for **microstructural control and properties**.
Yes, **ER316LSi is an excellent choice for welding 304 stainless steel in marine applications**, particularly where the weld itself might be exposed to saltwater or chloride-rich environments. The ER316LSi weld metal will provide superior pitting and crevice corrosion resistance due to its molybdenum content, offering a more robust joint compared to an ER308L weld. It creates a **highly resistant marine weld**.
Welding ER2209 duplex stainless steel presents specific challenges:
**Maintaining ferrite/austenite balance:** Crucial for optimal properties; affected by heat input and cooling rate.
**Controlled heat input:** Too low can lead to too much ferrite; too high can lead to sigma phase formation.
**Proper shielding and purging:** To prevent nitrogen pickup (which can unbalance phases).
**Careful selection of filler metal:** To match properties.
It requires a nuanced approach to **duplex stainless steel metallurgy**.
Surface oxidation, or heat tint, significantly **reduces the localized corrosion resistance** of stainless steel welds. The formation of colored oxides at high temperatures consumes chromium from the underlying metal, depleting the protective passive layer. This makes the weld area more susceptible to pitting corrosion and other forms of attack. It's a key reason for **post-weld cleaning and passivation**.
ER310, with its significantly higher chromium and nickel content, is **substantially more expensive** than ER308L. The increased cost is due to the higher raw material price of these alloying elements. Therefore, ER310 is only used when its superior high-temperature strength and oxidation resistance are absolutely required. It represents a **premium cost for extreme conditions**.
Yes, ER321 can be used for welding 304 stainless steel. The primary implication is that the weld metal will be **titanium-stabilized**, which provides protection against intergranular corrosion in the weld metal if it experiences sensitizing temperatures. However, for most 304 applications not subjected to sensitizing temperatures, ER308L is typically more cost-effective and appropriate. It offers **unnecessary stabilization for standard 304**.
In the food and beverage industry, considerations include:
**Corrosion resistance:** Often requires 304L (ER308L) or 316L (ER316L) for hygiene and chemical resistance.
**Surface finish:** Welds must be smooth, crevice-free, and often passivated to prevent bacterial growth.
**Cleanliness:** Strict pre-weld cleaning is paramount.
**Non-contaminating electrodes:** Avoid carbon steel brushes or grinding wheels.
These are crucial for **hygienic and sanitary applications**.
ER430's weldability is **significantly poorer** than that of ER304/ER308L. ER430 (ferritic) is prone to **excessive grain growth** in the HAZ and weld metal, leading to severe embrittlement and loss of ductility in the as-welded condition. It also has poor resistance to hot cracking compared to austenitics. It requires careful heat input control and is often limited to thin sections or non-critical welds. It has **challenging weldability characteristics**.
Controlled heat input is paramount in stainless steel welding to **minimize distortion, prevent sensitization**, reduce grain growth (especially in duplex and ferritics), and maintain mechanical properties. It's achieved by adjusting amperage, voltage, travel speed, and interpass temperature. Poor heat control can severely degrade the **weldment's performance and integrity**.
Yes, **ER308LSi is commonly used for pressure vessel applications** made from 304L or 304 stainless steel, provided it meets the applicable code requirements (e.g., ASME Boiler and Pressure Vessel Code). Its low carbon content and good mechanical properties make it suitable for these critical applications, especially when combined with controlled welding procedures. It's a reliable choice for **stainless steel pressure containment**.
ER307's high manganese content (typically 6-8%) contributes to:
**Enhanced work hardening:** Makes the weld metal resistant to deformation.
**Improved crack resistance:** Particularly for hot cracking in difficult-to-weld steels.
**Increased toughness:** Especially under impact.
**Good ductility.**
These properties make it ideal for specific repair and wear-resistant applications. It's tailored for **tough, crack-resistant welds**.
Using an undersized contact tip for stainless steel MIG welding can lead to **poor wire feeding, excessive friction, wire jamming (birdnesting)**, and premature wear of the tip. It can also cause erratic arc stability and burnbacks. Always use a contact tip that precisely matches the wire diameter for smooth, consistent feeding. It impacts **feedability and arc consistency**.
**Primary shielding gas** is the gas delivered through the welding torch nozzle, protecting the arc and the top of the weld pool. **Secondary shielding gas** refers to the gas used for **back purging** (protecting the root side of the weld) or sometimes trailing shields (to protect the hot, cooling weld bead). Both are essential for preventing oxidation and ensuring full **weld integrity in stainless steel**.
While ER309L offers good overall properties, for applications requiring **high impact toughness at low temperatures**, especially cryogenic service, other specific stainless steel fillers (like ER308L with controlled ferrite, or nickel alloys) might be preferred. ER309L's primary advantage is dissimilar metal joining, and while it's ductile, its low-temperature toughness may not be as optimized as dedicated cryogenic fillers. It's good but not optimal for **extreme low-temperature toughness**.
A **Ferrite Scope** is an instrument used to measure the Ferrite Number (FN) of a stainless steel weld non-destructively. It's a crucial **quality control tool** in industries where precise ferrite content is required (e.g., pressure vessels, chemical processing) to ensure optimal crack resistance while avoiding embrittlement. It provides an immediate reading of **weld microstructure balance**.
Travel speed is critical for controlling heat input and bead shape in stainless steel MIG welding. Too slow can lead to excessive heat input (sensitization, distortion) and a wide, convex bead. Too fast can result in insufficient penetration, undercut, and a narrow, ropey bead. Maintaining a consistent, moderately fast travel speed is ideal for **optimized stainless steel weld quality**.
ER310 *can* be used to weld 304 or 316, but it is typically **over-alloyed and more expensive** than necessary. The weld deposit will have significantly higher chromium and nickel. While it won't cause immediate issues, it's generally not economical or necessary unless the weldment is going into a high-temperature service where ER310's unique properties are truly utilized. It's a case of **unnecessary over-alloying**.
Combining "LSi" wires with a Tri-Mix gas (e.g., Ar/CO2/O2) offers a synergy of benefits: the **"LSi" improves fluidity and reduces spatter**, while the **Tri-Mix stabilizes the arc, enhances wetting, and optimizes bead appearance**. This combination yields exceptionally smooth, clean, and aesthetically pleasing welds with excellent control, ideal for demanding **stainless steel fabrication**.
Both ER321 (titanium-stabilized) and ER347 (niobium-stabilized) prevent sensitization. **Niobium (ER347)** is a stronger carbide former and more stable at higher temperatures than titanium, making ER347 generally more effective for preventing sensitization in **heavier sections or prolonged high-temperature service**. Titanium (ER321) can also be consumed by oxidation in the weld pool, making niobium slightly more reliable. It's a difference in **stabilizer effectiveness**.
Excessive amperage in stainless steel MIG welding leads to **excessive heat input**, increasing the risk of: **sensitization**, **distortion**, **burn-through** on thinner materials, and **hot cracking**. It can also result in an oversized, convex weld bead with poor appearance and potentially reduced mechanical properties. Proper **amperage control** is vital for quality.
Using ER410 (martensitic) for joining carbon steel to stainless steel is **generally not recommended**. The resulting weld would be highly hardenable and brittle, almost certainly requiring extensive preheat and post-weld heat treatment to achieve any ductility. ER309L is the far more appropriate and common choice for such **dissimilar metal joints** due to its inherent toughness and crack resistance without complex heat treatments.
A "cold" weld with stainless steel wires appears with a **convex bead profile, poor wetting at the toes (lack of fusion)**, and potentially excessive spatter. It indicates insufficient heat input, typically from too low amperage/WFS or too high voltage. This results in inadequate penetration and a weak, potentially defective weld that might be prone to cracking. It indicates **incorrect welding parameters**.
The primary advantage of ER307 is its **high crack resistance and work-hardening capability**, making it ideal for welding difficult-to-weld steels or for overlays subjected to impact and abrasion. While other austenitics offer good corrosion resistance, ER307 excels in situations where **toughness and crack suppression** are paramount, especially in repair scenarios. It fills a unique niche for **problematic welding situations**.
A consistent "cast and helix" (the natural curvature and twist of the wire) is crucial for **smooth and reliable wire feeding**. Inconsistent cast or helix can cause erratic feeding, "birdnesting" at the drive rolls, and unstable arcs, leading to frustrating downtime and weld defects. Manufacturers prioritize tight tolerances for **optimal feedability** of stainless steel wires.
No, **ER308L should generally not be used for welding duplex stainless steel like 2205**. The ER308L weld metal would not achieve the necessary balanced ferrite-austenite microstructure or the high strength and superior corrosion resistance of the duplex base metal. This would result in a **severely undermatching weld** in terms of strength and corrosion performance, making it a critical failure point. Always use ER2209 or similar **duplex-specific fillers**.
Key mechanical property differences:
**300 Series (Austenitic - ER308L, ER316L):** High ductility, good toughness (even at low temps), moderate strength.
**400 Series (Martensitic - ER410):** High hardness and strength (with PWHT), but low ductility in as-welded condition.
**400 Series (Ferritic - ER430):** Moderate strength, but very low ductility and toughness (especially in HAZ) due to grain growth.
This highlights the diverse performance of **different stainless steel families**.
Proper ventilation is crucial when welding stainless steel due to the potential generation of **hazardous fumes and gases**, including chromium and nickel compounds, ozone, and nitrogen oxides. These can cause respiratory issues and other health problems. Adequate fume extraction or respiratory protection (PAPR) is vital for **welder safety and health**.
ER316L's low carbon content helps resist sensitization, making it suitable for brief exposures to elevated temperatures. However, for **prolonged service above 800°F (427°C)**, particularly where intergranular corrosion or creep strength are major concerns, stabilized grades like **ER321 or ER347** are generally preferred. ER316L can still experience some carbide precipitation over very long durations at high temperatures. Consider **temperature limitations for stabilized grades**.
For multi-pass welding with stainless steel wires:
**Control interpass temperature:** Keep it low to prevent sensitization and distortion.
**Thorough interpass cleaning:** Remove any oxides or spatter to prevent defects.
**Consistent shielding/purging:** Maintain protection for each pass.
**Ferrite control:** Ensure proper FN in each pass.
These steps ensure **sound, multi-layer stainless steel welds**.
In pharmaceutical applications, **ER308LSi's low carbon content** is critical. It ensures that the weld metal and heat-affected zone remain highly corrosion-resistant, preventing sensitization and intergranular corrosion. This is paramount for maintaining product purity, preventing contamination, and complying with stringent hygiene standards in pharmaceutical equipment. It guarantees **biocompatibility and corrosion resistance**.
Chromium (Cr) is the **primary alloying element that makes steel "stainless."** It forms a stable, self-healing passive oxide layer on the surface, providing corrosion resistance. In welding wires, chromium content is carefully controlled to match the base metal's corrosion resistance and ensure proper metallurgical balance in the weld metal. It's the defining element for **corrosion resistance in stainless steels**.
Yes, **ER309LSi is an excellent choice for cladding applications** where carbon steel or low-alloy steel needs a corrosion-resistant stainless steel surface, particularly in aggressive environments. The "L" ensures resistance to intergranular corrosion, and the "Si" improves weldability for a smooth, defect-free overlay. It provides a robust and **corrosion-resistant stainless steel overlay**.
Incomplete penetration is a severe weld defect that can lead to **significantly reduced strength**, localized stress concentrations, and provide potential sites for crevice corrosion. It indicates insufficient heat input or improper joint preparation and must be avoided, especially in critical applications like pressure vessels. It compromises **structural integrity and corrosion performance**.
ER316L offers **superior general corrosion resistance** compared to ER308L, primarily due to the addition of **molybdenum**. Molybdenum significantly enhances resistance to pitting and crevice corrosion, especially in chloride-containing environments. ER308L provides good general corrosion resistance in many applications but lacks the specialized protection of ER316L. It's a key distinction in **corrosion performance**.
Different flow rates of shielding gas impact stainless steel MIG welding:
**Too low:** Inadequate shielding, leading to porosity, oxidation, and discoloration.
**Optimal:** Stable arc, good penetration, clean bead, minimal spatter.
**Too high:** Can cause turbulence, drawing in atmospheric contaminants, wasting gas, and potentially cooling the weld pool excessively.
Correct **gas flow management** is critical for quality and cost.
ER304 (both base metal and filler) is suitable for moderately high-temperature applications (up to ~800°F or 427°C) but has limitations for **prolonged exposure above 800°F (427°C)**. At these temperatures, it can become susceptible to **sensitization** and intergranular corrosion, which compromises its resistance. For extended high-temperature service, stabilized (ER321, ER347) or high-alloy (ER310) wires are better. It has **sensitization limits at high temperatures**.
Common mechanical property tests for stainless steel welds include:
**Tensile Testing:** Measures ultimate tensile strength and yield strength.
**Bend Testing:** Assesses ductility and absence of surface/subsurface defects.
**Charpy V-notch Impact Testing:** Measures toughness, especially at specific temperatures.
**Hardness Testing:** Measures resistance to indentation.
These verify the weld's ability to withstand service loads and deformations. They are essential for **weld qualification**.
ER312 and ER307 both offer **excellent crack resistance**, but their primary purposes differ slightly. ER312 (duplex-like) is often used for **unknown base metals or highly crack-sensitive combinations** where high ferrite is beneficial. ER307 (austenitic with high manganese) is preferred for **work-hardening applications, Hadfield steels, and armor plate** where specific deformation resistance is required. They are both "problem-solver" wires but for different types of problems. They offer distinct **crack-resistance mechanisms**.
If the **Ferrite Number (FN) is too low** (e.g.,
Best practices to prevent heat tint include:
**Minimize heat input:** Use proper parameters (higher travel speed, lower amperage).
**Maintain proper shielding gas coverage:** Ensure adequate flow and no drafts.
**Use secondary shielding/back purging:** Essential for the root side and sometimes a trailing shield.
**Cool rapidly:** Sometimes with copper chill bars.
These steps ensure **clean, aesthetically pleasing stainless steel welds**.
While ER2209 offers good elevated temperature strength compared to austenitic steels, it is **not generally used for the same high-temperature applications as ER310**. ER310 is specifically designed for continuous service at very high temperatures (up to 2000°F / 1100°C) with excellent oxidation resistance. ER2209's primary benefits are strength and corrosion resistance at more moderate temperatures, and it can be susceptible to **sigma phase embrittlement** at prolonged high temperatures. Match **temperature ranges to specific alloys**.
Welding medical devices with stainless steel wires requires:
**High purity:** Use clean wires and inert shielding gases (e.g., 100% Argon for TIG).
**Biocompatibility:** Ensure the weld metal does not leach harmful substances.
**Smooth surface finish:** Minimize crevices where bacteria can grow (often polished and passivated).
**Tight tolerance control:** For precise device functionality.
**Full traceability:** For all materials and processes.
ER308LSi and ER316LSi are common choices. This requires **stringent quality and hygiene controls**.
The "cast" (the diameter of one loop of wire when unrolled) is extremely important for automated welding. A **consistent and tight cast** ensures that the wire feeds smoothly and predictably through the torch, maintaining the robotic program's accuracy and arc stability. Inconsistent cast can lead to arc wander, poor bead placement, and frequent faulting in automated systems. It's a critical factor for **robotic weld consistency**.
The key difference in final weld properties between ER308LSi and ER316LSi is **corrosion resistance**. ER316LSi (due to Molybdenum) offers **superior resistance to pitting and crevice corrosion** compared to ER308LSi, especially in chloride-containing or acidic environments. Both offer excellent weldability due to the "Si" and low carbon for intergranular corrosion, but ER316LSi is for more aggressive corrosive service. It's a choice based on **environmental exposure**.
You can get training and certification from:
**Accredited welding schools and vocational colleges.**
**Manufacturer-sponsored training programs.**
**Industry associations:** Such as the American Welding Society (AWS) or local welding societies.
**Certified independent welding inspectors/consultants.**
These programs provide the necessary knowledge and hands-on experience to achieve certifications to industry standards (e.g., AWS D1.6, ASME Section IX). It's crucial for **professional development and compliance**.
