Views: 0 Author: Site Editor Publish Time: 2025-12-22 Origin: Site
"AWS E" stands for **American Welding Society Electrode**. The "E" specifically denotes that the product is a **covered electrode** designed for Shielded Metal Arc Welding (SMAW), commonly known as **stick welding**. This classification ensures that the electrode conforms to specific chemical composition, mechanical property, and usability requirements for **stainless steel welding applications**.
These numbers indicate the **chemical composition and alloy type** of the weld metal deposited by the electrode. They typically correspond to standard stainless steel grades. For example, "308" refers to a weld metal similar to 304 or 304L stainless steel, while "2209" indicates a duplex stainless steel composition, and "2594" represents a super duplex stainless steel. Understanding these numbers is crucial for **matching the filler metal to the base material** for optimal performance.
These suffixes define the **type of electrode coating (flux) and its usability characteristics**:
**-15 (Lime-Titania or Basic):** Designed for **DC reverse polarity (DCEP)**. Provides excellent mechanical properties, good toughness, and low hydrogen content, making it ideal for critical applications and out-of-position welding. However, it generally has a less stable arc and produces a rougher bead.
**-16 (Titania or Rutile):** Designed for **AC or DC reverse polarity (DCEP)**. Offers a smooth, stable arc, good bead appearance, and easy slag removal. It's often preferred for general-purpose applications and is more user-friendly.
**-17 (Rutile-Basic or Acid-Rutile with Iron Powder):** Offers improved arc stability, higher deposition rates (due to iron powder), and a smoother bead. It's often a blend of -15 and -16 characteristics, providing a good balance of usability and properties.
These suffixes are vital for selecting the right **SMAW electrode** for specific welding conditions and desired weld characteristics.
AWS E308-16 electrodes are a **general-purpose choice for welding 304 and 304L stainless steels**, as well as other common austenitic stainless steels like 302 and 301. Their rutile coating provides a **smooth, stable arc, excellent bead appearance, and easy slag removal**, making them highly popular for general fabrication, repair, and maintenance. They are suitable for most welding positions and are commonly used in industries such as food processing, architectural, and light chemical. It's a versatile workhorse for **common stainless steel fabrication**.
The "L" in AWS E308L-16 signifies **low carbon content** (typically 0.04% max for E308, 0.03% max for E308L). This low carbon is crucial for preventing **sensitization** and subsequent intergranular corrosion in the weld metal and heat-affected zone, especially when the welded component will be exposed to corrosive environments or cannot be post-weld solution annealed. AWS E308-16 has a slightly higher carbon content, making it more susceptible to sensitization if not properly controlled. The "L" grade ensures **enhanced corrosion resistance**.
You would choose **AWS E316-16** when welding **316 or 316L stainless steels**, or when the weld needs **enhanced resistance to pitting and crevice corrosion**, particularly in environments containing chlorides (e.g., marine, chemical processing, pharmaceutical). E316-16 contains **molybdenum**, which provides this superior corrosion resistance. E308-16 is for general-purpose 304/304L applications. The presence of molybdenum is the key differentiator for **demanding corrosive environments**.
AWS E309-16 electrodes are primarily designed for **joining dissimilar metals**, specifically **stainless steel to carbon steel or low-alloy steels**. Their higher chromium and nickel content (compared to E308) allows them to tolerate dilution from the carbon steel base metal while maintaining a robust, crack-resistant, and corrosion-resistant stainless steel weld deposit. They are also used for cladding carbon steel with stainless steel. It's a vital electrode for **mixed-material fabrication**.
The **Ferrite Number (FN)** quantifies the amount of delta ferrite in the weld metal. A controlled amount (typically 3-10 FN for common austenitic stainless steels) is crucial for **preventing hot cracking (solidification cracking)** during welding. Electrodes are formulated to produce an appropriate FN range for their specified applications. Too low FN increases hot cracking risk, while too high FN can lead to sigma phase embrittlement. It's a critical **quality control parameter for weld integrity**.
AWS E309Mo-16 is a variant of AWS E309-16 that includes **molybdenum (Mo)** in its composition. This addition of molybdenum provides the weld deposit with **enhanced resistance to pitting and crevice corrosion**, similar to how it benefits 316L. It's used when joining dissimilar metals where the weld joint itself will be exposed to more aggressive corrosive environments, such as those with chlorides. It combines **dissimilar joining capability with superior corrosion resistance**.
Advantages of SMAW for stainless steel include:
**Portability and low equipment cost:** No need for gas cylinders, making it ideal for field work.
**Versatility in outdoor/windy conditions:** The flux coating provides shielding.
**Good for out-of-position welding:** Slag supports the puddle.
**Tolerance to surface contaminants:** Flux can handle some mill scale or rust.
**Good for thicker materials.**
It's a robust choice for **versatile stainless steel welding applications**.
Yes, AWS E316-15, with its "-15" basic coating, is generally considered an **all-position electrode** suitable for flat, horizontal, vertical-up, and overhead positions. The basic flux creates a viscous slag that helps support the molten puddle, making it excellent for out-of-position welding. It's often chosen for critical applications requiring good mechanical properties and positional versatility. It's a strong performer for **demanding positional stainless steel welds**.
AWS E2209-16 electrodes are specifically designed for welding **duplex stainless steels like 2205 (UNS S31803/S32205)**. Duplex stainless steels offer a combination of high strength and excellent resistance to stress corrosion cracking and pitting corrosion due to their mixed austenitic-ferritic microstructure. E2209-16 electrodes are crucial for maintaining this balanced microstructure and properties in the weld metal for applications in chemical tankers, desalination plants, and pressure vessels. They are essential for **duplex stainless steel fabrication**.
AWS E2594-16 is designed for welding **super duplex stainless steels (e.g., 2507, UNS S32750)**, whereas AWS E2209-16 is for standard duplex stainless steels (e.g., 2205). E2594-16 contains **higher levels of chromium, molybdenum, and nitrogen** than E2209-16, which provides superior pitting corrosion resistance (higher PREN values) and higher strength. Both maintain a duplex microstructure but for different levels of corrosive aggression and strength. They represent different tiers of **duplex stainless steel performance**.

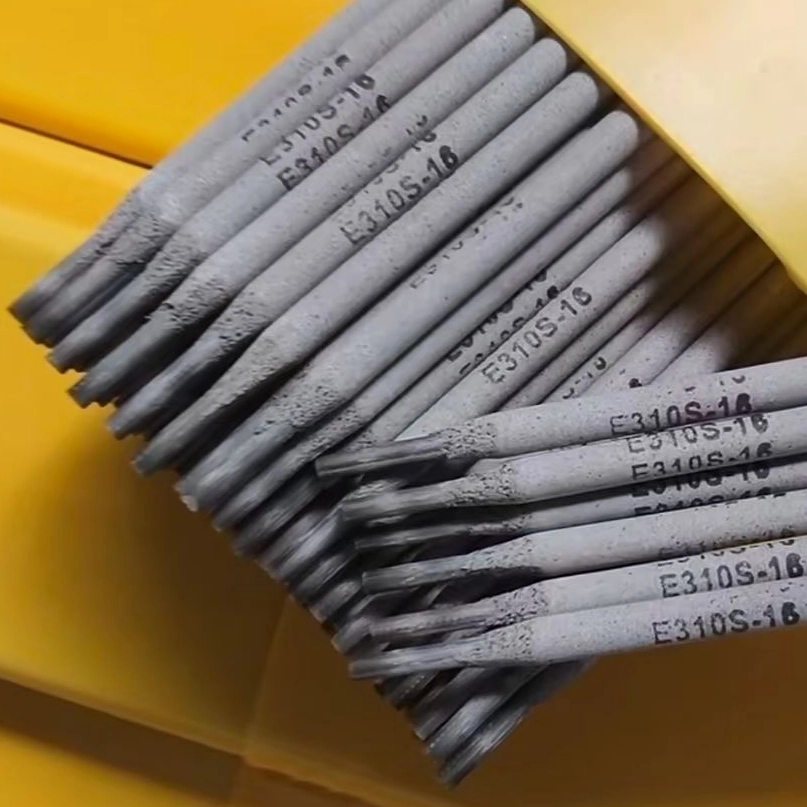

AWS E310-16 electrodes are designed for welding **high-alloy, fully austenitic stainless steels**, particularly those with similar high chromium and nickel content (e.g., 310 stainless steel). They are also excellent for **joining dissimilar metals**, especially when one component is a higher alloy. Their high alloy content provides good high-temperature strength and oxidation resistance, making them suitable for furnace components, heat exchangers, and cryogenic applications. They are for **high-temperature and high-alloy stainless steel welding**.
The "-17" coating offers several benefits:
**Smooth, stable arc:** Comparable to -16 types.
**Higher deposition rates:** Due to the inclusion of iron powder in the coating.
**Excellent bead appearance:** Flat to slightly convex, with fine ripples.
**Easier slag removal:** Usually self-lifting or very easy to chip.
**Good usability in all positions** (though optimized for flat/horizontal).
This makes -17 electrodes a popular choice for **high-productivity and aesthetic stainless steel SMAW**.
Low carbon content (denoted by "L") is crucial for minimizing **sensitization**, which is the precipitation of chromium carbides at grain boundaries when stainless steel is exposed to high temperatures (e.g., during welding). Sensitization depletes chromium, making the material susceptible to intergranular corrosion. Low carbon electrodes prevent this, ensuring the weld maintains **optimal corrosion resistance**, especially in corrosive environments or when post-weld heat treatment is not possible. It is key for **maintaining weld integrity and corrosion performance**.
Common causes of porosity in stainless steel SMAW welds include:
**Moisture in the electrode coating:** Improperly stored electrodes.
**Contamination on the base metal:** Grease, oil, rust, paint, or heavy oxides.
**Too long an arc length:** Inadequate shielding gas from the flux.
**Incorrect current or polarity.**
**Excessive travel speed:** Not allowing enough time for gases to escape.
**Damaged electrode coating.**
These factors can lead to **weld discontinuities** and compromised integrity.
AWS E309MoL-16 is the **low carbon version** of AWS E309Mo-16. Both contain molybdenum for enhanced pitting resistance and are designed for dissimilar joining or cladding. The "L" in E309MoL-16 ensures that the weld metal's carbon content is extremely low (typically 0.03% max), which further **minimizes sensitization and intergranular corrosion** risk. This is particularly important for applications where the weld will be exposed to severe corrosive environments or prolonged high temperatures without post-weld annealing. It offers **superior corrosion protection through low carbon**.
Stainless steel welding electrodes must be stored in **dry, climate-controlled conditions** to prevent moisture absorption by the flux coating. For -15 (basic) electrodes, this often means storing in a **heated oven** (rod oven) at recommended temperatures (e.g., 250-350°F / 120-177°C) after opening, or baking before use if exposed. -16 and -17 electrodes are less sensitive but should still be kept dry. Proper storage is crucial for preventing **hydrogen-induced cracking and porosity**. It is vital for **maintaining electrode performance**.
The flux coating performs several vital functions in SMAW electrodes:
**Generates shielding gas:** To protect the molten weld pool from atmospheric contamination.
**Provides deoxidizers:** To remove impurities from the weld metal.
**Forms a protective slag:** Which shapes the bead, controls cooling rate, and protects the solidifying weld.
**Introduces alloying elements:** To achieve the desired weld metal composition.
**Stabilizes the arc:** For smooth and consistent welding.
The flux is fundamental to the **performance and metallurgy of SMAW welds**.
AWS E2209-15 electrodes are used for welding **duplex stainless steels (e.g., 2205)**, similar to E2209-16. The key difference lies in their coating:
**E2209-15:** Features a **basic (-15) coating**, providing superior mechanical properties, especially toughness, and extremely low hydrogen content. It's preferred for highly critical applications or where the best possible mechanical properties are needed, often for out-of-position welding. Arc stability can be less forgiving.
**E2209-16:** Has a **rutile (-16) coating**, offering a smoother arc, better bead appearance, and easier slag removal. It's generally more user-friendly for general fabrication.
The choice depends on the balance between **usability and demanding mechanical property requirements** for duplex alloys.
While AWS E317-17 can technically weld standard stainless steels, it is **over-alloyed** for general-purpose applications like welding 304 or 316. E317-17 contains higher molybdenum than 316L (typically 3-4% Mo vs. 2-3% Mo) for enhanced corrosion resistance in very aggressive environments. Using it for general purposes would be **unnecessarily expensive** and might introduce properties not required. It's best reserved for its intended applications requiring **superior corrosion resistance**.
AWS E310H-16 has a significantly **higher carbon content** (the "H" denotes high carbon, usually 0.04-0.10%) combined with high chromium and nickel. The high chromium (approx. 25%) and nickel (approx. 20%) provide **excellent high-temperature strength, oxidation resistance, and creep resistance**. The higher carbon content further enhances strength at elevated temperatures, making it suitable for applications like furnace parts, heat exchangers, and kilns where high-temperature performance is critical. It's designed for **severe high-temperature service**.
AWS E310Mo-16 is a variant of AWS E310-16 that contains **molybdenum (Mo)**. While both are high-alloy electrodes designed for high-temperature and dissimilar applications, the addition of molybdenum in E310Mo-16 provides **enhanced resistance to pitting and crevice corrosion**, especially in sulfuric acid and other aggressive environments. E310-16 is primarily for high-temperature oxidation resistance, whereas E310Mo-16 adds **corrosion resistance in specific chemical processes**.
The primary difference lies in their **flux coating type and usability characteristics**:
**AWS E308-15 (Basic):** Offers superior mechanical properties and very low hydrogen, often preferred for critical, highly restrained joints or where maximum weld integrity is paramount. It generally has a more challenging arc and produces a rougher bead.
**AWS E308-16 (Rutile):** Provides a smoother, more stable arc, better bead appearance, and easier slag removal. It's more user-friendly and widely preferred for general fabrication where excellent cosmetic appearance is desired.
The choice often comes down to a trade-off between **mechanical performance and ease of use**.
You would use AWS E309-15 (basic coating) instead of AWS E309-16 (rutile coating) when:
**Higher mechanical properties and toughness** are required, especially at low temperatures.
**Extremely low diffusible hydrogen** is critical to prevent hydrogen-induced cracking, particularly in highly restrained joints or when welding to certain carbon or low-alloy steels.
**All-position welding** is required with good puddle control.
It's chosen for more **demanding or critical dissimilar metal welding applications** where usability is secondary to performance.
AWS E312-16 electrodes are known as "forty-forty" (approx. 29% Cr, 9% Ni) and are primarily used for welding **dissimilar metals**, especially those that are difficult to weld or are highly restrained, such as **austenitic stainless steels to martensitic stainless steels, tool steels, or problem steels**. Its high ferrite content (very high FN) provides excellent resistance to hot cracking, making it a "troubleshooting" electrode for hard-to-weld combinations or unknown base metals. It's a versatile choice for **difficult repair and maintenance applications**.
The main difference is the **carbon content**. AWS E316L-16 contains **low carbon** (max 0.03%), which minimizes sensitization and intergranular corrosion, especially important for chemical processing environments where the weld won't be post-weld solution annealed. AWS E316-16 has a slightly higher carbon content (max 0.08%), making it more susceptible to sensitization if not controlled. Both contain molybdenum for pitting resistance. The "L" ensures **superior corrosion resistance in specific conditions**.
The "L" in AWS E309MoL-16 denotes **low carbon content** (typically 0.03% max). This low carbon ensures that the weld metal resists **sensitization** and the associated intergranular corrosion. This is particularly important when this electrode is used for joining dissimilar metals, especially if the fabricated part will be exposed to elevated temperatures or corrosive environments, as it preserves the integrity of the weld. It enhances the **corrosion resistance of the dissimilar joint**.
Yes, AWS E308L-17 electrodes are generally considered **all-position capable**, although they are particularly well-suited for flat and horizontal positions due to their higher deposition rates and fluid puddle. The rutile-basic coating with iron powder provides a stable arc and good bead shape, allowing for competent out-of-position welding while maintaining aesthetic appeal. It offers a **balance of usability and positional versatility**.
AWS E430-16 electrodes are designed for welding **ferritic stainless steels like 430 stainless steel**. These steels are typically used for decorative applications or in environments where good oxidation resistance is needed but high strength or ductility are not paramount. E430-16 electrodes provide weld metal with good corrosion resistance similar to 430, often in applications like automotive trim, kitchen appliances, or certain furnace parts. They are specific for **ferritic stainless steel joining**.
AWS E410NiMo-15 is specifically designed for welding **martensitic stainless steels**, particularly **CA6NM (a cast stainless steel)**. Unlike austenitic or duplex electrodes, this electrode produces a martensitic weld deposit with high strength and good toughness, often after post-weld heat treatment. Its applications include welding hydroelectric turbine runners, pumps, and valves where high strength and erosion resistance are crucial. It's a specialized electrode for **high-strength, hardenable stainless steels**.
"G202" is not a standard AWS classification for stainless steel covered electrodes. It might refer to:
A **specific manufacturer's internal designation** or product code.
A **European EN standard classification** for a particular type of stainless steel electrode (e.g., in a similar format to ISO 3581-A E 19 9 L R 32, where "R" indicates rutile).
A **grade within a specific industry standard** not commonly covered by general AWS classifications.
Always consult the **manufacturer's data sheet** or relevant EN/ISO standard for precise details on G202. It requires **external reference for clarification**.
The common current types depend on the electrode coating:
**DC Reverse Polarity (DCEP or DC+):** Recommended for **-15 (basic) electrodes** and often preferred for **-16 and -17 (rutile) electrodes** for deeper penetration and a more stable arc.
**AC (Alternating Current):** Can be used with **-16 and -17 (rutile) electrodes** for applications where arc blow is a concern or when an AC machine is the only option. However, AC typically produces more spatter and a less smooth bead than DCEP.
Always follow the **manufacturer's recommendation for polarity**.
AWS E308L-16's low carbon content is highly beneficial for food processing equipment made from 304L/304 stainless steel. It prevents **sensitization** in the weld and heat-affected zone, which would otherwise lead to intergranular corrosion. This ensures that the equipment maintains its hygienic properties, resistance to cleaning agents, and prevents the formation of sites where bacteria could accumulate. It's crucial for **sanitary and corrosion-resistant food contact surfaces**.
AWS E309L-15 electrodes are primarily used for **joining dissimilar metals**, specifically **low-carbon stainless steel (like 304L or 316L) to carbon steel or low-alloy steels**, where **low hydrogen and superior mechanical properties** are critical. The "L" ensures low carbon content to prevent sensitization in the stainless weld, while the basic "-15" coating provides excellent toughness and all-position capability, making it ideal for highly restrained or critical joints in corrosive environments. It's a reliable choice for **demanding dissimilar metal applications**.
No, AWS E320-16 is a highly specialized electrode and **not for general stainless steel welding**. It's designed for welding **stabilized stainless steels containing columbium (niobium) and/or titanium**, such as 347 and 321, or for welding these stabilized stainless steels to non-stabilized grades. Its high alloy content (typically 19% Cr, 10% Ni, with stabilizing elements) helps prevent carbide precipitation and ensures intergranular corrosion resistance in applications subjected to high temperatures. It's used in **power generation and high-temperature chemical processing** where stability is critical.
For most austenitic stainless steel electrodes (308, 316, 309 series), **preheat is generally not required**, and **PWHT is usually avoided** to prevent sensitization. However:
**Duplex (E2209, E2594) and Martensitic (E410NiMo) electrodes often require specific preheat/interpass temperatures** and sometimes PWHT to achieve optimal microstructure and properties.
When welding **stainless steel to carbon or low-alloy steels (with E309/E309L)**, preheat might be needed if the carbon steel is thick or hardenable, to prevent cracking in the carbon steel's HAZ.
Always consult the manufacturer's recommendations and relevant codes. These are crucial for **controlling material transformation and preventing cracking**.
AWS E318-16 is similar to AWS E316L-16 in that both are molybdenum-bearing for pitting resistance. However, AWS E318-16 also contains **columbium (niobium)** as a stabilizing element. This columbium prevents carbide precipitation and sensitization, offering **improved resistance to intergranular corrosion** when exposed to elevated temperatures or corrosive environments. It essentially combines the benefits of 316L with stabilization against sensitization, even for prolonged high-temperature exposure. It provides **enhanced stability for corrosion resistance**.
Excessive heat input when welding stainless steel electrodes can lead to:
**Sensitization** and intergranular corrosion in the HAZ.
**Distortion** of the workpiece.
**Reduced mechanical properties** like toughness.
**Hot cracking** (if ferrite balance is off).
**Carbide precipitation** in high carbon grades.
Controlling heat input is critical for preserving the desired properties of the stainless steel. It directly impacts **weld quality and material integrity**.
Yes, AWS E310-15 (a fully austenitic electrode with high nickel) is an excellent choice for **cryogenic applications** down to extremely low temperatures (e.g., -452°F / -269°C). Its fully austenitic microstructure (low or no ferrite) ensures exceptional toughness and ductility at cryogenic temperatures, as ferrite can become brittle. It's used for welding tanks and equipment for liquid nitrogen, oxygen, and helium. It's specifically designed for **ultra-low temperature performance**.
The slag system is a critical component of SMAW electrodes. It:
**Protects the molten weld pool** and solidifying metal from atmospheric contamination.
**Shapes the weld bead** and provides support for out-of-position welding.
**Controls the cooling rate** of the weld.
**Removes impurities** and refines the weld metal.
The type of slag (basic, rutile) directly impacts slag removal ease and post-weld cleaning effort, with rutile (-16, -17) being generally easier to remove than basic (-15). It influences **weldability, appearance, and cleanup efficiency**.
Common diameters for stainless steel welding electrodes typically range from 3/32" (2.4 mm) to 5/32" (4.0 mm). Smaller diameters (e.g., 1/16" / 1.6 mm) are available for thin materials or root passes, and larger diameters (e.g., 3/16" / 4.8 mm, 1/4" / 6.4 mm) are used for heavy section welding and higher deposition rates in flat positions. The choice depends on material thickness, welding position, and desired deposition rate. Matching **electrode diameter to application** is key.
AWS E317L-16 electrodes are designed for welding **317L or 317 stainless steels**, which contain a **higher molybdenum content (typically 3-4% Mo)** than 316L stainless steel. This higher molybdenum provides **superior resistance to pitting and crevice corrosion** in exceptionally aggressive environments, such as those involving hot, concentrated sulfuric acid or other highly corrosive chemicals. The "L" denotes low carbon for sensitization resistance. It's a specialized electrode for **extreme corrosive service**.
The primary difference is the **coating type and associated usability**:
**AWS E309Mo-15 (Basic):** Offers superior mechanical properties, especially toughness, and extremely low hydrogen. Preferred for critical, highly restrained dissimilar joints or where maximum weld integrity and performance in corrosive environments (with Mo) are paramount. It can be more challenging to use.
**AWS E309Mo-16 (Rutile):** Provides a smoother, more stable arc, better bead appearance, and easier slag removal. It's generally more user-friendly for general fabrication of dissimilar joints requiring molybdenum.
The choice depends on a trade-off between **usability and demanding mechanical property requirements** for Mo-bearing dissimilar alloys.
Common safety precautions include:
**Adequate ventilation/fume extraction:** Stainless steel fumes contain hazardous chromium and nickel compounds.
**Respiratory protection (PAPR or respirator):** Often necessary due to fume generation.
**UV radiation protection:** Strong arc requires proper helmet shade.
**Electrical safety:** Proper grounding and dry conditions.
**Fire prevention:** Clearing combustibles from the work area.
**Proper disposal of stub ends and slag.**
Prioritizing **fume management and personal protective equipment (PPE)** is paramount.
Arc length significantly impacts the stability, penetration, and bead shape in stainless steel SMAW.
**Too long an arc:** Leads to arc instability, excessive spatter, poor shielding (porosity, oxidation), and reduced penetration.
**Too short an arc:** Can cause the electrode to stick, reduce penetration, and lead to poor fusion.
Maintaining a **consistent, relatively short arc length** (just enough to prevent sticking) is generally preferred for optimal results. It's critical for **SMAW arc control and quality**.
Yes, AWS E316-16 can be used for applications in the food processing industry made from 316 or 316L stainless steel. Its molybdenum content provides good resistance to pitting and crevice corrosion, which is important for hygiene and cleaning agents. However, for critical hygiene applications or where sensitization must be absolutely avoided, the **low carbon E316L-16** is usually preferred. Post-weld cleaning and passivation are essential. It's suitable for **corrosion-resistant food contact surfaces**.
Manganese in stainless steel electrode coatings primarily acts as a **deoxidizer and desulfurizer** of the weld metal, helping to clean the weld pool and prevent porosity. It also contributes to the **toughness and strength** of the weld deposit. Its presence helps ensure a sound, defect-free weld and aids in slag formation. It's a crucial **element for weld metal cleanliness and mechanical properties**.
Detailed specifications, including chemical composition limits, mechanical property requirements, recommended welding parameters, and usability characteristics, can be found in the **AWS A5.4 standard (Specification for Stainless Steel Electrodes for Shielded Metal Arc Welding)**. Additionally, reputable welding consumable manufacturers provide comprehensive Technical Data Sheets (TDS) for each of their specific products, which are invaluable resources for welders and engineers. Always consult these **authoritative welding standards** for precise and up-to-date information.
The "L" in AWS E308L-17 signifies low carbon content (max 0.03%). This is crucial because it **prevents sensitization** in the weld metal and heat-affected zone, thereby maintaining optimal **intergranular corrosion resistance**. This is particularly important for applications where the welded component cannot be post-weld solution annealed or will operate in corrosive environments. It ensures **long-term corrosion performance** for 304L/304 base metals.
While AWS E2594-16 is a super duplex electrode, it's **not typically used for general-purpose duplex stainless steel (like 2205) welding** unless the design specifically calls for over-matching for higher strength or enhanced corrosion resistance. Using E2594-16 for 2205 is often an **over-alloying** that is unnecessarily expensive. For standard duplex 2205, AWS E2209-15 or E2209-16 would be the appropriate and more cost-effective choice. It's specialized for **super duplex applications**.
Electrode drying or rebaking procedures are absolutely critical for **-15 (basic) type electrodes** to remove absorbed moisture from their flux coating. Moisture introduces **hydrogen** into the weld metal, which can cause **hydrogen-induced cracking (cold cracking)**, especially in highly restrained joints or thicker materials. Proper drying/rebaking (following manufacturer's instructions for temperature and time) ensures the lowest possible diffusible hydrogen content, enhancing **weld integrity and preventing defects**.
AWS E309-16 performs exceptionally well when welding carbon steel to 304 stainless steel. Its higher chromium (approx. 22-25%) and nickel (approx. 12-14%) content is specifically designed to **accommodate dilution from the carbon steel base metal**. This ensures that the weld deposit remains austenitic and maintains adequate corrosion resistance, preventing dilution cracking and providing a strong, reliable dissimilar joint. It's a primary electrode for **robust dissimilar metal fabrication**.
AWS E312-17 is an excellent choice for repair welding due to:
**High crack resistance:** Its high ferrite content (up to 40%) provides exceptional resistance to hot cracking, even in highly restrained joints or on difficult-to-weld materials.
**Tolerance to dilution:** Can weld a wide range of dissimilar metals, including hard-to-identify alloys.
**Good usability:** The -17 coating offers a stable arc, good bead appearance, and easy slag removal, making it user-friendly for repairs.
It's often referred to as a "universal" or "problem solver" electrode for **diverse repair scenarios**.
Incorrect current settings significantly impact stainless steel SMAW:
**Too low current:** Leads to an unstable arc, poor penetration, incomplete fusion, excessive stub waste, and a convex, ropey bead.
**Too high current:** Results in excessive spatter, overheating of the electrode, rapid coating breakdown, undercut, and potential for burn-through or excessive distortion.
Optimizing current for electrode diameter, joint type, and position is crucial for **stable arc and quality weld formation**.
Yes, AWS E309-15 is an excellent choice for **cladding or overlaying carbon steel with a stainless steel layer** for corrosion resistance. Its high alloy content (Cr, Ni) tolerates significant dilution from the carbon steel base metal, ensuring that the deposited layer maintains a robust, corrosion-resistant stainless steel composition. The low hydrogen basic coating is also advantageous for preventing cracking in the clad layer. It's widely used for **corrosion-resistant surfacing**.
Both -16 (rutile) and -17 (rutile-basic with iron powder) type electrodes generally produce **easily removable slag**. However, **-17 electrodes often produce a slag that is even more self-lifting or "peeling"** due to the iron powder and specific flux formulations, making post-weld cleaning very efficient. -16 electrodes also have easy-to-remove slag, but sometimes require a bit more effort to chip off compared to the often effortless removal of -17. This impacts **post-weld cleanup efficiency**.
Stainless steel SMAW welds can experience:
**Intergranular corrosion:** If sensitization occurs (prevented by "L" grades).
**Pitting corrosion:** Localized attack, especially in chloride environments (resisted by Mo-containing electrodes).
**Crevice corrosion:** In stagnant areas or under slag.
**Weld decay:** Another term for intergranular corrosion adjacent to the weld.
**Hydrogen cracking:** More likely with basic electrodes if not properly dried.
Proper electrode selection and welding practices mitigate these **corrosion risks**.
The advantage of using AWS E308L-16 in applications where post-weld annealing is not feasible is its **inherent resistance to sensitization**. Because of its low carbon content, the weld metal and heat-affected zone will not form chromium carbides at grain boundaries during welding or subsequent thermal exposure. This ensures the material's full corrosion resistance is maintained without the need for a costly or impractical annealing treatment. It's ideal for **fabrication without post-weld heat treatment**.
AWS E2553-16 electrodes are designed for welding **super duplex stainless steels**, similar to E2594-16, but with a slightly different chemistry or for specific applications. E2553 is a proprietary super duplex alloy. This electrode provides high strength and excellent resistance to pitting, crevice, and stress corrosion cracking in extremely aggressive chloride-containing environments. Its applications include offshore oil and gas, chemical processing, and other industries demanding ultimate corrosion performance. It is crucial for **high-performance super duplex fabrication**.
Both AWS E310Mo-16 and AWS E316-16 contain molybdenum for corrosion resistance, but their primary applications differ:
**E310Mo-16:** Designed for welding **high-alloy 310-type stainless steels that also require molybdenum** for specific chemical resistance, or for very challenging dissimilar joints in corrosive environments. Offers higher Cr/Ni than 316.
**E316-16:** Standard choice for welding **316/316L stainless steels** (or similar) where good pitting resistance is needed in chloride environments.
E310Mo-16 offers a broader range of high-temperature and specific chemical resistance due to its higher base alloy content. They address different levels of **corrosive and temperature demands**.
The "H" in AWS E310H-16 signifies **high carbon content** (typically 0.04-0.10%). Unlike the "L" (low carbon) designation, which aims to prevent sensitization, the higher carbon in E310H-16 is intentionally added to **enhance high-temperature strength and creep resistance**. This makes it suitable for specific applications in furnaces and other high-temperature service where strength at elevated temperatures is paramount, even if it means some compromise on corrosion resistance. It's for **elevated temperature structural integrity**.
AWS E430-16 is generally **not recommended for structural applications** where significant strength or ductility is required. Ferritic stainless steels like 430 are not hardenable by heat treatment, and their welds typically have lower toughness and ductility compared to austenitic stainless steels. They can also exhibit **grain growth in the heat-affected zone**, leading to embrittlement. Therefore, E430-16 is better suited for non-load-bearing or decorative applications. It's primarily for **non-structural ferritic welding**.
The "-16" (rutile) coating offers several key benefits for stainless steel electrodes:
**Smooth, stable arc:** Easy to strike and maintain.
**Good bead appearance:** Produces a uniform, aesthetic weld bead.
**Easy slag removal:** Often self-lifting or can be easily chipped off.
**Suitable for AC or DCEP:** Versatile with different power sources.
**Good all-position usability** for many grades.
These characteristics make -16 electrodes very **user-friendly and popular for general fabrication**.
AWS E410NiMo-15 is a **low carbon martensitic electrode**. While martensitic stainless steels are inherently higher in carbon than austenitics, the "NiMo" (Nickel-Molybdenum) in the classification indicates specific alloying for improved toughness and weldability while maintaining strength, often with controlled carbon. The relatively lower carbon compared to some other martensitic steels helps manage hardenability and cracking risk in the weld, often requiring specific preheat and PWHT to achieve optimal properties. It represents a controlled approach for **weldable martensitic properties**.
Common current ranges for stainless steel SMAW electrodes vary by diameter, electrode type, and position, but typically:
**3/32" (2.4 mm):** 50-80 Amps
**1/8" (3.2 mm):** 70-120 Amps
**5/32" (4.0 mm):** 90-160 Amps
**3/16" (4.8 mm):** 120-200 Amps
Always consult the **electrode manufacturer's recommendations** for precise current ranges, as exceeding them can damage the electrode coating or lead to defects. It's crucial for **optimal arc performance and deposition**.
Yes, AWS E317L-16 can be used for welding 316L stainless steel. This would be considered **"over-matching"** the filler metal. The weld metal will have a higher molybdenum content than 316L, providing **superior pitting and crevice corrosion resistance** to the 316L base metal. While not detrimental, it is typically more expensive than using E316L-16 and is only done if the weld joint itself requires this enhanced corrosion resistance for the specific environment. It creates an **over-alloyed weld**.
Both are low-carbon 308L-type electrodes. The primary difference is the **flux coating and usability**:
**AWS E308L-16 (Rutile):** Offers a smooth arc, good bead appearance, and easy slag removal, good for general purpose.
**AWS E308L-17 (Rutile-Basic with Iron Powder):** Provides higher deposition rates, even easier (often self-lifting) slag removal, and a very smooth, often flatter bead. It's designed for higher productivity and aesthetics.
The choice depends on the desired **balance of productivity and weld finish**.
AWS E318-16 electrodes are used for welding **316L, 316, 317, and 347 stainless steels**, particularly in applications where the weld may be exposed to **elevated temperatures (e.g., in the sensitization range) or highly corrosive environments**, and where assurance against intergranular corrosion is required. Its columbium (niobium) stabilization makes it suitable for chemical processing, power generation, and other industries where both pitting resistance (from Mo) and intergranular corrosion resistance are critical. It's for **stabilized Mo-bearing stainless steel welding**.
AWS E309-15, with its basic (-15) coating, generally performs well in the overhead position. The basic flux creates a **fast-freezing, viscous slag** that provides excellent support for the molten puddle against gravity, making it easier to control. While it might require more skill than a rutile electrode, it allows for sound, full-penetration welds in challenging overhead orientations. It's a reliable choice for **critical overhead welding**.
In humid climates, electrode storage is even more critical.
**Sealed, hermetic containers:** Keep electrodes in their original, sealed packaging until immediately before use.
**Heated rod ovens:** For opened -15 type electrodes, maintaining them in a constantly heated oven at recommended temperatures is essential. For -16 and -17 types, while less critical, an oven or very dry conditions are still highly recommended.
**Rebaking:** If electrodes have been exposed to high humidity, rebaking them (following manufacturer guidelines) before use is often necessary.
These measures prevent **moisture absorption and hydrogen-related defects**.
Both AWS E312-16 and E312-17 are designed as "problem solver" electrodes for difficult-to-weld dissimilar joints due to their high ferrite content. The difference lies in their **coating and usability**:
**E312-16 (Rutile):** Offers a smoother arc, good bead appearance, and easier slag removal.
**E312-17 (Rutile-Basic with Iron Powder):** Provides higher deposition rates, even easier (often self-lifting) slag, and a very smooth, often flatter bead. It's typically chosen for higher productivity and a better cosmetic finish in these challenging applications.
The choice depends on **productivity and cosmetic requirements** for difficult welds.
Yes, AWS E2209-16 can be used for welding 304 stainless steel, but it is considered **"over-matching."** The weld metal will have higher strength and superior pitting/stress corrosion cracking resistance than the 304 base metal. While not detrimental to performance, it is **unnecessarily expensive** for 304 applications and introduces a duplex microstructure where a single austenitic phase is typically sufficient. It's generally only done if E2209-16 is the only available electrode. It creates an **over-engineered and costly weld**.
Hydrogen, often introduced by moisture in the electrode coating or on the base metal, can cause **hydrogen-induced cracking (cold cracking)** in stainless steel welds, particularly in hardenable grades (like martensitic or some duplex) or highly restrained austenitic joints. It can also contribute to porosity. Proper electrode storage and base metal cleaning are essential to minimize hydrogen. It's a serious potential **weld defect**.
AWS E308-16's rutile (TiO2-rich) coating contributes to its ease of use by:
**Providing a soft, stable, and smooth arc:** Easy to strike and maintain.
**Producing minimal spatter:** Reducing post-weld cleaning.
**Generating a fluid, manageable weld puddle:** Making it easy to control.
**Forming an easily removable slag:** Often self-lifting.
**Allowing for good bead appearance:** Aesthetic welds.
These characteristics make it very **forgiving and user-friendly** for welders of varying skill levels.
AWS E308L-17 electrodes are designed for welding **304L and 304 stainless steels** where a **low carbon content is required for sensitization resistance**, and where **higher deposition rates, superior bead appearance, and easy slag removal** are desired. Its -17 coating makes it very productive and aesthetic, making it suitable for general fabrication, food processing, architectural applications, and situations where cosmetic finish is important. It's a popular choice for **high-productivity and high-quality 304L welding**.
Generally, welds made with **-15 (basic) electrodes** tend to have **superior mechanical properties**, especially **higher toughness (impact strength)** and better ductility, due to their very low hydrogen content and ability to refine the microstructure. **-16 (rutile) electrodes** produce welds with **good but often slightly lower toughness** compared to -15 types. For critical applications requiring maximum toughness, -15 is usually preferred. It's a trade-off in **performance vs. usability**.
Yes, AWS E316-15 can be used for welding sanitary piping, especially when made from 316L/316 stainless steel. Its basic coating provides good toughness and very low hydrogen. However, for sanitary piping, **TIG (GTAW) is often preferred for root passes** due to its smooth, crevice-free root bead and elimination of slag, which is critical for hygiene. While E316-15 can be used for fill and cap passes, thorough slag removal and post-weld passivation are essential to ensure the required sanitary finish. It's an option for **fill/cap passes in sanitary applications**.
Welding very thin gauge stainless steel with SMAW electrodes is challenging and generally **not recommended**. It typically requires:
**Very small diameter electrodes** (e.g., 1/16" / 1.6 mm).
**Very low current settings.**
**Extremely fast travel speed.**
**High operator skill** to avoid burn-through and distortion.
For thin gauges, TIG (GTAW) or sometimes MIG (GMAW) are significantly more suitable due to better heat control. It's a process limitation for **thin gauge precision**.
AWS E309Mo-16's molybdenum content (typically 2-3%) significantly enhances its performance in chemical plants by providing **superior resistance to pitting and crevice corrosion**, especially in environments containing chlorides, sulfuric acid, or other aggressive chemicals. This is crucial when welding dissimilar metals where the weld joint itself will be exposed to these corrosive media, ensuring the longevity and integrity of the chemical processing equipment. It's vital for **corrosion integrity in mixed-metal chemical systems**.
In terms of basic welding parameters (current, voltage), there's **minimal practical difference** between AWS E308-16 and E308L-16. Both are rutile-coated 308-type electrodes, and their recommended operating ranges are very similar. The "L" primarily affects the carbon content in the weld metal and thus its corrosion properties, not its fundamental welding characteristics. Welders would use similar techniques and settings for both. Their **welding characteristics are largely identical**.
AWS E310-16 is beneficial for welding furnace components due to its:
**High chromium and nickel content:** Provides excellent oxidation resistance at high temperatures.
**Fully austenitic microstructure:** Maintains ductility at high temperatures and avoids sigma phase embrittlement.
**Good creep resistance:** For structural integrity under prolonged heat.
It's designed to withstand the harsh, hot environments found in furnaces and heat treatment equipment. It's a robust choice for **high-temperature service**.
Yes, AWS E317-17 can be used for **cladding carbon steel** to provide a highly corrosion-resistant surface, particularly in very aggressive environments requiring high molybdenum. Its -17 coating offers high deposition rates and good bead shape for cladding. However, due to its very high alloy content, managing dilution from the carbon steel base metal is crucial to ensure the final clad layer achieves the desired 317-type properties. Multiple passes might be needed. It's a strong candidate for **premium corrosion-resistant surfacing**.
Common methods for preparing stainless steel base metal before SMAW include:
**Mechanical cleaning:** Wire brushing (with a dedicated stainless steel brush, never used on carbon steel), grinding, or sanding to remove heavy oxides, scale, heat tint, and surface irregularities.
**Solvent cleaning:** Using acetone, alcohol, or other degreasers to remove oil, grease, paint, or other organic contaminants.
**Edge preparation:** Machining or grinding bevels and consistent root faces for proper joint fit-up.
Thorough cleaning is essential to prevent porosity, slag inclusions, and compromised corrosion resistance. It's vital for **achieving sound welds**.
AWS E2209-15's basic (-15) coating is formulated with a very low moisture content and is designed to minimize the introduction of hydrogen into the weld metal. Basic fluxes typically contain calcium carbonate and fluoride compounds, which produce a slag that effectively deoxidizes the weld pool and allows hydrogen to escape. This results in **extremely low diffusible hydrogen levels**, which is critical for preventing hydrogen-induced cracking, especially in duplex stainless steels. It's engineered for **maximum crack resistance**.
Magnetic arc blow can occur in stainless steel SMAW, particularly with DC current on thick sections or near strong magnetic fields. It causes the arc to deflect from its intended path, leading to: **inconsistent penetration, undercut, excessive spatter, porosity, and an irregular bead**. Mitigation techniques include: changing grounding location, reducing current, using AC if applicable (-16 electrodes), or demagnetizing the workpiece. It can severely impact **arc stability and weld quality**.
While AWS E310H-16 can technically weld 304L stainless steel, it is **highly over-alloyed and contains high carbon**. This would introduce significantly higher chromium and nickel (and carbon) into the weld than needed, making it unnecessarily expensive. More importantly, the high carbon content would make the weld and HAZ of the 304L extremely susceptible to **sensitization and intergranular corrosion**, compromising the very property (low carbon for corrosion resistance) that 304L offers. It's generally **not suitable for 304L applications**.
A good stainless steel SMAW weld bead typically appears:
**Uniform and consistent** in width and height.
**Smooth with finely rippled surface** (especially with -16/-17 coatings).
**Well-wetted at the toes** (good fusion).
**Covered by a consistent, easily removable slag layer** (ideally self-lifting).
Minimal spatter.
Ideally, little to no heat tint (though some is often unavoidable).
It indicates **controlled parameters and proper technique**.
AWS E312-16 is often called a "universal" or "troubleshooting" electrode because of its high ferrite content (up to 40%). This high ferrite provides exceptional **resistance to hot cracking** and allows it to tolerate significant dilution from a wide range of base metals, including unknown stainless steel grades, tool steels, or carbon steels. It's a reliable choice for repairs where the exact composition of the base metal is uncertain. It's an **all-purpose repair electrode for difficult materials**.
The cooling rate significantly impacts the microstructure and properties of stainless steel SMAW welds.
**Too fast:** Can lead to hot cracking (if ferrite is low) or, in martensitic grades, excessive hardness.
**Too slow:** Can promote grain growth or, in certain austenitic alloys, lead to sensitization (intergranular corrosion susceptibility) or sigma phase embrittlement.
The electrode's flux and welding parameters are designed to control the cooling rate for optimal microstructure. It's critical for **microstructural integrity and preventing defects**.
Welding in the vertical-up position with stainless steel SMAW electrodes requires:
**Slightly lower current** than flat/horizontal to control the puddle.
**Tight arc length.**
**Weaving technique:** Often a "christmas tree" or "shelf" technique to build a small ledge of solidified weld metal and slag to support the molten puddle.
**Electrode angle:** Typically pointed slightly upwards.
**Proper electrode type:** Basic (-15) electrodes are generally excellent for vertical-up due to their viscous, fast-freezing slag.
It's a skilled technique for **challenging positional welds**.
Yes, AWS E308-15, with its basic (-15) coating, is often a preferred choice for **root passes in stainless steel pipe welding**, especially when stringent code requirements demand high integrity and mechanical properties. The basic flux provides excellent penetration, good fusion, and very low hydrogen content, which reduces the risk of root pass cracking. However, it requires a higher skill level to manage the puddle and slag compared to TIG. It's a reliable electrode for **critical pipe root passes**.
An overly long arc in stainless steel SMAW leads to:
**Poor shielding:** Increased atmospheric contamination, resulting in porosity and heavy oxidation (heat tint).
**Increased spatter.**
**Unstable arc.**
**Reduced penetration and poor fusion.**
**Wider, flatter bead with potential for undercut.**
Maintaining a proper, short arc length is crucial for **sound and visually appealing welds**.
Both AWS E310-15 and E310-16 are high-alloy electrodes for 310 stainless steel and dissimilar welding. The main differences are:
**E310-15 (Basic):** Offers superior mechanical properties (toughness, ductility), very low hydrogen, and good all-position capability for critical applications. The arc is typically less smooth, and slag removal can be more challenging.
**E310-16 (Rutile):** Provides a smoother, more stable arc, better bead appearance, and easier slag removal, generally more user-friendly. Mechanical properties are good but may not match -15 in terms of toughness.
The choice depends on the balance of **critical performance vs. ease of use**.
AWS E309MoL-16 is highly beneficial for cladding applications due to:
**High alloy content (Cr, Ni, Mo):** Tolerates significant dilution from carbon steel while maintaining stainless properties.
**Molybdenum:** Provides enhanced pitting and crevice corrosion resistance in the clad layer.
**Low carbon ("L"):** Prevents sensitization and intergranular corrosion in the clad layer.
**Good usability ("-16"):** Offers a stable arc and good bead appearance for uniform overlays.
It's an excellent choice for creating **corrosion-resistant surfaces in aggressive environments**.
While AWS E317-17 can weld 304 stainless steel, it is **over-alloyed** for this application and therefore **unnecessarily expensive**. Its high molybdenum content (for superior pitting resistance) is not typically required for general 304 repair. AWS E308L-17 or E308L-16 would be more appropriate and cost-effective for general 304 stainless steel repair, offering excellent usability and adequate corrosion resistance. It's generally a **misapplication for routine 304 repairs**.
Poor joint preparation seriously compromises stainless steel SMAW:
**Incomplete fusion and lack of penetration:** If bevels are incorrect or root gap is insufficient.
**Slag inclusions:** If surfaces are not clean or fit-up prevents proper puddle control.
**Porosity:** If contaminants (oil, grease, rust) are present.
**Increased distortion:** Due to uneven heat distribution.
**Difficulty in achieving consistent bead shape.**
Proper cleaning and precise joint fit-up are fundamental for **achieving sound, defect-free welds**.
AWS E312-17 offers high productivity for difficult-to-weld metals primarily due to its **-17 coating with iron powder**. This allows for **higher deposition rates** compared to standard -15 or -16 electrodes, enabling faster welding. Combined with its high crack resistance and versatility for dissimilar joints, it can rapidly complete repairs or fabrications on challenging materials where other electrodes might struggle or require multiple passes, thus enhancing overall productivity. It boosts **efficiency in challenging welding scenarios**.
You can obtain training and certification from:
**Accredited welding schools and vocational training centers.**
**Welding equipment manufacturers** who often offer specialized training on their consumables.
**Industry organizations** like the American Welding Society (AWS) which provide certifications (e.g., AWS D1.6 Structural Welding Code – Stainless Steel).
**Certified welding inspectors/educators** for tailored instruction.
These resources equip welders with the necessary skills and qualifications for **professional stainless steel SMAW**.
The main benefit of using AWS E308-16 over TIG welding (GTAW) for stainless steel is **higher productivity and cost-effectiveness for thicker materials and less critical applications**. SMAW typically offers **higher deposition rates** and is less sensitive to joint fit-up than TIG. It's also more portable for field use and less affected by drafts. While TIG provides superior control and aesthetics, SMAW is more productive for general fabrication where cosmetic finish is less critical. It's a choice for **efficiency vs. precision**.
AWS E2209-15 is **generally not recommended for welding super duplex stainless steels like 2507**. While it's a duplex electrode, its alloy content (Cr, Mo, N) is lower than that required for super duplex. Using E2209-15 for 2507 would result in an **"undermatched" weld metal** in terms of pitting corrosion resistance and strength, potentially compromising the performance of the super duplex assembly. Always use a dedicated super duplex electrode like AWS E2594-16 or E2553-16 for super duplex materials. It leads to **compromised super duplex performance**.
The slag from -15 (basic) type stainless steel electrodes is typically **dark, dense, and can be relatively tough to remove** compared to rutile slags. It often appears as a glassy, brittle layer that needs more aggressive chipping and brushing. While harder to remove, this slag provides excellent weld metal protection and contributes to superior mechanical properties. It's a trade-off for **enhanced mechanical properties**.
AWS E309-16, being a 309-type electrode, generally handles high restraint well due to its **higher chromium and nickel content**, which helps to form an adequately ferritic microstructure (controlling FN) that resists hot cracking. Its rutile coating also provides a stable arc and good puddle control. However, for extremely highly restrained joints, or when welding very thick sections, using its basic counterpart (E309-15) might be preferred for its inherently lower hydrogen and better crack resistance. It offers **good resistance to hot cracking**.
AWS E310Mo-16 is applied in environments demanding both **high-temperature resistance and enhanced corrosion resistance**, particularly in specific chemical processes. This includes components in **sulfuric acid plants, phosphoric acid production, and certain high-temperature heat exchangers** where both oxidation and aggressive pitting/crevice corrosion are concerns. It's designed for these dual severe service conditions. It's used in **demanding chemical and high-temperature environments**.
Similar to other welding processes, if the **Ferrite Number (FN) is too low** in a stainless steel SMAW weld, it increases susceptibility to **hot cracking (solidification cracking)**. If the **FN is too high**, particularly with certain alloys (like duplex) or prolonged high-temperature exposure, it can lead to **sigma phase embrittlement**, which severely degrades toughness and ductility. Maintaining the optimal FN range is crucial for **weld mechanical integrity**.
No, AWS E316L-16 should **not be used for welding duplex stainless steels** (e.g., 2205). Duplex steels rely on a balanced austenitic-ferritic microstructure for their unique combination of strength and corrosion resistance. E316L-16 will deposit an almost entirely austenitic weld metal, which will be **undermatched in terms of strength and resistance to stress corrosion cracking and pitting** in severe environments. Always use a dedicated duplex electrode like E2209-16. It results in **compromised duplex weld properties**.
AWS E318-16 is beneficial for joining stabilized stainless steels (like 321 and 347) because it contains **columbium (niobium)**, which is also a stabilizing element. This ensures that the weld metal itself is stabilized, preventing carbide precipitation and **intergranular corrosion** when exposed to high temperatures (e.g., in service or during multi-pass welding). It provides matching stabilization to the base metal, crucial for sustained performance in high-temperature corrosive environments. It's important for **maintaining stabilization in critical components**.
AWS E430-16 is primarily designed for welding 430 stainless steel to itself. When welding to other materials, especially higher alloyed stainless steels or carbon steels, it may struggle. Ferritic weld metal (from E430) has limited ductility, and dilution from carbon steel can lead to **martensite formation and cracking** in the weld or HAZ. For dissimilar joints involving 430, a more accommodating electrode like AWS E309-16 or E312-16 would generally be a better choice to prevent cracking. It has **limited dilution tolerance**.
Common causes of arc blow in stainless steel SMAW include:
**Magnetic fields:** Residual magnetism in the base metal or surrounding tooling.
**Uneven current distribution:** Due to improper grounding.
**Proximity to magnetic materials:** When welding near corners or edges of ferromagnetic parts.
**Long electrode stickout.**
**DC current:** More prone to arc blow than AC.
Arc blow makes welding difficult and can lead to weld defects. It is a frequent problem in **DC welding on ferromagnetic materials**.
Proper electrode angle and manipulation are crucial for SMAW stainless steel welding:
**Angle:** Typically a slight drag angle (pushing the puddle) for optimal penetration and slag control. Too much or too little angle affects bead shape and shielding.
**Manipulation (Weave):** Controls bead width, penetration, and allows for proper fusion at the toes. Different weaves (straight, zig-zag, crescent) are used for various positions and joint types.
Correct technique ensures **good fusion, bead appearance, and defect-free welds**.
Yes, AWS E308L-17 can be used for structural applications involving 304L or 304 stainless steel. Its low carbon content ensures good corrosion resistance and ductility, and the -17 coating provides a good combination of usability and mechanical properties. It's suitable for various load-bearing stainless steel structures, provided the design and code requirements are met for mechanical strength and fatigue. It's a reliable choice for **stainless steel structural welding**.
Excessive preheat or interpass temperature when welding duplex stainless steels (E2209, E2594) can be detrimental. It can lead to:
**Reduced austenite content:** Disturbing the crucial ferrite-austenite balance.
**Formation of deleterious intermetallic phases** (e.g., sigma phase), which severely degrade toughness and corrosion resistance.
**Grain growth.**
Duplex and super duplex alloys are sensitive to heat input; specific, narrow interpass temperature ranges are critical. It causes **microstructural degradation in duplex alloys**.
AWS E2594-16 achieves its superior corrosion resistance through a precisely balanced and high content of **chromium (approx. 25%), molybdenum (approx. 4%), and nitrogen**. This high alloying, combined with its optimized duplex (austenite-ferrite) microstructure, results in an extremely high Pitting Resistance Equivalent Number (PREN), providing exceptional resistance to pitting, crevice, and stress corrosion cracking in very aggressive chloride-containing environments. It is designed for **ultimate corrosion performance**.
Environmental considerations for stainless steel SMAW electrodes include:
**Fume generation:** They produce significant fumes containing hexavalent chromium and nickel, requiring robust ventilation and potentially respiratory protection.
**Slag disposal:** The slag generated needs proper disposal according to local regulations.
**UV radiation:** Strong arc emits high levels of UV, requiring proper shielding for eyes and skin.
**Fume management is the primary environmental and health concern** for **stainless steel welding**.
Yes, AWS E308-16 can be used for welding stainless steel pressure vessels, especially those made from 304/304L, provided it meets applicable code requirements (e.g., ASME Boiler and Pressure Vessel Code). Requirements typically include:
**Material traceability and certification.**
**Welder qualification and procedure qualification.**
**Non-destructive testing (NDT)** like radiography or ultrasonics.
**Mechanical testing** (tensile, bend, impact).
**Controlled heat input** to prevent sensitization.
It's a common choice, but stringent adherence to codes is vital. It is suitable for **code-compliant pressure vessel fabrication**.
The fume generated by stainless steel SMAW electrodes is typically **dense, voluminous, and often appears dark or brownish**. This heavy fume is due to the volatilization of the electrode's flux coating and alloying elements (chromium, nickel, manganese). This increased fume generation highlights the critical need for **excellent local exhaust ventilation (LEV)** or respiratory protection. It indicates the presence of **potentially hazardous airborne particles**.
AWS E309Mo-15's basic (-15) coating provides several benefits for critical applications:
**Very low diffusible hydrogen:** Minimizes the risk of hydrogen-induced cracking, crucial for highly restrained joints or sensitive base metals.
**Superior mechanical properties:** Enhances toughness and ductility, particularly at low temperatures.
**Good all-position capability:** Allows for high-integrity welds in complex geometries.
This makes it preferred for demanding dissimilar welding tasks where reliability and performance in corrosive environments are paramount. It ensures **maximum weld integrity and performance**.
Differences in handling and storage:
**-15 (Basic):** Most sensitive to moisture. Requires strict storage in hermetically sealed containers or continuous holding in heated rod ovens. Rebaking is often mandatory if exposed to air.
**-16 (Rutile):** Less sensitive than -15, but still requires dry storage. Can be exposed to ambient air for shorter periods (e.g., 8-12 hours) before needing redrying or disposal.
**-17 (Rutile-Basic/Iron Powder):** Similar to -16 in moisture sensitivity, requiring dry storage. Also generally allows for limited atmospheric exposure before redrying.
Proper storage is vital across all types, but **-15 requires the most stringent control** to prevent hydrogen defects. It dictates **moisture control protocols**.
Yes, AWS E316-16 is a very common and highly effective electrode for welding 316/316L stainless steel in **marine environments**. Its molybdenum content provides excellent resistance to pitting and crevice corrosion caused by chlorides in saltwater. It's widely used for marine hardware, piping, and structural components that come into contact with seawater. It's a reliable choice for **marine corrosion resistance**.
Key properties of AWS E2594-16 for super duplex applications include:
**High PREN (Pitting Resistance Equivalent Number):** Due to high Cr, Mo, N, offering superior pitting and crevice corrosion resistance.
**High strength:** Significantly higher tensile and yield strength than austenitic or standard duplex steels.
**Excellent stress corrosion cracking (SCC) resistance.**
**Balanced ferrite-austenite microstructure:** Typically 40-60% ferrite, providing a balance of strength and toughness.
These properties make it ideal for **demanding offshore, chemical, and desalination applications**.
Without specific information on what "G202" refers to (as it's not a standard AWS classification), a direct comparison is difficult. However, assuming "G202" is a general-purpose rutile stainless steel electrode, it would likely aim to offer characteristics similar to E308L-16: a stable arc, good bead appearance, and easy slag removal for welding 304L/304. The key differences would be in **specific chemical composition tolerances, mechanical property guarantees, and potentially subtle usability differences** based on the manufacturer's formulation. Always refer to the manufacturer's data sheet for accurate comparison. It needs **manufacturer-specific data for comparison**.
AWS E308L-16 is typically **slightly more expensive** than AWS E308-16. This price difference is due to the additional controls and processing required to maintain the extremely low carbon content (0.03% max) that defines the "L" grade. While the difference might be small per electrode, it can add up in large-volume projects. The added cost is justified by the **enhanced corrosion resistance** of the "L" grade. It's a consideration for **cost-sensitive projects**.
No, AWS E310-16 is **not suitable for joining stainless steel to aluminum**. Welding stainless steel to aluminum creates brittle intermetallic compounds at the fusion line, leading to a weak and crack-prone joint, regardless of the stainless steel filler metal used. Specialized techniques like friction stir welding or mechanical fastening are required for these dissimilar materials. It is **incompatible for aluminum joining**.
AWS E312-16 is highly beneficial for maintenance and repair work due to:
**Exceptional crack resistance:** Its high ferrite content minimizes hot cracking, making it forgiving on older, unknown, or contaminated steels.
**Versatility for dissimilar metals:** Can join a wide array of metals, simplifying inventory.
**Tolerance to dilution:** Adapts well to various base metal chemistries.
**Good usability:** Offers a stable arc and manageable puddle.
It's often chosen when the exact base metal composition is unknown or when dealing with highly restrained repairs. It's an excellent **"repair-all" electrode**.
Surface contamination (oil, grease, heavy rust, paint) on stainless steel base metal severely impacts SMAW welds by:
**Causing porosity:** Trapped gases from burning contaminants.
**Promoting slag inclusions.**
**Leading to lack of fusion or incomplete penetration.**
**Increasing spatter.**
**Compromising corrosion resistance.**
**Generating excessive and hazardous fumes.**
Thorough cleaning is paramount to prevent these defects. It's a major source of **weld defects**.
AWS E309L-15 is ideal for applications in the chemical processing industry that require **joining stainless steel (like 304L) to carbon or low-alloy steels**, where:
**Corrosive environments** necessitate the "L" (low carbon) for sensitization resistance.
**High integrity and toughness** are paramount due to the "-15" basic coating.
**Out-of-position welding** is frequently encountered.
**Hydrogen control** is critical.
It's used in pressure vessels, piping, and tanks handling various chemicals. It's a key electrode for **critical dissimilar joints in corrosive chemical service**.
AWS E317L-16 ensures resistance to sulfuric acid primarily through its **high molybdenum content (typically 3-4% Mo)**, combined with its overall higher chromium and nickel. Molybdenum is particularly effective at resisting attack from reducing acids like sulfuric acid (especially in certain concentrations and temperatures) by forming a more stable passive layer. The "L" (low carbon) also helps by preventing sensitization which would otherwise make it susceptible to intergranular attack. It's a specialized electrode for **aggressive acidic environments**.
The main difference between AWS E316-15 and AWS E316-16 is their **flux coating type and usability**:
**AWS E316-15 (Basic):** Offers superior mechanical properties (especially toughness), very low hydrogen, and excellent all-position capability. The arc is typically rougher, and slag removal is more challenging. Chosen for critical applications.
**AWS E316-16 (Rutile):** Provides a smoother arc, better bead appearance, and easier slag removal. Generally more user-friendly for routine fabrication where cosmetic finish is important.
Both provide 316-level corrosion resistance. The choice depends on the balance between **mechanical performance and ease of use**.
No, **AWS E410NiMo-15 should not be used for welding non-hardenable stainless steels like 304**. E410NiMo-15 is a martensitic electrode designed for high-strength, hardenable steels, which typically require specific preheat and post-weld heat treatment to achieve optimal properties and avoid brittleness. Using it on 304 would introduce a highly susceptible martensitic phase, leading to **brittle and crack-prone welds** that are prone to hydrogen cracking. It is **completely unsuitable for austenitic stainless steels**.
The "kick-off" or "strike" end of an SMAW electrode is the very tip where the bare wire is exposed. This bare tip allows for **easy arc initiation** by making direct electrical contact with the workpiece, preventing the flux from interfering with the initial arc strike. After striking the arc, the molten flux quickly vaporizes to provide the shielding and slag. It's designed for **reliable arc starting**.
The slag in -17 electrodes (rutile-basic with iron powder) facilitates higher deposition rates primarily due to the **iron powder included in the coating**. This iron powder melts into the weld pool, becoming part of the deposited weld metal, essentially adding filler material from the coating itself. This significantly increases the amount of weld metal laid down per unit of time compared to electrodes without iron powder. The slag system is also designed to be fluid enough to accommodate this higher volume without compromising control. It's designed for **enhanced productivity through increased fill material**.
AWS E308L-16 offers several advantages for general fabrication shops:
**Versatility:** Suitable for welding 304L, 304, and other common austenitics.
**Ease of use:** Stable arc, good bead appearance, and easy slag removal (-16 coating).
**Corrosion resistance:** Low carbon content prevents sensitization.
**All-position capability:** Allows for diverse fabrication tasks.
It's a practical and reliable choice for a wide range of everyday stainless steel welding needs. It's a **workhorse for routine stainless fabrication**.
Impurities like sulfur and phosphorus in the base metal can significantly degrade stainless steel SMAW welds by:
**Increasing susceptibility to hot cracking:** Especially sulfur, which forms low-melting point eutectics at grain boundaries.
**Reducing toughness and ductility.**
**Contributing to porosity.**
**Making slag removal more difficult.**
Electrode fluxes contain deoxidizers and desulfurizers to mitigate these effects, but excessive impurities in the base metal remain a challenge. They are major contributors to **weld defects**.
Yes, AWS E318-16 can be used for welding 304 stainless steel. This would be an **over-matching scenario**. The weld metal would have higher molybdenum and columbium (niobium) content than required for 304, providing enhanced pitting resistance and stability against sensitization. While it's not detrimental, it's **more expensive** than using E308L-16 or E308-16 and introduces elements not needed for 304's typical service. It creates an **over-engineered, higher-cost weld**.
AWS E2209-16's balanced microstructure (approximately 50% austenite and 50% ferrite) is crucial for its unique properties:
**Ferrite:** Provides high strength, good resistance to stress corrosion cracking, and resistance to hot cracking.
**Austenite:** Contributes to ductility, toughness, and good general corrosion resistance.
This synergy offers an excellent combination of **high strength, good ductility, and superior resistance to various forms of corrosion** that neither phase alone can achieve. It's key for **optimal duplex stainless steel performance**.
"Worm tracking" (longitudinal porosity) in stainless steel SMAW welds is typically caused by excessive moisture in the electrode coating or incorrect welding parameters. Prevention methods include:
**Proper electrode storage and rebaking:** Crucial for -15 type electrodes.
**Maintaining a short arc length:** To ensure adequate gas shielding.
**Optimizing travel speed:** Allowing gases to escape from the weld pool.
**Using the correct current and polarity.**
These focus on **controlling hydrogen and ensuring proper solidification**.
An inconsistent arc length leads to **fluctuating voltage and current**, resulting in an **unstable arc, inconsistent penetration, variable bead width and height**, and increased spatter. This makes it difficult to produce a uniform, high-quality weld and can lead to defects like undercut or lack of fusion. Maintaining a steady arc length is crucial for **stable arc operation and consistent weld quality**.
When welding 304 stainless steel to itself, AWS E309-16 (for dissimilar metals) is generally **over-alloyed** compared to AWS E308-16 (for 304/304L). While E309-16 will produce a sound weld, it introduces more chromium and nickel than necessary, making it **more expensive**. E308-16 is the more appropriate and cost-effective choice for **same-grade 304 stainless steel welding**, providing adequate properties for the application. It's a matter of **alloy matching and cost efficiency**.
AWS E316L-16 is highly beneficial for chemical processing applications due to its:
**Low carbon content:** Prevents sensitization and intergranular corrosion, vital in chemical environments.
**Molybdenum content:** Provides superior resistance to pitting and crevice corrosion, especially in chloride-containing media.
**Good general corrosion resistance:** Suitable for a wide range of corrosive chemicals.
**Excellent weldability:** The -16 coating offers ease of use and good bead appearance.
It's a foundational electrode for **corrosion-resistant equipment in chemical plants**.
Titanium (as titanium dioxide, TiO2) is a primary component of **rutile-type (-16 and -17) electrode coatings**. Its main roles are:
**Arc stabilization:** Provides a smooth and stable arc.
**Slag former:** Contributes to a fluid, easy-to-remove slag.
**Deoxidizer:** Helps clean the weld pool.
**Enhances bead appearance.**
While sometimes used as a stabilizing element in the weld metal itself (e.g., 321), in coatings, it's mostly for **arc and slag characteristics**.
AWS E430-16 (ferritic) differs significantly in weldability from austenitic stainless steel electrodes:
**Less ductile weld metal:** Ferritic welds are inherently less ductile and have lower toughness.
**Grain growth in HAZ:** Ferritic stainless steels are prone to grain growth in the heat-affected zone, leading to embrittlement, especially in thicker sections.
**No phase transformation:** Unlike austenitics which resist sensitization through low carbon, ferritics don't have the same mechanism.
**Requires lower heat input and faster travel speeds** to minimize grain growth.
It requires a different approach to welding to manage its metallurgical characteristics. It has **distinct weldability challenges**.
Yes, AWS E310-15 can be effectively used for welding highly restrained joints. As a **basic (-15) electrode**, it offers:
**Very low diffusible hydrogen content:** Minimizes the risk of hydrogen-induced cracking, which is a major concern in restrained joints.
**Good mechanical properties:** Including high toughness, which helps absorb stress.
**Excellent all-position usability:** For optimal puddle control in challenging geometries.
These characteristics make it suitable for applications where crack resistance under restraint is paramount. It's well-suited for **high-integrity restrained welds**.
AWS E312-17 is exceptionally beneficial for joining dissimilar metals with unknown compositions due to its:
**High ferrite content (approx. 40%):** Provides immense tolerance to dilution from various base metals and excellent resistance to hot cracking.
**Versatile chemistry:** Can bridge a wide range of compositional differences.
**User-friendly -17 coating:** Offers good arc stability, high deposition, and easy slag removal for a "problem-solver" electrode.
It's a go-to electrode when the base material chemistry is uncertain, minimizing the risk of weld defects. It's a **versatile diagnostic and repair tool**.
AWS E308-16 (rutile) is generally **less expensive** than AWS E308-15 (basic). This difference in cost is typically due to the raw materials used in the flux coating and the manufacturing processes. Rutile electrodes are generally more economical to produce. Therefore, for general-purpose applications where maximum toughness is not the overriding factor, E308-16 offers a **cost-effective solution**.
Excessive amperage (current) in stainless steel SMAW causes:
**Overheating of the electrode:** Leading to flux breakdown and inconsistent shielding.
**Excessive penetration and potential for burn-through.**
**Undercutting along the weld toes.**
**Increased distortion.**
**Excessive spatter.**
**Reduced mechanical properties** due to overheating the weld pool.
It's crucial to operate within the electrode's recommended current range. It can lead to **severe weld defects and material damage**.
While AWS E309MoL-16 has high nickel content which helps with ductility for dissimilar joints, it is **not a primary choice for cast iron repair**. Nickel-based electrodes (like ENiFe-Cl or ENiCu-B) are typically preferred for cast iron due to their superior ability to tolerate carbon dilution from the cast iron and provide a ductile, machinable weld. Using E309MoL-16 might result in a harder, more brittle, and crack-prone weld in cast iron. It is generally **unsuitable for cast iron repair**.
AWS E2209-16 is highly beneficial in desalination plants due to its:
**Excellent resistance to pitting and crevice corrosion:** Crucial in chloride-rich seawater environments.
**High resistance to stress corrosion cracking (SCC):** A common issue in warm chloride environments.
**High strength:** Allows for thinner sections and lighter structures.
Its duplex microstructure provides the necessary performance for handling highly corrosive process streams in desalination processes. It's key for **long-term performance in seawater environments**.
AWS E310H-16 has a **significantly higher carbon content** than AWS E309-16 (E310H: 0.04-0.10% C; E309:<0.15% C, typically much lower).
**E310H-16:** Primary application is for **high-temperature service (furnace parts)** where strength and oxidation resistance at elevated temperatures are paramount, using the higher carbon for creep resistance.
**E309-16:** Primary application is for **joining dissimilar metals** (stainless to carbon steel), where its higher alloy content accommodates dilution and the carbon is kept lower to reduce sensitization risk.
They serve very different purposes related to their carbon levels. They are for **distinct temperature and application needs**.
Post-weld cleaning for stainless steel SMAW welds typically involves:
**Slag removal:** Chipping and wire brushing (with a dedicated stainless steel brush, never used on carbon steel).
**Spatter removal:** Grinding or scraping off spatter.
**Heat tint removal:** If present, through mechanical means (grinding, brushing) or chemical methods (pickling, electropolishing).
**Passivation:** To restore the passive layer and maximize corrosion resistance.
Thorough cleaning is essential for **optimal performance and aesthetics**.
AWS E308-16 is advantageous for repair welding of 304/304L stainless steel due to its:
**Ease of use:** Stable arc and good puddle control simplify repairs.
**All-position capability:** Allows for repairs in various orientations.
**Good bead appearance:** For aesthetically sensitive repairs.
**Adequate corrosion resistance:** For many repair scenarios.
**Portability of SMAW equipment:** Ideal for field repairs.
It's a practical and versatile electrode for **general stainless steel repair work**.
Yes, AWS E316L-16 can be used for structural applications involving 316L or 316 stainless steel, particularly where corrosion resistance (especially to chlorides) is a primary concern. Its low carbon content ensures good ductility and resistance to sensitization, while the molybdenum provides enhanced corrosion properties. It's commonly specified for structures in marine, chemical, or pharmaceutical environments. It's a reliable choice for **corrosion-resistant structural welding**.
Incorrect electrode angle in stainless steel SMAW can lead to:
**Poor penetration and fusion:** If the angle directs the arc incorrectly.
**Excessive spatter or undercut:** Due to inefficient metal transfer or puddle control.
**Irregular bead shape.**
**Difficulty in controlling the molten puddle** (especially out-of-position).
**Potential for slag inclusions** if the angle traps slag.
Maintaining the recommended drag angle is crucial for **optimal bead formation and quality**.
AWS E309L-15's low carbon content is highly beneficial in power generation applications, particularly for boiler components where dissimilar joints (e.g., stainless steel tubes to carbon steel headers) are common. The low carbon minimizes **sensitization and intergranular corrosion** in the weld and HAZ when exposed to high operating temperatures. This ensures the long-term integrity and reliability of critical components in high-temperature, potentially corrosive, environments. It's crucial for **preventing degradation in power plants**.
The "H" in AWS E310H-16 specifically refers to a **controlled higher carbon content** (relative to "L" grades, typically 0.04-0.10%). This higher carbon, when combined with the high chromium and nickel, contributes significantly to **enhanced strength and creep resistance at elevated temperatures**. Carbon strengthens the austenitic matrix and also forms stable carbides that resist grain boundary sliding at high temperatures, which is crucial for structural integrity in furnace and kiln components. It's specifically for **maintaining strength at elevated temperatures**.
AWS E2594-16 can be used for repair of older stainless steel components if those components are **super duplex stainless steels** themselves. However, if used on standard austenitic (e.g., 304, 316) or even standard duplex (2205), it would be an extreme over-match, unnecessarily expensive, and might introduce complications like increased residual stresses or microstructural incompatibilities not optimal for the original material. It should only be used where the **base metal specifically requires super duplex properties**. It's only for **matching super duplex repairs**.
Stainless steel SMAW electrodes are advantageous for pipeline welding due to:
**Portability:** Ideal for field pipeline installations without bulky gas equipment.
**All-position capability:** Essential for circumferential pipe welds.
**Tolerance to drafts/wind:** The flux provides shielding, making it suitable for outdoor conditions.
**Good penetration:** Ensuring robust welds in heavy wall pipe.
While TIG is often used for roots, SMAW is common for **fill and cap passes in pipeline construction**.
Leaving slag on stainless steel SMAW welds can lead to:
**Crevice corrosion:** Slag can trap moisture and corrosive agents, leading to localized corrosion beneath it.
**Compromised aesthetics:** Unsightly appearance.
**Interference with subsequent coatings or passivation.**
**Potential for defects in multi-pass welds:** Slag inclusions if not removed between passes.
Thorough slag removal is critical for **optimal corrosion resistance and weld integrity**.
AWS E308L-17's coating contains **iron powder**, which significantly improves its deposition rate. As the electrode is consumed, the iron powder melts and becomes part of the weld metal, effectively increasing the amount of filler metal transferred to the joint per unit of time. This allows for **faster welding speeds and higher productivity** compared to electrodes without iron powder. It's a key feature for **boosting productivity in SMAW**.
Welding with AWS E410NiMo-15 electrodes presents challenges due to their martensitic nature:
**High hardenability:** Requires precise preheat and interpass temperature control to prevent hydrogen cracking.
**Post-weld heat treatment (PWHT):** Often mandatory to temper the martensite and achieve desired toughness and ductility.
**Sensitivity to moisture:** Strict electrode storage is vital to prevent hydrogen pickup.
**More demanding technique:** Requires skilled welders.
It's a specialized electrode for **challenging material combinations**.
The primary difference in alloying elements between AWS E2209-16 and AWS E2553-16 is their content of **chromium, molybdenum, and nitrogen**.
**E2209-16 (standard duplex):** Typically has ~22% Cr, ~3% Mo, ~0.15% N.
**E2553-16 (super duplex):** Typically has ~25% Cr, ~3.5% Mo, ~0.25% N. It is a specific super duplex alloy (UNS S32550).
The higher levels of these elements in E2553-16 provide superior pitting resistance (higher PREN) and strength. They target different levels of **corrosive and mechanical performance**.
Yes, AWS E316-15 can be used for welding 304L stainless steel (over-matching). The weld will benefit from the **molybdenum content**, providing enhanced resistance to pitting and crevice corrosion compared to a standard 308L weld. While this is not detrimental, it is usually **more expensive** than using E308L-15 or E308L-16 and introduces properties not strictly required for 304L in many applications. It creates an **over-engineered weld**.
Key characteristics of AWS E317-17 for highly corrosive environments include:
**High Molybdenum (Mo) content (3-4%):** Provides superior resistance to pitting and crevice corrosion, especially in aggressive chloride or sulfuric acid environments.
**Low carbon ("L"):** Prevents sensitization and intergranular corrosion.
**High deposition rates and good usability ("-17"):** For efficient and high-quality welds.
It's chosen when standard 316L electrodes are insufficient for the severity of the corrosive media. It is optimized for **extreme corrosion resistance**.
AWS E309Mo-16 can have a maximum carbon content of 0.15%, although it's often lower in practice. AWS E309MoL-16, on the other hand, explicitly has a **low carbon content**, with a maximum of 0.03%. This "L" designation means E309MoL-16 offers **superior resistance to sensitization and intergranular corrosion** compared to E309Mo-16, particularly crucial when welding dissimilar metals exposed to corrosive conditions. It's a key distinction for **corrosion-critical applications**.
The slag in -15 (basic) electrodes is characterized by being **fast-freezing and relatively viscous**. This allows the slag to quickly solidify and form a "shelf" or support for the molten weld puddle, preventing it from sagging or falling out when welding in vertical-up or overhead positions. This makes basic electrodes excellent for **out-of-position SMAW**, providing good control and bead shape against gravity. It's designed for **superior positional control**.
AWS E308-16, being an austenitic stainless steel electrode, generally retains good toughness at cryogenic temperatures (down to around -320°F / -196°C). However, for the most stringent or critical cryogenic applications, or when extremely high toughness is required, electrodes with specific low ferrite content or dedicated cryogenic grades are often chosen and require additional testing. It demonstrates **acceptable cryogenic performance for many applications**.
Using electrodes that have absorbed moisture leads to several significant weld defects:
**Hydrogen-induced cracking (cold cracking):** The most severe consequence, especially with -15 electrodes and hardenable steels.
**Porosity:** Trapped hydrogen gas.
**Increased spatter.**
**Unstable arc.**
**Rougher bead appearance.**
**Reduced mechanical properties.**
Proper storage and drying procedures are paramount to avoid these issues. It's a major cause of **weld quality degradation**.
AWS E310-16's high chromium (approx. 25%) and nickel (approx. 20%) content provide broad benefits across diverse applications:
**Excellent high-temperature oxidation resistance:** Suitable for furnace parts.
**Good general corrosion resistance.**
**Ability to join many dissimilar metals:** Tolerates dilution.
**Ductility at cryogenic temperatures:** Due to fully austenitic microstructure.
This high alloy content makes it a versatile "bridge" or "high-temp" electrode, especially when other 300 series alloys might be insufficient. It's a choice for **extreme temperature and diverse material joining**.
AWS E2553-16 electrodes are extensively used in the oil and gas industry for components requiring **superior corrosion resistance and high strength**, such as:
**Subsea pipelines and risers.**
**Process piping in corrosive environments** (e.g., handling sour gas or high chlorides).
**Separators and scrubbers.**
**Offshore platforms.**
Its super duplex properties are ideal for the highly aggressive conditions encountered in oil and gas extraction and processing. It's crucial for **demanding oil and gas infrastructure**.
The weld bead from -17 type stainless steel electrodes (like E308L-17, E312-17, E317-17) typically has a **very smooth, aesthetic appearance**, often described as flat to slightly convex with fine, uniform ripples. The iron powder in the coating contributes to this smooth finish and also makes the slag often **self-lifting or very easily removable**, leading to minimal post-weld cleanup. It's renowned for its **cosmetic and efficient welding**.
Common causes of undercut in stainless steel SMAW welds include:
**Excessive current (amperage).**
**Too long an arc length.**
**Too fast travel speed.**
**Incorrect electrode angle or manipulation (e.g., not pausing at the toes).**
**Insufficient filler metal deposition.**
Undercut weakens the weld and can be a stress concentrator. It's a frequent **weld defect from improper technique**.
Yes, AWS E316L-16 is a very common and highly recommended choice for applications in the **pharmaceutical industry**. Its low carbon content prevents sensitization, and the molybdenum provides superior resistance to pitting and crevice corrosion, which is vital for handling various chemicals, maintaining product purity, and ensuring hygienic surfaces. Post-weld cleaning and passivation are usually required to ensure a smooth, crevice-free surface. It's crucial for **hygienic and corrosion-resistant pharmaceutical equipment**.
AWS E318-16's columbium (niobium) content makes it a **stabilized electrode**. Columbium forms stable carbides that "lock up" carbon, preventing it from combining with chromium and depleting chromium at the grain boundaries. This is crucial for resisting **sensitization and intergranular corrosion**, especially when the weld is exposed to temperatures in the sensitization range (800-1500°F / 427-816°C) or undergoes multi-pass welding without annealing. It ensures **long-term corrosion resistance in high-temperature applications**.
The main application of AWS E410NiMo-15 is for welding **martensitic stainless steels**, particularly **CA6NM (13Cr-4Ni-Mo) castings** used in hydroelectric power generation (turbines, pump casings), high-pressure valve components, and other applications requiring high strength, good toughness, and erosion/corrosion resistance. These welds typically require preheat and post-weld heat treatment to achieve optimal properties. It's a specialized electrode for **high-strength cast stainless steels**.
The current type (AC vs. DC) can subtly affect slag removal:
**DCEP (DC+):** Often provides a more concentrated arc and a slightly hotter puddle, which can lead to a more consistent slag and often easier removal for -16 and -17 electrodes.
**AC:** Can sometimes lead to a less stable arc and more dispersed heat, which might result in a slightly more difficult-to-remove slag for some -16 electrodes, but the effect is generally minor compared to the flux type.
The **flux coating type (-15, -16, -17) is the predominant factor** influencing slag removal ease. It's a minor factor in **slag detachability**.
AWS E2553-16 (super duplex) generally offers **higher tensile strength and yield strength** compared to AWS E2209-16 (standard duplex). This is due to its higher alloy content (Cr, Mo, N), which promotes higher solid solution strengthening and typically results in a slightly higher overall strength level for super duplex alloys. Both offer significantly higher strength than austenitic stainless steels, but super duplex takes it a step further. They represent different tiers of **mechanical performance in duplex alloys**.
Yes, AWS E308L-16 can be used for welding 316L stainless steel, but it would result in **"undermatching"** the weld metal in terms of corrosion resistance. The weld would lack the **molybdenum** content of 316L, making it susceptible to pitting and crevice corrosion in environments where 316L is typically specified. While it might provide adequate mechanical properties, the weld's corrosion resistance would be compromised. It's generally **not recommended if pitting resistance is critical**.
AWS E310-15 electrodes are used in high-temperature service primarily where **high strength, oxidation resistance, and toughness are crucial**, and where a basic coating is preferred for mechanical properties. This includes welding high-alloy furnace parts, heat treatment fixtures, kilns, and components exposed to cycling temperatures. Its fully austenitic nature provides good creep rupture strength and ductility at elevated temperatures. It's used for **demanding high-temperature applications**.
Excessive travel speed in stainless steel SMAW leads to:
**Insufficient penetration and lack of fusion.**
**A narrow, ropey, and convex bead.**
**Undercut along the weld toes.**
**Incomplete slag coverage or difficulty in slag removal.**
**Increased risk of porosity** if gases don't have time to escape.
Maintaining an optimal travel speed is crucial for **achieving proper fusion and bead profile**.
AWS E309MoL-16 handles high restraint in dissimilar metal joints very well. Its high alloy content (Cr, Ni, Mo) is designed to accommodate dilution, and the "L" (low carbon) minimizes hydrogen-induced cracking risks. While its "-16" rutile coating is less crack-resistant than a "-15" basic coating, its overall metallurgical design with a controlled ferrite level still provides good hot cracking resistance. For extremely high restraint, some may prefer a -15 version, but E309MoL-16 is generally robust. It's a reliable choice for **restrained dissimilar welds with corrosion needs**.
Chromium is the most important alloying element in stainless steel welding electrodes, as it provides the **primary corrosion resistance** by forming a passive oxide layer. It also contributes to strength and oxidation resistance, especially at high temperatures. The chromium content is carefully balanced to match the base metal and ensure the desired properties in the weld metal. It's fundamental for **stainless properties in the weld**.
Yes, AWS E312-16 is an excellent choice for **cladding applications on carbon steel**. Its very high ferrite content (approx. 40%) allows it to tolerate significant dilution from the carbon steel base metal while maintaining a crack-resistant and corrosion-resistant stainless steel overlay. It's particularly useful as a buffer layer or for single-pass cladding where other electrodes might struggle with dilution. It's a versatile solution for **carbon steel surfacing**.
The key differences are in their **alloying and resulting corrosion resistance**:
**AWS E308L-16:** Low carbon, used for 304L/304 stainless steel. Provides good general corrosion resistance.
**AWS E316L-16:** Low carbon, used for 316L/316 stainless steel. Contains **molybdenum (Mo)**, providing superior resistance to pitting and crevice corrosion, especially in chloride-containing environments.
The presence of molybdenum in E316L-16 is the critical factor for its enhanced performance in more aggressive corrosive conditions. They are for **different levels of corrosion resistance**.
AWS E430-16 produces a **ferritic weld metal** which inherently has **lower ductility and toughness** compared to austenitic stainless steel welds. Ferritic stainless steels do not undergo a phase transformation upon cooling that would refine their grain structure. The weld metal, along with the heat-affected zone, can be prone to **grain growth and embrittlement**, particularly in thicker sections or if heat input is not controlled. It limits **ductility in the as-welded condition**.
Once opened, stainless steel electrodes (especially -15 types) should be stored immediately in a **heated electrode oven (rod oven)** at the manufacturer's recommended temperature (e.g., 250-350°F / 120-177°C) to prevent moisture absorption. If a rod oven is not available or if they have been exposed to humid air for too long, they may need to be **rebaked** at higher temperatures (e.g., 500-750°F / 260-400°C) for a specific duration before use. Proper storage is vital to prevent **weld defects from moisture**.
Yes, AWS E309-16 can be used for welding 316 stainless steel. However, it would be an **"undermatch" in terms of molybdenum content**. The weld would lack the molybdenum necessary to provide the same level of pitting and crevice corrosion resistance as the 316 base metal or a 316-type electrode (E316-16). While it provides a sound weld, its corrosion performance in aggressive environments (especially chlorides) would be compromised. It results in **reduced corrosion performance**.
A "self-lifting" or "self-peeling" slag, characteristic of many -16 and especially -17 type stainless steel electrodes, is a significant benefit because it **reduces post-weld cleaning time and effort**. As the weld cools, the slag separates cleanly from the weld bead, often curling up or flaking off easily. This improves productivity and minimizes the need for aggressive chipping and grinding, leading to a cleaner and more aesthetic finished weld. It significantly enhances **post-weld cleanup efficiency**.
Silicon in stainless steel electrode coatings primarily acts as a **deoxidizer**, helping to scavenge oxygen from the weld pool and prevent porosity. It also influences **weld puddle fluidity and wetting characteristics**, contributing to a smoother bead profile and improved arc stability. However, excessive silicon can lead to increased hot cracking susceptibility if not balanced properly. It plays a key role in **weld metal cleanliness and bead appearance**.
Yes, AWS E316-16 can be used for general repair of 304 stainless steel. This would be an **over-matching situation** where the weld metal has higher molybdenum than the 304 base metal. While it will produce a good quality repair, it is **more expensive** than using an E308-type electrode (e.g., E308-16 or E308L-16), and the additional molybdenum is not typically required for 304's corrosion resistance. It's a functional but potentially **uneconomical choice for 304 repair**.
The main consideration is the **required corrosion resistance for the application**:
**AWS E308L-16:** Choose for welding 304L/304 stainless steel where **general corrosion resistance** is sufficient. It's the standard and most economical choice.
**AWS E316L-16:** Choose for welding 316L/316 stainless steel or where **enhanced resistance to pitting and crevice corrosion in chloride-containing environments** is critical. The added molybdenum justifies the higher cost.
The choice is dictated by the **aggressiveness of the service environment**.
The slag volume generated by -16 (rutile) electrodes is generally **less** than that generated by -15 (basic) electrodes. Rutile coatings typically produce a thinner, more manageable slag layer. Basic coatings, designed for heavier slag coverage and low hydrogen, tend to produce a more voluminous slag that requires more effort for removal. This impacts **post-weld cleanup time**.
AWS E312-16 is sometimes used for welding armor plate, particularly for **repairing cracks or joining dissimilar steels** that are part of armor systems. Its very high ferrite content provides excellent crack resistance, making it a good "buffer" layer or for welding problem steels. However, for full armor fabrication, specific armor-grade electrodes are typically used that match the ballistic and mechanical properties of the armor itself, and strict military specifications apply. E312-16 is a versatile repair tool but not always the primary choice for new armor construction. It's a viable option for **repair and transition welds in armor**.
Excessive interpass temperature (allowing the weld to get too hot between passes) in stainless steel SMAW significantly increases the **total heat input**. This can lead to:
**Increased sensitization** (intergranular corrosion risk), especially in multi-pass welds of non-"L" grades.
**Greater distortion** of the workpiece.
**Reduced mechanical properties** like toughness.
**Potential for hot cracking** in subsequent passes.
**Formation of deleterious phases** (e.g., sigma phase) in duplex alloys.
Maintaining a controlled interpass temperature is crucial for **multi-pass weld quality and material integrity**.
AWS E308-15 electrodes are used in industries requiring high integrity (e.g., nuclear, pressure vessel, cryogenic) for welding 304/304L stainless steel where:
**Superior toughness, especially at low temperatures**, is critical.
**Extremely low diffusible hydrogen** is required to prevent cracking in highly restrained joints.
**All-position welding** is necessary for complex geometries.
**Maximum weld metal integrity** is prioritized over ease of use or aesthetics.
It's chosen for the most **demanding, code-compliant stainless steel applications**.
Generally, **DCEP (DC+)** tends to provide a slightly **higher deposition rate** for stainless steel SMAW electrodes compared to AC. With DCEP, the arc is more concentrated, and more heat is generated at the workpiece, leading to more efficient melting and transfer of filler metal. While the effect is not as dramatic as changing electrode type (e.g., -16 to -17), DCEP often optimizes the transfer characteristics for improved productivity. It's a factor in **optimizing deposition efficiency**.
No, AWS E317L-16 should **not be used for welding duplex stainless steels**. While it has high molybdenum, its alloy balance (being an austenitic electrode) will not produce the necessary ferrite-austenite microstructure of a duplex weld. Using it would result in an **undermatched weld** in terms of strength, and more critically, it would compromise the duplex steel's unique resistance to stress corrosion cracking and pitting in its intended service environment. Always use a dedicated duplex electrode. It is **unsuitable for duplex stainless steel**.
Common causes of lack of fusion or incomplete penetration in stainless steel SMAW welds include:
**Too low current (amperage).**
**Too fast travel speed.**
**Too long an arc length.**
**Incorrect electrode angle or manipulation.**
**Improper joint preparation:** Too narrow a groove, insufficient root gap.
**Large electrode diameter** for the joint.
These result in inadequate melting and bonding. They are critical **weld defects affecting strength**.
AWS E312-17's remarkably high ferrite content (typically 20-40%) is the key to its "problem-solving" capability. Ferrite in the weld metal significantly **reduces susceptibility to hot cracking (solidification cracking)**. This allows the electrode to tolerate high levels of dilution from various base metals (e.g., carbon steel, alloy steel, other stainless steels) without cracking, even in highly restrained joints. It acts as a buffer layer for difficult-to-weld or unknown materials. It's a universal solution for **crack-prone and dissimilar welding**.
Common reasons for using AWS E308L-17 over E308L-16 include:
**Higher deposition rates:** For increased productivity.
**Superior bead appearance:** Flatter, smoother bead with finer ripples.
**Easier slag removal:** Often self-lifting, reducing cleanup time.
**Improved welder appeal:** Due to very smooth and stable arc.
Both provide excellent low-carbon 308L properties, but E308L-17 generally offers a more **productive and aesthetically pleasing welding experience**.
If stored correctly in their original, sealed, hermetic packaging in a dry, climate-controlled environment, stainless steel SMAW electrodes (especially -16 and -17 types) can have a shelf life of **several years (e.g., 2-5 years)**. For **-15 (basic) electrodes**, the shelf life in sealed containers is also long, but once opened, they have a very limited exposure time (hours) before requiring re-drying or continuous storage in a heated oven. Proper storage is paramount for **maintaining electrode integrity and preventing defects**.
AWS E309-16 finds applications in the automotive industry primarily for **joining stainless steel exhaust components (e.g., 304, 409) to carbon steel chassis or other structural elements**. It's also used for repair and fabrication of catalytic converters and other high-temperature components where dissimilar metal joints are common. Its ability to tolerate dilution and provide a robust, crack-resistant joint is crucial in this sector. It is suitable for **dissimilar metal joints in exhaust and structural components**.
While AWS E310Mo-16 contains molybdenum, making it resistant to pitting, it's generally **over-alloyed and more expensive** than necessary for typical marine applications. AWS E316-16 or E316L-16 is the standard choice for marine environments due to its optimized molybdenum content for seawater. Using E310Mo-16 might be considered in extremely aggressive and specialized marine chemical handling systems where higher overall alloy content is also needed, but not for general marine structural work. It's an **over-specification for typical marine use**.
Lime (calcium carbonate, CaCO3) is a key component of the **basic (-15) coating** of AWS E2209-15 electrodes. Its functions include:
**Generating CO2 gas:** Provides shielding for the weld pool.
**Producing a basic slag:** Which is highly effective at removing impurities (sulfur, phosphorus) from the weld metal.
**Promoting low hydrogen content:** Crucial for crack resistance in duplex steels.
**Influencing slag viscosity:** For excellent out-of-position welding characteristics.
It plays a vital role in ensuring the **high quality and integrity of duplex welds**.
Common challenges in overhead welding with stainless steel SMAW electrodes include:
**Managing the molten puddle against gravity:** Requires precise control to prevent sagging or dropping.
**Controlling heat input:** To avoid burn-through or excessive melt.
**Achieving proper bead shape and tie-in.**
**Fatigue for the welder:** Requires steady hands and good body positioning.
Basic (-15) electrodes with their fast-freezing slag are often preferred for this demanding position. It requires **high skill and precise technique**.
AWS E308L-16 is generally **less expensive** than AWS E309L-15.
**E308L-16** is a standard 304L electrode with a common rutile coating.
**E309L-15** has a higher alloy content (more Cr, Ni for dissimilar welding) and a more expensive basic coating that requires stricter manufacturing and storage.
The combination of higher alloying and a more demanding coating type makes E309L-15 the more costly option. It's a reflection of **alloying and coating complexity**.
Incorrect travel speed significantly impacts weld appearance:
**Too slow:** Leads to a wide, convex, often "piled-up" bead with excessive heat tint and distortion.
**Too fast:** Results in a narrow, ropey, convex bead with potential for undercut, poor fusion, and an irregular surface.
An optimal travel speed produces a **uniform, smooth, finely rippled bead** with proper wetting. It directly affects **cosmetic appeal and functional integrity**.
While AWS E317L-16 offers high corrosion resistance, its use in nuclear power plants, even for non-critical components, would be subject to **extremely stringent codes and qualifications** (e.g., ASME Section III, NQA-1). These applications typically require precise control over chemistry (including trace elements), mechanical properties, and often very specific testing for long-term irradiation effects or stress corrosion cracking. Its use would be on a case-by-case basis under strict oversight, not a general recommendation. It is a highly regulated application for **critical components**.
AWS E318-16 is commonly specified for:
Welding **stabilized stainless steels (321, 347)** when Mo-bearing weld metal is required.
Welding **316L or 317L** in applications where **intergranular corrosion resistance is critical** and may be compromised by high-temperature service or multi-pass welding without annealing.
Applications requiring both **pitting/crevice corrosion resistance (from Mo) and sensitization resistance (from Nb)**.
Industries like chemical processing and power generation.
It combines **Mo-bearing corrosion resistance with Nb-stabilization**.
AWS E430-16 produces a ferritic weld metal with corrosion resistance similar to the 430 base metal. This means it offers **good oxidation resistance** but **limited resistance to pitting and crevice corrosion** compared to austenitic stainless steels (like 304 or 316). It also lacks resistance to intergranular corrosion from sensitization, as ferritics have different metallurgical behavior in that regard. Its corrosion performance is generally suited for **mildly corrosive or atmospheric environments**.
Moisture on the base metal, even small amounts, can introduce **hydrogen** into the weld pool during SMAW. This significantly increases the risk of **hydrogen-induced cracking (cold cracking)**, particularly in susceptible base metals or highly restrained joints. It can also contribute to porosity. Always ensure the base metal is thoroughly dry and clean before welding, especially in colder or humid environments. It's a critical **pre-weld preparation step**.
General rules for matching stainless steel electrodes to base metals include:
**Match composition:** Use 308-type for 304/304L, 316-type for 316/316L, 2209 for 2205 duplex, etc.
**Consider "L" (low carbon):** If the application involves corrosive environments or cannot be annealed post-weld.
**Consider "Mo" (molybdenum):** If pitting/crevice corrosion resistance is critical.
**For dissimilar metals:** Use over-alloyed electrodes like 309 or 312 types.
**For special applications:** Use specific electrodes like 310 (high temp) or 410NiMo (martensitic).
Proper matching ensures **optimal mechanical and corrosion properties**.
While AWS E308L-16 can technically deposit stainless weld metal, welding galvanized steel (zinc-coated carbon steel) with any arc welding process, including SMAW, is problematic. The zinc coating will **vaporize in the arc, producing zinc fumes (hazardous)** and causing **severe porosity and brittleness** in the weld metal. Specialized ventilation and often removal of the zinc coating are necessary. Stainless steel electrodes are not designed to handle zinc contamination. It results in **poor quality welds and health hazards**.
AWS E2553-16 and AWS E2594-16 are both super duplex electrodes, and their common usage overlaps significantly, primarily for welding super duplex base metals in highly aggressive corrosive environments. While E2594 is perhaps more widely known or specified due to its corresponding popular super duplex alloy (2507), E2553 serves the same purpose for its specific super duplex alloy (UNS S32550). The choice between them often comes down to **base metal specification or manufacturer preference**, as their performance capabilities are very similar at the super duplex level. They are often **interchangeable in practice for super duplex**.
AWS E316-15, with its basic (-15) coating, is highly beneficial for critical applications requiring high toughness, especially at low temperatures. Its basic flux minimizes hydrogen pickup, which is crucial for preventing cracking and ensuring good impact properties. It also promotes a cleaner weld metal. This makes it a preferred choice for pressure vessels, cryogenic applications, or structural components where maximum fracture resistance is paramount, even if usability is more challenging. It provides **superior toughness and integrity**.
Using an electrode in an incorrect welding position (e.g., a flat-only electrode for vertical-up) will significantly impact performance:
**Puddle sag and drop-out:** Molten metal will fall under gravity.
**Poor bead shape and inconsistent profile.**
**Lack of fusion.**
**Difficulty in slag control.**
**Increased spatter.**
Always choose an electrode specifically rated for the intended welding position to ensure proper puddle control and quality. It leads to **unacceptable weld quality and usability**.
AWS E310H-16's high carbon content, while enhancing high-temperature strength and creep resistance, generally **reduces its ductility** compared to low-carbon austenitic stainless steel welds (like 308L or 316L). The increased carbon can lead to carbide precipitation, which stiffens the matrix and makes it less ductile. This is a trade-off accepted for its specific high-temperature, load-bearing applications where strength is prioritized. It results in **lower as-welded ductility**.
While AWS E309Mo-16 is austenitic, its primary design is for dissimilar metal joining with molybdenum for corrosion resistance. For stringent cryogenic applications (very low temperatures requiring maximum toughness), a fully austenitic electrode with extremely low delta ferrite (like E310-15 or specific 308L/316L electrodes with controlled ferrite) would typically be preferred. The presence of ferrite, even in small amounts, can lead to embrittlement at cryogenic temperatures. It's **less optimized for extreme cryogenic toughness**.
Leaving stainless steel electrodes exposed to air for too long, especially in humid environments, causes the flux coating to **absorb moisture**. This leads to:
**Increased hydrogen content** in the weld metal.
**Higher risk of hydrogen-induced cracking.**
**Porosity.**
**Excessive spatter and unstable arc.**
**Degradation of weld quality and mechanical properties.**
Proper storage or rebaking is crucial to mitigate these issues. It significantly **compromises weld integrity**.
AWS E312-16's high chromium (approx. 29%) and nickel (approx. 9%) content contribute significantly to its versatility by allowing it to **tolerate substantial dilution** from a wide range of base metals (carbon steel, low-alloy steel, various stainless steels) while still depositing an austenitic-ferritic weld metal that is highly resistant to hot cracking. This broad compositional tolerance makes it a valuable "universal" or "transition" electrode for welding diverse and sometimes unknown materials. It enables **broad material compatibility**.
Titanium (in 321) and Columbium/Niobium (in 347) are **stabilizing elements** added to the base metal and sometimes replicated in matching filler metals (like E320-16 for 347). They form stable carbides (titanium carbides or niobium carbides) that "lock up" carbon, preventing it from combining with chromium. This ensures that chromium remains in solid solution to maintain corrosion resistance, thereby preventing **sensitization and intergranular corrosion** when exposed to high temperatures. It maintains **corrosion resistance at elevated temperatures**.
AWS E309L-15 is advantageous for critical repair work in power plants (often involving dissimilar metal joints or repairs on stainless steel in the sensitization range) due to:
**Low carbon ("L"):** Prevents sensitization and intergranular corrosion in high-temperature environments.
**Basic coating ("-15"):** Provides very low diffusible hydrogen, crucial for preventing cracking in highly restrained or thick sections.
**High integrity welds:** Offers superior mechanical properties and crack resistance.
**All-position capability:** For complex repairs in confined spaces.
It's a reliable choice for **demanding power plant repairs**.
While AWS E316L-16 is austenitic, it is **not the primary choice for welding cast iron**. Welding cast iron with stainless steel electrodes can result in hard, brittle, and crack-prone welds due to carbon pick-up and martensite formation in the fusion zone. Dedicated nickel-based electrodes (like ENiFe-Cl) are specifically designed to tolerate carbon and provide more ductile, machinable welds on cast iron. Using E316L-16 would likely lead to an **unsatisfactory and brittle repair**.
An excessively short arc in stainless steel SMAW leads to:
**Frequent sticking of the electrode.**
**Reduced penetration and fusion.**
**A narrow, convex, ropey bead.**
**Potential for slag entrapment** due to the confined arc.
**Increased spatter** as the electrode dives into the puddle.
Maintaining the proper arc length is crucial for **smooth operation and sound weld formation**.
AWS E308L-16 is highly beneficial for manufacturing brewery equipment (fermenters, tanks, piping) due to:
**Low carbon content:** Prevents sensitization, crucial for hygiene and resistance to cleaning solutions.
**Good general corrosion resistance:** Suitable for food-grade contact and various brewing chemicals.
**Good weldability and appearance:** The -16 coating allows for clean, aesthetic welds.
It ensures the equipment meets the stringent **sanitary and corrosion resistance requirements of the brewing industry**.
Nitrogen is a crucial alloying element in AWS E2209-16. It primarily:
**Promotes austenite formation:** Helps maintain the desired ferrite-austenite balance.
**Enhances pitting and crevice corrosion resistance:** By strengthening the passive layer.
**Increases strength:** Through solid solution strengthening.
**Improves toughness.**
Nitrogen is vital for optimizing the duplex microstructure and properties. It's a key factor for **balanced properties in duplex stainless steels**.
Common methods for preventing hot cracking (solidification cracking) in stainless steel SMAW welds include:
**Ensuring adequate ferrite content (Ferrite Number, FN):** Most common austenitic electrodes are designed to produce some ferrite.
**Using appropriate filler metals:** Like E312 or duplex electrodes for problem steels.
**Controlling heat input:** To minimize solidification time.
**Minimizing joint restraint.**
**Cleaning the base metal:** To remove impurities (S, P) that promote hot cracking.
These focus on **microstructural control and stress management**.
AWS E310-15, while high-alloy and fully austenitic, might be used for some less critical dissimilar superalloy applications as a transition weld. However, for true superalloys (nickel- or cobalt-based alloys), dedicated superalloy electrodes (e.g., AWS ERNiCrMo-3 or similar) are typically required. E310-15 lacks the specific alloying elements (e.g., Mo, Nb, W) needed for the high-temperature strength, creep resistance, and corrosion resistance of many superalloys. It would be an **undermatch for most demanding superalloy applications**.
Once opened, the shelf life of stainless steel SMAW electrodes is significantly reduced due to moisture absorption.
**-15 (Basic):** Extremely sensitive; often "maximum exposure time" (e.g., 4-8 hours) after which they must be rebaked or discarded. Ideally, kept in heated rod ovens continuously.
**-16 & -17 (Rutile):** Less sensitive but still require dry storage. Can often be exposed for longer periods (e.g., 12-24 hours) before redrying is recommended.
Always consult manufacturer's guidelines for specific exposure limits and rebaking procedures. It is essential for **maintaining weld quality**.
AWS E308L-17 generally has **higher operator appeal** than AWS E308L-16. This is due to the -17 coating's characteristics:
**Extremely smooth and stable arc.**
**Very easy, often self-lifting slag.**
**Minimal spatter.**
**Flatter, more aesthetically pleasing bead.**
**Higher deposition rate** for faster progress.
While E308L-16 is also user-friendly, E308L-17 is often perceived as more forgiving and efficient by welders. It provides a more **pleasant and productive welding experience**.
AWS E316L-16 is highly beneficial for the pulp and paper industry due to its:
**Low carbon content:** Prevents sensitization in components exposed to process temperatures.
**Molybdenum content:** Provides resistance to pitting and crevice corrosion from chlorides and sulfur compounds often present in pulp and paper chemicals.
**Good general corrosion resistance:** Suitable for various process liquors.
It's a standard choice for ensuring the longevity and integrity of equipment in this demanding industry. It's crucial for **corrosion resistance in pulp and paper processing**.
Using an incorrect power source setting (e.g., AC on a DC-only electrode like -15 basic electrodes) will lead to:
**Extremely unstable or extinguishing arc.**
**Excessive spatter.**
**Poor penetration and fusion.**
**Degradation of electrode coating.**
**Inability to produce a quality weld.**
Always adhere strictly to the manufacturer's recommended current type and polarity for the specific electrode. It leads to **unweldable conditions and poor results**.
AWS E309-15 can be used as a buffer layer or for joining certain 400 series (e.g., ferritic 409 or 430) to themselves, but it's not the primary choice. Using a 309-type electrode will result in a more ductile, austenitic weld that helps prevent cracking in the often-brittle 400 series. However, for martensitic 400 series (e.g., 410, 420), specific martensitic electrodes or full austenitic over-matching (like 310) might be better, and preheat/PWHT may still be needed. It provides a **more ductile weld on 400 series** but may not match base metal properties.
While AWS E312-16's high ferrite content (up to 40%) provides excellent crack resistance, it also inherently **reduces the ductility and toughness** of the weld metal compared to fully austenitic stainless steels. Ferrite, being more brittle than austenite, can negatively impact impact properties, especially at very low temperatures. This is a trade-off accepted for its superior crack resistance in difficult-to-weld applications. It provides **lower ductility than fully austenitic welds**.
Molybdenum (Mo) is a crucial alloying element found in electrodes like E316, E317, E309Mo, E310Mo, E2209, and E2594. Its primary role is to **significantly enhance resistance to pitting and crevice corrosion**, especially in environments containing chlorides (e.g., seawater, acids, chemical solutions). It does this by strengthening the passive oxide layer and hindering its breakdown in aggressive conditions. It also contributes to elevated temperature strength. It's essential for **superior corrosion performance**.
While AWS E317-17 produces strong welds, it's generally **over-alloyed and unnecessarily expensive** for general structural applications. Its high molybdenum content is specifically for extreme corrosive environments, not typically for structural steel. Using it would be a waste of material cost, and it might not offer any significant structural advantage over more common and cheaper grades like E308L-16 or E316L-16, depending on the base material. It's an **uneconomical choice for routine structural work**.
"Wagon tracks" are typically caused by improper travel speed, electrode manipulation, or insufficient current, leading to slag being trapped in the center of the bead. Prevention methods include:
**Maintaining optimal travel speed:** Not too fast, allowing slag to float.
**Proper weaving technique:** Ensuring the puddle is adequately filled and slag is pushed to the sides.
**Sufficient current:** To ensure proper wetting and puddle fluidity.
**Using smaller passes or more passes** on thick material to ensure proper slag removal.
It's a common issue from **poor puddle control**.
AWS E308L-17 contributes to cleaner weld finishes due to its:
**Very stable and smooth arc:** Reduces spatter.
**Self-lifting/easily removable slag:** Minimizes chipping and grinding.
**Flatter, smoother bead profile:** Requires less post-weld grinding for aesthetic applications.
**Lower heat tint** compared to some other electrode types if parameters are well controlled.
These characteristics lead to significantly less post-weld cleaning and a more aesthetically pleasing final product. It's designed for **high-quality cosmetic finishes**.
Too high a welding speed results in:
**Insufficient penetration and lack of fusion.**
**Narrow, convex, often ropey beads.**
**Undercutting.**
**Incomplete slag coverage or difficult slag removal.**
**Increased risk of porosity.**
**Reduced mechanical properties** due to improper fusion.
It negatively impacts **both weld integrity and appearance**.
While AWS E309MoL-16 offers good high-temperature oxidation resistance and corrosion resistance due to Mo, it's **not primarily designed for high-temperature creep environments**. For creep resistance, specialized high-temperature alloys (e.g., 310H, nickel-based superalloys) are preferred. The low carbon "L" grade also means it sacrifices some high-temperature strength for corrosion resistance. For creep-critical applications, the "H" (high carbon) versions or specific creep-resistant fillers are better. It's **not optimized for long-term creep resistance**.
AWS E316L-16 is highly advantageous for marine fabrication due to:
**Excellent pitting and crevice corrosion resistance:** Critical in chloride-rich seawater.
**Low carbon content:** Prevents sensitization, maintaining corrosion resistance in the heat-affected zone.
**Good weldability:** The -16 coating allows for stable arc and good bead appearance.
**Suitable for various marine components:** Piping, structural elements, tanks.
It's a foundational electrode for **durable marine stainless steel structures**.
A "cold weld" with stainless steel SMAW electrodes typically appears as:
**A high, convex, ropey bead.**
**Poor wetting at the toes (edges),** indicating lack of fusion.
**Excessive spatter.**
**An irregular and uneven surface.**
**Difficulty in initiating and maintaining the arc.**
This indicates insufficient heat input due to too low current or too fast travel speed. It is a sign of **inadequate fusion and penetration**.
AWS E2209-16's balanced ferrite-austenite ratio (approx. 50/50) is crucial for preventing stress corrosion cracking (SCC) in chloride environments. The **ferrite phase** provides high resistance to SCC, while the **austenite phase** contributes to ductility and toughness. This combined microstructure, along with the high chromium, molybdenum, and nitrogen content, creates a highly resistant barrier against SCC initiation and propagation. It's engineered for **superior SCC resistance in chlorides**.
Yes, AWS E318-16 is commonly used for applications in the power generation industry, particularly for welding stabilized stainless steels like 321 or 347, or when 316L requires additional assurance against sensitization. Its columbium stabilization prevents intergranular corrosion in components exposed to elevated temperatures, such as **steam lines, superheaters, and boiler components**. It ensures **long-term integrity in high-temperature, corrosive power plant environments**.
Common causes of lack of fusion in stainless steel SMAW welds include:
**Insufficient current (amperage):** Not enough heat to melt the base metal edges.
**Too fast travel speed:** Not enough time for the weld pool to melt and fuse.
**Incorrect electrode angle or manipulation:** Not directing the arc adequately to both sides of the joint.
**Improper joint preparation:** Too narrow a groove or dirty surfaces.
**Large electrode diameter for the joint.**
Lack of fusion severely weakens the weld. It's a critical **structural defect**.
Stainless steel SMAW electrodes are typically packaged in **hermetically sealed cans or sturdy cardboard boxes wrapped in moisture-resistant film**. These packages are designed to protect the electrodes from moisture absorption during storage and transport. They often come in standard weights like 5 lb (2.3 kg) or 10 lb (4.5 kg) packs. Proper packaging is the first line of defense for **maintaining electrode quality**.
AWS E410NiMo-15's inclusion of **Nickel (Ni) and Molybdenum (Mo)** is crucial for improving the toughness of its martensitic weld deposit.
**Nickel:** Promotes a more ductile martensitic microstructure and helps refine grain size, improving impact toughness.
**Molybdenum:** Contributes to solid solution strengthening and can refine the carbide morphology, further enhancing toughness.
These elements are vital to counteract the inherent brittleness of martensitic structures, making the electrode suitable for demanding applications like hydroturbines. It's engineered for **enhanced martensitic toughness**.
Yes, AWS E308L-16 can be used for welding components in the petrochemical industry that are made from 304L or 304 stainless steel. Its low carbon content provides resistance to sensitization, which is important in environments where components might experience elevated temperatures that could otherwise lead to intergranular corrosion. For more aggressive petrochemical environments (e.g., with high chlorides), 316L or higher alloys are typically specified. It's suitable for **general petrochemical stainless steel fabrication**.
Common causes of severe distortion when welding stainless steel with SMAW electrodes include:
**Excessive heat input:** Too high current, too slow travel speed, or too many passes.
**Poor fit-up or inadequate clamping/fixturing.**
**Incorrect welding sequence.**
**Large, wide weld beads.**
**Inherent high thermal expansion** of austenitic stainless steels.
Controlling heat input and proper fixturing are critical to minimize distortion. It's a common **fabrication challenge**.
AWS E309L-15's low carbon content (0.03% max) is beneficial for repair welding, especially on stainless steel components that may have been previously sensitized or will be exposed to corrosive conditions. The low carbon in the weld metal prevents further sensitization, ensuring the repair itself is **resistant to intergranular corrosion**. This is crucial for maintaining the long-term integrity of repaired parts, particularly in chemical or food processing environments. It ensures **durable, corrosion-resistant repairs**.
The **AWS A5.4 standard (Specification for Stainless Steel Electrodes for Shielded Metal Arc Welding)** serves as the authoritative guide for classifying and specifying stainless steel SMAW electrodes. Its purpose is to:
**Standardize classifications:** Provide a uniform system for identifying electrodes.
**Define chemical composition limits:** Ensure consistent weld metal chemistry.
**Specify mechanical property requirements:** Guarantee minimum strength, ductility, and toughness.
**Outline usability characteristics:** Describe suitable current types, positions, and coating types.
**Provide quality control guidelines:** For manufacturers and users.
It ensures **consistency, quality, and interchangeability** in stainless steel SMAW consumables.
Using an AWS E308-16 electrode that has been improperly stored in a humid environment will result in the flux coating absorbing moisture. This leads to:
**Porosity** in the weld metal (most common defect).
**Increased spatter.**
**Unstable arc.**
**Potential for hydrogen cracking** (though less common in 308 austenitic than with basic electrodes or hardenable steels).
**Reduced corrosion resistance** if the weld becomes contaminated.
Proper storage is crucial for maintaining weld quality. It compromises **weld integrity and performance**.
Yes, AWS E316-16 is a common and appropriate choice for welding pressure pipelines for corrosive chemicals, provided the pipeline itself is made from 316 or 316L stainless steel. Its molybdenum content provides the necessary resistance to pitting and crevice corrosion from many aggressive chemical media. However, code requirements (e.g., ASME B31.3 Chemical Plant and Petroleum Refinery Piping) and specific chemical service conditions must be met, often including NDT and performance testing. It's suitable for **corrosion-resistant chemical piping**.
Low current in SMAW leads to:
**Shallow, narrow, and convex bead profile.**
**Lack of fusion or incomplete penetration.**
**Excessive spatter.**
**Difficulty in striking and maintaining the arc.**
**Slag inclusions** due to insufficient melting.
The arc lacks the power to properly melt the base metal and fill the joint. It causes **poor weld integrity**.
AWS E309-15's basic (-15) coating makes it suitable for root passes due to:
**Good penetration characteristics:** Ensures proper fusion at the root.
**Viscous, fast-freezing slag:** Helps control the puddle in tight root gaps and out-of-position.
**Very low diffusible hydrogen:** Minimizes the risk of cracking in the crucial root pass, especially when welding dissimilar metals or highly restrained joints.
**High integrity welds:** Due to superior mechanical properties.
It's preferred for demanding root pass applications. It provides a **sound foundation for multi-pass welds**.
AWS E310-16 finds applications in the ceramics industry, particularly for welding components of **kilns, furnaces, and high-temperature processing equipment** that operate at elevated temperatures. Its high chromium and nickel content provides excellent oxidation resistance and thermal stability, crucial for the extreme heat cycles and corrosive atmospheres often encountered in ceramic production. It's used for **high-temperature structural integrity in ceramic kilns**.
Differences in handling characteristics:
**-15 (Basic):** More demanding to use. Arc can be "stiffer" or less stable. Requires a very short arc length. Slag is harder to remove. Generally higher spatter. Best for DC+.
**-16 (Rutile):** Very user-friendly. Smooth, stable arc. Easy to strike and maintain. Good puddle control. Easy slag removal. Lower spatter. Usable on AC or DC+.
Welders typically find -16 electrodes much easier and more forgiving to handle. They differ in **welder appeal and technique demands**.
Yes, AWS E309MoL-16 can be used for applications in the marine environment, particularly for **joining stainless steel components to carbon steel or low-alloy steels** where exposure to saltwater (chlorides) is expected. The molybdenum provides the necessary pitting and crevice corrosion resistance, while the low carbon prevents sensitization. It's ideal for areas where dissimilar joints need to withstand corrosive marine conditions. It's a key electrode for **marine dissimilar metal fabrication**.
Impurities from the base metal can significantly degrade weld properties:
**Carbon pick-up:** From carbon steel base metal (when welding dissimilar), can increase sensitization risk in the stainless weld or lead to brittleness.
**Sulfur:** Promotes hot cracking.
**Phosphorus:** Reduces toughness and can cause hot cracking.
Proper electrode selection (like 309 for dissimilar), pre-cleaning, and sometimes buttering layers are used to mitigate these effects. They are major sources of **weld defects and property degradation**.
AWS E317-17's high molybdenum content (typically 3-4%) is crucial for its resistance to a wide range of industrial chemicals. Molybdenum significantly improves the weld metal's resistance to **pitting, crevice corrosion, and general corrosion** in aggressive reducing environments (like sulfuric acid) and chloride-containing media. It strengthens the passive layer and makes it more stable against chemical attack, ensuring the longevity of equipment in harsh chemical processing. It is essential for **robust chemical process equipment**.
The key differences are in their **chemical composition and primary application**:
**AWS E308L-16:** Low carbon, used for welding **304L/304 stainless steel to itself**. Provides general corrosion resistance.
**AWS E309-16:** Higher chromium and nickel, used for **joining dissimilar metals (stainless steel to carbon/low alloy steel)**. Designed to tolerate dilution and provide a robust joint.
E309-16 is essentially "over-alloyed" compared to E308L-16 to handle carbon steel dilution. They serve distinct purposes in **stainless steel fabrication**.
Common methods for preventing excessive heat tint (discoloration) include:
**Minimizing heat input:** Using optimal current, travel speed, and avoiding excessive weaving.
**Controlling interpass temperature:** Allowing the weld to cool sufficiently between passes.
**Using smaller diameter electrodes** for thinner materials.
**Proper shielding:** Although less effective than external gas (TIG/MIG), ensuring stable arc and short arc length helps.
Heat tint often requires post-weld cleaning (mechanical or chemical) to restore corrosion resistance. It's about **minimizing surface oxidation**.
No, AWS E2209-15 is **not suitable for general structural carbon steel welding**. It's a highly specialized duplex stainless steel electrode. While it would deposit a strong weld, it would be extremely **over-alloyed and expensive**. More importantly, the properties (e.g., corrosion resistance, microstructure) are not designed for carbon steel, and it would not integrate properly with the base metal's characteristics for structural performance. It's a massive **misapplication for carbon steel**.
AWS E312-16 is beneficial for joining hardened steels due to its:
**High ferrite content:** Provides excellent crack resistance, helping to absorb stresses from the hardened base material.
**Ductile austenitic-ferritic weld deposit:** More forgiving than a brittle, fully martensitic weld.
**Tolerance to dilution:** Can effectively join hardenable steels to other materials without cracking.
It's often used as a buffer layer or for repairs on tool steels and other difficult-to-weld hardenable alloys, though post-weld treatment of the base metal may still be required. It provides a **crack-resistant bond on hard steels**.
Incomplete slag removal on SMAW welds leads to:
**Slag inclusions:** Trapped slag within the weld metal, which weakens the weld and acts as a stress concentrator.
**Crevice corrosion:** Slag left on the surface can trap moisture and corrosive agents, leading to localized corrosion underneath.
**Poor aesthetic appearance.**
**Interference with subsequent coatings or painting.**
Thorough slag removal is critical for **weld integrity, performance, and appearance**.
AWS E308L-17 is considered one of the most user-friendly stainless steel electrodes, and its usability **compares favorably to many general carbon steel stick electrodes**, particularly rutile or iron powder types (like E7018 or E7024). It offers a smooth arc, easy slag removal, and good bead appearance similar to these carbon steel electrodes, making the transition for welders familiar with carbon steel SMAW relatively smooth. It's a **high-usability stainless electrode**.
While AWS E316L-16 has good properties, it's **not primarily designed for high-temperature creep environments**. The "L" (low carbon) means it has reduced creep strength compared to non-"L" grades (like 316H) which intentionally have higher carbon for high-temperature performance. For applications dominated by creep, a stabilized grade (E318-16) or high-carbon 310H-type electrodes would be more appropriate. It offers **limited creep resistance for specialized applications**.
The primary difference is their **alloy content, particularly nickel**.
**AWS E309-16:** Approx. 22-25% Cr, **12-14% Ni**. Designed to tolerate dilution from carbon steel.
**AWS E310-16:** Approx. 25-27% Cr, **20-22% Ni**. Much higher nickel, creating a fully austenitic weld metal, designed for high-temperature applications or joining very high alloyed steels.
The significantly higher nickel in E310-16 makes it fully austenitic and confers different properties compared to the duplex-containing E309-16. It's a distinction for **dissimilar vs. high-alloy / high-temp welding**.
The choice is primarily influenced by:
**Required mechanical properties (especially toughness):** Choose -15 for higher toughness.
**Hydrogen control:** Choose -15 if low diffusible hydrogen is critical.
**Usability and welder skill:** Choose -16 for easier welding and better bead appearance.
**Welding position:** Both are all-position, but -15 is often preferred for critical out-of-position.
**Cost and productivity:** -16 may be more cost-effective for general use.
It's a balance between **performance demands and operational considerations**.
AWS E317L-16 offers significant advantages in specific highly acidic chemical environments due to its:
**Elevated molybdenum content (3-4%):** Provides superior resistance to attack from reducing acids (like hot, concentrated sulfuric acid) and enhanced protection against pitting and crevice corrosion.
**Low carbon content:** Prevents sensitization, maintaining corrosion resistance in the heat-affected zone.
**High overall alloy content:** Provides robust general corrosion resistance.
It's a specialized electrode for when standard 316L is not enough for the extreme corrosivity. It is designed for **extreme acidic and chloride service**.
Unopened, factory-sealed packages of stainless steel electrodes (especially those in hermetically sealed cans) typically have a very long shelf life, often **several years (e.g., 5+ years)**, provided they are stored in a dry, room-temperature environment away from extreme humidity and temperature fluctuations. The hermetic seal protects the flux coating from moisture absorption until the package is opened. It ensures **long-term storage stability**.
AWS E308L-17 is excellent for demanding aesthetic applications due to:
**Smooth, flat, and finely rippled bead appearance.**
**Very easy, often self-lifting slag**, minimizing post-weld cleanup and surface damage.
**Minimal spatter.**
**Stable arc** for consistent, clean welds.
These features significantly reduce the need for extensive post-weld grinding and polishing, saving time and cost while achieving a superior visual finish. It's designed for **premium cosmetic stainless steel welds**.
No, AWS E430-16 (ferritic stainless steel) is **not suitable for applications requiring cryogenic toughness**. Ferritic stainless steels, including 430, suffer from **severe embrittlement at low temperatures**, experiencing a sharp decrease in ductility and impact strength. Their body-centered cubic (BCC) crystal structure is inherently brittle at cryogenic temperatures. Austenitic stainless steels are required for cryogenic service. It is **unsuitable for low-temperature applications**.
AWS E309Mo-16's rutile (-16) coating significantly enhances its usability for dissimilar metal welding. It provides a **smooth, stable arc** that is easier to control than basic electrodes, which is beneficial when dealing with potentially varying melt rates and dilution from different base metals. It also produces a **good bead appearance and easy slag removal**, reducing post-weld cleaning, which is advantageous for general fabrication and repair of dissimilar joints. It balances **corrosion protection with user-friendliness**.
Stress relieving (post-weld heat treatment, PWHT) is generally **not recommended for most austenitic stainless steel SMAW welds (308, 316, 309 series)** because the typical stress relieving temperatures (800-1500°F / 427-816°C) can cause **sensitization** and lead to intergranular corrosion. If stress relief is critical for mechanical performance, the use of stabilized grades (E318-16, E320-16) or duplex grades (E2209-16) might be considered, or solution annealing (full heat treatment) if possible. For martensitic welds (E410NiMo-15), PWHT (tempering) is often mandatory. It must be approached with **caution for austenitic stainless steels**.
Yes, AWS E308-15 can be used for welding sanitary equipment in the pharmaceutical industry (made from 304/304L). Its basic coating provides very low hydrogen and good toughness. However, for sanitary equipment, the weld surface finish is critical. The -15 coating typically results in a **rougher bead and harder-to-remove slag** compared to rutile (-16 or -17) electrodes, requiring more extensive grinding and polishing to achieve the smooth, crevice-free surfaces required for hygiene. TIG (GTAW) is often preferred for roots. It's a functional choice but requires **more post-weld finishing**.
Excessive heat input when welding duplex stainless steel electrodes (E2209, E2594) is highly detrimental. It can lead to:
**Unbalanced microstructure:** Reducing the beneficial ferrite content, leading to lower strength and increased susceptibility to SCC and pitting.
**Formation of deleterious intermetallic phases** (e.g., sigma phase), which severely degrade toughness and corrosion resistance.
**Grain growth.**
Precise control of heat input within the manufacturer's recommended range is critical for maintaining duplex properties. It causes **severe microstructural degradation**.
Both are general-purpose electrodes within their respective alloy families.
**AWS E308-16:** Standard for welding **304/304L stainless steels** and other common austenitics in general fabrication, food processing, and architectural applications where basic corrosion resistance is sufficient.
**AWS E316-16:** Standard for welding **316/316L stainless steels** where enhanced pitting and crevice corrosion resistance (due to molybdenum) is required, such as in marine, chemical, and pharmaceutical environments.
The choice is dictated by the **corrosion demands of the end application**.
AWS E312-17 is a "problem solver" for difficult steels because:
**High ferrite content (20-40%):** Provides exceptional resistance to hot cracking, even on highly restrained or contaminated steels.
**Tolerance to dilution:** Can effectively join a wide range of dissimilar materials without cracking (e.g., tool steels, hardened steels, carbon to stainless).
**Good usability:** The -17 coating offers high deposition rates, good arc stability, and easy slag removal, making it practical for challenging repairs.
It's invaluable when the base metal's weldability is questionable or unknown. It's a **versatile electrode for challenging situations**.
AWS E308L-16's low carbon content is highly beneficial in pulp and paper mills due to the corrosive environments encountered (e.g., chlorides, sulfur compounds, acids). The low carbon **prevents sensitization and intergranular corrosion** in the weld and heat-affected zone, ensuring the integrity of stainless steel components (often 304L) that are exposed to these aggressive media and often operate at elevated temperatures. It's crucial for **corrosion resistance in process equipment**.
Incorrect welding technique (e.g., wrong current, travel speed, arc length, or manipulation) can severely degrade the overall mechanical properties of the weld, leading to:
**Reduced tensile strength and yield strength.**
**Lower ductility (elongation and reduction in area).**
**Poor toughness (impact strength).**
**Increased hardness** (in hardenable steels).
**Presence of defects:** Porosity, lack of fusion, slag inclusions, undercut, all of which compromise properties.
Proper technique is fundamental to achieving the electrode's specified mechanical properties. It directly affects **weld performance and reliability**.
No, AWS E310H-16 is **not suitable for cryogenic service**. While its high nickel content leads to a fully austenitic microstructure, its "H" (high carbon) designation means it has significantly higher carbon than E310-15. This higher carbon can lead to carbide precipitation, which at cryogenic temperatures can cause **embrittlement and reduced toughness**. Fully austenitic electrodes with very low carbon (like E310-15, if still suitable alloy) or specific cryogenic grades are required. It is **unsuitable for cryogenic applications**.
A good quality stainless steel fillet weld made with SMAW should exhibit:
**Consistent leg length and throat thickness.**
**Smooth, uniform bead contour** with fine, even ripples.
**Good wetting and fusion at the toes** with no undercut.
**Absence of porosity or cracking.**
**A clean, easily removable slag** (especially with -16/-17 electrodes).
It should be aesthetically pleasing and functionally sound. It's indicative of **skilled welding and proper parameters**.
AWS E316-16 typically has a **lower nickel content** (approx. 10-14%) compared to AWS E309-16 (approx. 12-14%). While the ranges can overlap, E309-16 is designed with higher nickel (and chromium) to accommodate significant dilution from carbon steel and ensure an austenitic-ferritic weld structure. E316-16 is optimized for matching 316L. The difference is subtle but purposeful for their respective applications. It reflects their **intended base metal matching**.
AWS E312-17 is widely used for repair of plant equipment, particularly when:
**Dissimilar metals** need to be joined (e.g., stainless steel pipe to a carbon steel valve body).
**Unknown materials** are encountered during emergency repairs.
**Cracks in hard-to-weld steels** need to be bridged.
**High productivity and good finish** are desired for repairs.
**Buffer layers** are needed on carbon steel before overlaying with another stainless steel.
Its "problem-solver" nature makes it invaluable for industrial maintenance. It's a versatile tool for **robust plant repair**.
AWS E308L-16 contributes to preventing "weld decay" (intergranular corrosion) by virtue of its **low carbon content**. Weld decay is a form of sensitization that occurs in the heat-affected zone of non-stabilized stainless steels. The low carbon content of E308L-16 (and 304L base metal) minimizes the formation of chromium carbides, thereby maintaining the chromium levels at grain boundaries and preventing susceptibility to this type of corrosion. It's a key factor in **maintaining corrosion integrity in the HAZ**.
Advantages of stainless steel SMAW electrodes for field repairs compared to TIG welding include:
**Portability:** No need for heavy gas cylinders and complex setups.
**Tolerance to environmental conditions:** Less affected by wind and drafts.
**Tolerance to contaminants:** Can handle less-than-perfectly clean surfaces.
**Higher deposition rates:** Faster for many repairs.
**All-position capability:** Versatile for awkward field positions.
It offers **robustness and flexibility for on-site repairs**.
While AWS E317L-16 offers excellent corrosion resistance, its performance in **strong oxidizing acids** (e.g., highly concentrated nitric acid or hot, highly oxidizing sulfuric acid) might be limited. Molybdenum is most effective in reducing and moderately oxidizing acids. For very strong oxidizing acids, other alloys with higher chromium or specific additions (like silicon) might be required. Always consult a corrosion specialist for specific chemical resistance. It has **limitations in highly oxidizing environments**.
