ER1070 is a high-purity aluminum filler metal, characterized by its minimum 99.7% aluminum content. It is known for its excellent electrical and thermal conductivity, making it ideal for applications where these properties are critical. This welding wire offers superior corrosion resistance, particularly against certain chemical environments, ensuring durable welds.
ER1070 is primarily used for welding pure aluminum grades such as 1070, 1060, and 1050. It maintains the purity of the welded joint, which is essential for certain electrical or chemical applications.
ER1100 is a commercially pure aluminum welding wire, containing a minimum of 99% aluminum. It offers excellent ductility and a bright, aesthetic finish after anodizing, which is a significant advantage for decorative or architectural applications. This filler metal provides good general corrosion resistance.
ER1100 is commonly used to weld 1100 series aluminum, as well as 3003 and 3003-clad aluminum. It can also be suitable for joining 1060, 1070, 1080, and 1350 base metals, ensuring consistent weld properties.
ER4043 is one of the most widely used aluminum-silicon alloy filler metals due to its excellent fluidity and low melting point. The silicon content improves the wetting action of the weld puddle, leading to smooth, virtually crack-free welds, and a bright finish. This versatility makes it a go-to for general aluminum welding applications.
ER4043 is suitable for welding various heat-treatable aluminum alloys, including 6061, 6063, 6082, and 6xxx series alloys to themselves or to 1xxx, 3xxx, or 5xxx series alloys. It is also often used for welding 3003, 3004, and 5052.
ER4047 is an aluminum-silicon alloy with a higher silicon content (typically 11-13%) than ER4043, giving it an even lower melting point and superior fluidity. This enhanced fluidity makes it excellent for brazing and allows for broader fill capabilities, reducing hot cracking susceptibility in critical joints. Its bright, clean weld appearance is another benefit.
ER4047 is frequently used for brazing aluminum components, such as in HVAC systems (heat exchangers, condensers), automotive parts (radiators), and other applications requiring superior wetting and reduced distortion. It is compatible with 1060, 1350, 3003, 3004, 3005, 5005, 5050, 6053, 6061, 6951, and 7005 series alloys. It's often chosen for applications demanding aesthetic appeal due to its minimal post-weld discoloration.
ER5183 is an aluminum-magnesium alloy filler metal known for providing high tensile strength and excellent ductility in welded joints. Its robust mechanical properties make it ideal for structural applications where strength and fatigue resistance are paramount. It also offers exceptional resistance to saltwater corrosion.
ER5183 is primarily used for welding high-strength magnesium-containing aluminum alloys, including 5083, 5086, 5456, and 5052. It's frequently specified for marine fabrication, shipbuilding, and cryogenic applications where both strength and corrosion resistance are vital. It can also be used for joining 6xxx series alloys to 5xxx series when high strength is required.
ER5356 is a versatile aluminum-magnesium alloy filler metal, widely recognized for its good strength, excellent ductility, and broad compatibility with various aluminum alloys. It offers very good corrosion resistance, making it suitable for a wide range of general fabrication purposes. However, it is generally not recommended for sustained service temperatures exceeding 150°F (65°C) due to potential susceptibility to stress corrosion cracking over time.
ER5356 is highly compatible with the 5xxx series alloys like 5050, 5052, 5086, and 5454. It is also a popular choice for welding 6xxx series alloys (e.g., 6061, 6063) to themselves or to other 6xxx or 5xxx alloys, where its good feeding characteristics are appreciated in MIG welding setups. This filler metal is often selected for its bright, white color after anodizing, offering an aesthetic match for certain base materials.
ER5556 is an aluminum-magnesium-manganese alloy, offering even higher tensile strength than ER5356 and ER5183, particularly in fillet welds. It provides excellent crack resistance and good corrosion resistance, making it suitable for demanding structural applications. While offering superior strength, similar to ER5356, it also has limitations regarding prolonged elevated temperature service (above 150°F / 65°C).
ER5556 is specifically designed for welding high-strength 5xxx series aluminum alloys, such as 5083, 5456, and other alloys that benefit from increased manganese content for enhanced mechanical properties. It's also suitable for welding 6xxx series alloys when maximum strength is desired, especially in applications like trailer manufacturing and shipbuilding where structural integrity is paramount. This filler metal is a prime choice for critical structural welds.
Selecting the appropriate aluminum filler metal is crucial for achieving a sound weld. Key factors include the **base metal alloy** composition, desired **mechanical properties** (tensile strength, ductility), required **corrosion resistance** (especially in marine or harsh environments), susceptibility to **hot cracking**, and the aesthetic **color match** after post-weld treatments like anodizing. Understanding these considerations ensures optimal weld performance and longevity.
Aluminum welding presents unique challenges due to its high thermal conductivity, low melting point, and tendency to form a tenacious oxide layer. These factors can lead to issues such as porosity, cracking, and difficulty achieving consistent penetration. Proper material preparation, including thorough cleaning to remove the oxide layer, is paramount for successful aluminum fusion welding.
Shielding gas is critical in aluminum welding to protect the molten weld pool from atmospheric contamination (oxygen and nitrogen). Argon is the most common choice, providing excellent arc stability and cleaning action. For thicker sections or to reduce porosity, helium or argon-helium mixtures can be used to increase heat input and improve penetration, optimizing the welding process.
Pre-weld preparation is perhaps the most critical step in aluminum welding. It involves meticulously cleaning the base metal surfaces to remove oil, grease, moisture, and especially the aluminum oxide layer. Failure to adequately clean can lead to significant weld defects like porosity and lack of fusion. Mechanical cleaning with a stainless steel wire brush dedicated solely to aluminum, followed by solvent wiping, is often recommended for best practices in aluminum fabrication.
Hot cracking, also known as solidification cracking, is a common issue in aluminum welding, particularly with certain alloys. It occurs when the weld metal solidifies and experiences tensile stresses during cooling. Choosing filler metals with a wider freezing range, or those that form a less crack-sensitive microstructure, such as silicon-rich alloys (ER4043, ER4047), can significantly mitigate this risk, ensuring joint integrity in demanding applications.
Generally, it is not recommended to mix different aluminum filler metals within a single weld. Each filler metal has specific chemical compositions and properties designed to work optimally with certain base metal combinations. Mixing them can lead to unpredictable metallurgical reactions, resulting in reduced mechanical properties, increased cracking susceptibility, or compromised corrosion resistance. Adhering to established welding procedures and using a single, appropriate filler metal is always the best practice for ensuring weld integrity and quality assurance.
Anodizing is an electrochemical process that converts the metal surface into a decorative, durable, corrosion-resistant, anodic oxide finish. The aesthetic appearance of an anodized aluminum weld is highly dependent on the filler metal used. Some filler metals, like ER4043, will turn gray or dark after anodizing due to their silicon content, while others, like ER5356, will maintain a closer color match to the base material, appearing white. This is a critical consideration for decorative or architectural aluminum components where visual consistency is important.
The most common welding processes for aluminum filler metals like ER1070, ER1100, ER4043, ER4047, ER5183, ER5356, and ER5556 are Gas Metal Arc Welding (GMAW), also known as MIG welding, and Gas Tungsten Arc Welding (GTAW), or TIG welding. MIG offers higher deposition rates for thicker materials, while TIG provides precise control and high-quality, aesthetically pleasing welds for thinner materials or critical applications. Both processes utilize an inert shielding gas, typically argon, to protect the weld puddle from atmospheric contamination.
Proper storage of aluminum welding wire is crucial to prevent contamination and maintain its integrity. Welding wire should be stored in a clean, dry environment, preferably in its original sealed packaging, away from humidity, dust, and corrosive fumes. Exposure to moisture can lead to hydrogen porosity in the weld, compromising mechanical properties. Keeping spools and rods in a climate-controlled area is a best practice for preserving product quality and ensuring reliable welding performance.
Aluminum's high thermal conductivity means heat dissipates rapidly from the weld zone, requiring higher heat input compared to steel. Welders often use higher current settings, faster travel speeds ("hot and fast"), and sometimes preheating, especially for thicker sections, to ensure proper fusion and penetration. This characteristic also necessitates careful parameter control to avoid distortion in the workpiece, which is a common challenge in aluminum welding.
Joint design plays a critical role in aluminum welding, influencing heat distribution, penetration, and overall weld integrity. Proper joint preparation, such as beveling for thicker sections, allows for adequate filler metal deposition and ensures complete fusion. Considerations like root gap, included angle, and fit-up are vital for minimizing defects like lack of penetration or excessive distortion, contributing significantly to a successful weldment.
While aluminum filler metals are primarily designed for joining aluminum to aluminum, specific alloys can be used for limited dissimilar metal joining applications, typically involving aluminum to other aluminum alloys with differing compositions. Joining aluminum to steel or copper, for example, is far more complex and usually requires specialized techniques like friction stir welding or brazing with specific interlayers, as direct fusion welding often leads to brittle intermetallic compounds and poor joint strength. Careful consideration of the metallurgical compatibility and potential for galvanic corrosion is essential when attempting dissimilar metal welds.
Pulsed MIG welding offers significant advantages for aluminum welding, particularly in managing heat input and improving arc stability. The pulsing action helps to control the molten weld pool, reduce spatter, and enhance penetration, especially on thinner materials or in out-of-position welding. This advanced welding technique also minimizes distortion and can improve the aesthetic appearance of the weld bead, making it a valuable tool for high-quality aluminum fabrication.
Welding aluminum requires specific safety precautions. Proper ventilation is crucial due to the potential for ozone and other fumes, especially during TIG welding. Welders should wear appropriate Personal Protective Equipment (PPE), including welding helmets with suitable shade levels, flame-retardant clothing, gloves, and safety glasses. Additionally, awareness of the fire hazards associated with molten aluminum and hot work areas is essential. Always consult safety data sheets (SDS) for specific filler metals and base materials.
Magnesium is a key alloying element in 5xxx series aluminum filler metals, such as ER5183, ER5356, and ER5556. It significantly enhances the tensile strength, ductility, and corrosion resistance of the weld metal. Higher magnesium content generally leads to greater strength but can also increase susceptibility to stress corrosion cracking at elevated temperatures, requiring careful consideration of service conditions. Magnesium-containing alloys are highly valued for structural and marine applications due to their robust performance.
Silicon is a primary alloying element in 4xxx series aluminum filler metals, including ER4043 and ER4047. It plays a crucial role in improving the fluidity (wetting action) of the molten weld pool, reducing the melting temperature, and minimizing hot cracking susceptibility, particularly in heat-treatable base alloys. While silicon-rich filler metals provide excellent weldability and a bright finish, they can result in a darker, grayish appearance after anodizing, which is an important aesthetic consideration.
Many of these aluminum filler metals, especially ER4043 and ER4047, are commonly used for the repair welding of aluminum castings. The fluidity and crack resistance offered by the silicon content in 4xxx series alloys are particularly beneficial for filling porosity or repairing cracks in cast components. Careful preheating and controlled cooling are often necessary to prevent further cracking in the brittle cast structure, ensuring a successful repair of aluminum parts.
Common weld defects in aluminum include porosity (due to hydrogen contamination), hot cracking, lack of fusion, and distortion. Porosity can be minimized by thorough cleaning of the base metal and filler wire, proper shielding gas coverage, and ensuring dry conditions. Hot cracking is mitigated by selecting appropriate filler metals with lower crack sensitivity (e.g., 4xxx series) and optimizing joint design. Lack of fusion is addressed by adequate heat input and proper joint preparation. Distortion can be controlled through proper clamping, tack welding, and controlled cooling, which are vital for successful aluminum welding operations.
The aluminum filler metals discussed (ER1070, ER1100, etc.) are primarily solid wires, meaning they require an external shielding gas (like argon) to protect the weld pool. Flux-cored aluminum wires, while less common than solid wires, contain a fluxing agent within the wire itself, eliminating the need for external gas in some applications. However, solid wires generally offer cleaner welds and are preferred for most precision aluminum welding due to better control and less post-weld cleanup. The choice between them depends on the specific application, equipment, and desired weld characteristics for optimal aluminum joining.
Travel speed significantly impacts aluminum weld quality. Too slow a travel speed can lead to excessive heat input, causing distortion, burn-through on thinner materials, or a wide, convex bead. Conversely, too fast a travel speed may result in insufficient penetration, lack of fusion, or a narrow, ropey bead. Optimizing travel speed, often described as "hot and fast" for aluminum due to its high thermal conductivity, is crucial for achieving consistent penetration, proper bead profile, and minimizing defects during the welding process.
Preheating aluminum is often necessary for thicker sections, especially with alloys that are prone to cracking or for very large weldments. Preheating helps to reduce the temperature differential between the weld zone and the surrounding base metal, minimizing internal stresses and the risk of hot cracking. It also improves fluidity and penetration, aiding in the fusion process. However, excessive preheating can lead to distortion or degradation of mechanical properties, so careful temperature control is essential. Pure aluminum and low-alloy aluminum typically require less preheating than high-strength alloys.
The surface finish of aluminum can significantly affect weld performance. A smooth, clean, and consistent surface finish contributes to stable arc initiation and consistent weld bead appearance. Rough or uneven surfaces, or those with deep scratches, can trap contaminants or make it difficult to maintain a consistent arc, potentially leading to weld defects. For critical applications, a carefully prepared surface finish is essential for achieving high-quality, defect-free aluminum welds, ensuring the best outcome for your fabrication process.
Post-weld treatments for aluminum can include cleaning, grinding, heat treatment, and anodizing. Cleaning removes any remaining slag, spatter, or discoloration. Grinding may be used to achieve a desired profile or smooth the weld bead. Heat treatments can be applied to restore mechanical properties or relieve residual stresses, particularly in heat-treatable alloys. Anodizing is common for aesthetic or corrosion resistance purposes, but the filler metal choice will impact the final color match. Proper post-weld handling ensures the final component meets performance and aesthetic requirements, which is vital for quality control.
The cleanliness of aluminum filler wire is paramount for producing high-quality welds. Contaminants such as oil, grease, dirt, or even oxidized surfaces on the wire itself can introduce hydrogen into the weld pool, leading to porosity. Always handle filler wire with clean gloves, store it in its original sealed packaging until use, and ensure that feed rolls and liners are free from debris to prevent wire contamination and maintain optimal weld integrity. This meticulous attention to cleanliness directly impacts weld soundness and performance.
Run-on and run-off tabs are small, sacrificial pieces of the same base metal material temporarily attached to the start and end of a weld joint. They allow the welder to establish a stable arc and weld puddle before reaching the actual joint and to continue welding beyond the joint's end, ensuring that any starting or stopping defects are contained within the tabs. This technique is particularly useful in aluminum welding to achieve full penetration and reduce crater cracking at the weld terminations, leading to a more consistent and defect-free main weld.
Arc stability is critical in aluminum welding because an erratic or unstable arc can lead to inconsistent penetration, increased spatter, and porosity. Factors affecting arc stability include proper selection of welding parameters (current, voltage, travel speed), correct shielding gas flow, and maintenance of welding equipment. A stable arc ensures a smooth, consistent weld bead and minimizes defects, contributing to superior weld quality and efficient aluminum fabrication.
Welding thin gauge aluminum requires precise control to prevent burn-through and excessive distortion. Key considerations include using lower amperage settings, faster travel speeds, and potentially pulsed welding techniques to control heat input. Small diameter filler wires are also preferred for fine control of the weld puddle. Careful clamping and jigging are essential to minimize warping. TIG welding is often favored for its precision on very thin materials, ensuring high-quality, aesthetic welds.
Welding parameters such as current, voltage, travel speed, and shielding gas flow significantly influence the final mechanical properties and microstructure of aluminum welds. Incorrect parameters can lead to defects like porosity, cracking, or lack of fusion, compromising weld strength and ductility. Optimal parameter selection ensures adequate penetration, proper bead profile, and desired metallurgical characteristics in the weld zone, which is critical for meeting design specifications and achieving robust aluminum structures.
The 6xxx series aluminum alloys (e.g., 6061, 6063) are heat-treatable, meaning their strength can be significantly increased through precipitation hardening. When welding these alloys, the heat of the weld process can anneal the heat-affected zone (HAZ), reducing its strength. Therefore, filler metals like ER4043 or ER5356 are often chosen. ER4043 is popular due to its excellent crack resistance and fluidity, while ER5356 offers good strength and is compatible if a strength reduction in the HAZ is acceptable or if post-weld heat treatment is planned. Proper filler metal selection is crucial to balance weldability with desired final mechanical properties, ensuring structural integrity.
Aluminum is highly sensitive to hydrogen porosity because hydrogen has a high solubility in molten aluminum but very low solubility in solid aluminum. As the weld pool solidifies, dissolved hydrogen is expelled, forming gas bubbles that become trapped, leading to porosity. Common sources of hydrogen include moisture (from contaminated surfaces, shielding gas, or filler wire), hydrocarbons (oils, greases), and hydrated aluminum oxide. Meticulous cleaning and ensuring dry welding conditions are paramount to prevent this prevalent weld defect.
Manganese is a significant alloying element in ER5556, contributing to its higher strength and improved resistance to stress corrosion cracking compared to other magnesium-rich alloys like ER5356. It also refines the grain structure of the weld metal, enhancing its mechanical properties. The manganese content in ER5556 makes it particularly well-suited for high-strength structural applications, such as those found in marine and transportation industries, where robust and durable welds are required.
The chemical composition of the aluminum filler metal directly impacts the corrosion resistance of the welded joint. For instance, magnesium-rich alloys (ER5183, ER5356, ER5556) offer excellent resistance to saltwater corrosion, making them ideal for marine environments. Silicon-rich alloys (ER4043, ER4047) generally have good general corrosion resistance but may behave differently in specific chemical exposures. Selecting a filler metal with appropriate alloying elements that complement the base metal's corrosion resistance properties is vital for the long-term integrity and performance of the welded structure, especially in challenging service conditions.
Maintaining welding equipment for aluminum involves specific considerations. It's crucial to use dedicated liners and contact tips designed for aluminum to prevent contamination and ensure smooth wire feeding. Regularly clean drive rolls to avoid shaving the soft aluminum wire, which can lead to blockages and inconsistent feeding. Ensure your shielding gas system is leak-free and that the gas quality is pure. Proper equipment maintenance not only extends the life of your welding machine but also significantly impacts the quality and consistency of your aluminum welds, leading to better productivity and reduced rework.
AC (Alternating Current) TIG welding is highly advantageous for aluminum due to its unique cleaning action. During the positive half-cycle, the arc effectively blasts away the tenacious aluminum oxide layer, which melts at a much higher temperature than the base metal. This "cleaning action" is crucial for achieving sound, porosity-free welds. The negative half-cycle provides the deep penetration required for good fusion. Modern AC TIG welders often feature adjustable balance control, allowing fine-tuning of the cleaning action versus penetration, optimizing the welding process for various aluminum alloys and thicknesses. This makes AC TIG the preferred method for high-quality aluminum welding, from delicate repairs to heavy fabrication.
The choice of shielding gas significantly impacts aluminum weld characteristics. 100% Argon is most common, providing good arc stability and cleaning action. For increased penetration and to reduce porosity, especially on thicker aluminum sections, Argon-Helium mixtures (e.g., 75% Argon / 25% Helium) are often used, as helium provides higher heat input. However, helium is more expensive and requires higher flow rates. The correct shielding gas ensures adequate weld puddle protection, minimizes defects, and influences the final bead appearance and mechanical properties of the weld, making it a critical aspect of aluminum welding metallurgy.
ER1070 welding wire is primarily used for welding pure aluminum grades in applications requiring high electrical conductivity, such as electrical bus bars, heat exchangers, and cryogenic tanks. Its excellent corrosion resistance also makes it suitable for chemical processing equipment and food handling applications where purity and resistance to specific chemicals are paramount. This filler metal ensures that the high purity of the base material is maintained in the welded joint, which is vital for performance in sensitive industries.
ER1100 is widely utilized in architectural and decorative applications due to its bright finish after anodizing, making it ideal for furniture, trim, and artistic structures. It's also found in industries such as food processing equipment, heat exchangers, and general fabrication where a commercially pure aluminum weld is required. Its ductility makes it suitable for components that may undergo post-weld forming, enhancing its versatility in manufacturing processes.
ER4043 finds extensive use across various industries due to its general-purpose versatility and excellent weldability. It is commonly employed in automotive components, bicycle frames, marine applications (above waterline), general fabrication, and repair welding of aluminum castings. Its good fluidity and crack resistance make it a reliable choice for a broad spectrum of aluminum welding projects, from light fabrication to structural applications.
ER4047 filler metal is particularly beneficial in applications requiring high fluidity, such as brazing and sealing. It is extensively used in the HVAC and refrigeration industry for components like heat exchangers, condensers, and evaporators. Its ability to create leak-tight joints and its resistance to hot cracking also make it suitable for automotive radiators, piping, and other thin-gauge aluminum assemblies where precise control and minimal distortion are crucial for optimal performance.
ER5183 aluminum welding wire is primarily used in structural applications where high strength, ductility, and excellent corrosion resistance are critical. Its most common uses include shipbuilding, marine fabrication (especially in saltwater environments), railway cars, pressure vessels, and cryogenic tanks. The robust mechanical properties of ER5183 make it the preferred choice for demanding environments and heavy-duty aluminum construction, ensuring long-term integrity and safety.
ER5356 filler metal is well-suited for a broad range of general aluminum fabrication applications where good strength, ductility, and corrosion resistance are required. Common uses include structural frames, bicycles, truck trailers, pressure vessels (not exposed to sustained elevated temperatures), and general repair welding. Its excellent feedability also makes it a popular choice for robotic welding and high-volume manufacturing, providing a balance of performance and ease of use in diverse industrial settings.
ER5556 aluminum filler metal is used for critical applications demanding the highest as-welded tensile strength and superior crack resistance among aluminum-magnesium alloys. It is commonly employed in heavy-duty structural components, such as in shipbuilding, high-performance trailers, and military vehicles, where maximum strength and fatigue resistance are paramount. While providing exceptional mechanical properties, its application must consider limitations regarding sustained elevated service temperatures, ensuring its suitability for the specific operational environment.
The main difference between ER4043 and ER4047 lies in their silicon content and melting characteristics. ER4047 has a higher silicon content (typically 11-13% vs. 5% for ER4043), resulting in a lower melting point and significantly greater fluidity. This makes ER4047 excellent for brazing and filling wide gaps, reducing hot cracking. ER4043 is a general-purpose choice, while ER4047 excels in applications requiring superior wetting, broader fill, and lower heat input. Both offer good crack resistance, but their differing silicon levels dictate their optimal use and post-anodizing appearance.
ER5183, ER5356, and ER5556 are all aluminum-magnesium alloys, but they offer increasing levels of strength due to varying magnesium and manganese content. ER5356 is a general-purpose option, providing good strength and ductility for a wide range of applications, but it has temperature limitations. ER5183 offers higher strength and superior saltwater corrosion resistance, making it ideal for marine and cryogenic uses. ER5556 provides the highest as-welded strength among the three, often specified for the most demanding structural applications where maximum load-bearing capability is required, though it shares similar temperature limitations with ER5356. The choice depends on the specific strength, ductility, and environmental requirements of the weldment.
Yes, ER5356 has an important limitation regarding sustained elevated service temperatures. If the welded component is continuously exposed to temperatures above 150°F (65°C), the magnesium content in the weld metal can precipitate as an intermetallic compound (Al2Mg) at the grain boundaries. This can lead to increased susceptibility to stress corrosion cracking, compromising the long-term integrity of the weld. Therefore, for applications requiring service above this temperature, ER5183 or ER5556, which have better performance at elevated temperatures due to their alloying elements, might be more suitable, or alternative solutions should be considered to ensure weld durability.
Aluminum welding wires like ER1070, ER1100, ER4043, ER4047, ER5183, ER5356, and ER5556 are typically manufactured and classified according to international standards such as AWS A5.10 (Specification for Bare Aluminum and Aluminum-Alloy Welding Electrodes and Rods) and ISO 18273. These standards define the chemical composition, mechanical properties, and testing requirements for each filler metal, ensuring consistency and quality. Compliance with these certifications is essential for quality assurance and meeting industry specifications, particularly in critical applications like aerospace, marine, and pressure vessel fabrication.
Yes, most aluminum filler metals, especially those supplied on spools like ER5356, ER4043, and ER5183, are well-suited for robotic welding applications. Robotic welding offers superior precision, repeatability, and speed, which can significantly enhance productivity and weld quality in mass production. However, successful robotic aluminum welding requires precise programming, consistent wire feeding, and careful control of welding parameters to manage aluminum's inherent challenges such as arc instability and wire feeding issues due to its softness. Dedicated aluminum liners and U-groove drive rolls are essential for smooth wire delivery in automated systems.
Lack of fusion in aluminum welds typically occurs when the molten weld metal does not adequately wet and fuse with the base material or previous weld passes. Common causes include insufficient heat input, improper joint preparation (e.g., presence of oxide layer or contaminants), or incorrect welding technique (e.g., too fast travel speed). Prevention involves thorough cleaning of the joint surfaces, ensuring adequate heat input and proper penetration by optimizing welding parameters, and employing appropriate joint designs. For TIG welding, proper torch angle and manipulation are also crucial to ensure complete fusion, which is vital for structural integrity.
The high purity of aluminum filler metals like ER1070 (99.7% min Al) and ER1100 (99% min Al) is critical for applications where electrical conductivity, thermal conductivity, and corrosion resistance are paramount. Impurities can significantly degrade these properties. For instance, in electrical bus bars, even small amounts of alloying elements can increase electrical resistance. In chemical processing equipment, higher purity ensures better resistance to specific corrosive media. Therefore, these pure aluminum filler metals are indispensable for highly specialized applications demanding uncompromised material performance and optimal functionality.
Welding aluminum in different positions (flat, horizontal, vertical, overhead) presents distinct challenges. Due to aluminum's high fluidity and fast freezing rate, controlling the weld puddle can be difficult, especially in vertical-up or overhead positions. Generally, lower amperages, shorter arc lengths, and precise torch manipulation are required for out-of-position welding. Pulsed MIG can be particularly advantageous in these scenarios for better puddle control. Proper technique and parameter adjustments are essential to prevent sag, undercut, or excessive convexity in vertical and overhead welds, ensuring consistent weld quality across all orientations.
The mechanical strength of the weld metal, derived from the filler metal, should ideally match or exceed the base metal's strength, especially for structural applications. For heat-treatable alloys (like 6xxx series), the heat-affected zone (HAZ) of the base metal often experiences a reduction in strength due to annealing. Non-heat-treatable alloys (like 5xxx series) generally retain their strength better. Filler metals like ER5183 or ER5556 are designed to provide high as-welded strength, often surpassing the tensile strength of the softer 5xxx base metals or compensating for HAZ softening in 6xxx alloys. Careful consideration of both filler metal and base metal properties is crucial to achieve the desired overall joint strength and performance, which is vital for structural integrity.
The primary purpose of aluminum oxide removal prior to welding is to prevent weld defects and ensure proper fusion. Aluminum naturally forms a tough, insulating oxide layer that melts at a much higher temperature (approximately 3,700°F or 2,040°C) than the base aluminum (approximately 1,200°F or 650°C). If not removed, this oxide layer can prevent the molten weld pool from properly coalescing, leading to lack of fusion, porosity, and inclusions. Mechanical brushing with a dedicated stainless steel brush and/or chemical cleaning are essential steps for achieving a clean surface and high-quality, defect-free aluminum welds, contributing to a robust welding process.
Aluminum has a relatively high coefficient of thermal expansion, meaning it expands and contracts significantly more than steel when heated and cooled. This characteristic can lead to greater distortion and residual stresses in welded components. To mitigate these effects, welders often employ techniques such as proper clamping, using balanced welding sequences, back-stepping, or skip welding. Controlling heat input by optimizing welding parameters is also crucial to minimize thermal expansion and contraction, which helps prevent warpage and maintain dimensional accuracy in aluminum fabrication.
Welding different thicknesses of aluminum requires careful consideration of heat input and filler metal selection. When joining a thin section to a thick section, the heat input needs to be biased towards the thicker material to ensure proper penetration without overheating or burning through the thinner piece. This often involves adjusting torch angle or travel speed. For very thick sections, preheating may be necessary to ensure complete fusion and reduce cracking. For thin materials, precise control and lower heat input are crucial. Selecting a filler metal suitable for the base alloys and thickness variations is essential for achieving a sound and consistent weld, which is a key aspect of aluminum welding best practices.
The "cleaning action" in AC TIG welding of aluminum refers to the cathodic etching that occurs during the positive half-cycle of the alternating current. During this phase, electrons flow from the workpiece to the tungsten electrode, effectively blasting away the tenacious aluminum oxide layer from the surface of the molten weld pool. This phenomenon is crucial because aluminum oxide has a much higher melting point than pure aluminum and can prevent proper fusion if not removed. The cleaning action helps to ensure a clean, bright, and porosity-free weld, making AC TIG welding the preferred process for high-quality aluminum fabrication.
While some aluminum filler metals, particularly ER4047 due to its high silicon content and excellent fluidity, are specifically designed for brazing applications, most other "ER" classified welding wires (like ER5356, ER5183) are primarily intended for fusion welding. Brazing typically involves a lower melting filler metal that flows into and wets the joint without melting the base metal. For true aluminum brazing, specialized alloys with specific melting ranges and flux requirements are used. Therefore, while ER4047 excels in brazing, relying on other "ER" welding wires for brazing without proper qualification and understanding of the process limitations is generally not recommended to ensure optimal joint integrity.
Titanium is often present in small amounts in aluminum filler metals, sometimes as a deliberate addition or as a residual element. Its primary role, when deliberately added, is as a grain refiner. Titanium helps to promote a finer grain structure in the solidified weld metal, which generally improves ductility and reduces the susceptibility to hot cracking. This fine-grain structure contributes to enhanced mechanical properties and overall weld quality, which is beneficial in various aluminum welding scenarios, particularly for alloys prone to coarse grain formation.
Proper gas coverage is absolutely critical in aluminum welding to prevent atmospheric contamination of the molten weld pool. Aluminum is highly reactive with oxygen and nitrogen at elevated temperatures, leading to the formation of brittle oxides and nitrides, as well as porosity due to hydrogen absorption from moisture. A consistent flow of inert shielding gas (typically argon) creates a protective envelope around the arc and weld puddle, preventing these detrimental reactions and ensuring a clean, sound, and mechanically robust weld. Inadequate gas coverage is a common cause of poor weld quality in aluminum fabrication.
Cooling rates significantly affect the microstructure and, consequently, the mechanical properties of aluminum welds. Rapid cooling can lead to a finer grain structure in the weld metal, which generally improves strength and toughness but can also increase residual stresses. Slower cooling rates, often achieved through preheating or controlled post-weld cooling, can help reduce distortion and the risk of cracking, particularly in more crack-sensitive alloys. For heat-treatable alloys, controlling cooling rates after welding can also influence the effectiveness of subsequent heat treatments. Understanding and controlling these rates are vital for optimizing weld performance and integrity in aluminum joining processes.
Aluminum welding electrodes (for TIG) and rods generally have an indefinite shelf life if stored properly in their original, sealed, moisture-proof packaging in a clean, dry environment. However, once the packaging is opened, exposure to humidity and atmospheric contaminants can degrade their quality, leading to potential weld defects like porosity. It's best practice to use opened packages within a reasonable timeframe and reseal them if possible. Contaminated or oxidized rods should be properly cleaned or discarded to ensure high-quality, defect-free aluminum welds, maintaining optimal performance in your welding operations.
Several misconceptions exist about aluminum welding. One common belief is that aluminum is extremely difficult to weld; while it presents unique challenges (oxide layer, high thermal conductivity), with proper knowledge, equipment, and technique, it is highly weldable. Another misconception is that any aluminum filler metal will work for any aluminum alloy, which is incorrect as specific filler metals are tailored for specific base alloys and applications to achieve optimal properties. Dispelling these myths and understanding the metallurgy and best practices are key to successful aluminum fabrication and achieving superior weld quality.
Yes, aluminum filler metal scrap, like other aluminum scrap, can typically be recycled. However, for recycling to be economically viable and environmentally beneficial, the scrap should be sorted by alloy type to maintain purity. Contaminated or mixed aluminum scrap is less valuable. Proper waste management and recycling practices contribute to sustainability in the welding industry, reducing the environmental footprint and conserving resources. This is an important consideration for responsible manufacturing and material management in aluminum fabrication processes.
A good aluminum weld bead typically has a uniform width and height, consistent ripple patterns, and a bright, clean appearance with minimal discoloration or soot. There should be no signs of excessive convexity, concavity, undercut, or burn-through. For TIG welds, the bead should be smooth and shiny. For MIG welds, spatter should be minimal. A well-executed aluminum weld demonstrates proper fusion to the base metal, indicating adequate penetration and optimal welding parameters, which are hallmarks of high-quality aluminum fabrication.
Trace elements, even in very small quantities, can significantly affect aluminum weld performance. For example, controlled amounts of titanium or zirconium can act as grain refiners, improving crack resistance and ductility. Conversely, unwanted impurities like certain heavy metals or excessive iron can degrade mechanical properties, reduce corrosion resistance, or increase hot cracking susceptibility. Manufacturers carefully control the levels of these trace elements to ensure the filler metal meets specified standards and delivers consistent, high-quality results in various aluminum welding applications, which is essential for quality control in metallurgy.
Proper joint cleaning is absolutely critical in preventing porosity in aluminum welds because hydrogen, primarily from moisture and hydrocarbons on the surface, is the leading cause of porosity. The aluminum oxide layer itself can also trap moisture. By thoroughly cleaning the joint surfaces, including wire brushing with a dedicated stainless steel brush and degreasing with appropriate solvents, you eliminate these sources of hydrogen. This meticulous preparation ensures a clean, dry surface, allowing the molten aluminum to solidify without trapping gas bubbles, thereby producing a sound, porosity-free weld and maintaining the integrity of the welded joint.
Welding pre-anodized aluminum presents challenges because the anodized layer is an electrical insulator and must be removed from the weld area. Attempting to weld through the anodized layer will result in poor arc starting, contamination, and weld defects. The area to be welded must be mechanically or chemically stripped of the anodized coating. Post-weld, the welded area will not match the original anodized finish without re-anodizing the entire part, and even then, the filler metal color response to anodizing must be considered (e.g., ER4043 will turn grey). This is an important aesthetic and functional consideration in aluminum fabrication.
The position of the welding torch, including its angle (push or pull) and distance from the workpiece, significantly affects aluminum weld quality. A slight push angle (leading the puddle) is often preferred for MIG welding to provide better visibility and deeper penetration. For TIG welding, a relatively straight-on angle with a slight tilt is common. Maintaining a consistent arc length is crucial for stable arc characteristics. Incorrect torch angles can lead to insufficient shielding gas coverage, uneven heat distribution, or poor bead profile, compromising the integrity and appearance of the aluminum weld, making technique paramount in the welding process.
Using a dedicated stainless steel wire brush for aluminum is of utmost importance to prevent contamination. If a brush previously used on steel or other metals is used on aluminum, microscopic particles of those harder metals can become embedded in the soft aluminum surface. During welding, these embedded particles will melt and introduce impurities into the weld pool, leading to defects such as porosity, inclusions, and reduced corrosion resistance. A dedicated, clean stainless steel brush ensures that only the oxide layer is removed, maintaining the purity of the aluminum surface and contributing to high-quality welds.
While ER1070 is a pure aluminum filler metal, it is not typically chosen for decorative aluminum applications due to its relatively low strength and the fact that its post-anodizing appearance may not be as bright or consistent as some other alloys. For decorative applications where a bright, consistent anodized finish is desired, ER1100 or even ER5356 (which produces a white anodic film) are generally preferred. ER1070's primary advantage lies in its high purity for electrical and chemical applications rather than aesthetic appeal, which is a key consideration in aluminum design.
ER1100, being a commercially pure aluminum filler metal, has relatively low as-welded strength compared to alloyed aluminum filler metals like ER5183 or ER5556. Therefore, it is generally not recommended for structural applications where high load-bearing capacity or significant mechanical strength is required. Its primary use is in applications where ductility, electrical conductivity, and good corrosion resistance are prioritized over high strength, making its selection critical based on the specific mechanical requirements of the fabricated aluminum component.
ER4043 is often considered a "forgiving" filler metal for beginners due to its excellent fluidity and superior crack resistance. The silicon content helps to suppress hot cracking, which is a common and frustrating issue for novice welders. Its good wetting characteristics allow for easier control of the weld puddle and provide a smoother, more aesthetic bead appearance, even with slight variations in technique. This makes ER4043 a great starting point for those learning aluminum welding, allowing them to focus on torch manipulation and heat control without excessive concern for cracking, which aids in developing fundamental welding skills.
When brazing with ER4047, particularly with flux-cored variants, specific safety concerns relate to the fumes produced by the flux. Fluxes often contain fluoride compounds, which can generate irritating and potentially hazardous fumes if ventilation is inadequate. Proper local exhaust ventilation (LEV) or respiratory protection is essential. Additionally, the lower melting point of ER4047 means the base metal heats up quickly, requiring careful control to prevent overheating or burn-through. Always consult the Safety Data Sheet (SDS) for the specific product and ensure proper ventilation and PPE are in place for safe aluminum brazing operations.
ER5183 is highly favored for marine applications due to its exceptional resistance to saltwater corrosion. The magnesium content in ER5183 forms a stable protective oxide layer that holds up very well in aggressive chloride-rich environments like seawater. Additionally, it offers high strength and good ductility, which are crucial for the structural integrity of marine vessels and offshore platforms. This combination of corrosion resistance and robust mechanical properties makes ER5183 the go-to choice for reliable and long-lasting aluminum welds in harsh marine environments, ensuring the durability of marine structures.
While both ER5356 and ER5183 are aluminum-magnesium filler metals, they are not always interchangeable. ER5183 generally provides higher as-welded tensile strength and superior resistance to saltwater corrosion compared to ER5356 due to its slightly higher magnesium content and specific alloying additions. ER5356 is more widely applicable for general-purpose welding where the highest strength or specialized corrosion resistance is not the primary requirement. The choice between them depends on the specific design requirements, service environment, and desired mechanical properties of the welded joint. Always refer to design specifications and industry standards to make the correct filler metal selection.
ER5556 offers significant benefits in heavy aluminum fabrication, particularly in applications where maximum strength and structural integrity are paramount. Its higher magnesium and manganese content yields superior as-welded tensile strength and excellent crack resistance, making it ideal for joining thick sections or highly stressed components. This filler metal's robust mechanical properties ensure durable and reliable welds, which are crucial for large-scale structures in shipbuilding, heavy transport, and military applications, where performance under extreme loads is expected. Its enhanced strength provides a competitive edge in demanding structural designs.
Welding thick aluminum sections presents several challenges due to aluminum's high thermal conductivity. It requires significant heat input to achieve full penetration, which can lead to increased distortion, residual stress, and potential hot cracking if not managed properly. Preheating is often necessary to reduce the thermal gradient and improve fluidity. Multi-pass welding techniques are typically employed, and careful interpass temperature control is important. Selecting filler metals like ER5183 or ER5556, which offer high strength and good crack resistance, is also crucial for ensuring sound welds in heavy-gauge aluminum structures, which are vital for critical structural applications.
The quality of the base aluminum material significantly affects weldability. Variations in alloy composition, excessive impurities, or inconsistencies in temper can lead to unpredictable welding behavior, increased defects, and compromised mechanical properties of the welded joint. A clean, consistent, and correctly specified base material is crucial for achieving high-quality, reliable welds. Reputable suppliers and proper material handling ensure that the base aluminum meets the necessary standards for successful fabrication, which is a foundational element of sound welding practice.
Welding technique plays a crucial role in minimizing distortion in aluminum due to its high coefficient of thermal expansion. Techniques such as balanced welding sequences (e.g., alternating weld passes on opposite sides of a joint), back-stepping, or skip welding can help distribute heat more evenly and minimize localized heat buildup. Using proper clamping and fixturing to restrain the workpiece during welding and cooling is also essential. Controlling heat input through optimal parameters and travel speed further reduces thermal stresses. Mastering these techniques is vital for maintaining dimensional accuracy and achieving high-quality aluminum fabrication with minimal post-weld rework.
Environmental considerations for aluminum welding primarily involve managing fumes and ensuring energy efficiency. Welding fumes, while generally less toxic than those from steel, still require adequate ventilation. The energy consumption of welding processes, particularly for highly conductive aluminum, is also a factor. Implementing energy-efficient welding practices and proper fume extraction systems contributes to a safer and more environmentally responsible welding operation. Furthermore, aluminum's recyclability offers environmental benefits in material sourcing and waste reduction, which supports sustainable manufacturing practices.
The type of welding power source significantly affects aluminum welding performance. For TIG welding, AC (Alternating Current) power sources with high-frequency arc starting are essential for their oxide cleaning action. For MIG welding, constant voltage (CV) power sources are standard, often with synergic pulsed capabilities for improved arc control and reduced spatter. Modern inverter-based power sources offer precise control over waveform, enabling finer tuning of arc characteristics for superior aluminum welding results across various thicknesses and joint configurations. Choosing the right power source is foundational to achieving high-quality aluminum welds.
Yes, some of these aluminum filler metals, particularly ER5183 and ER5556, are used in aerospace applications, but with stringent controls and specific certifications. Aerospace welding demands extremely high quality, reliability, and traceability. These alloys are chosen for their high strength-to-weight ratio and fatigue resistance. However, their use is highly regulated, requiring compliance with strict aerospace material specifications (AMS) and qualified welding procedures. The specific application and service conditions dictate the precise filler metal selection, ensuring the utmost safety and performance in critical aircraft structures, which is paramount in aviation manufacturing.
Porosity, the presence of gas bubbles trapped within the weld metal, significantly degrades the mechanical properties of aluminum welds. It acts as stress risers, reducing tensile strength, ductility, fatigue life, and fracture toughness. Even small amounts of porosity can compromise the structural integrity of a weld. Preventing porosity through meticulous cleaning, proper shielding gas coverage, and dry welding conditions is crucial for achieving sound, mechanically robust aluminum joints that meet performance specifications, which is vital for long-term durability and safety.
The filler metal diameter directly influences the welding current range, heat input, and deposition rate in aluminum welding. Larger diameter wires require higher currents and produce more heat, suitable for thicker materials and higher deposition rates. Smaller diameter wires allow for lower current settings and finer control, ideal for thinner materials, out-of-position welding, or achieving smaller, more precise weld beads. Selecting the appropriate wire diameter is crucial for optimizing welding parameters, managing heat input, and achieving the desired weld bead profile and penetration, which significantly impacts overall weld quality and efficiency in aluminum fabrication.
Using an argon-helium mix for aluminum welding offers several benefits, particularly for thicker sections or when deeper penetration is desired. Helium increases the arc voltage and heat input, leading to a hotter, wider arc and improved wetting action. This enhanced heat can help reduce porosity, especially in larger weld pools, and can increase welding speed. While more expensive than pure argon, argon-helium mixes can significantly improve weld quality and efficiency for specific demanding aluminum applications, optimizing the welding process for robust results.
Residual stresses develop in aluminum welds due to uneven heating and cooling during the welding process. As the molten weld metal solidifies and cools, it contracts, but is restrained by the cooler, surrounding base metal, leading to tensile or compressive stresses within the material. These stresses can cause distortion, cracking, or reduce fatigue life. Management techniques include preheating, controlled cooling, proper clamping and fixturing, balanced welding sequences, and in some cases, post-weld heat treatment to relieve stresses. Understanding and mitigating residual stresses are crucial for ensuring the dimensional stability and long-term performance of aluminum weldments in critical applications.
The 7xxx series aluminum alloys (e.g., 7075, 7050) are very high-strength, heat-treatable alloys often alloyed with zinc. They are generally considered very difficult to weld by fusion welding methods due to their extreme susceptibility to hot cracking. For these alloys, specialized filler metals are sometimes used (e.g., 5xxx series alloys like ER5183), but often, non-fusion welding processes like friction stir welding are preferred. When fusion welding is attempted, extreme care in joint design, preheating, and precise parameter control is paramount to minimize defects and achieve acceptable joint integrity, which is a significant challenge in advanced aluminum fabrication.
The cleanliness and purity of the shielding gas are absolutely critical for producing high-quality aluminum welds. Contaminants such as moisture, oxygen, or nitrogen in the shielding gas can introduce hydrogen into the weld pool, leading to significant porosity and degraded mechanical properties. Using a high-purity (99.998% or better) inert gas like argon or an argon-helium mix, along with leak-free gas lines and connections, ensures optimal protection of the molten aluminum. Maintaining pristine gas delivery is fundamental to achieving sound, defect-free aluminum welds, contributing to reliable fabrication results.
The post-weld strength of ER4043 and ER5356 differs primarily due to their alloying elements. ER4043 (aluminum-silicon) typically offers moderate as-welded strength. When used to weld heat-treatable 6xxx series alloys, the heat of welding can soften the base metal, and the weld metal itself does not respond to post-weld heat treatment for increased strength. ER5356 (aluminum-magnesium) generally provides higher as-welded strength than ER4043 and can maintain better strength in the HAZ of 6xxx alloys. However, ER5356 has limitations at sustained elevated temperatures. The choice between them depends on the required strength of the welded joint, the base metal, and the service conditions, which are critical considerations in aluminum structural design.
Fixtures and clamping play a crucial role in aluminum welding by holding the workpiece securely in place, minimizing distortion, and maintaining proper alignment during the welding process. Due to aluminum's high thermal expansion, effective clamping helps to resist warping and buckling. Proper fixturing also facilitates consistent heat distribution and access to the joint. Investing in robust and well-designed fixtures can significantly improve the dimensional accuracy and overall quality of aluminum weldments, reducing rework and increasing productivity in fabrication, which is essential for precision manufacturing.
The high electrical conductivity of aluminum influences welding in several ways. It means aluminum requires a higher welding current compared to steel to establish and maintain a stable arc, as it dissipates heat very quickly. This also necessitates careful selection of contact tips and power sources capable of delivering the required current. Furthermore, excellent electrical conductivity is a desired property in the finished weld for specific applications (e.g., electrical bus bars), making filler metals like ER1070 ideal. Understanding this property is fundamental to setting appropriate welding parameters and achieving efficient, high-quality aluminum fusion.
Minimizing spatter in aluminum MIG welding is crucial for achieving clean, aesthetically pleasing welds and reducing post-weld cleanup. Spatter in aluminum often results from unstable arc conditions, incorrect parameters (e.g., too high voltage or wire feed speed), or improper shielding gas. Using pulsed MIG, optimizing voltage and wire feed speed for spray transfer, maintaining a consistent stick-out, and ensuring proper shielding gas flow (100% argon or argon-helium mixes) are key strategies. Cleanliness of the wire and base metal also plays a role. Effective spatter control contributes to efficient and high-quality aluminum fabrication.
The surface condition of aluminum (e.g., mill finish, polished, painted) significantly affects the required pre-weld cleaning. Mill finish aluminum typically has a thicker, more irregular oxide layer and may have surface contaminants from manufacturing. Polished or bright finishes might have thinner oxide but could be coated with protective oils. Painted or anodized surfaces require removal of the coating in the weld area. Regardless of the initial finish, the weld zone must be meticulously cleaned by mechanical brushing (dedicated stainless steel brush) and degreasing to remove all contaminants and the oxide layer, ensuring a pristine surface for welding and preventing weld defects.
DCEN (Direct Current Electrode Negative) is generally NOT suitable for fusion welding aluminum, except for specialized applications like plasma arc welding. The primary reason is that DCEN provides little to no cleaning action, meaning the tenacious aluminum oxide layer, which melts at a much higher temperature than the base metal, remains on the surface and prevents proper fusion. For general aluminum TIG welding, AC (Alternating Current) is preferred because its cathodic etching (cleaning action) effectively removes the oxide layer, leading to sound, porosity-free welds. DCEN is typically used for steel and stainless steel, where oxide removal is not as critical a factor. So, for most aluminum TIG welding, AC is the standard to ensure quality and integrity.
Welding positioners and manipulators significantly enhance aluminum fabrication by allowing the welder to consistently place the workpiece in the optimal flat or horizontal welding position. This maximizes welding speed, improves access to the joint, and generally leads to higher quality welds by enabling the use of higher deposition rate processes like MIG welding. By reducing the need for out-of-position welding, they minimize defects, improve operator comfort, and increase productivity, making them invaluable tools in modern aluminum fabrication shops, especially for repetitive or large-scale projects.
Arc length has significant implications for aluminum weld quality. A short, consistent arc length is generally preferred in aluminum welding for both TIG and MIG. Too long an arc can lead to unstable arc conditions, increased spatter (in MIG), reduced penetration, wider beads, and increased contamination due to insufficient shielding gas coverage. A very short arc can lead to stubbing or contact tip fusion in MIG. Maintaining an optimal, consistent arc length ensures stable arc characteristics, proper heat input, effective shielding, and ultimately, high-quality, defect-free aluminum welds, which is a crucial skill for welders to master.
Using a wire feeder specifically designed for aluminum is crucial for successful MIG welding of aluminum. Aluminum filler wire is softer than steel and prone to bird-nesting or tangling if not fed properly. Dedicated aluminum wire feeders often feature U-groove drive rolls (which grip the wire without deforming it), a short, straight gun liner (often Teflon or nylon), and sometimes push-pull gun systems. These features minimize resistance and prevent wire feeding issues, ensuring consistent wire delivery, stable arc, and high-quality aluminum welds, which are essential for productivity and reducing downtime in aluminum fabrication.
The thickness and tenacity of the aluminum oxide layer can vary somewhat with different aluminum alloys and their exposure to air. Pure aluminum (e.g., 1xxx series) forms a relatively thin but tough oxide. Alloys with higher alloying elements, particularly magnesium (5xxx series), can form thicker and more tenacious oxide layers. This variation affects welding by influencing the effectiveness of the AC cleaning action in TIG welding or the amount of cleaning required prior to MIG welding. Thicker oxide layers may necessitate more aggressive mechanical brushing or longer cathodic etching times to ensure complete removal and achieve proper fusion, which is a critical consideration in aluminum welding metallurgy.
Welding aluminum in a production environment requires careful planning and process optimization. Considerations include maintaining consistent material quality, establishing robust and repeatable welding procedures (WPS), implementing effective quality control measures (e.g., NDT), and ensuring proper ventilation and safety protocols. Automation (e.g., robotic welding) and efficient material handling systems can significantly increase productivity. Managing distortion, controlling porosity, and minimizing rework are key to achieving cost-effective and high-quality aluminum fabrication in a high-volume setting, which drives overall business success.
Different aluminum tempers (e.g., T6 heat-treated, H32 strain-hardened) significantly affect weldability. Heat-treatable tempers like T6 will experience a reduction in strength in the heat-affected zone (HAZ) due to annealing during welding, as the heat effectively "undoes" the strengthening effect of the heat treatment. Strain-hardened tempers like H32 may also experience some softening in the HAZ. This means the final strength of the welded joint may be lower than the original base metal, necessitating careful design considerations. Selecting appropriate filler metals and sometimes post-weld heat treatment can mitigate these effects, but understanding the temper's impact is crucial for predicting welded joint performance and ensuring structural integrity.
Undercut in aluminum welds, a groove melted into the base metal adjacent to the weld toe without being filled by weld metal, is typically caused by excessive current, too fast travel speed, incorrect torch angle, or an overly long arc. It reduces the effective thickness of the base metal and can create stress concentrations, compromising joint strength. Prevention involves optimizing welding parameters (current, voltage, travel speed), maintaining a proper torch angle, ensuring a consistent and optimal arc length, and using appropriate filler metal deposition techniques to adequately fill the joint, which is crucial for achieving high-quality, defect-free aluminum welds and ensuring structural integrity.
When stored in their original, sealed, moisture-proof packaging in a cool, dry environment, aluminum filler metal spools typically have an indefinite shelf life. The primary concern is preventing exposure to moisture and atmospheric contaminants, which can lead to hydrogen pickup and subsequent porosity in the weld. Once opened, it's best to use the wire within a reasonable timeframe (e.g., within a few weeks to months, depending on humidity) and reseal unused portions. Proper storage ensures the filler metal remains in optimal condition for producing high-quality, defect-free aluminum welds, contributing to consistent performance and productivity.
Impurities in the base aluminum metal can significantly affect weldability and the quality of the resulting weld. Elements like iron, silicon (beyond intentional alloying), copper, or zinc, if present in excessive or uncontrolled amounts, can increase susceptibility to hot cracking, reduce ductility, or negatively impact corrosion resistance. They can also affect the fluidity of the weld pool or lead to undesirable microstructures. Using high-quality, properly specified base materials is crucial for minimizing weld defects and achieving consistent, reliable aluminum welds, which is a fundamental aspect of welding metallurgy and quality control.
MIG (GMAW) and TIG (GTAW) are the two primary processes for welding aluminum, each with distinct advantages. MIG welding uses a continuously fed wire electrode and typically offers higher deposition rates, making it faster and more suitable for thicker materials and production environments. TIG welding uses a non-consumable tungsten electrode and a separate filler rod, providing superior arc control, precision, and aesthetic appeal, making it ideal for thin materials, critical joints, and applications requiring high visual quality. Both require inert shielding gas (argon or argon-helium) for aluminum, and the choice depends on the specific application, material thickness, and desired weld characteristics, which influences the overall welding efficiency and quality of the finished product.
Specialized aluminum welding equipment, such as spool guns, offers significant advantages for MIG welding aluminum. Standard MIG guns often struggle with feeding soft aluminum wire over long distances, leading to bird-nesting or wire feeding issues. Spool guns mount a small spool of wire directly on the gun, minimizing the distance the wire travels and reducing feeding problems. This enables more consistent wire feeding, stable arc, and higher quality welds, especially for field applications or when welding with softer aluminum wires. They greatly improve the reliability and efficiency of aluminum MIG welding, enhancing overall productivity and weld consistency.
Joint preparation critically affects the penetration of aluminum welds. Proper joint design, such as beveling for thicker materials or maintaining a consistent root gap, ensures that the welding arc can adequately reach and fuse the root of the joint. Insufficient preparation (e.g., narrow gaps, no bevel) can lead to lack of penetration, a common and serious defect. Removing the aluminum oxide layer is also essential, as it can act as a barrier to proper fusion. Meticulous joint cleaning and accurate joint fit-up are fundamental for achieving consistent, full-penetration welds in aluminum, which is vital for structural integrity.
Beyond mechanical wire brushing with a dedicated stainless steel brush, other methods for cleaning aluminum prior to welding include degreasing with appropriate solvents (e.g., acetone, mild alkaline cleaners) to remove oils, grease, and other organic contaminants. Chemical etching solutions can also be used, particularly in industrial settings, to remove the oxide layer more uniformly. For critical applications, abrasive blasting with non-contaminating media (e.g., glass beads) followed by solvent cleaning may be employed. The goal is always to achieve a pristine surface free of all impurities, which is essential for preventing weld defects like porosity and ensuring high-quality aluminum fusion welds.
The purity of the base metal is the primary determinant for choosing ER1070 filler metal. ER1070 is specifically designed for welding commercially pure aluminum grades (e.g., 1050, 1060, 1070) to maintain the high electrical conductivity, thermal conductivity, and corrosion resistance characteristic of these pure aluminum alloys. Using an alloyed filler metal would introduce impurities that could degrade these properties. Therefore, when the application demands the highest purity in the welded joint, such as in electrical or chemical processing equipment, ER1070 is the optimal choice, ensuring the integrity and performance of the pure aluminum system.
The heat-affected zone (HAZ) in aluminum welding is the area of the base metal adjacent to the weld bead that undergoes microstructural changes due to the heat of welding, but does not melt. For heat-treatable alloys (e.g., 6xxx series), the HAZ experiences softening due to annealing, potentially reducing its strength. For non-heat-treatable alloys (e.g., 5xxx series), the HAZ generally retains more of its original properties, but sensitization to stress corrosion cracking can occur in certain high-magnesium alloys if exposed to specific temperatures. Understanding HAZ characteristics is crucial for predicting the final mechanical properties and performance of the welded aluminum component and for designing appropriate post-weld treatments or structural considerations.
Aluminum's rapid solidification rate means the molten weld pool cools and solidifies very quickly. This characteristic can be both an advantage and a challenge. On one hand, it allows for fast welding speeds and can minimize distortion. On the other hand, it makes the weld pool less forgiving to manipulate, requires precise control of parameters, and can trap gas more easily, leading to porosity if hydrogen is present. It also increases susceptibility to hot cracking in certain alloys if the molten metal doesn't have time to fill shrinkage stresses. Welders must adapt their technique and parameters to accommodate this rapid freezing, ensuring a sound and defect-free aluminum weld.
Joint constraint significantly impacts aluminum weld cracking, particularly hot cracking. When a joint is highly constrained (e.g., tightly clamped or welded in a rigid structure), the contracting weld metal during solidification cannot move freely, leading to high tensile stresses. If these stresses exceed the hot strength of the solidifying weld metal, hot cracking can occur. Minimizing constraint where possible, using appropriate filler metals with good crack resistance (e.g., 4xxx series), and employing welding sequences that reduce localized stress buildup are crucial strategies for preventing cracking in aluminum weldments, which is essential for structural integrity.
Yes, many of these aluminum filler metals, particularly those designed for MIG welding (ER4043, ER5356, ER5183, ER5556), are highly compatible with pulsed MIG (GMAW-P) processes. Pulsed arc welding offers superior control over heat input, arc stability, and metal transfer, making it ideal for welding aluminum. It significantly reduces spatter, improves penetration, and allows for better out-of-position welding. The controlled transfer of molten droplets enhances weld quality and aesthetics, especially on thinner materials or for critical applications, making pulsed MIG a preferred technique for advanced aluminum fabrication and optimizing productivity.
Pre-cut aluminum TIG rods, like spooled wire, must be stored in a clean, dry environment, preferably in their original sealed containers or dedicated rod storage tubes. Exposure to moisture, dust, and shop contaminants can lead to the formation of hydrated aluminum oxide and hydrogen pickup, which causes porosity in the weld. Keeping them isolated from other metal contaminants (e.g., steel grinding dust) is also crucial. Proper storage ensures that the rods remain clean and pristine, ready for use without compromising weld quality, which is vital for achieving high-integrity aluminum TIG welds.
The weld metal composition has a direct and significant impact on its response to post-weld anodizing, particularly concerning color match. Silicon-rich filler metals like ER4043 and ER4047 will typically turn a darker gray or black after anodizing due to the presence of silicon. Magnesium-rich alloys like ER5356, ER5183, and ER5556 tend to produce a much closer color match to the natural aluminum base metal, appearing white or light gray. ER1100, being commercially pure, often provides a very good color match. This aesthetic consideration is critical for architectural, decorative, or consumer product applications where visual consistency across the entire aluminum component is paramount.
Using a water-cooled TIG torch is highly beneficial for aluminum welding, especially for prolonged welding sessions or when using higher amperages. Aluminum welding often requires significant heat input, which can quickly overheat air-cooled torches, leading to discomfort for the welder and potential damage to the torch. Water cooling efficiently dissipates this heat, allowing for continuous welding at higher currents without overheating. This improves operator comfort, extends torch lifespan, and enables more consistent and higher quality welds, particularly in heavy-duty aluminum fabrication, enhancing overall productivity and weld performance.
The choice of filler metal significantly affects the ductility of aluminum welds. Generally, alloys with higher purity or those containing magnesium (like ER5356, ER5183, ER5556) tend to produce more ductile welds. Silicon-rich alloys (ER4043, ER4047), while offering excellent crack resistance and fluidity, are typically less ductile than magnesium-containing alloys. Ductility is crucial for applications where the welded component might experience bending, forming, or impact stresses during service. Selecting a filler metal that provides the necessary level of ductility is vital for ensuring the long-term performance and integrity of the aluminum structure, preventing premature failure under dynamic loads.
Welding aluminum in cold weather requires specific considerations to prevent weld defects and ensure quality. Cold temperatures can increase the risk of hydrogen porosity due to moisture condensation on cold surfaces. Preheating the base metal is often more critical in cold environments to ensure proper heat input and fusion. Additionally, cold aluminum can be more brittle, increasing the risk of cracking. Ensuring the base metal is clean, dry, and potentially brought to a more favorable temperature range before welding is essential for achieving sound, reliable aluminum welds in challenging environmental conditions, which ensures consistent quality.
Heat-treatable aluminum alloys (e.g., 2xxx, 6xxx, 7xxx series) gain significant strength through specific thermal treatments (solution heat treatment and artificial aging) that cause strengthening precipitates to form within their microstructure. Non-heat-treatable alloys (e.g., 1xxx, 3xxx, 5xxx series) derive their strength primarily from strain hardening (cold work) and solid solution strengthening. When welding, heat-treatable alloys often experience a reduction in strength in the heat-affected zone due to annealing, while non-heat-treatable alloys generally retain their strength better. This fundamental difference in strengthening mechanisms greatly influences filler metal selection and post-weld treatment strategies to achieve desired mechanical properties in aluminum weldments.
Minimizing warpage in large aluminum structures is crucial due to aluminum's high thermal expansion. Strategies include using robust clamping and fixturing to physically restrain the workpiece, employing balanced welding sequences (e.g., alternating weld passes, back-stepping) to distribute heat evenly and prevent localized heat buildup, and controlling heat input by optimizing parameters and travel speed. Strategic placement of tack welds and allowing components to cool slowly can also help. For very large or complex structures, finite element analysis (FEA) can sometimes be used to predict and mitigate distortion, ensuring dimensional accuracy and structural integrity during the fabrication process.
Beryllium is occasionally added in very small, controlled amounts (trace elements) to some aluminum-magnesium filler metals, particularly those with higher magnesium content (like certain variants of ER5183 or ER5556). Its primary role is to suppress the formation of magnesium oxide fumes during welding, which can be a respiratory irritant. This makes the welding process safer by reducing fume generation. However, due to beryllium's toxicity in its elemental form and as fumes, its use is strictly regulated, and many manufacturers prioritize alternative methods to control fume emissions. Welders should always be aware of the specific composition of their filler metals and adhere to strict safety protocols, including adequate ventilation, when welding materials that may contain beryllium.
Titanium diboride (TiB2) is sometimes used as a grain refiner in aluminum alloys, including some filler metals. By providing nucleation sites for aluminum grains during solidification, TiB2 promotes a finer, more equiaxed grain structure in the weld metal. A finer grain structure generally improves ductility, crack resistance (particularly hot cracking), and overall mechanical properties of the weld. This intentional addition enhances the metallurgical quality of the weld, leading to more robust and reliable aluminum joints, which is beneficial for critical structural components and ensuring long-term durability.
Both ER5183 and ER5556 are aluminum-magnesium alloys, but their resistance to stress corrosion cracking (SCC) can differ, particularly when exposed to sustained elevated temperatures. ER5556 generally has improved resistance to SCC compared to ER5356 due to its manganese content. ER5183 also offers good SCC resistance. However, for any magnesium-rich alloy, prolonged exposure to temperatures above 150°F (65°C) can lead to the precipitation of Al2Mg at grain boundaries, increasing SCC susceptibility. For critical applications in corrosive environments and sustained elevated temperatures, careful evaluation of specific alloy variants and service conditions is paramount to ensure the long-term integrity of the welded aluminum structure, which is vital for safe operation.
Voltage is a critical parameter in aluminum MIG welding, directly affecting the arc length, bead width, and penetration. Too low a voltage can result in a narrow, ropey bead, insufficient penetration, and increased spatter. Too high a voltage can lead to a wide, flat bead, excessive spatter, and potential burn-through on thinner materials. Optimal voltage settings ensure a stable arc, good wetting, and proper bead profile. When paired with the correct wire feed speed (which controls current), voltage adjustments are key to fine-tuning the aluminum welding process for desired results and achieving high-quality, consistent welds in aluminum fabrication.
The proper method for storing unused aluminum welding wire from an opened spool is to protect it from moisture and contaminants. Ideally, the spool should be returned to its original moisture-resistant packaging or placed in an airtight, low-humidity container with desiccant packs. Avoid storing it exposed to shop air, particularly in humid environments. Keeping the wire clean and dry is paramount to prevent hydrogen pickup, which causes porosity in subsequent welds. This diligent storage practice ensures the integrity and performance of the filler metal for future aluminum welding projects, maintaining optimal quality control.
The purity of the shielding gas directly impacts hydrogen porosity in aluminum welds. Even trace amounts of moisture (H2O) or hydrocarbons in the shielding gas can decompose in the high-temperature arc, releasing hydrogen atoms. Since hydrogen is highly soluble in molten aluminum but not in solid aluminum, these atoms are trapped as gas bubbles during solidification, leading to porosity. Using high-purity (99.998% or better) argon or argon-helium mixes and ensuring leak-free gas lines are crucial steps to minimize hydrogen contamination and produce sound, porosity-free aluminum welds, which is essential for structural integrity.
Synergic control on MIG welders significantly simplifies aluminum welding, especially for less experienced operators. With synergic control, the welder typically selects the wire diameter and the desired current, and the machine automatically adjusts other parameters like voltage and pulse frequency to maintain optimal arc characteristics and wire feed speed. This intelligent control system helps to achieve consistent, high-quality welds, reduces spatter, and minimizes the learning curve associated with aluminum MIG welding, making it a highly efficient and user-friendly feature for modern aluminum fabrication, optimizing productivity and weld quality.
Joint design heavily influences residual stress in aluminum welds. Complex or highly constrained joint geometries can lead to higher localized stresses during cooling, increasing the risk of distortion and cracking. Designs that allow for more flexibility or provide balanced heat distribution (e.g., minimizing abrupt changes in section thickness) can help reduce stress buildup. Proper fit-up and minimizing gaps also contribute to lower residual stress. Careful consideration of joint design in conjunction with welding sequence and clamping is crucial for managing residual stresses and ensuring the dimensional stability and long-term performance of aluminum weldments, which is vital for quality control.
Inadequate ventilation during aluminum welding can lead to several potential consequences for welder health and weld quality. Fumes generated, particularly from magnesium-containing alloys, can contain fine particulate matter and ozone, which are respiratory irritants. Long-term exposure without proper ventilation can lead to respiratory issues. From a weld quality perspective, stagnant air can lead to poor shielding gas coverage, increasing the risk of porosity and contamination. Ensuring proper local exhaust ventilation (LEV) or general room ventilation is crucial for welder safety and for producing high-quality, defect-free aluminum welds, contributing to a healthy and productive work environment.
The cleaning action of AC TIG welding directly prevents porosity in aluminum by effectively removing the tenacious aluminum oxide layer. This oxide layer can trap moisture and other contaminants, which decompose in the arc to form hydrogen. As molten aluminum has a high solubility for hydrogen but solid aluminum does not, this trapped hydrogen leads to porosity upon solidification. The cathodic etching effect of the AC cycle blasts away this oxide layer, allowing the molten weld metal to flow cleanly and coalesce without trapping gas, thus significantly reducing hydrogen porosity and ensuring sound, high-quality aluminum welds, which is critical for structural integrity.
Common non-destructive testing (NDT) methods used for aluminum welds include visual inspection, liquid penetrant testing (LPT) for surface discontinuities, radiographic testing (RT) or X-ray inspection for internal defects like porosity, inclusions, or lack of fusion, and ultrasonic testing (UT) for internal flaws, particularly in thicker sections. Eddy current testing can also be used for surface and near-surface defect detection. Selecting the appropriate NDT method depends on the specific application, criticality of the weld, and type of defects being sought, ensuring the quality and integrity of the aluminum fabrication.
The different series of aluminum alloys have distinct characteristics that profoundly influence filler metal selection. 1xxx (pure aluminum) uses ER1070/ER1100. 3xxx (manganese alloyed) is often welded with 4xxx or 1xxx. 5xxx (magnesium alloyed, non-heat-treatable) typically uses ER5356, ER5183, or ER5556 for strength and corrosion resistance. 6xxx (magnesium-silicon, heat-treatable) is commonly welded with ER4043 (for crack resistance and general use) or ER5356 (for higher strength if post-weld properties are acceptable). The choice hinges on the base metal's composition, desired mechanical properties, corrosion resistance, and post-weld processing requirements, which are fundamental to proper aluminum welding engineering.
Crater cracking, a common issue at the end of aluminum welds, occurs when the weld pool solidifies too quickly, leaving a concave crater that lacks sufficient filler metal to compensate for shrinkage, creating tensile stresses. The best way to prevent it is to gradually reduce the welding current (crater fill function on machines) or to add additional filler metal at the very end of the weld to create a convex or flat termination. Using run-off tabs also effectively moves the crater beyond the actual workpiece. Proper crater filling ensures that the weld cools and solidifies uniformly, preventing these detrimental cracks and enhancing the integrity of the aluminum component.
The choice of contact tip is critical for successful aluminum MIG welding. Aluminum wire is soft and can easily shave or deform if the contact tip bore is too tight or if it's not the correct type. Using a contact tip specifically designed for aluminum (often marked for aluminum or with a slightly larger bore diameter for the given wire size) is essential. Also, selecting the correct tip material and ensuring it is clean and free of spatter prevents erratic wire feeding and arc instability, contributing to smooth, consistent aluminum welds, and optimizing the overall welding process efficiency.
Multi-pass welding of aluminum, often necessary for thicker sections, requires careful consideration. Interpass temperature control is crucial to prevent overheating and maintain desired mechanical properties. Proper cleaning between passes is essential to remove any interpass oxidation or contaminants that could lead to defects like lack of fusion or porosity. Using appropriate weaving techniques and ensuring consistent heat input in each pass are also important. The choice of filler metal and welding parameters must be suitable for both the initial passes and subsequent layers to build a sound, full-penetration weld, which is vital for the structural integrity of heavy aluminum fabrications.
Aluminum has a relatively high specific heat, meaning it requires a significant amount of energy to raise its temperature. Coupled with its high thermal conductivity, this implies that a considerable amount of heat input is needed to establish and maintain a molten weld pool. Welders must compensate by using higher current settings, faster travel speeds, and sometimes preheating, especially for thicker sections. Understanding aluminum's specific heat is fundamental to setting appropriate welding parameters and effectively managing the thermal demands of the welding process, ensuring proper fusion and consistent weld quality.
While less common than for stainless steel, back-purging (or trailing gas shielding) can be beneficial for TIG welding aluminum in specific applications, particularly for open root passes on thin sections or when welding highly reactive alloys. It involves supplying inert shielding gas to the back side of the weld joint to protect the root from oxidation and contamination. This helps achieve a clean, smooth, and porosity-free root pass, enhancing mechanical properties and corrosion resistance. Though not always strictly necessary for aluminum, it's a best practice for critical welds demanding the highest integrity and aesthetic quality.
Post-weld heat treatments can significantly affect aluminum weldments, primarily for heat-treatable alloys (e.g., 6xxx series). These treatments (solution heat treatment followed by artificial aging) aim to restore the mechanical properties (strength and hardness) that may have been lost in the heat-affected zone (HAZ) during welding. However, not all filler metals respond favorably to heat treatment, and the specific heat treatment cycle must be carefully controlled to prevent distortion or over-aging. For non-heat-treatable alloys, stress relief annealing might be considered. Proper post-weld heat treatment can optimize the overall strength and performance of the aluminum structure, which is vital for meeting design specifications.
The maximum operating temperature for aluminum welds, particularly those made with magnesium-rich filler metals like ER5356 or ER5556, is generally around 150°F (65°C) for sustained service. Above this temperature, these alloys can become susceptible to stress corrosion cracking due to metallurgical changes (precipitation of Al2Mg at grain boundaries). For applications requiring service at higher temperatures, other aluminum alloys and their compatible filler metals (e.g., certain 4xxx series or specialized high-temperature alloys) or alternative joining methods might be necessary. This temperature limitation is a critical design consideration for long-term durability and safety of aluminum structures.
Yes, most of these aluminum filler metals, especially those used in MIG welding (ER4043, ER5356, ER5183, ER5556), are ideally suited for spray arc transfer. Spray arc transfer, characterized by a smooth, stable arc and fine droplet transfer, is the preferred mode for MIG welding aluminum due to its high heat input, deep penetration, and minimal spatter. It provides excellent wetting and fusion, particularly on thicker materials. Achieving spray transfer requires appropriate voltage and wire feed speed settings, along with sufficient shielding gas flow (100% argon or argon-helium mixes). This transfer mode significantly enhances the efficiency and quality of aluminum fabrication processes.
Edge preparation is a critical step in aluminum welding. The edges should be free of burrs, sharp corners, and any contaminants. For butt joints, a square edge is often suitable for thin materials, while for thicker sections, a bevel (V-groove or U-groove) is necessary to ensure full penetration. The angle and root opening of the bevel must be precise to allow for proper filler metal deposition and fusion. Machining or filing is preferred over grinding with abrasive wheels that can embed contaminants. Proper edge preparation ensures consistent weld quality, minimizes defects, and optimizes the overall aluminum welding process.
The welding environment significantly affects aluminum welding quality. Wind can disrupt the shielding gas coverage, leading to atmospheric contamination, porosity, and reduced weld quality. In windy conditions, windbreaks or increased shielding gas flow may be necessary. High humidity can introduce moisture to the weld area, increasing the risk of hydrogen porosity. Welding in a controlled, dry, and draft-free environment is ideal for aluminum fabrication. Maintaining optimal environmental conditions is crucial for producing high-quality, defect-free aluminum welds and ensuring consistent performance, which is vital for quality control and productivity.
The primary difference in terms of post-anodizing color between ER4043 and ER5356 is significant and a major consideration for aesthetic applications. ER4043, due to its silicon content, will typically turn a dark gray or black after anodizing, creating a noticeable contrast with the natural aluminum base metal. ER5356, being a magnesium-rich alloy, produces an anodic film that is much closer in color to the base aluminum, appearing white or light gray. This makes ER5356 a preferred choice for applications where a consistent, natural aluminum appearance after anodizing is desired, which is critical for architectural and decorative aluminum components.
Yes, when welding ER1070 for electrical applications (e.g., bus bars), the primary consideration is maintaining exceptionally high electrical conductivity across the joint. This requires ensuring a very clean weld, free from impurities and porosity, which could increase electrical resistance. Proper joint preparation, meticulous cleaning, precise heat input control to minimize oxide inclusions, and optimal shielding gas coverage are paramount. The goal is to create a homogenous weld that matches the conductivity of the pure aluminum base material, ensuring efficient electrical current flow and reliable performance in demanding electrical systems, which is vital for electronic and power distribution components.
Push-pull guns are highly beneficial for aluminum MIG welding, especially with soft aluminum wires and for long conduit lengths. They feature a motor in the handle that "pulls" the wire, while the main wire feeder "pushes" it, effectively synchronizing wire delivery and minimizing feeding resistance. This dual-drive system greatly reduces the likelihood of bird-nesting, tangling, or inconsistent feeding, which are common challenges with soft aluminum wire. Push-pull guns ensure smooth, consistent wire feeding, leading to a more stable arc, reduced spatter, and higher quality welds, enhancing productivity and reliability in aluminum fabrication, particularly for larger projects or automated systems.
The presence of paint or coatings significantly affects aluminum weldability and must be completely removed from the weld area prior to welding. Paint, anodized layers, or other coatings act as barriers to electrical conductivity and can introduce organic contaminants into the weld pool. These contaminants decompose in the arc, leading to hydrogen porosity, inclusions, and poor fusion. Mechanical removal (grinding, sanding) or chemical stripping are necessary to expose clean, bare aluminum. Failure to adequately remove coatings will result in significant weld defects, compromising the integrity and mechanical properties of the weld, which is a critical step in pre-weld preparation.

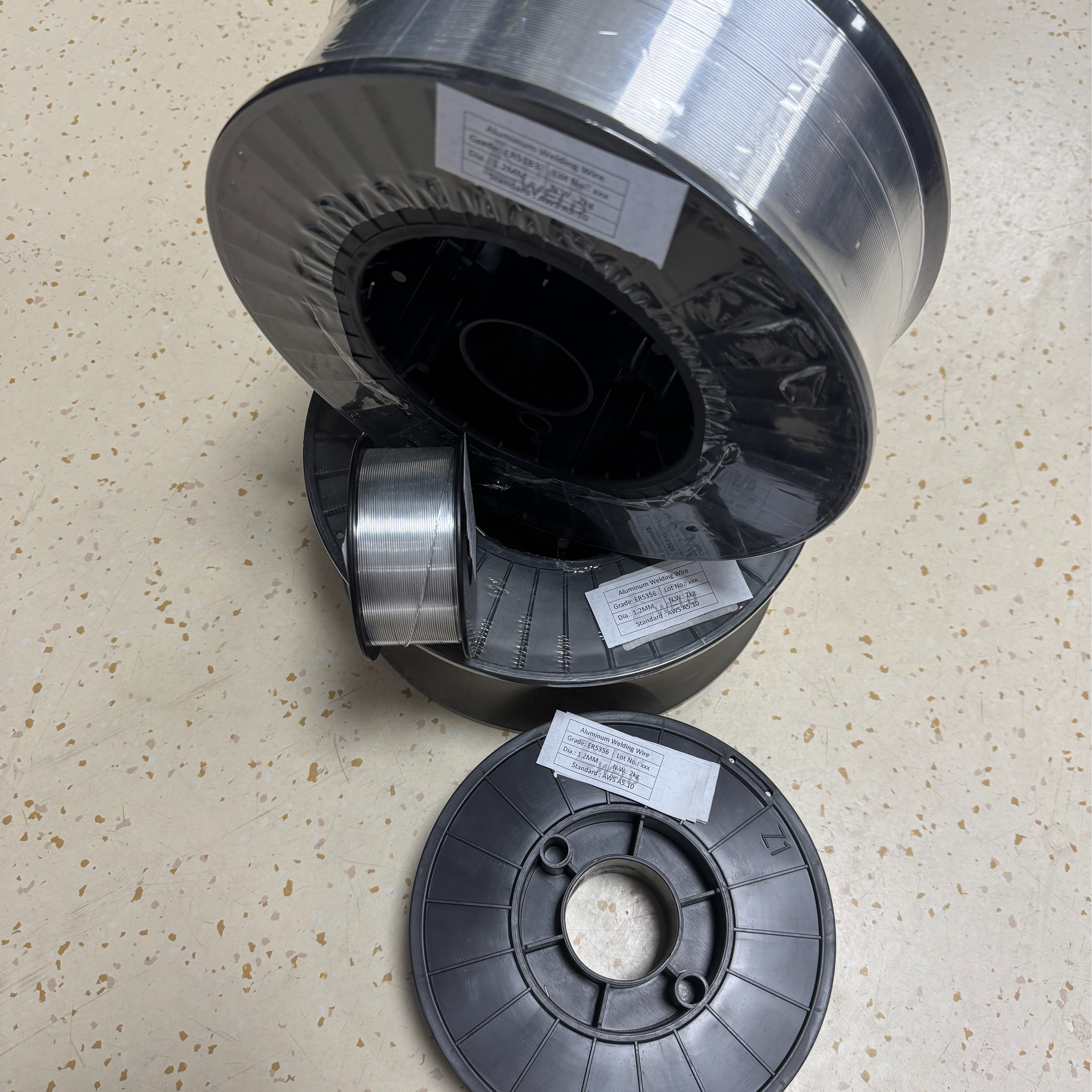

These aluminum filler metals are typically available in several forms to suit different welding processes and applications. For MIG (GMAW) welding, they are commonly supplied as spooled wire in various diameters (e.g., 0.035", 0.045", 1/16"). For TIG (GTAW) welding, they are available as cut lengths or straight rods in various diameters (e.g., 1/16", 3/32", 1/8"). Some may also be available in bulk drums or coils for high-volume automated welding. The form chosen depends on the welding equipment, process, and the specific fabrication requirements, ensuring optimal performance and ease of use in diverse aluminum welding scenarios.
A proper and secure ground connection is paramount for effective aluminum welding. Aluminum is highly conductive, and a poor ground can lead to an unstable arc, inconsistent penetration, and difficulties in arc starting. The ground clamp must be securely attached to clean, bare metal, as far as possible from the arc but still within the current path. Any paint, rust, or oxide layer on the workpiece at the ground connection point must be removed. A strong ground ensures a stable electrical circuit, allowing for consistent current flow and optimal arc performance, which is essential for producing high-quality aluminum welds.
Selecting the correct shielding gas flow rate for aluminum welding is crucial to ensure adequate protection of the molten weld pool without causing turbulence. Too low a flow rate can lead to insufficient shielding and atmospheric contamination, resulting in porosity and inclusions. Too high a flow rate can cause turbulence, drawing ambient air into the gas shield, also leading to contamination, or it can cool the weld pool excessively. Optimal flow rates vary with joint geometry, welding position, and environmental conditions (e.g., drafts) but generally fall within a specific range for each process (MIG/TIG). Proper flow rate ensures a clean, sound weld and prevents defects in aluminum fabrication.
The frequency setting in AC TIG welding significantly affects the characteristics of aluminum welds. Higher AC frequencies (e.g., 120-400 Hz) create a more focused, stable, and constricted arc. This leads to narrower, deeper penetration, improved bead control, reduced heat-affected zone (HAZ), and quieter operation. Lower frequencies result in a wider, softer arc, offering broader heat distribution and shallower penetration. Adjusting the AC frequency allows welders to fine-tune the arc for specific joint geometries, material thicknesses, and desired bead profiles, optimizing the welding process for precision and quality in aluminum fabrication, particularly in advanced TIG welding applications.
Incomplete penetration in aluminum welds means the weld metal does not fully fuse through the entire thickness of the joint, leaving an unfused area at the root. This is a serious defect that significantly reduces the mechanical strength, ductility, and fatigue life of the joint, making it susceptible to failure under load. Causes include insufficient heat input, improper joint preparation, too fast travel speed, or incorrect filler metal deposition. Preventing incomplete penetration through proper joint design, meticulous cleaning, optimized parameters, and appropriate welding technique is crucial for ensuring the structural integrity and safety of aluminum weldments, which is paramount in critical engineering applications.
It is critically important to use welding consumables (filler wire/rods, and even shielding gas) that are kept absolutely dry for aluminum welding. The primary reason is to prevent hydrogen porosity. Moisture (H2O) on the filler metal, base metal, or in the shielding gas breaks down in the high heat of the arc, releasing hydrogen atoms. Molten aluminum readily absorbs hydrogen, but as the weld cools and solidifies, the hydrogen is expelled, forming gas bubbles that become trapped, leading to porosity. Keeping all consumables dry minimizes hydrogen pickup, ensuring sound, porosity-free welds and maintaining the structural integrity of the aluminum fabrication.
The grain structure of aluminum affects its weldability, particularly concerning hot cracking susceptibility and mechanical properties. Coarse grain structures in the base metal can sometimes increase the risk of hot cracking in the heat-affected zone or weld metal. A finer grain structure generally contributes to better ductility and crack resistance in the solidified weld. Filler metals containing grain refiners (e.g., titanium) are often used to promote a finer grain structure in the weld bead, enhancing its overall metallurgical quality and performance. Understanding grain behavior is crucial for optimizing welding parameters and achieving robust aluminum joints.
Choosing between MIG and TIG for specific aluminum applications involves weighing factors like material thickness, required weld quality, production speed, and welder skill. MIG is generally preferred for thicker materials (above 1/8"), longer welds, and higher production rates due to its faster deposition. TIG offers superior control, precision, and aesthetic appeal, making it ideal for thin materials, critical joints, aerospace components, and applications where visual quality is paramount. Both require clean base metals and inert shielding gas. The decision ultimately depends on balancing efficiency with the desired mechanical properties and appearance of the final aluminum weldment, optimizing the fabrication process for its intended use.
The base metal's pre-treatment (e.g., annealing, quenching, artificial aging) significantly affects its weldability and the final properties of the weld. Annealed aluminum is generally softer and more ductile, making it easier to weld but with lower initial strength. Quenched and artificially aged (T6 temper) alloys are at their highest strength but will soften in the heat-affected zone (HAZ) during welding due to annealing effects. Understanding the pre-treatment allows for appropriate filler metal selection and post-weld heat treatment strategies (if applicable) to achieve desired mechanical properties and minimize distortion, which is critical for meeting design specifications and ensuring structural integrity of the aluminum component.
The heat-affected zone (HAZ) in an aluminum weld typically appears as a band of slightly discolored or annealed material adjacent to the weld bead. Its width and visible characteristics depend on the heat input, material thickness, and alloy type. For heat-treatable alloys, this zone might appear softer if tested, and its color can sometimes be slightly duller than the unaffected base metal. On anodized aluminum, the HAZ may show a different shade or texture compared to the unwelded anodized surface. While often visually subtle, the HAZ's metallurgical changes are significant for predicting the mechanical performance of the welded joint, which is a critical area for inspection and quality assessment.
Excessive spatter in aluminum MIG welding is commonly caused by incorrect welding parameters, particularly too high a voltage or too low a wire feed speed (leading to a "globular" transfer mode), or an unstable arc. Other causes include contaminated base metal or filler wire, improper shielding gas coverage, or incorrect contact tip-to-work distance. To minimize spatter, optimize voltage and wire feed speed for spray transfer, ensure clean materials, use appropriate shielding gas flow, and maintain a consistent arc length. Reducing spatter not only improves weld appearance but also minimizes costly post-weld cleanup, enhancing the efficiency of aluminum fabrication.
The position of the workpiece significantly affects heat distribution during aluminum welding, impacting heat accumulation and dissipation. For example, welding in the flat position allows for the most consistent heat distribution and weld pool control, as gravity assists. Welding in vertical or overhead positions can lead to heat buildup in the upper portions of the weld due to convection, potentially causing sagging or burn-through. Adjusting welding parameters, torch angles, and interpass temperatures for different positions is crucial to manage heat effectively, prevent distortion, and ensure consistent penetration and bead profile across the entire aluminum weldment, which is vital for maintaining quality.
Using an incorrect filler metal for a given aluminum alloy can lead to severe implications, compromising the integrity and performance of the weld. Consequences may include increased susceptibility to hot cracking, reduced mechanical strength and ductility, compromised corrosion resistance, undesirable color match after anodizing, or inconsistent metallurgical properties. The filler metal is specifically formulated to be metallurgically compatible with the base metal and service conditions. Therefore, proper filler metal selection based on the aluminum alloy, application, and desired final properties is paramount for achieving a sound, reliable, and durable welded joint, which is a foundational principle of successful aluminum welding metallurgy.
Electrode extension, or stick-out, is very important in aluminum MIG welding. It refers to the length of wire extending from the contact tip to the arc. A consistent and optimal stick-out is crucial for maintaining a stable arc, consistent current, and proper heat input. Too long a stick-out can lead to erratic wire feeding, reduced current, and an unstable arc, resulting in poor penetration and excessive spatter. Too short a stick-out can cause the contact tip to overheat and potentially fuse to the wire. Maintaining the correct stick-out range (typically 3/8" to 3/4" for aluminum) ensures a stable welding process and high-quality aluminum welds, enhancing overall welding efficiency.
Heat sinks are valuable tools in welding aluminum, particularly for thin materials or components prone to distortion. They are typically made of copper or aluminum and are placed in close contact with the workpiece, away from the immediate weld zone. Heat sinks rapidly draw heat away from the welding area, helping to prevent excessive heat buildup, minimize distortion, and reduce burn-through. They act as thermal management devices, allowing for better control of the weld pool and heat-affected zone, contributing to improved weld quality and dimensional accuracy in aluminum fabrication, especially for precision components.
The "Be" (beryllium) content in aluminum filler metal specifications, when present, is usually listed as a very low maximum limit (e.g., 0.0008%). Beryllium is intentionally added in minute quantities to some magnesium-containing aluminum filler metals (like certain ER5183 or ER5556 variants) primarily to suppress the formation of magnesium oxide fumes during welding, which can be a respiratory irritant. While beneficial for fume control, beryllium itself is highly toxic in its elemental and fume form. Therefore, its presence is strictly controlled, and welders must ensure adequate ventilation and safety precautions. The specified limit indicates a safety and health consideration rather than a direct contribution to mechanical properties in normal welding.
The quality and type of drive rolls are crucial for successful aluminum MIG welding. Aluminum wire is soft and easily deformed, so standard V-groove drive rolls designed for steel can crush or shave it, leading to inconsistent feeding and wire tangles ("bird-nesting"). U-groove or V-knurled drive rolls are specifically designed for aluminum; U-grooves cradle the wire without deforming it, while knurled rolls provide extra grip without crushing. Ensuring drive rolls are clean, properly tensioned, and matched to the wire diameter is vital for smooth, consistent wire feeding, preventing common feeding problems, and achieving high-quality aluminum welds, thereby improving efficiency and reducing downtime.
While AC TIG is standard for aluminum, using a pulsed power source (pulsed AC TIG) offers additional benefits. Pulsing involves rapidly alternating between a high "peak" current and a low "background" current. This provides better control over heat input, resulting in a narrower bead, reduced distortion, and improved penetration. It also helps manage the weld puddle, especially in out-of-position welding or for very thin materials, and can lead to a more refined microstructure and improved mechanical properties. Pulsed AC TIG is an advanced technique for achieving higher quality, more precise aluminum welds, particularly in critical and aesthetic applications, optimizing the welding process for superior results.
For aluminum welding, especially for open root passes or critical applications, backing gas (or root shielding) is essential to protect the backside of the weld from oxidation and contamination. Without it, the molten root pass would react with atmospheric oxygen and nitrogen, leading to a porous, oxidized, and brittle root. Argon is the most common backing gas. Proper backing gas ensures a clean, smooth, and metallurgically sound root bead, enhancing the mechanical properties and corrosion resistance of the overall weld, which is paramount for full penetration welds and maintaining the integrity of the welded structure, particularly in pipe and pressure vessel fabrication.
Hot-rolled aluminum is processed at high temperatures, resulting in a more uniform grain structure and generally good ductility. Cold-rolled aluminum is processed at room temperature, which strain-hardens the material, increasing its strength and hardness but reducing its ductility. When welding cold-rolled aluminum, the heat of the welding process can soften the material in the heat-affected zone (HAZ), reducing the strength gained from cold working. Hot-rolled aluminum generally maintains its properties better in the HAZ. Welders must be aware of the base material's condition to anticipate potential property changes and manage distortion, ensuring the final weldment meets design requirements, which is a key consideration in material science and welding engineering.
Preheating aluminum prior to welding offers several significant benefits, especially for thicker sections or highly constrained joints. It reduces the temperature differential between the weld area and the surrounding base metal, which minimizes thermal stresses and significantly lowers the risk of hot cracking. Preheating also improves the fluidity of the weld puddle, enhancing penetration and fusion. Furthermore, it helps to drive off any surface moisture that could lead to hydrogen porosity. While careful temperature control is essential to avoid distortion or degradation of properties, preheating is a valuable technique for achieving high-quality, sound aluminum welds in challenging applications.
The surface cleanliness of the base metal is paramount in preventing inclusions in aluminum welds. Inclusions are foreign matter trapped within the weld metal, often originating from contaminants on the base material. The most common inclusion in aluminum welding is aluminum oxide. If the oxide layer is not thoroughly removed prior to welding, it can break up and become entrapped in the molten weld pool as the weld solidifies. These inclusions act as stress concentrators, degrading mechanical properties and potentially leading to weld failure. Meticulous cleaning ensures a pristine surface, allowing for clean fusion and preventing harmful inclusions, which is fundamental to producing high-quality aluminum welds.
Long-term corrosion resistance in marine environments is a critical consideration for aluminum welds. Saltwater is highly corrosive to many aluminum alloys. Filler metals like ER5183, ER5356, and ER5556 are specifically designed with magnesium content to provide excellent resistance to saltwater corrosion by forming a stable, protective oxide layer. However, even with appropriate filler metals, proper cleaning, complete fusion, and minimal porosity are essential, as defects can act as initiation points for corrosion. Post-weld treatments like passivation or protective coatings can further enhance long-term durability in aggressive marine conditions, which is vital for the safety and longevity of marine structures.
Proper wire feed speed (WFS) is a critical parameter in aluminum MIG welding, as it directly controls the welding current and influences bead shape, penetration, and arc stability. Too low a WFS results in insufficient heat input, leading to a narrow, crowned bead, lack of fusion, and potential stubbing. Too high a WFS causes excessive heat input, leading to burn-through, a wide, flat bead, or spatter. Optimal WFS, when matched with the correct voltage, ensures stable spray transfer, consistent penetration, and a clean, aesthetically pleasing weld bead. Achieving the right balance is crucial for efficient and high-quality aluminum fabrication, optimizing the overall welding process.
Specialized training for aluminum welding offers significant benefits, as aluminum presents unique challenges compared to steel. Training covers specific material properties (oxide layer, thermal conductivity), appropriate filler metal selection, advanced welding techniques (pulsed MIG, AC TIG), and best practices for pre-weld preparation and post-weld handling. It helps welders develop the precise skills needed to mitigate common defects like porosity, cracking, and distortion, leading to higher quality welds, reduced rework, and increased productivity. Investing in specialized training ensures that welders are proficient in mastering aluminum fabrication, which is essential for success in demanding industries.
Aluminum has a thermal expansion coefficient that is approximately twice that of steel. This means aluminum expands and contracts twice as much as steel for a given temperature change. This significant difference is highly important for welding because it leads to greater distortion and higher residual stresses in aluminum weldments, especially when joining to dissimilar metals or when thermal gradients are steep. Welders must employ specific techniques like proper clamping, balanced welding sequences, and controlled cooling to manage this increased movement and prevent warpage, ensuring dimensional accuracy and structural integrity in aluminum fabrication, which is a critical consideration in welding metallurgy and design.
Selecting the correct tungsten electrode for TIG welding aluminum is crucial for arc stability and weld quality. Pure tungsten (green band) or Zirconiated tungsten (brown band) are traditionally used for AC welding aluminum due to their ability to form a balled tip that resists contamination and provides a stable arc. Lanthanated (black or gold band) or Ceriated (orange band) tungstens are also increasingly popular, offering excellent arc starting and stability, and can be ground to a point for more focused arcs. The choice depends on the specific power source (conventional transformer vs. inverter), required arc characteristics, and personal preference, ensuring optimal performance in aluminum TIG welding.
The electrical resistance of aluminum filler metals affects their suitability for applications where electrical conductivity is critical. High-purity filler metals like ER1070 and ER1100 have very low electrical resistance, making them ideal for electrical bus bars, connectors, and other components requiring efficient current flow. Alloying elements in other filler metals (e.g., silicon in ER4043 or magnesium in ER5356) generally increase electrical resistance. Therefore, for electrical applications, filler metal selection must prioritize high conductivity to minimize power loss and ensure optimal performance of the electrical system, which is a key design criterion in electrical engineering.
Typical post-weld cleaning methods for aluminum aim to remove any residue, discoloration, or spatter to achieve the desired finish and improve corrosion resistance. This often includes mechanical cleaning with a dedicated stainless steel wire brush to remove light soot or oxide, or gentle grinding/sanding for heavier spatter or to smooth the bead. Chemical cleaning (e.g., mild acidic or alkaline solutions) can be used for passivation or to achieve a uniform appearance. Always ensure proper PPE and ventilation. Thorough post-weld cleaning is essential for aesthetics, corrosion protection, and preparing the surface for subsequent treatments like anodizing or painting, enhancing the overall quality and durability of the aluminum component.
Welding positioners significantly improve safety in aluminum fabrication by allowing the welder to maneuver heavy or awkwardly shaped workpieces into ergonomic and accessible welding positions. This reduces the need for manual lifting, awkward body postures, and working in constrained spaces, thereby minimizing the risk of musculoskeletal injuries. By presenting the joint in the optimal flat or horizontal position, welders can work more comfortably and maintain better control, further reducing the likelihood of accidents related to poor positioning or fatigue. This enhances workplace safety and efficiency in aluminum welding operations.
Welding highly reflective aluminum surfaces presents unique challenges due to the high reflectivity of light and heat. The intense arc can cause severe glare, leading to eye strain and making it difficult for the welder to see the weld puddle clearly, even with proper welding helmets. This can result in inconsistent penetration, poor bead control, and increased defects. Strategies to mitigate this include using more advanced welding helmets with better auto-darkening capabilities, optimizing lighting in the welding area, and sometimes applying a temporary dulling agent (like chalk or anti-spatter spray) to the immediate weld zone. Careful technique and parameter adjustments are also crucial to manage the reflected energy, ensuring a safer and more effective welding process for highly reflective aluminum.
While ER4043 refers to a general aluminum-silicon alloy, slight variations in its specific alloy composition (e.g., trace elements or precise silicon content within the specified range) can affect its characteristics. For instance, a higher silicon content (closer to the 6% maximum) can further improve fluidity and crack resistance, but might slightly increase the darkening effect after anodizing. Manufacturers may also control trace elements to optimize feedability or arc stability. These subtle differences ensure that ER4043 consistently delivers its well-known attributes of excellent weldability and good crack resistance across various applications, maintaining its status as a versatile general-purpose aluminum filler metal.
Residual magnetism is generally not a concern when welding aluminum, unlike ferrous metals (steel). Aluminum is a non-magnetic material, so it does not retain magnetic fields that could interfere with the arc. Arc blow, a common issue in steel welding caused by residual magnetism, is therefore not a problem in aluminum welding. This simplifies the welding process as welders do not need to demagnetize the workpiece. This characteristic contributes to the generally stable arc performance observed when welding aluminum, which is a distinct advantage compared to magnetic materials.
Welds made with ER5356 typically exhibit a tensile strength range from approximately 29,000 to 38,000 psi (200 to 260 MPa) and a yield strength of about 14,000 to 21,000 psi (95 to 145 MPa), with good ductility (elongation around 17-25%). These values can vary depending on the specific welding parameters, shielding gas, and joint design. ER5356 provides a robust and versatile balance of strength and ductility, making it suitable for a wide array of general-purpose aluminum fabrication where high as-welded strength, but not the absolute highest, is required. It's important to consult specific product data sheets for precise mechanical property ranges relevant to your application.
The surface roughness of aluminum can affect its weldability. While minor roughness might not be critical, excessively rough or uneven surfaces can trap contaminants (oils, dirt), lead to inconsistent arc starting, and make it difficult to achieve a smooth, uniform weld bead. Deep scratches or gouges can also act as stress concentrators and potential sites for defect initiation. For critical welds, a smoother, cleaner surface (after oxide removal) is preferable, as it promotes better wetting, consistent arc performance, and ultimately contributes to higher quality, defect-free aluminum welds, which are essential for structural integrity and aesthetic appeal.
Welding aluminum castings with ER4043 presents specific challenges due to the inherent characteristics of castings. Castings often have variable porosity, inclusions, and a more brittle microstructure compared to wrought alloys. The silicon content in ER4043 helps with fluidity and crack resistance, which are beneficial for filling defects and reducing cracking in castings. However, thorough cleaning is even more critical due to trapped contaminants, and preheating is often necessary to reduce thermal stresses and prevent cracking during cooling. Managing the potential for porosity and ensuring proper fusion into the often irregular cast structure are key challenges, which require careful technique and parameter control for successful repair or joining of aluminum cast components.
The general principle for selecting an aluminum filler metal based on base metal composition is to choose a filler metal that is metallurgically compatible, providing a weld that meets the required mechanical properties, corrosion resistance, and post-weld processing (e.g., anodizing) characteristics. Often, this means selecting a filler metal with a similar primary alloying element (e.g., magnesium for 5xxx series, silicon for 6xxx series), but there are exceptions. For instance, silicon-rich filler metals like ER4043 are often used for 6xxx series alloys to prevent hot cracking, even though the base metal is magnesium-silicon. Consulting filler metal selection charts and understanding the application's demands are crucial for making the correct choice, ensuring the integrity and longevity of the aluminum weldment.
The "hot and fast" welding philosophy applies strongly to aluminum due to its high thermal conductivity. Aluminum dissipates heat rapidly, so a high heat input (hot) is needed to quickly establish and maintain a molten weld pool and ensure proper penetration. A fast travel speed prevents excessive heat buildup, which can lead to distortion, burn-through on thinner materials, or annealing of the heat-affected zone. This combined approach minimizes the overall heat input while still achieving good fusion, resulting in more controlled and efficient aluminum welds, which is a key technique for maximizing productivity and weld quality in aluminum fabrication.
While less common than for TIG, water-cooled power cables can be beneficial for high-amperage aluminum MIG welding, particularly in automated or heavy production environments. Aluminum welding often requires higher currents than steel, generating more heat in the welding gun and cables. Water cooling efficiently dissipates this heat, preventing overheating of the equipment, extending the life of gun components, and improving operator comfort. This allows for sustained high-current welding, enhancing productivity and reliability in demanding aluminum fabrication applications, where efficient thermal management is crucial for consistent performance.
Heat input significantly influences the grain size in aluminum welds. Generally, higher heat input and slower cooling rates tend to promote coarser grain structures in the weld metal and heat-affected zone (HAZ). Conversely, lower heat input and faster cooling rates typically result in a finer grain structure. A finer grain structure is generally desirable as it often leads to improved mechanical properties like ductility and toughness, and better resistance to hot cracking. Controlling heat input through proper welding parameters and techniques is crucial for optimizing the grain structure and overall metallurgical quality of the aluminum weld, ensuring optimal performance.
Welding anodized aluminum requires the complete removal of the anodized layer from the weld joint and surrounding area. The anodized coating is an electrical insulator and will prevent arc initiation and proper fusion. If not removed, it will also contaminate the weld pool, leading to porosity and inclusions. Mechanical methods (grinding, wire brushing) or chemical stripping are necessary. After welding, the weld area will not have the anodized finish and will typically be a different color than the original anodized base metal, depending on the filler metal used. Re-anodizing the entire part is often required for aesthetic matching, which is a significant post-weld processing consideration.
Aluminum welding wire spools are typically available in various packaging sizes to accommodate different welding needs, from small-scale hobbyists to large industrial users. Common sizes include 1 lb (0.45 kg) and 16 lb (7.25 kg) spools for smaller applications or home use, and 20 lb (9 kg) or even larger bulk drums (up to 500 lbs or 227 kg) for high-volume industrial or robotic welding. The spool size chosen depends on the wire feeder capacity, the project scale, and the need for continuous welding, optimizing efficiency and minimizing changeovers in aluminum fabrication processes.
Anti-spatter compounds, typically sprays, can be used to minimize spatter adhesion on the workpiece and welding nozzle in aluminum MIG welding. However, it's crucial to use anti-spatter specifically formulated for aluminum, as some common steel anti-spatters contain silicone or other contaminants that can introduce hydrogen or other impurities into the aluminum weld, leading to porosity or inclusions. Applying anti-spatter sparingly and ensuring it does not enter the immediate weld zone is important. While it aids cleanup, primary spatter control should come from optimizing welding parameters and technique to ensure weld quality and minimize potential defects in aluminum fabrication.
Welding aluminum with different power sources involves distinct considerations. Conventional transformer-based AC TIG welders are robust but typically offer less control over the AC waveform, resulting in a wider, softer arc. Inverter-based AC/DC TIG welders provide much finer control over AC frequency, balance, and waveform shape, allowing for a more focused arc, deeper penetration, reduced heat input, and improved cleaning action. For MIG welding, inverter power sources often feature synergic and pulsed capabilities, enhancing arc stability and puddle control. Choosing an inverter-based machine generally offers superior performance, precision, and versatility for high-quality aluminum welding, enabling better control over the welding process and final weld characteristics.
For long continuous welds in aluminum, the best approach involves optimizing parameters for high-speed, consistent deposition, and effective heat management. Using a process like pulsed MIG with a dedicated aluminum wire feeder (e.g., push-pull gun) is often preferred for its higher deposition rates and arc stability. Careful setup of clamping and fixturing is essential to manage distortion. Maintaining a consistent travel speed and proper wire feed speed is crucial for uniform penetration and bead profile. For very long welds, automated or robotic systems can ensure consistency and prevent operator fatigue, leading to high-quality, continuous aluminum weldments efficiently, which is vital for large-scale fabrication.
Post-weld distortions in aluminum are generally more pronounced than in steel due to aluminum's higher coefficient of thermal expansion and lower melting point. Aluminum expands and contracts significantly more during heating and cooling, creating greater internal stresses that lead to warpage. While steel also distorts, its lower expansion rate and higher stiffness make it somewhat less susceptible to severe distortion. Therefore, managing distortion through careful joint design, clamping, welding sequences, and controlled heat input is even more critical in aluminum fabrication than in steel, ensuring dimensional accuracy and structural integrity of the final product.
Repair welding of aged aluminum components requires careful consideration, as the material may have undergone metallurgical changes (e.g., over-aging in heat-treatable alloys, or environmental degradation). The heat from welding can further alter the temper in the heat-affected zone, potentially reducing strength. Thorough cleaning is critical due to potential surface contaminants accumulated over time. Preheating may be more important to prevent cracking in aged or brittle materials. Selecting a filler metal that is compatible with the aged base material and understanding the potential for reduced mechanical properties in the repaired area are crucial for ensuring a successful and durable repair of aluminum parts.
While often associated with stainless steel, "passivation" in aluminum welding refers to the natural formation of a protective oxide layer on the surface that enhances corrosion resistance. After welding, the weld area, and any mechanically disturbed surfaces, may have a compromised or irregular oxide layer. Chemical cleaning or mild acid treatments can promote the rapid reformation of a uniform, protective oxide layer, enhancing the aluminum's inherent corrosion resistance. This post-weld treatment is beneficial for applications exposed to corrosive environments, ensuring the long-term integrity and durability of the welded aluminum component, which is vital for critical applications.
Porosity significantly reduces the fatigue life of aluminum welds. Each gas pore acts as a stress concentrator within the weld metal. Under cyclic loading, these stress concentrations can initiate and propagate fatigue cracks much more readily than in sound, porosity-free material. Even small amounts of porosity can drastically shorten the fatigue life, making porosity control paramount for applications subject to dynamic or repetitive loading (e.g., automotive, aerospace, marine structures). Achieving minimal porosity through meticulous cleaning, proper shielding, and optimized welding parameters is critical for maximizing the fatigue performance and long-term durability of aluminum weldments, which is a major concern in structural engineering.
The best practices for preventing hydrogen contamination in aluminum welding, which is the primary cause of porosity, revolve around extreme cleanliness and dryness. This includes: 1) Thoroughly cleaning the base metal of all oils, grease, paint, and especially the aluminum oxide layer using dedicated stainless steel brushes and degreasing solvents. 2) Ensuring filler wire is kept dry and clean, stored in sealed packaging until use. 3) Using high-purity shielding gas (99.998% argon) and verifying leak-free gas lines. 4) Preheating the base metal, especially in humid conditions, to drive off surface moisture. Adhering to these practices is fundamental for producing sound, porosity-free aluminum welds and ensuring optimal weld quality and structural integrity.
Different joint configurations (butt, fillet, lap) affect welding parameters for aluminum primarily due to variations in heat dissipation and access to the joint. Butt joints typically require deeper penetration and more consistent heat input. Fillet welds can often be made faster with slightly lower heat input if the base metals are of similar thickness. Lap joints require careful control to prevent burn-through on the top sheet while ensuring good fusion to the bottom sheet. The specific joint geometry dictates the optimal current, voltage, travel speed, and torch angle to ensure proper penetration, bead shape, and defect prevention, which is a fundamental aspect of welding procedure development for aluminum fabrication.
Excessive heat input in aluminum welding can lead to several detrimental implications. It can cause significant distortion and warpage due to aluminum's high thermal expansion. It can also lead to burn-through, especially on thinner materials, and increase the size of the heat-affected zone (HAZ), resulting in greater softening for heat-treatable alloys. Overheating can also lead to coarser grain structures in the weld metal, reducing ductility and crack resistance, and may exacerbate issues like hot cracking. Controlling heat input through optimized parameters, faster travel speeds, and sometimes preheating is crucial for achieving high-quality, defect-free aluminum welds and maintaining dimensional accuracy, which is vital for quality control.
The speed of sound in aluminum is generally higher than in steel, and this property is a critical factor for ultrasonic testing (UT) of aluminum welds. UT relies on the precise measurement of sound wave travel time to detect internal defects. The different speed of sound necessitates specific calibration settings for UT equipment when testing aluminum, distinct from those used for steel. Failure to use the correct sound velocity can lead to inaccurate defect sizing or misinterpretation of indications. Therefore, knowing the material's acoustic properties is fundamental for effective non-destructive examination of aluminum welds, ensuring accurate flaw detection and assessment of weld integrity.
For conventional transformer-based AC TIG welding of aluminum, the mains power frequency (50 Hz or 60 Hz) directly affects the arc stability and the balance of cleaning action and penetration. Higher frequencies (60 Hz) provide a slightly more stable arc and better cleaning action. However, modern inverter-based AC TIG welders offer independent frequency control (often from 20 Hz to 400 Hz or more), allowing the welder to precisely tune the arc characteristics regardless of the incoming line frequency. This feature provides much greater flexibility and control over the welding process, optimizing penetration, bead profile, and cleaning action for superior aluminum welds, making it a significant advantage for high-quality fabrication.
Using a robotic welding system for aluminum fabrication offers significant benefits, particularly in high-volume or repetitive manufacturing. Robots provide superior precision, repeatability, and consistency in welding parameters, leading to highly uniform and high-quality welds with fewer defects. They can operate continuously, increasing productivity and throughput. Robots also improve welder safety by performing hazardous tasks. While initial setup and programming require expertise, robotic welding systems optimize efficiency, reduce material waste, and enhance the overall quality and competitiveness of aluminum fabrication, which is increasingly vital in modern manufacturing environments.
The ambient temperature during welding doesn't directly dictate the choice of aluminum filler metal for metallurgical reasons, but rather affects the welding process itself. Extremely cold ambient temperatures might necessitate preheating of the base metal to prevent thermal shock and facilitate proper fusion. However, the ultimate service temperature of the welded component is a critical factor for filler metal selection. For instance, magnesium-rich alloys like ER5356 and ER5556 have limitations at sustained elevated service temperatures (above 150°F / 65°C) due to potential for stress corrosion cracking. Therefore, while ambient conditions influence technique, service conditions dictate the alloy choice for long-term performance.
Welding thick-to-thin aluminum sections presents significant challenges due to the large difference in heat dissipation and thermal mass. The thinner section is highly susceptible to overheating, burn-through, and excessive distortion, while the thicker section requires substantial heat input for proper fusion. Considerations include biasing the arc towards the thicker material, using a pulsing arc (GMAW-P or GTAW-P) for better heat control, employing run-on/run-off tabs, and sometimes using heat sinks on the thinner section. Careful control of travel speed and filler metal addition is crucial to achieve a balanced weld that fully penetrates the thicker part without damaging the thinner one, ensuring joint integrity.
Polarity profoundly affects aluminum TIG welding. DCEN (Direct Current Electrode Negative) provides deep penetration and high deposition but offers little to no cleaning action, making it unsuitable for most aluminum fusion welding due to the tenacious oxide layer. DCEP (Direct Current Electrode Positive) provides excellent cleaning action but concentrates heat on the small tungsten electrode, leading to rapid overheating and tungsten erosion. AC (Alternating Current) is the industry standard for aluminum TIG welding as it combines both cleaning action (during the positive half-cycle) and penetration (during the negative half-cycle), allowing for effective oxide removal and proper fusion for high-quality aluminum welds.
Utilizing automated welding for large aluminum projects offers numerous benefits. It ensures consistent weld quality and repeatability across extensive lengths, which is difficult to achieve manually. Automation dramatically increases welding speed and deposition rates, leading to higher productivity and reduced project timelines. It also enhances safety by removing welders from hazardous environments. While requiring significant upfront investment and programming, automated systems are ideal for large-scale aluminum fabrication, providing superior efficiency, cost savings, and a consistent, high-quality output for demanding industrial applications.
The shape of the tungsten electrode tip significantly affects aluminum TIG welding performance, particularly with AC. For conventional transformer-based AC TIG, a slightly balled or rounded tip is preferred. This shape helps maintain a stable arc and resists contamination during the positive half-cycle's cleaning action. For inverter-based AC TIG, a pointed or truncated cone shape (similar to DC welding) can be used, offering a more focused arc, improved penetration, and less material removal. The chosen tip shape influences arc stability, current density, and heat distribution, optimizing the welding process for desired bead characteristics and overall weld quality in aluminum fabrication.
In aluminum MIG welding, there is an inverse relationship between wire stick-out and effective voltage. As the stick-out (length of wire extending from the contact tip) increases, the electrical resistance in the wire also increases, leading to a voltage drop and, consequently, a reduction in the actual arc voltage. Conversely, a shorter stick-out increases the effective arc voltage. Maintaining a consistent and appropriate stick-out is crucial for stable arc characteristics, consistent current delivery, and proper heat input. Deviations can lead to arc instability, changes in penetration, and weld defects. Therefore, precise control over both wire feed speed and stick-out is essential for achieving high-quality aluminum welds.
Preventing distortion in thin gauge aluminum welding requires meticulous attention to heat management. Best practices include using the lowest possible heat input (e.g., pulsed TIG or low-amperage MIG), faster travel speeds, and minimal passes. Proper clamping and fixturing with sufficient heat sinks (e.g., copper backing bars) are crucial to rapidly dissipate heat and restrain movement. Strategic tack welding, skip welding, or balanced welding sequences can also help distribute heat and minimize localized stresses. For very thin materials, techniques like resistance welding or laser welding might be considered for minimal distortion. Precise control and quick execution are key for achieving distortion-free aluminum welds.
Cooling fixtures benefit aluminum welding by rapidly drawing heat away from the weld zone and heat-affected zone (HAZ). This controlled cooling helps to minimize distortion, prevent hot cracking in susceptible alloys, and potentially promote a finer grain structure in the weld metal. By actively removing heat, these fixtures reduce the overall thermal input into the workpiece, which is particularly advantageous for thin materials or precision components. They contribute to dimensional stability and improved mechanical properties of the aluminum weldment, enhancing the overall quality and efficiency of the fabrication process.
Stress relief annealing for aluminum weldments is sometimes considered, primarily to reduce residual stresses that can cause distortion or contribute to stress corrosion cracking. However, it's not as common or straightforward as for steel. For heat-treatable alloys (6xxx, 7xxx series), stress relief annealing must be carefully controlled, as it can significantly reduce the strength of the heat-affected zone by over-aging or annealing. For non-heat-treatable alloys, the benefits might be minimal. The decision to stress relieve must weigh the benefits against potential detrimental effects on mechanical properties, requiring careful metallurgical consideration and precise temperature control to achieve the desired outcome without compromising the aluminum component's integrity.
The pre-weld oxide removal method significantly affects the cost and efficiency of aluminum fabrication. Manual wire brushing is labor-intensive but cost-effective for low-volume production. Chemical cleaning can be faster for larger batches but involves chemical costs and disposal considerations. For high-volume or automated lines, integrated mechanical cleaning (e.g., automated brushing stations) can be highly efficient. While thorough cleaning adds to the process time, it is a crucial investment that prevents costly rework due to porosity or other defects, ultimately contributing to overall cost-efficiency and quality assurance in aluminum fabrication by optimizing the welding process from the start.
A "dirty" welding environment has significant implications for aluminum welding, primarily leading to contamination and weld defects. Dust, grinding particles from other metals (especially steel), oil, grease, and moisture can easily adhere to the reactive aluminum surface and filler wire. These contaminants introduce impurities and hydrogen into the weld pool, causing severe porosity, inclusions, and reduced mechanical properties. Maintaining a clean, organized, and dedicated aluminum welding area, with proper material handling and storage, is paramount for producing high-quality, defect-free aluminum welds. Failure to do so will result in costly rework and compromised product integrity, highlighting the importance of workplace cleanliness.
Proper post-weld inspection is a critical quality control step in aluminum fabrication. It involves visually examining the weld for surface defects (e.g., undercut, cracks, excessive spatter, poor bead profile) and employing non-destructive testing (NDT) methods (e.g., radiography, ultrasonic testing) to detect internal flaws like porosity, inclusions, or lack of fusion. Effective inspection ensures that the welded joints meet specified standards, design requirements, and performance criteria. It helps identify issues early, prevents costly failures in service, and ensures the safety and reliability of the fabricated aluminum components, which is paramount in critical industries.
Joint access significantly affects the choice of aluminum welding process. For joints with limited access or complex geometries, TIG welding often offers greater flexibility and control due to its smaller torch head and the ability to use a separate filler rod. MIG welding, with its bulkier gun and continuous wire feed, may be less suitable for tight spaces. However, specialized MIG guns (e.g., gooseneck designs) can improve access. The ability to manipulate the torch and electrode effectively is crucial for achieving proper fusion and bead placement in challenging joint configurations, influencing the selection between MIG and TIG for optimal aluminum fabrication.
Minimizing the heat-affected zone (HAZ) size in aluminum welds is important, particularly for heat-treatable alloys, as the HAZ experiences softening. Strategies to minimize HAZ size include using higher welding speeds, lower heat input (e.g., pulsed welding), and maintaining a focused, concentrated arc. Advanced techniques like laser welding or electron beam welding produce very narrow HAZs. While complete elimination is impossible, controlling the HAZ size helps to preserve more of the base metal's original properties and reduce distortion, contributing to higher strength and improved overall performance of the aluminum weldment, which is crucial for precision engineering applications.
Excessive porosity significantly degrades the corrosion resistance of aluminum welds. Pores (gas bubbles) create internal discontinuities within the weld metal, acting as preferential sites for corrosive attack. They can trap corrosive media, allowing localized corrosion (e.g., pitting, crevice corrosion) to initiate and propagate more easily than on a solid, homogenous weld. This compromises the protective oxide layer that naturally forms on aluminum. Therefore, preventing porosity through meticulous cleaning, proper shielding, and optimized welding parameters is crucial for ensuring the long-term corrosion resistance and durability of aluminum weldments, particularly in aggressive environments, which is vital for component longevity.
Different aluminum alloy designations (e.g., 5083, 6061) directly relate to filler metal compatibility because they indicate specific chemical compositions and properties. 5083 is a non-heat-treatable, high-magnesium alloy, often welded with ER5183 or ER5356 to match its strength and corrosion resistance. 6061 is a heat-treatable magnesium-silicon alloy, frequently welded with ER4043 (for crack resistance) or ER5356 (for higher strength). Filler metal compatibility ensures metallurgical soundness, preventing defects like cracking and achieving desired mechanical and corrosion properties in the weldment. Consulting industry-standard filler metal selection charts based on base alloy designations is essential for successful aluminum welding, ensuring the integrity and performance of the fabricated component.
Overhead welding of aluminum is challenging due to gravity working against the molten weld pool, making it prone to sagging, excessive convexity, and burn-through. Key considerations include using lower amperages, faster travel speeds, and maintaining a very short arc length to keep the puddle small and manageable. Pulsed MIG can be particularly advantageous for its controlled droplet transfer. Precise torch angle and manipulation are crucial. Overhead welding often requires highly skilled welders to achieve sound, aesthetically pleasing welds in this difficult position, ensuring the integrity of aluminum structures in various orientations.
Base metal thickness affects the selection of aluminum filler metal, though primarily it influences the welding process and parameters. For very thin materials, fluidity and crack resistance (e.g., ER4043, ER4047) are important to prevent burn-through and cracking. For thicker sections, higher strength filler metals (e.g., ER5183, ER5556) might be chosen if the design requires greater load-bearing capacity, along with processes that deliver sufficient heat input. While a specific filler metal can often bridge a range of thicknesses, the interplay between thickness, filler metal choice, and welding parameters is crucial for achieving optimal penetration, fusion, and mechanical properties across different material gauges in aluminum fabrication, ensuring robust joints.
The primary disadvantage of ER4043 when anodizing is a post-weld requirement is the significant color mismatch. Due to its silicon content, welds made with ER4043 will typically turn a noticeable dark gray or black after the anodizing process, creating a stark contrast with the natural silver-white color of the anodized aluminum base material. This can be aesthetically undesirable for decorative or architectural applications where a uniform appearance is critical. In such cases, magnesium-rich filler metals like ER5356 or ER1100, which produce a closer color match, are usually preferred, despite potential trade-offs in crack resistance for certain base metals. This aesthetic consideration is crucial for product design.
Aluminum offers several main advantages over steel for certain applications. Primarily, its high strength-to-weight ratio makes it significantly lighter, leading to fuel efficiency in transportation (automotive, aerospace, marine). Aluminum also boasts excellent corrosion resistance, especially in many atmospheric and aquatic environments, often without needing extensive coatings. Its high thermal and electrical conductivity are crucial for heat exchangers and electrical components. Furthermore, aluminum is non-magnetic and highly recyclable. These properties make aluminum a preferred material for applications where weight savings, corrosion resistance, and specific conductivity are paramount, outweighing its higher material cost and welding challenges compared to steel.
The quality of the base metal's surface oxide layer is paramount for TIG welding aluminum. The tenacious aluminum oxide melts at a much higher temperature than the base metal. If not properly removed (via AC cleaning action or mechanical brushing), it acts as a barrier, preventing proper fusion, leading to lack of penetration, inclusions, and porosity. A thick, uneven, or contaminated oxide layer makes arc starting difficult and leads to an unstable arc. Maintaining a clean, thin, and uniform oxide layer (after cleaning) allows the AC cleaning action to work effectively, resulting in a stable arc, good wetting, and high-quality, defect-free aluminum welds, which is vital for precision TIG welding.
Using a water-cooled TIG torch is highly beneficial for high-amperage aluminum welding because aluminum's high thermal conductivity requires significant heat input, leading to very hot torches. A water-cooled torch efficiently dissipates this heat, preventing the torch body from overheating, which extends electrode life, improves gas lens performance, and significantly enhances welder comfort during prolonged welding sessions. This allows for continuous, high-current operation without interruptions due to overheating, leading to more consistent and higher quality welds, particularly in heavy-duty aluminum fabrication, thereby improving productivity and overall weld performance.
The addition of chromium (Cr), typically found in small amounts in some 5xxx series aluminum filler metals like ER5183 and ER5556, primarily enhances corrosion resistance and contributes to grain refinement. Chromium forms fine dispersoids within the microstructure, which can improve resistance to stress corrosion cracking and general corrosion, particularly in aggressive environments like saltwater. It also helps to control the grain size, contributing to improved mechanical properties and reduced susceptibility to hot cracking. The controlled inclusion of chromium helps tailor these alloys for demanding structural and marine applications, ensuring robust and durable aluminum welds.
General guidelines for acceptable porosity levels in aluminum welds vary significantly depending on the application and governing codes (e.g., AWS D1.2, ASME Boiler and Pressure Vessel Code). For non-critical, cosmetic welds, a small amount of scattered, fine porosity might be acceptable. However, for structural, pressure-containing, or aerospace applications, porosity levels are severely restricted, often requiring near-zero porosity. Large, clustered, or interconnected pores are almost always unacceptable as they significantly degrade mechanical properties and corrosion resistance. Non-destructive testing (NDT) methods like radiography are used to assess porosity. Adhering to strict cleanliness and welding procedures is essential to meet these stringent requirements for sound aluminum welds, which is vital for safety and performance.
Different types of aluminum contamination severely affect weld quality. Oil and grease are hydrocarbons that decompose in the arc, releasing hydrogen and carbon, leading to severe hydrogen porosity and carbon inclusions. Paint and other organic coatings behave similarly, causing porosity and potentially brittle welds. Even invisible moisture on the surface can be a significant source of hydrogen. Harder contaminants like steel particles (from wire brushes used on steel) can become embedded in the soft aluminum, leading to brittle inclusions and reduced corrosion resistance. Meticulous cleaning to remove all forms of contamination is paramount for producing sound, defect-free aluminum welds, ensuring structural integrity and preventing costly rework, which is a foundational principle of quality aluminum fabrication.
Using an argon-helium mix is highly beneficial for welding thick ER5183 or ER5556 sections due to their high thermal conductivity and the need for significant heat input. Helium increases the arc voltage and provides a hotter, wider arc, leading to deeper penetration and improved wetting, which is crucial for achieving full fusion in heavy gauge material. This enhanced heat input helps to overcome the rapid heat dissipation of aluminum, reduce porosity (especially in larger weld pools), and potentially increase welding speed. For critical structural applications involving thick sections of these high-strength alloys, an argon-helium mix optimizes the welding process for superior mechanical properties and weld integrity, ensuring robust performance in demanding environments.
The quality of the aluminum wire feeding system profoundly impacts weld quality in MIG welding. Inconsistent wire feeding, caused by issues like improper drive roll tension, incorrect drive roll type (e.g., V-groove for steel), clogged liners, or a lack of a push-pull system for long conduits, leads to an unstable arc. An unstable arc results in erratic current, inconsistent penetration, increased spatter, and potential porosity. A smooth, consistent wire feed is crucial for maintaining arc stability, achieving proper metal transfer (e.g., spray arc), and ultimately producing high-quality, defect-free aluminum welds, ensuring reliable and efficient fabrication.
Pre-heating aluminum parts before welding is a crucial consideration, especially for thicker sections (>1/4" or 6mm), complex geometries, or highly constrained joints. The primary goals are to: 1) Reduce the thermal gradient between the weld zone and base metal, minimizing internal stresses and the risk of hot cracking. 2) Improve the fluidity of the weld puddle, enhancing penetration and fusion. 3) Drive off any surface moisture that could lead to hydrogen porosity. The preheat temperature should be carefully controlled (typically 200-400°F or 90-200°C, depending on alloy and thickness) to avoid distortion or degradation of mechanical properties. Preheating significantly enhances weld quality and prevents defects, which is vital for structural integrity.
General guidelines for choosing between 4xxx series (e.g., ER4043, ER4047) and 5xxx series (e.g., ER5356, ER5183, ER5556) aluminum filler metals are based on a few key factors. 4xxx series are preferred for their excellent fluidity, crack resistance (due to silicon), and suitability for heat-treatable base alloys (like 6xxx series), but they darken upon anodizing. 5xxx series offer higher strength, better ductility, and superior corrosion resistance (due to magnesium), and provide a better color match after anodizing, but may be more prone to hot cracking with certain base metals and have temperature limitations. The choice depends on balancing these properties, the base metal alloy, and the final application requirements for optimal weld performance and aesthetic appeal.
The travel angle of the welding torch significantly affects aluminum weld quality. A slight push angle (10-15 degrees from vertical, pushing the puddle) is generally recommended for both MIG and TIG welding of aluminum. This angle helps to direct the shielding gas effectively, provide good visibility of the weld puddle, and ensure proper penetration. A pull angle (dragging the puddle) can lead to poorer gas coverage, increased contamination, and a less desirable bead profile, potentially resulting in defects like porosity or lack of fusion. Maintaining the correct travel angle is crucial for consistent heat distribution, effective shielding, and achieving high-quality, sound aluminum welds.
Arc length has a significant impact on hydrogen porosity in aluminum welds. A longer arc exposes more of the molten weld pool to the atmosphere, increasing the risk of hydrogen pickup from ambient moisture. It also makes the arc less stable and shielding gas less effective. A short, tight arc provides better shielding gas coverage, minimizes exposure to atmospheric contaminants, and results in a more stable weld pool that is less prone to trapping hydrogen bubbles. Therefore, maintaining a consistently short and optimal arc length is crucial for reducing hydrogen porosity and producing sound, high-quality aluminum welds, enhancing structural integrity.
ER4047 is highly beneficial for brazing applications, particularly for aluminum, due to its high silicon content (typically 11-13%). This high silicon level results in a significantly lower melting point and exceptional fluidity (wetting action) compared to other aluminum filler metals. This allows it to flow readily into tight joint clearances and create strong, leak-tight bonds without melting the base metal. Its excellent flow characteristics also make it suitable for broader gaps and intricate assemblies, reducing hot cracking and ensuring robust, reliable brazed joints in applications like HVAC coils, automotive components, and heat exchangers, optimizing the brazing process for efficiency and quality.
The mechanical working (e.g., forging, extruding, rolling) of aluminum affects its weldability by influencing its microstructure and residual stresses. Forged or extruded aluminum often has a more refined and anisotropic grain structure, which can sometimes impact the directionality of properties or crack susceptibility. Cold-worked (strain-hardened) materials will experience a reduction in strength in the heat-affected zone (HAZ) during welding due to annealing. Welders must consider the prior mechanical history of the base metal, as it influences how the material will behave during welding, including distortion and final mechanical properties. Understanding these factors is crucial for optimizing welding procedures and achieving sound, durable aluminum weldments.
Welding dissimilar aluminum alloys requires careful consideration of their metallurgical compatibility to avoid cracking, maintain mechanical properties, and ensure corrosion resistance. The primary alloying elements of both base metals must be considered when selecting a filler metal. Often, a filler metal that is crack-resistant to both alloys (e.g., ER4043 for 6xxx to 5xxx) or one that matches the higher strength or more critical property is chosen. Potential for galvanic corrosion in service must also be evaluated. Consulting filler metal selection charts and sometimes performing weldability trials are essential for successfully joining dissimilar aluminum alloys, ensuring the integrity and longevity of the fabricated component.
The cleanliness of the wire feeder liner is paramount for consistent and trouble-free aluminum MIG welding. Aluminum wire is soft and can easily pick up contaminants or shave off material if the liner is dirty, worn, or of the wrong type (e.g., a steel liner used for aluminum). Contamination in the liner can then be dragged into the weld pool, causing porosity. A clean, smooth, and correct-sized liner (often Teflon or nylon for aluminum) minimizes friction, prevents wire shaving, and ensures consistent wire feeding. Regular cleaning and replacement of liners are crucial for preventing wire feeding issues and achieving high-quality, defect-free aluminum welds, thereby improving productivity.
Choosing ER5356 for an application requiring post-weld heat treatment for maximum strength of the base metal (e.g., 6061-T6) has implications. While ER5356 provides good as-welded strength, the weld metal itself generally does not respond to the same precipitation hardening heat treatment as the 6xxx series base metals. This means the weld metal will not gain significant additional strength from the post-weld heat treatment, and the heat-affected zone (HAZ) of the base metal may soften. For applications demanding the highest strength in the entire weldment after heat treatment, other filler metals (e.g., ER4043, or specialized 2xxx series fillers for 2xxx base metals) or alternative joining methods might be more suitable. Therefore, careful consideration of the entire system's desired properties is critical.
Typical defects found in aluminum welds include porosity (caused by hydrogen from moisture/contaminants), hot cracking (due to shrinkage stresses in susceptible alloys), lack of fusion (insufficient heat or improper cleaning), undercut (excessive current, fast travel), and distortion (high thermal expansion). Other issues can include inclusions (trapped oxides or foreign matter) and burn-through (excessive heat on thin material). Most of these defects stem from aluminum's unique properties (oxide layer, high thermal conductivity, hydrogen solubility) and can be mitigated by meticulous pre-weld cleaning, proper filler metal selection, optimized welding parameters, and skilled technique. Understanding these causes is crucial for effective defect prevention and quality control in aluminum fabrication.
The balance control on an AC TIG welding power source directly affects aluminum weld quality by regulating the proportion of time spent in the electrode positive (EP - cleaning action) versus electrode negative (EN - penetration) half-cycles. Increasing the EP percentage enhances the cleaning action, which is crucial for removing the tenacious aluminum oxide layer and preventing porosity. However, too much EP can overheat the tungsten electrode. Increasing the EN percentage focuses more energy into the workpiece, increasing penetration and welding speed. Proper balance control allows the welder to fine-tune the arc for specific alloys, thicknesses, and surface conditions, optimizing the cleaning action and penetration for a high-quality, sound aluminum weld, which is a key feature of modern TIG welders.
Welding ER5183 for cryogenic applications (extremely low temperatures) is highly advantageous, but requires specific considerations. ER5183 maintains excellent mechanical properties, including ductility and toughness, at cryogenic temperatures, making it ideal for liquefied natural gas (LNG) tanks and other low-temperature vessels. Key considerations include ensuring very low porosity to prevent brittle fracture initiation points at low temperatures, meticulous cleanliness, and precise control of welding parameters to achieve sound welds. The excellent notch toughness of ER5183 at cryogenic temperatures is a major reason for its selection in these demanding applications, ensuring structural integrity and safety in extreme cold environments.
Common causes of lack of penetration in aluminum welds include insufficient heat input (too low current, too fast travel speed), improper joint preparation (e.g., no bevel on thick material, tight root gap), inadequate removal of the aluminum oxide layer, or incorrect torch angle. Lack of penetration creates a weak point in the weld, significantly reducing its load-bearing capacity and making it susceptible to failure. Ensuring sufficient heat input, correct joint design and fit-up, and thorough pre-weld cleaning are crucial steps to achieve full and consistent penetration, which is vital for the structural integrity and performance of aluminum weldments, meeting all critical design requirements.
The pre-weld temperature of aluminum significantly affects its weldability. If the material is too cold, particularly thick sections, it can act as a substantial heat sink, leading to insufficient penetration, lack of fusion, and increased risk of hot cracking due to rapid cooling. Preheating to a moderate temperature (e.g., 200-400°F or 90-200°C) reduces the thermal gradient, improves fluidity, and drives off moisture, enhancing weld quality. However, excessive preheat can lead to distortion or degradation of mechanical properties in heat-treatable alloys. Optimal pre-weld temperature management is crucial for achieving sound, defect-free aluminum welds efficiently and consistently.
The maximum thickness of aluminum typically welded varies between MIG and TIG processes. MIG (GMAW) welding is generally preferred for thicker aluminum sections, commonly up to 1/2 inch (12mm) or even thicker with multiple passes and specialized equipment, due to its higher deposition rates and deeper penetration capabilities. TIG (GTAW) welding, while offering superior control and aesthetics, is typically used for thinner sections, usually up to 1/4 inch (6mm) or 3/8 inch (9mm), though skilled welders can handle slightly thicker materials with multiple passes or specialized AC TIG machines. The choice depends on the required production speed, weld quality, and material thickness, optimizing the welding process for the specific aluminum fabrication task.
Welding aluminum in an automated assembly line requires highly consistent processes and rigorous quality control. Key considerations include precise material handling and positioning, consistent pre-weld cleaning, highly repeatable welding parameters, and robust wire feeding systems (e.g., push-pull guns). Integration with quality assurance sensors (e.g., vision systems) for real-time defect detection is also beneficial. Minimizing downtime for wire changes or troubleshooting is crucial for productivity. Automated systems significantly enhance efficiency, consistency, and traceability in high-volume aluminum fabrication, ensuring uniform weld quality and reducing labor costs, which are vital for mass production industries like automotive.
Joint fit-up significantly influences porosity in aluminum welds. Poor fit-up, such as excessive gaps or misalignment, can lead to turbulent shielding gas flow, allowing atmospheric contamination and moisture into the weld pool. This introduces hydrogen, a primary cause of porosity. Large gaps also require more filler metal and a larger weld pool, increasing the risk of trapping gas. Achieving tight and consistent joint fit-up minimizes the exposed surface area of the molten weld, ensures effective shielding gas coverage, and allows for more efficient welding, all of which contribute to reducing hydrogen porosity and producing sound, high-quality aluminum welds.
Impulse MIG welding (a form of pulsed MIG) for aluminum offers several benefits, particularly for thin to medium thicknesses and out-of-position welding. It delivers precisely controlled pulses of current, which helps to cool the weld pool slightly between pulses. This provides better puddle control, reduces heat input, and minimizes distortion, especially on thinner materials. It also enables welding in various positions more easily than conventional spray transfer, while still offering high deposition rates. The precise control over the arc and metal transfer results in lower spatter, improved aesthetics, and higher quality welds, enhancing versatility and efficiency in aluminum fabrication.
The quality of the shielding gas cylinder and supply system directly affects aluminum welding. Any leaks in the gas lines, regulators, or connections can allow ambient air (containing oxygen, nitrogen, and moisture) to contaminate the shielding gas, leading to severe porosity in the aluminum weld. Impurities within the gas cylinder itself, though rare from reputable suppliers, can also introduce contaminants. Regularly checking for leaks, using high-purity gas, and maintaining clean gas lines are crucial. A high-quality, leak-free gas supply system ensures that the molten aluminum is adequately protected from atmospheric contamination, producing sound, defect-free welds and maintaining weld integrity.
Welding thick sections of ER1070 or ER1100 (pure aluminum) presents specific challenges due to their extremely high thermal conductivity and relatively low strength. Significant heat input is required to achieve full penetration, which can lead to excessive distortion and potential hot cracking if not managed. The low strength also means the material is prone to deformation. Preheating is often necessary to compensate for rapid heat dissipation. While their purity is beneficial for electrical and corrosion properties, their inherent softness and high thermal demands necessitate careful control of welding parameters and techniques for successful thick-section fabrication, ensuring structural integrity and desired performance in demanding applications.
Proper interpass cleaning is crucial in multi-pass aluminum welding to ensure sound, defect-free welds. Between each pass, any accumulated oxide, soot, or spatter must be meticulously removed. If left untouched, these contaminants will become trapped in subsequent weld passes, leading to inclusions, porosity, and lack of fusion between layers. Mechanical brushing with a dedicated stainless steel brush and potentially solvent wiping are essential. Thorough interpass cleaning ensures proper metallurgical bonding between weld passes, contributing to the overall strength, integrity, and quality of the multi-pass aluminum weldment, which is vital for heavy fabrication and pressure vessel construction.
The presence of silicon in aluminum filler metals (e.g., ER4043, ER4047) significantly reduces hot cracking susceptibility. Silicon lowers the melting point of the alloy and widens its freezing range. This allows the weld metal to remain molten or "mushy" for a longer period during solidification, enabling it to accommodate shrinkage stresses more effectively without tearing. The silicon also forms a more fluid weld pool that can better fill intergranular spaces, preventing the formation of liquid films that contribute to cracking. This makes silicon-containing filler metals highly effective for welding crack-sensitive aluminum base alloys and achieving sound, durable welds, which is a key metallurgical advantage.
Insufficient filler metal addition in aluminum welding can lead to several implications, including lack of reinforcement, undercut, insufficient throat thickness in fillet welds, and potential for crater cracking. These defects compromise the mechanical strength and integrity of the weld, making it susceptible to failure under load. Proper filler metal addition ensures that the weld bead has adequate volume and profile to meet design requirements, providing sufficient strength and preventing stress concentrations. Skillful control of wire feed speed (MIG) or manual rod feeding (TIG) is crucial for delivering the correct amount of filler metal for a sound, high-quality aluminum weld, which is vital for structural performance.
Welding aluminum in confined spaces requires heightened safety and procedural considerations. Primary concerns include adequate ventilation to manage welding fumes (ozone, particulate matter), as fume concentration can quickly build up. Respiratory protection (e.g., supplied air respirators) may be necessary. Fire hazards are also increased due to limited escape routes and potential for explosive atmospheres if solvents or fuels are present. Use of inert shielding gases can displace oxygen, posing an asphyxiation risk. Proper lighting, communication with outside personnel, and rescue plans are essential. The limited access can also make achieving high-quality welds challenging, necessitating skilled welders and specialized equipment to ensure both safety and weld integrity in restricted environments.
The cleanliness of TIG torch components (collet, collet body, gas lens, nozzle) is critical for aluminum welding. Any contaminants—such as dirt, dust, or metal shavings—on these components can interfere with the shielding gas flow, causing turbulence or entraining impurities into the arc. This leads to inconsistent shielding, increased porosity, and a contaminated weld pool. Regularly cleaning or replacing worn torch components ensures a smooth, laminar flow of shielding gas, protecting the molten aluminum from atmospheric contamination and enabling a stable, high-quality arc for sound, defect-free welds, which is essential for precision TIG welding.
ER5556 is highly beneficial for applications requiring high fatigue strength in aluminum. Its higher magnesium and manganese content contributes to superior as-welded tensile strength and excellent crack resistance, which are crucial factors for resisting fatigue crack initiation and propagation under cyclic loading. The refined microstructure promoted by its alloying elements also enhances fatigue performance. While careful consideration of sustained elevated temperature service is needed, ER5556's robust mechanical properties make it a preferred choice for critical structural components in transportation, marine, and other industries where durability and resistance to repeated stresses are paramount, ensuring long-term reliability of the aluminum weldment.
Specific heat input (Joules/inch or Joules/mm) is a critical parameter in aluminum welding, directly relating to weld defects. Insufficient heat input can lead to lack of penetration, lack of fusion, and cold laps. Excessive heat input can cause burn-through, severe distortion, excessive grain growth in the HAZ, and increased hot cracking susceptibility. Optimizing specific heat input by carefully controlling current, voltage, and travel speed is crucial for achieving a sound weld. It ensures adequate fusion without overheating, balancing the need for deep penetration with minimizing detrimental thermal effects, which is key to preventing common defects and ensuring high-quality aluminum welds.
Welding aluminum components that will be painted or powder-coated requires specific considerations to ensure good adhesion and a smooth final finish. All weld spatter must be meticulously removed, as it will create bumps under the coating. The weld bead itself should be as smooth and uniform as possible, often requiring grinding or sanding to achieve a flush profile. The choice of filler metal also influences post-weld aesthetics; some alloys may show a slight color difference under translucent coatings. Thorough post-weld cleaning to remove any residues or oils is crucial for proper paint adhesion. These steps are vital for achieving both structural integrity and a high-quality cosmetic finish for the aluminum component.
Grain growth in the heat-affected zone (HAZ) of aluminum welds can occur due to the localized heating from the welding process. For some aluminum alloys, especially those that rely on grain refinement for properties, excessive grain growth can lead to reduced strength, ductility, and toughness in the HAZ. It can also increase susceptibility to certain types of cracking. Controlling heat input (e.g., faster travel speeds, pulsed welding) helps to minimize grain growth by limiting the time at elevated temperatures. Understanding and managing grain growth in the HAZ are crucial for ensuring the desired mechanical properties and overall integrity of the aluminum weldment, which is vital for quality control and structural performance.
Using an argon-helium mix is highly beneficial for welding cast aluminum, especially for repair applications. Cast aluminum alloys often have lower thermal conductivity and can be more prone to porosity and cracking due to their inherent metallurgical characteristics (e.g., larger grain size, more impurities). Helium's higher ionization potential and thermal conductivity provide a hotter, wider arc that improves fluidity, enhances penetration into the often irregular cast structure, and helps to "boil out" impurities and gases more effectively, reducing porosity. This leads to more robust and sound repairs of aluminum castings, optimizing the welding process for challenging cast materials and achieving higher quality results.
Resistance welding of aluminum (e.g., spot welding) is a distinct process from arc welding and has specific considerations. It is highly effective for joining thin aluminum sheets rapidly with minimal distortion, making it ideal for automotive and aerospace assembly. Key considerations include the high electrical conductivity of aluminum (requiring high currents), its low resistance to electrode indentation, and the need for frequent electrode tip cleaning due to aluminum sticking. Resistance welding doesn't typically use filler metal, relying on localized heating and pressure. While efficient, it requires specialized equipment and precise control to achieve strong, consistent spot welds, which are vital for high-volume, thin-gauge aluminum fabrication.
The cleanliness of the base metal profoundly affects arc stability in aluminum welding. The tenacious aluminum oxide layer, if not properly removed, acts as an electrical insulator and melts at a much higher temperature than the base metal. This can cause erratic arc starting, an unstable or wandering arc, and difficulty in maintaining a consistent weld puddle. Contaminants like oil, grease, or paint can also destabilize the arc and introduce impurities. A meticulously clean, oxide-free base metal surface is crucial for achieving a smooth, stable arc, which is fundamental for consistent penetration, good bead appearance, and high-quality, defect-free aluminum welds, optimizing the overall welding process.
The 7xxx series aluminum alloys (e.g., 7075, 7050), primarily alloyed with zinc, are considered very challenging to fusion weld due to their extreme susceptibility to hot cracking. This high crack sensitivity results from a wide freezing range and the formation of low-melting-point eutectics at grain boundaries. Fusion welding them often leads to significant cracking in the weld metal and heat-affected zone, compromising joint integrity. For these reasons, 7xxx series alloys are frequently joined by alternative methods like friction stir welding, or if fusion welding is essential, highly specialized filler metals and tightly controlled procedures are employed to minimize defects, which is a major hurdle in advanced aluminum fabrication.
The primary function of the welding torch nozzle (also called the gas cup) in aluminum welding is to direct and focus the shielding gas around the welding arc and molten weld pool. This creates a protective envelope of inert gas, preventing atmospheric contamination (oxygen and nitrogen) from reacting with the highly reactive molten aluminum. Proper nozzle size and design ensure laminar gas flow and adequate coverage, which is crucial for preventing porosity, inclusions, and maintaining arc stability. A clean, properly sized, and positioned nozzle is essential for producing high-quality, sound aluminum welds, which is vital for the integrity and performance of the fabricated component.
Shot peening is a post-weld treatment that can benefit aluminum welds by introducing compressive residual stresses on the surface. These compressive stresses counteract tensile residual stresses (which naturally occur from welding) and can significantly improve the fatigue life of the weldment by inhibiting fatigue crack initiation and propagation. It can also improve resistance to stress corrosion cracking. Shot peening mechanically deforms the surface with small, high-velocity shot. While beneficial for fatigue, it can also alter the surface finish and is typically applied after all other post-weld cleaning and shaping. It's a specialized process used for critical aluminum components requiring enhanced durability under cyclic loading.
Pulsed MIG welding offers significant benefits for vertical-up aluminum welds due to its superior puddle control. The alternating peak and background current pulses allow the weld pool to momentarily cool and solidify slightly during the background phase, preventing it from sagging or running. This improved control enables welders to build up the weld bead vertically with consistent penetration and profile, minimizing defects like undercut or excessive convexity. It enhances the ability to weld in difficult positions while maintaining high deposition rates and productivity, making pulsed MIG a highly effective technique for challenging vertical aluminum fabrication, ensuring robust and aesthetically pleasing welds.
The quality of the aluminum filler metal stock, encompassing its chemical composition, cleanliness, and mechanical integrity, directly affects the final weld properties. Inconsistent chemical composition can lead to unpredictable mechanical properties, cracking, or poor corrosion resistance in the weld. Contaminants (e.g., oil, oxides) on the wire surface introduce hydrogen, causing porosity. Wire imperfections (e.g., kinks, flat spots) lead to unstable feeding and arc issues. High-quality filler metal, manufactured to strict standards, ensures consistent and reliable weld metallurgy, contributing to the desired strength, ductility, and overall integrity of the aluminum weldment, which is crucial for safety and performance.
Repair welding aluminum versus new fabrication involves distinct considerations. In repairs, the base metal's condition (e.g., contamination, prior damage, age, unknown alloy) is often more variable, requiring more rigorous cleaning and material identification. Distortion control can be more challenging on pre-existing structures. The goal is to restore functionality, which may involve balancing strength with minimizing heat input to existing components. For new fabrication, there is more control over material quality, joint design, and welding sequences, allowing for optimized processes to achieve precise mechanical properties and cosmetic finishes. Both require skilled technique, but repairs often demand greater adaptability and problem-solving to ensure the integrity of the aluminum component.
The thermal conductivity of the backing material significantly affects aluminum welding, particularly for achieving consistent penetration and minimizing distortion. Using a backing bar made of a highly conductive material like copper can act as a heat sink, rapidly drawing heat away from the weld root. This helps to control penetration, prevent burn-through on thinner sections, and minimize warpage. However, for full penetration welds, care must be taken to ensure proper fusion to the backing material doesn't occur. The choice of backing material is crucial for managing heat flow and achieving sound, consistent welds in various aluminum joint configurations, optimizing the thermal conditions during welding.
Incomplete removal of the aluminum oxide layer is one of the most significant causes of poor weld quality in aluminum. The oxide melts at a much higher temperature than the base metal and acts as a barrier, preventing proper fusion between the filler metal and base metal. This leads to lack of fusion, inclusions of oxide within the weld, and increased porosity (as it traps moisture that generates hydrogen). The result is a weak, brittle weld with significantly reduced mechanical properties and compromised corrosion resistance. Meticulous pre-weld cleaning to ensure complete oxide removal is paramount for achieving sound, high-quality aluminum welds, which is a foundational requirement for any successful aluminum fabrication.
The choice of filler metal significantly affects the ductility of the overall aluminum weldment, encompassing both the weld metal and the heat-affected zone (HAZ). While the weld metal's ductility is directly influenced by the filler alloy's composition (e.g., magnesium-rich alloys generally being more ductile than silicon-rich ones), the HAZ's ductility is largely determined by the base metal's response to heat. For heat-treatable base alloys, the HAZ will soften. The filler metal can influence how this softening affects overall joint ductility. A more ductile filler can sometimes compensate for a less ductile HAZ, or conversely, a brittle filler can compromise an otherwise ductile HAZ. The aim is to achieve a balanced ductility across the entire joint to meet service requirements, which is a crucial consideration in structural design and metallurgical engineering.
Welding ER4043 in thin gauge applications requires precise control to prevent burn-through and excessive distortion. Its excellent fluidity (due to silicon) is beneficial as it allows for a fluid puddle that wets well without excessive heat. However, very fast travel speeds, low amperage settings, and a focused arc (e.g., with pulsed TIG or MIG) are crucial to minimize heat input. Using backing bars (heat sinks) is highly recommended to dissipate heat rapidly. The goal is to achieve adequate fusion with minimal thermal input, ensuring the integrity and dimensional accuracy of thin-gauge aluminum welds, which requires skilled technique and optimized parameters.
The use of a ceramic gas lens significantly improves TIG welding of aluminum by providing superior shielding gas coverage. A gas lens contains a series of fine mesh screens that straighten the laminar flow of the shielding gas, reducing turbulence. This creates a wider, more concentrated, and stable gas shield around the tungsten electrode and weld pool. This enhanced coverage is particularly beneficial for aluminum, as it helps to prevent atmospheric contamination (oxygen, nitrogen) from reaching the highly reactive molten metal, thereby reducing porosity and inclusions, and ensuring a cleaner, higher quality weld bead. Using a gas lens is a best practice for achieving premium aluminum TIG welds.
Allowing aluminum filler wire to become kinked or bent during feeding has significant negative implications for MIG welding. Aluminum wire is soft and prone to deformation. Kinks or bends create increased friction and resistance within the liner, leading to inconsistent wire feeding, erratic arc stability, and potentially "bird-nesting" (wire tangling at the drive rolls). This results in poor weld quality, excessive spatter, and frequent interruptions, significantly reducing productivity. Proper handling, storage, and a well-maintained, correctly configured wire feeding system (e.g., U-groove rolls, Teflon liner, push-pull gun) are crucial to prevent kinking and ensure smooth, consistent wire delivery for high-quality aluminum welds.
The oxide film on aluminum (both the natural one and those formed during welding) significantly affects its appearance after welding and post-weld treatment. After welding, the weld bead may have a grayish or sooty appearance due to the formation of weld oxides. This can be removed by cleaning. For post-weld anodizing, the filler metal's composition dictates the final color. Silicon-rich filler metals (ER4043, ER4047) will typically turn dark gray/black after anodizing due to the silicon oxide. Magnesium-rich alloys (ER5356, ER5183, ER5556) will maintain a closer color match to the base aluminum (white/light gray). Understanding these aesthetic implications of the oxide film and filler metal choice is critical for applications where visual consistency is important.
The AC balance control on TIG welders is a highly beneficial feature for aluminum welding. It allows the welder to precisely adjust the proportion of time the current spends in the electrode positive (EP) half-cycle (for cleaning action) versus the electrode negative (EN) half-cycle (for penetration). Increasing the EP component enhances the removal of the tenacious aluminum oxide layer, crucial for preventing porosity. Increasing the EN component focuses more energy into the workpiece, improving penetration and increasing welding speed. This fine-tuning capability allows for optimization of arc characteristics to suit various aluminum alloys, thicknesses, and surface conditions, resulting in superior weld quality, better puddle control, and reduced tungsten erosion, making it essential for high-quality aluminum TIG welding.
The quality of the base metal's temper significantly affects aluminum weldability. The temper, whether it's an annealed (O), strain-hardened (H), or heat-treated (T) condition, dictates the material's initial strength, ductility, and its response to the heat of welding. For example, a highly strain-hardened (H temper) or heat-treated (T temper) base metal will experience a loss of strength in the heat-affected zone (HAZ) due to annealing or over-aging from the welding heat. This softening can compromise the overall strength of the weldment. Welders must consider the base metal's temper to select appropriate filler metals and welding parameters, and to anticipate changes in mechanical properties, ensuring the final weldment meets design requirements for structural integrity.
Welding large, complex aluminum assemblies presents numerous challenges. Distortion control becomes paramount due to aluminum's high thermal expansion, requiring extensive clamping, strategic welding sequences, and sometimes preheating. Maintaining consistent weld quality over long runs and multiple joints is difficult manually. Proper access to all weld locations can be an issue. Managing the significant heat input required for thick sections while preventing burn-through on thinner areas adds complexity. These challenges often necessitate the use of automated or robotic welding systems, advanced fixturing, and meticulous quality control protocols to ensure dimensional accuracy, structural integrity, and efficient fabrication of intricate aluminum structures.
ER4043 is highly beneficial for the repair of general aluminum components due to its excellent fluidity and superior crack resistance, thanks to its silicon content. This makes it particularly forgiving for filling voids, repairing cracks, and addressing defects in various cast and wrought aluminum alloys. Its low melting point allows for easier puddle control, and its ability to bridge gaps makes it versatile for different repair scenarios. While it may not match the strength of the strongest base metals, its ease of use and ability to produce sound, crack-free repairs make it a go-to choice for general maintenance and restoration of aluminum parts, optimizing the repair process for efficiency and effectiveness.
The presence of an aluminum oxide layer significantly affects electrical arc initiation in aluminum welding because it is an electrical insulator and has a much higher melting point than pure aluminum. This makes it difficult for the welding arc to establish contact and penetrate the base metal. In DC welding, the arc struggles to break through, leading to erratic starts. In AC TIG welding, the cleaning action of the electrode positive (EP) half-cycle is specifically designed to blast away this oxide layer, allowing for consistent arc initiation and stable welding. Proper removal of the oxide layer, either mechanically or through the AC cleaning action, is fundamental for reliable arc starting and high-quality aluminum welds, ensuring efficient welding operations.
Safety precautions specific to welding aluminum-magnesium alloys (like ER5183, ER5356, ER5556) primarily relate to fume generation. While aluminum welding fumes in general require ventilation, welding alloys with higher magnesium content can produce more noticeable and sometimes denser white fumes (magnesium oxide). While not as acutely toxic as some other metal fumes, prolonged exposure to high concentrations can cause "metal fume fever" or respiratory irritation. Therefore, excellent ventilation (local exhaust ventilation or fume extraction systems), proper respiratory protection (respirators), and maintaining appropriate welding parameters to minimize excessive fumes are crucial for welder safety when fabricating with these magnesium-rich aluminum alloys. Always consult the Safety Data Sheet (SDS) for specific recommendations.
Arc voltage has a significant impact on penetration in aluminum MIG welding. Increasing the arc voltage generally widens and flattens the arc, leading to a broader weld bead and shallower penetration. Conversely, decreasing the arc voltage (while maintaining adequate wire feed speed) concentrates the arc, resulting in a narrower, more convex bead and deeper penetration. Optimal voltage settings are crucial for achieving the desired bead profile and ensuring adequate fusion throughout the joint. Correct voltage control, in conjunction with wire feed speed, is fundamental for precise heat input and consistent penetration, which are vital for producing high-quality, sound aluminum welds.
Cooling rates significantly affect the susceptibility to hot cracking in aluminum welds. Rapid cooling can increase the likelihood of hot cracking, especially in crack-sensitive alloys (those with wide freezing ranges or impurities). This is because rapid cooling exacerbates shrinkage stresses and provides less time for the molten metal to compensate for these stresses. Conversely, slower cooling rates (achieved through preheating or controlled cooling) allow the weld metal to remain in a semi-solid state for longer, enabling it to accommodate stresses more effectively and fill any intergranular liquid films, thereby reducing hot cracking. Controlling cooling rates is a critical strategy for preventing this common defect and ensuring the integrity of aluminum weldments.
Welding aluminum in a vacuum environment, such as with electron beam (EB) welding, offers distinct advantages and considerations. In a vacuum, there is no atmospheric contamination, eliminating the need for shielding gas and preventing porosity, leading to extremely high-purity welds. EB welding provides very deep, narrow penetration with minimal heat input, resulting in minimal distortion and a very small heat-affected zone. However, EB welding requires specialized, expensive equipment, careful joint preparation for electron beam access, and knowledge of vacuum systems. It's typically used for very high-precision, critical, or exotic aluminum alloys in aerospace and high-tech industries where supreme weld quality is paramount.
The cleanliness of the base metal prior to preheating is crucial for weld quality. If the aluminum surface has contaminants (oils, grease, paint, or a thick oxide layer) before preheating, these contaminants will be baked onto the surface, making them much harder to remove afterward. When welding, these baked-on impurities will then decompose in the arc, leading to severe hydrogen porosity, inclusions, and a generally "dirty" weld. Therefore, a thorough cleaning of the base metal must always precede any preheating step to ensure a pristine surface for welding and prevent detrimental defects, which is fundamental to achieving high-quality aluminum welds.
Biasing the AC balance setting towards cleaning action (more time in the electrode positive or EP half-cycle) in aluminum TIG welding offers the significant benefit of effectively removing the tenacious aluminum oxide layer. This oxide layer is insulating and has a higher melting point than the base metal, causing arc instability and leading to defects like lack of fusion and porosity if not removed. A stronger cleaning action ensures that this oxide is blasted away, allowing for a stable arc, proper wetting, and a clean, sound weld bead. While it may reduce penetration slightly and heat the tungsten more, it is crucial for achieving high-quality, porosity-free aluminum welds, which is a key aspect of arc control in TIG welding.
The "Be" (beryllium) restriction in AWS A5.10 for aluminum filler metals (typically a maximum of 0.0008%) is a critical safety and health consideration. Beryllium is a highly toxic element, and its fumes, if inhaled, can cause chronic beryllium disease (CBD), a serious lung condition. Even though added in very minute quantities to suppress magnesium fumes in some alloys, the AWS specification imposes strict limits to minimize exposure risks. Welders must be aware of this restriction and ensure adequate ventilation and personal protective equipment (PPE) when working with such materials, prioritizing safety in aluminum welding operations to prevent occupational health hazards.
Aluminum's electrical conductivity is approximately 60% of copper's, meaning it requires higher welding currents and better electrical contacts to achieve the same heating effect. This relevance for welding means that larger diameter cables, more powerful welding machines, and cleaner, more secure ground connections are often necessary when welding aluminum compared to steel or even copper. Its high conductivity also translates to rapid heat dissipation from the weld zone. This characteristic dictates the need for "hot and fast" welding techniques and influences parameters to ensure proper fusion and minimize defects, optimizing the welding process for aluminum's unique electrical and thermal properties.
Welding highly contaminated or oxidized aluminum presents severe challenges. Thick oxide layers, oils, grease, paint, or other impurities can lead to extensive porosity (from hydrogen), lack of fusion, inclusions, and severe arc instability. These contaminants essentially act as barriers to the welding process and introduce undesirable elements into the weld metal, compromising its mechanical properties and corrosion resistance. Such material often requires aggressive cleaning methods (mechanical grinding, chemical stripping) and may still yield lower quality welds compared to clean material. While sometimes necessary for repairs, welding highly contaminated aluminum is generally a last resort and greatly increases the risk of defects, emphasizing the critical importance of pre-weld cleanliness for successful aluminum fabrication.
The density of aluminum, which is approximately one-third that of steel, significantly affects welding considerations primarily through its impact on weight-saving applications. This low density is why aluminum is widely used in aerospace, automotive, and marine industries. From a welding perspective, it means that while less material needs to be melted per unit volume, the high thermal conductivity often necessitates higher power inputs despite the lower density. The resulting weldments are lightweight, but the welding process itself requires specific parameters and techniques to manage heat and achieve quality in these lighter structures, balancing material properties with fabrication efficiency.
The benefits of using a robotic welding system for repetitive aluminum tasks are substantial. Robots deliver unparalleled precision and repeatability, ensuring consistent weld quality, bead profiles, and penetration across numerous identical parts. This eliminates human fatigue and variability, leading to higher throughput, reduced rework, and significant cost savings over time. For aluminum, the robot's ability to maintain precise torch angles, travel speeds, and wire feed consistency helps mitigate common issues like porosity and distortion. This makes robotic welding ideal for mass production of aluminum components, maximizing efficiency and enhancing the overall quality of fabrication, thereby improving competitive advantage.
The quality of the shielding gas flow meter directly affects aluminum welding by ensuring precise and consistent gas flow rates. An inaccurate or malfunctioning flow meter can lead to too little gas (insufficient shielding, porosity) or too much gas (turbulence, contamination, wasted gas). Consistent flow is crucial for maintaining a stable arc and properly protecting the molten weld pool from atmospheric contaminants, which are highly reactive with aluminum. A high-quality, calibrated flow meter ensures that the welder can set and maintain the optimal gas flow rate, contributing to sound, defect-free aluminum welds and efficient use of consumables, which is vital for quality control.
Welding aluminum in an outdoor or field environment presents significant challenges. Wind is the primary concern, as it can easily disrupt the shielding gas, leading to atmospheric contamination and severe porosity. Windbreaks are often essential. Moisture (rain, humidity, dew) is another major threat, introducing hydrogen and causing porosity, necessitating meticulous pre-weld drying and protection from elements. Maintaining cleanliness, proper preheating if needed, and stable power supply can also be more difficult. These environmental factors complicate aluminum welding, demanding heightened attention to best practices and sometimes requiring specialized equipment or techniques to achieve acceptable weld quality and structural integrity.
Using abrasive grinding wheels previously used on steel for aluminum has severe implications for weld quality. Steel particles from the grinding wheel will become embedded in the softer aluminum surface. During welding, these embedded steel particles will melt and introduce iron inclusions into the aluminum weld. Iron is a detrimental impurity in aluminum, significantly reducing its ductility, strength, and corrosion resistance, and increasing susceptibility to cracking. This cross-contamination is a critical issue. Therefore, dedicated grinding wheels and wire brushes must be used exclusively for aluminum to prevent impurity introduction and ensure high-quality, sound welds.
The material handling process significantly affects the cleanliness of aluminum filler metals. Improper handling, such as touching the wire or rods with bare, dirty hands, or allowing spools to sit exposed to shop dust, oil, or moisture, can introduce contaminants that lead to porosity and other weld defects. Proper handling involves wearing clean gloves, keeping filler metals in their original sealed packaging until use, and returning unused portions to airtight containers. Minimizing exposure to airborne contaminants during storage and transfer is crucial for maintaining the pristine condition of the filler metal, ensuring high-quality, defect-free aluminum welds, which is vital for consistent performance.
ER1100 offers key benefits for applications requiring good forming characteristics after welding due to its high purity (commercially pure aluminum) and inherent ductility. The low alloy content means the weld metal is relatively soft and retains excellent formability, allowing for post-weld bending, deep drawing, or spinning without cracking. This makes it ideal for architectural components, spun hollow ware, or decorative elements where the aesthetic and formability of the finished product are paramount. While not designed for high strength, its superior ductility ensures that the welded assembly can undergo subsequent shaping processes without compromising its integrity or appearance.
Welding anodized aluminum when aesthetics are critical requires meticulous planning and execution. The anodized layer must be completely removed from the weld area, as it creates an undesirable appearance and affects weld quality. The most significant aesthetic consideration is the color mismatch after welding. Silicon-rich filler metals (ER4043, ER4047) will turn dark gray/black when re-anodized, creating a visible seam. Magnesium-rich (ER5356) or pure aluminum (ER1100) fillers offer a better color match. For seamless aesthetics, the entire component may need to be chemically stripped.
