Views: 0 Author: Site Editor Publish Time: 2025-07-30 Origin: Site
1. What does "ER" signify in aluminum welding wire classifications?
"ER" stands for **Electrode Rod** in the AWS (American Welding Society) classification system. It indicates that the material can be used as either a bare electrode for Gas Metal Arc Welding (GMAW or MIG) or as a bare rod for Gas Tungsten Arc Welding (GTAW or TIG). This designation is crucial for selecting the right **aluminum filler metal** for your chosen welding process.
Aluminum alloys have diverse properties, including varying strengths, corrosion resistance, and responses to heat treatment. Different welding wire classifications are necessary to provide the optimal match to the base metal, ensuring proper weldability, mechanical properties, and corrosion resistance of the finished joint. Each wire type is engineered for specific **aluminum alloy compatibility** and performance.
ER1070 is a relatively **pure aluminum filler metal** (99.7% minimum aluminum content). It's primarily used for welding 1000 series wrought alloys, particularly 1070, 1060, and 1080. It offers excellent electrical and thermal conductivity, good corrosion resistance, and high ductility. It's often chosen where base metal purity and conductivity are critical, such as in **electrical conductor applications**.
ER1100 is also a **commercially pure aluminum filler metal**, with a slightly lower minimum aluminum content (99.0% min) compared to ER1070. Both are used for similar applications, emphasizing corrosion resistance, ductility, and conductivity in 1xxx series alloys. ER1070 might be preferred for even higher conductivity demands, while ER1100 is a more common general-purpose pure aluminum wire. They are both excellent for **unalloyed aluminum welding**.
ER4043 is a **silicon-alloyed aluminum wire** containing approximately 5% silicon. It is arguably the most widely used aluminum filler metal. It's excellent for welding heat-treatable base metals like 6061, 6063, and cast alloys such as 356. It offers good fluidity, low sensitivity to hot cracking, and produces bright, clean welds. It's a versatile **general-purpose aluminum filler**.
ER4047 is also a silicon-alloyed aluminum wire but with a higher silicon content (typically 10-13%) than ER4043. This higher silicon level gives it a lower melting point and narrower freezing range, which improves fluidity, reduces solidification shrinkage, and provides better hot crack resistance, especially for brazing and welding thin-gauge materials or castings. It often results in a brighter, smoother bead. It's often used for **aluminum brazing and thin sections**.
ER5183 is a **magnesium-alloyed aluminum wire** containing approximately 4.5-5.5% magnesium. It's primarily used for welding high-strength, non-heat-treatable 5xxx series alloys, such as 5083, 5086, and 5456. It offers excellent tensile strength, toughness, and superior corrosion resistance in marine environments. It's the go-to for **marine-grade aluminum fabrication** and cryogenics.
ER5356 is a **magnesium-alloyed aluminum wire** with approximately 5% magnesium. It's another highly popular general-purpose 5xxx series filler metal, used for welding 5052, 5083 (with some limitations), 5454, and 6061 (where 5xxx is preferred). It offers good strength, ductility, and excellent color match after anodizing, making it suitable for architectural and decorative applications. It's a very common **aluminum structural welding wire**.
ER5556 is also a magnesium-alloyed aluminum wire, similar in composition to ER5183 but with slightly higher magnesium (5.0-5.5%) and often higher manganese. It offers **higher tensile strength** than ER5183 and ER5356, making it suitable for high-strength 5xxx series alloys in critical structural applications where maximum strength is desired. However, it's more prone to stress corrosion cracking if used on base metals with less than 3% magnesium and exposed to elevated temperatures. It's for **high-strength aluminum applications**.
Generally, it's **not recommended** to use 4xxx series wires (silicon-based) on 5xxx series base metals with more than 3% magnesium, especially if the weld will be exposed to elevated temperatures (above 150°F / 65°C) or corrosive environments. This combination can lead to the formation of brittle magnesium silicides in the weld deposit, reducing ductility and corrosion resistance. Always consult specific **aluminum filler metal selection charts** for compatibility.
Hot cracking (or solidification cracking) occurs during the solidification of the weld metal due to shrinkage stresses. Aluminum alloys are susceptible. Filler metals like **ER4043** and **ER4047**, with their silicon content, are designed to minimize hot cracking by forming a lower-melting eutectic that fills grain boundaries, providing a more crack-resistant weld. Managing **aluminum weld cracking** is critical for structural integrity.
For applications requiring **anodizing**, ER5356 is often preferred because its magnesium content provides a good color match to the anodized base metal. Wires from the 4xxx series (ER4043, ER4047) contain silicon, which can turn dark gray or black after anodizing, creating an aesthetic mismatch. So, for visible welds that will be anodized, prioritize **5xxx series filler metals**.
Preheating is often beneficial, and sometimes necessary, especially for **thicker aluminum sections**, highly restrained joints, or certain alloys. It helps reduce thermal shock, minimize distortion, improve fluidity, and drive off moisture. The specific **aluminum preheat temperature** depends on the alloy and thickness, typically ranging from 200-400°F (93-204°C).
For MIG (GMAW) and TIG (GTAW) welding of aluminum, **100% pure argon** is the most common shielding gas for good arc stability and cleaning action. For thicker sections (over 1/2 inch or 12mm), **argon-helium mixtures** (e.g., 75% Ar / 25% He, or 50% Ar / 50% He) can be used to provide hotter arcs, improving penetration and fluidity. Proper **shielding gas selection** is vital for preventing weld defects.
**ER1070** and **ER1100** offer the best electrical conductivity among these options due to their high purity (minimal alloying elements). They are specifically chosen when the weld joint needs to maintain the electrical properties of the pure aluminum base material, such as in **electrical busbar fabrication**.
Porosity in aluminum welds is often caused by **hydrogen gas** trapped during solidification. Sources of hydrogen include moisture on the base metal or filler wire, or inadequate shielding gas. While the wire itself doesn't cause porosity if clean, proper storage (to prevent moisture absorption) and cleaning procedures for both wire and base metal are crucial for all wires, especially in preventing **aluminum weld defects**.
4xxx series wires (ER4043, ER4047) are silicon-based, offering excellent fluidity, good hot crack resistance, and are suitable for heat-treatable alloys. However, they can turn dark after anodizing. 5xxx series wires (ER5183, ER5356, ER5556) are magnesium-based, offering higher strength, excellent marine corrosion resistance, and good color match after anodizing, but can be more prone to hot cracking on certain alloys or with high dilution. Their fundamental **metallurgical differences** dictate their application.
**ER4043** is the most common and generally preferred choice for welding 6061 aluminum due to its good mechanical properties, excellent hot cracking resistance, and wide availability. ER5356 can also be used, especially if higher strength is desired or if the weld will be anodized for color match, but ER4043 offers better hot crack resistance on 6061. Choose based on **6061 application requirements**.
Yes, ER5356 can be used for welding 5083, but **ER5183** is generally preferred for critical structural applications involving 5083, especially those requiring maximum strength and ductility in severe service (like marine or cryogenic). ER5356 offers slightly lower strength than ER5183 when welding 5083. So, for robust **5083 welding**, ER5183 is often the top choice.
When stored correctly in their original sealed packaging in a dry environment, aluminum welding wires can have a shelf life of **several years**. However, once the packaging is opened, the wires should be used relatively quickly and stored in a clean, dry area, as exposure to moisture and contaminants can degrade their performance. Proper **wire storage** is vital for consistent weld quality.
For thick aluminum sections, higher heat input is required, often necessitating **argon-helium shielding gas** for better penetration. Preheating is usually crucial to manage heat dissipation and reduce distortion. Multi-pass welding is common, and careful interpass cleaning is required. ER5183 and ER5556 are often chosen for their strength in **heavy aluminum fabrication**.
**ER4043** and **ER4047** are excellent choices for repairing aluminum castings, particularly those that are silicon-based (e.g., 356, A356). Their silicon content helps to minimize hot cracking, which is a common issue with casting alloys. ER4047, with its higher silicon, can be particularly good for intricate cast repairs requiring good flow. They are ideal **aluminum casting repair filler metals**.
For **aluminum MIG (GMAW) welding**, Direct Current Electrode Positive (DCEP), also known as reverse polarity, is almost universally used. For **aluminum TIG (GTAW) welding**, Alternating Current (AC) is predominantly used because its polarity reversal helps to break up the tenacious aluminum oxide layer, providing a "cleaning action" for good penetration. Specific **aluminum welding polarity** is critical.
Yes, ER5556, due to its higher magnesium content, can be susceptible to **stress corrosion cracking (SCC)** in certain conditions, especially when used on base metals with less than 3% magnesium and exposed to temperatures above 150°F (65°C) in specific corrosive environments. For such applications, ER5356 or ER5183 might be safer alternatives, or post-weld solution heat treatment if applicable. Understanding **SCC risks** is crucial for alloy selection.
Yield strength is the amount of stress a material can withstand before it begins to permanently deform. In aluminum welding wires, higher yield strength (like that offered by ER5183 or ER5556) means the weld will have greater resistance to permanent deformation under load, which is critical for **structural applications** where load-bearing capacity is paramount. Matching base metal and filler metal yield strength is often important.
ER4047, with its higher silicon content, typically has slightly lower ductility and tensile strength compared to ER4043 in as-welded condition, especially for wrought alloys. However, its primary advantage lies in its improved fluidity and hot cracking resistance, not necessarily superior mechanical properties for general fabrication. It excels in **flow characteristics and crack mitigation**.
For automotive applications, **ER4043** is very common, especially for frame components, engine blocks, and general repairs, due to its good weldability and crack resistance on various casting and wrought alloys. **ER5356** might be used for some structural components or aesthetic parts where a good anodized finish is desired. The choice depends on the specific **automotive aluminum component** and its service requirements.
MIG welding (GMAW) generally offers **higher deposition rates**, faster travel speeds, and greater productivity, making it more efficient for thicker materials and production runs. TIG (GTAW) provides superior arc control, precision, and a cleaner, more aesthetically pleasing weld, ideal for thin materials and critical applications. The choice between **MIG vs. TIG for aluminum** balances speed and control.
No, ER1070 and ER1100 are not typically used for structural welding where high strength is required. They are commercially pure aluminum, offering excellent ductility and conductivity but significantly lower strength than alloyed aluminum wires like the 4xxx or 5xxx series. For **aluminum structural components**, stronger filler metals are essential.
Dilution is the mixing of the base metal with the filler metal during welding. It affects the final composition and properties of the weld deposit. When selecting a wire, consider how much the base metal will dilute the filler. For example, when welding 6061 (heat-treatable) with ER5356 (non-heat-treatable), dilution will make the weld less heat-treatable. Understanding **weld metal dilution** is key for predicting final properties.
Yes, all aluminum welding wires should be kept clean. Avoid touching the bare wire with bare hands, as skin oils can cause porosity. Store opened spools in sealed bags with desiccant to prevent oxidation and moisture absorption. For TIG rods, wiping with acetone can remove contaminants. Cleanliness of the wire is as important as base metal preparation for **porosity-free aluminum welds**.
**ER5356** typically offers the best color match to most aluminum alloys after welding, especially for 5xxx and 6xxx series, and tends to age similarly to the base metal. Wires from the 4xxx series (ER4043, ER4047) can appear darker, especially after anodizing, due to their silicon content. For visually sensitive applications, consider **weld appearance and color match**.
Magnesium is a primary strengthening agent in 5xxx series alloys. In welding wires like ER5183, ER5356, and ER5556, it provides **solid-solution strengthening** to the weld deposit, contributing to higher tensile and yield strengths. Magnesium also plays a crucial role in providing excellent **corrosion resistance** in marine environments. It's key to the **strength and durability of these alloys**.
Yes, ER4043 is broadly compatible with most 6xxx series alloys, including 6061, 6063, 6005, etc. Its silicon content makes it very forgiving and resistant to hot cracking when welding these heat-treatable alloys. It is the most common and versatile choice for this family of aluminum. It's a reliable **6xxx series filler metal**.
The general rule is to select a filler metal that best matches the **mechanical properties, corrosion resistance, and heat-treatability** of the base metal, while also considering weldability (e.g., hot cracking resistance). Sometimes, a slightly different filler metal is chosen to improve specific weld characteristics, like ER4043 for 6061 to avoid cracking. Always refer to **AWS A5.10 guidelines** and manufacturer recommendations.
**ER5183** is highly preferred for cryogenic applications (e.g., LNG storage tanks) because it maintains excellent ductility and strength down to very low temperatures without becoming brittle. Its high magnesium content contributes to this exceptional low-temperature toughness. It is the leading **aluminum cryogenic welding wire**.
When welding dissimilar aluminum alloys, choose a filler metal that is compatible with both, or at least tolerates dilution from both without forming brittle intermetallics. **ER4043** is often a good choice for 5xxx to 6xxx series dissimilar joints because of its hot crack resistance. ER5356 can also be used, but may be more prone to cracking on the 6xxx side. Carefully assess the **dissimilar aluminum joint** for optimal filler selection.
The "cleaning action" provided by the reverse polarity half-cycle of AC TIG welding helps to break up and remove the tenacious, high-melting-point aluminum oxide layer on the surface of the base metal and filler wire. This exposes clean aluminum for proper fusion and prevents inclusions. This **oxide cleaning** is crucial for high-quality aluminum welds.
**ER5183**, **ER5356**, and **ER5556** (all 5xxx series) are highly recommended for marine applications due to their excellent corrosion resistance in saltwater. Their magnesium content provides superior resistance to stress corrosion cracking and general corrosion in these aggressive environments, making them ideal for shipbuilding and offshore structures. They are robust **marine-grade aluminum welding solutions**.
Common diameters for MIG wires typically include 0.030", 0.035", 0.045", and 1/16". For TIG rods, common diameters are 1/16", 3/32", 1/8", and 5/32". The selection depends on material thickness, amperage, and desired weld bead size. Choosing the correct **wire diameter** is crucial for proper feedability and arc control.
Excessive heat input can lead to several problems in aluminum welds, including increased distortion, larger heat-affected zones (HAZ) with reduced strength, increased grain growth, and a higher risk of hot cracking. It can also cause burn-through on thin materials. Controlling **heat input** is vital for maintaining mechanical properties and weld quality.
No, ER1070 and ER1100 are bare wires/rods designed for TIG and MIG welding. For **Shielded Metal Arc Welding (SMAW)** of aluminum, specialized covered electrodes are used, such as AWS A5.3 E1100. These have a flux coating to provide shielding and cleaning action. You cannot use bare wire for stick welding.
The heat-affected zone (HAZ) is the area of the base metal that has been subjected to the heat of welding but has not melted. In heat-treatable aluminum alloys (like 6xxx series), the HAZ can experience a loss of strength due to over-aging or dissolution of strengthening precipitates. Selecting the right filler metal and controlling heat input helps manage **HAZ degradation**.
**ER4043** is the most common and generally best choice for repair welding of 6063 aluminum extrusions due to its excellent weldability, fluidity, and crack resistance. If the extrusion is to be anodized and a color match is critical, ER5356 might be considered, but be mindful of potential hot cracking on thinner sections. It's a reliable choice for **aluminum extrusion repair**.
Yes, ER5183 can be used for welding 6061 aluminum, especially if higher tensile strength is desired in the weld metal compared to ER4043, or if the component will be exposed to marine environments. However, ER5183 on 6061 can have a higher propensity for hot cracking, especially on thick or restrained joints, compared to ER4043. Evaluate the **6061 application** carefully when considering ER5183.
Burn-through is when the molten weld puddle completely penetrates through the base metal, leaving a hole. It's common in thin aluminum due to its high thermal conductivity and low melting point. To avoid it, use appropriate wire feed speed, travel speed, proper amperage, and consider using a backing bar. Pulsed welding can also help by lowering average heat input. Controlling **aluminum weld penetration** is key.
Aluminum bicycle frames are typically made from 6061 or 7005 series alloys. **ER4043** is a very common choice for 6061 frames due to its excellent weldability and hot crack resistance. If a specific strength or post-anodizing aesthetic is required, ER5356 might also be considered. The choice depends on the specific **bike frame alloy** and performance goals.
The main disadvantage is their **low strength** compared to alloyed aluminum wires. While they offer high conductivity and corrosion resistance, they are not suitable for structural applications where significant load-bearing is required. Their use is limited to pure aluminum base metals or cladding where strength is not a primary concern. They lack the **structural integrity of alloyed welds**.
Travel speed is crucial in aluminum welding. Too slow a travel speed can lead to excessive heat input, burn-through, and a wide, weak weld. Too fast can result in insufficient penetration, lack of fusion, and porosity. A consistent, relatively fast travel speed is often required to create a tight, uniform bead and minimize heat input. Optimal **aluminum welding travel speed** is essential for quality.
Silicon additions generally reduce the ductility of the weld metal compared to pure aluminum or magnesium-alloyed welds. While still ductile enough for many applications, welds made with ER4043 or ER4047 will typically be less ductile than those made with ER5356 or ER5183. This is a consideration for applications requiring maximum formability or toughness. It impacts **weld metal formability**.
6xxx series alloys are heat-treatable. Their strength comes from precipitation hardening. Welding can alter the heat-treated temper in the HAZ and weld metal. The "as-welded" strength refers to the strength immediately after welding. Post-weld heat treatment can be performed to restore some of the strength, but the weld metal itself may not fully respond like the base metal. This affects the **final mechanical properties**.
A **push angle** (forehand welding) is generally preferred for MIG welding aluminum because it helps to push the molten weld puddle ahead of the arc, improving shielding gas coverage, promoting better cleaning action, and providing a smoother, flatter bead profile. It also helps to minimize oxide inclusions and improve bead appearance. It contributes to optimal **MIG aluminum technique**.
While ER4043 might be used for some lower-magnesium 5xxx alloys (e.g., 5052), it's generally **not recommended for high-magnesium 5xxx alloys** like 5083 or 5086, especially if the weld will be exposed to elevated temperatures or corrosive environments. The silicon in ER4043 can react with magnesium to form brittle magnesium silicides, reducing ductility and corrosion resistance. **ER5183** is the preferred choice for these alloys.
Safety considerations for aluminum welding include **intense UV radiation** (requiring darker helmet shades and full body coverage), **fumes** (aluminum oxide and ozone, requiring excellent ventilation or respiratory protection), and potential for **electric shock**. Always wear appropriate personal protective equipment (PPE). Prioritize **aluminum welding safety**.
**ER5356** is a very common choice for welding aluminum trailers due to its good strength, excellent ductility, and broad compatibility with common trailer alloys like 6061 and 5052. It provides a good balance of properties and weldability for this application. It's a robust **aluminum trailer welding wire**.
Excessive silicon (as in ER4047's higher content) can increase fluidity and improve hot crack resistance, but it can also reduce weld metal ductility and strength slightly. For anodized finishes, it causes a dark gray or black discoloration. Balancing these effects is key in **silicon-alloyed aluminum welding**.
While 5xxx series wires like ER5356 can be used on 6xxx series alloys, they can sometimes lead to **hot cracking** on highly restrained joints or thicker sections, especially compared to ER4043. Also, the resulting weld will not respond to subsequent heat treatment in the same way as the base metal, potentially leaving a softer HAZ or weld. Consider **weld crack susceptibility**.
Yes, all these bare aluminum welding wires (ER series) are suitable for **pulse MIG welding**. Pulse MIG offers significant advantages for aluminum, including better arc control, reduced heat input, improved wetting, and the ability to weld thinner materials or out-of-position with greater ease. It provides enhanced **GMAW control for aluminum**.
Manganese in 5xxx series wires contributes to **solid-solution strengthening** and grain refinement, further enhancing the tensile strength and corrosion resistance, particularly against general corrosion. In ER5183 and ER5556, it complements magnesium to provide robust mechanical properties. It aids in the **strength and durability of welds**.
The high purity of ER1070 and ER1100 generally makes them quite weldable, offering good fluidity and minimizing hot cracking due to the absence of significant alloying elements. However, their low strength means they are primarily used for cladding or non-structural applications. Their **weldability** is good, but their **mechanical properties** are limited.
**ER1070** and **ER1100** would offer the maximum ductility among these options due to their commercially pure aluminum composition. For alloyed aluminum, **ER5356** generally provides good ductility while offering higher strength than the 1xxx series. The choice depends on the specific ductility requirement versus necessary strength. It's about balancing **ductility vs. strength**.
Selecting the wrong filler metal can lead to various problems, including **hot cracking**, reduced mechanical properties (strength, ductility, toughness), compromised corrosion resistance, lack of fusion, or an undesirable aesthetic finish after post-weld treatments like anodizing. It's crucial for **weld integrity and performance**.
Welding very thin aluminum sheets (e.g., under 1/8 inch or 3mm) is challenging due to burn-through risk. TIG welding offers more control for thin gauges. For MIG, use small wire diameters (0.030", 0.035"), pulsed settings, and high travel speed. **ER4043** and **ER4047** are often preferred for thin sections due to their fluidity. It requires careful **thin-gauge aluminum welding technique**.
Solidification shrinkage refers to the volume contraction that occurs as molten metal cools and solidifies. Aluminum has a relatively high solidification shrinkage, which can contribute to hot cracking, especially in restrained joints. Filler metals like ER4047 are designed to minimize the effects of shrinkage by filling in last-to-solidify areas. Managing **shrinkage stresses** is key for crack prevention.
Wire feed speed directly controls the amperage (heat input) and deposition rate in MIG welding. Too low a speed can result in an unstable arc and lack of fusion; too high can cause excessive spatter, poor bead appearance, and burn-through. Finding the optimal **wire feed speed** is critical for a stable arc and quality weld.
For general repair of aluminum boats, which are often made from 5000-series alloys like 5052 or 5083, **ER5356** or **ER5183** are typically preferred due to their excellent corrosion resistance in marine environments and good mechanical properties. ER4043 might be used for less critical repairs or for joining to 6061 components. Consider the **boat's base alloy** and the severity of the repair.
Impurities such as oil, grease, paint, or excessive oxides on the surface of the base metal or filler wire can lead to severe weld defects. They decompose in the arc, introducing hydrogen and other gases into the weld pool, causing **porosity, cracking, and reduced mechanical properties**. Thorough cleaning is non-negotiable for **clean aluminum welds**.
ER5556, as a non-heat-treatable 5xxx series alloy, does not gain significant strength from solution heat treatment or artificial aging. While the base metal might be heat-treated, the weld metal's properties are largely "as-welded." For applications where the weld *must* respond to heat treatment, a 4xxx series filler like ER4043 (which contains silicon for hardening) would be preferred if used on a heat-treatable base alloy. Consult **heat treatment compatibility**.
Common joint preparations include square butt joints for thin materials, V-grooves for medium thicknesses, and U-grooves for thicker sections. All joint surfaces must be thoroughly cleaned of oxides, dirt, and oil just prior to welding. Proper **aluminum joint design** is essential for full penetration and sound welds.
Welding aluminum in vertical up or overhead positions can be challenging due to the fluidity of the molten aluminum. **5xxx series wires (ER5356, ER5183)** are generally preferred for out-of-position welding due to their slightly less fluid puddle compared to 4xxx series. Pulsed MIG can also greatly improve control in these positions. Mastering **aluminum out-of-position welding** requires skill.
The primary advantage of ER4047 over ER4043 is its **lower melting point and narrower freezing range**, attributed to its higher silicon content. This makes it ideal for **brazing aluminum components** (where it acts as a filler metal that melts at a lower temperature than the base metal) and for welding very thin-gauge materials where maximum fluidity and hot crack resistance are needed. It allows for a smoother, brighter bead.
No, these are conventional fusion welding wires. Friction Stir Welding (FSW) is a solid-state joining process that does not use a consumable filler metal in the traditional sense. It relies on the plastic deformation of the base material to create a joint. These wires are specifically for **MIG and TIG fusion welding**.
Current (amperage) directly controls the heat input and penetration in aluminum welding. Too low a current results in cold lap and lack of fusion; too high can cause burn-through and excessive distortion. Aluminum's high thermal conductivity demands higher current than steel for a given thickness. Correct **amperage settings** are crucial for proper puddle control and fusion.
**ER5556** would generally provide the highest tensile strength in the as-welded condition among these options, especially when welding high-strength 5xxx series alloys like 5456 or 5083. It's designed for maximum strength in this alloy family. It's a top choice for **high-strength aluminum weldments**.
Aluminum rapidly forms a tough, high-melting-point oxide layer that must be removed or disrupted during welding to achieve proper fusion. In TIG welding, AC's reverse polarity cycle helps. For MIG, the high current density and DCEP help. Regardless of process, **proper cleaning** of the base metal and filler wire (and good shielding gas) is essential to penetrate and manage this oxide layer. It's the primary challenge in **aluminum weldability**.
Yes, several of these wires are used in aerospace applications, particularly **ER5183** for its high strength and toughness, and sometimes **ER4043** for specific components. Aerospace applications often have stringent quality requirements, making TIG welding with these high-quality wires common for critical structures. Selection is based on the specific **aerospace aluminum alloy** and performance requirements.
The "balled end" technique refers to shaping the tungsten electrode for AC TIG welding of aluminum. The AC current naturally causes the tip of a pure tungsten electrode to melt and form a smooth, rounded (balled) end, which provides a stable arc for the cleaning action. It's a visual indicator of correct AC balance and is crucial for optimal **TIG aluminum arc stability**.
Aluminum alloys with higher magnesium content (like the 5xxx series wires – ER5183, ER5356, ER5556) tend to produce **more visible and sometimes denser welding fumes** compared to silicon-based alloys or pure aluminum. This is due to the vaporization of magnesium, which forms fine magnesium oxide particles. Always ensure adequate ventilation or fume extraction. This is a consideration for **welding fume control**.

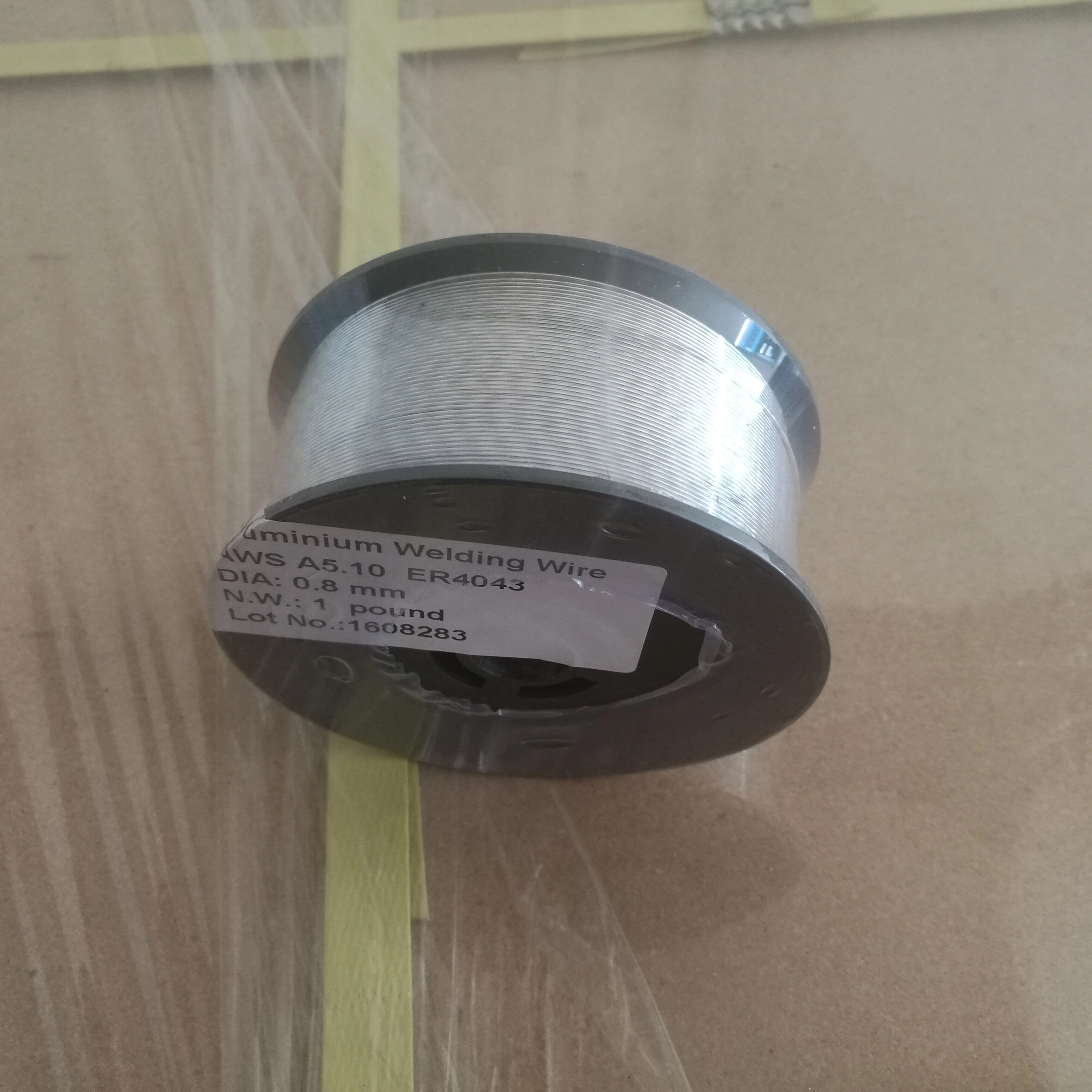

Aluminum welding wires are commonly supplied on **plastic spools** (for MIG welding) in various weights (e.g., 1lb, 10lb, 20lb). TIG rods are typically supplied in **cardboard tubes** in standard lengths (e.g., 36 inches). Both forms are usually sealed in moisture-proof packaging. Proper **packaging and storage** are vital to maintain wire quality.
While ER4043 is primarily a welding wire, it has a silicon content that allows it to be used in some **brazing-like applications** where the melting point is lower than the base aluminum. However, **ER4047**, with its significantly higher silicon content, is specifically designed for and performs much better as an aluminum brazing alloy due to its superior fluidity and lower melting temperature. For true brazing, ER4047 is preferred.
Low-quality aluminum welding wire can lead to numerous weld defects, including excessive porosity (from moisture or surface contaminants), poor arc stability, inconsistent feeding (if the wire is not properly spooled or has surface imperfections), and compromised mechanical properties or corrosion resistance due to incorrect composition. Investing in **quality filler metal** is crucial for sound welds.
**ER4043** is frequently recommended for general maintenance and repair work on a wide variety of aluminum components due to its excellent all-around weldability, fluidity, and good hot crack resistance on many common aluminum alloys, including 6061, 3003, and castings. It's a versatile **repair welding wire**.
The **AWS A5.10 classification system** uses a numerical designation (e.g., 1xxx, 4xxx, 5xxx) that corresponds to the primary alloying elements in the filler metal. For instance, 1xxx indicates pure aluminum, 4xxx indicates silicon as the primary alloy, and 5xxx indicates magnesium as the primary alloy. This system directly links the **wire's composition to its performance characteristics**.
Ductility is the ability of a material to deform plastically without fracturing. In aluminum welding wires, high ductility is crucial for preventing cracking during welding (especially in restrained joints) and for ensuring the weld can withstand subsequent forming or service stresses without failing. Wires like ER1100 and ER5356 offer good **weld metal ductility**.
Yes, ER5183 can be used for **cladding applications** where a high-strength, corrosion-resistant, and tough surface layer is desired, particularly on steel components that will be exposed to marine or cryogenic environments. It provides a robust and reliable overlay. It's a useful **aluminum cladding wire**.
Excessive impurities like copper or iron in the base metal can form brittle intermetallic phases in the weld, increasing the risk of hot cracking or reducing ductility and corrosion resistance. Proper base metal selection and careful attention to dilution with the filler metal are necessary to mitigate these issues. **Base metal purity** affects weld quality.
**ER5356** is often preferred for architectural applications where the weld will be visible and potentially anodized, because it provides a good color match to the base metal after anodizing. While ER4043 is also common, its silicon content can result in a darker, contrasting weld color. **Aesthetic weld appearance** is a key factor here.
Pulsed TIG offers enhanced arc control, reduced heat input (minimizing distortion and HAZ effects), improved penetration control, and often a more refined grain structure in the weld. It's particularly beneficial for thin materials, out-of-position welding, and highly critical applications, making it a powerful tool for these **aluminum TIG wires**.
Aluminum MIG wire is much softer than steel and requires specific equipment to feed reliably. This includes **U-groove drive rolls** (to prevent deforming the wire), a **Teflon or nylon liner** in the gun (to reduce friction), and often a **shorter gun cable** or a **push-pull gun** system to prevent kinking and birdnesting. Proper **aluminum wire feeding** is crucial for consistent welding.
These wires typically conform to **AWS A5.10 (Specification for Bare Aluminum and Aluminum-Alloy Welding Electrodes and Rods)**. They may also carry certifications from other classification societies (e.g., ABS, DNV, Lloyd's Register) for specific marine or pressure vessel applications. Look for manufacturer data sheets confirming adherence to these **welding standards**.
When welding 6061 (a heat-treatable alloy) with ER4043, the as-welded strength of the joint will generally be lower than the ultimate tensile strength of the heat-treated 6061 base metal. The heat of welding partially anneals the HAZ and the weld metal itself does not respond to heat treatment in the same way as the base metal. For maximum strength restoration, post-weld heat treatment of the entire assembly might be considered, but the weld zone will likely still be the weaker link. Understand the **weld strength reduction in heat-treatable alloys**.
A back purge (shielding the backside of the weld with inert gas) is crucial for **preventing oxidation and contamination** on the root pass of aluminum TIG welds, especially for critical applications like piping or pressure vessels. It ensures a clean, smooth root bead and prevents sugaring or porosity on the backside. It's vital for **root pass quality**.
While ER5356 can join pure aluminum, it's generally **not the ideal choice**. Using an alloyed filler metal like ER5356 on pure aluminum will introduce magnesium into the weld, potentially altering the base metal's characteristics like electrical conductivity and ductility. **ER1070 or ER1100** are the correct choices for welding pure aluminum to itself to maintain purity.
Volatilization refers to the process where certain alloying elements (especially magnesium) can vaporize from the molten weld pool due to the high heat of welding. This can affect the final composition of the weld metal and contribute to fume generation. High-magnesium wires like ER5183 or ER5356 can experience this. Managing **elemental loss** is part of welding these alloys.
Aluminum's high thermal conductivity means heat rapidly dissipates away from the weld zone, requiring **higher current and faster travel speeds** compared to steel to maintain a molten puddle and achieve penetration. If the travel speed is too slow, heat can build up excessively, leading to burn-through. It dictates **aluminum welding parameters**.
In aluminum brazing applications, the high silicon content in ER4047 lowers its melting point significantly below that of the base aluminum alloys (typically 3xxx or 6xxx series). This allows the ER4047 filler to melt and flow into the joint by capillary action while the base metal remains solid, creating a strong metallurgical bond. It's crucial for **lower-temperature joining**.
Yes, all these aluminum welding wires (ER series) are highly suitable for **robotics and automated welding applications**, particularly in MIG (GMAW) mode. Their consistent quality, precise spooling, and excellent arc characteristics make them ideal for high-volume, repeatable welding processes in manufacturing environments. They enable **efficient automated aluminum fabrication**.
Both are excellent for marine applications. **ER5183** is generally preferred for critical structural components, especially those made of 5083 or 5086, due to its higher as-welded strength and superior resistance to hot cracking and stress corrosion cracking when properly applied. **ER5356** is a versatile general-purpose wire often used for less critical marine structures or where an exact color match after anodizing is desired. Consider the **specific demands of the marine environment**.
Excessive arc length in aluminum MIG welding can lead to several issues, including increased porosity (due to inadequate shielding), more spatter, a wider and flatter bead, and reduced penetration. Maintaining a **short, consistent arc length** is crucial for good shielding, stable arc, and high-quality welds. It affects **arc stability and shielding effectiveness**.
Detailed specifications, including chemical composition limits, mechanical properties, typical applications, and recommended welding parameters, can be found in the **AWS A5.10 standard (Specification for Bare Aluminum and Aluminum-Alloy Welding Electrodes and Rods)**. Additionally, reputable filler metal manufacturers provide comprehensive data sheets (Technical Data Sheets - TDS) for each of their products, which are invaluable resources for welders and engineers. Consult these **official welding specifications** for precise information.
