Views: 0 Author: Site Editor Publish Time: 2025-07-30 Origin: Site
"E" indicates an electrode. "7" denotes a minimum tensile strength of 70,000 psi (70 ksi) in the as-welded condition. "1" indicates that the wire is suitable for all welding positions. "T" signifies a tubular or flux-cored electrode. This designation sets the stage for understanding **FCAW wire properties**.

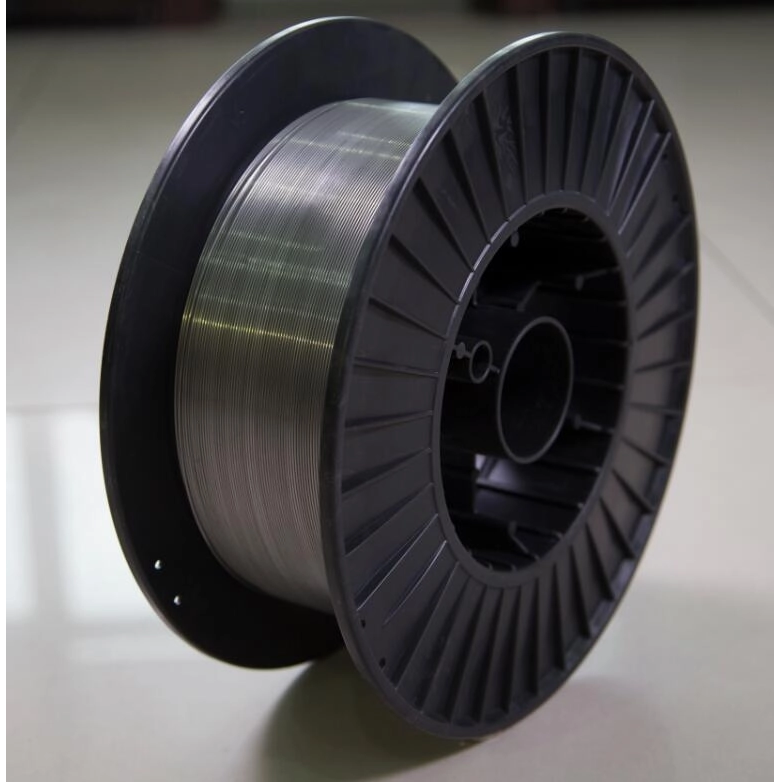

E71T-1 is a widely used **gas-shielded, rutile-type flux-cored wire** for mild steel. It offers excellent arc characteristics, low spatter, good bead appearance, and easy slag removal. It's often used for general fabrication, structural steel, and shipbuilding where good aesthetics and all-position capabilities are required. It's a versatile choice for **general-purpose FCAW**.
The suffix 'C' or 'M' in E71T-1C and E71T-1M refers to the **type of shielding gas required**. E71T-1C is designed for use with **100% Carbon Dioxide (CO2)** shielding gas. E71T-1M is formulated to be used with **Argon-Carbon Dioxide (Ar/CO2) mixtures**, typically 75% Ar / 25% CO2 (C25). This distinction is crucial for optimal arc performance and mechanical properties. Both are excellent choices for **all-position structural welding**.
E71T-11 is a **self-shielded flux-cored wire** primarily used for single-pass welding. It does not require external shielding gas, making it highly portable and suitable for outdoor or field applications where wind can disrupt gas shielding. It's known for its high deposition rates but produces more spatter and a coarser bead than gas-shielded wires. It's the go-to for **outdoor and field welding** without gas cylinders.
E71T-GS is a **self-shielded flux-cored wire** designed for **single-pass, light gauge applications** and general repair. Like E71T-11, it requires no external shielding gas. The 'GS' indicates "General Single Pass." It typically produces less spatter than E71T-11 but has lower deposition rates and is generally not recommended for multi-pass welds or critical structural applications due to varying mechanical properties. It's ideal for **hobbyists and thin metal repairs**.
E71T-8 is another **self-shielded flux-cored wire**, but it's specifically designed for **single-pass and multi-pass welding** on thicker steels in all positions. It generates a quiet arc, produces minimal spatter, and yields a tough, crack-resistant weld. While still self-shielded, its formulation provides better impact toughness than E71T-11, making it suitable for more demanding structural applications, though still requiring good ventilation due to higher fume levels. It's a robust **self-shielded wire for structural work**.
Flux-cored wires offer several advantages: **higher deposition rates** (leading to faster welding), better tolerance to **mill scale and rust**, excellent performance in **out-of-position welding**, and the ability to weld outdoors (especially self-shielded types). They generally provide a more stable arc and deeper penetration compared to solid wires. They're a powerful option for **increased productivity and versatility**.
As covered in question 3, E71T-1 wires come in two main gas-shielded variants:
**E71T-1C:** Requires 100% CO2.
**E71T-1M:** Requires 75% Argon / 25% CO2 (C25) or similar Ar/CO2 blends.
The specific gas type is crucial for proper slag formation, arc stability, and mechanical properties of the weld. Matching the **FCAW wire to the shielding gas** is non-negotiable.
E71T-1's formulation, particularly its slag system, is designed to support the molten weld puddle during solidification, even in non-flat positions like vertical up, vertical down, and overhead. This makes it highly versatile for various joint configurations and orientations, enabling **all-position welding** for a wide range of fabrication tasks.
Both E71T-1C and E71T-1M are used extensively in **general fabrication, shipbuilding, structural steel erection, heavy equipment manufacturing, and railway car construction**. Their all-position capability, good mechanical properties, and excellent bead appearance make them suitable for a broad spectrum of industries where gas-shielded FCAW is preferred. They are robust **industrial welding wires**.
Disadvantages include **higher fume levels** (requiring excellent ventilation), **more spatter** (especially E71T-11), **less aesthetically pleasing bead appearance** (often a rougher, convex bead), and the presence of **slag** that needs removal. Also, typically lower impact toughness compared to gas-shielded FCAW wires or solid wires for critical applications. Consider these for **FCAW process selection**.
E71T-11 relies solely on its internal flux for shielding, which creates a more turbulent arc and gas evolution, leading to increased spatter. Gas-shielded wires (E71T-1C/M) benefit from the smooth, external shielding gas, resulting in a more stable arc and significantly less spatter. This is a trade-off between **portability and weld cleanliness**.
Yes, post-weld **slag removal is always necessary** for flux-cored welds. The flux produces a slag layer that protects the molten weld pool during solidification. This slag must be chipped off and brushed clean between passes and after the final weld, especially if the weld is to be painted or coated. It's a routine step in **FCAW post-welding cleanup**.
E71T-1C/M wires have good tolerance to **moderate levels of mill scale and rust** on the base metal. Their fluxing agents help to clean the weld puddle. While pre-cleaning is always recommended for optimal results, these wires are more forgiving than solid MIG wires (like ER70S-3) when faced with imperfect surface conditions. They are preferred for **less-than-ideal surface conditions**.
Common diameters for flux-cored wires include 0.035", 0.045", 0.052", 1/16", and 5/64". Smaller diameters are better for thin materials and out-of-position welding, while larger diameters offer higher deposition rates for thicker sections and flat/horizontal welding. Selecting the correct **FCAW wire diameter** is crucial for performance.
E71T-1C/M wires are generally preferred for multi-pass welding due to their **better mechanical properties** (especially impact toughness), superior bead appearance, and more consistent performance across multiple layers. Their gas shielding helps maintain weld integrity and minimize defects in thick sections. They are robust for **heavy multi-pass applications**.
Stickout (the distance from the contact tip to the arc) is more critical for flux-cored wires than for solid wires. **Longer stickout** (e.g., 3/4" - 1 1/4") is often preferred for these wires as it provides preheating of the wire, leading to higher deposition rates and deeper penetration. However, excessive stickout can cause arc instability and porosity. Optimal **FCAW stickout** is vital.
Generally, **E71T-GS is not recommended for critical structural welds** or multi-pass applications where specific mechanical properties (especially impact toughness) are required. Its "GS" (General Single Pass) classification indicates its primary suitability for light gauge, non-critical repairs, and single-pass applications. Always consult code requirements for **structural welding filler metal** selection.
Flux-cored welding, especially self-shielded types, produces **significantly more fumes** than solid wire MIG welding. Therefore, **excellent ventilation** or a powered air-purifying respirator (PAPR) is crucial. Also, be aware of the intense UV light and heat, requiring full PPE including appropriate shade welding helmets. Prioritize **FCAW fume management**.
E71T-8 is chosen over E71T-11 when **better impact toughness and crack resistance** are required in self-shielded applications, particularly for multi-pass structural work. E71T-8 typically produces a quieter arc and less spatter than E71T-11, making it more welder-friendly for certain jobs. It's a higher-performance **self-shielded alternative**.
Deoxidizers (contained within the flux core) are critical for reacting with and removing oxygen from the molten weld pool, preventing porosity and improving weld soundness. They also help to tolerate surface contaminants like mill scale and rust, making FCAW very forgiving in fabrication environments. They are vital for **weld integrity** on typical shop steel.
While some specialized flux-cored wires are designed for pulsed applications, most standard E71T-1 and self-shielded wires are primarily used with **constant voltage (CV) power sources** in conventional spray or globular transfer. Pulsing with FCAW can be complex and may not offer the same benefits as with solid wires. Consult the manufacturer for **FCAW pulse compatibility**.
E71T-1 wires (both C and M variants) are used for welding **mild steels and some low-alloy steels**. This includes ASTM A36, A283, A516, A572, and similar grades used in structural, plate, and pressure vessel fabrication. Their versatility makes them suitable for a wide range of common carbon steels. They are ideal for **general steel construction**.
E71T-1 wires typically produce weld metal with a minimum tensile strength of 70 ksi (480 MPa) and a minimum yield strength of 58 ksi (400 MPa). They also offer good ductility and, depending on the specific wire and shielding gas, can achieve reasonable Charpy V-notch impact toughness at various temperatures. These define the **weld's performance envelope**.
The slag system, formed from the molten flux, plays a crucial role in supporting the molten weld puddle, especially in out-of-position welding. It acts like a "shelf" that helps hold the molten metal in place against gravity, enabling proper bead shape and penetration. This slag support is a key feature contributing to **FCAW's all-position capability**.
Preheating is generally **not required for mild steel applications** with these wires. However, it becomes necessary for welding thicker sections, higher carbon steels, certain low-alloy steels, or in very cold ambient temperatures to prevent hydrogen-induced cracking and reduce distortion. Always consult welding codes and procedures for **preheat requirements**.
Wire feed speed (WFS) directly controls the **amperage (heat input)** and the **deposition rate**. For flux-cored wires, too low a WFS can lead to an unstable arc, lack of fusion, and excessive slag. Too high can cause burn-through, poor bead shape, and increased spatter. Proper WFS is critical for a stable arc and high-quality welds. It's a fundamental **FCAW parameter**.
While E71T-11 is primarily designed for single-pass welds, it can sometimes be used for **limited multi-pass applications** on specific joint designs or if mechanical property requirements are not stringent. However, it's generally not the preferred choice for heavy multi-pass structural work due to potential issues with interpass cleaning and mechanical properties. For robust multi-pass self-shielded, **E71T-8 is often better**.
Using Ar/CO2 with E71T-1M typically results in a **smoother arc, less spatter, better bead appearance, and improved wetting** compared to E71T-1C with 100% CO2. Ar/CO2 also provides a more stable spray transfer, leading to higher deposition rates in flat/horizontal positions. However, 100% CO2 offers slightly deeper penetration. It's a trade-off in **FCAW arc characteristics**.
Most flux-cored wires (including all listed here) are designed to be used with a **Constant Voltage (CV) DC power source**. This provides a stable voltage regardless of small changes in arc length, allowing for consistent wire feed speed and a more stable arc, which is essential for FCAW's performance. It's the standard **FCAW machine requirement**.
The "T" in E71T-1 and similar classifications specifically refers to a **Tubular Electrode** or **Flux-Cored Wire**. It distinguishes these wires from solid wires (designated with "S") and covered stick electrodes (no letter after the strength). It describes the **physical construction of the welding consumable**.
E71T-GS is generally **not recommended for vertical up welding** or other out-of-position applications that require significant puddle support for multi-pass welds. While it can be used for single-pass vertical down, its "GS" (General Single Pass) classification implies it's best suited for flat or horizontal positions on thin material. For true all-position self-shielded, **E71T-8 or E71T-11 are better**.
General rules include: match the **tensile strength** to the base metal, consider the **base metal cleanliness** and tolerance to contaminants, determine if **external shielding gas** is feasible or if self-shielded is required, assess the importance of **impact toughness**, and weigh factors like deposition rate, spatter, and bead appearance. Always consult the **welding procedure specification (WPS)**.
The molten flux inside the wire forms a **slag layer** that floats on top of the molten weld pool. This slag serves several purposes: it **protects the cooling weld metal from atmospheric contamination** (oxygen and nitrogen), helps to **refine the weld metal** by absorbing impurities, and **shapes the bead**, especially in out-of-position welding. It's an integral part of **FCAW's protective mechanism**.
Yes, E71T-8, being a **self-shielded flux-cored wire**, is highly suitable for use in windy outdoor conditions where external shielding gas would be blown away. Its internal flux system provides all the necessary shielding for the weld pool, making it an excellent choice for field fabrication, construction, and adverse weather welding. It's ideal for **wind-prone welding environments**.
Impact toughness, measured by Charpy V-notch testing, indicates the weld metal's ability to absorb energy and resist brittle fracture, especially at low temperatures. For critical applications like structural components in cold climates or seismic zones, wires with guaranteed impact toughness (e.g., specific E71T-1M variants, E71T-8) are selected to ensure **weld integrity under dynamic loads**.
For flux-cored welding wires, **knurled U-groove drive rolls** are typically recommended. The knurled surface provides extra grip to push the relatively soft, tubular wire without deforming or crushing it, ensuring consistent feeding. This is crucial for reliable wire delivery in FCAW. They are essential **FCAW equipment components**.
Both E71T-1C and E71T-1M will produce moderate to high fume levels compared to solid wires, but typically **E71T-1C (100% CO2)** might produce slightly higher fume levels than E71T-1M with Ar/CO2, due to the more aggressive arc with pure CO2. In either case, adequate ventilation or fume extraction is always necessary. Managing **FCAW fume exposure** is important.
E71T-8 is commonly used for **structural steel fabrication**, heavy equipment repair, shipbuilding, and seismic applications where good strength, all-position capabilities, and improved toughness are needed in a self-shielded wire. It's often chosen for its reliability and relatively low spatter for a self-shielded wire. It's a go-to for **self-shielded heavy construction**.
Duty cycle is the percentage of a 10-minute period a welding machine can operate at its rated output without overheating. Flux-cored welding, especially at higher amperages, generates significant heat. Therefore, selecting a welding machine with an **adequate duty cycle** is crucial for sustained, productive FCAW operations, preventing equipment shutdown. It's vital for **FCAW machine selection**.
Rutile-type fluxes, found in E71T-1 wires, offer several benefits: **excellent arc stability**, a **smooth and soft arc**, **low spatter**, **good bead appearance**, and **easy slag removal**. They are known for their user-friendliness and ability to produce high-quality welds in various positions. They contribute to **FCAW weldability**.
Yes, E71T-1 wires can be used for welding galvanized steel. Considerations include **increased fume production** (zinc vapor), higher risk of **porosity**, and potentially less aesthetic welds. Proper ventilation is paramount. Techniques like slight weaving or using a little more heat can help burn off the zinc and minimize defects. It requires careful **galvanized steel welding technique**.
Travel speed is critical. Too slow a travel speed can lead to excessive heat input, a wide and convex bead, and potential for slag inclusions. Too fast can result in insufficient penetration, undercut, and a narrow, ropey bead. A consistent, moderately fast travel speed is usually ideal for optimal bead shape and fusion with FCAW. It directly influences **weld bead geometry and quality**.
E71T-GS achieves lower spatter than E71T-11 through specific refinements in its flux formulation, which contribute to a smoother arc and more controlled metal transfer. While still a self-shielded wire, its chemistry is optimized to minimize arc instability and explosive droplet transfer, resulting in a cleaner weld. It's part of its **single-pass performance optimization**.
Both types require **dry storage** to prevent moisture absorption, which can lead to porosity and cracking. However, self-shielded wires (E71T-11, E71T-GS, E71T-8) are often more sensitive to moisture and should be used relatively quickly once opened. Gas-shielded wires (E71T-1C/M) are also sensitive but rely on external gas for primary shielding. Proper **FCAW wire storage** is universal for quality.
It is generally recommended to use a **contact tip one size larger** than the wire diameter when welding with flux-cored wires (e.g., for 0.045" wire, use a 0.052" tip). This helps prevent burnback, accommodates the slightly larger wire diameter of flux-cored wire, and provides better electrical contact due to preheating in the tip. It's a crucial **FCAW contact tip selection guideline**.
Yes, **gas-shielded flux-cored wires (E71T-1C/M)** are widely used in robotic and automated welding applications due to their high deposition rates, good arc stability, and consistent performance. Self-shielded wires can also be used, but fume management and spatter control are bigger considerations for automation. They enable **high-productivity automated welding**.
The "heat number" or "lot number" provides **traceability** to the specific manufacturing batch, including its chemical composition, mechanical test reports, and quality control data. This is crucial for industries with strict quality assurance requirements, allowing for full documentation and compliance with welding codes. It ensures **material certification and quality assurance**.
Most flux-cored wires (including all listed) are designed to be used with **Direct Current Electrode Positive (DCEP)**, also known as reverse polarity. This configuration provides a stable arc, good penetration, and effective metal transfer for FCAW. Always confirm the recommended polarity on the wire's data sheet. It's the standard **FCAW polarity setting**.
FCAW typically operates in a **globular transfer mode**, where larger drops of molten metal transfer across the arc. This differs from the fine, continuous stream of droplets in MIG spray transfer. While some specialized FCAW wires can achieve a spray-like transfer with specific parameters, globular transfer is more common, contributing to FCAW's deep penetration and robust nature. It defines **FCAW metal transfer characteristics**.
For E71T-1, typical Charpy V-notch impact toughness requirements often specify a minimum of **20 ft-lbs (27 J) at 0°F (-18°C)**. However, specific wire variations (often designated with suffixes like -J for toughness) or particular welding codes may require higher toughness at lower temperatures (e.g., -20°F or -29°C). Always check the manufacturer's data sheet and applicable code. This is crucial for **low-temperature service**.
While E71T-GS is primarily for single-pass, it can *sometimes* be used for very shallow multi-pass welds on thin material if the heat input is carefully controlled and mechanical properties are not critical. However, its main strength is as a single-pass wire. For reliable multi-pass on thin, **gas-shielded E71T-1M/C might be better** or a more robust self-shielded wire like E71T-8. It depends on the **specific application and thickness**.
FCAW's deep penetration is beneficial for welding **thicker sections of mild and low-alloy steels** where full fusion and robust joints are required. This includes heavy structural components, pressure vessels, and thick plate fabrication. The deeper penetration helps ensure adequate tie-in and reduces the need for extensive joint preparation. It's a key advantage for **heavy gauge steel welding**.
E71T-8's specific slag system, which is a fast-freezing, globular type, enables it to support the molten weld puddle in all positions. The quick-solidifying slag acts as a shelf, preventing the molten metal from flowing out of the joint, making it a highly effective **all-position self-shielded wire** even for thicker materials. It's designed for **vertical and overhead control**.
For self-shielded wires (E71T-11, E71T-GS, E71T-8), maintaining the correct **electrode extension (stickout)** is even more critical than for gas-shielded wires. A longer stickout (typically 3/4" - 1 1/4" or 19-32mm) is often recommended as it allows the wire to preheat more, increasing deposition rates and improving penetration. Too short can lead to an unstable arc. It's a critical **parameter for self-shielded FCAW**.
A good E71T-1C/M weld bead typically has a **smooth, uniform profile**, consistent ripples, good tie-in at the toes, and a relatively low crown. The slag should be easy to remove. The appearance is generally aesthetically pleasing and comparable to solid MIG welds, making it a popular choice for visible applications. It's characterized by **clean, consistent welds**.
E71T-11 and E71T-GS are typically limited to single-pass applications due to their flux formulations, which may not consistently provide the necessary mechanical properties (especially toughness) or proper interpass cleaning characteristics for multi-pass welds, particularly on thicker materials. The cumulative effect of multiple passes can sometimes lead to reduced properties. They are optimized for **single-pass efficiency**.
Common joint preparations include **square butt joints** (for thinner materials), **V-grooves** (for most thickness ranges), and **single- or double-bevel/J/U-grooves** for thicker sections. Due to FCAW's deep penetration, less extensive beveling may be required compared to other processes. Proper cleaning, though less critical than for solid wire, is still recommended for optimal results. They simplify **joint geometry for heavy sections**.
An incorrect wire feed speed (WFS) can significantly impact spatter levels. Too low a WFS can lead to an unstable arc and more spatter, while too high can also cause spatter and feeding issues. Optimizing WFS along with voltage is key to minimizing spatter with all flux-cored wires, but especially with the more prone self-shielded types. It's a key factor for **spatter control**.
While these wires are primarily for mild and low-alloy steels, they can sometimes be used on **high-carbon steels with careful preheating and post-weld heat treatment** to prevent hydrogen-induced cracking and manage the heat-affected zone. However, for true high-carbon steels, specialized low-hydrogen filler metals are often preferred. Always consult a metallurgist for **high-carbon steel welding**.
The external gas shielding (CO2 or Ar/CO2) provides a blanket of inert or semi-inert gas around the arc and weld pool, protecting it from atmospheric contamination (oxygen and nitrogen). This combines with the internal fluxing agents to provide comprehensive protection, leading to cleaner welds, better mechanical properties, and reduced spatter compared to self-shielded wires. It's essential for **weld purity and consistency**.
E71T-1C/M (gas-shielded) typically produces a **thin, easily removable, often glassy or powdery slag**. Self-shielded wires (E71T-11, E71T-GS, E71T-8) generally produce a **thicker, often more tenacious slag** that may be harder to remove, often with a darker, more textured appearance. The slag characteristics are dictated by the flux formulation. It influences **post-weld cleanup effort**.
E71T-8 offers significant advantages in field applications due to its **excellent all-position performance** on thicker materials, good arc stability, and improved toughness compared to E71T-11. Its lower spatter and smoother bead also make it more appealing for general field work where quality is paramount but gas cylinders are impractical. It’s a reliable **field-welding workhorse**.
**No, E71T-1C and E71T-1M are not interchangeable**, even if the shielding gas is changed. Their internal flux formulations are specifically balanced to work optimally with either 100% CO2 or Ar/CO2 mixtures. Using the wrong wire with the wrong gas can lead to poor arc stability, excessive spatter, porosity, poor bead shape, and degraded mechanical properties. Always match the **wire's 'C' or 'M' designation to the gas**.
For E71T-GS, you can go quite thin, down to 20-22 gauge (0.8mm-0.6mm) in single pass. For E71T-11, perhaps 18 gauge (1.2mm). For E71T-1C/M and E71T-8, usually around **1/8 inch (3.2mm) is a good starting point for multi-pass**, though thinner material can be welded in single pass with proper technique and smaller wire diameters. The minimum thickness depends on the specific wire and **welding position/technique**.
Rutile-type fluxes (like E71T-1) are known for their ease of use, smooth arc, and good bead appearance. **Basic fluxes** (e.g., E70T-5) provide superior toughness and are used for critical structural work but have a less stable arc and more difficult slag removal. **Metal-cored wires** (e.g., E70C-6) contain metallic powders, offering high deposition rates, low slag, and excellent mechanical properties, often for robotic welding. Each has a distinct **flux-core chemistry and performance profile**.
Store flux-cored wire spools in a **dry, climate-controlled environment**, ideally in their original sealed packaging. Once opened, they should be used quickly or stored in a sealed, dehumidified cabinet to prevent moisture absorption. Moisture contamination leads to hydrogen generation, causing **porosity and cracking**. Proper **FCAW wire care** is essential.
Yes, E71T-GS is suitable for **horizontal fillet welds** on light gauge material in a single pass. Its good wetting action and controlled puddle make it effective for this position. However, ensure the application is non-critical and meets the "General Single Pass" limitations of the wire. It's a capable wire for **light horizontal welding**.
These wires are covered by various welding codes, including **AWS D1.1 (Structural Welding Code – Steel)**, **AWS D1.3 (Structural Welding Code – Sheet Steel)**, **AWS D1.5 (Bridge Welding Code)**, and **AWS D1.6 (Structural Welding Code – Stainless Steel)** (though these are for mild steel, principles apply). For pressure vessels, ASME Boiler and Pressure Vessel Code Section IX applies. Adherence to **welding code requirements** is paramount.
Typical parameters vary significantly with wire diameter, welding position, and desired deposition rate. However, for a 0.045" E71T-1C/M wire, common ranges might be: **Voltage:** 22-28V, **Amperage:** 150-280A, **Wire Feed Speed:** 200-450 IPM. Always consult the specific **wire manufacturer's data sheet** for precise recommendations, as parameters are crucial for optimal performance.
The "flat-out" or high-deposition rate capability of flux-cored wires, particularly in flat and horizontal positions, significantly **increases productivity** in manufacturing. By running at high amperages and wire feed speeds, welders can lay down more weld metal faster, reducing arc time and overall fabrication costs. It's a major advantage for **high-volume fabrication**.
While technically possible in some limited circumstances, using E71T-11 for multi-pass on thicker materials is **generally not recommended** for critical applications. The mechanical properties, especially toughness, can be significantly reduced in multi-pass welds with E71T-11 due to its simplified flux system. For robust multi-pass self-shielded, **E71T-8 is a far better choice**.
Inadequate shielding gas coverage for E71T-1C/M wires will lead to severe weld defects, primarily **porosity** (due to atmospheric contamination), an **unstable arc**, **excessive spatter**, and compromised mechanical properties. It's crucial to maintain proper gas flow, ensure no drafts, and use a large enough nozzle. It's a common cause of **FCAW weld defects**.
For welding in cold weather, especially with self-shielded wires, ensure the base metal is preheated (if required by code/thickness) to prevent hydrogen-induced cracking. Ensure the wire itself is not too cold, as this can affect feeding. Maintain proper electrode extension and watch for drafts with gas-shielded wires. It's critical for **cold weather welding practices**.
E71T-8 typically offers a **quieter, smoother arc** with less spatter compared to E71T-11, which is known for its more aggressive and often "crackling" arc. This difference is due to the more refined flux formulation of E71T-8, making it more user-friendly for continuous operation and resulting in a cleaner weld area. It's a major improvement in **self-shielded arc quality**.
Slag should be removed using a **chipping hammer** to break it away, followed by a **wire brush** to clean any remaining residue. It's important to remove all slag between passes to prevent inclusions and ensure proper fusion of subsequent layers. For multi-pass welds, thorough interpass cleaning is critical for **weld integrity and strength**.
While some welders may attempt it, flux-cored wires are generally **not ideal for open-root passes** where full penetration and a smooth root bead are critical, especially in pipe welding. The slag can be difficult to control on the back side, leading to inclusions or suck-back. For open roots, stick welding (SMAW) or TIG welding (GTAW) are typically preferred for better root control. Consider **root pass specific consumables**.
Current (amperage) directly controls the **heat input and penetration**. Too low a current results in cold lap, lack of fusion, and insufficient penetration. Too high a current can lead to burn-through, excessive spatter, and poor bead shape. Flux-cored wires generally operate at higher amperages than solid wires for a given wire diameter. Proper **FCAW amperage settings** are crucial.
E71T-1M with Ar/CO2 generally offers **smoother arc characteristics and a more controllable puddle** than E71T-1C with 100% CO2, making it slightly easier to manage in out-of-position welding. The reduced spatter and better wetting also contribute to a cleaner, more consistent weld bead, especially in vertical up. It provides **enhanced control for non-flat positions**.
To maximize FCAW's benefits, common joint designs often include **narrower groove angles** compared to solid wire or stick welding, thanks to its deep penetration. This reduces the amount of filler metal required. **Square butts** for thinner materials and **single- or double-bevel/V-grooves** for thicker sections are common. These designs take advantage of **FCAW's penetration capabilities**.
Using too small a wire diameter for the material thickness can lead to **insufficient penetration**, a narrow and weak weld bead, and difficulty in filling the joint adequately in multi-pass applications. It also limits the achievable deposition rate, slowing down productivity on thicker sections. Matching **wire diameter to material thickness** is crucial.
Hydrogen content in the weld metal is critical as high levels can lead to **hydrogen-induced cracking (HIC)**, particularly in susceptible steels. Flux-cored wires are designed to produce low hydrogen welds through their fluxing agents. Proper storage (to prevent moisture pickup) is essential to maintain low hydrogen levels and prevent **cold cracking**.
Yes, these wires, particularly E71T-1C/M and E71T-8, are highly suitable for **repair welding of machinery and heavy equipment**. Their ability to tolerate dirty surfaces, provide deep penetration, and offer all-position capabilities makes them ideal for on-site repairs and maintenance in demanding environments. They are robust **repair welding solutions**.
Both E71T-11 and E71T-GS meet the minimum 70 ksi tensile strength. However, E71T-GS, being optimized for single pass, may have more variable toughness properties, and is generally not tested for impact toughness. E71T-11 typically offers better, more consistent mechanical properties for multi-pass compared to E71T-GS, but usually still lower than E71T-8. The specific **toughness characteristics vary**.
Higher deposition rates in flux-cored wires are due to several factors: the **tubular design** allowing more active material per unit length, the ability to use **higher amperages** and stickouts (preheating the wire), and the generally **faster melting characteristics** of the wire. This makes them highly productive for **high-volume welding**.
Undercut is a groove melted into the base metal adjacent to the weld toe that is not filled by weld metal. It reduces the effective thickness of the base metal and acts as a stress concentrator. To avoid it, ensure proper voltage/amperage settings, maintain correct travel speed, and use appropriate gun angles. It's a common **weld defect to prevent**.
Yes, E71T-1C/M wires are frequently used for **welding pressure piping**, particularly in the power generation, chemical, and oil & gas industries, provided they meet the specific code requirements (e.g., ASME B31.1, B31.3). Their all-position capability and good mechanical properties make them suitable, but strict quality control is essential. They are a reliable choice for **process piping fabrication**.
Welding in confined spaces with any of these wires requires **rigorous ventilation and fume extraction** due to the buildup of welding fumes. Self-shielded wires, producing higher fumes, demand even more attention. Proper respiratory protection (e.g., PAPR) is often mandatory. Safety is paramount in **confined space welding**.
FCAW slag is generally **less voluminous and easier to remove** than the slag produced by many SMAW electrodes. While both protect the weld, SMAW electrodes rely solely on their external flux, producing a thicker, sometimes more tenacious slag. FCAW combines external gas (for gas-shielded) or internal gas from the flux, with a tailored slag system. They differ in **slag characteristics and removal ease**.
Voltage controls the **arc length and the shape of the weld bead**. Too low a voltage results in a stiff, short arc, leading to a narrow, convex bead and potential stubbing. Too high a voltage creates a long, "floppy" arc, resulting in a wide, flat, and often porous bead with excessive spatter. Proper **voltage settings** are essential for a stable arc and good bead profile.
Both E71T-8 and E71T-11 are self-shielded wires and thus sensitive to moisture pickup, which can lead to porosity. However, some E71T-8 formulations may have slight improvements in moisture resistance through their flux chemistry, but proper dry storage is still paramount for both. Any exposure to humidity will degrade performance for **hydrogen control in self-shielded wires**.
FCAW generally requires a **robust wire feed unit** capable of handling the larger diameter and often stiffer flux-cored wires. Features like knurled drive rolls (as mentioned before), a powerful motor, and a smooth liner are essential for consistent wire delivery. The wire feeder must be able to push the wire through the gun without kinking or birdnesting. They demand **reliable wire feeding systems**.
Yes, these flux-cored wires are very suitable for **joining dissimilar metal thicknesses** due to their excellent penetration capabilities and ability to bridge gaps. When welding different thicknesses, adjust heat input to favor the thicker piece, allowing for proper fusion without burning through the thinner section. They offer flexibility for **unequal thickness welding**.
Welding position heavily influences wire selection. E71T-1 (gas-shielded) and E71T-8 (self-shielded) are designed for **all-position welding**, making them highly versatile. E71T-GS, however, is generally limited to **flat and horizontal positions** (and vertical down for single pass) due to its more fluid puddle and single-pass nature. Matching the wire to the required **welding position** is critical for success.
Flux-cored wires generally have **higher deposition efficiencies** (the percentage of wire that becomes deposited weld metal, typically 80-90%) compared to stick electrodes (SMAW, often 60-70%). This higher efficiency, combined with high deposition rates, makes them very productive for industrial welding, reducing material waste and improving overall output. It's a key factor in **welding economics**.
For outdoor structural work, if wind is an issue, self-shielded wires are best. However, if gas shielding is maintained, E71T-1C in 100% CO2 offers **deeper penetration** and can be more forgiving on surfaces with scale, making it robust for heavy outdoor structural steel. E71T-1M in Ar/CO2 provides a smoother arc and less spatter, which can be advantageous in less windy conditions or where cosmetics matter more. It's a balance of **penetration vs. arc quality outdoors**.
Gas-shielded wires (E71T-1C/M) generally produce a **smoother, cleaner, and more aesthetically pleasing bead** with relatively easy slag removal. Self-shielded wires, especially E71T-11, tend to produce a **rougher, more convex bead** with more spatter and often a more tenacious, darker slag. E71T-GS offers a somewhat smoother finish for a self-shielded wire, while E71T-8 falls in between, being cleaner than E71T-11. It's about **weld aesthetics and cleanup effort**.
Choose **E71T-1 (C or M)** if you have access to shielding gas, prioritize **lower fumes, less spatter, better bead appearance, and potentially higher impact toughness** for critical structural work. Choose **E71T-8** if you need the **portability and flexibility of self-shielded** (e.g., outdoor, windy conditions, or no gas access), while still requiring good all-position structural performance and improved toughness over E71T-11. It's a fundamental choice between **gas vs. self-shielded FCAW**.
For E71T-1C/M, maintaining proper gas flow is crucial. Too low a flow rate leads to inadequate shielding and porosity; too high can cause turbulence, drawing in atmospheric contaminants, or waste gas. Factors include hose integrity, proper regulator settings, and protection from drafts in the welding area. It's vital for **FCAW gas efficiency and weld quality**.
Detailed specifications, including chemical composition limits, mechanical properties, typical applications, and recommended welding parameters, can be found in the **AWS A5.20 standard (Specification for Carbon Steel Electrodes for Flux Cored Arc Welding)**. Additionally, reputable wire manufacturers provide comprehensive data sheets (Technical Data Sheets - TDS) for each of their products, which are invaluable resources for welders and engineers. Always consult these **official welding standards** for precise information.
