Understanding these challenges is the first step to successful aluminum welding:
- **Oxide Layer:** Aluminum quickly forms a tough, high-melting-point oxide layer (Al2O3) that melts at around 3,700°F (2,038°C), while the base aluminum melts at a much lower 1,220°F (660°C). This must be broken up for proper fusion.
- **High Thermal Conductivity:** Aluminum conducts heat rapidly away from the weld zone. This means it requires significantly more heat input than steel of comparable thickness and can lead to rapid cooling and distortion.
- **No Color Change (until melting):** Unlike steel, aluminum does not glow red as it heats up, making it harder for welders to gauge temperature and know when the metal is about to melt.
- **Softness and Wire Feeding:** Aluminum welding wire is very soft and easily kinks or bird-nests, especially in MIG setups.
- **Porosity:** Highly susceptible to porosity due to hydrogen absorption from moisture or hydrocarbons.
- **Hot Cracking:** Some aluminum alloys are prone to hot cracking during solidification if improper filler metals are used or cooling is too rapid.
---
The two most prevalent and effective methods for welding aluminum are:
- **Process:** Uses a non-consumable tungsten electrode to create the arc and a separate **TIG filler rod** is manually added to the weld puddle. Shielding gas (pure Argon) protects the arc and puddle.
- **Strengths:** Offers superior control over heat input and filler material, producing very clean, precise, and aesthetically pleasing welds. Ideal for thin materials, critical applications, and high-quality finishes.
- **Typical Power Source:** Most commonly uses **AC (Alternating Current)**. The AC current's positive half-cycle helps to "clean" or break up the tenacious oxide layer, while the negative half-cycle provides penetration.

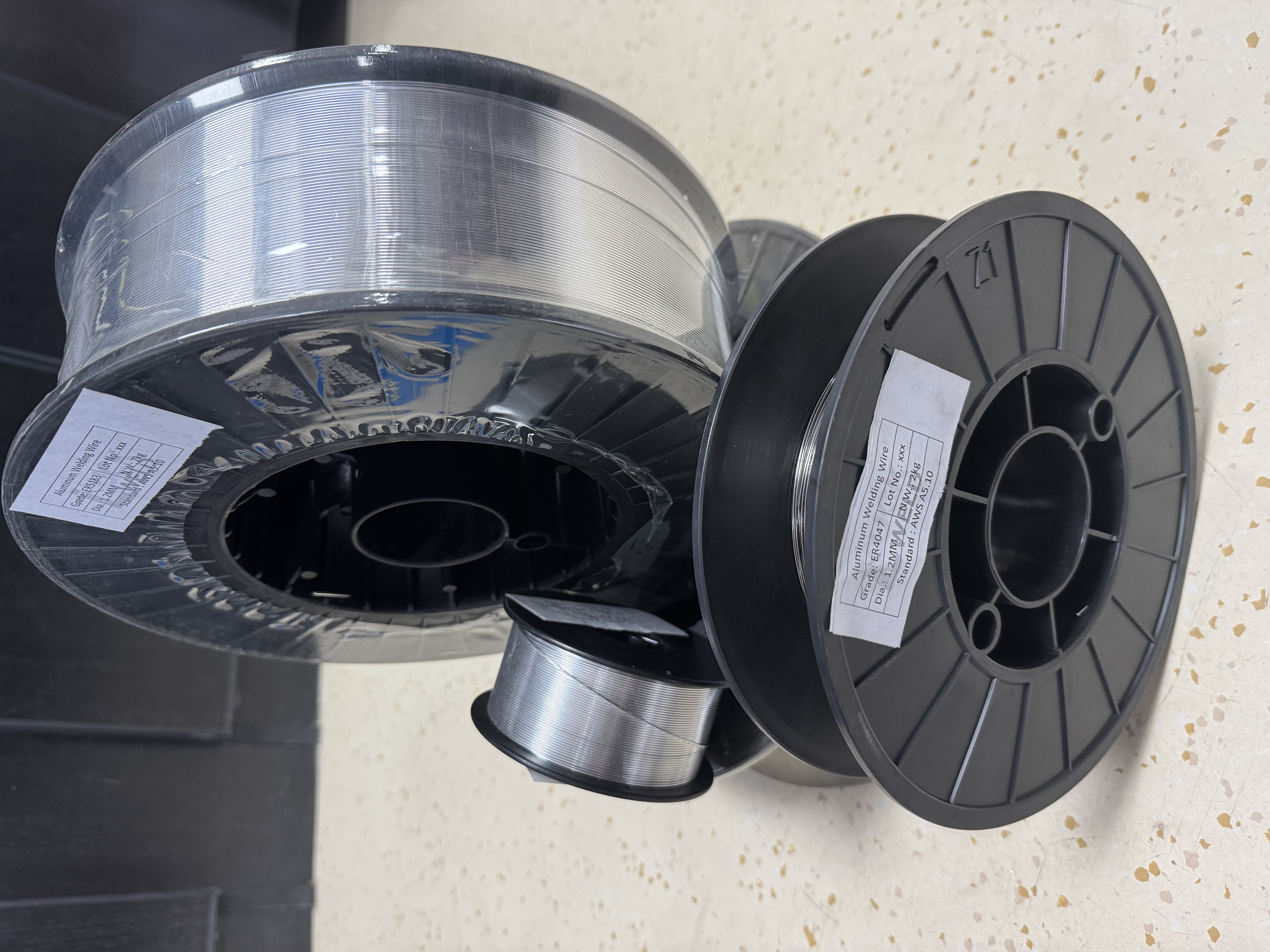

- **Process:** Uses a continuously fed **MIG welding wire** that acts as both the electrode and filler material. Shielding gas (pure Argon) protects the arc and puddle.
- **Strengths:** Offers higher deposition rates and faster travel speeds, making it more productive for thicker materials and longer welds. Generally easier to learn than TIG.
- **Typical Power Source:** Always uses **DC (Direct Current) electrode positive (DCEP)**. Requires specialized equipment for feeding the soft aluminum wire.
---
Proper preparation is paramount and often overlooked:
- **1. Mechanical Cleaning:** Use a **stainless steel wire brush** (NEVER one used for steel) to mechanically remove the surface oxide layer. Brush lightly in one direction only to avoid embedding oxides or contaminants.
- **2. Chemical Cleaning (Optional but Recommended):** For critical applications or heavily oxidized material, clean the weld joint with an aluminum-specific degreaser or acetone to remove oils, grease, and dirt. Let it fully evaporate.
- **3. Joint Design:** Prepare joints with appropriate bevels or gaps to ensure full penetration and access to the weld area.
- **4. Fit-Up:** Ensure a tight fit-up to minimize distortion and provide consistent joint geometry.
- **5. No Contamination:** Keep the weld area meticulously clean. Wear clean gloves and avoid touching the prepared surfaces.
---
- **Mandatory:** Always use **100% pure Argon** shielding gas. Mixed gases (like Argon/CO2 for steel) will cause severe porosity and poor weld quality in aluminum.
- **Gas Flow:** Ensure adequate gas flow rates, typically higher for aluminum than steel, to properly shield the puddle and prevent atmospheric contamination.
- **Purpose:** Due to aluminum's high thermal conductivity, preheating thicker sections (generally 1/4 inch / 6mm and above) is crucial to prevent hot cracking, reduce distortion, and ensure adequate fusion.
- **Temperature:** Preheat typically to 250-350°F (120-175°C). Use temperature crayons or an infrared thermometer to verify.
- **Even Heat:** Apply preheat evenly across the joint area.
- **Matching Alloys:** Choose the filler metal that's compatible with your base metal(s). Common choices include:
- **ER4043:** High silicon content. Excellent for welding 6xxx series alloys (e.g., 6061, 6063) and most aluminum casting alloys. Provides good fluidity and crack resistance.
- **ER5356:** Magnesium-rich. Preferred for 5xxx series alloys (e.g., 5052, 5083) and often used for welding 6xxx series when higher strength or better color match after anodizing is desired.
- **Check Compatibility Charts:** Always consult filler metal manufacturer charts for the best match for your specific base alloys.
- **Push Angle (Recommended):** For both MIG and TIG aluminum, a slight **push angle** (torch angled in the direction of travel) is generally preferred. This helps to clean the puddle, spread the heat, and improve bead appearance.
- **Travel Speed:** Maintain a consistent, relatively fast travel speed to minimize heat input and prevent excessive puddle sag or burn-through, especially on thinner materials.
---
- **AC Balance:** Crucial for controlling the oxide cleaning action (AC+) versus penetration (AC-). Adjust the balance setting on your AC TIG welder to achieve a clean-looking puddle with minimal black soot.
- **AC Frequency:** Higher AC frequency (e.g., 120-200 Hz) narrows the arc, improves arc stability, and provides better directional control, which is excellent for thin materials or detailed work.
- **Pure Tungsten (Green):** Traditionally used for AC welding, forms a balled tip. Less common now.
- **Zirconiated (Brown), Lanthanated (Black/Gold/Blue), or Ceriated (Grey/Orange):** More common and versatile, offering good arc stability and longevity. Sharpen to a slight taper, and the arc will slightly ball the end.
- **Tip Preparation:** Grind tungsten electrodes to a conical shape for precise arc control.
- **Short Arc Length:** Maintain a very short arc length (e.g., 1/16" - 1/8") for maximum heat concentration and arc stability.
- **Rhythmic Feeding:** Develop a consistent rhythm for manually dipping the filler rod into the leading edge of the puddle. Avoid withdrawing the hot filler rod from the gas shield.
---
- **Spool Gun or Push-Pull Gun:** These are almost mandatory for reliable aluminum MIG welding, especially with smaller diameter wires. They significantly reduce the distance the soft aluminum wire is pushed, preventing bird-nesting.
- **U-Groove Drive Rollers:** Use drive rollers with a "U" shape (not "V") to cradle the wire and prevent deformation.
- **Teflon or Nylon Liner:** Replace your standard steel liner with a low-friction Teflon or nylon liner (often colored red or white) for smooth wire feeding.
- **Aluminum-Specific Tips:** Use contact tips designed for aluminum. These are often made of a harder copper alloy and have a slightly larger internal diameter than steel tips for the same wire size to allow for thermal expansion and reduce burn-back.
- **Regular Replacement:** Replace contact tips frequently, as they wear faster with aluminum wire.
- **Recommended:** Aluminum MIG welding typically operates in the **spray transfer mode**. This requires higher voltage and wire feed speed settings to create a smooth, spatter-free transfer of molten droplets across the arc.
- **Clean, Smooth Arc:** Listen for a consistent "hiss" indicating spray transfer.
Mastering aluminum welding requires patience and attention to detail. By meticulously preparing your material, selecting the right equipment and consumables, and applying the correct techniques, you can overcome the challenges and consistently achieve strong, high-quality aluminum welds in your **aluminum fabrication** projects.
