Common Aluminum Welding Defects And Their Causes

What are the most common defects encountered in aluminum welding?

The most prevalent defects in aluminum welds typically include:
   - **Porosity**
   - **Cracking (Hot Cracking / Solidification Cracking)**
   - **Distortion**
   - **Lack of Fusion / Incomplete Penetration**
   - **Undercut / Burn-through**
   - **Wire Feeding Issues** (more a process problem than a weld defect, but a major cause of other defects)

---

Why is Porosity so common in aluminum welding, and how can I prevent it?

**Porosity** (small holes or voids in the weld metal) is arguably the most frequent and frustrating defect in aluminum welding, primarily caused by hydrogen contamination.

Causes of Porosity:

• **Hydrogen Contamination:** Aluminum readily absorbs hydrogen when molten, but as it solidifies, its solubility for hydrogen dramatically decreases. The trapped hydrogen then forms bubbles, leading to porosity. Sources of hydrogen include:
             - **Moisture:** From the atmosphere, on the base metal (e.g., condensation), or in the shielding gas.
             - **Hydrocarbons:** Oil, grease, paint, cutting fluids, or even fingerprints on the base metal or filler wire.
             - **Hydrated Oxides:** The tenacious aluminum oxide layer can absorb moisture from the air.

• **Insufficient Shielding Gas Coverage:** If the weld puddle isn't adequately protected from the atmosphere, oxygen and nitrogen can also contribute to porosity or other defects. This can be due to:
             - **Too low gas flow rate.**
             - **Wind or drafts** blowing away the shielding gas.
             - **Incorrect nozzle size** or damaged nozzle.
             - **Leaking gas lines or connections.**

• **Contaminated Filler Wire:** The surface of aluminum filler wire must be exceptionally clean. Oxidation or dirt on the wire can introduce contaminants and lead to porosity.

• **Improper Welding Parameters:**
             - **Too fast travel speed:** Doesn't allow gases to escape.
             - **Too low voltage/amperage:** Insufficient heat to keep the puddle molten long enough for gases to escape.

Prevention of Porosity:

- **Rigorous Cleaning:** The most crucial step. Mechanically brush the joint area with a dedicated **stainless steel wire brush** (never used for steel) just before welding. Chemically degrease with acetone or an aluminum-specific cleaner.
   - **Proper Shielding Gas:** Use **100% pure Argon** and ensure adequate flow rate. Protect the weld from drafts.

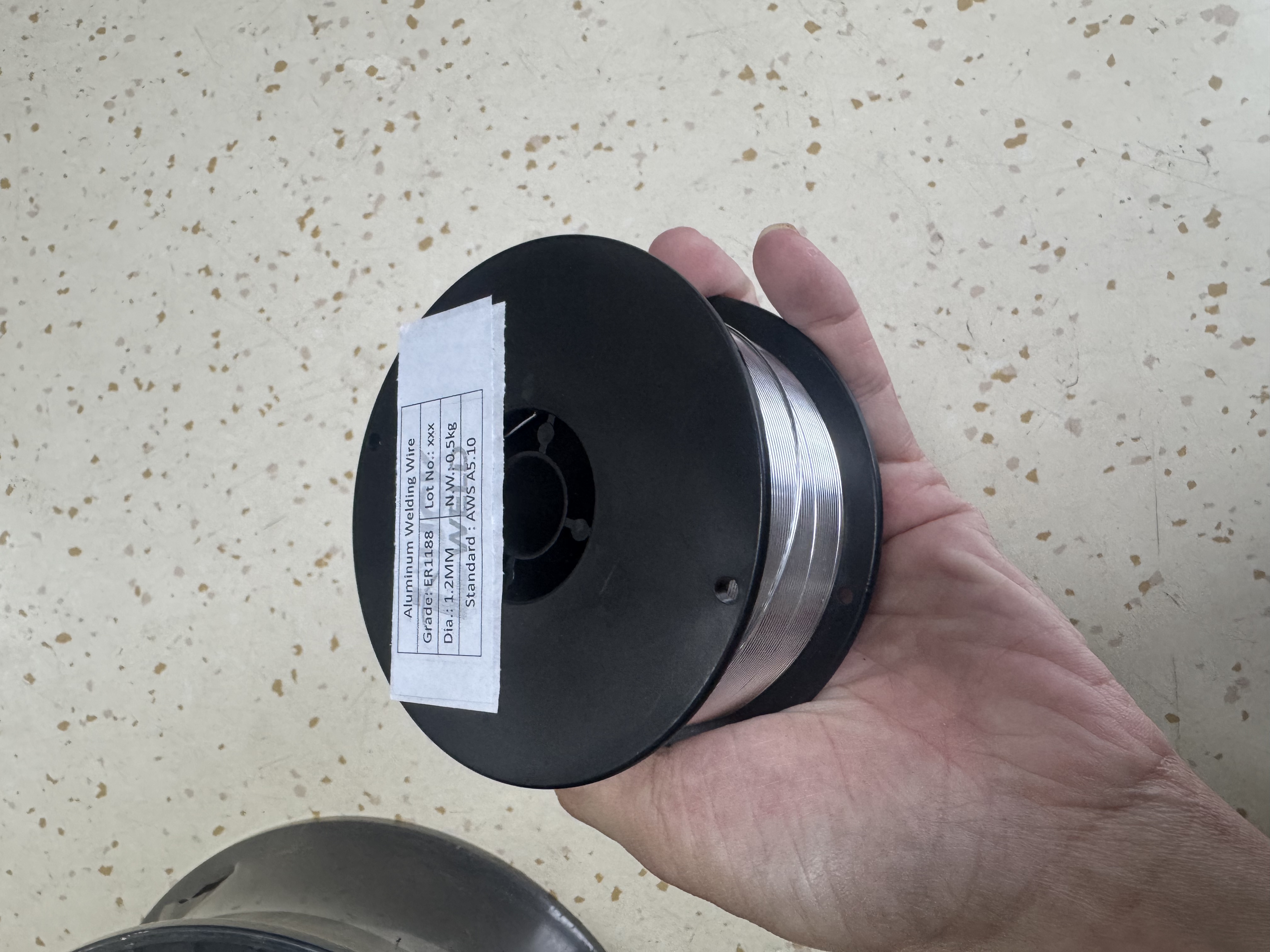

   - **Quality Filler Wire:** Use clean, properly stored aluminum welding wire.
   - **Preheating:** For thicker sections, preheating can help keep the puddle molten longer, allowing gases to escape.
   - **Optimize Parameters:** Adjust WFS and voltage for good puddle fluidity and allow gases to escape.

---

What causes Cracking in aluminum welds, especially Hot Cracking?

**Cracking**, particularly **hot cracking** (or solidification cracking), occurs during the solidification of the weld metal or heat-affected zone (HAZ).

Causes of Cracking:

• **Incompatible Filler Metal:** This is the leading cause. Some aluminum alloys are highly susceptible to hot cracking if the filler metal does not have sufficient alloying elements (e.g., silicon or magnesium) to bridge the solidification shrinkage range.
             - **Example:** Welding 6xxx series alloys with an ER5356 filler might be more crack-sensitive than using an ER4043 filler due to the 4043's silicon content, which helps counteract shrinkage.

• **High Restraint:** Excessive clamping or joint restraint prevents the weld metal from shrinking freely as it cools, inducing tensile stresses that can cause cracking.

• **Improper Joint Design:** Poor joint preparation or fit-up can lead to stress concentrations or insufficient fill volume, increasing cracking risk.

• **Excessive Heat Input / Improper Travel Speed:** Too much heat input or very slow travel speeds can create a large, slow-cooling weld puddle that's more susceptible to cracking.
         Conversely, too rapid cooling can also contribute to cracking in some alloys.

• **Contamination:** Contaminants can create brittle phases in the weld metal.

Prevention of Cracking:

- **Correct Filler Metal Selection:** Always use a **filler metal recommended for your specific base alloy(s)**, often **ER4043** for 6xxx series and casting alloys due to its silicon content, or **ER5356** for 5xxx series. Consult filler metal compatibility charts.
   - **Preheating:** For thicker sections or crack-sensitive alloys, preheating can reduce the cooling rate and internal stresses.
   - **Reduce Restraint:** Design fixtures to allow for some movement, or sequence welding to minimize accumulated stress.
   - **Optimize Parameters:** Use sufficient current for penetration but avoid excessive heat input. Aim for consistent travel speed.
   - **Crater Fill:** For TIG welding, use a proper crater fill technique to prevent crater cracks (a common type of hot crack).

---

Why does Distortion occur in aluminum welding, and how can it be minimized?

**Distortion** is the warping or bending of the workpiece due to uneven heating and cooling during welding. Aluminum is highly susceptible due to its high thermal expansion coefficient.

Causes of Distortion:

• **High Thermal Expansion/Contraction:** Aluminum expands and contracts significantly more than steel for a given temperature change.

• **High Heat Input:** Excessive heat input into the weld joint causes more material to expand, leading to greater contraction and distortion upon cooling.

• **Improper Welding Sequence:** A poor sequence can build up stresses unevenly.

• **Insufficient Clamping/Fixturing:** Lack of proper restraint allows the material to warp freely.

Prevention of Distortion:

- **Minimize Heat Input:** Use the fastest practical travel speed and appropriate amperage. Consider **pulsed MIG** or **pulsed TIG** for better heat control.
   - **Intermittent Welds/Back-Stepping:** Use tack welds, skip welding techniques, or back-stepping to distribute heat and stress.
   - **Proper Fixturing:** Use robust clamps and fixtures to hold the workpiece securely during welding.
   - **Pre-bending/Pre-setting:** Sometimes, pre-bending components in the opposite direction of anticipated distortion can help.

---

What causes Lack of Fusion or Incomplete Penetration?

**Lack of fusion** (weld metal not bonding to the base metal or previous pass) and **incomplete penetration** (weld metal not fully extending through the joint) are critical structural defects.

Causes:

• **Insufficient Heat Input:** Too low amperage or voltage, or too fast travel speed, prevents the base metal from melting sufficiently for proper fusion.

• **Thick Oxide Layer:** The high-melting-point oxide layer acts as a barrier, preventing proper fusion if not adequately removed or broken up (especially in TIG welding).

• **Improper Joint Design:** A narrow groove or lack of root opening can prevent the arc from reaching the bottom of the joint.

• **Incorrect Electrode Angle:** Improper torch angle can cause the arc to wander or not effectively melt both sides of the joint.

• **Too Large Wire/Rod:** Using an excessively large filler metal can quench the puddle.

Prevention:

- **Optimize Parameters:** Ensure adequate amperage/voltage and appropriate travel speed to achieve a molten puddle that wets out properly.
   - **Thorough Cleaning:** Always clean the aluminum oxide layer before welding.
   - **Proper Joint Preparation:** Use appropriate bevels and root openings for the material thickness.
   - **Correct Technique:** Maintain proper torch angle and manipulation to ensure both sides of the joint melt evenly.

While aluminum welding can be challenging, a thorough understanding of these common defects and their causes, coupled with diligent preparation and precise technique, will significantly improve your **aluminum fabrication** success rates and the quality of your welds.
