Views: 0 Author: Site Editor Publish Time: 2025-09-07 Origin: Site
"ER" stands for Electrode Rod, indicating it's a bare wire for Gas Metal Arc Welding (GMAW or MIG) or Gas Tungsten Arc Welding (GTAW or TIG). "70" denotes the minimum tensile strength of the weld metal in kilopounds per square inch (ksi), so 70 ksi. "S" means solid wire, and the suffix (e.g., -6, -3, -G) indicates its chemical composition and deoxidizing capabilities. This is the bedrock of **carbon steel MIG wire classification**.
ER70S-6 is arguably the most common and versatile **MIG welding wire for general fabrication**. It's a mild steel wire with deoxidizers (manganese and silicon) that provide good wetting action, a smooth bead, and excellent tolerance to mill scale and rust. It's widely used for automotive, structural steel, and general repair, offering solid mechanical properties and high deposition rates. It's the go-to for **all-position welding**.
ER70S-3 contains slightly less manganese and silicon compared to ER70S-6, giving it fewer deoxidizers. This means ER70S-3 requires cleaner base metal for optimal performance and is less tolerant of rust or mill scale. While suitable for general purpose welding on clean surfaces, **ER70S-6 is more forgiving** in real-world fabrication environments due to its superior deoxidizing properties. Choose based on **base metal cleanliness**.
ER70S-2 contains even more deoxidizers (manganese, silicon, and titanium/aluminum/zirconium) than ER70S-6. This makes it exceptionally good for welding on rusty, dirty, or lightly oily base metals, minimizing porosity. It's particularly useful for **single-pass welding** and situations where base metal preparation is challenging, though it typically has a slightly lower deposition rate than ER70S-6. It's the most forgiving **deoxidized mild steel wire**.
The "G" in ER70S-G (or ER80S-G, ER90S-G, ER100S-G) signifies that it's a **"general" or "general purpose" classification** and that its exact chemical composition is not specified by AWS, only its mechanical properties. Manufacturers typically formulate ERxxS-G wires to meet specific requirements (e.g., impact toughness, specific service conditions) not fully covered by other standard classifications. It's often a proprietary formulation designed for unique applications or to perform well in specific applications like **pipe welding or specific joint designs**.
Essentially, yes, in many contexts. **ER50-6** is the newer classification under the **AWS A5.18M specification (Metric version)**, replacing the older ER70S-6 designation. Both refer to the same type of mild steel solid wire with excellent deoxidizing properties. The "50" in ER50-6 denotes a minimum tensile strength of 500 MPa (approximately 72.5 ksi), making it largely equivalent in performance to ER70S-6. Always check the specific standard (Imperial vs. Metric) but they are functionally interchangeable for **general mild steel MIG welding**.
These classifications indicate **higher tensile strength** wires. They are used for welding higher strength carbon steels or certain low-alloy steels where the weld joint needs to match or exceed the strength of the base metal. The "80", "90", and "100" denote 80 ksi, 90 ksi, and 100 ksi minimum tensile strength, respectively. The "G" indicates their specific formulation is not rigidly defined by AWS but designed for specific applications, often in **heavy fabrication, pressure vessels, or structural components** requiring enhanced strength and toughness.
Yes, these are European classifications, primarily under the **ISO 14341 standard (Welding consumables - Wire electrodes and deposits for gas shielded metal arc welding of non alloy and fine grain steels)**.
**SG2** is broadly equivalent to ER70S-6.
**G3Si1** is a common specific chemical composition within the SG2 classification, similar to ER70S-6.
**SG3** refers to a higher silicon content wire, often providing even better deoxidation and wetting, sometimes considered an enhanced version of SG2 or ER70S-6.
**G4Si1** indicates an even higher silicon content, which typically offers superior wetting and deoxidation properties, similar to what you'd expect from a high-performance ER70S-6 variant.
These European classifications focus more on the chemical composition and less on fixed mechanical strength ranges in their primary designation. They are essential for **international welding standards compliance**.
"Giantweld" is likely a **brand name or a proprietary product line** from a specific welding consumable manufacturer. It's not an AWS or ISO classification but rather a trade name for a specific MIG welding wire, often formulated to offer particular advantages such as improved arc stability, reduced spatter, or higher deposition rates. To understand its properties, you would need to look up the manufacturer's technical data sheet, which will typically cross-reference it to an equivalent AWS (e.g., ER70S-6) or ISO classification (e.g., SG2). It's a specific **welding wire brand**.
Key factors include: **base metal composition and cleanliness**, required **tensile strength and mechanical properties** of the weld, desired **deposition rate and weld appearance**, welding position (all-position vs. flat/horizontal), shielding gas, and cost. Understanding these helps select the optimal **MIG wire for your application**.
Deoxidizing capability refers to the wire's ability to react with and remove oxygen from the molten weld pool. Oxygen can cause porosity and brittleness in the weld. Wires with higher deoxidizer levels (manganese, silicon, and sometimes aluminum/titanium in ER70S-2) are more tolerant of rust, mill scale, and atmospheric contamination, producing cleaner, sounder welds. It's crucial for **porosity prevention** and **weld soundness**.
For mild steel MIG welding, the most common shielding gases are **75% Argon / 25% Carbon Dioxide (Ar/CO2)**, often called C25 or mixed gas. This blend provides a stable arc, good bead appearance, and excellent penetration. For heavier sections or spray transfer, **100% CO2** or **90% Argon / 10% CO2 (C10)** may be used. The chosen **shielding gas** affects arc characteristics, penetration, and spatter.
Yes, **ER70S-6 is excellent for all-position welding**, including vertical up, vertical down, and overhead positions, especially with the correct welding parameters and technique. Its good wetting action and controlled fluidity make it versatile for various joint configurations and orientations. It's a versatile **all-position MIG wire**.
The main advantage is achieving a **higher strength weld deposit** that matches or exceeds the strength of higher-strength base metals, preventing the weld from being the weak link in the joint. They are critical for applications demanding high structural integrity and load-bearing capacity, often with specific toughness requirements for **high-strength steel welding**.
Wire feed speed (WFS) directly controls the **amperage (heat input)** and the **deposition rate** in MIG welding. Too low a WFS can result in lack of fusion and an unstable arc; too high can cause excessive spatter, poor bead appearance, and burn-through. Finding the optimal WFS for the chosen voltage is crucial for a stable arc and a quality weld. It's a primary **MIG welding parameter**.
Yes, ER70S-6 is well-suited for welding thin gauge materials down to 24 gauge (0.6mm) or even thinner, especially when using smaller wire diameters (e.g., 0.023" or 0.030") and appropriate parameters. Its consistent arc and controlled puddle make it effective for these delicate applications, minimizing burn-through. It's a reliable **thin gauge MIG wire**.
Common diameters for mild steel MIG wires include 0.023" (0.6mm), 0.030" (0.8mm), 0.035" (0.9mm), 0.045" (1.14mm), and 1/16" (1.6mm). The choice of diameter depends on the material thickness, desired penetration, deposition rate, and the capability of the welding machine. Matching the **wire diameter to the application** is key.
ER70S-6 and SG2/G3Si1 are largely **equivalent in terms of general purpose mild steel welding**. Both offer excellent weldability, good bead appearance, and sufficient deoxidation for most applications. The choice often comes down to regional specifications (AWS for North America, ISO/EN for Europe) and manufacturer preference. They are both reliable **general fabrication MIG wires**.
Pulsed MIG welding with these solid wires offers several advantages: better arc control, reduced heat input (minimizing distortion and burn-through on thin materials), improved penetration control, and the ability to weld out-of-position with spray transfer characteristics. It's particularly useful for achieving high-quality welds on challenging applications. It enables **enhanced MIG control**.
Potentially, yes. Because ER70S-3 has fewer deoxidizers than ER70S-6, it is less tolerant of impurities on the base metal surface. When welding on less-than-perfectly-clean material, the impurities can lead to a less stable arc and more spatter compared to the more forgiving ER70S-6. **Spatter reduction** is one benefit of higher deoxidizer content.
Silicon acts as a **deoxidizer** in the weld pool, helping to remove oxygen and prevent porosity. It also improves the **wetting characteristics** of the molten metal, leading to a smoother, flatter weld bead and better fusion. Higher silicon content (as in SG3/G4Si1 compared to SG2/G3Si1, or ER70S-6 compared to ER70S-3) generally means better deoxidation and bead shape. It's a key **alloying element for weldability**.
Yes, all of these mild and low-alloy steel MIG wires are suitable for **multi-pass welding**, especially the higher strength varieties (ER80S-G, ER90S-G, ER100S-G) used for thicker sections. Proper interpass cleaning and temperature control are crucial for achieving sound, defect-free multi-pass welds. They are robust for **heavy fabrication**.
The "70," "80," "90," "100" in the AWS classifications (e.g., ER70S-6) directly indicate the **minimum tensile strength** of the weld metal in kips per square inch (ksi). For example, ER70S-6 guarantees a minimum of 70,000 psi tensile strength. This is a critical mechanical property for ensuring the weld joint can withstand the intended loads. It defines the **weld's ultimate strength**.
ER70S-2 is especially beneficial in applications where base metal cleanliness cannot be guaranteed, such as field repairs on rusty material or in situations with slight surface contamination. Its superior deoxidizing package helps minimize porosity and ensure a sound weld even under adverse conditions. It's the ideal **forgiving MIG wire**.
Yes, you can use 100% CO2 with ER70S-6. The implications include **deeper penetration**, a slightly **more aggressive arc**, and typically **more spatter** compared to Ar/CO2 mixes. The weld bead will also be slightly wider and often have a more convex profile. It's common for heavy plate welding in flat or horizontal positions due to its cost-effectiveness and good penetration. Consider **CO2 welding characteristics**.
ER70S-6 generally produces a **smooth, consistent, and clean weld bead** with good wetting action, especially when using an appropriate Ar/CO2 shielding gas. The bead profile is typically uniform and relatively flat to slightly convex, offering good aesthetics for many applications. It's known for **visually appealing welds**.
While ER70S-6 has a well-defined composition, ER70S-G's composition can vary by manufacturer. For general use, a reputable ER70S-G will often perform comparably to ER70S-6 in terms of strength, but its specific deoxidizing package and other characteristics might differ. Always check the manufacturer's data sheet for an ER70S-G to ensure it meets your specific needs. It's a versatile **general-purpose option**.
ER80S-G wires are used for welding higher strength carbon steels or certain low-alloy steels where a minimum tensile strength of 80 ksi is required. Common applications include heavy machinery fabrication, shipbuilding, pressure vessels, and structural components that experience higher stresses than typical mild steel structures. They are key for **medium-strength structural welding**.
Yes, **SG2** is a widely recognized classification under the **ISO 14341 standard**, which is adopted by many countries globally, particularly in Europe. While AWS (American Welding Society) classifications are prevalent in North America, ISO standards like SG2 are the primary reference for welding consumables in other major industrial regions. It's a **European standard for MIG wire**.
To ensure proper wire feeding, use the **correct drive roll size and type** (e.g., V-groove for solid wire), adjust drive roll tension appropriately, ensure the **liner is the correct size** and free of kinks or debris, and use the correct contact tip size. Improper wire feeding leads to arc instability, burnbacks, and poor weld quality. Consistent **wire feedability** is crucial.
Manganese acts as a **deoxidizer** in the weld pool, combining with oxygen to prevent porosity. It also contributes significantly to the **strength and toughness** of the weld metal. In ER70S-6, the balanced manganese and silicon content are key to its excellent mechanical properties and deoxidizing power. It's a vital **strength-enhancing element**.
Yes, all of these solid MIG wires, particularly ER70S-6 and the higher strength wires, are well-suited for **pulse spray transfer mode**. Pulse spray offers improved control, reduced heat input compared to conventional spray, and the ability to weld out-of-position with spray characteristics, making it highly versatile. It's an advanced **MIG welding technique**.
The general rules are to match the **tensile strength** of the filler metal to that of the base metal (or slightly overmatch for critical applications), ensure the filler metal has adequate **deoxidizers** for the base metal's condition, and consider the desired **impact toughness** and other mechanical properties required for the application. Always consult welding procedure specifications (WPS) or manufacturer recommendations for **filler metal selection**.
ER90S-G and ER100S-G are often specifically formulated not just for high strength but also for enhanced **impact toughness**, especially at low temperatures. This is achieved through carefully controlled alloying elements (e.g., nickel, molybdenum) and microstructural refinement. They are critical for applications like offshore structures or pressure vessels operating in cold climates, where **toughness at low temperatures** is paramount.
Yes, ER70S-6 is frequently used for root passes in pipe welding, especially with a short-circuit transfer mode, due to its good puddle control, gap bridging capability, and ability to handle various joint fit-ups. For critical pipe welding applications, specific welding procedures and techniques are followed to ensure a sound root. It's a reliable **pipe welding root pass wire**.
**Solid wire** (like all the ERxxS-X classifications) relies solely on external shielding gas for arc protection. **Flux-cored wire** (FCAW) has a tubular design containing fluxing agents that provide both shielding gas and deoxidizers, sometimes self-shielded without external gas. Solid wire typically produces less smoke and can be cleaner, while flux-cored offers higher deposition rates and better tolerance to contaminants. They are different **welding wire types**.
For these solid mild steel MIG welding wires, **V-groove drive rolls** are typically used. These drive rolls have a V-shaped groove that grips the solid wire effectively without deforming it, ensuring consistent feeding through the gun liner and contact tip. Proper drive roll selection and tension are crucial for smooth wire feeding. They are essential **MIG machine components**.
Since "Giantweld" is a brand name, its performance versus a standard ER70S-6 will depend on the manufacturer's specific formulation and quality. A premium "Giantweld" product might offer superior arc stability, reduced spatter, or better wire feeding characteristics due to proprietary manufacturing processes. However, in terms of basic mechanical properties and deoxidizing capability, it should meet or exceed the ER70S-6 standard it's cross-referenced to. It's a **premium alternative** to standard wires.
Common packaging sizes for MIG welding wire spools include 2 lb (for small hobby machines), 10-12 lb, 33 lb, and 44 lb spools. Larger spools (e.g., 60 lb or 500 lb drums/coils) are available for high-volume industrial applications. Selecting the appropriate **spool size** depends on usage volume and machine capacity.
The acceptable level of mill scale or rust varies with the wire's deoxidizer content:
**ER70S-2:** Highest tolerance; very good for dirty, rusty, or oily surfaces.
**ER70S-6:** Good tolerance; excellent for light to moderate mill scale and rust. Most forgiving for general use.
**ER70S-3:** Lowest tolerance; requires cleaner base metal for optimal results. Best for well-prepared surfaces.
This directly impacts **base metal preparation requirements**.
Short circuit transfer is a common MIG welding mode where the wire makes repeated contact (short circuits) with the weld pool, melting and depositing metal. All of these mild and low-alloy solid wires are suitable for **short circuit transfer**, particularly for welding thinner materials and out-of-position applications due to its controlled heat input and small puddle. It's a fundamental **MIG transfer mode**.
The higher silicon content in SG3/G4Si1 (compared to SG2/G3Si1 or ER70S-6) generally leads to **improved weld puddle fluidity** and better wetting characteristics. This can result in a flatter, smoother weld bead with excellent toe wetting, enhancing bead appearance and reducing the need for post-weld grinding. It's beneficial for **bead shape and fusion**.
Excessive heat input can lead to several issues: increased distortion, larger heat-affected zones (HAZ) with potential degradation of mechanical properties in certain steels, coarser grain structure, and increased risk of burn-through, especially on thinner materials. Controlling **heat input** through proper voltage, WFS, and travel speed is crucial.
Preheating is generally not required for typical mild steel applications with these wires. However, it becomes necessary when welding **thicker sections of mild steel**, higher carbon steels, certain low-alloy steels (especially with ER80S-G, ER90S-G, ER100S-G), or when welding in very cold environments. Preheat helps prevent hydrogen-induced cracking and reduces distortion. Always check specific **steel welding code requirements**.
Yes, **ER70S-6 is an extremely popular choice for robotic and automated welding** due to its excellent arc stability, consistent wire feeding properties, and good deposition rates. Its reliable performance makes it ideal for high-volume, repeatable manufacturing processes. It's a workhorse in **automated fabrication**.
The "S" in ERxxS-X classifications (e.g., ER70S-6, ER70S-3) stands for **Solid Wire**. This differentiates it from flux-cored wires (which would have a "T" or other designation) and indicates it's a bare metal wire requiring external shielding gas. It specifies the **physical form of the consumable**.
ER80S-G guarantees a higher minimum tensile strength (80 ksi vs. 70 ksi) than ER70S-6. This means ER80S-G is suitable for welding higher strength steels or when the design requires a stronger weld. ER70S-6 is for mild steel; ER80S-G is for **higher strength mild and low-alloy steels**. The choice depends directly on the **base metal strength**.
SG2 wire, being equivalent to ER70S-6, is used for a vast range of applications involving unalloyed and fine-grain structural steels. This includes general construction, shipbuilding, automotive parts, agricultural machinery, and pressure vessel fabrication where good mechanical properties and excellent weldability are required. It's a pervasive **European general-purpose MIG wire**.
Burnback occurs when the welding wire melts back into the contact tip, fusing to it. This is usually caused by incorrect wire feed speed, excessive stickout, or insufficient voltage. While not directly related to wire type, maintaining optimal parameters for each specific wire (diameter, alloy) is crucial to prevent **contact tip degradation** and downtime.
Arc length significantly affects voltage, penetration, and bead width. Too short an arc can cause stubbing and lack of fusion; too long can lead to excessive spatter, poor shielding, and a wide, flat bead with shallow penetration. Maintaining a consistent, appropriate arc length is vital for **stable arc operation and optimal weld quality**.

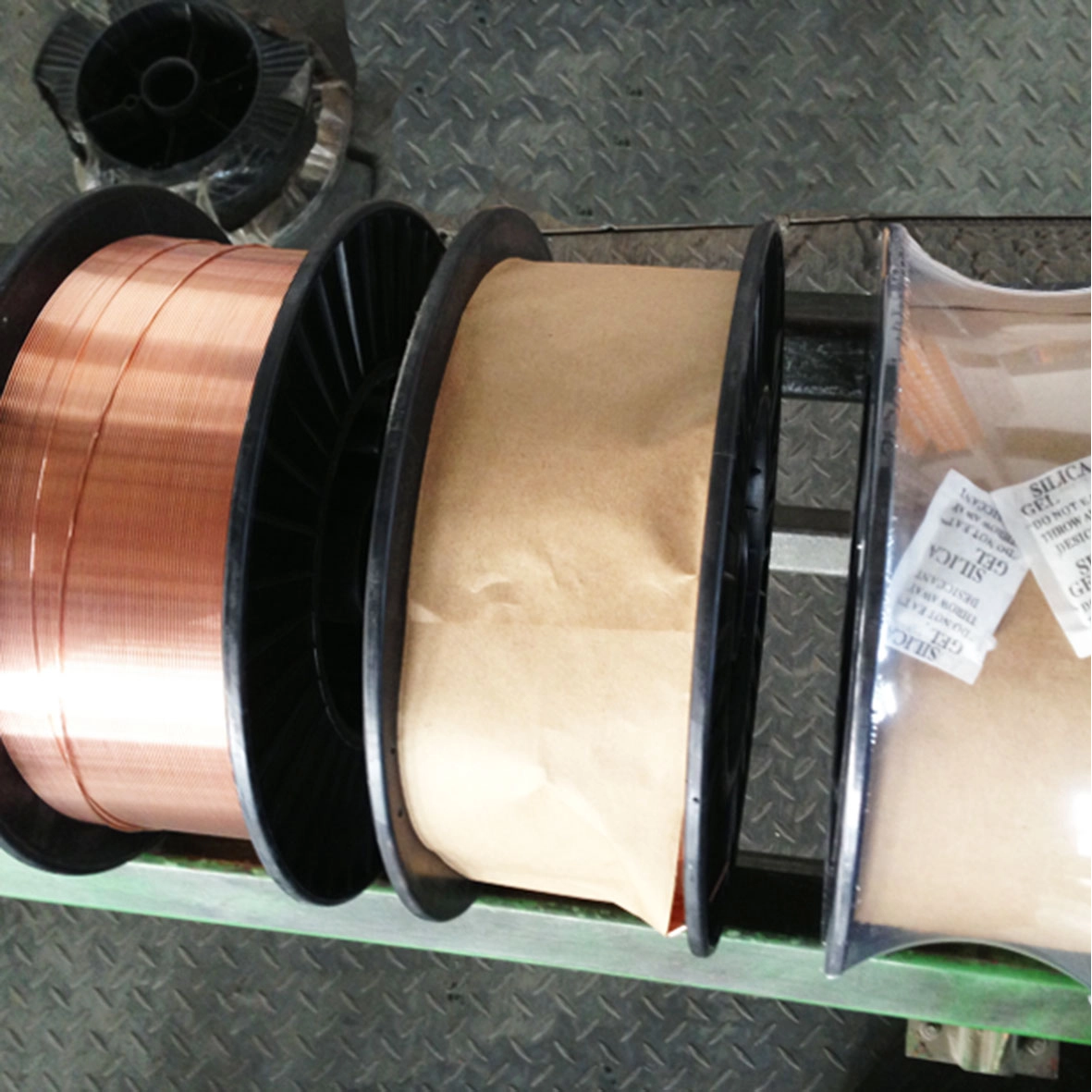

These MIG wires are commonly packaged on **plastic spools** (typically S200 for 10-12lb, S300 for 33lb, S360 for 44lb) for standard welding machines. For high-volume industrial use, they are also available in large **coils or drums/pails** (e.g., 500lb, 1000lb) to reduce changeover time and enhance productivity. The packaging ensures protection from contaminants. It's critical for **wire integrity and handling**.
Yes, ER70S-6 can be used for welding galvanized steel, but with specific considerations. The zinc coating will vaporize in the arc, producing **zinc fumes** (requiring excellent ventilation) and potentially causing **porosity** in the weld. Using slightly higher voltage, a faster travel speed, and possibly a weave technique can help minimize porosity. It requires a specific **galvanized steel welding technique**.
Similar to ER70S-6, manganese in SG2/G3Si1 wires acts as a primary **deoxidizer** and contributes to the **strength and impact toughness** of the weld metal. Its balanced presence with silicon ensures good weldability and robust mechanical properties. It's an essential element for **weld metal quality** in these European wires.
While the "G" classification means exact compositions vary, these higher strength wires generally incorporate small additions of **nickel, molybdenum, and/or chromium** to achieve their elevated tensile strengths and often improved toughness. The specific amounts of these elements will increase with the required strength level (e.g., ER100S-G having more than ER80S-G). These are **low-alloy steel welding wires**.
Maintaining appropriate **interpass temperature** is crucial, especially for higher strength wires (ER80S-G, ER90S-G, ER100S-G) and thicker sections. If the interpass temperature is too low, it can increase the risk of hydrogen-induced cracking; if too high, it can negatively impact mechanical properties or cause excessive distortion. Codes often specify limits for **temperature control during welding**.
Yes, ER70S-3 can be used for robot welding, particularly in applications where the base metal is consistently clean and well-prepared. Its consistent feeding and arc characteristics are suitable for automation. However, for applications with varying surface conditions, **ER70S-6 might be more forgiving** and thus more commonly chosen for automated lines. The **robot welding suitability** depends on base metal prep.
Arc stability refers to the steadiness and consistency of the welding arc. Wires like ER70S-6 are known for their excellent arc stability, which contributes to a smooth transfer of metal, minimal spatter, and a consistent weld bead. Factors like wire chemistry, surface finish, and proper machine settings influence **arc stability in MIG welding**.
The higher silicon content in SG3/G4Si1 offers **superior deoxidation and wetting action**, leading to extremely clean, spatter-free welds with excellent bead appearance and fusion. This makes it advantageous for high-quality applications where cosmetic appearance is important, or where precise control over the weld pool is desired, potentially reducing post-weld cleaning. It's a **premium mild steel filler**.
Proprietary wires like "Giantweld" might be formulated for improved productivity through characteristics like **higher deposition rates** (faster welding speeds), **reduced spatter** (less post-weld cleaning), and **superior arc characteristics** (less downtime due to arc instability or feeding issues). Manufacturers often aim to optimize these factors for specific industrial users. It's designed for **manufacturing efficiency**.
Welding thin-walled tubing requires precise heat input control to prevent burn-through. Smaller wire diameters (0.023" or 0.030"), pulsed MIG (for better control), and a short-circuit transfer mode are often preferred. ER70S-6 offers good puddle control for these applications. It's crucial for **tube welding integrity**.
Excessive voltage (for a given wire feed speed) leads to a wider, flatter, and often "ropey" bead, increased spatter, and potential for lack of fusion at the toes. It can also cause undercutting and make puddle control difficult, especially in out-of-position welds. Proper **voltage settings** are critical for optimal bead shape and quality.
All these wires are suitable for both **single-pass and multi-pass welding**, depending on the material thickness and joint configuration. ER70S-2 is especially good for single-pass welds on contaminated surfaces, while higher strength wires (ER80S-G, ER90S-G, ER100S-G) are frequently used for multi-pass welds on thick sections. They are versatile for **various welding scenarios**.
Using C10 offers a **smoother arc, less spatter, and better wetting action** than C25, particularly beneficial for spray transfer or pulsed spray transfer. It results in a cleaner bead appearance and often reduces post-weld cleaning. However, it can have slightly less penetration than C25 or 100% CO2. It's a premium **shielding gas for spray transfer**.
The general rule is: if your base metal is **clean and rust-free**, ER70S-3 can be used effectively. If there's any mill scale, light rust, or concern about surface contaminants, **ER70S-6 is the safer and more forgiving choice** due to its superior deoxidizing package. For maximum tolerance, consider ER70S-2. It’s a decision based on **base metal condition**.
The "cast" is the diameter of one coil of wire, and the "helix" is the rise or fall per revolution of the wire. Proper and consistent cast and helix are crucial for **smooth and reliable wire feeding**. Wires with an inconsistent cast or helix can cause erratic feeding, birdnesting, and arc instability, leading to weld defects. It's a key **wire manufacturing quality parameter**.
ER90S-G and ER100S-G are used for welding higher strength carbon steels and low-alloy steels, such as ASTM A514, A517, A710, or proprietary high-strength steels. They are chosen when the base metal's yield strength exceeds what an ER70S-X wire can match, typically in heavy machinery, construction, and military applications. They are for **advanced high-strength steel welding**.
A "cold" weld often appears with a **convex bead profile**, poor wetting at the toes (lack of fusion), and excessive spatter. It indicates insufficient heat input, usually from too low amperage/WFS or too high voltage. This results in inadequate penetration and a weak, potentially defective weld. It indicates **improper welding parameters**.
If "Giantweld" is specified to meet an AWS classification like ER70S-6 or a higher strength classification (e.g., ER80S-G) and is from a reputable manufacturer with full certifications, then yes, it can be used for critical structural applications. Always verify the **specific product's certifications and data sheet** for critical work. Its suitability depends on its conformance to recognized standards.
Post-weld cleaning for welds made with these solid wires is generally minimal, often limited to removing **light spatter** (if any) and wiping off any residue. Unlike flux-cored wires, there's no slag to remove. Brushing with a wire brush may be used to clean the bead and prepare for painting or coating. It's part of **weld finishing**.
MIG welding wires should be stored in a **dry environment**, preferably in their original sealed packaging, to prevent moisture absorption and rust formation. Even slight moisture or rust on the wire can lead to porosity and arc instability during welding. Proper **wire storage** ensures optimal performance and prevents defects.
ER70S-2 typically has a **slightly higher cost** per pound than ER70S-6 due to its more complex deoxidizing package (additional alloying elements). However, the potential savings in reduced base metal preparation and minimized rework due to its superior impurity tolerance can often offset this higher material cost in certain applications. It's a trade-off between **wire cost and preparation efficiency**.
While ER70S-6 guarantees a minimum tensile strength of 70 ksi, its typical **yield strength** in the as-welded condition is usually around 58-65 ksi (approximately 400-450 MPa), depending on specific welding parameters and shielding gas. This ensures that the weld provides sufficient strength for general structural applications. It's a key **weld mechanical property**.
While Ar/CO2 mixes are most common, other gas mixtures can be used depending on specific needs. For example, **Argon/Oxygen (Ar/O2)** can be used for spray transfer to improve wetting and bead appearance, though it's less common for mild steel. Tri-mixes (e.g., Argon/Helium/CO2) might be considered for specialized applications, but always consult the wire manufacturer's recommendations for **alternative shielding gases**.
A **push angle (forehand welding)** is generally preferred for these wires, especially in spray transfer, as it improves shielding gas coverage, provides better bead appearance, and minimizes penetration for thinner materials. A **pull angle (backhand welding)** can increase penetration and is sometimes used for thicker materials or specific root pass applications. It influences **weld bead geometry and penetration**.
SG3/G4Si1 (specifically G4Si1) designates a wire with a higher silicon content (typically 0.9-1.2%) compared to ER70S-6 (typically 0.7-1.0% Si). Both contain similar manganese levels. The higher silicon in G4Si1 generally translates to **even better deoxidation, improved fluidity, and often a brighter, smoother bead**. It offers enhanced **deoxidation capabilities**.
ER70S-3 is suitable for **general-purpose welding on clean, well-prepared surfaces**. This includes light fabrication, automotive repairs where scale is minimal, and shop work where base metal is frequently ground or cleaned. It's a good choice when the additional deoxidizing power of ER70S-6 is not strictly necessary. It's for **clean-surface welding**.
Yes, most reputable welding consumable manufacturers provide **filler metal selection charts** or guidelines in their product catalogs or websites. These charts help welders match the appropriate wire (e.g., ER70S-6, ER80S-G) to specific base metal grades, thickness, and application requirements, often including recommended shielding gases and parameters. They are essential **welding resource tools**.
**Short circuit transfer** involves the wire making contact with the puddle, suitable for all positions and thinner materials. **Spray transfer** involves a continuous stream of fine molten droplets transferring across the arc, providing high deposition rates and deep penetration, typically used for thicker materials in flat/horizontal positions. These are different **MIG operating modes**.
Yes, ER80S-G can be used for welding mild steel, and it will result in a weld that is stronger than the mild steel base metal (overmatching). While this isn't always necessary, it can be done. However, for typical mild steel, ER70S-6 is usually the more cost-effective and appropriate choice. Using ER80S-G means you are potentially overmatching the **mild steel's strength**.
Always use a **contact tip size that matches the wire diameter** (e.g., 0.035" wire requires a 0.035" contact tip). Using an oversized tip can lead to poor electrical contact and arc instability; an undersized tip will cause feeding problems and wire jamming. Regularly inspect and replace worn contact tips to ensure consistent performance. It's a critical **consumable for MIG guns**.
Using the wrong shielding gas can lead to various defects: **porosity** (insufficient shielding, reactive gases), **excessive spatter**, **poor penetration**, **unstable arc**, and **undesirable bead appearance**. For instance, 100% argon is not suitable for mild steel as it leads to an unstable arc and poor wetting. Proper **shielding gas selection** is paramount.
A smooth, clean wire surface finish is crucial for **consistent wire feeding** through the liner and contact tip, minimizing friction and preventing feeding issues like birdnesting or erratic arc. A dull or dirty wire can lead to poor electrical contact and arc instability. Quality wires (like many "Giantweld" products aim to be) have excellent surface finish for **smooth feeding**.
Applications benefiting from ER70S-2's properties include repair welding on farm equipment (often dirty/rusty), field construction where base metal prep is difficult, or single-pass welds on light gauge material with mill scale. Its strong deoxidizing package shines where **base metal contamination** is a factor.
Post-weld heat treatment (PWHT) can affect the mechanical properties of welds made with these wires. For mild steel (ER70S-X), PWHT can relieve residual stresses and improve ductility. For higher strength wires (ER80S-G, etc.), PWHT might be required to achieve specific toughness or stress relief goals, but parameters must be carefully controlled to avoid softening. It's often required by **welding codes for pressure vessels** or thick sections.
Yes, ER70S-6 is extensively used for welding pressure vessels and pressure piping, provided the base material is mild steel and the design strength falls within the wire's capabilities. For critical pressure applications, specific welding procedures (WPS) and welder qualifications (PQR/WPQ) are mandatory, often with stringent inspection requirements. It's a common **pressure vessel welding wire**.
European ISO 14341 classifications like SG2 and SG3 focus primarily on **chemical composition and specific deoxidizer levels**, assuming mechanical properties will meet a certain range for non-alloyed and fine-grain steels. AWS classifications directly specify a **minimum tensile strength** in the "70" (ksi) part of the designation. Both systems ultimately provide wires with comparable strength for typical mild steel welding, but their emphasis differs. It's a difference in **classification philosophy**.
The "heat number" (or lot number) is a unique identifier for a specific batch of welding wire produced by the manufacturer. It allows for **traceability** of the wire's chemical composition and mechanical test reports, which is critical for quality control, certification, and meeting code requirements in industries like nuclear, aerospace, and pressure vessel fabrication. It's vital for **material traceability**.
Proper gun angle (work angle and travel angle) influences bead shape, penetration, and puddle control. A slight **push angle** is generally preferred for good bead appearance and cleaning action. The **work angle** (side-to-side) is adjusted to distribute heat evenly across the joint. Correct angles optimize **weld bead quality and fusion**.
For pipeline steels, especially those with higher strength or specific toughness requirements, higher strength wires like **ER80S-G, ER90S-G, or proprietary pipeline wires** would be used. Considerations include root pass control, interpass temperature management, and achieving specific impact toughness at low temperatures, often requiring specialized formulations. It's a demanding **pipeline welding application**.
Yes, it's very possible. A brand like "Giantweld" can have different product lines or specific wires within its brand that are formulated to meet higher strength AWS classifications like ER80S-G, ER90S-G, or ER100S-G. Manufacturers often develop proprietary wires to offer specific performance advantages at different strength levels. Always check the **"Giantweld" product data sheet** for its specific AWS classification and properties.
A good MIG weld with ER70S-6 typically has a **smooth, uniform bead with consistent ripples**, good wetting at the toes, and minimal to no spatter. The color should be shiny post-weld, indicative of proper shielding. A well-executed weld reflects good parameter settings and technique. It's a visual marker of **quality MIG welding**.
Minor elements like carbon (controlled to low levels in these wires), sulfur, and phosphorus are kept to strict limits. Excessive sulfur and phosphorus can lead to **hot cracking and embrittlement** in the weld metal. Manufacturers carefully control these elements to ensure weld soundness and mechanical properties. They are critical for **weld metal integrity**.
Yes, these wires are frequently used for joining dissimilar carbon and low-alloy steels, provided the filler metal's strength and properties are compatible with both base metals and the intended service. For example, ER70S-6 can often join mild steel to some low-alloy steels, but for higher strength low-alloy steels, an ER80S-G or higher might be required to match strength. It's a common **dissimilar metal joining solution**.
Magnetic arc blow is the deflection of the welding arc from its intended path, often caused by residual magnetism in the workpiece or clamping. It leads to **poor penetration, increased spatter, and porosity**. While wire type doesn't directly cause it, maintaining proper ground connections and sometimes demagnetizing the workpiece are remedies. It's a challenge to **arc control**.
The "cast" (the diameter of one loop of wire when unrolled) needs to be consistent for smooth feeding. An overly large or small cast, or inconsistent cast, can lead to the wire wandering in the joint, poor arc stability, and feeding issues. Manufacturers strive for a **consistent cast** to ensure reliable performance in automated and manual welding. It's a critical **wire manufacturing parameter**.
While standard short-circuit transfer is common, some advanced power sources offer "pulsed short-circuit" or "controlled short-circuit" modes. These modes can enhance the short-circuit process, offering more stable arcs and less spatter. These solid wires are compatible with such advanced processes for **optimized short-circuit performance**.
Necking is the localized reduction in cross-sectional area that occurs in a ductile material under tensile stress before fracture. It indicates the **ductility and ability of the weld metal to deform plastically** before failure. Welds made with these wires are expected to show significant necking, demonstrating good ductility and toughness. It's a key **mechanical property indicator**.
When choosing between ER70S-6 and an ER70S-G from a different manufacturer, first confirm the ER70S-G product's stated AWS classification and mechanical properties on its data sheet. Then, consider factors like **arc stability, spatter levels, bead appearance, and wire feeding consistency**, which can vary between brands. Often, testing samples or relying on peer reviews can help decide. It's about **brand performance vs. standard compliance**.
Common joint preparations include **square butt joints** (for thin materials), **V-grooves** (for medium to thick plates), and **J-grooves or U-grooves** (for very thick plates to minimize filler metal volume). Proper cleaning of the joint surfaces is always essential to ensure sound welds and minimize defects. It's fundamental for **weld quality control**.
Detailed specifications, including chemical composition limits, mechanical properties, typical applications, and recommended welding parameters, can be found in the **AWS A5.18 standard (Specification for Carbon Steel Electrodes and Rods for Gas Shielded Arc Welding)**. For European classifications, refer to **ISO 14341**. Additionally, reputable wire manufacturers provide comprehensive data sheets (TDS) for each product, which are invaluable resources. Always consult these **official welding standards** for precise information.
