MIG Vs. TIG Welding Wires: Key Differences

What is MIG Welding Wire?

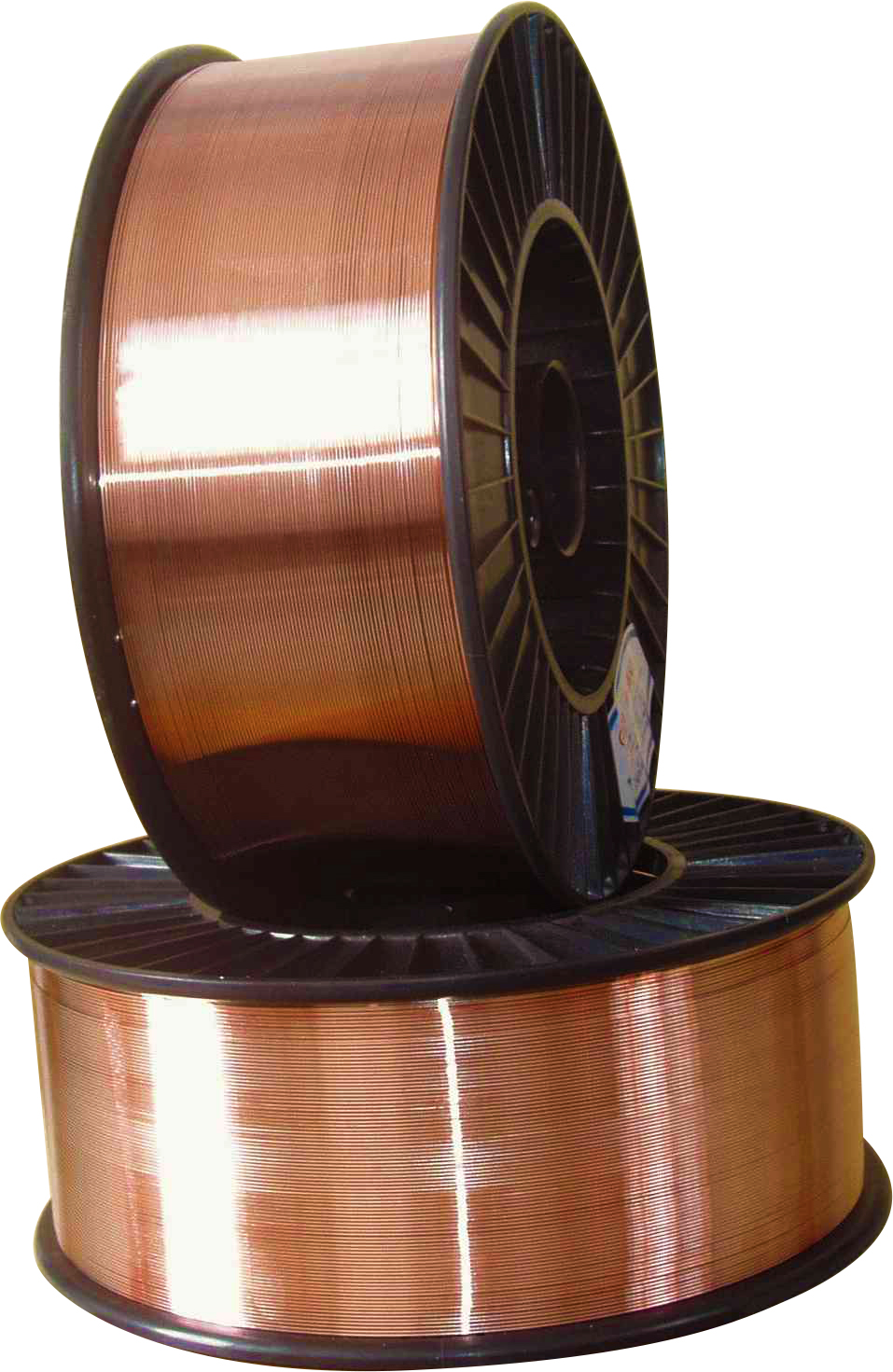

MIG welding wire is a **continuous, spooled filler metal** designed for the Gas Metal Arc Welding (GMAW) process. It serves as both the electrode (carrying the welding current) and the filler material for the weld joint. The wire is fed continuously through a welding gun, and it melts under the arc to form the weld puddle, which is protected by an external shielding gas.

What are the key characteristics of MIG welding wire?

- **Form Factor:** Comes on large spools or coils, ranging from small 1-pound spools for hobbyists to massive 44-pound (or larger) spools for industrial use.
   - **Feeding Mechanism:** Requires a **wire feeder** mechanism (either in the machine or a separate unit, like a spool gun) to continuously feed the wire at a controlled speed to the weld pool.
   - **Diameter:** Available in various diameters (e.g., 0.023", 0.030", 0.035", 0.045"), chosen based on material thickness and amperage.
   - **Surface Coating:** Often coated with a thin layer of copper (for steel wires) or specially treated surfaces (for aluminum wires) to improve electrical conductivity, prevent rust, and aid in smooth feeding.
   - **Self-Consuming Electrode:** The wire itself is the consumable electrode that melts into the weld.

---

What is TIG Welding Wire (Filler Rod)?

TIG welding wire, more commonly referred to as a **TIG filler rod** or **cut length rod**, is a non-continuous, straight length of filler metal. It is used in the Gas Tungsten Arc Welding (GTAW) process, where a separate, non-consumable tungsten electrode creates the arc. The TIG welder manually feeds the filler rod into the weld puddle, controlling the amount of material added.

What are the key characteristics of TIG welding wire (filler rod)?

- **Form Factor:** Comes in straight, pre-cut lengths, typically 36 inches (approx. 91 cm) long, sold in tubes or packages.
   - **Feeding Mechanism:** **Manually fed** into the weld puddle by the welder's non-dominant hand. There is no automated wire feeder for standard TIG.
   - **Diameter:** Also available in various diameters (e.g., 1/16", 3/32", 1/8"), chosen based on material thickness and required bead size.
   - **Surface Condition:** Typically very clean and often polished, as surface contaminants can lead to weld defects in TIG's precise environment.
   - **Separate from Electrode:** The filler rod is a distinct component from the non-consumable tungsten electrode that maintains the arc.

---

How do the welding processes influence the filler metal design?

The fundamental differences in how MIG and TIG processes operate directly dictate their filler metal designs:

MIG (GMAW): High Deposition and Automation

MIG is designed for speed and higher deposition rates. The continuous wire feed ensures constant material addition, making it efficient for long welds and production environments. The wire's spooled form and automated feeding are integral to this efficiency. The process relies on the wire itself to carry current and maintain the arc, hence the need for good electrical conductivity and consistent diameter.

TIG (GTAW): Precision and Control

TIG prioritizes precision, control, and aesthetics. The welder's manual control over filler metal addition allows for intricate work, thin materials, and high-quality, visually appealing welds. The separate non-consumable electrode provides ultimate arc stability, allowing the welder to focus on puddle manipulation and filler addition. The cut-length rods facilitate this manual, controlled feeding.

---

Can I use MIG wire for TIG welding, or TIG rods for MIG welding?

**No, you cannot directly interchange them, and attempting to do so will lead to significant issues or be impossible.**
   - **MIG wire for TIG:** MIG wire comes on a spool and is too thin and flexible for manual feeding in TIG. Its continuous nature and spool form are incompatible with the TIG process, which requires straight rods.
   - **TIG rods for MIG:** TIG rods are pre-cut straight lengths and cannot be spooled into a MIG welder's wire feeder. Even if you could feed them, their individual lengths would interrupt the continuous arc essential for MIG welding.

What are the typical applications for each type of wire?

- **MIG Welding Wire Applications:**        - **High-volume production:** Automotive manufacturing, heavy fabrication, shipbuilding.
       - **General fabrication and structural steelwork:** Building frames, machinery, agricultural equipment.
       - **Repairs:** Quick and efficient repairs on various metal structures.
       - **Thicker materials:** Often used for welding thicker sections where high deposition is needed.    - **TIG Welding Wire (Filler Rod) Applications:**        - **Precision and cosmetic welds:** Aerospace, medical equipment, custom fabrication, artistic metalwork.
       - **Thin materials:** Excellent control for welding very thin sheet metal without burn-through.
       - **Root passes:** For critical pipe welds and other applications requiring a high-quality root.
       - **Exotic and reactive metals:** Preferred for titanium, magnesium, and other reactive metals where precise shielding and purity are essential.
       - **Dissimilar metals:** Often used for joining different types of metals where control over the puddle chemistry is key.

In essence, MIG welding wire and TIG welding rods are specialized consumables, each perfectly integrated into their respective welding processes. Their distinct forms and feeding mechanisms are key to the operational efficiency and weld quality that each welding method is known for.
