E71T-11 Flux-Cored Wire: Application Considerations

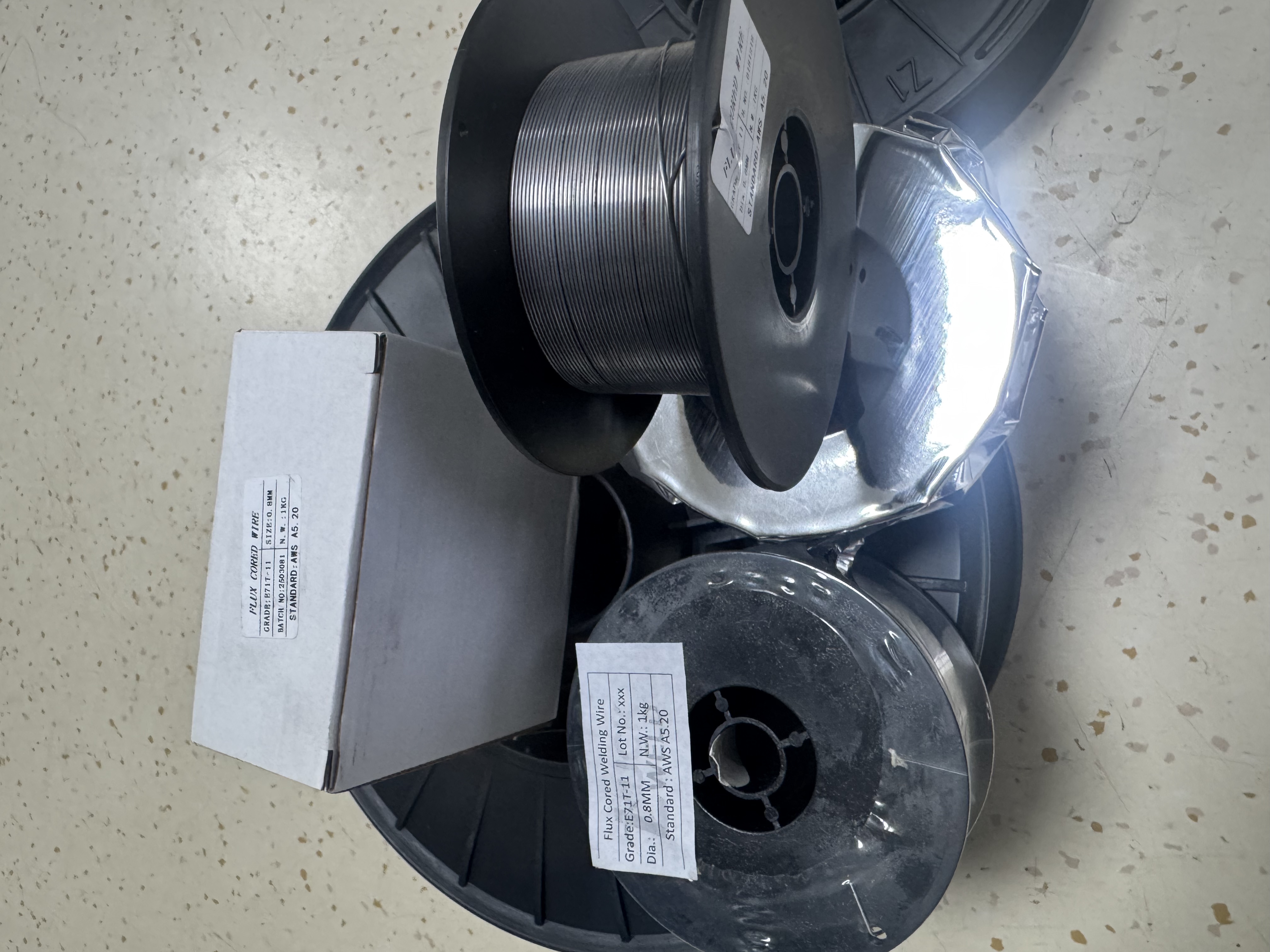

What is E71T-11 welding wire?

E71T-11 is a **gasless flux-cored wire** designed for welding mild and low-alloy steels. The "E" signifies an electrode, "71" indicates a minimum tensile strength of 70,000 psi, "T" means tubular (flux-cored), and "-11" denotes it's a self-shielded wire suitable for **single-pass welding in all positions**, primarily used with **DC electrode negative (DCEN)** polarity.

---

What are the critical machine setup considerations for E71T-11?

1. Polarity

- **DC Electrode Negative (DCEN):** E71T-11 is specifically designed to be run on **DCEN (Direct Current Electrode Negative)**, also known as straight polarity. This means the welding gun is connected to the negative (-) terminal, and the work clamp is connected to the positive (+) terminal.
   - **Why it matters:** Using DCEP (Direct Current Electrode Positive) will result in an unstable arc, excessive spatter, poor penetration, and overall very poor weld quality. Always double-check your machine's polarity settings before starting.

2. Wire Feed Speed (WFS) and Voltage Settings

- **Balance is Key:** Like all MIG processes, proper balance between **wire feed speed (WFS)** and **voltage** is crucial for arc stability and weld penetration. E71T-11 often runs best with slightly higher WFS and lower voltage compared to gas-shielded wires.
   - **Starting Point:** Refer to the wire manufacturer's recommendations on the spool label or data sheet. These provide excellent starting parameters based on wire diameter and material thickness.
   - **Fine-Tuning:** Listen to the arc sound. A smooth, consistent crackle generally indicates optimal settings. Adjust WFS for penetration and voltage for arc length and bead width.

3. Drive Rollers and Liner

- **Knurled Drive Rollers:** E71T-11 is a flux-cored wire, so you need **knurled drive rollers** (which have teeth) to provide sufficient grip and prevent slippage or wire deformation. V-groove rollers (for solid wire) or U-groove rollers (for aluminum) are unsuitable.
   - **Correct Liner Size:** Ensure the liner inside your MIG gun cable matches the diameter of your E71T-11 wire to prevent feeding issues and excessive friction.

---

What welding technique aspects are important for E71T-11?

1. Contact Tip to Work Distance (CTWD) / Stick-Out

- **Longer Stick-Out:** E71T-11 typically requires a slightly longer **contact tip to work distance (CTWD)**, or "stick-out," compared to solid wires, generally in the range of 1/2 to 3/4 inch (12-19 mm).
   - **Why it matters:** This longer stick-out preheats the wire, helping the flux to burn off efficiently and create the necessary gas shield. Too short a stick-out can lead to erratic arc and poor shielding; too long can cause instability and lack of fusion.

2. Travel Angle and Speed

- **Drag Angle:** Use a **drag angle** (pulling the gun away from the weld puddle) rather than a push angle. This helps the arc penetrate effectively and allows the shielding gases from the flux to properly protect the weld.
   - **Consistent Travel Speed:** Maintain a consistent travel speed. Too fast can lead to a narrow, ropey bead with insufficient penetration. Too slow can result in excessive heat input, a wide, flat bead, or burn-through on thinner materials.

3. Weave Technique and Puddle Control

- **Weave Patterns:** A slight weave can help control the puddle, especially in out-of-position welds (vertical-up, overhead). However, avoid excessive weaving, which can lead to poor shielding and slag inclusions.
   - **Puddle Observation:** Focus on observing the leading edge of the weld puddle and the consistency of the arc. The molten slag will follow behind the arc.

---

What post-weld considerations are unique to E71T-11?

1. Slag Removal

- **Mandatory Removal:** E71T-11 produces a significant amount of slag, which protects the weld as it cools. This slag **must be completely removed** after each pass, especially before multi-pass welding, to prevent slag inclusions in subsequent beads. A chipping hammer and wire brush are essential tools.
   - **Challenges:** The slag can sometimes be stubborn, particularly if proper parameters weren't maintained.

---

What safety and environmental factors should I be aware of?

1. Fume Management

- **Increased Fume:** Self-shielded flux-cored wires generally produce more fumes and smoke compared to solid wire MIG welding. This is due to the decomposition of the flux materials.
   - **Ventilation:** Always ensure **adequate ventilation** in your welding area, whether it's through natural airflow, fume extractors, or a powered air-purifying respirator (PAPR). This is crucial for protecting your respiratory health.

---

Are there any limitations or common problems with E71T-11?

- **Weld Appearance:** While functional, the weld bead from E71T-11 can be rougher and have more spatter compared to gas-shielded processes (GMAW or FCAW-G), requiring more post-weld cleanup if aesthetics are critical.
   - **Porosity:** While less common with proper technique, issues like excessive stick-out, incorrect parameters, or contaminants on the base metal can still lead to porosity.
   - **Not for Thin Gauge (Very Thin):** While suitable for single pass on some thin gauges, extremely thin materials (e.g., < 18 gauge) can be challenging due to the higher heat input and more fluid puddle compared to solid wire.
   - **Arc Stability Challenges:** Compared to gas-shielded processes, the arc can sometimes feel less stable for novice welders, requiring more practice.

By understanding and addressing these key application considerations, you can harness the full potential of **E71T-11 welding wire**, making it an effective and reliable choice for a wide range of mild steel welding tasks, especially when convenience and outdoor capability are priorities.
