Applications of E4043 Aluminum Stick Electrodes

What is an E4043 aluminum stick electrode?

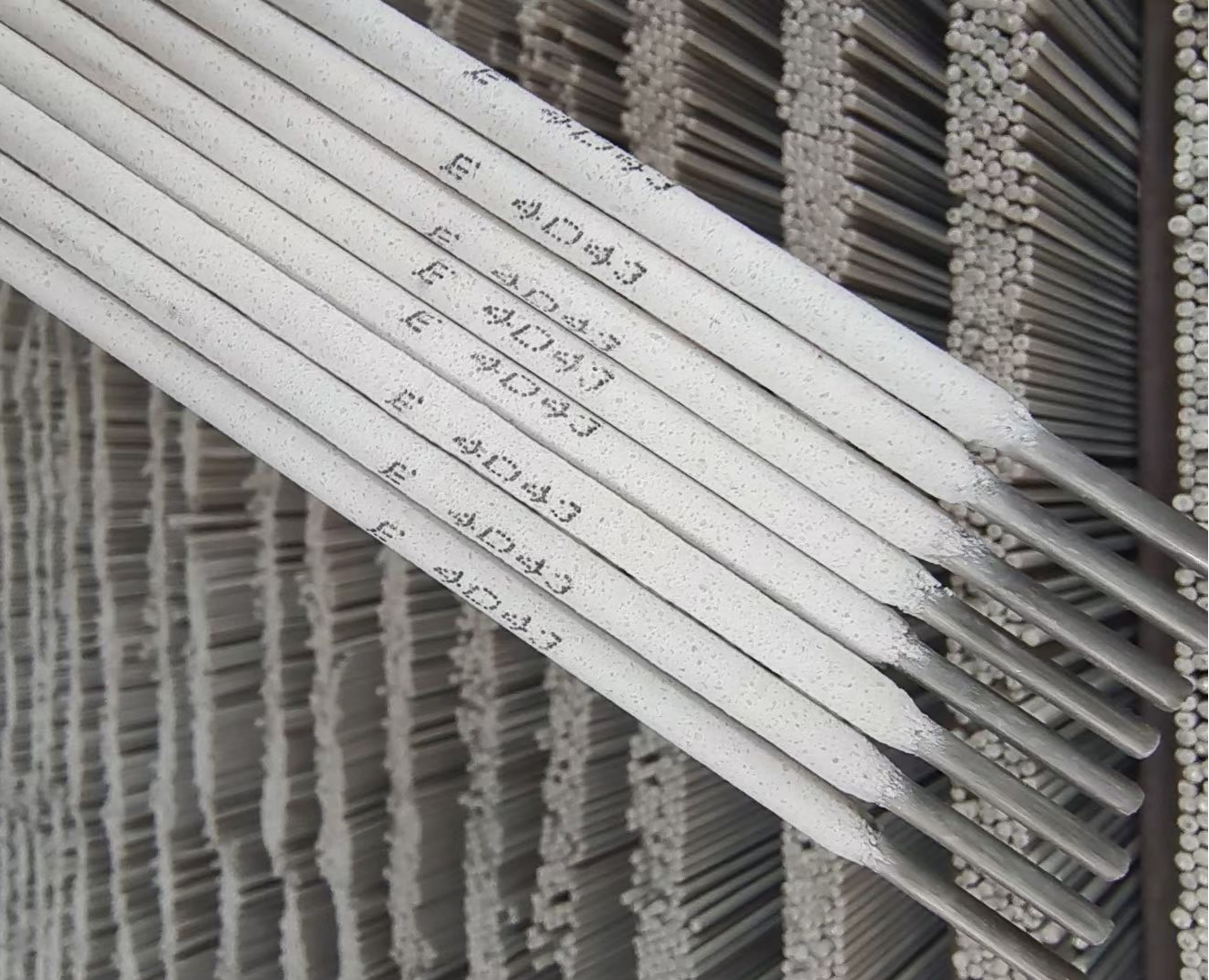

An E4043 aluminum stick electrode is a coated electrode designed for **Shielded Metal Arc Welding (SMAW)** of aluminum. The "E" signifies an electrode, and "4043" indicates the filler metal alloy, primarily aluminum with approximately 5% silicon. The flux coating on the electrode provides the necessary shielding gas and slag during the welding process, eliminating the need for external shielding gas.

What are the general characteristics of E4043 stick welding?

- **No External Shielding Gas:** The primary advantage is self-shielding, making it highly portable and suitable for outdoor or windy conditions.
   - **Portability:** Requires minimal equipment – just a suitable power source and electrodes.
   - **AC or DCEP Compatibility:** Many E4043 electrodes can be used with both AC (Alternating Current) and DCEP (Direct Current Electrode Positive) welding machines, though AC is often preferred for its arc stability.
   - **Slag Formation:** Produces a relatively heavy, often brittle slag that needs to be removed after each pass.
   - **Limited Positional Capability:** Primarily suited for flat and horizontal positions, with vertical-down possible but challenging. Overhead welding is generally not recommended.
   - **Arc Control:** The arc can be less stable and more challenging to control compared to TIG or MIG, requiring more operator skill.
   - **Weld Appearance:** Generally produces a rougher, less aesthetic weld bead compared to TIG or MIG.

Where is E4043 aluminum stick electrode commonly used for repair welding?

E4043 stick electrodes are frequently chosen for **repair welding** due to their portability and ability to handle less-than-ideal conditions:
   - **Cast Aluminum Repair:** One of its most common applications is repairing cracks, breaks, or worn areas on **cast aluminum components**, such as engine blocks, transmission housings, pump bodies, and machinery parts. The silicon content aids in preventing hot cracking in cast alloys.
   - **Equipment Repair (Field/Outdoor):** Ideal for repairing aluminum ladders, railings, truck bodies, trailers, and farm equipment directly in the field or outdoors where bringing gas cylinders for MIG/TIG is impractical.
   - **Salvage Operations:** Used in salvage or reclamation operations to repair damaged aluminum parts that might otherwise be scrapped.
   - **Maintenance Welding:** For general maintenance tasks on aluminum structures or equipment within industrial facilities where quick, localized repairs are needed without extensive setup.

Is E4043 suitable for general fabrication and small projects?

Yes, E4043 finds use in **general fabrication and smaller projects**, especially when specialized aluminum welding equipment (MIG/TIG) is unavailable or impractical:
   - **Prototype Work:** For quick prototypes or one-off aluminum fabrications where high aesthetic finish isn't the top priority.
   - **Home Workshops/Hobbyists:** A good option for hobbyists or those with limited equipment who need to weld aluminum for personal projects.
   - **Small Structural Repairs:** For non-critical, small-scale structural repairs on aluminum components where SMAW is sufficient.
   - **Joining Dissimilar Aluminum Alloys:** While primarily for 6xxx and 3xxx series alloys, its versatility makes it useful for joining various aluminum alloys that might not be perfectly matched, especially in repair scenarios.

Which aluminum alloys are commonly welded with E4043 stick electrodes?

E4043 stick electrodes are primarily recommended for welding the following aluminum alloys:
   - **6xxx Series Alloys:** Such as 6061 and 6063, commonly found in structural applications, frames, and extrusions.
   - **3xxx Series Alloys:** Like 3003, often used in general purpose applications, tanks, and piping.
   - **Cast Aluminum Alloys:** Its silicon content makes it excellent for repairing various cast aluminum grades.
   - **Dissimilar Aluminum Alloys:** Can be used to join many combinations of these common wrought and cast aluminum alloys.

What are the limitations of E4043 stick electrodes that might make other processes preferable?

While versatile, E4043 stick electrodes have limitations that make MIG or TIG preferable for certain applications:
   - **Not for Thin Gauges:** Generally not suitable for very thin aluminum sheets due to the high heat input and difficulty in controlling burn-through.
   - **Aesthetics:** The weld bead is typically rougher and spatter is more prevalent, making it less ideal for applications requiring a smooth, visually appealing finish.
   - **Productivity:** Slower than MIG welding due to the need for frequent electrode changes and slag removal.
   - **Post-Weld Heat Treatment:** Welds made with E4043 are not heat-treatable for increased strength, as the silicon forms a non-heat-treatable microstructure. This is a crucial consideration if the base metal's full strength needs to be restored.
   - **Fume Generation:** Generates more fumes than solid wire processes, requiring good ventilation.
   - **Operator Skill:** Requires a higher level of operator skill and practice to achieve consistent, quality welds compared to MIG.

In essence, E4043 aluminum stick electrodes fill a vital niche in welding, particularly for robust repairs and smaller, non-critical fabrication tasks where the convenience of no external gas and high portability outweighs the desire for perfect aesthetics or extreme precision. It's a go-to choice when you need to "just get it welded" in challenging environments or with limited equipment.
