AWS A5.9 ER410
1kg,5kg,15kg,20kg
1lb;2lb;4.5lb;11lb;15lb;20lb;33lb;44lb
0.6mm;0.8mm;0.9mm;1.0mm;1.2mm;1.6;2.0mm
0.023;0.030in;0.035in;3/64″;0.045;1/16″;5/64″
1.6mm,2.0mm,2.4mm,3.2mm,4.0mm,5.0mm
1/16 ″in;5/64″in;3/32″in;1/8″in;5/32″inch
D100,D200,D270,D300,BS300,K300
Acceptable (design the pack with your logo)
15 Days
Product Description
1）Classification: This is an American Welding Society (AWS) standard for a bare stainless steel filler metal classified as martensitic.
2）Composition: The "ER410" classification indicates a nominal composition of 11.5-13.5% chromium, with low carbon content, and a small percentage of manganese and silicon.
3）Application: Its primary use is for welding similar martensitic stainless steels, such as Type 410 and 420, which are known for their hardenability.
4）Properties: The weld metal is air-hardening and, as-welded, it produces a martensitic structure that is very hard and brittle. To achieve adequate toughness and ductility, it requires specific heat treatments.
5）Heat Treatment: A key feature of this filler metal is the need for a preheat of 150-260°C (300-500°F) before welding and a post-weld heat treatment to temper the weld and improve its mechanical properties.
6）Usage: It is commonly used for a wide range of applications, including repairing turbine parts, valve components, and other parts that require good strength, moderate corrosion resistance, and high hardness.
AWS A5.9 ER410 Stainless Steel Welding Wire.pdf
Standard： AWS A 5.9 YB/T5092 | Chemical Composition % | ||||||||||||||
C | Mn | Si | Cr | Ni | P | S | Mo | Cu | |||||||
Grade ER410 | ≤0.12 | ≤ 0.6 | ≤ 0.5 | 11.5 – 13.5 | ≤ 0.6 | ≤0.03 | ≤0.03 | ≤0.75 | ≤0.75 | ||||||

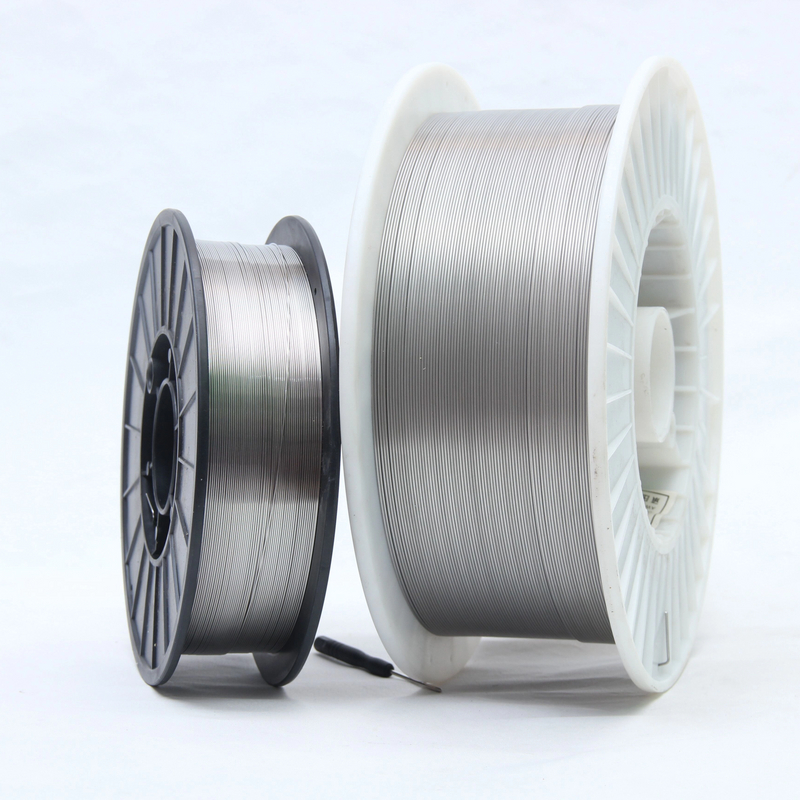

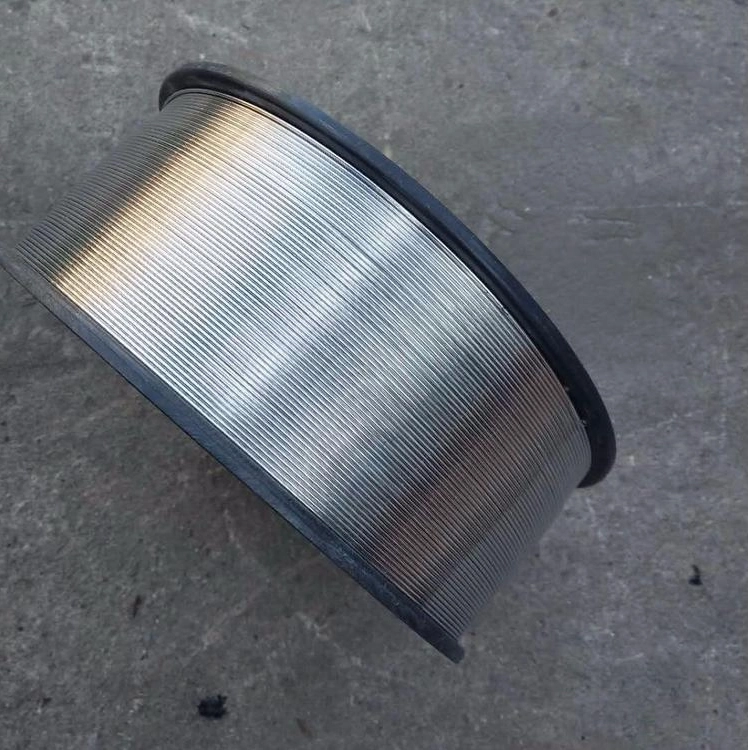

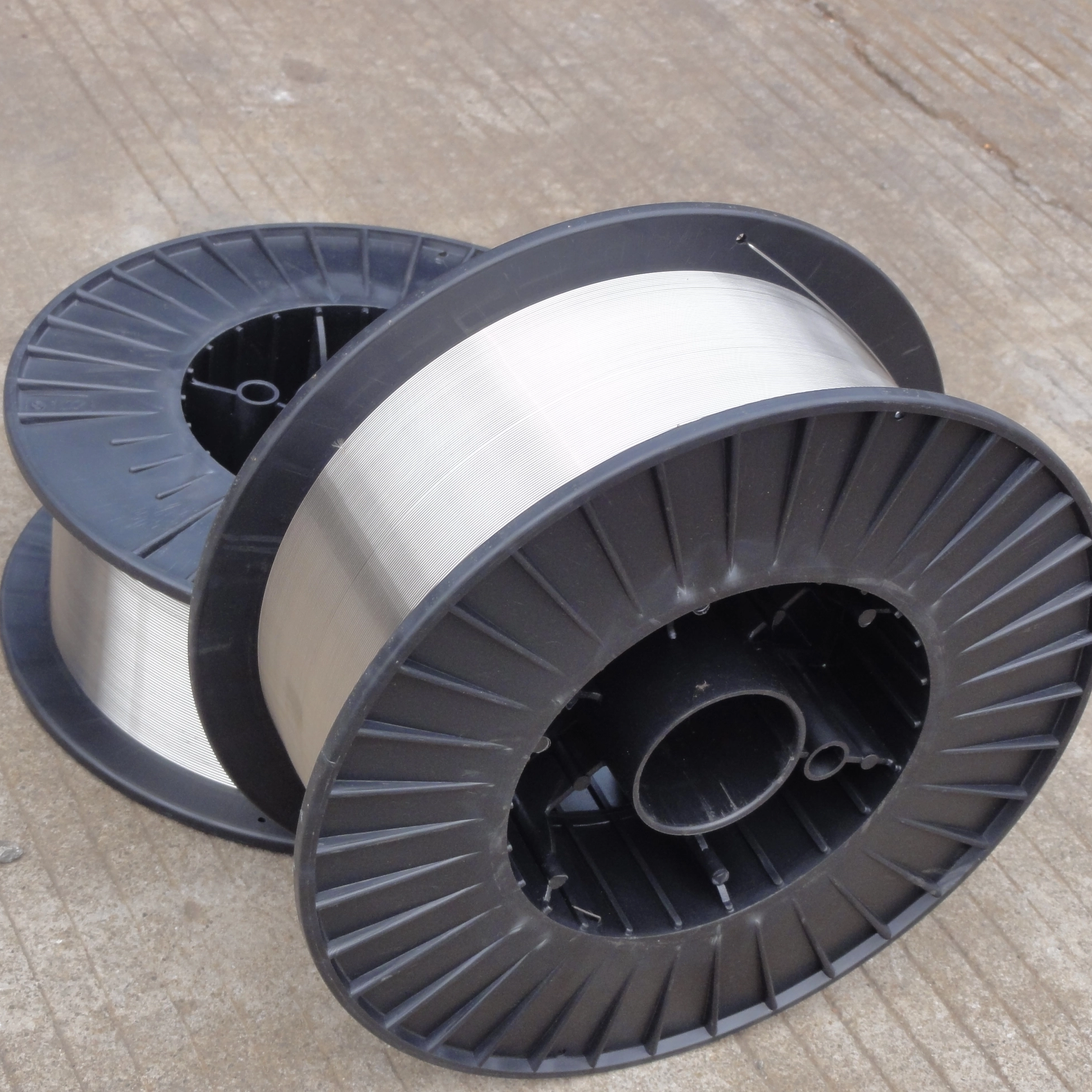

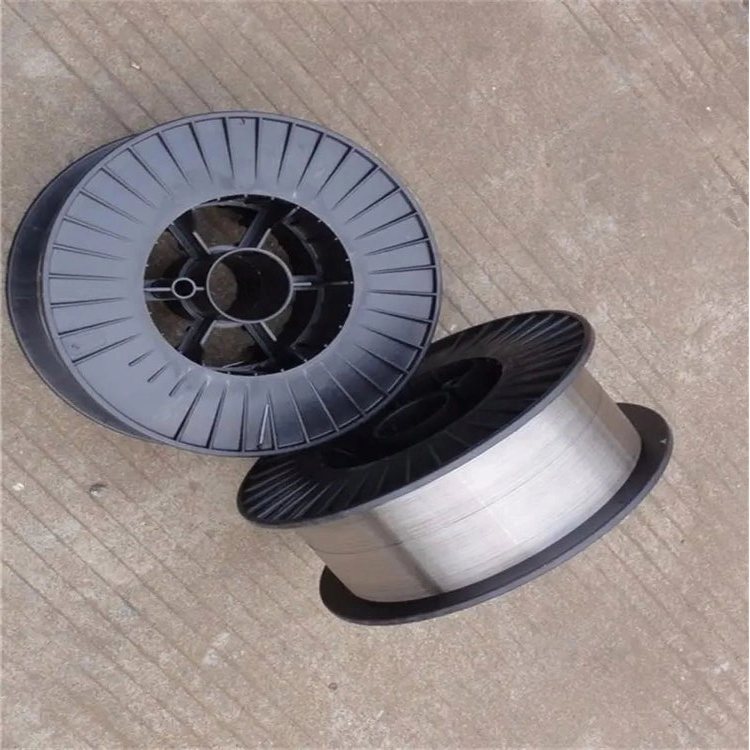

Type | Spool (MIG) | Tube (TIG) | |||||||||||||
Specification ( MM ) | 0.8、0.9、1.0、1.2、1.6、2.0 | 1.6、2.0、2.4、3.2、4.0、5.0 | |||||||||||||

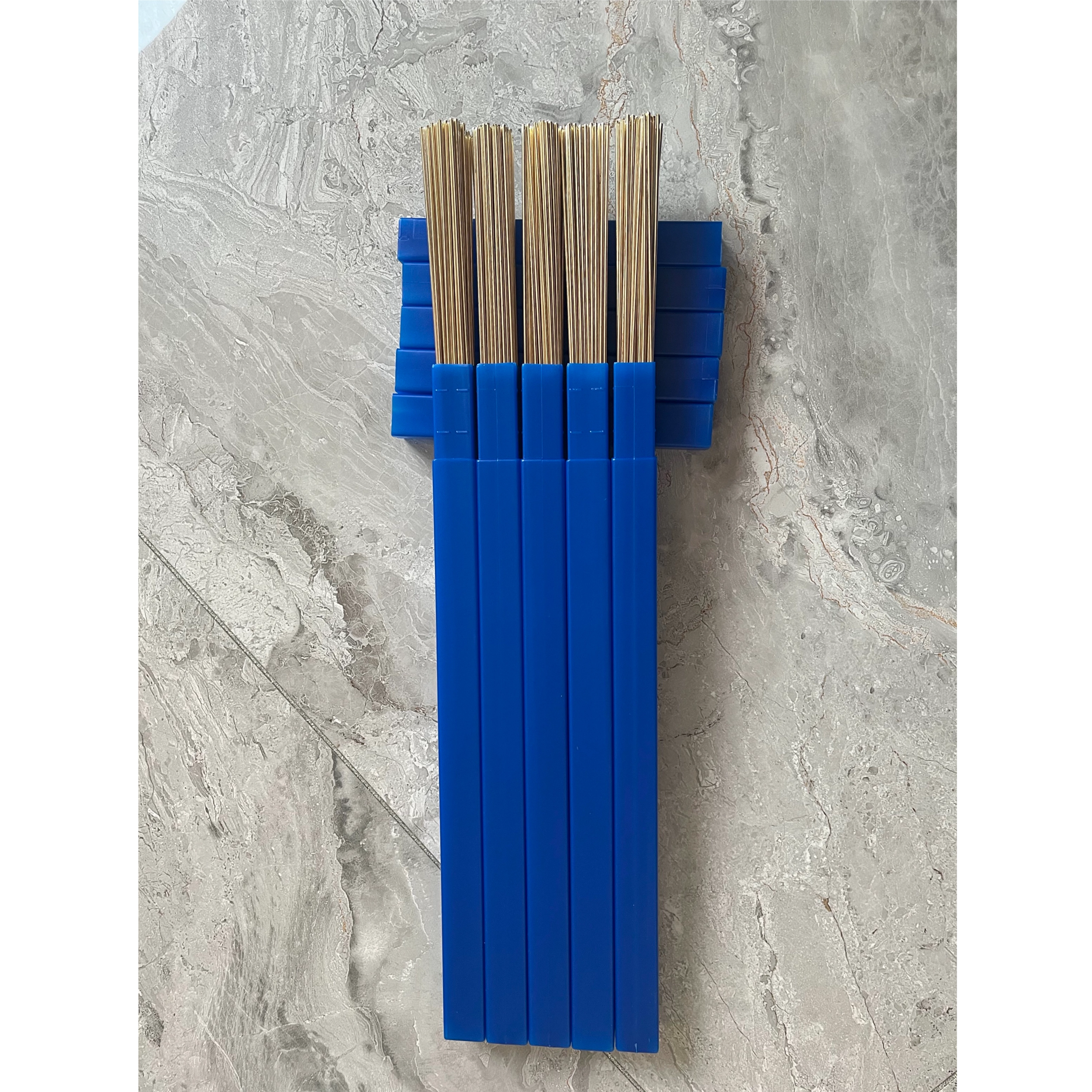

Package | S100/1kg S200/5kg S270,S300/15kg-20kg | 5kg/box 10kg/box length :1000MM | |||||||||||||
Diameter（MM） | 0.8 | 1.0 | 1.2 | 1.6 | 2.0 | 2.5 | 3.2 | ||||||||
Current （A） | 70 ~ 150 | 100 ~ 200 | 140 ~ 220 | 50 ~ 100 | 100 ~ 200 | 200 ~ 300 | 300 ~ 400 | ||||||||
AWS A5.9 ER410 Stainless Steel Welding Wire Parameters
| Diameter | Process | ||
| in | mm | ||
| 0.03 | 0.8 | GMAW | |
| 0.035 | 0.9 | GMAW | |
| 0.039 | 1.0 | GMAW | |
| 1/25.4” | |||
| 0.045 | 1.2 | GMAW | |
| 3/64” | |||
| 1/16” | 1.6 | GMAW | |
| 3/32” | 2.4 | GMAW | |
| Diameter | Process | ||
| in | mm | ||
| 1/16” | 1.6 | GTAW | |
| 3/32” | 2.4 | GTAW | |
| 1/8” | 3.2 | GTAW | |
| 5/32” | 4.0 | GTAW | |
| 3/16” | 4.8 | GTAW | |
| Weight | 0.5kg | 1kg | 2kg | 5kg | 15kg | 20kg | |||||
| 1 lb | 2 lb | 4 lb | 11 lb | 33 lb | 44 lb | ||||||
AWS A5.9 ER410 is a martensitic stainless steel filler metal.
It is primarily used for welding similar 12% chromium stainless steel grades and is known for its ability to air-harden.
Martensitic refers to the specific metallurgical structure of the alloy.
When the weld deposit cools, it transforms into a hard and brittle martensite phase, which requires specific heat treatments to achieve ductility and toughness.
Its primary use is for welding similar martensitic stainless steels, such as **Type 410 and 420**.
It's often used in the repair of turbine parts, valve components, and other applications that require high hardness and strength.
ER410 has a nominal composition of **11.5-13.5% chromium**, with a low carbon content.
It also contains small amounts of manganese, silicon, and other elements that contribute to its mechanical properties.
Yes, preheating is absolutely essential when welding with ER410.
A **preheat temperature** of 150-260°C (300-500°F) is generally required to prevent cracking and reduce the thermal shock during the welding process.
After welding, the as-welded martensitic structure is very hard and brittle, making it susceptible to cracking.
A **post-weld heat treatment** (PWHT) is performed to temper the weld, relieving internal stresses and increasing its toughness and ductility.
ER410 is a versatile filler metal that can be used with several welding methods.
It is commonly used for **Gas Metal Arc Welding (GMAW/MIG)** and **Gas Tungsten Arc Welding (GTAW/TIG)**.
The primary benefits are its high hardness and moderate corrosion resistance.
It provides a strong weld joint that can be heat-treated to achieve a wide range of mechanical properties.

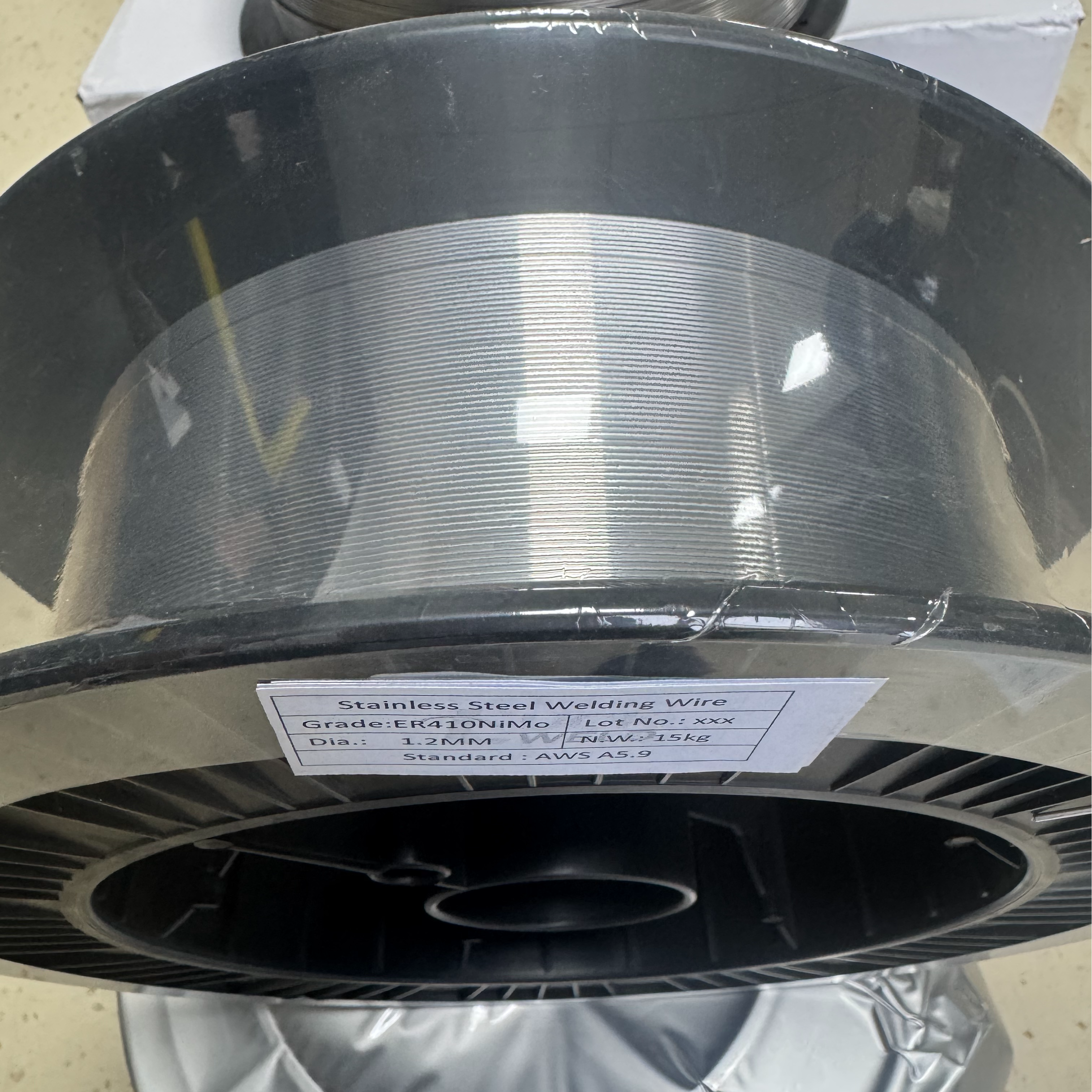

ER410NiMo is a low-carbon version of ER410 that contains a small percentage of nickel and molybdenum.
The addition of nickel and molybdenum gives the weld metal better toughness and crack resistance, especially in heavy sections.
ER410 is a staple in the **power generation industry** for welding turbine blades and valve trim.
It is also used in the **petrochemical industry** and in the fabrication of various equipment requiring high hardness.
The tensile strength of an ER410 weld varies greatly depending on the post-weld heat treatment.
In its as-welded condition, it can be very high, but post-weld tempering is necessary to achieve the desired combination of strength and ductility.
For Gas Metal Arc Welding (MIG), a shielding gas mixture of **98% argon and 2% carbon dioxide** is a common and effective choice.
This combination provides a stable arc and good bead appearance.
The exact procedure depends on the specific application, but a typical PWHT involves heating the part to a temperature between 620-760°C (1150-1400°F).
This tempering process relieves internal stresses and improves the ductility of the weld.
The chromium content in ER410 forms a passive oxide layer on the surface of the metal.
This provides moderate corrosion resistance, but it is not as resistant as the higher-alloyed austenitic grades like ER308 or ER316.
ER410 is generally not recommended for welding dissimilar metals.
The high carbon content and air-hardening properties can lead to cracking and brittleness when joined with other alloys.
To prevent contamination and moisture absorption, the wire must be stored in a **clean, dry, and sealed environment**.
It is crucial to keep spools in their original sealed packaging until use.
ER410's high hardness and wear resistance make it a great choice for valve trim and seats.
It can withstand the erosive and corrosive effects of flowing media, ensuring a longer service life for the components.
Welding thick sections with ER410 requires careful control of the preheat and interpass temperatures to prevent cracking.
A thorough post-weld heat treatment is also essential to ensure the entire weld has the desired mechanical properties.
ER430 is a ferritic stainless steel with higher chromium content (15-17%) and is non-hardenable.
In contrast, ER410 is martensitic and hardens on cooling, making it suitable for applications where high hardness is a requirement.
Using ER410 without a proper post-weld heat treatment is not recommended.
The as-welded deposit is very brittle and prone to cracking, which could lead to catastrophic failure in service.
