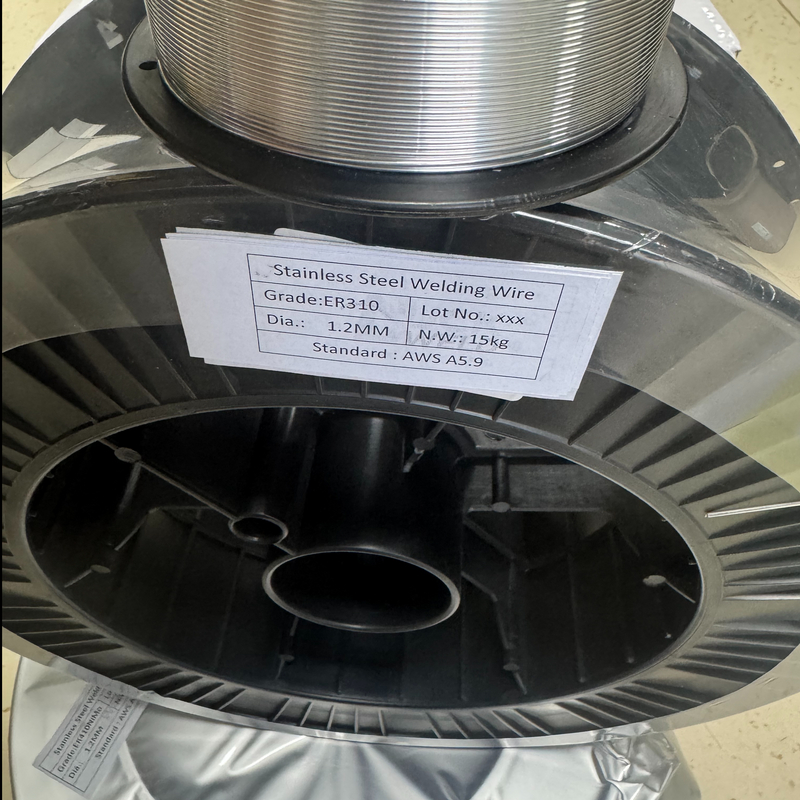

AWS A5.9 ER310
1kg,5kg,15kg,20kg
1lb;2lb;4.5lb;11lb;15lb;20lb;33lb;44lb
0.6mm;0.8mm;0.9mm;1.0mm;1.2mm;1.6;2.0mm
0.023;0.030in;0.035in;3/64″;0.045;1/16″;5/64″
1.6mm,2.0mm,2.4mm,3.2mm,4.0mm,5.0mm
1/16 ″in;5/64″in;3/32″in;1/8″in;5/32″inch
D100,D200,D270,D300,BS300,K300
Acceptable (design the pack with your logo)
15 Days
Product Description
1）Classification: This is an American Welding Society (AWS) standard for a high-alloy stainless steel filler metal, primarily designed for its excellent heat and oxidation resistance.
2）Composition: The "ER310" classification indicates a highly-alloyed composition with a nominal content of 25-28% chromium and 20-22.5% nickel.
3）Application: Its main use is for welding stainless steels of similar composition, such as Type 310 and 310S, in both wrought and cast forms.
4）Properties: The weld metal is fully austenitic and provides superior resistance to oxidation and scaling at elevated temperatures, with a service temperature capability of up to 1100°C (2012°F) in some environments.
5）Versatility: This filler metal can also be used for welding dissimilar metals, particularly joining stainless steels to carbon or low-alloy steels, where its high alloy content helps to accommodate the dilution from the base materials.
6）Welding Processes: It is a versatile consumable suitable for several welding methods, including Gas Metal Arc Welding (GMAW/MIG), Gas Tungsten Arc Welding (GTAW/TIG), and submerged arc welding.
AWS A5.9 ER310 Stainless Steel Welding Wire.pdf
Standard： AWS A 5.9 YB/T5092 | Chemical Composition % | ||||||||||||
C | Mn | Si | Cr | Ni | P | S | Mo | Cu | |||||
Grade ER310 | 0.08– 0.15 | 1.0–2.5 | 0.3 – 0.65 | 25 – 28 | 20 – 22.5 | ≤0.03 | ≤0.03 | ≤0.75 | ≤0.75 | ||||

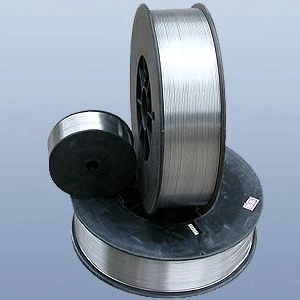

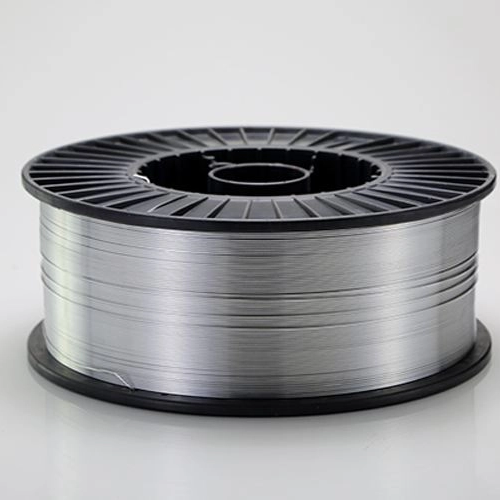

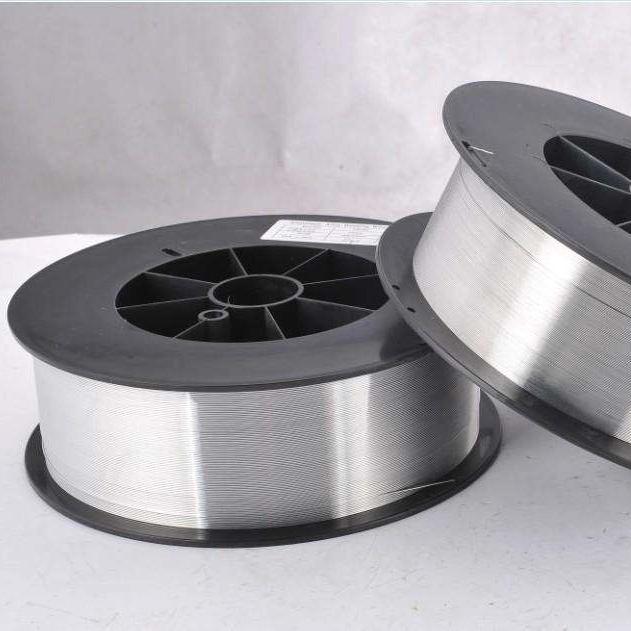

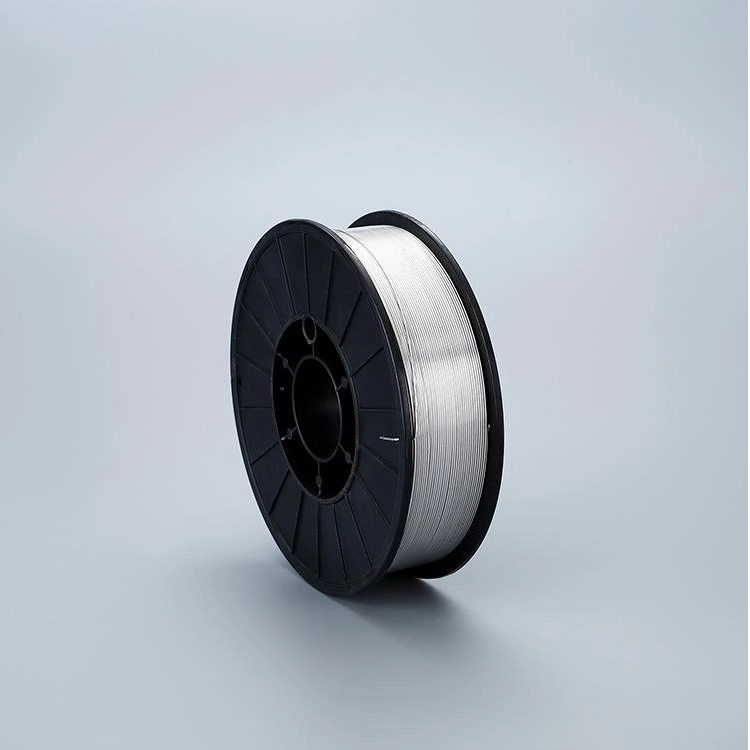

Type | Spool (MIG) | Tube (TIG) | |||||||||||
Specification ( MM ) | 0.8、0.9、1.0、1.2、1.6、2.0 | 1.6、2.0、2.4、3.2、4.0、5.0 | |||||||||||
Package | S100/1kg S200/5kg S270,S300/15kg-20kg | 5kg/box 10kg/box length :1000MM | |||||||||||
Mechanical Properties | Tensile Strength Mpa | Elongation after fracture A（%） | |||||||||||
≥ 550 | ≥ 30 | ||||||||||||
Diameter（MM） | 0.8 | 1.0 | 1.2 | 1.6 | 2.0 | 2.5 | 3.2 | ||||||
Current （A） | 70 ~ 150 | 100 ~ 200 | 140 ~ 220 | 50 ~ 100 | 100 ~ 200 | 200 ~ 300 | 300 ~ 400 | ||||||
AWS A5.9 ER310 Stainless Steel Welding Wire Parameters
| Diameter | Process | ||
| in | mm | ||
| 0.03 | 0.8 | GMAW | |
| 0.035 | 0.9 | GMAW | |
| 0.039 | 1.0 | GMAW | |
| 1/25.4” | |||
| 0.045 | 1.2 | GMAW | |
| 3/64” | |||
| 1/16” | 1.6 | GMAW | |
| 3/32” | 2.4 | GMAW | |
| Diameter | Process | ||
| in | mm | ||
| 1/16” | 1.6 | GTAW | |
| 3/32” | 2.4 | GTAW | |
| 1/8” | 3.2 | GTAW | |
| 5/32” | 4.0 | GTAW | |
| 3/16” | 4.8 | GTAW | |
| Weight | 0.5kg | 1kg | 2kg | 5kg | 15kg | 20kg | |||||
| 1 lb | 2 lb | 4 lb | 11 lb | 33 lb | 44 lb | ||||||
AWS A5.9 ER310 is a highly-alloyed stainless steel filler metal.
It is primarily known for its exceptional resistance to heat and oxidation, making it suitable for high-temperature applications.
ER310 has a nominal composition of **25% chromium** and **20% nickel**.
This high alloy content is what gives the weld metal its superior properties at elevated temperatures.
Its primary use is for welding stainless steels of a similar composition, such as **Type 310 and 310S**.
It's a staple for applications that involve continuous exposure to high temperatures, such as furnaces and heat exchangers.
The high nickel content in ER310 stabilizes the austenitic microstructure, preventing the formation of ferrite.
This fully austenitic structure provides excellent toughness and good corrosion resistance, even at high service temperatures.
Besides welding similar 310-grade stainless steels, ER310 can be used for **welding dissimilar metals**.
It's an effective choice for joining stainless steel to carbon or low-alloy steels in demanding, high-temperature environments.
Yes, its high chromium content creates a stable oxide layer that provides outstanding resistance to **oxidation and scaling**.
This allows the weld joint to perform reliably at service temperatures up to 1100°C (2012°F).
Yes, the fully austenitic microstructure of ER310 also gives it good ductility and toughness at cryogenic temperatures.
This makes it a versatile choice for applications that must withstand both extreme heat and cold.
The main difference is the alloy content.
ER310 has higher chromium and nickel percentages (25Cr-20Ni) compared to ER309 (23Cr-12Ni), giving it superior heat and oxidation resistance.
ER310 is a versatile consumable compatible with various welding methods.
It is commonly used for Gas Metal Arc Welding (GMAW/MIG), Gas Tungsten Arc Welding (GTAW/TIG), and submerged arc welding.
You'll find ER310 in furnace parts, heat exchangers, combustion chambers, and other components in the **thermal processing industry**.
It's also used in the fabrication of various high-temperature equipment.
No, unlike other grades like 308 or 309, there isn't a specific "ER310L" designation.
The standard ER310 composition already offers excellent properties for its intended high-temperature service.
For Gas Metal Arc Welding (MIG), a shielding gas mixture of **98% argon and 2% carbon dioxide** is often a good choice.
This helps to ensure a stable arc and a high-quality weld bead.
Preheating is generally not required for welding with ER310 due to its excellent high-temperature properties.
However, it's always best to follow specific welding procedure specifications for your application.
A fully austenitic weld metal, while excellent for high-temperature resistance, can sometimes be susceptible to **solidification cracking**.
However, proper welding techniques and a controlled procedure can minimize this risk.
To prevent contamination and moisture absorption, the wire must be stored in a **clean, dry, and cool environment**.
Always keep spools in their original, sealed packaging until you are ready to use them.
The weld deposit from ER310 typically has a tensile strength of around **85,000 psi (586 MPa)**.
This provides a strong and durable joint capable of withstanding thermal cycling.
Yes, its high alloy content allows it to tolerate dilution from the carbon steel base metal.
This makes it a reliable filler metal for creating strong transition joints in high-temperature service.
Choose **ER310** for applications focused on high-temperature service and oxidation resistance.
Choose **ER316L** for superior resistance to pitting and crevice corrosion, especially in environments with chlorides.
ER310Si is a high-silicon version of ER310.
The higher silicon content provides better weld puddle fluidity and arc stability, which is especially beneficial for MIG welding.
Yes, the fully austenitic microstructure of ER310 also gives it good ductility and toughness at cryogenic temperatures.
This makes it a versatile choice for applications that must withstand both extreme heat and cold.
