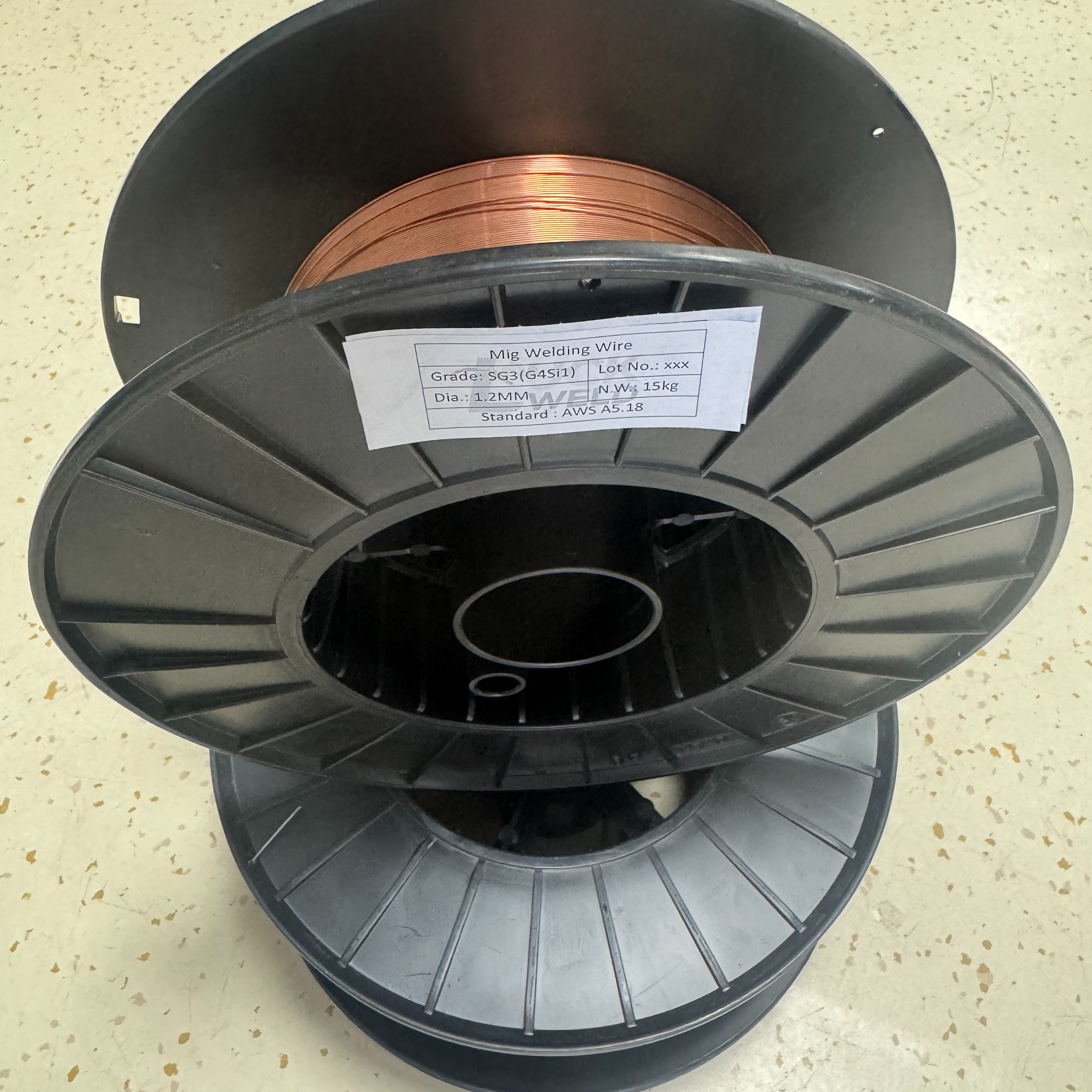

AWS A5.18 - SG3(G4Si1) Mig Welding Wire

| AWS A 5.18 SG3(G4Si1) Mig Welding Wire Description

1）Elevated Deoxidizer Content: The defining feature of SG3 (G4Si1) is its higher percentage of silicon (Si) and manganese (Mn) compared to SG2 (G3Si1) / ER70S-6. This elevated content provides exceptionally strong deoxidizing power, making the wire highly tolerant to various surface impurities like rust, mill scale, and primers. This characteristic ensures porosity-free welds and reduces the need for extensive pre-cleaning of the base metal.The AWS A5.18 - SG3(G4Si1) MIG welding wire represents a high-performance, mild steel solid wire classification primarily defined by European standards (EN ISO and older DIN designations) but is often cross-referenced with the AWS A5.18 specification, typically aligning with an enhanced ER70S-6 or a specialized G-classified wire. It distinguishes itself through an even higher silicon (Si) and manganese (Mn) content compared to the more common SG2 (G3Si1) / ER70S-6, resulting in superior welding characteristics and robust mechanical properties, particularly valuable for demanding structural applications.

2）Enhanced Mechanical Properties: Due to its optimized chemical composition, SG3 (G4Si1) often produces weld metal with slightly higher yield and tensile strengths compared to standard ER70S-6, while maintaining excellent ductility. Crucially, it typically delivers superior impact toughness, even at lower temperatures, often down to -40°C or -50°C. This makes it ideal for applications subjected to harsh environmental conditions or dynamic loading.

3）Superior Arc Characteristics and Weld Appearance: Welders often experience a very stable arc with SG3 (G4Si1), even at higher welding currents, contributing to increased deposition rates and productivity. The higher silicon content enhances the fluidity of the weld pool and promotes excellent wetting, resulting in a very smooth, clean, and aesthetically pleasing weld bead with minimal spatter. This reduces post-weld grinding and cleanup.

4）Versatile Shielding Gas Compatibility: While its performance is often optimized with Argon/CO2 gas mixtures (e.g., 80% Ar / 20% CO2, or 90% Ar / 10% CO2) for spray and pulsed spray transfer, it can also perform well with 100% CO2 shielding gas, particularly for short-circuit transfer and deeper penetration. The choice of shielding gas influences the arc behavior, transfer mode, and ultimately, the weld properties.

5）Applications in Demanding Environments: SG3 (G4Si1) wire is engineered for high-performance applications where weld quality, strength, and toughness are paramount. Common uses include heavy machinery fabrication, shipbuilding, railway car manufacturing, structural steel components, bridges, and in industries where fine-grained structural steels are welded. Its robust performance makes it a preferred choice for critical welding jobs.

6）Optimized for Automated and High-Productivity Welding: The excellent wire feedability, stable arc, and low spatter characteristics of SG3 (G4Si1) make it exceptionally well-suited for automated and robotic welding systems. Its ability to run at higher currents with consistent performance allows for increased travel speeds and deposition rates, significantly boosting the efficiency and cost-effectiveness of high-volume industrial fabrication.

| AWS A5.18 SG3(G4Si1) Mig Welding Wire Down Load

AWS A5.18 -SG3(G4Si1) Mig Welding Wire.pdf

| AWS A5.18 SG3(G4Si1) Mig Welding Wire Data Sheet

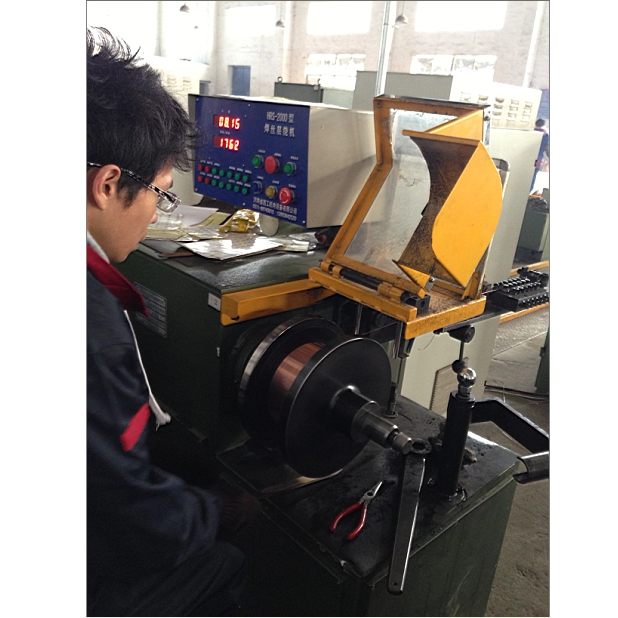

| AWS A5.18 SG3(G4Si1) Mig Welding Wire Workshop Show

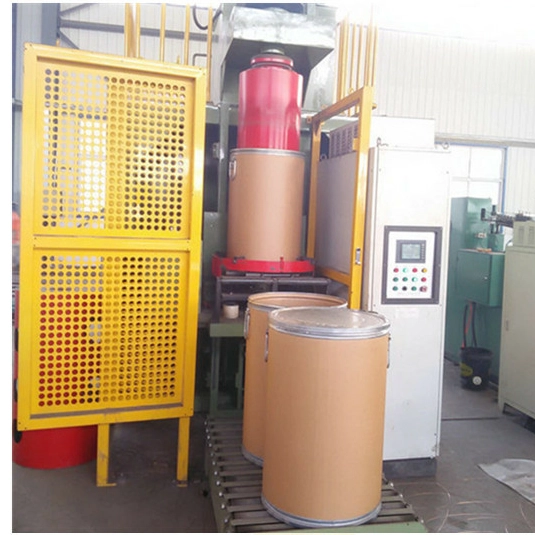

| AWS A5.18 SG3(G4Si1) Mig Welding Wire Production Video

| AWS A5.18 SG3(G4Si1) Mig Welding Wire Application

| AWS A5.18 SG3(G4Si1) Mig Welding Wire Certificate

| AWS A5.18 SG3(G4Si1) Mig Welding Wire Comment & FAQ

Question 1: What is the significance of "SG3" and "G4Si1" in this wire's designation?

SG3 is an older German DIN standard designation, while G4Si1 is the current EN ISO 14341-A classification for a solid mild steel MIG welding wire.
Both indicate a wire with a higher silicon (Si) content compared to the more common SG2 (G3Si1) or AWS ER70S-6, signifying superior deoxidizing capabilities and enhanced performance.
These are key indicators of a high-quality **welding consumable** for demanding applications.

Question 2: How does the chemical composition of SG3(G4Si1) distinguish it from ER70S-6 or SG2(G3Si1)?

SG3(G4Si1) typically contains a higher percentage of both **silicon (Si)** and **manganese (Mn)** than ER70S-6 or SG2(G3Si1).
This increased deoxidizer content significantly improves the wire's ability to handle surface contaminants like heavy mill scale, rust, or primers, ensuring cleaner and more sound welds with reduced porosity.
It's optimized for robust **weld metal cleanliness**.

Question 3: What are the main benefits of the elevated silicon and manganese content in SG3(G4Si1)?

The elevated Si and Mn content provides multiple benefits.
Primarily, it results in superior deoxidation, minimizing the risk of porosity and ensuring high-quality, defect-free welds.
Secondly, it enhances weld puddle fluidity, leading to a smoother bead appearance and less spatter.
Finally, it contributes to improved mechanical properties, especially **impact toughness**, a critical factor for structural integrity.

Question 4: What types of base metals are ideal for welding with SG3(G4Si1)?

SG3(G4Si1) is ideally suited for welding unalloyed and fine-grained structural steels, especially those requiring higher strength and excellent low-temperature impact properties.
It's excellent for applications involving heavy sections, high-strength steels, and critical structural components where robust **steel welding performance** is paramount.
Think of demanding industrial and construction projects.

Question 5: What kind of mechanical properties can be expected from SG3(G4Si1) weld metal?

Weld metal from SG3(G4Si1) typically exhibits excellent mechanical properties, including high tensile strength (often exceeding 70,000 psi or 480 MPa) and good yield strength.
A standout feature is its **superior impact toughness** at sub-zero temperatures, frequently meeting specifications down to -40°C or even -50°C, making it reliable in extreme cold environments.

Question 6: Which shielding gases are recommended for optimal performance with SG3(G4Si1)?

For optimal performance, SG3(G4Si1) is often paired with Argon/CO2 gas mixtures, such as 80% Ar / 20% CO2 or 90% Ar / 10% CO2.
These blends promote stable spray or pulsed spray transfer, leading to higher deposition rates and minimal spatter.
While 100% CO2 can be used for deeper penetration, argon-rich mixes generally yield better **weld bead quality** and control.

Question 7: Is SG3(G4Si1) particularly good for high-current or high-speed welding applications?

Yes, SG3(G4Si1) is often formulated to provide excellent arc stability even at higher welding currents.
This characteristic, combined with its good fluidity, makes it highly suitable for high-speed automated and robotic welding applications where increased travel speeds and deposition rates are desired to maximize **welding productivity**.
It helps push the limits of efficient fabrication.

Question 8: How does SG3(G4Si1) contribute to reducing post-weld cleanup?

Its high silicon content enhances weld pool fluidity and promotes good wetting, resulting in a very smooth and clean weld bead with minimal spatter.
This significantly reduces the amount of post-weld grinding, chipping, and cleanup required, saving time and labor costs in **fabrication operations**.
It's designed for a clean finish.

Question 9: Can this wire handle heavily rusted or primed surfaces more effectively than other wires?

While no wire eliminates the need for proper surface preparation, the higher deoxidizer content in SG3(G4Si1) makes it exceptionally forgiving on surfaces with moderate to heavy rust, mill scale, or certain primers.
It actively cleans the weld pool, helping to prevent porosity and ensure sound welds where base metal preparation is challenging, improving overall **weld integrity** on less-than-perfect surfaces.

Question 10: What are typical applications where SG3(G4Si1) is the preferred choice?

SG3(G4Si1) is preferred in applications demanding high strength, excellent toughness, and superior weld quality.
This includes heavy machinery fabrication (e.g., excavators, cranes), shipbuilding, railway car construction, bridges, and critical structural components where performance under dynamic loads or low temperatures is essential.
It's a top-tier choice for **critical welding jobs**.

Question 11: Is SG3(G4Si1) suitable for multi-pass welding, especially on thick sections?

Yes, SG3(G4Si1) is exceptionally well-suited for multi-pass welding, particularly on thick sections.
Its robust chemical composition ensures consistent mechanical properties throughout multiple weld layers, and its excellent deoxidation minimizes interpass porosity.
This makes it a reliable choice for building up substantial **structural welds**.

Question 12: How does the arc stability of SG3(G4Si1) compare to standard mild steel wires?

SG3(G4Si1) generally offers superior arc stability compared to many standard mild steel wires.
Its optimized composition promotes a very smooth and consistent arc, even when welding at higher current levels or with challenging parameters.
This consistent arc helps reduce spatter and improves overall **welding control**.

Question 13: Are there different versions or manufacturers' specific formulations of SG3(G4Si1)?

While all SG3(G4Si1) wires must meet the specified chemical ranges and mechanical properties of the EN ISO standard, manufacturers may have their own proprietary formulations.
These might offer slight optimizations for specific characteristics like even lower spatter, enhanced feeding, or specialized arc characteristics.
Always consult the specific **manufacturer's data sheet** for full details.

Question 14: Can SG3(G4Si1) be used effectively with pulsed MIG welding?

Yes, SG3(G4Si1) is an excellent choice for pulsed MIG welding, especially with argon-rich shielding gases.
Pulsed MIG offers greater control over heat input, better out-of-position welding capabilities, and significantly reduces spatter.
The stable arc of SG3(G4Si1) complements the precision of **pulsed GMAW** for high-quality results.

Question 15: What are the typical wire diameters available for SG3(G4Si1)?

SG3(G4Si1) is commonly available in a range of standard wire diameters suitable for various MIG welding applications.
Typical sizes include 0.8 mm (0.030 inch), 1.0 mm (0.035 inch), 1.2 mm (0.045 inch), and 1.6 mm (1/16 inch).
The choice of **welding wire size** depends on the base metal thickness, desired current range, and deposition requirements.

Question 16: Does SG3(G4Si1) require specific preheating practices?

While SG3(G4Si1) performs well, for very thick sections, highly restrained joints, or specific types of high-strength low-alloy steels, preheating might be recommended or required by welding codes.
This helps manage cooling rates and prevent hydrogen-induced cracking, ensuring the overall **weld integrity** on critical components.
Always follow relevant welding procedures.

Question 17: How does SG3(G4Si1) contribute to overall welding efficiency?

SG3(G4Si1) contributes to efficiency through several factors: its ability to weld on less-than-perfect surfaces reduces prep time, its stable arc and low spatter minimize post-weld cleanup, and its capacity for higher currents allows for faster travel speeds and increased deposition rates.
These elements combine to boost **welding operational efficiency**.

Question 18: What are the common industry approvals associated with SG3(G4Si1)?

Beyond the EN ISO 14341-A and older DIN standards, SG3(G4Si1) often carries approvals from major classification societies for critical applications.
These can include Lloyd's Register, DNV, ABS, Bureau Veritas, and others, particularly for shipbuilding, offshore structures, and pressure vessel manufacturing, certifying its suitability for **demanding welding codes**.

Question 19: Are there any environmental or safety considerations unique to SG3(G4Si1)?

The general safety precautions for MIG welding apply: ensure adequate ventilation for fumes, wear appropriate Personal Protective Equipment (PPE), and understand electrical hazards.
While its higher Si content contributes to better deoxidation, it doesn't pose unique environmental concerns beyond those typical of other mild steel welding wires.
Always consult the **Material Safety Data Sheet (MSDS)** for specific safety information.

Question 20: Where can I obtain detailed technical data and recommendations for SG3(G4Si1)?

For comprehensive technical data, including precise chemical analysis, detailed mechanical properties (especially impact toughness values), and specific welding parameter recommendations, you should always consult the product data sheet provided by the specific welding wire manufacturer (e.g., Esab, Voestalpine Böhler Welding, Lincoln Electric).
These documents are critical for selecting the right **MIG wire** for your application.
