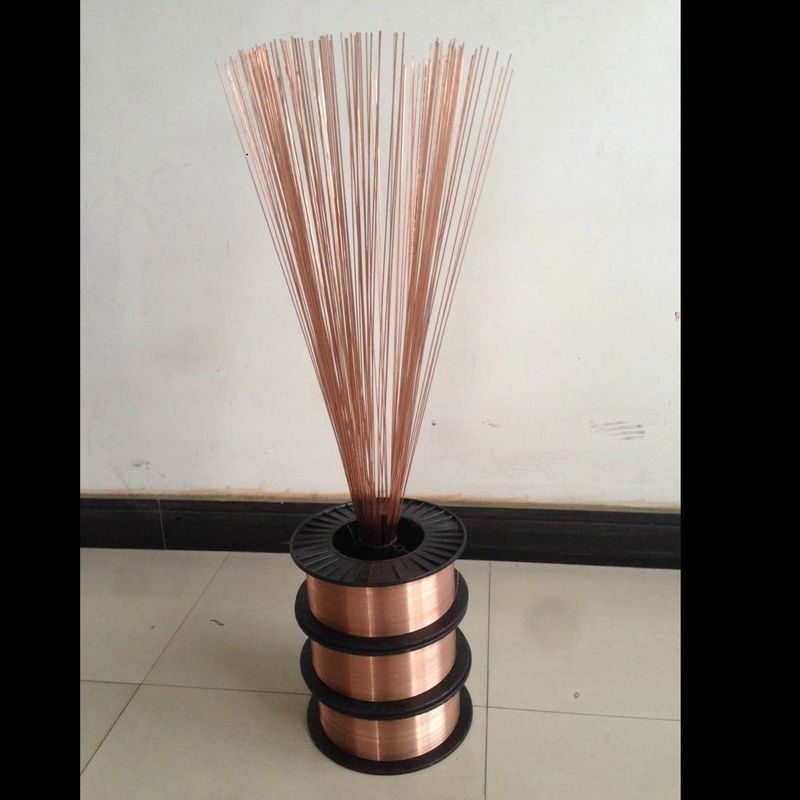

AWS A5.18 SG2(G3Si1) Mig Welding Wire

| AWS A 5.18 SG2(G3Si1) Mig Welding Wire Description

1）Cross-Standard Equivalence: The "SG2(G3Si1)" part of the classification indicates its compliance with European standards. "SG2" is an older German DIN designation for a specific mild steel welding wire, while "G3Si1" is the current EN ISO 14341-A classification. Both are widely accepted as direct equivalents to the AWS A5.18 ER70S-6 wire, meaning they share very similar chemical compositions and mechanical properties.The AWS A5.18 SG2(G3Si1) classification refers to a mild steel solid wire for Gas Metal Arc Welding (GMAW), commonly known as MIG welding. This specific designation combines European (EN ISO) and older German (DIN) standards that are widely recognized as direct equivalents to the popular AWS ER70S-6 classification. It denotes a high-quality wire primarily used for welding unalloyed and low-alloy carbon-manganese steels, offering excellent performance and robust weld metal properties.

2）Chemical Composition and Deoxidation: Like ER70S-6, SG2(G3Si1) wires typically have higher levels of manganese (Mn) and silicon (Si). These elements act as powerful deoxidizers, effectively scavenging oxygen and other impurities from the weld pool. This makes the wire highly tolerant to moderate levels of rust, mill scale, and other surface contaminants on the base metal, minimizing porosity and improving weld quality.

3）Excellent Mechanical Properties: The deposited weld metal from SG2(G3Si1) wire exhibits excellent mechanical properties. It consistently achieves a minimum tensile strength of 70,000 psi (480 MPa) and good yield strength. A notable characteristic is its robust impact toughness, even at sub-zero temperatures (often down to -30°C or -40°C), making it suitable for applications in cold environments or where low-temperature performance is critical.

4）Weld Performance and Appearance: This wire is known for its stable arc characteristics, leading to smooth wire feeding and minimal spatter. The higher silicon content contributes to a fluid weld puddle, promoting good wetting and a smooth, aesthetically pleasing weld bead appearance. This reduces post-weld cleanup and grinding, contributing to increased productivity.

5）Shielding Gas Compatibility: For optimal performance, SG2(G3Si1) wires are typically used with a shielding gas. The most common choices are 100% Carbon Dioxide (CO2) for deeper penetration and often higher deposition rates, or Argon/CO2 gas mixtures (e.g., 80% Ar / 20% CO2, or 75% Ar / 25% CO2) for a more stable arc, less spatter, and better bead control.

6）Versatile Applications: SG2(G3Si1) welding wire is a workhorse in general fabrication. Its excellent all-position welding capabilities and reliable performance make it ideal for a wide range of applications, including shipbuilding, structural steel fabrication (beams, columns), pressure vessels, automotive components, railway car manufacturing, and general repair work. It is suitable for both single and multi-pass welding on unalloyed and fine-grained structural steels.

| AWS A5.18 SG2(G3Si1) Mig Welding Wire Down Load

AWS A5.18 SG2(G3Si1) Mig Welding Wire.pdf

| AWS A5.18 SG2(G3Si1) Mig Welding Wire Data Sheet

| AWS A5.18 SG2(G3Si1) Mig Welding Wire Workshop Show

| AWS A5.18 SG2(G3Si1) Mig Welding Wire Production Video

| AWS A5.18 SG2(G3Si1) Mig Welding Wire Application

| AWS A5.18 SG2(G3Si1) Mig Welding Wire Certificate

| AWS A5.18 SG2(G3Si1) Mig Welding Wire Comment & FAQ

Question 1: What do the designations SG2 and G3Si1 mean for this welding wire?

SG2 is an older German DIN standard designation, while G3Si1 is the current European EN ISO 14341-A classification.
Both effectively denote a mild steel MIG welding wire with specific levels of silicon and manganese.
They are widely recognized as the European equivalents to the popular AWS A5.18 ER70S-6, offering consistent **welding wire properties** across international standards.

Question 2: Why is SG2(G3Si1) often referred to as the European equivalent of ER70S-6?

The reason lies in their very similar chemical compositions and resulting mechanical properties.
Both classifications specify high levels of silicon (Si) and manganese (Mn), which are crucial for effective deoxidation and achieving high-quality welds.
This makes them interchangeable for many general **MIG welding applications** globally, simplifying material selection for international projects.

Question 3: What are the key chemical elements that define SG2(G3Si1) wire?

The primary defining elements are **Silicon (Si)** and **Manganese (Mn)**.
These elements act as powerful deoxidizers, cleaning the weld puddle and preventing porosity.
Their precise percentages, though varying slightly by manufacturer, fall within ranges that ensure excellent arc stability and a clean, strong weld deposit, essential for reliable **carbon steel welding**.

Question 4: What kind of base metals is SG2(G3Si1) best suited for welding?

SG2(G3Si1) is primarily designed for welding unalloyed and fine-grained structural steels.
This includes general construction steels, shipbuilding steels, and various mild steels used in manufacturing.
Its robust deoxidizing capabilities make it an excellent choice even when welding on base metals with some surface impurities, making it a versatile **fabrication wire**.

Question 5: What is the typical tensile strength of weld metal deposited by SG2(G3Si1)?

The weld metal deposited by SG2(G3Si1) typically achieves a minimum tensile strength of 70,000 psi (480 MPa).
This strong mechanical property makes it suitable for demanding structural applications where high load-bearing capacity is required.
It consistently meets or exceeds the strength requirements for general **steel construction**.

Question 6: How does SG2(G3Si1) perform in terms of impact toughness, especially at low temperatures?

SG2(G3Si1) is renowned for its excellent impact toughness, even at sub-zero temperatures.
Many formulations provide good Charpy V-notch impact values down to -30°C or even -40°C.
This makes it a preferred choice for applications in cold climates or where the welded structure will experience low temperatures, ensuring **weld integrity** in harsh conditions.

Question 7: What are the recommended shielding gases for optimal performance with SG2(G3Si1)?

For SG2(G3Si1), the most common shielding gases are 100% Carbon Dioxide (CO2) or an Argon/CO2 gas mixture.
CO2 offers deeper penetration and higher deposition rates.
Argon/CO2 blends (e.g., 80% Ar / 20% CO2) provide a more stable arc, lower spatter, and a smoother bead appearance, making them ideal for **general MIG welding** with superior finish.
The choice depends on the specific application requirements.

Question 8: Does SG2(G3Si1) offer good arc stability and low spatter?

Yes, SG2(G3Si1) wires are well-regarded for their excellent arc stability and typically produce low spatter levels.
The carefully balanced chemical composition, particularly the silicon content, contributes to a stable arc and a fluid weld puddle, which minimizes spatter and enhances the overall **welding process efficiency**.
This results in less post-weld cleanup.

Question 9: Can SG2(G3Si1) be used for multi-pass welding applications?

Absolutely.
SG2(G3Si1) is highly suitable for multi-pass welding, especially in heavier sections.
Its robust deoxidizing capabilities help ensure clean weld metal through multiple layers, and its consistent mechanical properties are maintained from pass to pass.
This makes it a reliable choice for **thick plate welding** and structural build-ups.

Question 10: How does SG2(G3Si1) handle welding on surfaces with rust or mill scale?

Thanks to its higher manganese and silicon content, SG2(G3Si1) has excellent deoxidizing power.
This allows it to effectively cope with moderate levels of rust, mill scale, and other surface impurities on the base metal.
While optimal results are always on clean surfaces, this wire is more forgiving, reducing the need for extensive **pre-weld cleaning** and saving time.

Question 11: Is SG2(G3Si1) suitable for robotic or automated welding?

Yes, SG2(G3Si1) wires are frequently chosen for robotic and automated welding setups.
Their consistent wire feeding, stable arc, and predictable weld pool behavior contribute to high efficiency and repeatability in automated environments.
This makes them a popular choice for high-volume manufacturing and **automated fabrication lines**.

Question 12: What wire diameters are typically available for SG2(G3Si1)?

SG2(G3Si1) is available in a wide range of standard wire diameters to suit various applications and equipment.
Common sizes include 0.8 mm (0.030 inch), 1.0 mm (0.035 inch), 1.2 mm (0.045 inch), and 1.6 mm (1/16 inch), with larger sizes also available for heavy-duty applications.
Selecting the correct **MIG wire diameter** is crucial for optimal performance.

Question 13: Does SG2(G3Si1) offer good wetting characteristics?

Yes, the higher silicon content in SG2(G3Si1) contributes to excellent wetting characteristics.
This means the molten weld metal flows smoothly and spreads well onto the base material, ensuring good fusion and creating a desirable, uniform bead profile.
Good wetting minimizes cold lap and improves the overall **weld bead appearance**.

Question 14: Are there specific industry standards or approvals for SG2(G3Si1)?

Yes, beyond AWS A5.18 (as an equivalent to ER70S-6) and EN ISO 14341-A (G3Si1), this wire often carries approvals from various classification societies.
These can include Lloyd's Register, DNV, ABS, Bureau Veritas, and others, especially for shipbuilding and offshore applications.
These approvals confirm its suitability for critical **welding applications**.

Question 15: Can SG2(G3Si1) be used for pipe welding?

Yes, SG2(G3Si1) is often used for pipe welding, especially for root, hot, and fill passes on carbon steel pipes.
Its stable arc and good puddle control make it suitable for various positions encountered in pipe fabrication.
Its properties align well with the demands of **pipeline welding**, ensuring strong, defect-free joints.

Question 16: What is the typical shelf life of SG2(G3Si1) welding wire?

When stored correctly in its original, unopened packaging in a dry, temperate environment, SG2(G3Si1) wire has an extended, often indefinite, shelf life.
However, exposure to moisture, humidity, or extreme temperature fluctuations can degrade the wire's performance and lead to issues like rust or poor arc stability.
Proper **welding wire storage** is key to maintaining quality.

Question 17: How does SG2(G3Si1) contribute to overall welding productivity?

SG2(G3Si1) contributes to productivity through its stable arc, low spatter, and good wire feeding characteristics, which minimize downtime for cleanup and troubleshooting.
Its ability to weld on slightly less clean surfaces also reduces preparation time.
This all contributes to faster cycle times and improved **welding operational efficiency**.

Question 18: Is there a distinction between copper-coated and non-copper-coated SG2(G3Si1) wires?

Yes, both copper-coated and non-copper-coated versions of SG2(G3Si1) exist.
The copper coating traditionally aids in electrical conductivity and smooth wire feeding.
However, newer non-copper-coated wires are designed to offer similar performance without the environmental concerns associated with copper fumes or residue.
Both types deliver the core **SG2(G3Si1) performance**.

Question 19: Are there any specific safety considerations when using SG2(G3Si1)?

General MIG welding safety precautions apply.
Always ensure adequate ventilation to manage welding fumes, wear appropriate Personal Protective Equipment (PPE) including a welding helmet, gloves, and flame-resistant clothing, and be mindful of electrical hazards.
Review the manufacturer's Material Safety Data Sheet (MSDS) for specific guidance on **welding safety practices**.

Question 20: Where can I find specific technical data for a particular SG2(G3Si1) product?

For detailed technical specifications, always refer to the specific product data sheet provided by the welding wire manufacturer (e.g., Esab, Lincoln Electric, Voestalpine Böhler Welding).
These sheets will provide precise chemical analysis, mechanical test results, recommended parameters, and applicable industry approvals for their unique **SG2(G3Si1) formulation**.
