AWS A 5.10 ER5356 Aluminium Alloy Welding Wire

| AWS A 5.10 ER5356 Aluminium Alloy Welding Wire Description

1）Composition and Classification: AWS A5.10 ER5356 is a bare aluminum-magnesium alloy filler metal, classified under the American Welding Society (AWS) standard A5.10. Its nominal chemical composition typically includes 4.5% to 5.5% magnesium (Mg), along with controlled additions of chromium (Cr), manganese (Mn), silicon (Si), iron (Fe), copper (Cu), zinc (Zn), and titanium (Ti), with aluminum (Al) as the remainder.

2）Key Properties: This filler metal is well-regarded for its relatively high shear strength, excellent ductility, and very good corrosion resistance, especially in marine and saltwater environments. It exhibits good feedability, particularly for Gas Metal Arc Welding (GMAW/MIG), making it a versatile and widely chosen option.

3）Anodizing Characteristics: A significant advantage of ER5356 is its aesthetic compatibility with many aluminum alloys after anodizing. Welds made with ER5356 typically appear white or light gray, closely matching the color of the parent material (especially 5xxx and 6xxx series alloys), which is crucial for applications where a uniform appearance is desired.

4）Applications: ER5356 is extensively used for welding a wide range of 5xxx series aluminum alloys (such as 5050, 5052, 5083, 5086, 5154, 5356, and 5456), as well as certain 6xxx series alloys like 6061 and 6063. Its primary applications include shipbuilding, offshore structures, truck trailers, railway cars, pressure vessels, bicycles, and general fabrication where high strength and corrosion resistance are critical.

5）Welding Processes: It is suitable for both Gas Metal Arc Welding (GMAW/MIG) and Gas Tungsten Arc Welding (GTAW/TIG) processes. For MIG welding, a constant voltage (CV) power source with DCEP (Direct Current Electrode Positive) and 100% Argon or Argon/Helium shielding gas is commonly used. For TIG welding, an AC (Alternating Current) power source with high-frequency arc starting is typically employed.

6）Limitations: One important consideration for ER5356 is its unsuitability for sustained service temperatures exceeding approximately 65°C (150°F). Prolonged exposure to elevated temperatures can lead to the formation of Al2Mg precipitates at grain boundaries, which may increase susceptibility to stress corrosion cracking, thus restricting its use in high-temperature applications.

| AWS A 5.10 ER5356 Aluminium Alloy Welding Wire Down Load

AWS A 5.10 ER5356 aluminium alloy welding wire.pdf

| AWS A 5.10 ER5356 Aluminium Alloy Welding Wire Data Sheet

Standard AWS A5.10 ER5356	Chemical Composition %
	Si	Fe	Cu	Mn	Zn	Mg	Cr	Ti	AL	Other Each	Other Total
Grade ER5356	≤ 0.25	≤ 0.4	≤ 0.1	0.05 – 0.2	≤ 0.1	4.5 – 5.5	0.05 – 0.2	0.06 – 0.2	Rest	≤  0.05	≤ 0.15

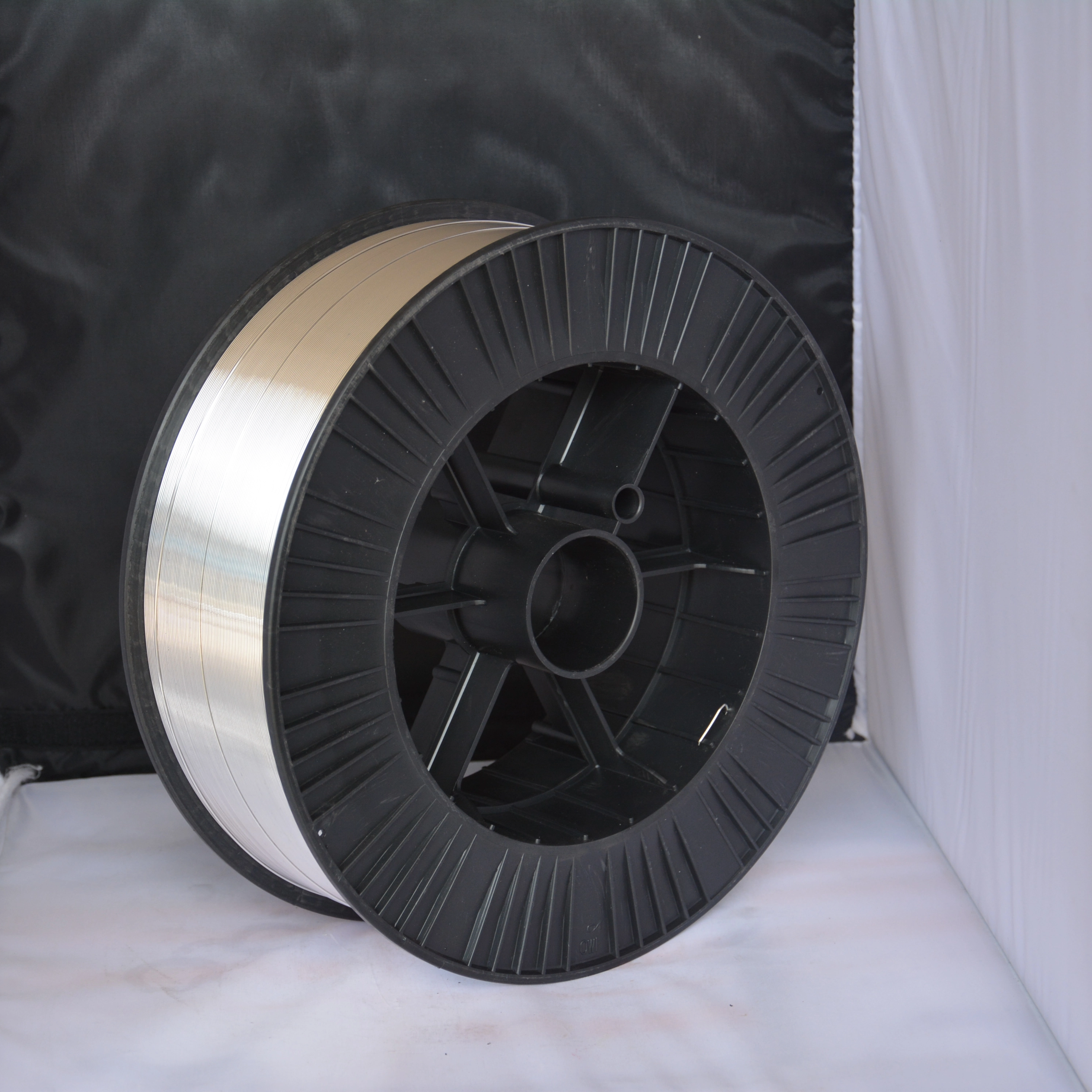

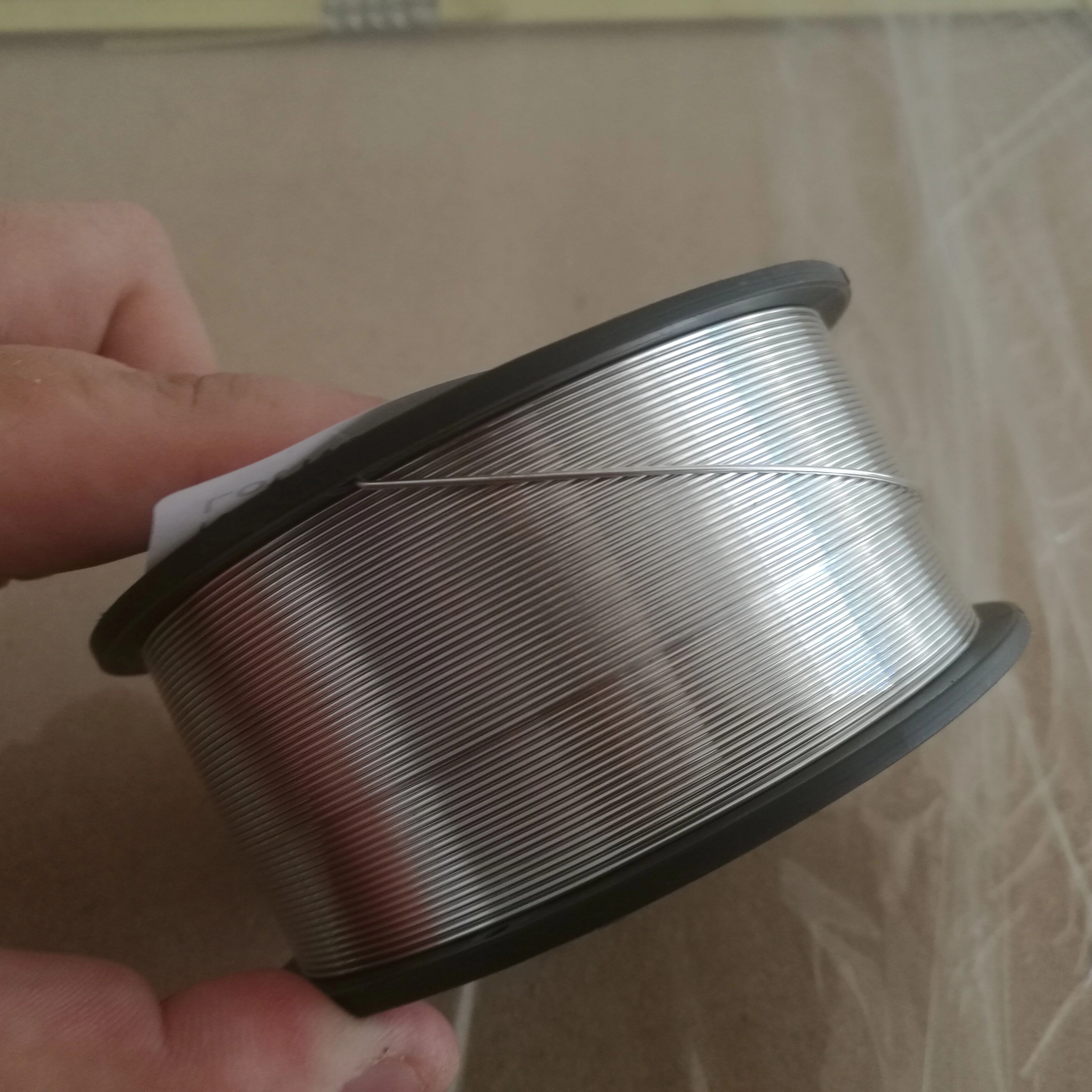

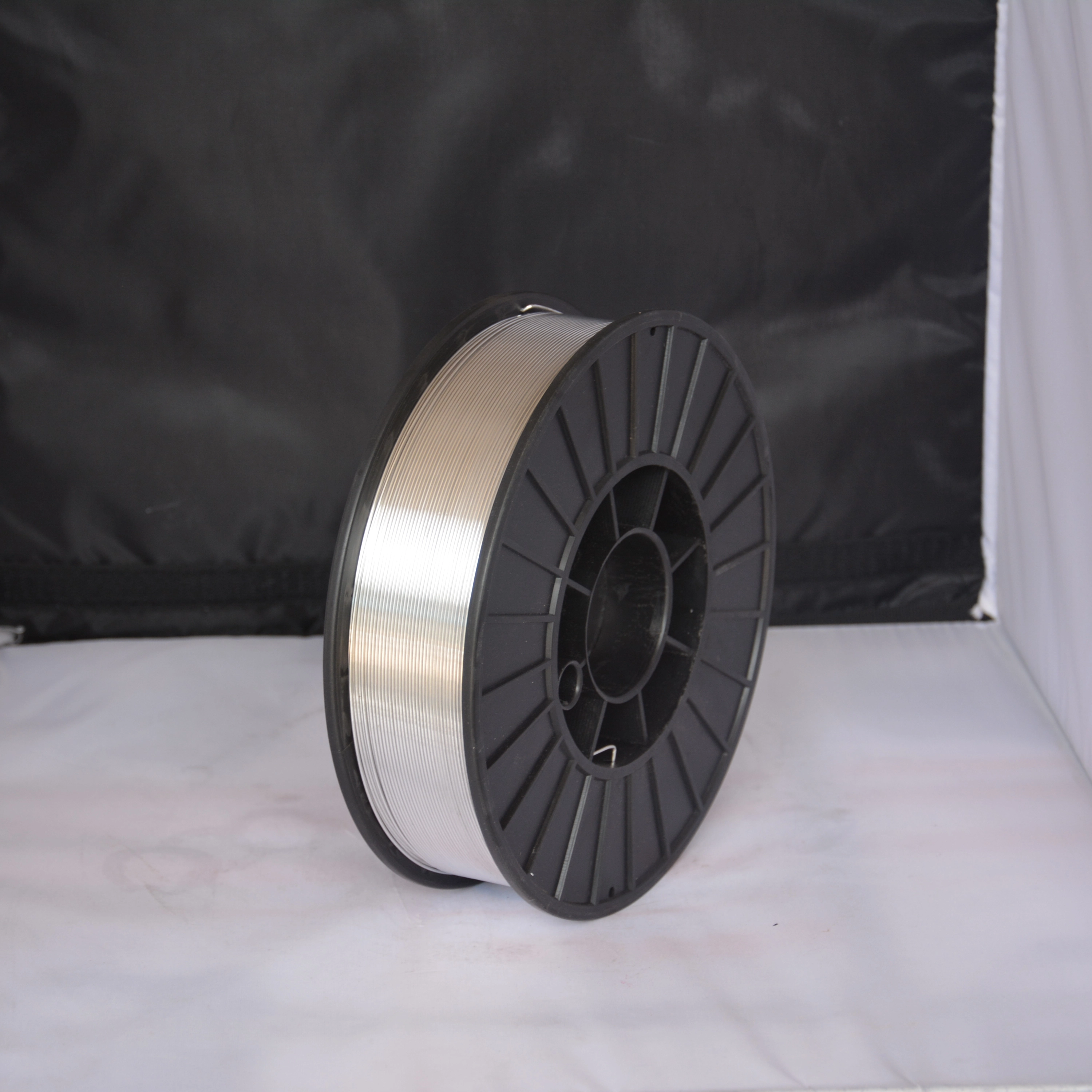

Type	Spool  (MIG)			Tube  (TIG)
Specification ( MM )	0.8、0.9、1.0、1.2、1.6、2.0			1.6、2.0、2.4、3.2、4.0、5.0

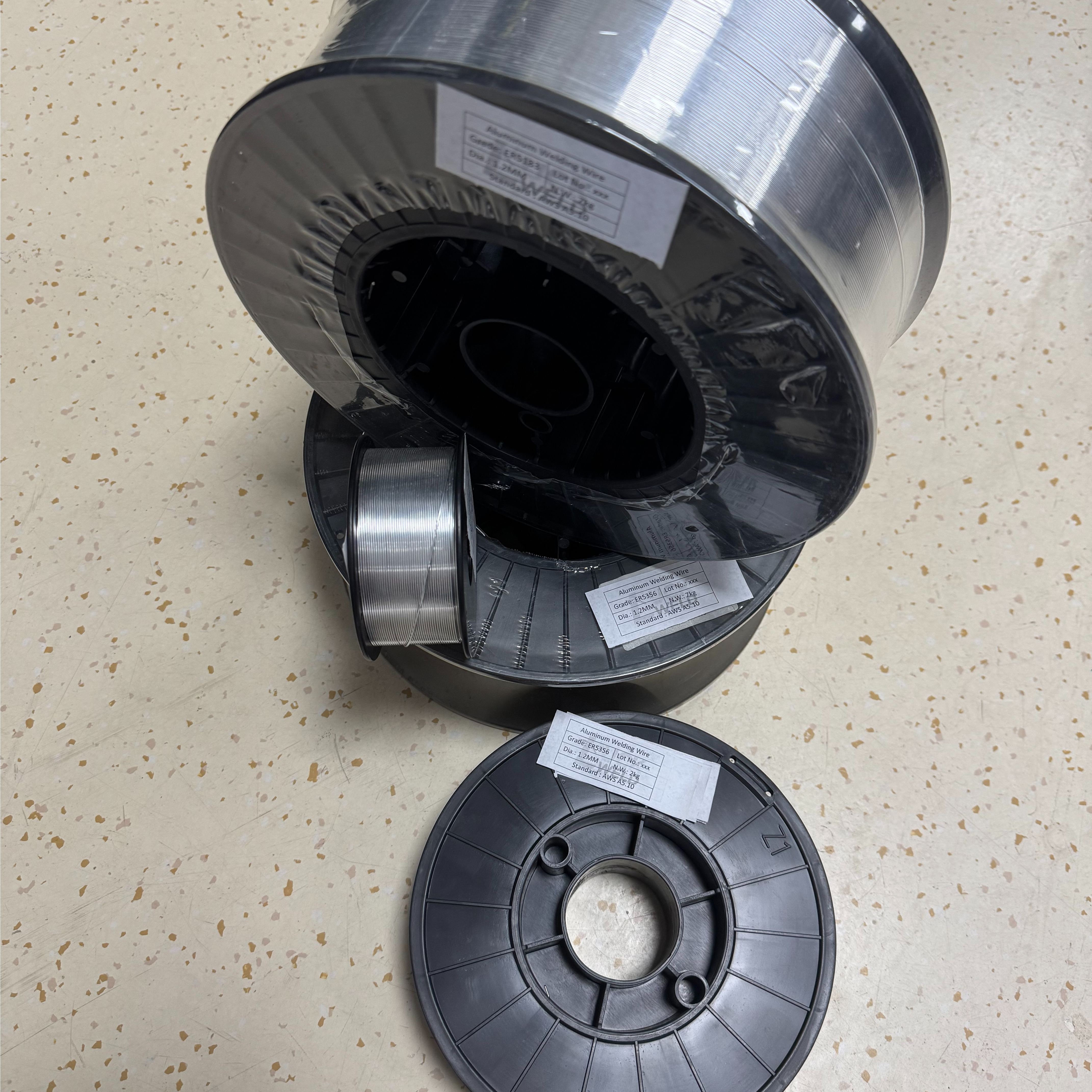

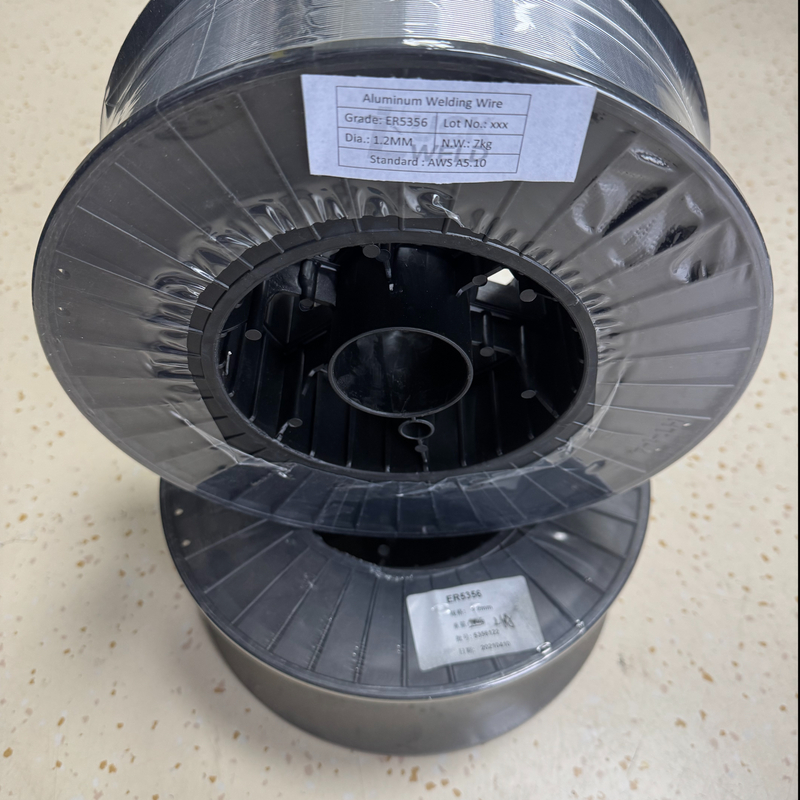

Package	S100/0.5kg          S200/2kg S270,S300/6kg-7kg    S360/20kg			5kg/box    10kg/box    length :1000MM
Mechanical Properties	Fusion Temperature ℃	Electrical IACS	Density g/mm3	Tensile Mpa	Yield Mpa	Elongation %
	574 – 638	29%	2.64	250 – 300	120 – 160	15 – 25

AWS A 5.10 ER5356 Aluminium Alloy Welding Wire Typical Welding Parameters
Diameter		Process		Volt		Amps		GAS
in	mm
0.03	0.8	GMAW		15-24		60-175		Argon (cfh)
0.035	0.9	GMAW		15-27		70-185		Argon (cfh)
0.039	1.0	GMAW		22-24		120-200		Argon (cfh)
1/25.4”
0.045	1.2	GMAW		20-29		125-260		Argon (cfh)
3/64”
1/16”	1.6	GMAW		24-30		170-300		Argon (cfh)
3/32”	2.4	GMAW		26-31		275-400		Argon (cfh)
Diameter		Process		Volt		Amps		GAS
in	mm
1/16”	1.6	GTAW		15		60-80		Argon (cfh)
3/32”	2.4	GTAW		15		125-160		Argon (cfh)
1/8”	3.2	GTAW		15		190-220		Argon (cfh)
5/32”	4.0	GTAW		15		200-300		Argon (cfh)
3/16”	4.8	GTAW		15-20		330-380		Argon (cfh)
Weight	0.5kg	1kg	2kg		5kg	7kg	9kg
	1 lb	2 lb	4 lb		11 lb	15 lb	20lb

| AWS A 5.10 ER5356 Aluminium Alloy Welding Wire Workshop Show

| AWS A 5.10 ER5356 Aluminium Alloy Welding Wire Production Video

| AWS A 5.10 ER5356 Aluminium Alloy Welding Wire Application

| AWS A 5.10 ER5356 Aluminium Alloy Welding Wire Certificate

| AWS A 5.10 ER5356 Aluminium Alloy Welding Wire Comment & FAQ

What is the defining characteristic of ER5356 aluminum welding wire?

The defining characteristic of **ER5356** is its approximately 5% magnesium content, making it a highly versatile **aluminum-magnesium alloy** filler metal. This magnesium addition is critical, as it contributes significantly to the weld's strength, ductility, and exceptional resistance to corrosion, particularly in harsh environments. It's truly a workhorse for many **aluminum welding** applications.

How does the magnesium content in ER5356 compare to other common aluminum fillers?

The 5% magnesium in **ER5356** positions it distinctly among other common **aluminum filler metals**. For instance, ER4043 contains around 5% silicon and no significant magnesium, making it silicon-based. ER5183 has a slightly higher magnesium content (4.3-5.2%), offering even greater strength for specific critical applications. This difference in magnesium content directly influences their respective mechanical properties, crack resistance, and post-anodizing appearance.

What are the primary applications where ER5356 excels?

**ER5356** truly excels in applications where good strength, excellent ductility, and superior corrosion resistance are all essential. It's a go-to choice for shipbuilding, marine components, truck bodies and trailers, railway cars, storage tanks, and general **aluminum fabrication**. Its versatility also extends to welding bicycle frames, sporting equipment, and even some architectural structures, demonstrating its broad utility across various industries that rely on robust **aluminum alloys**.

Is ER5356 a good choice for welding 6061 aluminum?

Yes, **ER5356** is one of the most common and recommended filler metals for welding **6061 aluminum alloy**. It provides good strength, excellent ductility, and satisfactory corrosion resistance for most 6061 applications. While ER4043 is also frequently used for 6061, **ER5356** generally offers higher strength welds and a better color match after anodizing, making it often preferred for structural or aesthetic **6061 projects**.

How does ER5356 perform in terms of corrosion resistance, especially in marine environments?

**ER5356** offers exceptional corrosion resistance, particularly in marine and saltwater environments. The high magnesium content is key to its ability to resist general corrosion, pitting corrosion, and stress corrosion cracking in chloride-rich conditions. This outstanding performance is why it's a staple in the shipbuilding industry and for any **aluminum structure** exposed to harsh coastal or offshore elements, where durability against the environment is paramount.

Does ER5356 offer better corrosion resistance than ER4043 in saltwater?

Yes, in general, **ER5356** provides superior corrosion resistance to saltwater compared to ER4043. The silicon in ER4043 can be more susceptible to attack in saline environments, while the magnesium in **ER5356** forms a more stable and protective oxide layer against chloride ions. This difference is a primary reason why ER5356 is the preferred **aluminum filler metal** for marine and other high-chloride exposure applications.

What are the post-anodizing characteristics of welds made with ER5356?

A significant aesthetic advantage of **ER5356 welds** is their ability to maintain a bright white or light gray color after anodizing. This provides excellent color matching with the un-welded base material, particularly for 5xxx and 6xxx series **aluminum alloys**. This uniform appearance is crucial for architectural applications, consumer products, and any **aluminum component** where a seamless visual finish is desired, avoiding the dark contrasting lines seen with silicon-rich fillers like ER4043.

Is there any scenario where the anodized color match of ER5356 might be less ideal?

While **ER5356** offers a generally excellent anodized color match, slight variations can occur depending on the specific anodizing process, the thickness of the anodic layer, and the exact alloy composition of the base metal. For extremely critical aesthetic applications, test pieces with the actual base metal and welding wire should always be anodized to confirm the desired color consistency. Minor deviations can sometimes be observed if the base metal is not a 5xxx or 6xxx series alloy.

What base metals are ideally suited for welding with ER5356?

**ER5356** is ideally suited for welding a wide array of **aluminum-magnesium alloys** in the 5xxx series, including popular choices like 5050, 5052, 5083, 5086, 5154, and 5456. It's also a very common and effective choice for joining heat-treatable 6xxx series alloys such as **6061 aluminum** and 6063. Its versatility makes it a go-to for many general-purpose **aluminum fabrication** needs where high strength and good corrosion resistance are required.

Can ER5356 be used for welding 1xxx series aluminum alloys?

While technically possible, using **ER5356** for welding 1xxx series (pure aluminum) alloys is generally not recommended. The higher strength and alloying elements of ER5356 would create a weld joint that is significantly stronger and less ductile than the soft pure aluminum base metal. This strength mismatch could lead to localized stress concentrations and potentially compromise the integrity of the **aluminum weldment**. For 1xxx series alloys, 1100 or 4043 are typically more appropriate filler metals.

What are the limitations of ER5356 regarding service temperature?

An important limitation of **ER5356** is its unsuitability for prolonged service at temperatures exceeding approximately 65°C (150°F). When exposed to sustained elevated temperatures, the magnesium in the weld metal can precipitate out, forming a beta-phase (Al8Mg5) along the grain boundaries. This phenomenon, known as sensitization, can increase susceptibility to intergranular corrosion and stress corrosion cracking, thus degrading the long-term integrity of the **aluminum weld**. For high-temperature applications, other **aluminum filler alloys** like ER4043 are preferred.

What happens if ER5356 is used in high-temperature applications despite the warning?

If **ER5356** is used in applications with prolonged exposure to temperatures above 65°C, the weld metal's mechanical properties, especially its ductility, can degrade over time. More critically, it significantly increases the risk of sensitization, making the **aluminum weldment** much more vulnerable to intergranular corrosion and stress corrosion cracking. This can lead to premature failure in critical **aluminum structures** and should be avoided to ensure long-term reliability.

Which welding processes are most commonly used with ER5356?

**ER5356** is predominantly used with Gas Metal Arc Welding (GMAW or MIG) due to its excellent feedability and high deposition rates, making it efficient for production welding. It is also widely used for Gas Tungsten Arc Welding (GTAW or TIG), where precise control and high-quality finishes are desired. Both processes require inert **shielding gas** (typically 100% Argon or Argon/Helium mixtures) to prevent atmospheric contamination and ensure sound **aluminum welds**.

Are there specific considerations for MIG welding ER5356?

When **MIG welding ER5356**, ensure your equipment is set up specifically for aluminum. This includes using U-groove drive rolls to prevent wire deformation, a nylon or Teflon liner in the gun cable to reduce friction, and an aluminum-specific contact tip (usually a size larger than the wire to prevent sticking). Use a push technique for better shielding gas coverage and maintain adequate **wire feed speed** and voltage to ensure stable arc and good bead formation. These details are critical for consistent **aluminum fabrication**.

How does the ductility of ER5356 welds benefit aluminum fabrication?

The excellent ductility of **ER5356 welds** is a significant advantage in **aluminum fabrication**. It means the weld joint can withstand a considerable amount of deformation, bending, or flexing without fracturing. This property is crucial for components that might experience dynamic loading, vibrations, or require post-weld forming operations. High ductility enhances the overall toughness and reliability of the **aluminum structure**, making it more resilient in service.

Can ER5356 welds be post-weld formed or bent?

Yes, thanks to its excellent ductility, welds made with **ER5356** can generally be post-weld formed or bent without issues, provided the base material also has sufficient formability. This makes it a versatile choice for applications where complex shapes or tight radii are required after welding. However, excessive cold working should be avoided as it can induce stresses and potentially affect the material's long-term performance, especially if it leads to sensitization in the **aluminum weldment**.

What are the best practices for cleaning ER5356 welding wire before use?

While **ER5356 welding wire** comes clean from the manufacturer, proper handling and storage are key to maintaining its pristine condition. Avoid touching the wire with bare hands, as skin oils can introduce contaminants. If the wire has been exposed to dust or mild contaminants, a clean, lint-free cloth moistened with a volatile solvent like acetone can be used to wipe it down just before feeding into the machine. Always ensure the wire is dry before welding to prevent hydrogen porosity in your **aluminum welds**.

Does new ER5356 wire always need to be cleaned?

Brand new, freshly opened spools of **ER5356 wire** generally do not require pre-cleaning, as they come from the manufacturer sealed and ready for use. However, if a spool has been opened and exposed to the shop environment for an extended period, or if there's visible dust or oil, a quick wipe with a clean cloth and solvent is a good precautionary measure. Maintaining a clean work environment and proper wire storage are the best defenses against contamination for any **welding consumable**.

How does ER5356 compare to ER4043 in terms of hot cracking resistance?

In general, **ER4043** (due to its higher silicon content creating a narrow freezing range) offers superior resistance to hot cracking, especially when welding crack-sensitive aluminum alloys like 6061. While **ER5356** has good crack resistance for its intended base metals (5xxx series), it can be more susceptible to hot cracking than ER4043 if used on certain alloys (e.g., highly constrained 6061 joints) or if inadequate **welding procedures** are employed. Careful selection based on the specific base metals and joint restraint is crucial for crack-free **aluminum welds**.

When should I prioritize hot cracking resistance over other properties?

You should prioritize hot cracking resistance, potentially leading you to choose ER4043 over ER5356, when welding highly constrained joints, thicker sections of crack-sensitive alloys (like 6061), or when dealing with complex geometries that inherently create high residual stresses upon cooling. In these scenarios, preventing a crack in the **aluminum weld** is paramount, even if it means slightly compromising on strength or anodized color match.

What are the typical mechanical properties (tensile strength, yield strength) of an ER5356 weld?

A weld made with **ER5356** typically exhibits good mechanical properties. For example, when welding 5083-112, the weld deposit might achieve a tensile strength of approximately 27 ksi (186 MPa) and a yield strength of around 15 ksi (103 MPa), along with excellent elongation (ductility). These values vary depending on the base metal, joint configuration, and **welding parameters**, but generally provide robust performance for many structural applications as outlined in **AWS A5.10 standards**.

Do the mechanical properties of ER5356 welds change over time?

The mechanical properties of **ER5356 welds** in the as-welded condition are generally stable over time under normal service temperatures. However, as previously mentioned, prolonged exposure to elevated temperatures (above 65°C / 150°F) can lead to sensitization, which might subtly alter the properties, primarily affecting corrosion resistance and potentially reducing ductility. For low-temperature applications, ER5356 welds maintain their strength and toughness exceptionally well, making them reliable for **cryogenic aluminum tanks**.

Is pre-heating necessary when welding with ER5356?

Pre-heating may be beneficial when welding with **ER5356**, particularly for thicker sections (e.g., above 1/4 inch or 6mm) or highly constrained joints. A moderate pre-heat (typically 100-150°C or 212-300°F) helps to slow the cooling rate of the weld, reducing thermal stresses and minimizing distortion. It also helps to drive off any surface moisture, which can otherwise lead to porosity in the **aluminum weld**. Always use temperature-indicating crayons or a non-contact thermometer to control pre-heat accurately for your **aluminum fabrication**.

What are the risks of excessive pre-heating with ER5356?

Excessive pre-heating with **ER5356** should be avoided. It can lead to excessive weld sag, burn-through on thinner sections, increased distortion, and a larger heat-affected zone (HAZ), which can compromise the properties of the base metal. For 5xxx series alloys, excessively high pre-heat, combined with long holding times, could also potentially contribute to the onset of sensitization in the base metal, although the weld metal is more prone to it. Controlled **welding parameters** are key for quality.

How does the choice of shielding gas flow rate impact ER5356 welds?

The **shielding gas flow rate** is critical for achieving sound **ER5356 welds**. Too low a flow rate provides insufficient shielding, allowing atmospheric contamination (oxygen, nitrogen, moisture) to enter the weld pool, leading to porosity and arc instability. Too high a flow rate can create turbulence, drawing ambient air into the gas stream, also causing porosity. Optimal flow rates depend on joint geometry, torch angle, and environmental drafts; typically, 20-35 CFH (cubic feet per hour) for MIG and 15-25 CFH for TIG are good starting points for **aluminum welding**.

Can drafts in the welding area affect ER5356 welds?

Yes, even slight drafts in the **welding area** can significantly compromise the **shielding gas** coverage for **ER5356 welds**. Aluminum's molten puddle is highly reactive, and any disturbance to the inert gas shield allows ambient air to contaminate the weld, leading to severe porosity and other defects. Welding in a draft-free environment, or using windbreaks, is highly recommended to ensure continuous and effective gas protection during **aluminum fabrication**.

What is the typical shelf life of ER5356 welding wire, and how can it be extended?

The typical shelf life of **ER5356 welding wire** stored in its original, sealed, moisture-proof packaging can be several years. Once opened, exposure to the environment begins. To extend its shelf life after opening, store partial spools or cut lengths in dry, cool conditions, ideally in re-sealable, airtight containers with desiccant packs to absorb any moisture. Protecting the wire from dust, dirt, oils, and chemical fumes is paramount for maintaining its weldability and preventing defects like porosity in future **aluminum welds**.

Can ER5356 wire "go bad" without visible contamination?

Yes, **ER5356 wire** can "go bad" without obvious visible contamination. The primary culprit is often unseen moisture absorption. Aluminum wire, particularly if left exposed in humid conditions, can absorb microscopic amounts of moisture onto its surface. When this wire is then used for welding, the moisture breaks down in the arc, releasing hydrogen into the molten weld pool, which subsequently causes severe porosity as the **aluminum weld** solidifies. This is why proper storage is so crucial, even if the wire looks clean.

What are the considerations for multi-pass welding with ER5356 on thick aluminum?

When performing multi-pass welding with **ER5356** on thick **aluminum sections**, heat management is key. Maintain appropriate interpass temperatures (typically below 150°C or 300°F) to prevent overheating the weld area, which can contribute to distortion or, in the case of ER5356, increase the risk of sensitization. Ensure thorough interpass cleaning to remove any oxide films or soot before depositing subsequent passes. Proper joint design (e.g., U-grooves) will also facilitate efficient multi-pass welding with controlled heat input, leading to a strong and reliable **aluminum weldment**.

Does ER5356 tolerate high deposition rates in multi-pass welding?

Yes, **ER5356** can tolerate relatively high deposition rates, particularly when using the MIG process in spray transfer mode. This makes it efficient for filling large grooves in thick **aluminum plates** during multi-pass welding. However, achieving high deposition rates still requires careful control of **welding parameters** to ensure adequate fusion, minimal porosity, and proper interpass cooling to maintain the integrity and desired mechanical properties of the final **aluminum weld**.

How does ER5356 perform at cryogenic temperatures?

**ER5356** generally exhibits good mechanical properties and ductility at cryogenic temperatures, although **ER5183** is often specified for the most extreme cryogenic applications (like LNG tanks) due to its slightly superior performance in that range. For many low-temperature applications, however, **ER5356** provides reliable service, maintaining its strength and toughness without becoming brittle, which is characteristic of FCC (face-centered cubic) aluminum alloys. This makes it suitable for various cold-service **aluminum structures**.

Why are some aluminum alloys better for cryogenic use than others?

The suitability of **aluminum alloys** for cryogenic use depends on their ability to maintain ductility and toughness at extremely low temperatures, resisting embrittlement. Alloys like 5xxx series (including ER5356 and ER5183) with their FCC crystal structure are inherently better than BCC metals (like many steels) that can undergo a ductile-to-brittle transition. Specific alloying elements (like magnesium and manganese) further enhance their performance by preventing detrimental phase transformations or precipitates at cryogenic temperatures, ensuring the integrity of the **cryogenic aluminum vessels**.

What are the considerations for welding dissimilar aluminum alloys with ER5356?

**ER5356** is often used for welding certain **dissimilar aluminum alloys**, particularly when joining 5xxx series to 6xxx series alloys (e.g., 5052 to 6061). Its balanced composition helps to accommodate the differing chemistries and properties. However, when welding dissimilar alloys, always refer to a **filler metal selection chart** to confirm compatibility and understand the potential for intermetallic formation or hot cracking. The resulting weld metal's properties will be a blend of the filler and diluted base metals, which might not match either parent fully.

Can ER5356 be used to weld aluminum to non-aluminum metals?

No, **ER5356** (or any aluminum filler metal) cannot be used for direct fusion welding of aluminum to non-aluminum metals such as steel, copper, or stainless steel. The fundamental metallurgical differences, including vastly different melting points and the formation of extremely brittle intermetallic compounds, make such welds impractical and prone to immediate failure. For joining aluminum to dissimilar metals, specialized techniques like friction stir welding, explosion bonding, or using mechanical fasteners or bi-metallic transition inserts are required for reliable **dissimilar metal joints**.

How does ER5356 contribute to the overall strength of an aluminum structure?

**ER5356** contributes significantly to the overall strength of an **aluminum structure** by providing a weld joint with high tensile strength and shear strength that often matches or exceeds the strength of the annealed base materials it joins. Its ability to create robust, ductile welds ensures that the joint is not the weak link in the structural design. This reliability is crucial for load-bearing **aluminum components** in diverse applications, from bridges to vehicle chassis.

Does ER5356 offer good resistance to vibratory stress?

Yes, the combination of good strength, excellent ductility, and relatively good fatigue strength makes **ER5356 welds** perform well under vibratory stress. This is particularly important for applications like truck trailers, railway cars, and marine structures where components are continuously subjected to dynamic loads and vibrations. Proper weld design, ensuring smooth transitions and minimizing stress concentrators, further enhances the **fatigue performance of aluminum welds** made with ER5356.

What quality standards should I look for when purchasing ER5356 welding wire?

When purchasing **ER5356 aluminum welding wire**, always ensure it meets **AWS A5.10 standards**. This certification guarantees the wire's chemical composition, mechanical properties, and manufacturing quality. Reputable suppliers will provide a Certificate of Conformance (CoC) or Material Test Report (MTR) with each lot, detailing the exact chemical analysis and sometimes mechanical tests. This traceability is essential for quality control and compliance, especially for critical **aluminum fabrication** projects.

Is there a difference between ER5356 and R5356?

Yes, there's a subtle but important distinction. "ER" in AWS specifications (like **ER5356**) indicates a filler metal that can be used as both an electrode (for MIG welding) and a rod (for TIG welding). "R" (like R5356) specifically denotes a bare filler rod, primarily for TIG welding. While their chemical compositions are essentially identical for a given alloy, the "ER" classification confirms its suitability for both processes, offering greater versatility for the **welder's consumables**.

How does ER5356 handle post-weld grinding and finishing?

**ER5356 welds** handle post-weld grinding and finishing very well. Its good ductility and relative softness compared to silicon-rich alloys mean it grinds smoothly without excessive smearing or loading of grinding wheels. The resulting finished surface, especially after anodizing, maintains a consistent color match with the base material, making it aesthetically pleasing. However, always use dedicated tools for **aluminum grinding** to prevent contamination from other metals.

Will grinding an ER5356 weld affect its corrosion resistance?

Grinding an **ER5356 weld** can potentially affect its local corrosion resistance if not done properly. Aggressive grinding can introduce heat, which might contribute to sensitization in the immediate surface layer if the material is then exposed to elevated temperatures. More commonly, if grinding leaves deep scratches or embedded abrasive particles, it can create sites for localized corrosion. Proper surface finishing, followed by appropriate cleaning or passivation steps if necessary, is key to maintaining the inherent corrosion resistance of the **aluminum weld**.

What are the environmental considerations for welding with ER5356?

When welding with **ER5356**, standard **aluminum welding** environmental considerations apply. Ensure excellent ventilation or local exhaust ventilation to manage welding fumes, especially given the magnesium content. Adhere to safe disposal practices for welding consumables and waste. Minimize energy consumption by optimizing **welding parameters** and equipment. Prioritizing a clean and well-ventilated **welding workshop** is crucial for both welder health and environmental responsibility.

Are there specific ventilation requirements for ER5356 due to magnesium fumes?

Yes, due to its magnesium content, **ER5356** welding produces white, dense magnesium oxide fumes. While generally considered less hazardous than some other metal fumes, prolonged exposure should be avoided. Therefore, robust ventilation systems, such as local exhaust ventilation positioned close to the arc, are highly recommended to effectively capture and remove these fumes from the welder's breathing zone. Always consult safety data sheets (SDS) and local regulations for specific **welding fume control** requirements.

Can ER5356 be used for friction stir welding (FSW)?

While **ER5356** is primarily a wire filler metal for traditional fusion welding processes (MIG/TIG), the base alloys it's designed to weld (e.g., 5083, 6061) are indeed frequently joined using **Friction Stir Welding (FSW)**. FSW is a solid-state joining process that doesn't involve melting, offering excellent mechanical properties and minimal distortion. If a filler material is used in FSW, it's typically in the form of a solid wire or rod of a compatible **aluminum alloy**, but it's fundamentally different from fusion welding filler wire like ER5356.

What are the benefits of FSW compared to fusion welding for ER5356-compatible alloys?

For **ER5356-compatible alloys**, FSW offers several benefits over fusion welding. It produces very high-strength, low-distortion welds without solidification defects like porosity or hot cracking, as no melting occurs. FSW also retains more of the base metal's original mechanical properties and typically has better fatigue performance. However, FSW requires specialized, often more expensive equipment, and is primarily suitable for linear or curvilinear joints, making it a distinct process from conventional **aluminum arc welding** with ER5356.

What considerations apply to managing residual stresses in ER5356 welds?

Managing **residual stresses** in **ER5356 welds** is important, especially for critical **aluminum structures**. While ER5356 offers good ductility to accommodate some stress, excessive residual stresses can lead to distortion, premature fatigue, or increased susceptibility to stress corrosion cracking (if sensitization occurs). Strategies include using balanced **welding procedures**, controlling heat input, proper clamping and fixturing, employing back-stepping techniques, and in some cases, post-weld mechanical peening or low-temperature stress relief treatments to minimize these stresses.

Can peening improve fatigue life for ER5356 welds?

Yes, controlled mechanical peening (hammering or shot peening) can often improve the fatigue life of **ER5356 welds**. Peening introduces compressive residual stresses into the surface of the weld, which can counteract the tensile stresses that typically initiate fatigue cracks. This technique is particularly beneficial in areas prone to stress concentrations and can enhance the overall durability of **aluminum components** subjected to cyclical loading, extending the **fatigue life of aluminum welds**.

How does the purity of the base metal affect ER5356 weld quality?

The purity and cleanliness of the base metal significantly influence **ER5356 weld quality**. Contaminants like dirt, oil, moisture, or heavy oxide layers on the base metal can introduce impurities into the weld pool, leading to defects such as porosity, inclusions, or lack of fusion. Even trace amounts of certain elements in the base metal, if incompatible with the ER5356 chemistry, can sometimes lead to cracking. Starting with clean, high-quality **aluminum plates or extrusions** is a non-negotiable step for achieving sound and reliable **aluminum welds**.

What are the signs of base metal contamination during ER5356 welding?

Signs of base metal contamination during **ER5356 welding** can include excessive smoking or fuming, a turbulent or erratic arc, severe porosity in the weld bead, inconsistent penetration, or a dirty, sooty appearance of the weld. If the contamination is severe, it can even lead to lack of fusion or cracking. Proper **pre-weld cleaning** and visual inspection of the base material are crucial preventative measures for high-quality **aluminum fabrication**.

What are the typical amperage ranges for TIG welding with ER5356?

The typical **amperage ranges for TIG welding with ER5356** vary widely depending on the material thickness, joint configuration, and tungsten electrode diameter. For thin material (e.g., 1/16 inch), you might use 60-100 amps, while for thicker sections (e.g., 1/4 inch), it could range from 150-250 amps or more. Always use an AC power source with high-frequency start. Refer to manufacturer guidelines and **welding charts** as a starting point, then fine-tune for optimal penetration and bead appearance for your specific **aluminum welding project**.

How does tungsten electrode selection impact TIG welding ER5356?

Tungsten electrode selection is critical for **TIG welding ER5356**. Zirconiated (brown tip) or Lanthanated (black or gold tip) tungstens are common choices for AC welding aluminum due to their excellent arc stability and ability to maintain a balled tip without excessive consumption. The diameter of the tungsten electrode must be matched to the amperage range to prevent overheating or arc instability. Proper grinding and preparation of the tungsten tip also directly affect arc focus and penetration for clean **aluminum welds**.

Is ER5356 suitable for automated or robotic aluminum welding?

Yes, **ER5356** is highly suitable for automated and robotic **aluminum welding** processes, particularly with MIG. Its excellent feedability, consistent wire diameter, and stable arc characteristics make it an ideal choice for high-volume, repetitive tasks. Robotics and automation can leverage ER5356's properties to achieve very high deposition rates, consistent weld quality, and improved productivity in **aluminum fabrication** lines, especially for long, continuous welds found in truck trailers or railway cars.

What benefits does automation offer for welding with ER5356?

Automation brings numerous benefits to welding with **ER5356**, including significantly increased productivity, higher deposition rates, and superior weld consistency compared to manual welding. It also leads to more uniform mechanical properties and reduced distortion due to precise control over **welding parameters** and travel speed. Automation can minimize human error and exposure to fumes, improving both product quality and **welding workshop** safety.

What are the considerations for welding painted or coated aluminum with ER5356?

Welding painted or coated **aluminum with ER5356** is strongly discouraged. The coatings will burn off, creating excessive fumes, contaminating the weld pool, and leading to severe porosity, inclusions, and lack of fusion. Before welding, all paint, anodize, or other coatings must be completely removed from the weld area and several inches beyond using mechanical (grinding, wire brushing) or chemical methods. Proper pre-cleaning is paramount for achieving sound and reliable **aluminum welds**.

Can I just burn off the paint with the arc while welding?

No, attempting to "burn off" paint or coatings with the welding arc itself is a recipe for disaster when using **ER5356**. This practice will introduce contaminants directly into the molten **aluminum weld**, resulting in severe porosity, trapped oxides, and potentially toxic fumes. It will compromise the mechanical integrity and corrosion resistance of the weld, leading to a weak and defective **aluminum structure**. Thorough pre-cleaning is the only acceptable method.

How does the quality of the drive rolls affect ER5356 wire feeding?

The quality and type of **drive rolls** are critical for smooth feeding of **ER5356 welding wire**. Aluminum wire is soft and can easily deform, leading to birdnesting or erratic feeding. You must use U-groove drive rolls that cradle the wire, rather than V-groove rolls that can pinch and deform it. Ensure the drive roll tension is set correctly – too loose leads to slipping, too tight deforms the wire. Using **aluminum-specific drive rolls** prevents feeding issues and ensures consistent wire delivery for your **MIG welding setup**.

What are the signs of incorrect drive roll tension for ER5356?

Signs of incorrect drive roll tension when feeding **ER5356** include erratic wire feeding (too loose), or excessive wire shaving and deformation (too tight). If the tension is too loose, the wire might slip, causing inconsistent wire feed speed and arc instability. If it's too tight, you'll see aluminum shavings around the drive rolls and potentially poor arc starting. Proper tension should allow you to lightly grip the wire just beyond the drive rolls and stop it from feeding without causing severe deformation, ensuring a smooth **welding process**.

What are the recommended shielding gas delivery systems for ER5356?

For **ER5356 welding**, a dedicated, clean **shielding gas** delivery system is essential. This includes high-purity argon (or argon/helium mixture) in the cylinder, a flowmeter with a correct flow ball for accurate measurement, and high-quality, leak-free hoses. Avoid using hoses that have previously carried other gases (e.g., CO2 for steel welding), as residual contaminants can affect aluminum welds. Ensure the torch's gas lens and cup are clean and appropriate for the application, guaranteeing consistent **gas coverage** for your **aluminum fabrication**.

How often should I check for leaks in my shielding gas system?

You should check for leaks in your **shielding gas system** regularly, especially before welding critical **aluminum components** with **ER5356**. A quick check involves listening for hissing sounds, or using a leak detection spray on all connections (cylinder, regulator, flowmeter, hose fittings, torch connections) with gas flowing. Even small, undetected leaks can lead to significant porosity and compromise the integrity of your **aluminum welds**, making routine checks a vital part of quality control.

Is ER5356 suitable for heavy section aluminum welding?

Yes, **ER5356** is highly suitable for heavy section **aluminum welding**, especially with the MIG process. Its good fluidity and high strength make it effective for filling large grooves in thick plates. For very thick sections, pulsed MIG or TIG with Argon/Helium mixtures can further enhance penetration and reduce the number of passes required. Proper pre-heating is also beneficial for heavy sections to ensure adequate fusion and minimize distortion in the **aluminum structure**.

What are the challenges of welding heavy aluminum sections with ER5356?

Welding heavy **aluminum sections** with **ER5356** presents challenges such as managing high heat input to prevent distortion and maintaining interpass temperature control. Achieving full penetration and minimizing porosity across thick sections requires precise **welding parameters** and potentially specialized joint designs. The rapid heat dissipation of aluminum also means maintaining the weld puddle can be demanding, but ER5356's properties are well-suited to overcome these challenges with experienced **aluminum welders**.

How does the cleanliness of the shop environment affect ER5356 welding?

A clean shop environment is paramount for **ER5356 welding**. Dust, dirt, oil mists, and other airborne contaminants can settle on the wire or base metal, leading to severe porosity and other weld defects. Keeping the work area, welding equipment, and especially the **aluminum materials** themselves meticulously clean significantly reduces the risk of contamination and ensures high-quality, defect-free **aluminum welds**. Think of it as a cleanroom approach to your **aluminum fabrication**.

Should I wear gloves when handling ER5356 wire or aluminum base metal?

Yes, absolutely. Always wear clean gloves (preferably lint-free cotton or specialized welding gloves) when handling **ER5356 welding wire** and **aluminum base metal**. Skin oils, dirt, and moisture from your hands can easily transfer to the material, leading to hydrogen porosity and other contamination-related weld defects. Maintaining pristine cleanliness from start to finish is a fundamental best practice for achieving sound **aluminum welds**.

What is the typical shelf life of ER5356 filler rods (cut lengths) compared to spooled wire?

The typical shelf life of **ER5356 filler rods (cut lengths)** is similar to that of spooled wire when stored in proper, sealed, moisture-proof packaging. However, once opened, filler rods might be more susceptible to surface contamination if left exposed, as they are often handled more directly than spooled wire fed through a machine. To extend their life, store unused rods in dedicated, sealed tubes or containers with desiccants, protecting them from moisture, dust, and handling contamination for reliable **TIG welding of aluminum**.

Are there any visual cues that ER5356 wire or rods are contaminated?

Sometimes, but not always. Visually, **ER5356 wire** or rods might show signs of contamination like a dull, discolored, or powdery surface if oxidized, or visible oil/grease residue. However, microscopic moisture absorption, which is a major cause of porosity, is often invisible. This is why strict adherence to storage and handling protocols is crucial, even when the **aluminum welding consumables** appear clean to the naked eye. If in doubt, err on the side of cleaning.

How does ER5356 affect the post-weld strength of heat-treated aluminum alloys (e.g., 6061-T6)?

When **ER5356** is used to weld a heat-treated alloy like **6061-T6**, the weld metal itself will not achieve the T6 strength of the base material because ER5356 is a non-heat-treatable alloy. The heat from welding will also cause a reduction in strength (annealing) in the heat-affected zone (HAZ) of the 6061-T6 base metal. Therefore, the overall strength of the **aluminum weldment** will be governed by the strength of the as-welded ER5356 filler metal and the properties of the HAZ, which should be considered in design.

Can a post-weld solution heat treatment restore strength to the HAZ when using ER5356?

A post-weld solution heat treatment *can* restore some strength to the heat-affected zone (HAZ) of the **6061-T6 base metal** by re-dissolving precipitates and allowing for subsequent artificial aging. However, the **ER5356 weld metal** itself will not respond to this heat treatment for strengthening. Furthermore, such heat treatments can cause distortion and are often not practical for large **aluminum structures**. Therefore, the design typically accounts for the as-welded strength of the entire joint.

What are the benefits of using pulsed TIG when welding with ER5356?

Pulsed TIG welding offers several benefits when working with **ER5356**, especially for thinner materials or precise applications. It provides enhanced control over heat input, minimizing distortion and burn-through. The pulsing action helps to agitate the weld puddle, improving wetting and reducing porosity. It also results in a more focused arc, allowing for better penetration control and a cleaner, more refined weld bead appearance. This technique truly elevates the quality of **aluminum TIG welds**.

Does pulsed TIG help with out-of-position welding of ER5356?

Yes, pulsed TIG significantly aids in out-of-position welding of **ER5356**. The ability to cycle between high peak current (for melting and penetration) and low background current (for puddle solidification) gives the welder much greater control over the molten puddle. This makes it easier to manage the forces of gravity, allowing for cleaner and more consistent welds in vertical-up, horizontal, and overhead positions, which can be challenging with conventional **aluminum TIG welding**.

How does ER5356 perform in terms of weldability compared to ER5183?

In terms of general weldability, **ER5356** is often considered to have slightly better overall characteristics than ER5183, primarily due to its slightly lower magnesium content. This can sometimes lead to slightly less susceptibility to microfissuring in certain highly constrained joint designs, though both are excellent in this regard compared to many other alloys. ER5356 also tends to be more forgiving with variations in **welding parameters**. However, for ultimate strength and specific cryogenic performance, ER5183 holds a slight edge. The choice often comes down to balancing these trade-offs for your specific **aluminum fabrication** needs.

Is ER5356 more prone to weld hot cracking than ER5183?

No, generally **ER5356** is not more prone to weld hot cracking than ER5183. Both are high-magnesium alloys and exhibit very good resistance to hot cracking, especially when compared to silicon-rich alloys on certain base materials. However, slight differences in specific base metal combinations or highly restrained joints might show subtle variations. Ultimately, proper **welding procedures**, joint design, and heat input control are the most significant factors in preventing hot cracking for both **ER5356** and ER5183.

What are the considerations for minimizing distortion when welding with ER5356?

Minimizing distortion when welding with **ER5356** involves several key considerations due to aluminum's high thermal expansion. Use the lowest practical heat input, employ balanced **welding procedures** (e.g., skip welding, back-stepping), ensure robust clamping and fixturing, and utilize proper joint design. For thicker materials, controlled pre-heat can also help. Strategic cooling methods can sometimes be employed, but careful planning before welding is the most effective way to control distortion in **aluminum structures**.

Does the welding sequence impact distortion when using ER5356?

Yes, the **welding sequence** significantly impacts distortion when using **ER5356**. A well-planned sequence helps to balance the heat input and manage the shrinkage forces across the **aluminum weldment**. Techniques like starting welds at the center and working outwards, or using symmetrical weld patterns, can help distribute heat more evenly and minimize cumulative distortion. For complex **aluminum fabrication**, developing and adhering to a detailed welding sequence is crucial for dimensional accuracy.

Can ER5356 be used for applications requiring vacuum tightness?

Yes, **ER5356** can be used for applications requiring **vacuum tightness**, provided proper **welding procedures** are followed meticulously. The key challenge is preventing porosity, as any internal voids would compromise vacuum integrity. This requires extremely clean base metal and filler wire, high-purity shielding gas, optimal **welding parameters** (especially wire feed speed and voltage for MIG, or current and travel speed for TIG), and careful joint design to ensure full penetration without defects. Non-destructive testing (NDT) like helium leak testing is typically required for verification in such critical **aluminum vacuum components**.

What role does porosity play in vacuum tightness?

Porosity is the primary enemy of **vacuum tightness** in **ER5356 welds**. Any microscopic gas pockets or channels within the weld metal will act as leakage paths, preventing the system from holding a vacuum. Therefore, rigorous measures to eliminate hydrogen (from moisture or contamination) and ensure proper gas shielding are absolutely critical when fabricating **aluminum vacuum chambers** or similar components, making porosity prevention the number one priority.

What are the general safety precautions for using ER5356 welding wire?

General **welding safety precautions** apply when using **ER5356**. Always ensure adequate ventilation to manage welding fumes (especially magnesium oxide), wear appropriate Personal Protective Equipment (PPE) including a welding helmet (proper shade for aluminum's intense arc), flame-retardant clothing, and gloves. Be aware of electrical hazards, fire risks, and the intense UV radiation. Always follow manufacturer guidelines, consult the **Safety Data Sheet (SDS)** for ER5356, and adhere to all local **welding safety standards** to ensure a safe working environment.

Is arc flash a significant concern when welding aluminum with ER5356?

Yes, **arc flash** is a significant concern when welding **aluminum with ER5356**, or any aluminum alloy. Aluminum welding typically requires higher amperages and produces a very bright arc with intense UV radiation. This UV light can cause "welder's flash" (photokeratitis) or even skin burns. Always use a welding helmet with an appropriate auto-darkening shade setting (typically higher shades than for steel) and wear full-body protective clothing to shield yourself from the radiant energy during **aluminum welding processes**.

How does the surface finish of ER5356 wire affect feedability and arc stability?

The **surface finish** of **ER5356 welding wire** plays a crucial role in both feedability and arc stability. A smooth, clean surface with minimal drawing lubricants ensures consistent feeding through the gun liner and contact tip, minimizing friction and preventing wire shaving. A consistent, bright surface also contributes to stable arc initiation and consistent arc voltage during **MIG welding**, leading to a smoother and more reliable welding process and higher quality **aluminum welds**. Reputable manufacturers ensure a high-quality finish for their **welding consumables**.

Can I lubricate the ER5356 wire to improve feedability?

No, you should never lubricate **ER5356 wire** or any aluminum welding wire with oil, grease, or commercial lubricants. These substances are organic contaminants that will break down in the welding arc, introducing hydrogen and carbon into the weld metal. This will lead to severe porosity, embrittlement, and other defects in your **aluminum weld**. If feeding issues persist, inspect your drive rolls, liner, contact tip, and gun cable for correct setup and cleanliness, rather than resorting to lubricants.
